WIPERS AND WASHERS

9

REPAIR

13. Fit wheelboxes to bulkhead.
14. Fit drive tubes to wheelboxes.
15. Feed drive rack through tubes until fully seated

in both wheelboxes.

16. Secure drive tube nut to wiper motor.
17. Fit wiper motor strap and earth lead.
18. When all components are correctly aligned, fully

tighten wheelboxes nuts to secure drive tubes.
Tighten wheelbox to bulkhead nuts.

19. Fully tighten drive tube nut to wiper motor and

motor strap screws.

20. Connect multiplug to wiper motor and earth lead

to strap tag.

21. Fit spacer, where used, early vehicles only.
22. Fit wiper arm adaptors.
23. Reconnect battery and check operation of wiper

motor and drive assembly and wheelboxes.

24. Disconnect battery.
25. Fit steering column upper and lower supports.

Tighten fixings to correct torque.

26. Fit demister vent top duct.
27. Secure RH demister vent and hose.
28. Fit LH and RH demister vents to ducts.
29. Fit centre and LH fascia top crash rail support

brackets.

30. Fit all other components removed to gain access

to wiper motor and wheelboxes.

31. Reconnect battery, check wiper motor operation

again and adjust wiper arms, if necessary.

REAR WIPER MOTOR

Service repair no - 84.35.12

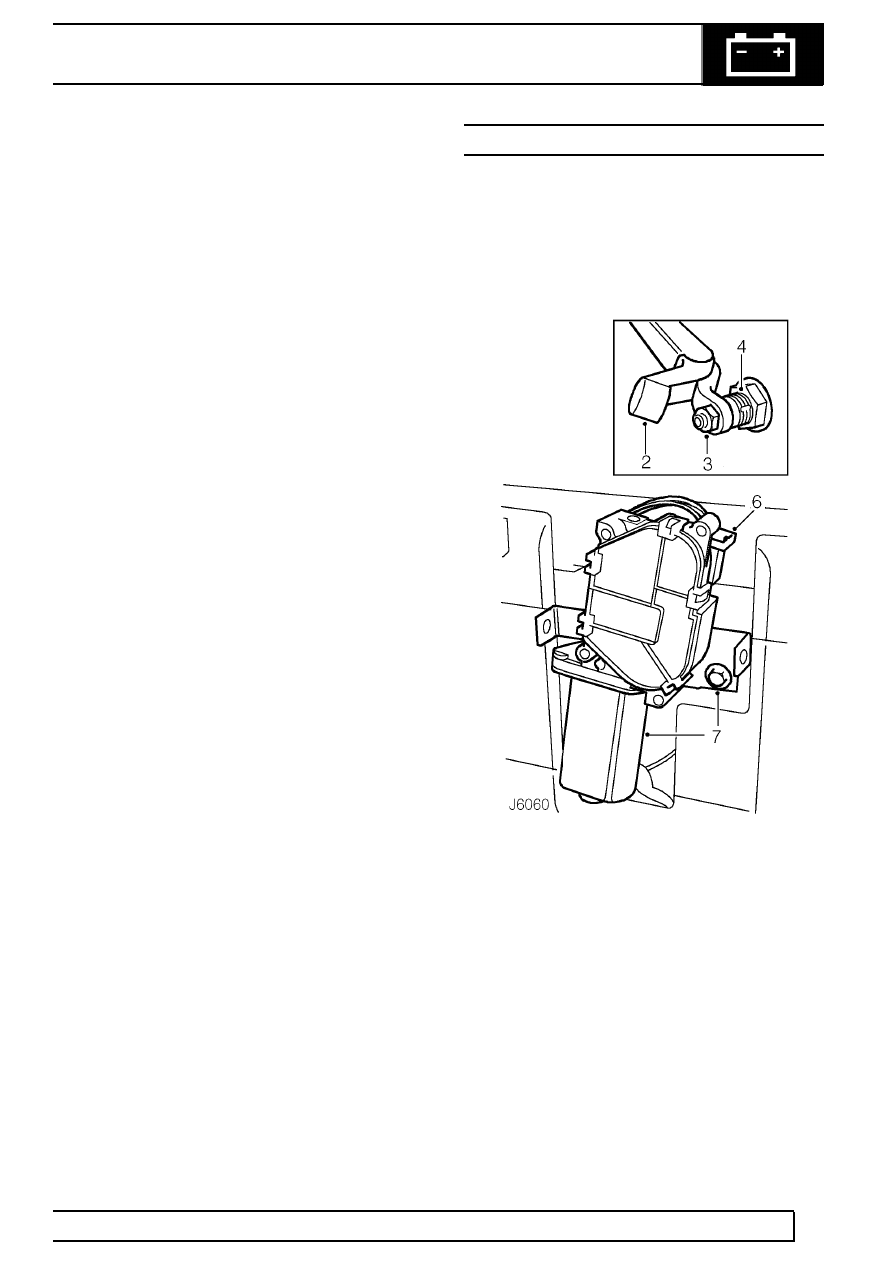

Remove

1. With assistance, unscrew 3 retaining nuts and

remove spare wheel from rear door mounting
studs.

2. Lift wiper arm end cap to gain access to securing

nut.

3. Remove nut and withdraw wiper arm from drive

spindle.

4. Remove retaining nut, plain washer and rubber

washer securing wiper motor drive spindle to
door.

5. Remove 2 screws and remove cover from wiper

motor mounting bracket.

6. Disconnect wiper motor harness multi-plug.
7. Remove bolt, with rubber washer, and detach

wiper motor, complete with mounting bracket,
from rear door.

84

WIPERS AND WASHERS

10

REPAIR

Refit

8. Locate wiper motor drive spindle through

aperture in rear door.

9. Position wiper motor mounting bracket and

secure to rear door. Tighten bolt to

23 Nm (17

lbf/ft).

10. Reconnect harness multi-plug.
11. Secure drive spindle to door.
12. Fit wiper motor cover.
13. Fit rear wiper arm.
14. Fit spare wheel. Tighten retaining nuts to

130Nm

(96 lbf/ft).

WIPERS AND WASHERS

1

OVERHAUL

WIPER MOTOR

Service repair no - 84.15.18.

Dismantle

1. Remove wiper motor from vehicle

See Repair,

Wiper motor and drive rack.

2. Remove wiper motor gearbox cover.
3. Remove circlip and plain washer securing

connecting rod.

4. Withdraw connecting rod.
5. Withdraw flat washer.
6. Remove circlip and washer securing shaft and

gear.

7. Clean any burrs from gear shaft and withdraw

gear.

8. Withdraw dished washer.
9. Add alignment marks to yoke and gearbox for

reassembly.

10. Remove yoke securing bolts.

11. Withdraw yoke and armature.
12. Remove brush gear assembly.
13. Remove limit switch.

Inspection and test

14. Check brushes for excessive wear, if they are

worn to 4,8 mm in length, fit a new brush gear
assembly.

15. Using a push type gauge, check that brush

spring pressure is 140 to 200 g when bottom of
brush is level with bottom of slot in brush box. Fit
a new brush gear assembly if springs are not
satisfactory.

16. Test armature for insulation and open- or

short-circuits. Use a 110 V 15 W test lamp. Fit a
new armature if faulty.

17. Examine gear wheel for damage or excessive

wear.

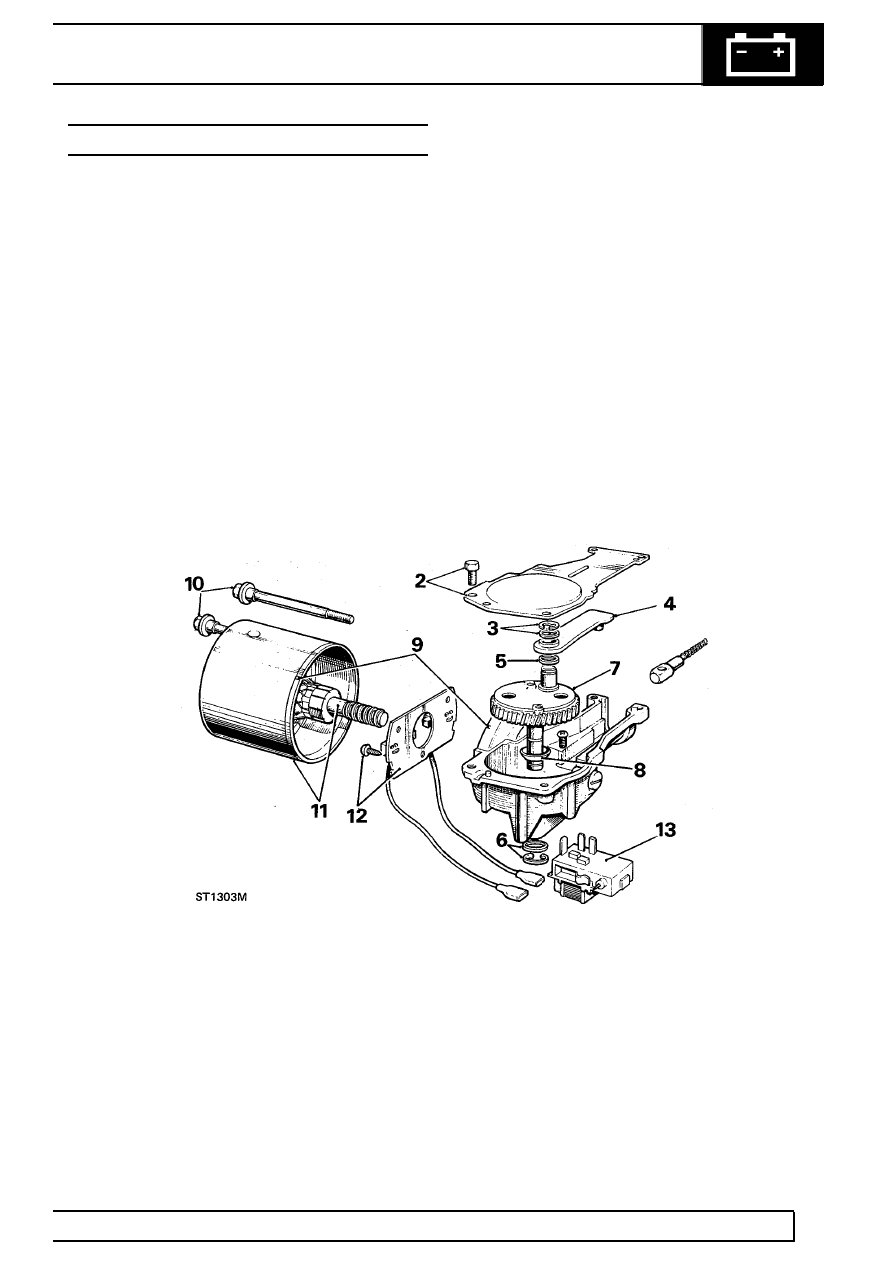

Key to wiper motor components

1. Flexible drive
2. Gearbox cover
3. Connecting-rod retaining washer and circlip
4. Connecting-rod
5. Flat washer
6. Gear shaft retaining washer and circlip
7. Drive gear

8. Dished washer
9. Alignment marks - yoke to body

10. Yoke securing bolts
11. Armature and yoke
12. Brush gear assembly
13. Limit switch

84

WIPERS AND WASHERS

2

OVERHAUL

Assemble

Use Ragosine Listate Grease to lubricate gear wheel
teeth, armature shaft worm gear, connecting rod and
pin, cable rack and wheelbox gear wheels.

Use Shell Turbo 41 oil sparingly to lubricate bearing
bushes, armature shaft bearing journals, gear wheel
shaft and wheelbox spindles. Thoroughly soak felt
washer in yoke bearing with oil.

18. Fit limit switch.
19. Fit brush gear assembly.

20. Fit armature and yoke to gearbox using

alignment marks, secure with yoke retaining
bolts tightening to

23 Nm (17 lbf/ft). If a

replacement armature is being fitted slacken
thrust screw to provide end-float for fitting yoke.

21. Fit dished washer beneath gear wheel with

concave side towards gear wheel.

22. Fit gear wheel to gearbox.
23. Secure gear wheel shaft with plain washer and

circlip.

24. Fit larger flat washer over crankpin.
25. Fit connecting rod and secure with smaller plain

washer and circlip.

26. Fit gearbox cover and secure with retaining

screws.

27. Connect electrical leads between wiper motor

and limit switch.

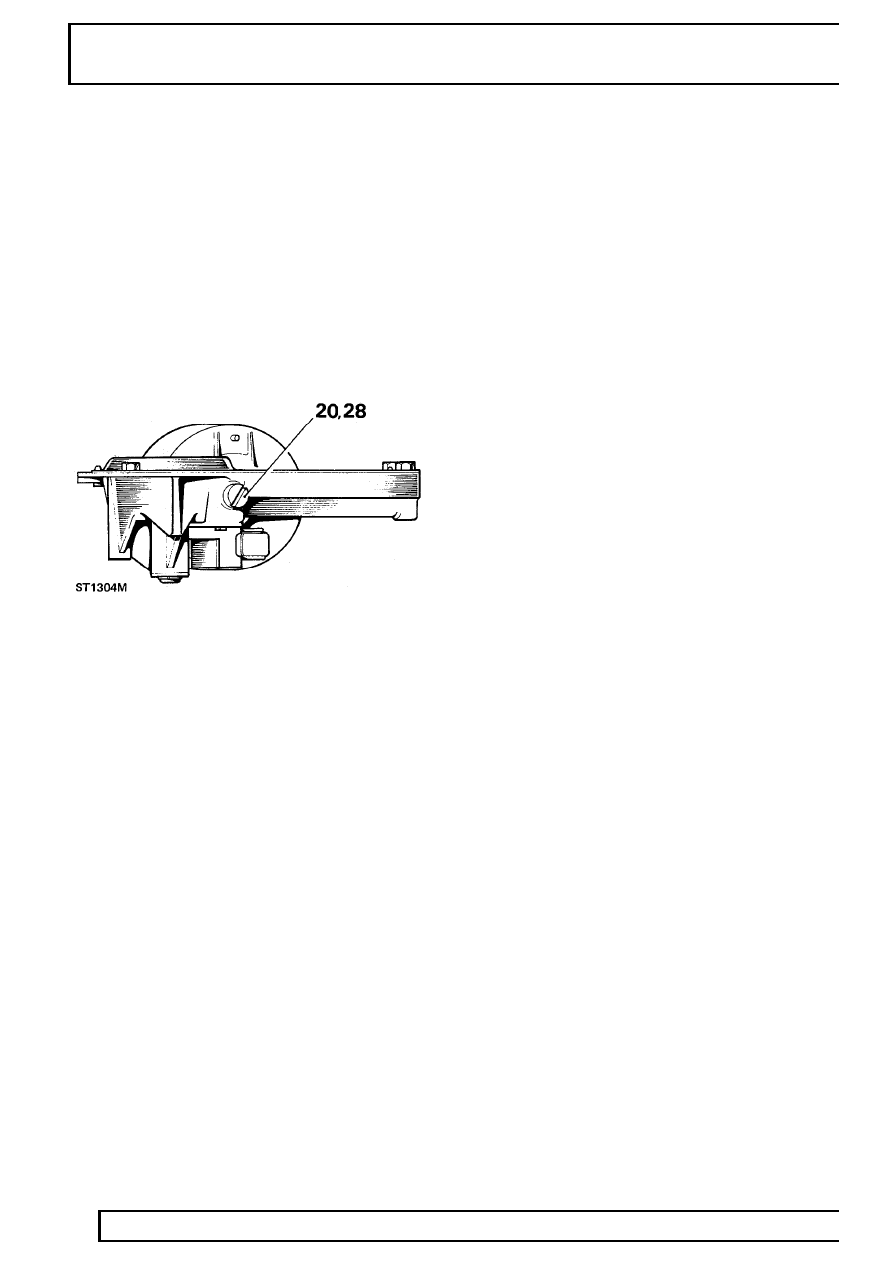

28. To adjust armature shaft end-float, hold yoke

vertically with adjuster screw uppermost.
Carefully screw in adjuster until resistance is felt,
then back-off one quarter turn.
