FRONT AXLE AND FINAL DRIVE

1

REPAIR

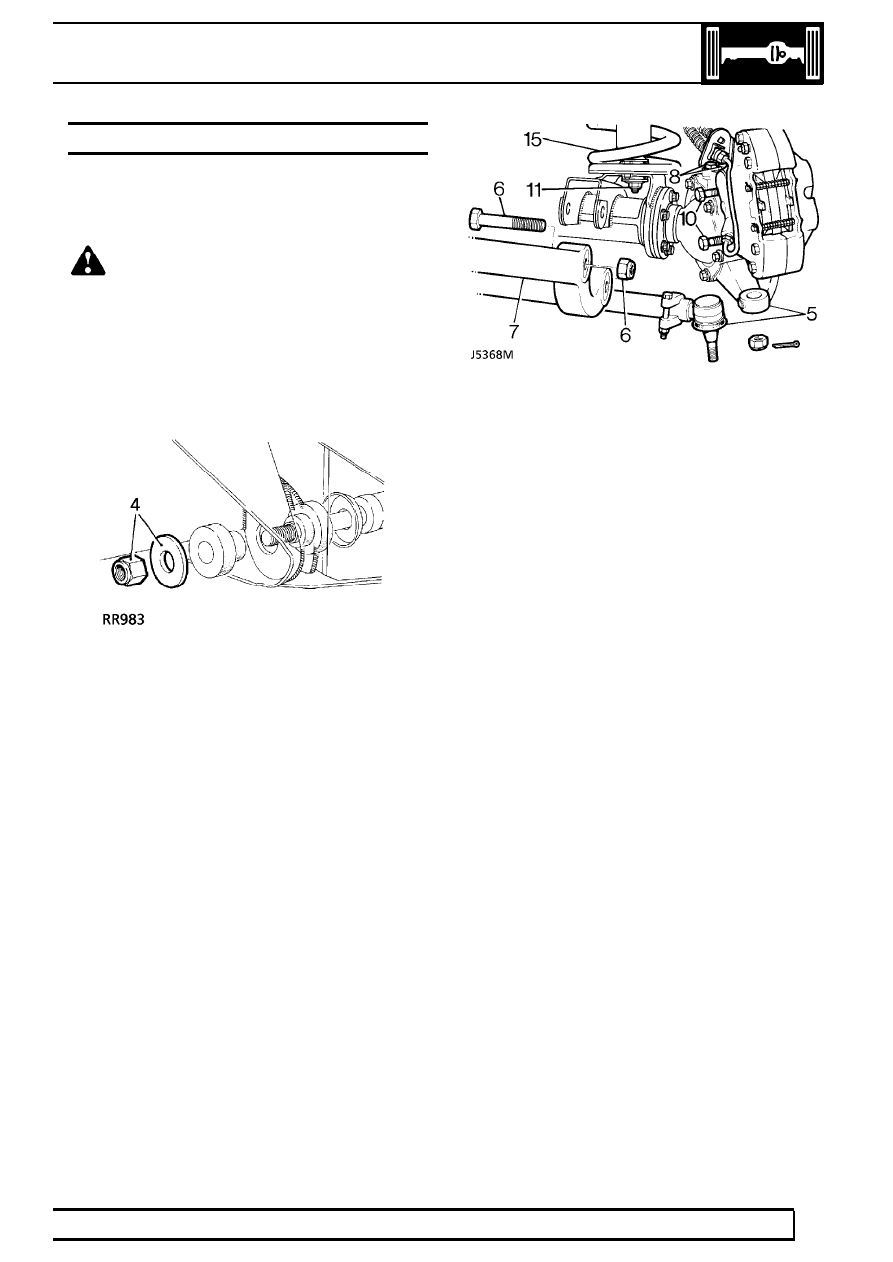

FRONT AXLE ASSEMBLY

Service repair no - 54.15.01

Remove

WARNING: Remove and refit of axle
requires a further 2 persons to steady axle
when lowering or repositioning.

1. Raise and support chassis front.
2. Remove front road wheels.
3. Support axle weight with hydraulic jack.

4. Remove both radius arm to chassis frame lock

nuts.

5. Disconnect steering damper from track rod.

Using an extractor remove track rod links from
swivel pin arms.

6. Remove 4 nuts and bolts securing radius arms

to axle bracket.

7. Disconnect radius arms from axle.
8. Remove bolts securing brake hose brackets.

Refit bolts to prevent oil leakage.

9. Remove both wheel sensor lead plugs and

release lead retaining clips.

10. Remove bolts from brake calipers and tie

calipers to one side. DO NOT strain hoses.

11. Remove nuts and washers securing shock

absorbers to axle.

12. Disconnect drag link from swivel pin housing

arm.

13. Remove 2 nuts and bolts securing panhard rod

to axle bracket. Lift rod clear of axle.

14. Mark drive shaft flanges for reassembly .

Remove 4 nuts and bolts, tie propeller shaft to
one side.

15. Release axle ventilation pipe banjo and lower

axle assembly. Remove road springs.

16. Disconnect anti-roll bar link

See FRONT

SUSPENSION, Repair, Anti-roll bar ball joint
links
.

17. Remove axle assembly.

Do not carry out further dismantling if component
is removed for access only.

18. Transfer components to new axle.

Refit

19. Position axle under vehicle, supporting left side

of axle.

20. Fit road springs, axle ventilation pipe banjo and

raise axle assembly.

21. Align reference marks and fit propeller shaft.

Tighten bolts to

47 Nm, 35 lbf/ft.

22. Fit panhard rod to axle bracket. Tighten bolts to

88 Nm, 65 lbf/ft.

23. Fit drag link to swivel pin arm. Tighten fixings to

40 Nm, 30 lbf/ft.

24. Fit shock absorbers to axle.
25. Fit brake calipers. Tighten bolts to

82 Nm, 60

lbf/ft.

26. Tighten upper swivel pin bolts to

65 Nm, 50

lbf/ft.

27. Reconnect both wheel sensor lead plugs and fit

lead retaining clips.

28. Fit radius arms to axle brackets. Tighten bolts to

197 Nm, 145 lbf/ft.

29. Fit steering damper to track rod.
30. Fit radius arms to chassis side member. Tighten

fixings to

197 Nm, 145 lbf/ft .

31. Tighten track rod end to

40 Nm, 30 lbf ft align to

hole and fit NEW split [cotter] pin.

32. Fit road wheels, tighten to

130 Nm, 95 lbf ft.

33. Remove chassis supports.

54

FRONT AXLE AND FINAL DRIVE

2

REPAIR

FRONT HUB ASSEMBLY

Service repair no - 60.25.01.

Remove

1. Loosen road wheel nuts, raise front of vehicle

and lower onto axle stands. Remove road wheel.

2. Release brake hose clips and remove brake

caliper and brake disc shield bolts. Secure
caliper to one side.

3. Lever off dust cap.
4. Remove circlip and driveshaft shim from

driveshaft.

5. Remove 5 bolts and withdraw drive member and

joint washer. Discard joint washer.

6. Bend back lock washer tabs.
7. Remove locknut and lock washer.
8. Remove hub adjusting nut.
9. Remove spacing washer.

10. Remove hub and brake disc assembly complete

with bearings.

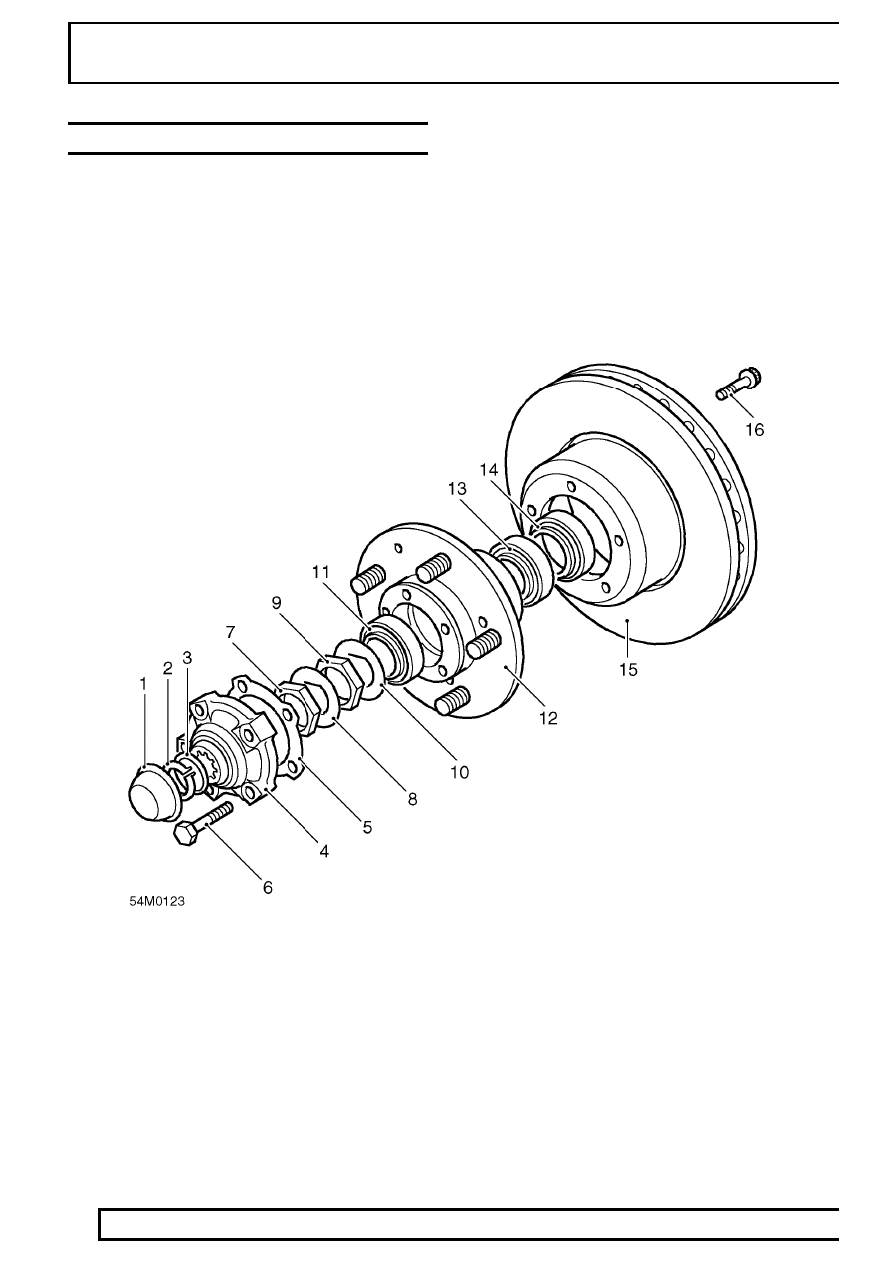

HUB COMPONENTS

1. Dust cap.
2. Drive shaft circlip.
3. Drive shaft shim.
4. Drive member.
5. Drive member joint washer.
6. Drive member retaining bolt.
7. Lock nut.
8. Lock washer.

9. Hub adjusting nut.

10. Spacing washer.
11. Outer bearing.
12. Hub.
13. Inner bearing.
14. Grease seal.
15. Brake disc.
16. Disc retaining bolt.

FRONT AXLE AND FINAL DRIVE

3

REPAIR

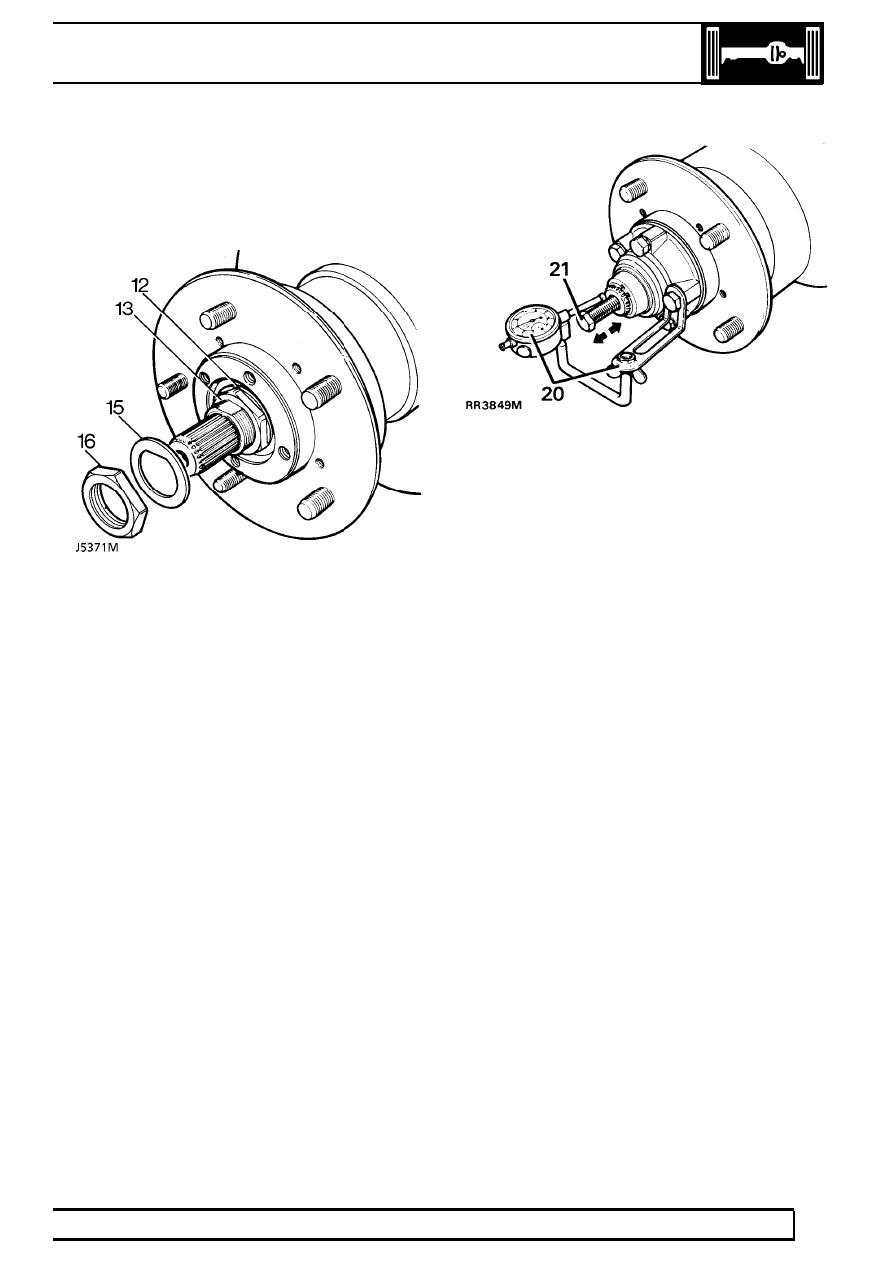

Refit

1. Clean stub axle and drive shaft and fit hub

assembly to axle.

2. Fit spacing washer.
3. Fit hub adjusting nut. Tighten to

50 Nm, 37 lbf ft.

Ensure hub is free to rotate with no bearing play.

4. Back off adjusting nut 90fl and tighten to

10 Nm,

7 lbf ft . This will give the required hub end float
of 0,010mm, 0.0004 in.

5. Fit a new lock washer.
6. Fit locknut. Tighten to

50 Nm, 37 lbf ft.

7. Tab over lock washer to secure adjusting nut

and locknut.

8. Fit a new joint washer to driving member and fit

member to hub. Tighten bolts to

65 Nm, 48 lbf

ft.

9. Fit original drive shaft shim and secure with a

circlip.

10. To check drive shaft end play, mount a dial

gauge using bracket LRT-99-503and rest pin in
a loaded condition on end of drive shaft.

11. Fit a suitable bolt to threaded end of drive shaft.

Move drive shaft in and out noting dial gauge
reading. End play should be between 0,08 to
0,25 mm, 0.003 to 0.010 in.

12. If end play requires adjustment, remove circlip,

measure shim thickness and fit an appropriate
shim to give required end-play.

13. Remove bolt from drive shaft, fit circlip and dust

cap.

14. Fit brake disc shield and brake caliper. Tighten

fixings to

82 Nm, 60 lbf ft.

15. Bleed brake system.

See BRAKES, Repair,

Brake system bleed

16. Fit road wheel, remove axle stands and tighten

road wheel nuts to

130 Nm, 95 lbf ft.

17. Operate footbrake to locate brake pads.

FRONT AXLE AND FINAL DRIVE

1

OVERHAUL

FRONT DIFFERENTIAL

Service repair no - 54.10.07.

Overhaul

NOTE: The front axle differential is the
same as that fitted to the rear axle and can
only be serviced as a complete assembly

See REAR AXLE AND FINAL DRIVE, Repair, Rear
differential .

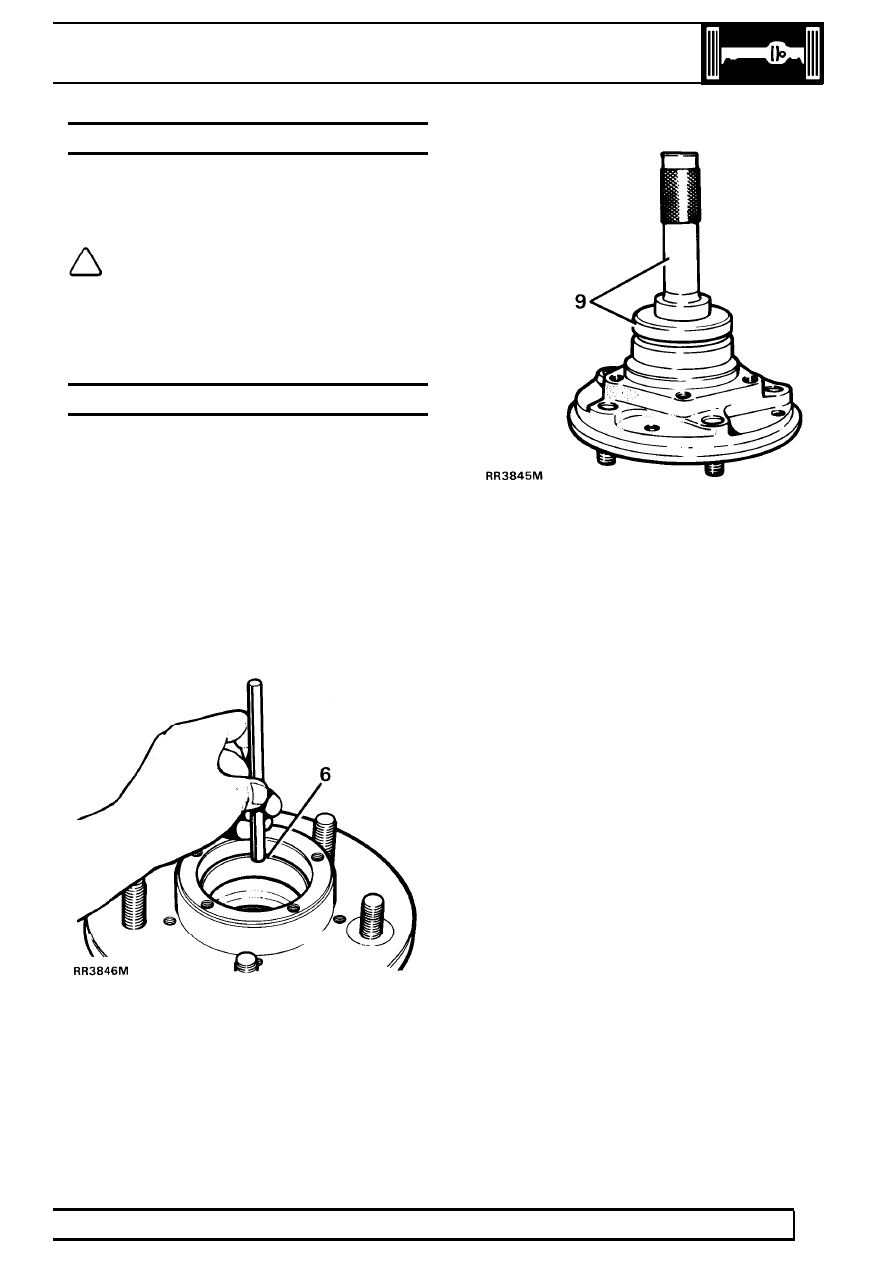

FRONT HUB

Service repair no - 60.26.14.

Overhaul

1. Remove hub assembly

See Repair, Front hub

assembly

2. Remove outer bearing.
3. Mark, for reassembly, relationship between hub

and brake disc, if original hub is to be refitted.

4. Remove 5 bolts and separate hub from brake

disc.

5. Drift out grease seal and inner bearing from hub

and discard seal.

6. Drift out inner and outer bearing tracks.
7. Clean hub and drift in inner and outer bearing

tracks.

8. Pack hub inner bearing with recommended

grease and fit to hub.

9. With lip side leading fit new seal to hub using

special tool LST 137seal replacer and drift 18G
134
. Drive in seal flush with rear face of hub.
Apply grease between seal lips.

10. Fit brake disc to hub, lining up to marks made

during dismantling. Apply Loctite 270, fit
retaining bolts. Tighten to

73 Nm, 55 lbf/ft.

11. Grease and fit outer bearing to hub.
12. Fit hub assembly.

See Repair, Front hub

assembly
