Defender 90 NAS. Manual - part 42





44

AUTOMATIC GEARBOX

6

REPAIR

GEARBOX AND TRANSFER BOX ASSEMBLY

Service repair no - 44.20.04/99

Remove

1. Position vehicle on ’4-post’ ramp.
2. Select LOW range gear and leave vehicle in

neutral.

3. Disconnect battery negative lead.
4. Drain gearbox oil.

See SECTION 10,

Maintenance, under vehicle maintenance

5. Drain transfer gearbox oil.

See SECTION 10,

Maintenance, under vehicle maintenance

6. Remove centre console.

See CHASSIS AND

BODY, Repair, centre console

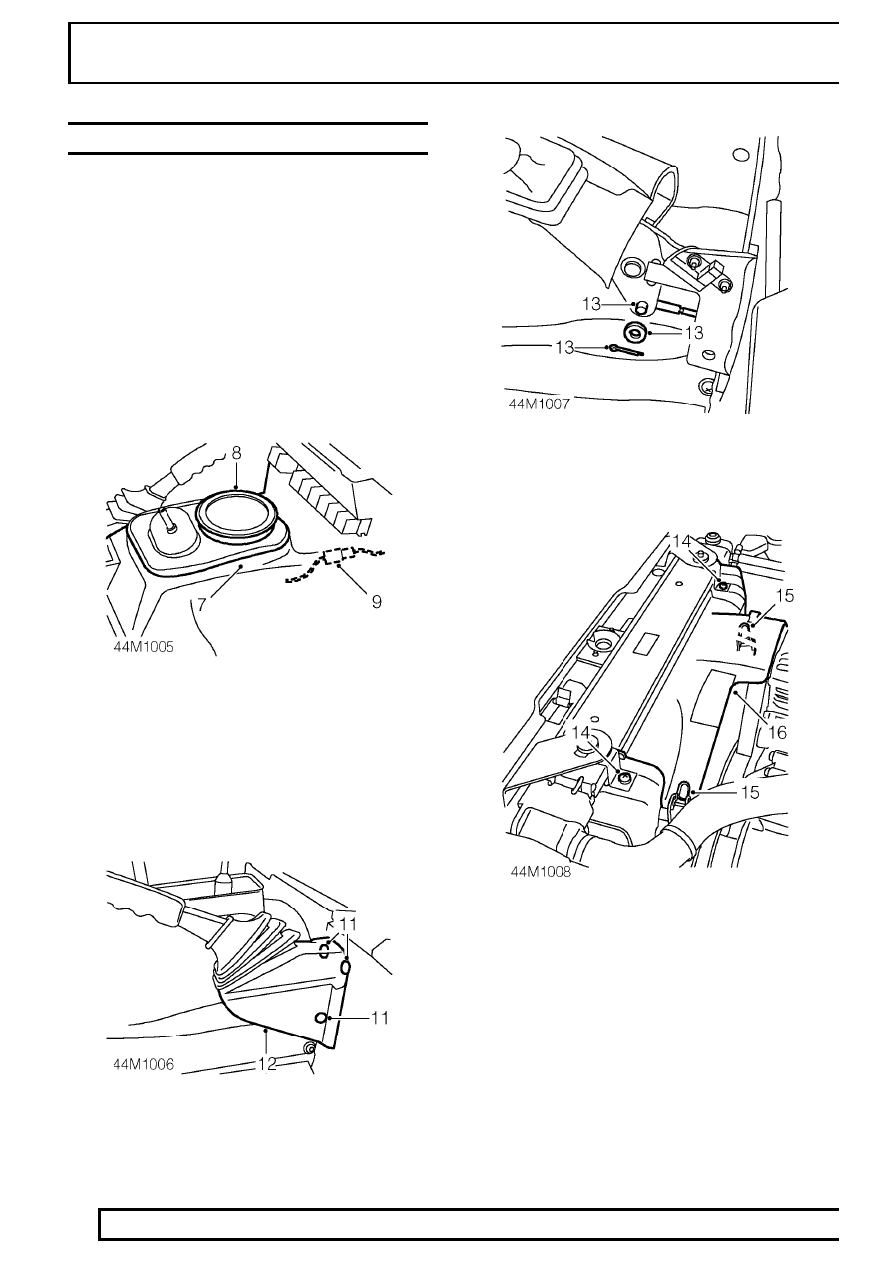

7. Remove carpet from transmission tunnel.
8. Remove hi-low selector housing cover from

tunnel.

9. Working through hi-low gear lever aperture,

disconnect inhibitor/reverse light switch
multiplug.

10. Remove 2 cable ties securing gearbox and

transfer box breather pipes to harness.

11. Remove 3 trim studs securing hand brake gaiter.
12. Release hand brake gaiter to access cable

linkage.

13. Remove split pin and clevis pin securing hand

brake cable to lever.

14. Remove 2 screws securing fan cowl to upper

retaining brackets.

15. Release 2 clips securing upper fan cowl.
16. Remove upper fan cowl.

AUTOMATIC GEARBOX

7

REPAIR

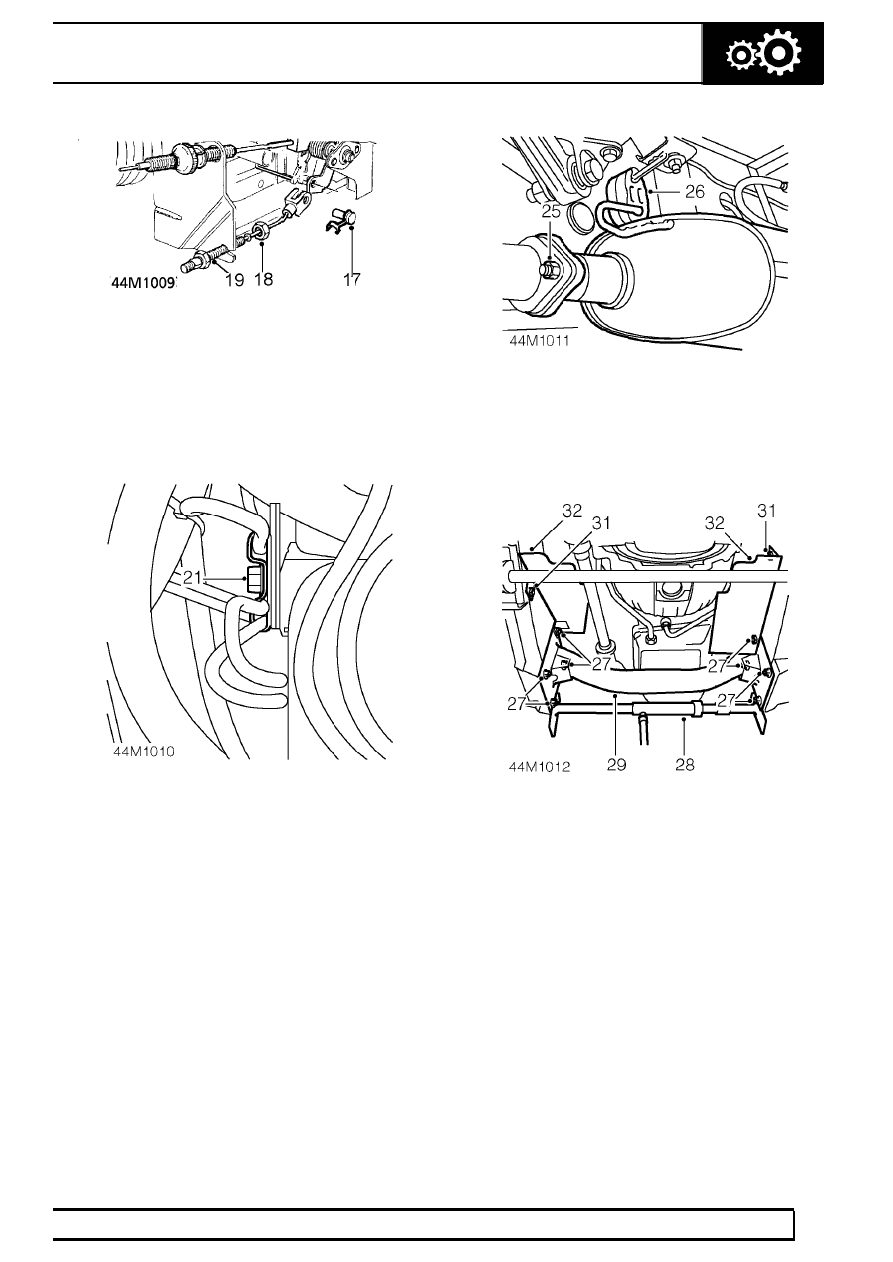

17. Remove kick-down cable clevis pin.
18. Release kick-down outer cable lock nut.
19. Release kick-down outer cable from abutment

bracket.

20. Release kick-down outer cable from clip on rear

of LH cylinder head.

21. Remove bolt securing 2 breather pipe ’P’ clips to

rear of RH cylinder head.

22. Remove 6 bell housing to engine bolts.
23. Raise vehicle.
24. Remove exhaust front pipe.

See EMISSION

CONTROL, Repair, front pipe/catalytic
converter

25. Remove 2 nuts securing intermediate pipe to tail

pipe.

26. Release intermediate pipe from tail pipe and

remove from mounting.

27. Remove 8 bolts securing chassis crossmember.
28. With assistance, and using a body jack between

chassis longitudinals, jack chassis sufficiently to
enable removal of crossmember.

29. Remove crossmember.
30. Remove body jack.
31. Remove bolt securing LH and RH catalyst heat

shields to chassis.

32. Remove catalyst heat shields.

44

AUTOMATIC GEARBOX

8

REPAIR

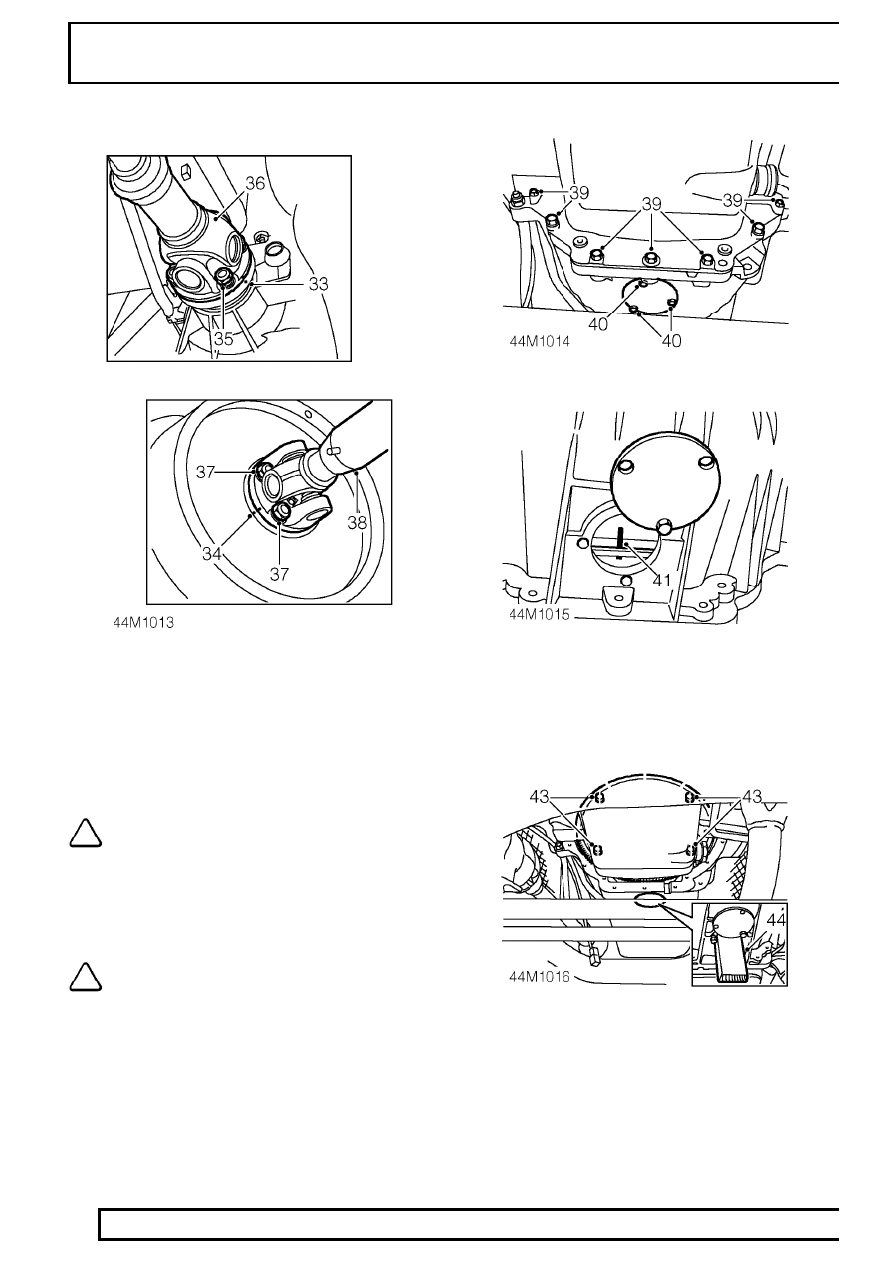

33. Using a centre punch, mark relationship between

front propeller shaft to transfer box flanges.

34. Using a centre punch, mark relationship between

rear propeller shaft to brake drum flanges.

35. Remove 4 nuts securing front propeller shaft to

transfer box flange.

NOTE: Rotate propeller shaft to gain
access to all fixing.

36. Release propeller shaft from transfer box flange

bolts and tie aside.

37. Remove 4 nuts securing rear propeller shaft to

brake drum flange.

NOTE: Rotate propeller shaft to gain
access to all fixing.

38. Release propeller shaft from brake drum bolts

and tie aside.

39. Remove 7 bolts securing bell housing closing

plate and remove plate.

40. Remove 3 bolts securing bell housing access

plate and remove plate.

41. Mark relationship between converter and drive

plate.

42. Rotate crankshaft to access drive plate to

converter fixing.

43. Remove 4 bolts securing drive plate to

converter.

44. Fit suitable piece of wood through bell housing

access hole to retain converter.

AUTOMATIC GEARBOX

9

REPAIR

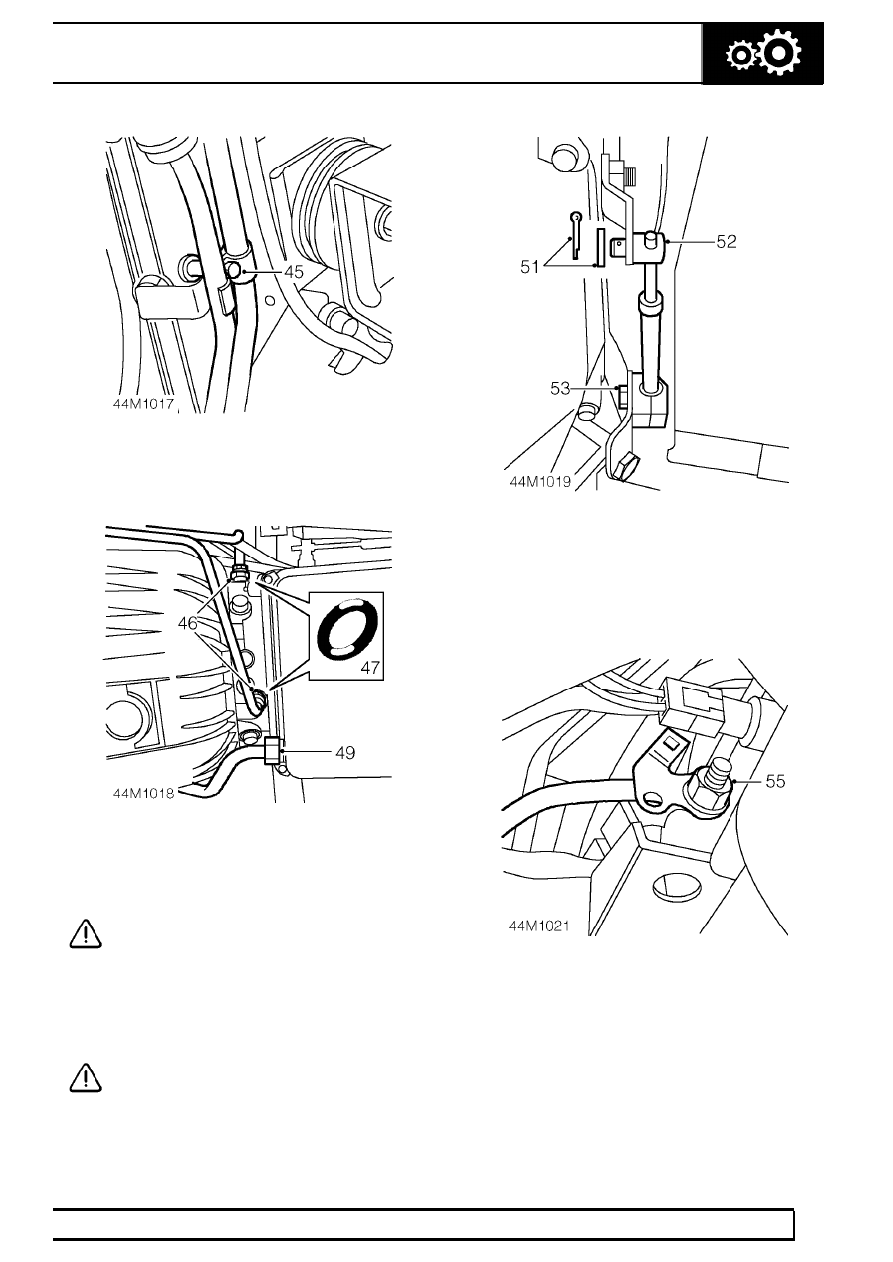

45. Remove clamp bolt securing gearbox cooler

pipes to engine sump bracket.

46. Loosen gearbox cooler pipe unions and

disconnect from gearbox.

47. Remove and discard ’O’ rings from pipes.

CAUTION: Plug the connections.

48. Tie cooler pipes aside.
49. Loosen gearbox filler tube union and remove

from fluid pan.

50. Remove and discard ’O’ ring from union.

CAUTION: Plug the connections.

51. Remove split pin from selector cable yoke and

collect washer.

52. Release yoke from lever.
53. Remove bolt securing selector outer cable clamp

to transfer box LH mounting.

54. Remove nut securing oxygen sensor multiplug

bracket from transfer box earth bolt and collect
bracket.

55. Remove nut securing earth strap to transfer box

and release strap.
