FUEL SYSTEM

16

REPAIR

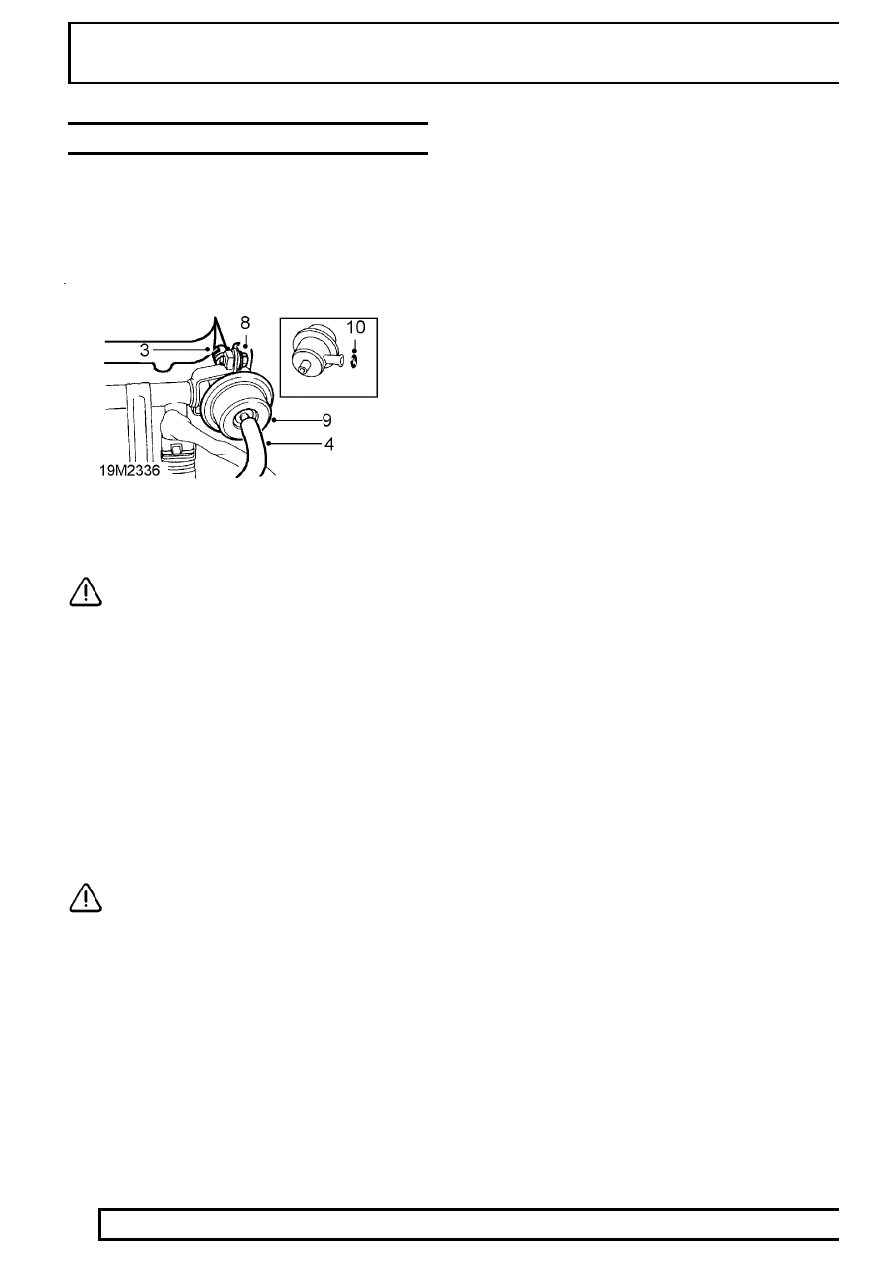

FUEL PRESSURE REGULATOR

Service repair no - 19.45.06

Remove

1. Disconnect battery negative lead.
2. Depressurise fuel system.

See Adjustment,

fuel system depressurise

3. Release clip and disconnect fuel return hose

from fuel pipe.

CAUTION: Plug the connections.

4. Disconnect vacuum hose from pressure

regulator.

5. Remove 4 nuts securing coil mounting bracket to

inlet manifold.

6. Release coil mounting bracket from studs and

move aside.

7. Release regulator connecting pipe from clip.
8. Remove 2 bolts securing pressure regulator to

fuel rail.

9. Remove regulator from fuel rail.

10. Remove and discard ’O’ ring.
11. Release clip and remove fuel hose from

regulator.

CAUTION: Plug the connections.

Refit

12. Clean mating faces of pressure regulator and

fuel rail.

13. Remove plugs from pressure regulator and fuel

rail.

14. Fit fuel hose to regulator and secure with clip.
15. Lubricate new pressure regulator ’O’ ring.
16. Fit regulator to fuel rail.
17. Connect fuel hose to pipe and secure with clip.
18. Fit bolts securing regulator to fuel rail and tighten

to

10 Nm, 7 lbf ft.

19. Position ignition coil mounting bracket to studs.
20. Fit nuts and tighten to

8 Nm, 6 lbf ft.

21. Remove plugs.
22. Connect fuel return hose and secure with clip.
23. Connect vacuum hose.
24. Remove cloth.
25. Reconnect battery negative lead.

SFI

17

REPAIR

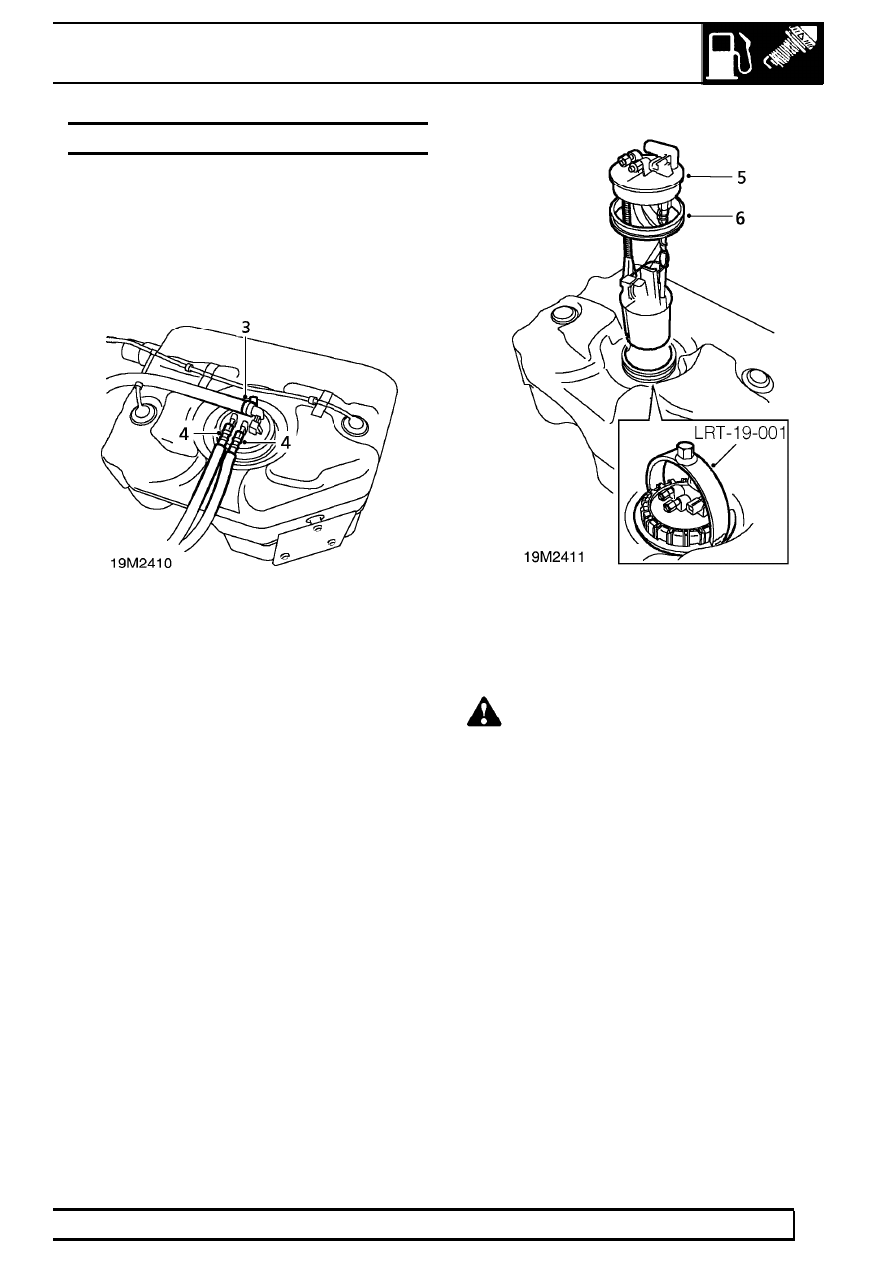

FUEL PUMP

Service repair no - 19.45.08

Remove

1. Disconnect battery negative lead.
2. Remove fuel tank.

See fuel tank

3. Loosen clip and disconnect breather hose from

fuel pump.

4. Remove fuel feed and return hoses from fuel

pump.

5. Using tool LRT-19-001remove locking ring

securing pump. Withdraw fuel pump from fuel
tank.

WARNING: A quantity of fuel will be
retained in body of pump. Care must be
taken to prevent spillage during above

operation.

6. Remove and discard sealing ring.

Refit

7. Fit new sealing ring to pump and fit pump.
8. Fit locking ring and using tool LRT-19-001,

tighten to

48 Nm, 35 lbf ft.

9. Fit feed and return hoses to pump.

10. Fit breather hose and tighten clip.
11. Fit fuel tank.

See fuel tank; Refit

19

FUEL SYSTEM

18

REPAIR

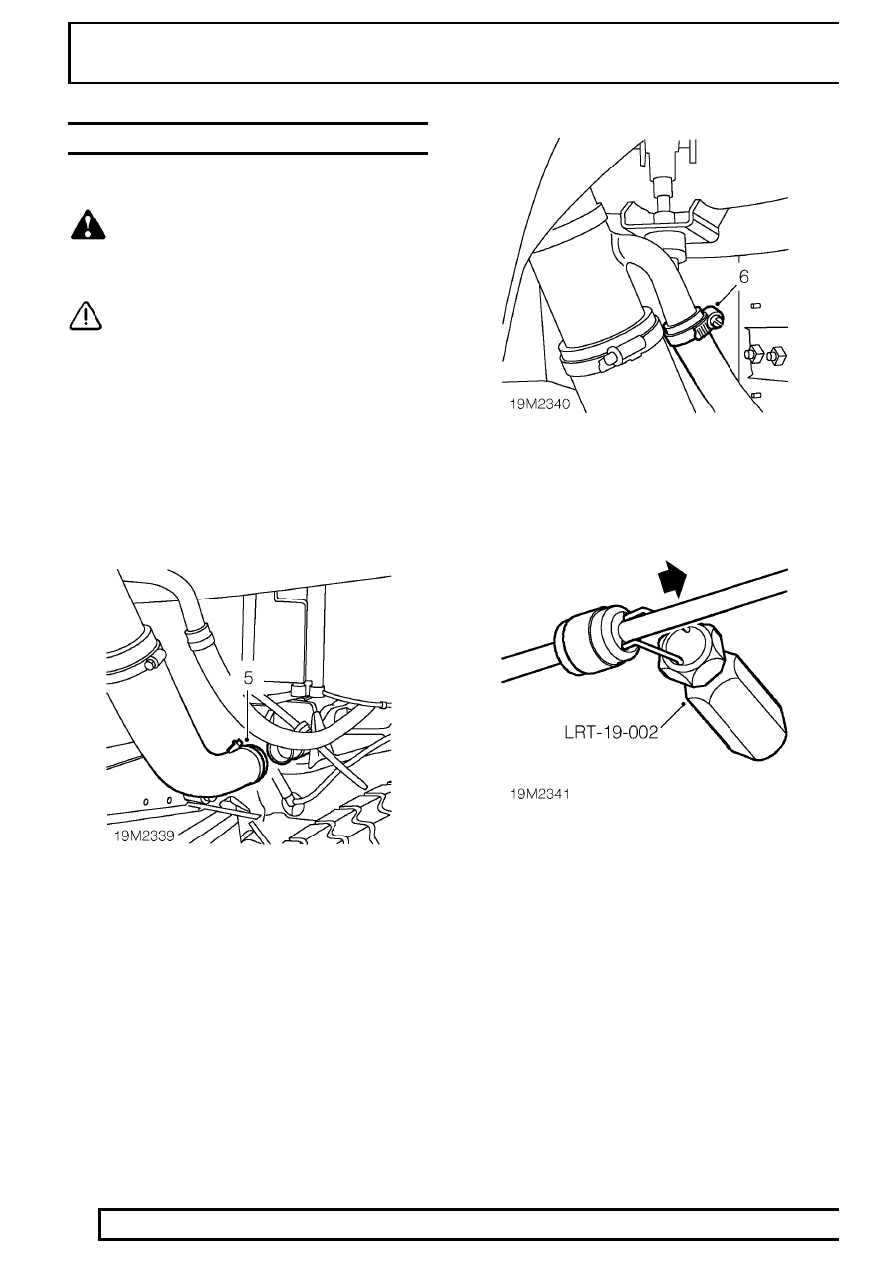

FUEL TANK

Service repair no - 19.55.26

WARNING: Ensure that fuel handling
precautions given in Section 01 -
Introduction are strictly adhered to when

carrying out following instructions.

CAUTION: Before disconnecting any part
of the fuel system, it is imperative that all
dust, dirt and debris is removed from

around components to prevent ingress of foreign
matter into fuel system.

Remove

1. Position vehicle on ramp [hoist].
2. Disconnect battery negative lead.
3. Depressurise fuel system.

See Adjustment,

fuel system depressurise

4. Drain fuel tank.

See Adjustment, fuel tank

drain

5. Loosen clip securing filler hose to fuel tank and

disconnect hose.

6. Loosen clip securing breather hose to filler neck

and disconnect hose.

7. Using tool LRT-19-002 disconnect vapour

separator pipe at green end of ’speedfit’
connector.

8. Position cloth to absorb fuel spillage.

SFI

19

REPAIR

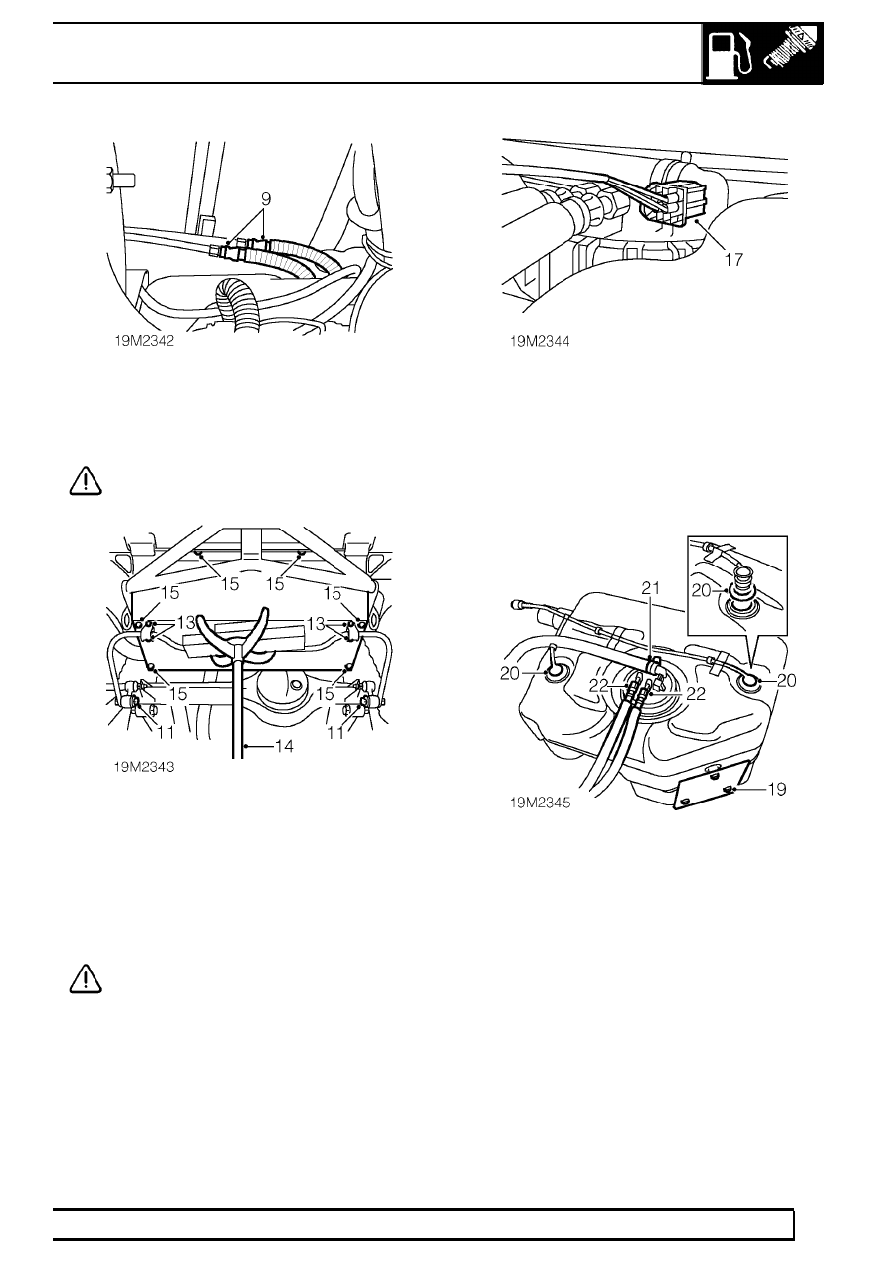

9. Disconnect fuel feed hose union.

10. Disconnect fuel return hose union.

CAUTION: Plug the connections.

11. Loosen 2 anti-roll [sway] bar link bolts.
12. Mark location of anti-roll [sway] bar straps.
13. Remove 4 bolts securing anti-roll [sway] bar

straps and swing bar down clear of fuel tank.

14. Position transmission jack under fuel tank cradle

to support fuel tank.

CAUTION: Use a block of wood or hard
rubber pad to protect fuel tank.

15. Remove 6 bolts securing fuel tank cradle.
16. Lower fuel tank sufficiently to gain access to fuel

pump multiplug.

17. Disconnect multiplug and remove clip securing

harness to fuel hoses.

18. With assistance, lower jack, remove fuel tank

cradle and fuel tank.

Do not carry out further dismantling if component
is removed for access only.

19. Remove 3 screws securing heat shield. Remove

heat shield.

20. Release 2 fuel cut-off valves and remove valve

and pipe assembly. Remove and discard 2
rubber seals.

21. Loosen clip and remove breather hose from fuel

pump.

22. Remove fuel feed and return hoses from fuel

pump.
