STEERING

POWER  STEERING SYSTEM

Adwest Lightweight

box

Bleed

1.  Fill

steering  fluid  reservoir  to the  mark  on  the

side of  the reservoir  with  one

of  the recommended

fluids.

2.  Start  and  run

engine  until  it  attains  normal

operating temperature.

3.

Check and correct the reservoir fluid level.

NOTE: During the carrying out

of items 4,  and 6,

ensure that the steering reservoir

is

kept

full. Do not

increase the engine speed

or move the steering wheel.

4.

Run  the  engine  at  idle  speed,  slacken  the  bleed

screw.  When  fluid  seepage  past  the  bleed  screw  is
observed, retightcn the screw.

5 .

that  the  fluid level  is  in  alignment  with  the

6 .  Wipe off

all fluid released during bleeding.

7.

Check  all  hose  joints,  pump  and  steering

box  for

fluid  leaks  under  pressure  by  holding  the  steering
hard on

full lock in both directions.

mark on

reservoir dipstick.

CAUTION:

Do  not  maintain  this pressure for more

than 30 seconds in

any one minute,

avoid

causing

the

oil to overheat and possible damage to the seals.

The  steering  should  be  smooth

lock-to-lock  in  both

directions,  that  is,

no  heavy  or  light  spots  when

changing direction when the vehicle is stationary.

8.  Carry  ut a short road  test. If  necessary, repeat  the

30

complete foregoing procedure.

POWER STEERING

SYSTEM

Adwest  Lightweight

box

Test

If  there is

a lack of

assistance for the steering the

pressure of  the hydraulic pump should be checked first
before  rcncwing  any  components  of  the  system.
fault  diagnosis  chart  should

also  be  used  to  assist  in

tracing faults

in the power steering.

Procedure

1. The hydraulic pressure test gauge is

for testing

the power steering system. This gauge is calibrated
to  read  up  to  140

and  the

normal  pressure  which  may  be  expected  in  the
power steering system is

77

(1100

2.  Under  certain  fault  conditions  of  the  hydraulic

pump  it

is  possible  to  obtain  pressures  up  to

105

(1500

Therefore,

it

is

important  to  realise  that  the  pressure  upon  the
gauge is

in direct proportion  to the pressure being

exerted  upon  the  steering  wheel.  When  testing,
apply pressure to the steering wheel  very gradually
while carefully observing the pressure gauge.
Check,  and  if  necessary

fluid

reservoir.

4.

Examine the power steering units and connections
for  leaks.

All  leaks  must  be  rectified  before

attempting to test the system.

5.

Check  the  steering pump  drive  belt  for  condition
and tension, rectify as nccessary.

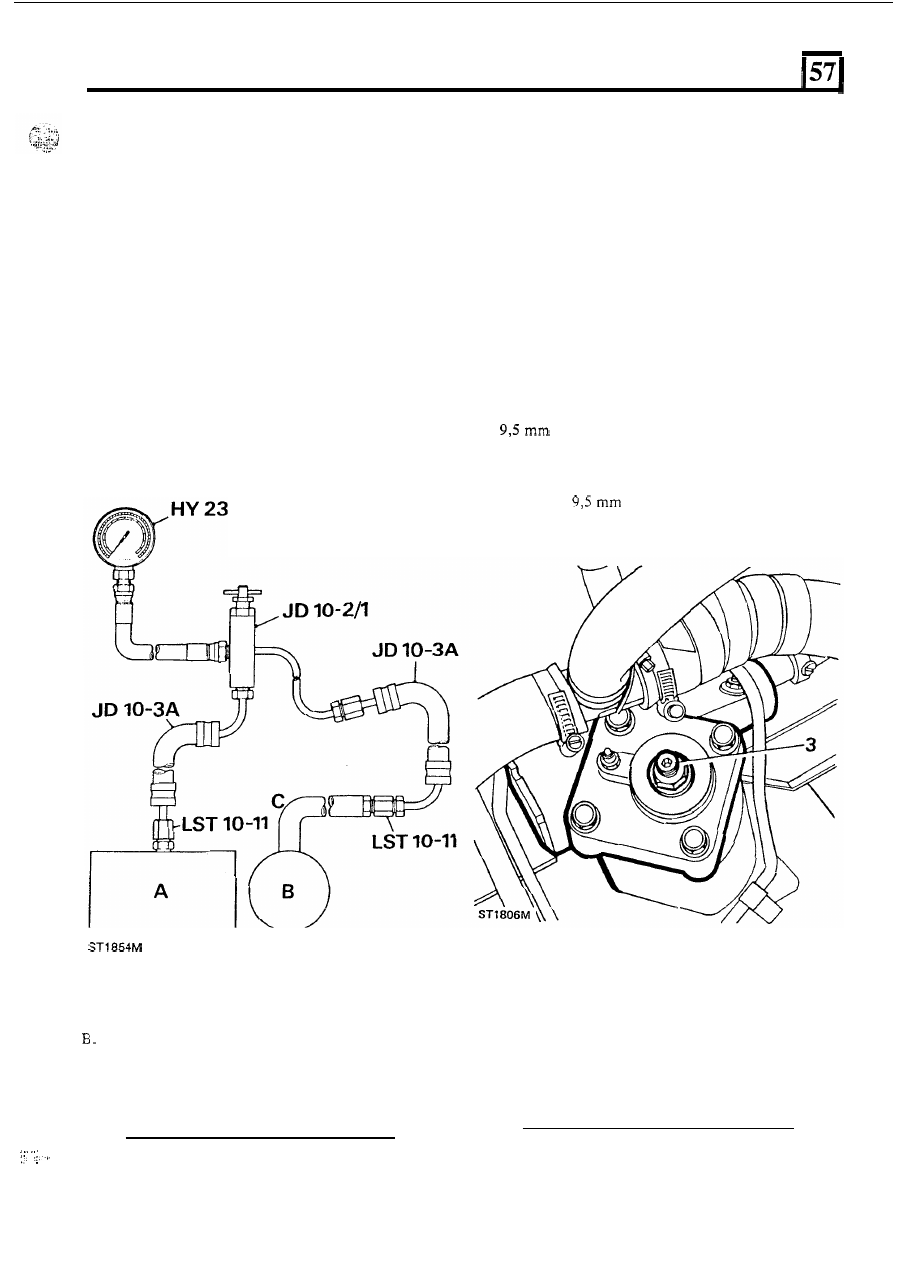

Assemble  the test equipment  and  fit  to  t h e  vehicle
as illustrated.

7.  Open the

tap in the adaptor.

Bleed  the  system  but  exercise  extreme care  when
carrying out this operation

so

as not to overload the

pressure gauge.

9.  With  the  system  in  good  condition,  the  pressures

should be

as follows:

(a)  Steering  wheel  held  hard  on  full  lock  and

engine  running  at

the  pressure

should  be

70  to

77

to

1100

(b)  With  the  engine idling  and the  steering wheel

held  hard

on

full  lock,  the  pressure  should  be

28

(400

minimum.

checks  should  be  carried  out  first

on  one lock,

then

on the other.

CAUTION:  Under no circumstances  must  the  steering
wheel  be  held  on  full  lock  for more than

30 seconds in

any one minute,  otherwise there  will  be  a tendency

for

the

oil to overheat and possible damage to the seals may

result.

10.  Release the steering wheel  and allow the engine

idle.  The  pressure  should  be  below

(100

..

ST

E

E

R

ING

11.  If  the pressures  recorded during the  foregoing  test

are  outside  the  specified  range,  or  pressure
imbalance

is  recorded, a fault exists in  the system.

To

determine

if  the  fault  is  in  the  steering box  or

the  pump,  close  the  adaptor  tap  for a  period  not

exceeding five seconds.

12.

If

the gauge fails to register the specified pressures,

the  pump  is  inefficient  and  the  pump  relief  valve
should be examined and renewed as necessary.

13.  Repeat the foregoing test after renewing the relief

valve  and  bleeding  the  system.  If  the  pump  still
fails

to  achieve  the  specified pressures,  the  pump

should be overhauled

or a new unit fitted.

14.  If  pump delivery is satisfactory and low pressure

or

marked  imbalance  exists,  the  fault  must  be in  the
steering box valve and worm assembly.

ADJUST  POWER  STEERING

BOX

Adwest

Lightweight box

NOTE:

The  condition

of  adjustment  which  must  be

checked

is  one

of

minimum  backlash  without

overtightness  when  the wheels are in  the straight-ahead
position.

1. Jack  up the front of  the vehicle until  the wheels  are

clear

of

the ground.

WARNING:  Wheels  must  be  chocked  in  all

circumstances.

2.  Gently  rock  the  steering  wheel  about  the  straight-

ahead  position  to  obtain  the  'feel'

of  the  backlash

present.  This  backlash  must  not  be  more  than

(0.375  in).

3.  Continue  the  rocking  action  whilst  an  assistant

slowly tightens the steering box adjuster screw after
slackening  the  locknut  until  the  rim  movement  is
reduced to

(0.375  in) maximum.

TEST EQUIPMENT

A.

Steering box

Steering pump

C.

Existing hose from steering box

4.

Tighten  the  locknut,  then  turn  the  steering  wheel
from  lock  to  lock  and  check  that  no  excessive
tightness exists at any point.

5.

Lower  the  vehicle  to  ground  level  and  remove  the
wheel chocks.

6.  Road test the vehicle.

...

....

31

STEERING

GEMMER POWER STEERING

BOX OVERHAUL

Special tools:
Drop arm puller

MS  252 A

End cover wrench adaptor

Input shaft oil seal installer
Sector shaft oil seal installer
Valve seal installer and valve ring compressor

Preload setting tool

Dismantle

1.  Remove the steering box from the vehicle.

2.  Bend  back  the  locking  tab  and  remove  the  drop

arm nut.  Using special

tool

MS 252

o r

a suitable

alternative, withdraw the drop arm from the sector
shaft.

3.  Using  special  adaptor  tool

turn  the

cylinder cover anti-clockwise

to expose  end

of

the

locking  ring.  Now  turn  the  cover  clockwise  to
extract the ring.

5.

Slacken  the  grub  screw  securing  the  rack  pad
adjuster.

4.

cover, turn the input shaft

lock

for  a  LHD drive  steering  box  o r  to the  right

for a  R H D  drive steering box  until the rack piston

pushes the  cover  out  to enable it to  be  withdrawn
by hand.

ring and spring.

continued
