FIVE

SPEED GEARBOX

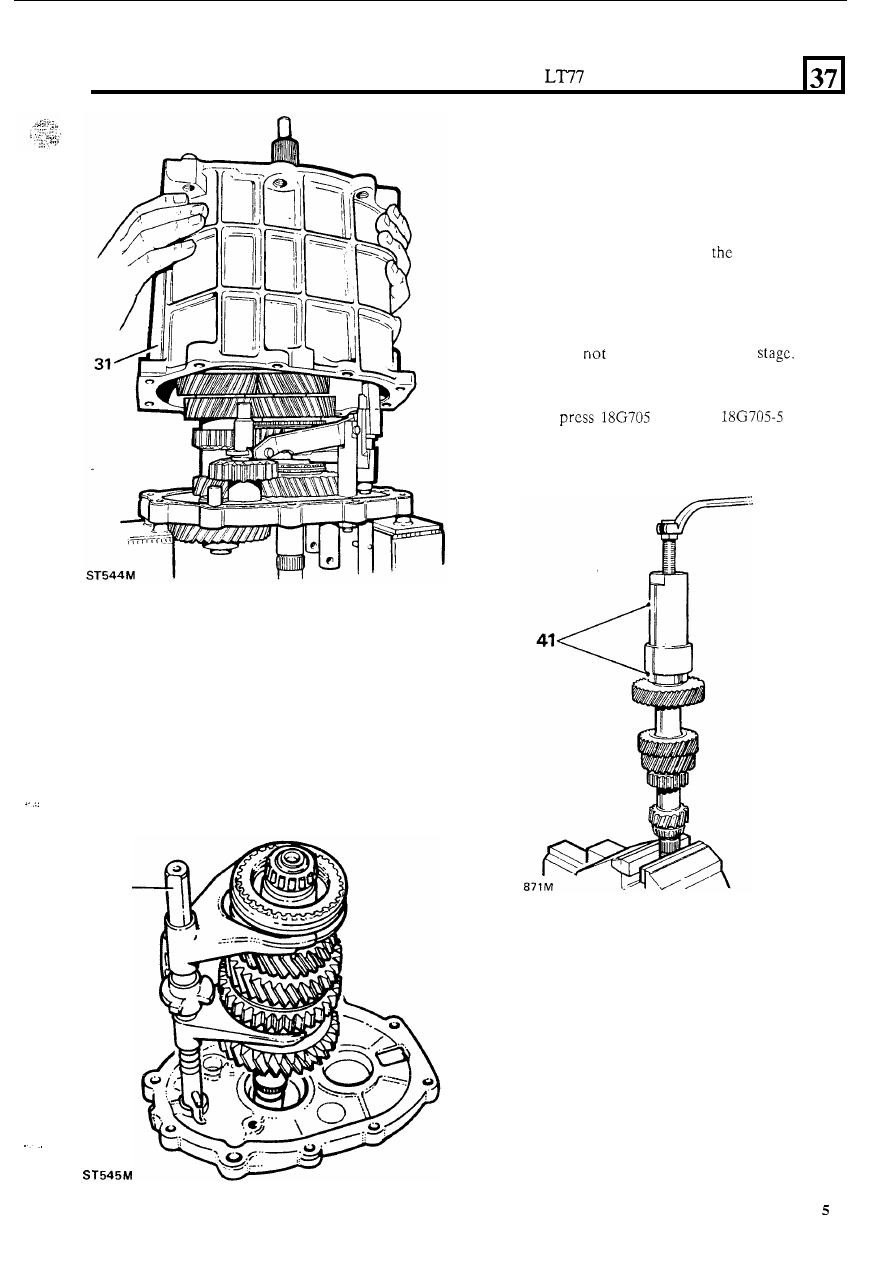

31.  Remove

the

dummy  bolts  and  carefully  lift  the

gearcase,  leaving  the  ccntre  plate  and  gear
assemblies in position. Discard gasket.

32.  Insert two slave bolts and nuts to retain  t h e  centre

plate  to  the  stand;  and  remove  the circlip, pivot
pin, reverse lever and slipper pad.

33.

Slide  the  reverse  shaft  rearwards  and

lift

off  the

thrust  washer,  reverse  gear  and  reverse  gear

spacer.

34.  Lift

off the layshaft cluster.

35.  Remove  the  input  shaft  and  fourth  gear

synchromesh cone.

36.

Rotate  the  fifth  gear  selector  shaft  clockwise

(viewed  from  above)  to  align  the  fifth  gear

selector pin with the

slot

in the centre plate.

37.  Remove  the  mainshaft

and  selector  fork

assemblies from the centre plate.

38.  Detach  the  selector  fork  assembly  from  the

mainshaft gear cluster.

39.  Remove  the slave bolts from

centre plate  and

lift

the centre plate clear of  the stand.

Front cover

40.  Remove  and  discard  the  oil  seal  from  the  front

cover.

Do

fit

a new oil seal at this

Layshaft

41.

Using

and  tool

remove

the layshaft bearings.

37

ST

FIVE SPEED

GEARBOX

Mainshaft

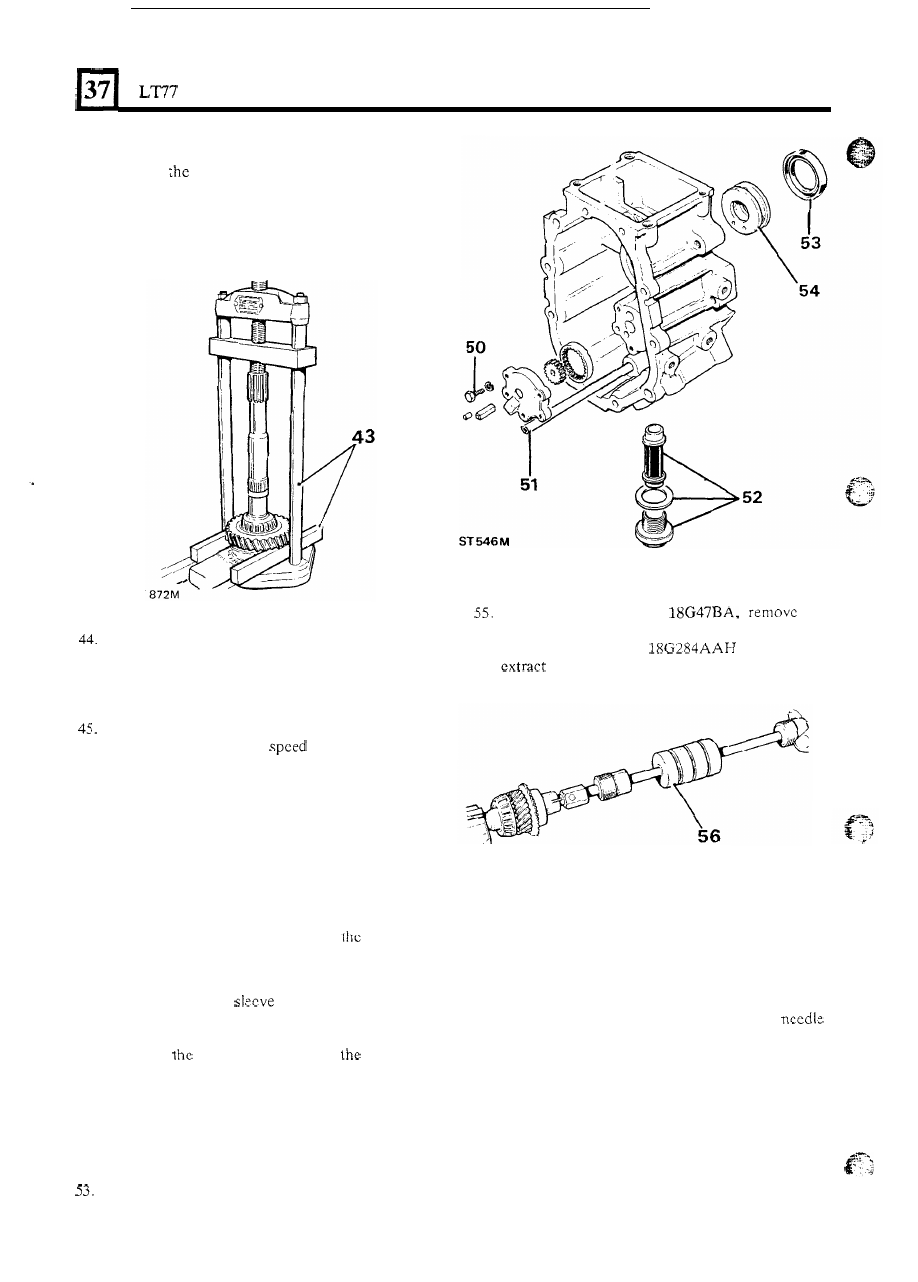

42.  Remove

centre bearing circlip.

43.  Using  press

MS47

and  any  suitable  metal  bar,

remove  the  centre  bearing,  first  gear  bush,  first
gear  and  needle  bearings  and  first  gear

synchromesh cone.

Input shaft

ST

If  a difficulty is experienced

in removing the first

and  second  gear  synchromesh  hub,  locate

underneath  the sccond  gcar with

a  suitablc tool;

and  extract  the  complete  synchromcsh  hub  and
second gear assemblies using

a suitable press.

Using  press  MS47  and  extension, with  a  support

underneath  the  third

gear,  press  the

mainshaft  through  the pilot  bcaring spacer, third
and

fourth  synchromesh

hub,  third

gear

synchromesh  cone,  third  gear  and  third  gcar
needle roller bearing.

Using  tools  MS47  and

the

56.  With  the  aid

of  tools

and  186284,

input shaft bearing.

the pilot bearing track.

First and second gear synchromesh assemblies

46.  Mark  the  hub  and  sleeve  to aid  reassembly  and

remove the slipper rings from the front and rear

of

the first and second gear synchromesh assemblies.

47.  Withdraw the slippers and hub from

sleeve.

Third and fourth gear synchromesh assemblies

48.  Mark  the  hub  and

to  aid  reassembly  and

remove the slipper rings from t h e  front and rear

of

the assembly.

49.  Withdraw

slippers and hub from

sleeve.

Extension case

SO.

Remove the three oil  pump housing bolts,  spring

51.

Do

not withdraw

t h e

oil

pick-up pipe.

52.  Remove the plug, washer and filter.

Invert casing and extract the oil seal.

54.  Press out the ferrobestos bush from the casing.

washers and oil pump gears.

ST

873M

Reverse idler gear

57.  Remove the circlip from the reverse idler gear.
58.  Having noted their positions, remove both

roller  bearings  and  remaining  circlip  from  the
gear.

Fifth gear synchromesh assembly

59.  Lever  the  backing  plate  off  the  fifth  gear

60.  Remove  the slipper rings  from  the  front and  rear

61.  Release  the  slippers  and  slide  the  hub  from  the

synchromesh assembly.

of the assembly.

sleeve.

FI

VE

S

P

EE

D GEARBOX

Gear selector housing

Early models

(Not illustrated)

Centre plate

62.  Remove the layshaft  and mainshaft bearing tracks

from the centre platc and reverse pivot post.

Main gearbox casing

63.  Remove the mainshaft and layshaft bearing tracks

64.  Remove  the  plastic  oil  trough  from

front

of

from the main casing.

t h e

casing.

Selector rail

65.  The  selector  rail  is  supplied  complete  with  first

and  second  selector  fork,  pin  and  fifth  speed
selector  pin.  If

it

is  required  to  replace  the  first

and second selector fork  on  its own, press out the
fifth  speed  gear selector pin  and  remove  t h e  first
and sccond selector fork from the selector rail.

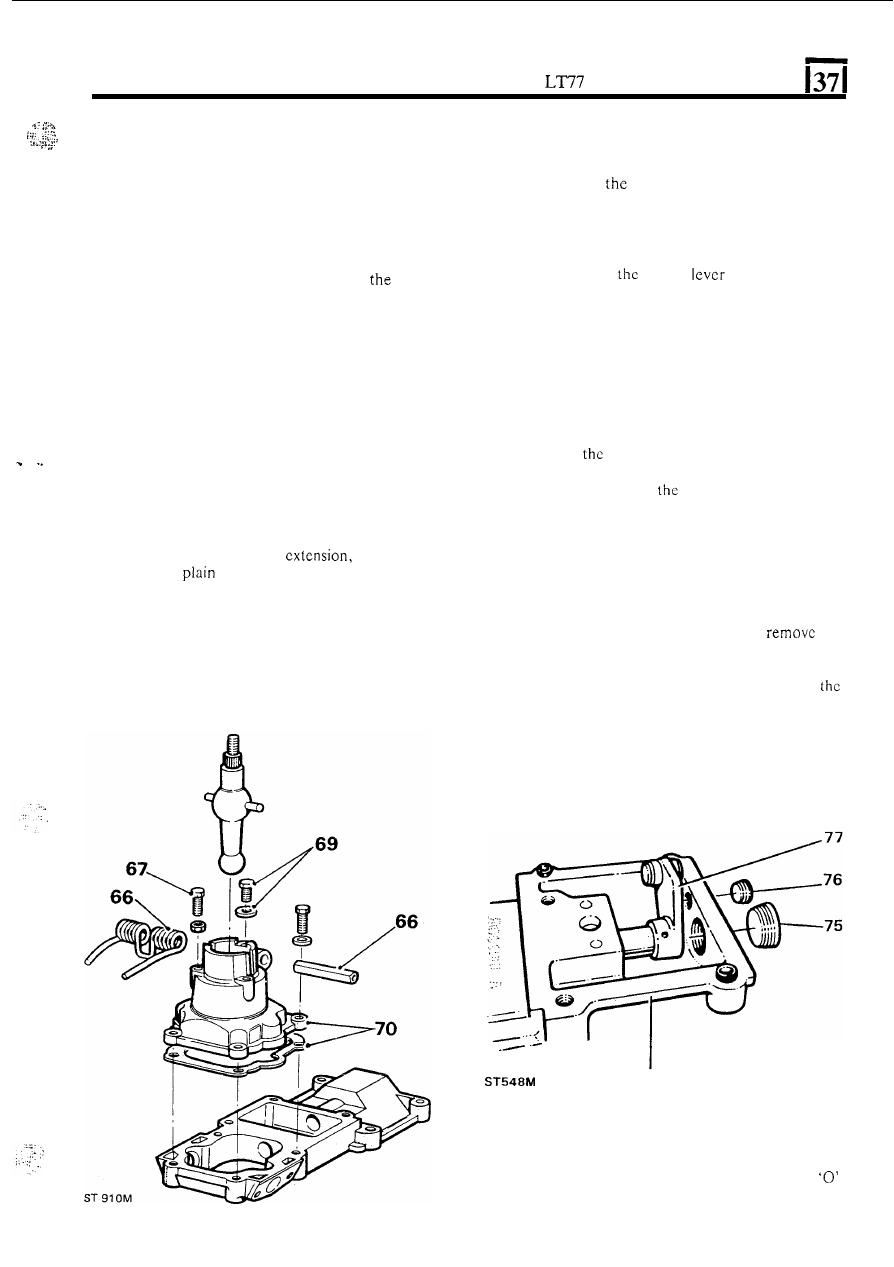

Gear selector housing

Latest models

66.  Remove the roll pin  and release the bias spring.
67.  Remove the two adjusting screws and locknuts.
68.  Remove  the  gear  lcvcr

secured  by  a

nut (with

wash er)

69.  Remove  the  bolt  and  special  lock  washer  to

release  t h e   gear  lever  shaft  from  the  trunnion
housing.

70.  Remove  the  four  bolts  and  spring  washers

retaining  the  gear  lever  housing  to  the  selector
housing.  Lift

off  the  housing  and  discard  the

gasket.

(a)

Rcmove the gear lever gaiter  and  three bolts
holding

gear  lever  retaining  plate  and

anti-vibration pad.

(b)  Remove  gear  lever  from  the  gear  lcvcr

housing.

(c)  Removc  the  four  bolts  and  spring  washers

retaining

gcar

housing  to  the

selector  housing.  Lift  off  the  housing  and
discard the gasket.

(d)  Remove  the  bolts  and  washers  retaining  the

fifth  gcar  plunger  assembly.  Care  must  be

taken  not  to  lose  the  shims  located

on  the

plunger assembly casting.

(e)  Withdraw  the  asscmbly  from  the  selector

housing

and

label

components

for

identification  o n  reassembly.

71.  Rcmove

bolts  and  washcrs  retaining  the

reverse  gear  plunger  assembly.  Care  must  be
taken  not  to  lose

shims  located

on  the

assembly  casting.  Detach  from  the  selcctor
housing and label components for identification.

72.  Remove  t h e   locating  bolt  from  the  housing  for

nylon  bush.  Pull  the  selector shaft  rearwards and
remove t h e  trunnion  housing.

73.  Release  the  circlip  and  detach  the  nylon  insert

from the trunnion housing.

74.  Invert  the  gear  selector  housing  and

the

fifth gear

spool retainer bolts  and spring washers.

Lift off the fifth gear spool retainer.

75.  Remove  the large blanking plug  at the rear of

housing

76.  Remove the reverse switch blanking plug.
77.  Place the gear selector housing into protected vice

jaws,  using

a  suitable  pin  punch,  drift  out  the

selector  yoke  roll  pin.  Push  t h e   selector  shaft
forwards and  remove  the selector yoke.  Remove
housing from vice.

77

78.  Remove  the  selector

yoke  roller  circlip  and

79.  Withdraw  the  gear  selector  housing  shaft  out

80.  Remove  and  discard  the  gear  selector  shaft

withdraw the pin and rollers.

through the large blanking plug orifice.

ring.

LT77

FIVE SPEED GEARBOX

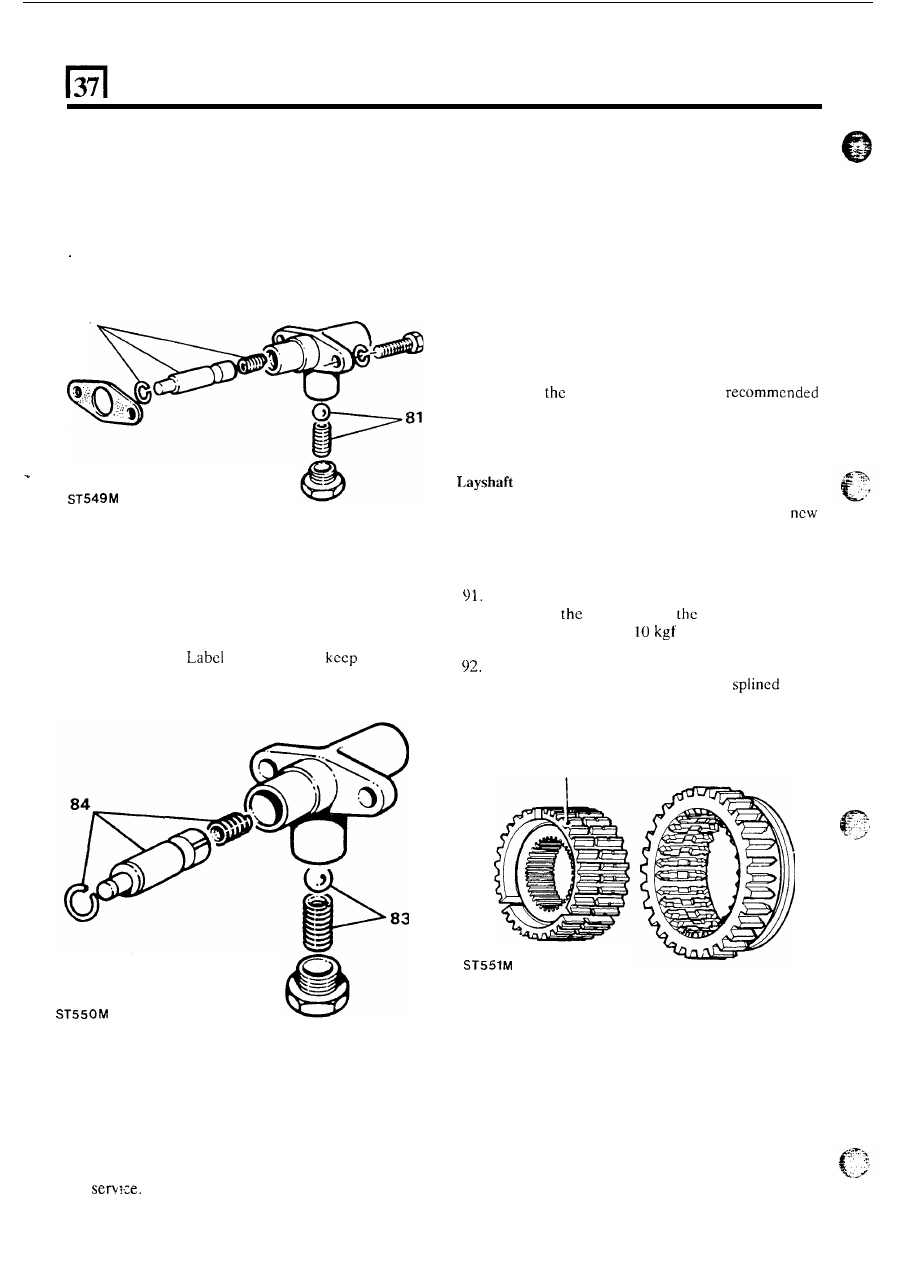

Fifth gear plunger assembly

Early models only

81.  Remove  the  plug,  long  spring  and  detent  ball

from the fifth gear plunger.

82.  Remove  the  circlip  which  retains  the  fifth  gear

plunger,  pull  out  plunger  and  short spring.  Keep
all  parts  labelled  and  separated  from  the  reverse
plungerassembly.

82

86.

Inspect all gear teeth

for chipped or broken teeth,

o r   showing  signs  of  excessive  wear.  Inspect

all

spline  teeth  on  the  synchromesh  assemblies.  If
there  is  evidence  of  chipping

or

excessive  wear,

install new parts on reassembly. Check all slippers

and  slipper  rings  for wear

or  breakage.  Replace

with new

parts if necessary.

87.  Inspect  all  circlip  grooves  for  burred  edges.  If

rough or burred, remove condition carefully using

a fine file.

58.

Ensure  all  oil  outlets  are  clear  of  sludge

or

contamination  especially  the  mainshaft  oil  ways.
Clean  with  compressed

air  observing  the

necessary safety requirements.

89.  During

rebuild operation,

it

is

that new

roller

and needle bearings are fitted.

ASSEMBLY

Reverse gear plunger assembly

83.  Remove  the  plug,  long  spring  and  detent  ball

from the reverse gear plunger assembly.

84.  Detach  the  circlip  which  retains  the reverse  gear

plunger,  pull

o u t

the  plunger  followed  by  the

short  spring.

all  parts  and

separate

from the fifth gear plunger assembly.

Cleaning and inspection

85.  Clean  gearcase  thoroughly  using  a  suitablc

solvent.  Inspect  case  for cracks,  stripped  threads

in

the  various  bolt  holes,  and  machined  mating

surfaces  for  burrs,  nicks  or  any  condition  that
would  render  the  gearcase

unfit

for  further

If  threads are stripped, install  Helicoil, or

equivalent inserts.

90.  Using  tools  MS47  and  a  suitable  tube,  fit

bearing cones to the layshaft.

Synchromesh assemblies

With  the

outer  sleeve held,  a  push-through  load

applied

to

outer face

of

synchromesh  hub

should register  8,2 to

m (18 to 22 Ibf  ft)

t o

overcome the spring detent

i n  either direction.

Assemble  the  first  and  second  synchromesh
asscmbly  by  locating  the  shorter

face

towards the second gear.

92
