Defender (1999-2002). Manual - part 106





PANEL REPAIRS

11

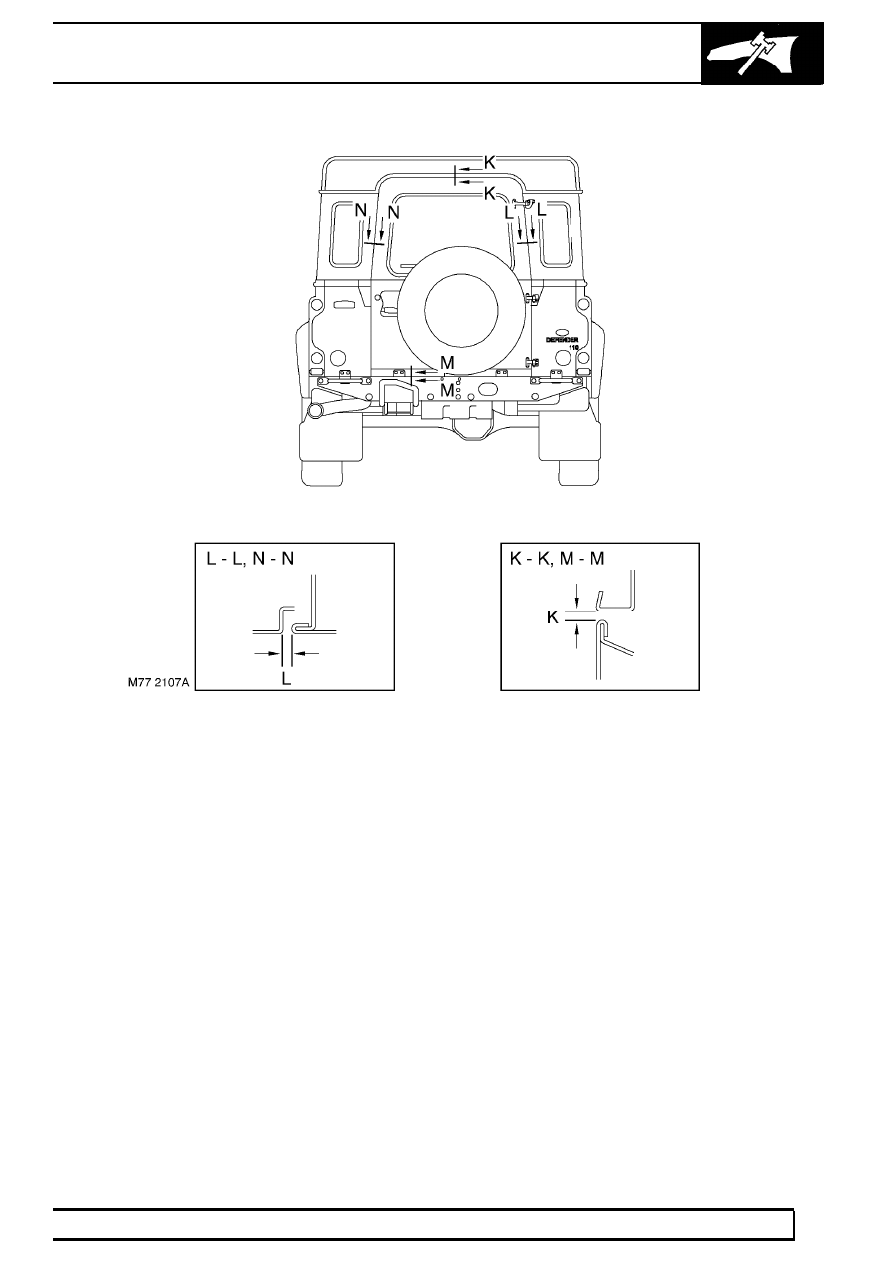

BODY DIMENSIONS

Section K-K, Roof to taildoor, gap K = 7 - 9 mm. Profile = +/- 1 mm.

Section L-L, N-N, Body side to taildoor, gap L = 5 - 7 mm. Profile = +/- 1 mm.

Section M-M, Body rear to taildoor, gap M = 7 - 9 mm.

PANEL REPAIRS

1

SEALING AND CORROSION PROTECTION

APPROVED MATERIALS

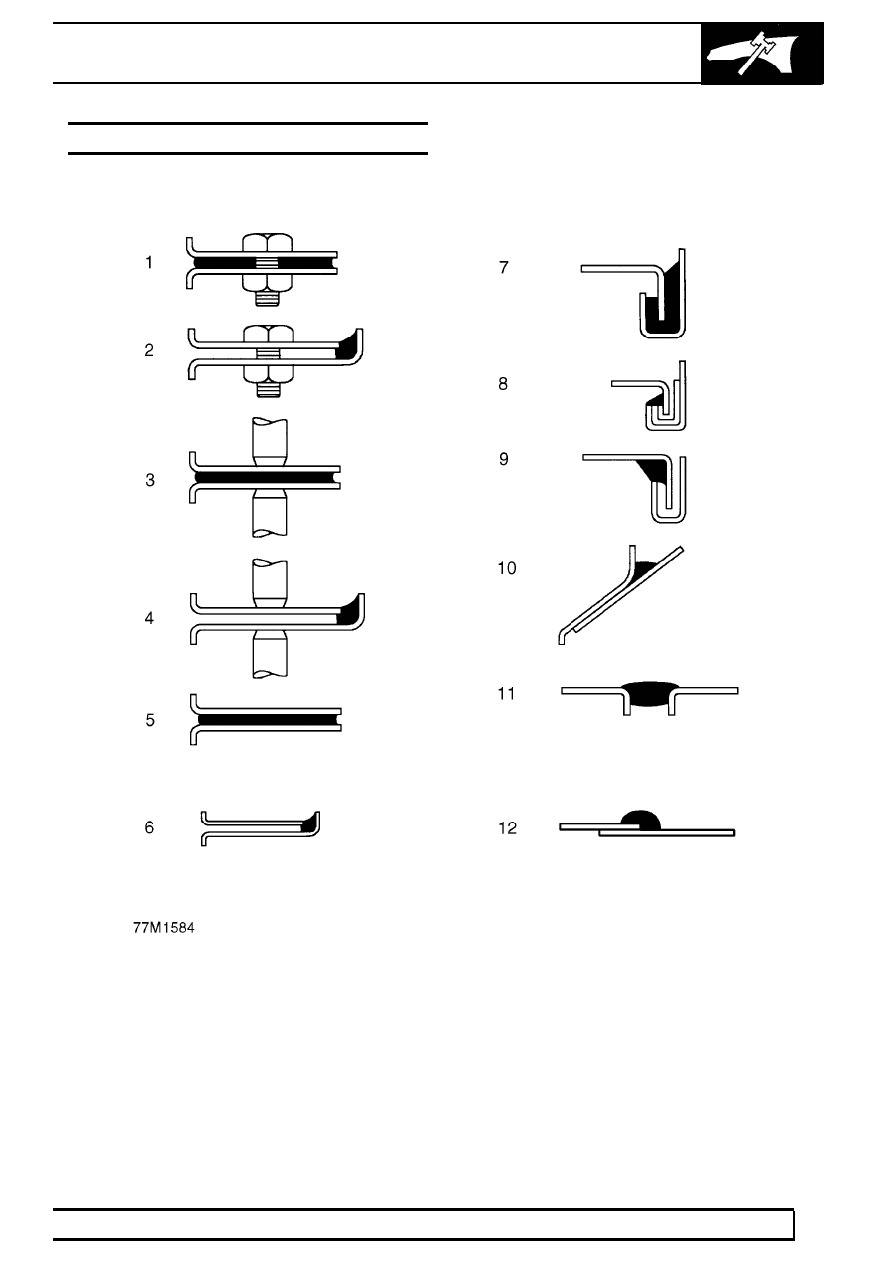

Joint types:

1. Between bolted panels
2. Between bolted panel edges
3. Between spot welded panels
4. Between spot welded panel edges
5. Between bonded panels
6. Between bonded panel edges

7. Clinch joints (type a)
8. Clinch joints (type b)
9. Clinch joints (type c)

10. Gaps between panels (type a)
11. Gaps between panels (type b)
12. Lap joint

77

PANEL REPAIRS

2

SEALING AND CORROSION PROTECTION

DESCRIPTION - USEAGE

SUPPLIER

PART NUMBER

CAVITY WAXES
Inner Cavity Wax (Transparent)

3M

(08909, 08919,
08929)

Inner Cavity Wax (Amber)

3M

(08901, 08911,
08921)

Cavity Wax

Croda

(PW57)

ENGINE BAY WAXES/LACQUERS
Astrolan engine bay wax and Cosmetic Wax

Astors

DA3243/1

Engine Bay Cosmetic Wax/Lacquer

Croda

PW197

Engine Bay Cosmetic Wax/Lacquer

Dinol

4010

MISCELLANEOUS MATERIALS
Flexible Parts Repair Material - rubber modified
polypropylene parts

3M:

(05900)

Aerosol Auto’ Adhesive (trim) - impact adhesive for trim parts 3M

(08080)

Water Shedder Repair

Teroson:

Sound dampening foam

Gurit Essex:

Betacore 7999

SEAM SEALERS
Body Caulking - type (b) gaps between panels

3M

08568

Drip Chek Clear - bolted, spot welded and bonded panel
edges; type (a) and (b), gaps between panels; type (c) clinch
joints

3M

08401

Drip Chek Heavy - type (b) gaps between panels; type (c)
clinch joints

3M

08531

Flexseal Polyurethane Seam Sealer - bolted, spot welded
and bonded panel edges; type (a) and (b) gaps between
panels; type (b) clinch joints

3M

(08684, 08689,
08694)

Polyurethane Sealer (sachet)

3M

(08703, 08783,
08788)

Sprayable Sealer - type 12 lap joints

3M

(08800, 08823)

Super Seam Sealer - type 12 lap joints

3M

(08537)

Weld Thru’ Sealer - between spot welded panels

3M

(08625)

Betafill Clinch and Brushable Sealer (Black, Grey, White)

Gurit Essex

10211/15/20

Clinch Joint and Underbody Coating (Grey, Beige)

Gurit Essex

(10101, 10707)

Leak-Chek Clear - between bolted panels; spot welded and
bonded panel edges; type (c) clinch joints

Kent Industries

(10075)

Putty - type (a) and (b) gaps between panels

Kent Industries

Polyurethane Seam Sealer between bolted panels; spot
welded and bonded panel edges; type (a) and (b) gaps
between panels

PPG

(6500)

Polyurethane Seam Sealer between bolted panels; spot
welded and bonded panel edges; type (a) and (b) gaps
between panels

Teroson

92

PANEL REPAIRS

3

SEALING AND CORROSION PROTECTION

DESCRIPTION - USEAGE

SUPPLIER

PART NUMBER

SEAM SEALERS - continued

Terolan Light Seam Sealer - bolted, spot welded and bonded
panel edges; type (a) and (b) gaps between panels; between
bonded panels; type (c) clinch joints

Teroson

Terolan Special Brushable Seam Sealer - lap joints 12

Teroson

Terostat Sprayable Seam Sealer - bolted, spot welded and
bonded panel edges; between bonded panels; type (a) and
(b) gaps between panels

Teroson

9320

Terostat 1K PU Seam Sealer (SE 20) - type (a) and (b) gaps
between panels; spot welded and bonded panel edges

Teroson

Sealing compound - bolted, spot welded and bonded panel
edges; type (b) gaps between panels

Wurths

8901001/-/6

STRUCTURAL ADHESIVES
Automotive Structural Adhesive - between bonded panels;
type 5 and 7

3M

08122

Two part Structural Epoxy - between bonded and spot
welded panels; type (a) clinch joints

Ciba - Geigy

XB5106/7

UNDERBODY SEALERS
Body Schutz

3M

08861

Spray Schutz

3M

08877

Crodapol Brushable Sealer

Croda

PV75

Terotex Underseal (CP02)

Teroson

9320

UNDERBODY WAXES
Stone chip coating (smooth)

3M

08158/9

Underbody Wax

Croda

PW61

Underbody Wax

Dinol

Tectacote 205

WELD-THROUGH PRIMERS
Weld-thru’ coating

3M

05913

Zinc Spray

3M

09113

Zinc Rich Primer

ICI

P-565 634
