Defender (1993+). Manual - part 92





AIR

CONDITIONING

(h)  The  compressor  shaft  must  not  be  rotated

Evaporator

until  the  system  is  entirely  assembled  and
contains a charge of  refrigerant.

Examine  the  refrigeration connections at  the  unit.

If

( j )   A new compressor contains an initial  charge

of

the  system  should  develop  a  fault,  or

if

erratic

312,5  ml  (11  UK  fluid  ozs)  of  oil  when

operation  is  noticed,  refer  to  the  fault  diagnosis

received,  part

of

which

is

distributed

chart.

throughout  the  system  when

it

has  been  run.

The  compressor  contains  a  holding charge  of

gas  when  received  which  should  be  retained
until the hoses are connected.

component connected to  the system to  ensure
optimum  dehydration  and  maximum  moisture
protection of  the system.

(I)

All

precautions  must  be  taken  to  prevent

damage

to

fittings  and  connections.  Slight

Stem type  Service  valves  allow  for  the  isolation

of

damage  could  cause  a  leak  with  the  high

the  compressor  from  other  parts

of

the  system,

pressures used in the system.

When  these  valves  are  used  in conjunction  with  the

(m)  Always  use

two

spanners

of

the  correct  size,

liquid  line  quick-disconnect  fittings,  the  three  major

one  on  each  hexagon,  when  releasing  and

assemblies

of

the  system  can  be  removed from  the

tightening refrigeration unions.

vehicle with  a minimal

loss

of

refrigerant. In addition,

(n)  Joints  and  ' O '  rings  should  be  coated  with

it

is

possible to  remove  major  assemblies for  repair

refrigeration oil  to  aid correct  seating.  Fittings

of

components which  are  not  part of  the  refrigeration

which are not lubricated with refrigerant oil are

system,

or

provide  access

to

parts

of

the  vehicle

almost certain to leak.

which  are  obstructed  by  the  air  conditioning system,

(o)  All  lines  must be

free  of

kinks.  The  efficiency

without  fully  discharging  the  system.  A  thorough

of  the  system  is  reduced by  a  single  kink

or

understanding

of

the  stem  type  service  valve  is

restriction.

necessary  before  undertaking  servicing

or

repair

(p)  Flexible  hoses should  not

be

bent

to

a  radius

less than ten times the diameter

of

the hoses.

(q)  Flexible  connections  should  not

be

within  50

mm

of

the exhaust manifold.

(r)  Completed  assemblies  must  be  checked  tor

refrigeration lines touching sheet  metal panels.

Any  direct contact

of

lines and

sheet

transmits

noise and must be eliminated.

Service  valves

There  are

two

types  of  service  valves  in  operation:

(k)  The

receiver/drier

should  be  the  last

'Stem'  and  'Schrader'.  To  identify where the different

operations occur, stem type will  be boxed.

Stem  type

involving

the

air conditioning system.

PERIODIC MAINTENANCE

Routine  servicing  apart  from  visual  checks,  is  not
necessary. The visual inspections are as  follows:

Condenser

servlce port

With

hose  pipe  or  air  line.

clean

the

face  of

the

2.  Valve stem

condenser

to

remove  flies.  leaves  etc.  Check  the

3 .   Compressor

port

pipe connections

for

signs

of

oil leakage.

4.

Valve

seat

Compressor

5.

Hose connector

Check  hose  connections

for

signs  of  oil  leakage.

Check  flexible

hoses

for  swelling.  Examine  the

compressor  belt

for

tightness  and  condition.

Checking the  compressor  oil  level and topping-up is
only  necessary  after  charging  the  system

or

in  the

event

of

a malfunction

of

the system.

Receiver/Drier

Stem type service valve

Examine the  sight  glass

for

bubbles with the  system

operating. Check connections

for

leakage.

RE-ISSUED: FEB

1993

AIR

CONDITIONING

NOTE:

special  wrench  should  be  used  to

adjust the valve to  prevent damage to the stem.

The  stem  type  service valve  has three positions, the
operation of which  is explained as follows.

A.  ON:  FULLY  ANTICLOCKWISE  -

Normal

operating  position,  and  the  position  which  is

used  for  connecting  and  disconnecting  the
manifold  gauge  set,  is  the  on  position.  The

stem  is  turned  fully  anticlockwise.  This  seals
the  service  gauge  port  from  receiving  any
refrigerant flow.

B.  MID  (Test)  POSITION  -

After  the  service

gauge  manifold  has  been  installed  (the  valve
stem is in the on position), turn the valve stem
the  required  number  of  turns  clockwise.  This
will  put  the  valve  stem  seat  midway  in  the
service  valve  and  allow  full  system  operation
while  permitting  refrigerant  pressure  to  reach
the gauges.

C.  OFF:  FULLY CLOCKWISE -

With the service

valve  stem  turned  fully  clockwise,  the  valve
will  block  passage of  refrigerant  flow  through
the  system.  As  illustrated, the  refrigerant  flow
to  or  from  the  compressor  (depending  on
whether  it  is high side or  low side) is blocked.

WARNING:  NEVER  operate  the  air  conditioning
system  with  the  service  valves  in  the

OFF

POSITION,  it

will  cause  severe  damage  to  the

compressor.

REISSUED:

FEB

1993

AIR

CONDITIONING

Schrader Type

B.  OFF:  FULLY CLOCKWISE  -

With the service

valve  stem  turned  fully  clockwise,  the  valve

These  are  secured

to

the  head  of  the  compressor,

will  block  passage  of  refrigerant  flow  through

and  the  suction  and  discharge  flexible  end

the  system.  As  illustrated,  the  refrigerant  flow

connections are secured to them by  unions.

to

or

from  the  compressor  (depending  on

The  service  valves  are  identified  as  suction  or  low

whether

it

is high side or  low side) is blocked.

pressure,  and  discharge  or  high  pressure.  Whilst
they  are  identical  in  operation  they  are  not

WARNING:  NEVER  operate  the  air  conditioning

interchangeable, as  the  connections  are  of  different

system  with  the  service  valves

in

the

OFF

sizes.

POSITION,  it  will  cause  severe  damage

to

the

The  valve with  the  larger connections fits the suction
side.
As  the  name  suggests,  these  valves  are  for  service
purposes,

providing

connections

to

external

pressure/vacuum  gauges  for  test  purposes.  In

Where  Schrader  Valve  depressors  are  not  fitted  to

combination  with  charging  and  testing  equipment

the  Testing  equipment  lines  Valve  core  removers

they  are used to charge the system with  refrigerant.

Schrader service valve

compressor.

Valve Core Remover

can be used.

Valve Core Removal

The  use  of  valve  core  removers  will  facilitate

servicing operations and should be used as follows:

1.  Close all valves on the charging trolley.

2.

Remove the  service valve  cap  and seals  from

the valve core remover.

3.

Withdraw  the  plunger  as  far  as  possible  and
connect the core remover to the service valve.

4.

Connect the hose to the core remover.

5.  Depress the  plunger until it contacts the  valve

core.  Unscrew  the  valve  until  it  is  free.
Withdraw the plunger to its full extent.

Service  valve  caps  must  be  replaced  when  service
operations  are  completed.  Failure  to  replace  caps
could result in refrigerant

loss

and system failure.

1.

Valve stem

2.  Hose connection
3.  Service valve
4.

Schrader  valve core

5 .   Compressor port

NOTE:  A  special  wrench

should  be  used  to

adjust the valve to  prevent damage to the stem.

The  Schrader  type  service  valve  has

two

positions,

the operation  of which  is explained as  follows

A.  ON:  FULLY  ANTICLOCKWISE  -

Normal

operating  position,  and  the  position  which  is

used  for  connecting  and  disconnecting  the
manifold  gauge  set,  is  the  on  position.  The
stem  is  turned  fully  anticlockwise. This  seals
the  service  gauge  port  from  receiving  any
refrigerant flow.

REISSUED: FEB

1993

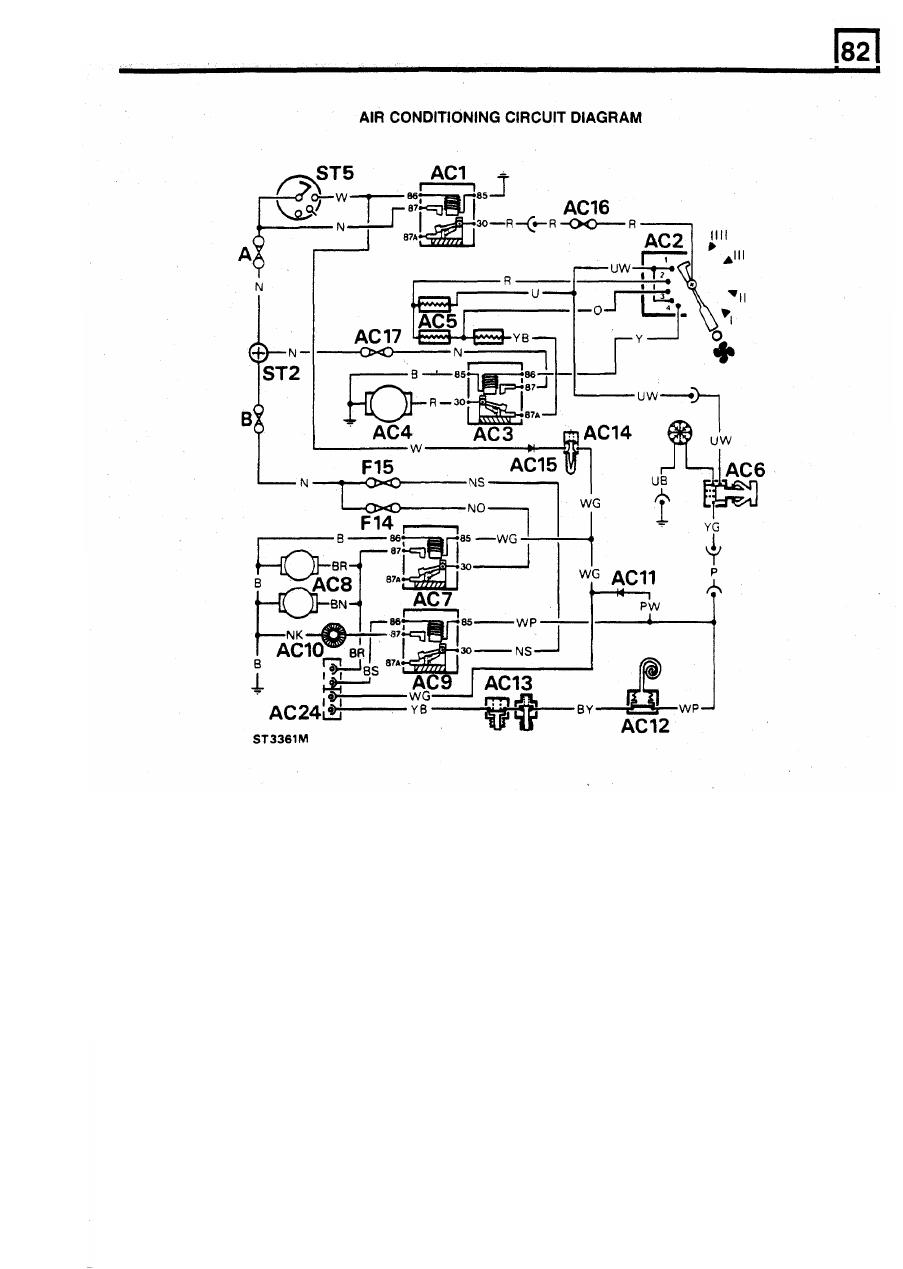

AIR  CONDITIONING

Key

to

Circuit Diagram

AC1.

System relay module

AC13.

Refrigerant pressure switches

AC2.

Evaporator/heater fan switch

AC14.

Engine coolant temperature switch

AC3.

Evaporator/heater fan relay module

AC15.

Diode

AC4.

Evaporator/heater fan

AC16.

Fuse in holder

30 amp

AC5.

Evap/heater fan speed resistor

AC17.

Fuse in holder

30 amp

AC6.

A/C on/off switch

AC24.

Connectors to

MFI

ECM

AC7.

Condenser fan relay

ST2.

Terminal post starter solenoid

AC8.

Condenser fans

ST5.

Starter/ignition switch

AC9.

Compressor relay module

B.

60 amp fuse,  main fuse box

AC10.

Compressor

F14

20

amp fuse,  main fuse box

AC11.

Diode

F15

amp fuse,  dash fuse box

AC12.

Thermostat

REISSUED: FEB

1993
