LT77S MANUAL GEARBOX

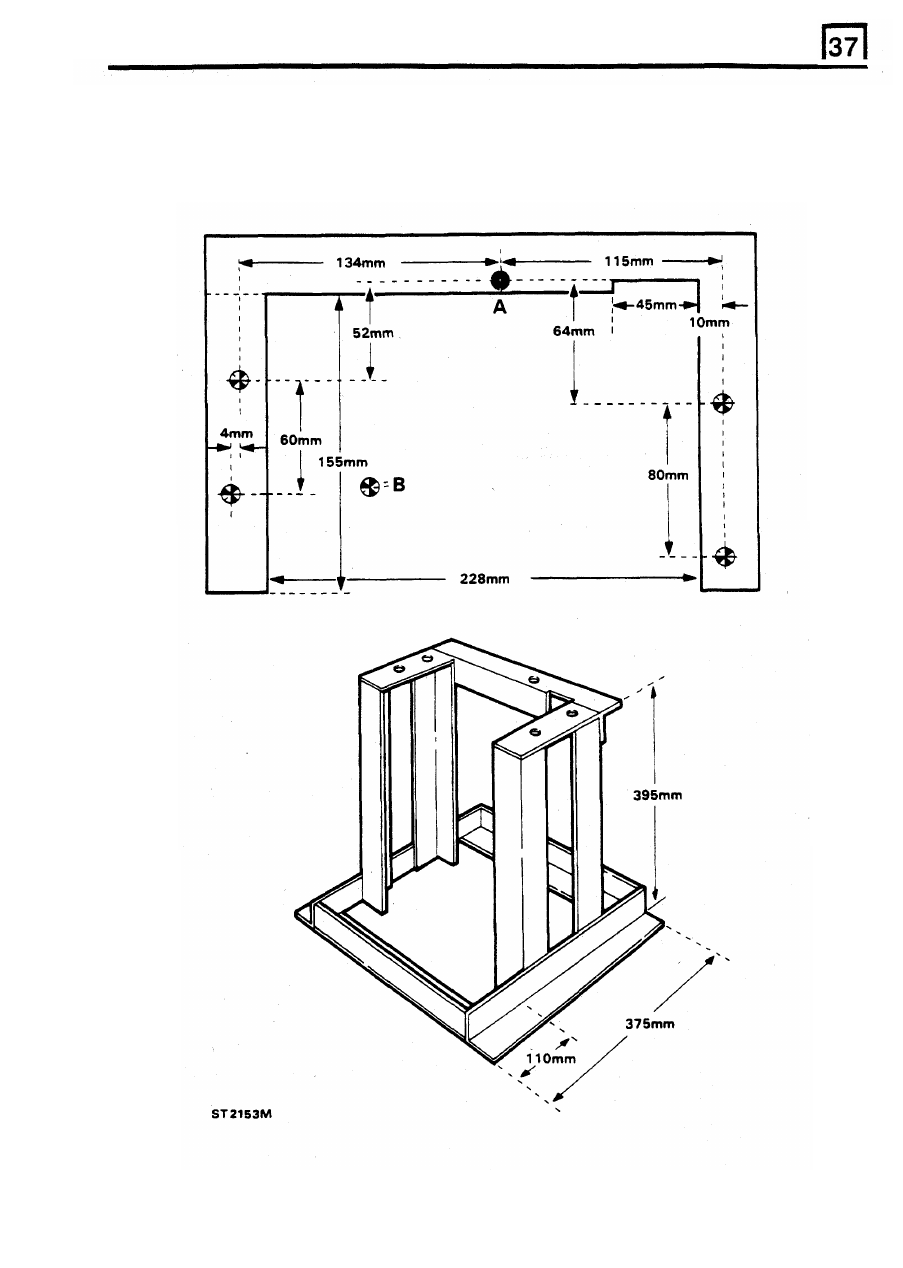

Tool 'E'.  Workstand for securely locating the gearbox
during  overhaul.  Manufacture  from  30mm  x  30mm
angle  iron.  The  single  hole  marked  'A'  should  be
drilled through the material with a 10mm drill.

The four counter sunk  blind  holes  marked  'B'  should
also  be  made  with  a  10mm  drill,  but  must  not  be
drilled through the material.

REISSUED: FEB

1993

4 5

LT230T TRANSFER GEARBOX

REMOVE  LT230T  TRANSFER  GEARBOX  FROM

THE LT77S

GEARBOX

Special Tool:  18G 1425-LRT-41-009

Guide  studs

(3) also locally manufactured  adaptor  plate,  see
below

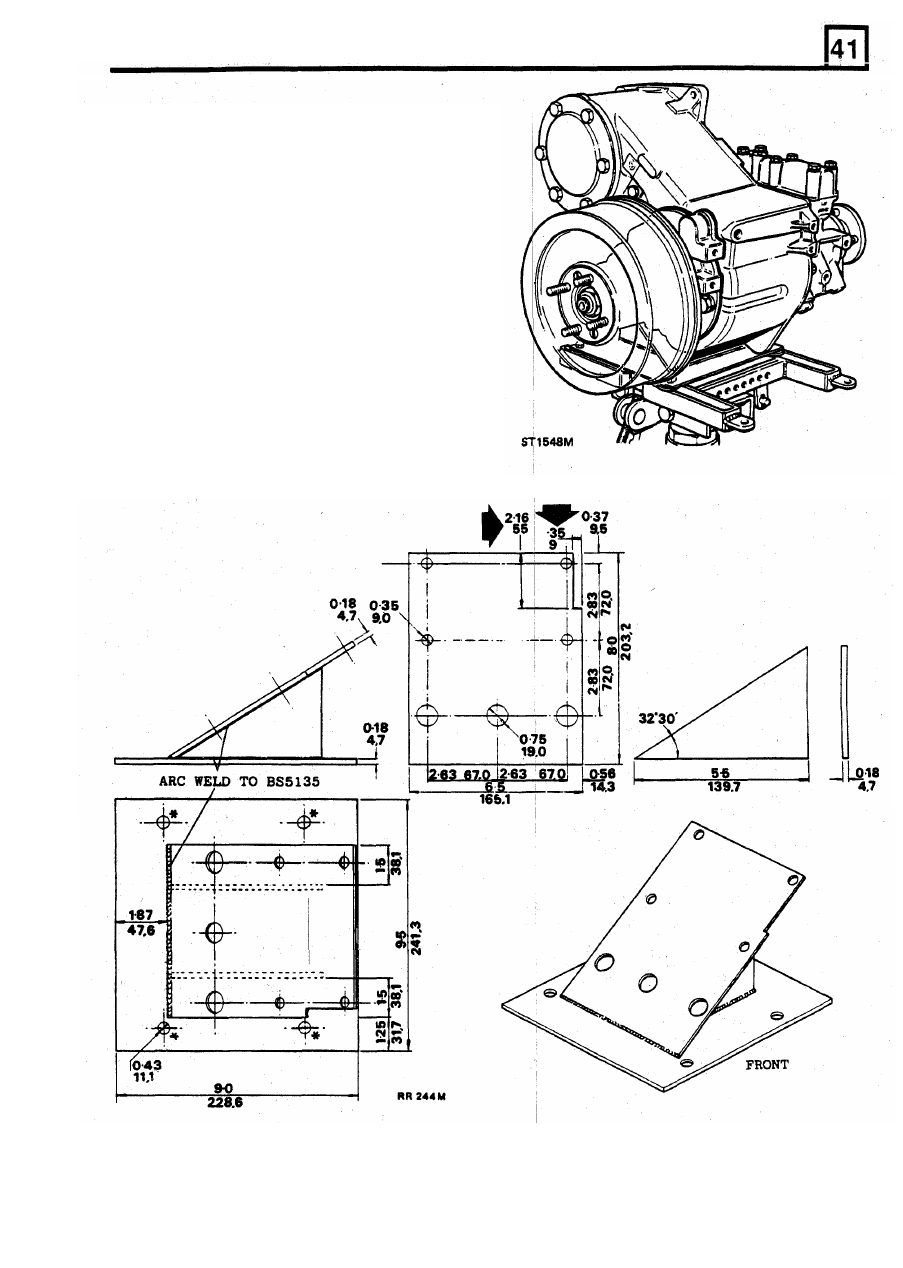

Adaptor plate for  removing transfer gearbox

The  transfer  gearbox  should  b e   removed  from
underneath the  vehicle,  using  a hydraulic  hoist.  An
adaptor  plate for  locating the  transfer  gearbox  onto
the  hoist can  be manufactured locally

to the drawing

below.

If

a  similar  adaptor  plate

was

made  for  the

LT230R  transfer  gearbox,

it

can  be  modified to  suit

both the  LT230R  and  LT230T gearboxes

by

making

the modifications shown by the large arrows.

WARNING:  Where  the  use

of  a  transmission

hoist  is  necessary,

it

is  absolutely  essential  to

follow  the  manufacturers'  instructions  to  ensure

safe and effective use of  the equipment.

Material. Steel plate BS 1449 Grade 4 or  14
Holes  marked  thus  *  to  be  drilled  to  fit  hoist  being

used.

REISSUED: FEB 1993

LT230T TRANSFER GEARBOX

22.  Lower  the  hoist  and  withdraw  the  transfer

box

Removing

from the vehicle,

1.

Install the vehicle on a ramp.

2.

Disconnect the battery.

3.  Remove  the' cover  panel  from  the  right-hand

seat  base.

4.

Remove  the  breather  pipe  union  from  the

transfer gearbox high/low cross-shaft housing.

5.

Disconnect the high/low lever.

6.

Disconnect  the  transmission  brake  cable  at

the clevis joint.

7.  Raise  the  vehicle  on  the  ramp  and  drain  the

oil from the transfer box.

8.

Remove  the  centre  section  of  the  exhaust

system.

9.

Disconnect the  front  and  rear  propeller shafts

from the gearbox and move them aside.

10.  Disconnect  the  speedometer  cable  from  the

transfer gearbox.

11.

Remove the  split  pin at  the  lower  end  of  the
pivot  arm  for  the  differential  lock  control.

Then,  remove the two  bolts securing the pivot
arm to  allow the link

to be

disconnected. Later

models  disconnect  the  connecting  link  from

the differential lock lever.

12.  Manufacture  an  adaptor  plate

in  accordance

with  the  drawing,  to  attach  to  the  gearbox
hoist  and  transfer  box  to  facilitate  removal
(RR244M).

13.

Place

four,  30  mm  (1.250  in)  long  spacers

between the  top  of  the  hoist  and  the  adaptor
plate  at  the  securing  points  and  secure  the

23.

Make  sure  that  the  joint  faces  of  the  transfer

adaptor plate

to

the hoist.

14.

Remove  the  four  central  bolts

from  the

box  and  main  gearbox  extension  case  are

transfer  box  bottom cover, move the hoist into

clean  and  that  the  three  guide  studs,  18G

position  and  secure  the  adaptor  plate

to  the

1425, are fitted

to the extension case.

transfer  box.

24.  Lubricate  the  oil  seal

in  the  joint  face  of

15.  Adjust  the  hoist  to  take  the  weight  of  the

transfer  box,  secure  the  transfer  box

to

the

transfer  box.

adaptor  plate on the lifting  hoist and raise the

16.

Remove  three  nuts  and  bolts  securing  the

hoist until the transfer box can be located over

right-  hand  gearbox  mounting  bracket

to  the

the guide studs.

chassis, then remove the  nut from  the  rubber

25.  Remove  the  guide

studs  and  secure  the

mounting and withdraw the bracket.

transfer  box

to  me  main  gearbox  extension

17.  Place  a  suitable  wooden  block  between  the

case. Tighten the nuts and

bolts

to the correct

main  gearbox  and  chassis  cross-member,

torque.

the wooden block.

the  removal  sequence,  noting  the  following

18.  Disconnect  .the  electrical  lead  from  the

important points.

differential lock switch.

27.  After  removing  the  lifting  hoist  and  adaptor

19.

Move  the  small  crank  lever,  for  the  high/low

plate

from

the transfer box,  clean the threads

selector,  upward

to

allow  access

to

the

of  the  four  bolts  for  the  transfer  box  bottom

adjacent  nut  securing  the  transfer  box  to  the

cover,  coat them with Loctite

290,

and

fit

them

main  gearbox  extension  case.  Later  models

together  with  spring  washers.  Tighten

to

the

remove  the  lower  lock  nut  from  the  high-low

correct torque.

operating rod.

28.  Refill  the  transfer  box

with

the  correct  grade

20.

Remove  the two  nuts  and  four  bolts  securing

oil

to

the oil level plug hole.

the  transfer  box

to  the  main  gearbox

29.  Check, and

if

necessary top up, the oil level in

extension case.

the main gearbox. Use the correct grade oil.

21.  Fit  three guide  studs,  18G  1425,  through the

30.  Check  the  operation  of  the  handbrake  and

transfer  box  bolt  holes

to

support

it

during

adjust as necessary.

removal.

Refitting

then lower the hoist until the gearbox contacts

26.  Complete  the  refitting procedure b

reversing

REISSUED:

FEB

1993

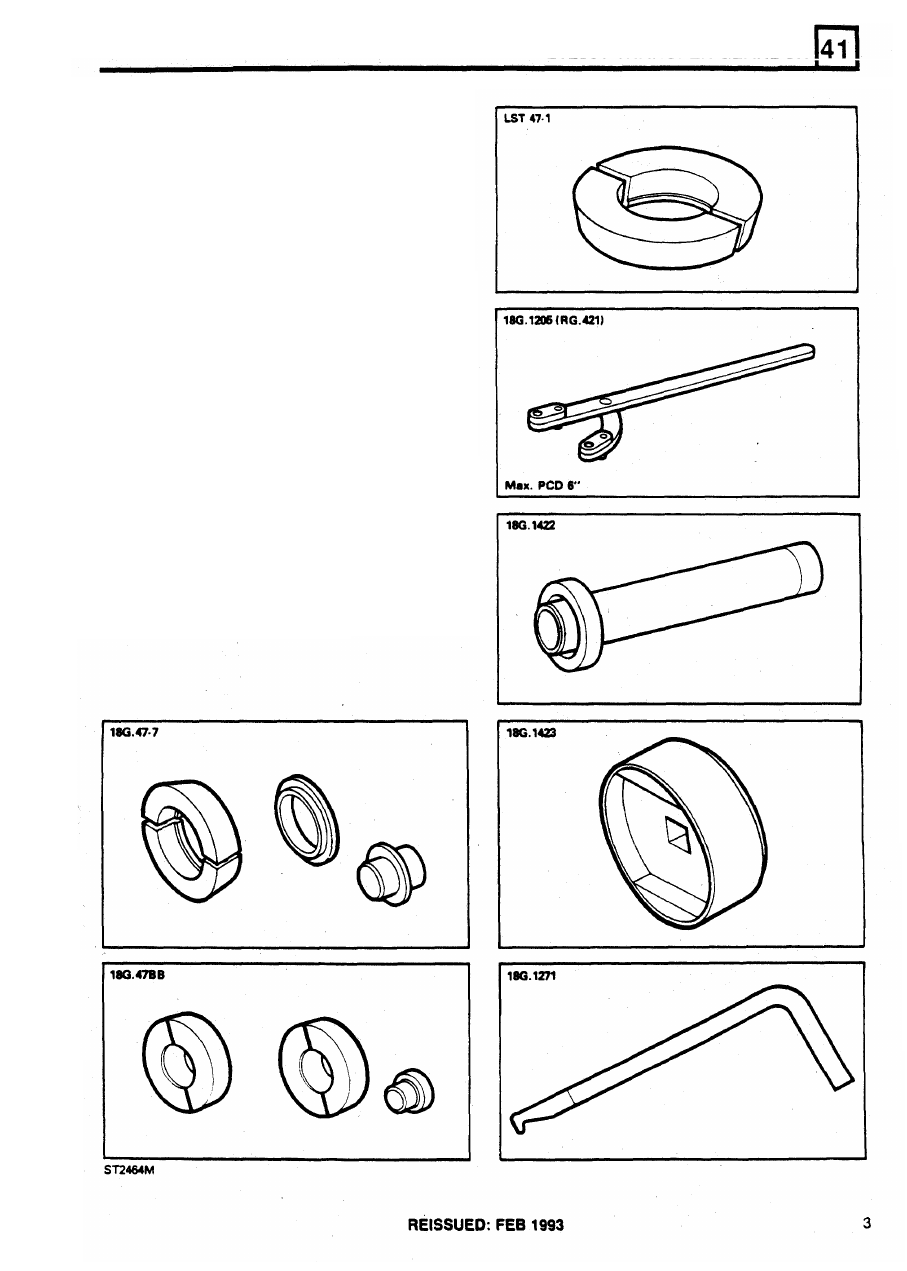

LT230T TRANSFER GEARBOX

OVERHAUL

Service

Tools:

18G47  - 7

Input  gear  cluster  bearing  cones
remover/replacer

18G47BB -1

Adaptor

centre

differential

bearing

remover

18G47BB - 3  Adaptor

centre

differential

bearing

remover button

18G1205

Drive flange  wrench

18G1271

Oil seal remover (optional)

18G1422

Mainshaft rear oil seal replacer

18G1423

Adaptor/socket

centre

differential

Locknut remover/replacer

18G1424

Centre differential bearing replacer

MS47

Hand press

MS550
LST47 - 1

Adaptor

centre  differential  bearing

LST104

Intermediate gear dummy shaft

LST105

Input gear  mandrel

LST550  - 4  Intermediate gear bearing replacer

NOTE: Where the  use  of  special  service tools  is
specified,  only  these  tools  should  be  used  to
avoid  the  possibility  of  personal  injury  and  or
damage to components.

Bearing and oil seal replacer  handle

remover
