Defender (1993+). Manual - part 47





LT77S

MANUAL GEARBOX

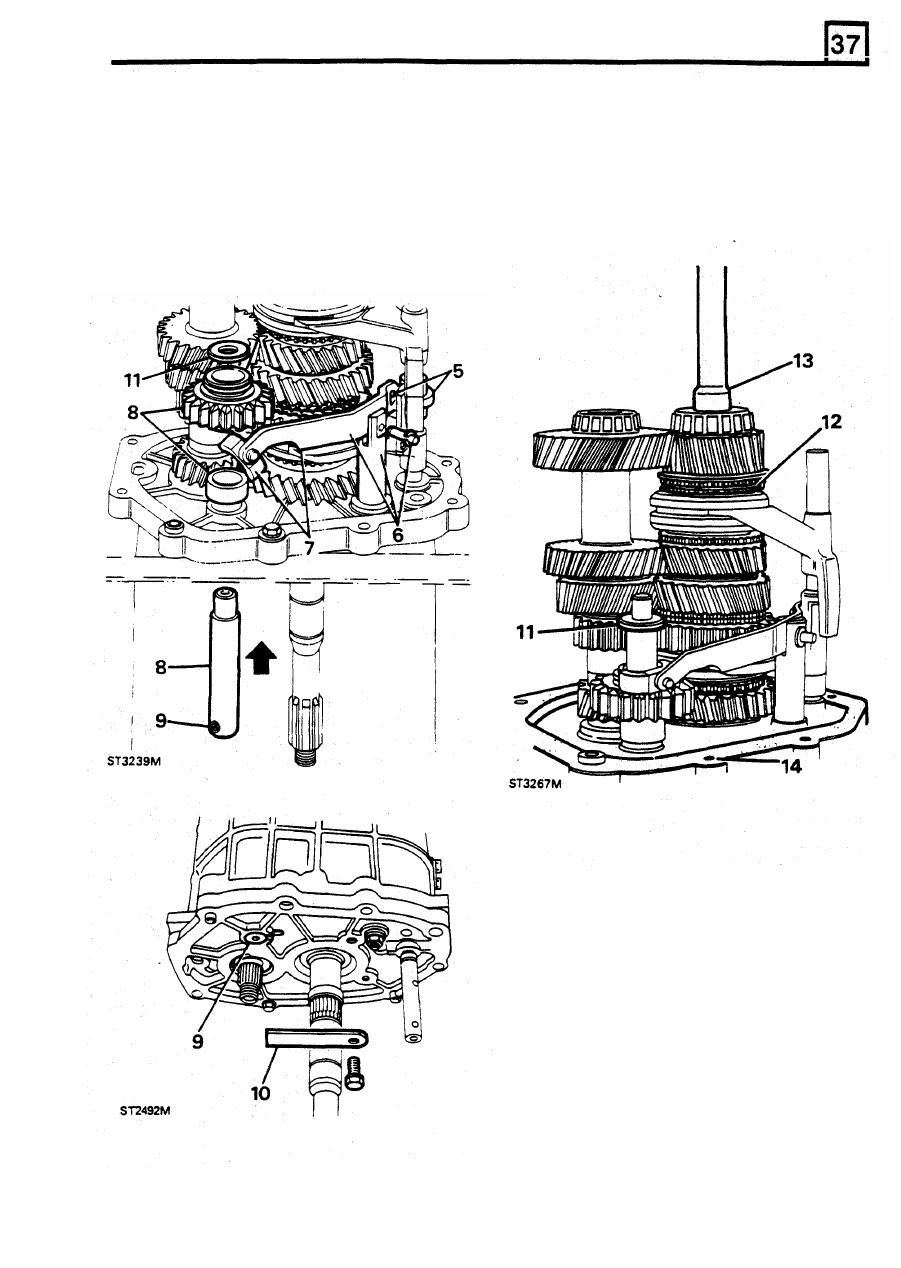

4.

Fit  layshaft  while  lifting  mainshaft  to  clear

10.

Secure  reverse  shaft  with  manufactured  tool

5.

Turn  selector  shaft  and  interlock  spool  to

11.

Fit reverse gear  thrust washer  to  shaft.

allow  reverse lever to engage spool flange.

6.

Fit  reverse lever

to

pivot post and secure with

pin and circlip.

7.

Fit slipper pad to lever.

gasket.

8.  Fit reverse gear shaft,  spacer and gear.

9.  Fit slipper to

reverse

gear  and  ensure  roll  pin

in

shaft engages

in slot in

centre plate.

layshaft rear bearing.

"A".

12.

Fit fourth gear  baulk  ring.

13.

Lubricate spigot bearing and

fit

input shaft.

14.

Remove  centre  plate  workstand  bolt  and  fit

REISSUED: FEB 1993

29

LT77S MANUAL

GEARBOX

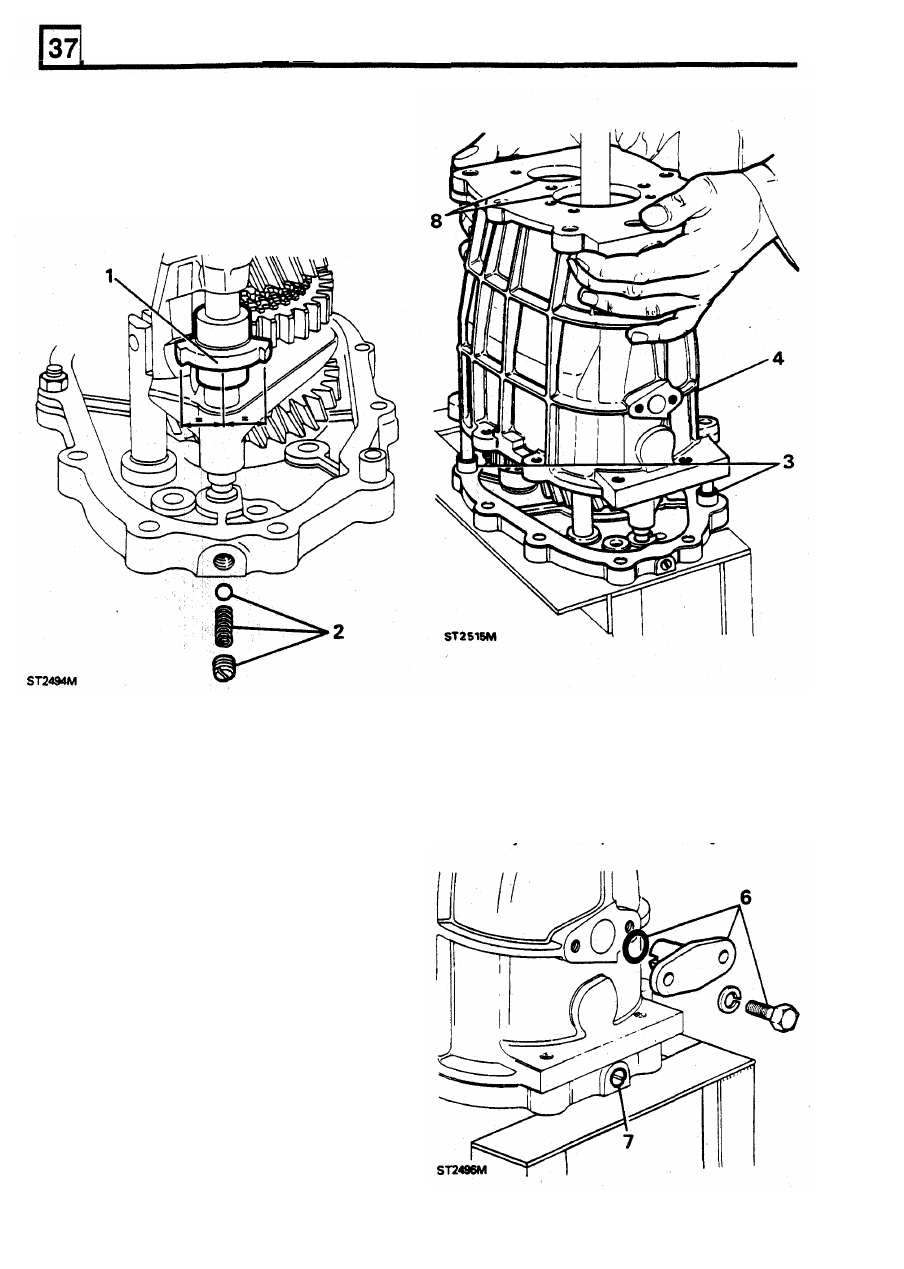

FITTING

GEARBOX

CASING

1.

Turn  selector  shaft  and  spool  to  neutral

2.

Fit  out-board  detent  ball  and  spring  and

position.

secure with  plug.

CAUTION:  Do  not  use  force  to  fit  retainer.
Provided  the  spool  has  not  been  disturbed  the
retainer will slide into position. If not,  remove the
gear case and reposition spool or shaft.

3.  Fit guide studs to casing and  check oil scoop

is correctly fitted.

4.  Without using force, fit gearcase.

NOTE:  Ensure  that  the  centre  plate  dowels  and
selector shaft are properly located.

7.  Remove  detent  plug,  apply  Loctite  290  or

Hylomar PL 32 to thread, refit and stake.

Fit layshaft and  input  shaft bearing tracks.

5.  Secure  centre  plate  and  gearcase  to

workstand with two  8 x 35mm bolts.

6.  Apply  PL 32 to joint face and  bolt threads and

fit spool retainer.

30

REISSUED: FEB 1993

LT77S MANUAL GEARBOX

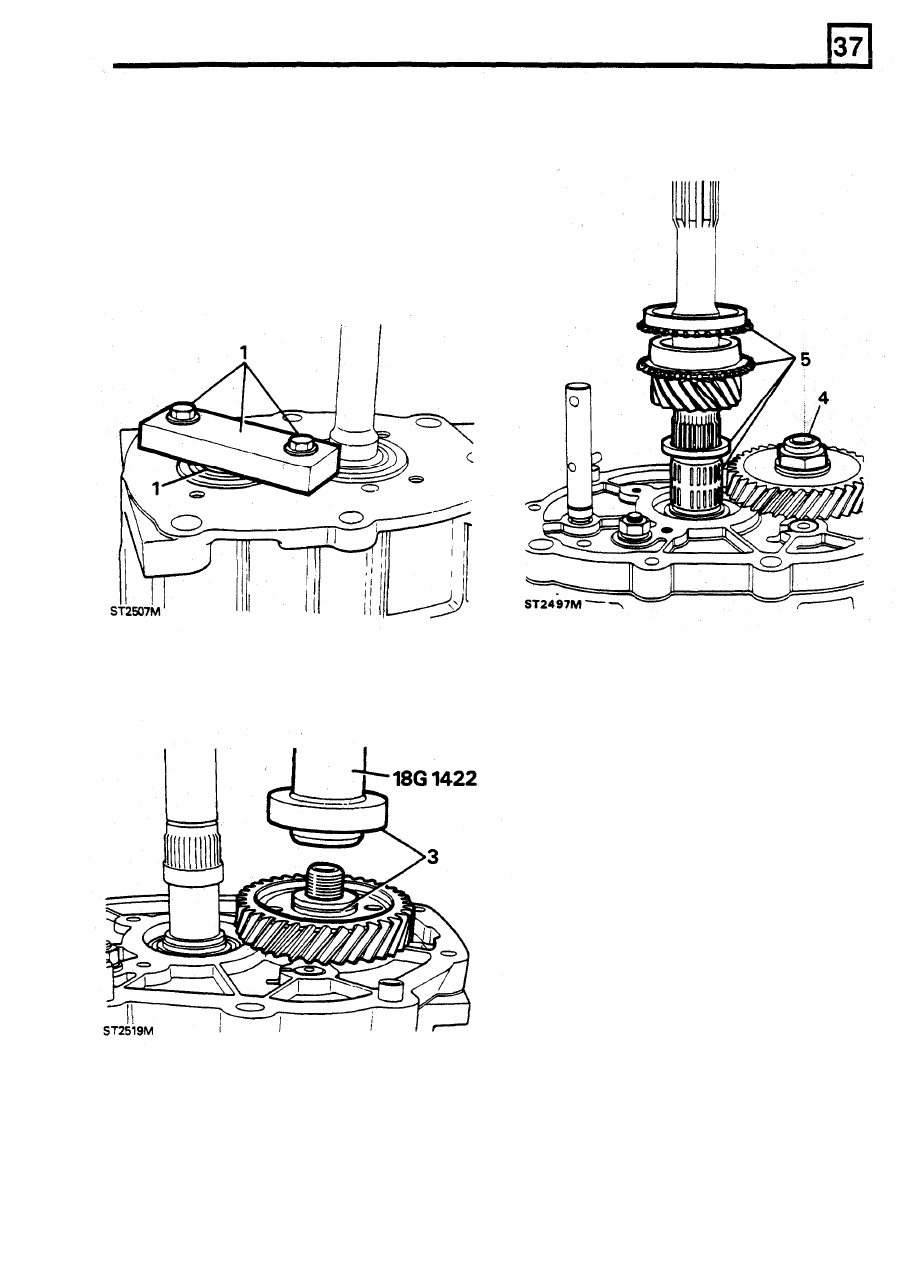

FITTING

FIFTH GEAR

CAUTION:  Since the fifth gear is a tight fit on the
layshaft, the force, when pressing the gear,  must
not  be  transferred  to  the  layshaft  front  bearing.

Tool "D"  and packing disc should be made to the
dimensions given to absorb the force. The  plate
also retains the input shaft bearing outer track.

4.

Fit a new  stake nut but

do

not

tighten.

5.

Fit

fifth gear  assembly to  mainshaft.

1.

Secure  Tool

"D"  with  two  8x25mm  bolts.

Insert disc  between Tool "D"  and layshaft.

2.

Release  and  invert  gearbox  and  remove
reverse shaft  retainer plate.

3.

With  the  extraction  groove  uppermost,  drive
fifth  gear on to layshaft using

18G

1422.

REISSUED:

FEB

1993

31

LT77S MANUAL GEARBOX

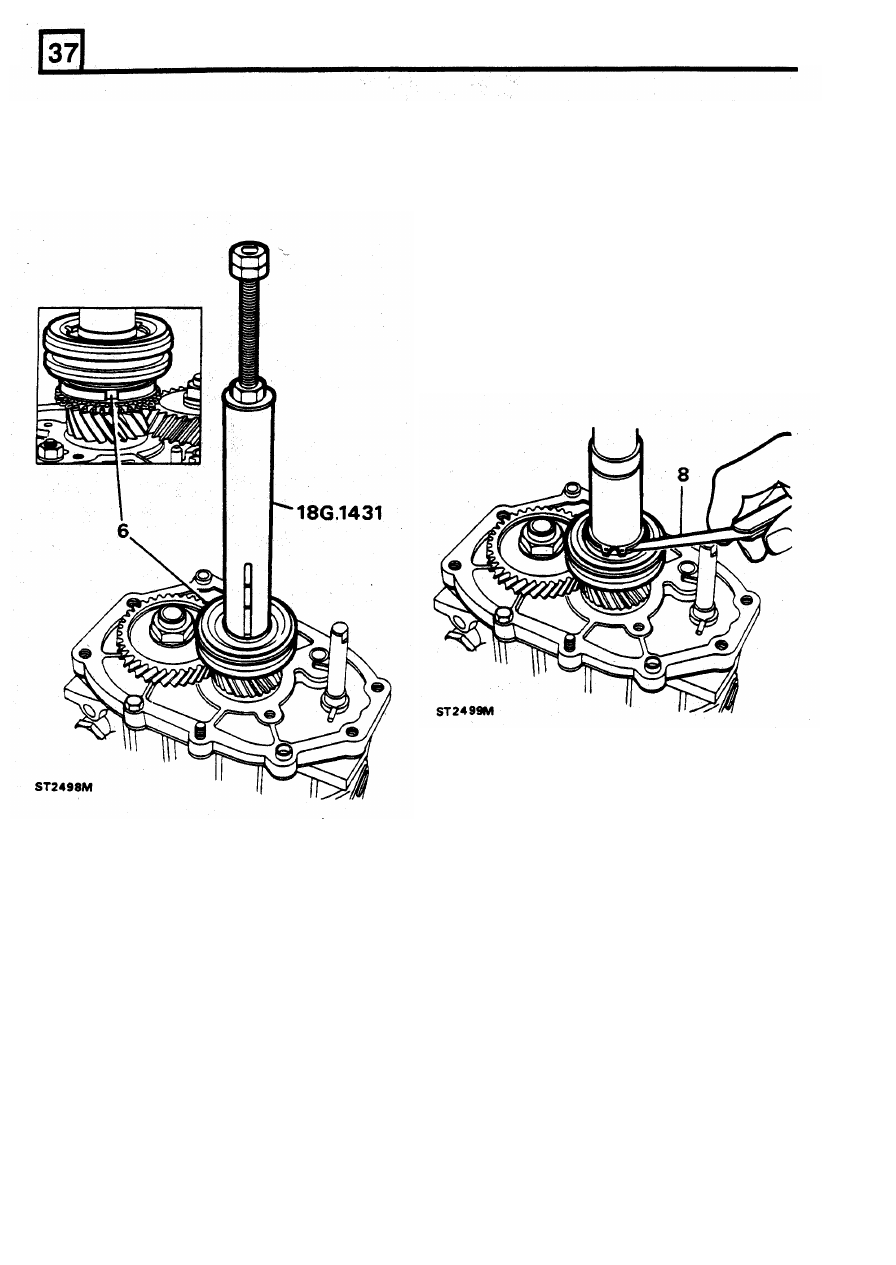

6.

Press

fifth

gear  synchromesh  assembly

to

Part number

Thickness

mainshaft using 18G 1431.

FRC 5284

5,10

CAUTION:  Before  pressing  the  assembly  fully

FRC 5286

5,16

home,  ensure that  the  slipper

pads  locate in the

FRC 5288

5,22

baulk ring slots.

FRC 5290

5,38

FRC 5292

5,34

FRC 5294

5,40

FRC 5296

5,46

FRC 5298

5,52

FRC 5300

5,58

FRC 5302

5,64

7.  Fit the thinnest washer  and secure with circlip.
8.  Measure  clearance  between  circlip  and

washer.

9.  Tighten layshaft stake nut using 18G 1205.

CAUTION:  The  practice  of  locking  gears  to
provide  a  restraint  to  tighten  the  nut  is  not
acceptable due to

high torque figure required.

NOTE:

Only

limited

movement

of

the

synchromesh inner member on the  main-shaft i s
permissable. The maximum clearance i s  0,005mm

t o   0,055mm  (0.0002in

to

0.002in)  and t o   achieve

this

the following selective washers are available.

32

REISSUED: FEB 1993
