2.  Using  service  tool

18G

705

and

18G

705-1A

withdraw the

oil

seal collar.

LT77S MANUAL GEARBOX

MAINSHAFT AND  LAYSHAFT

FIFTH

GEARS

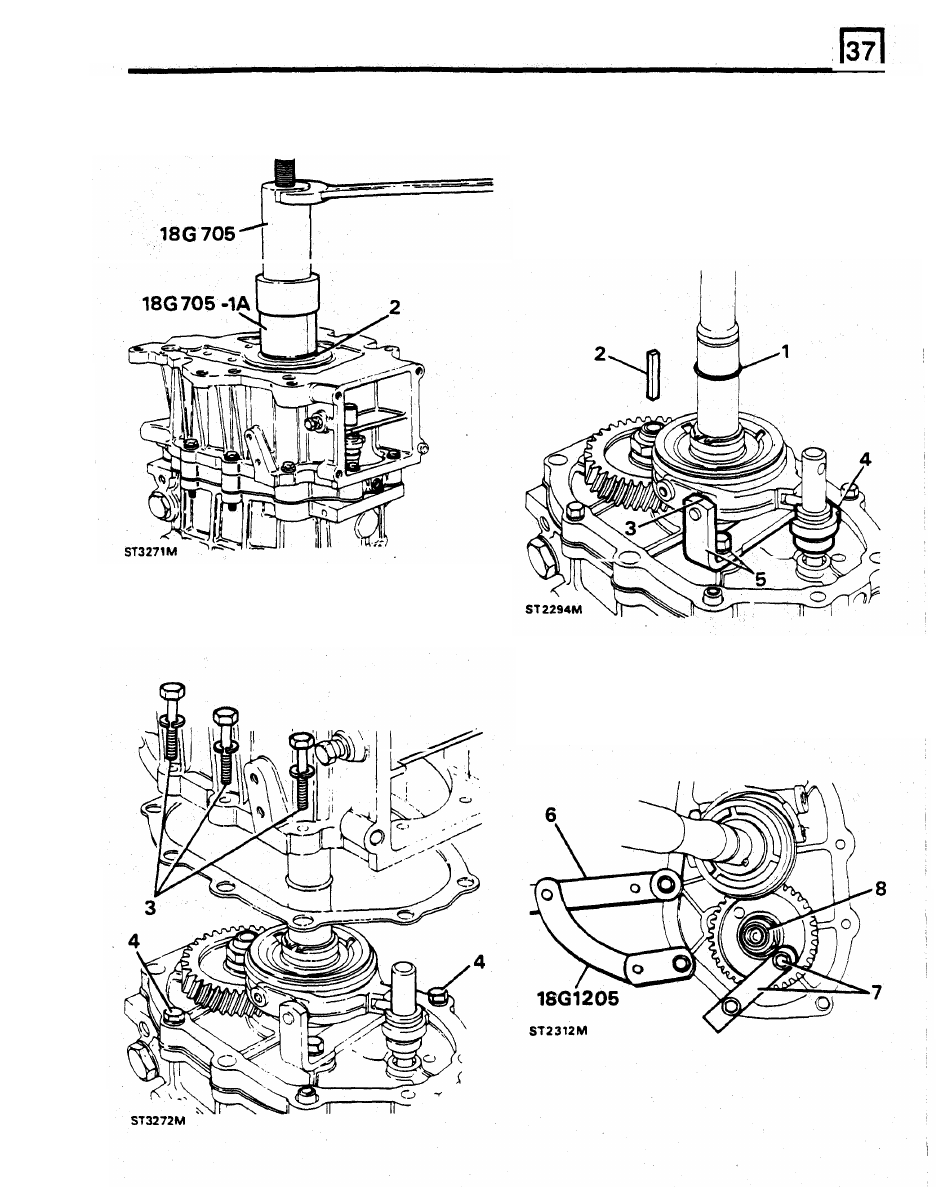

1.

Remove mainshaft

"0" ring.

2.

Remove

oil  pump

drive shaft.

3.

Remove

"E" clips from selector fork.

4.

Remove fifth gear  selector spool.

5.

Remove selector fork  bracket.

3.

Remove

the fifth

gear  extension housing.

4.

Secure  the  centre  plate to

the  gearcase  with

two

35mm bolts.

6.

Locate flange holder

tool

18G 1205.

7.

Fit  manufactured

tool

"A"  and  spacer  to

restrain layshaft fifth gear.

8.

De-stake and remove fifth gear

nut.

LT77S MANUAL GEARBOX

9.

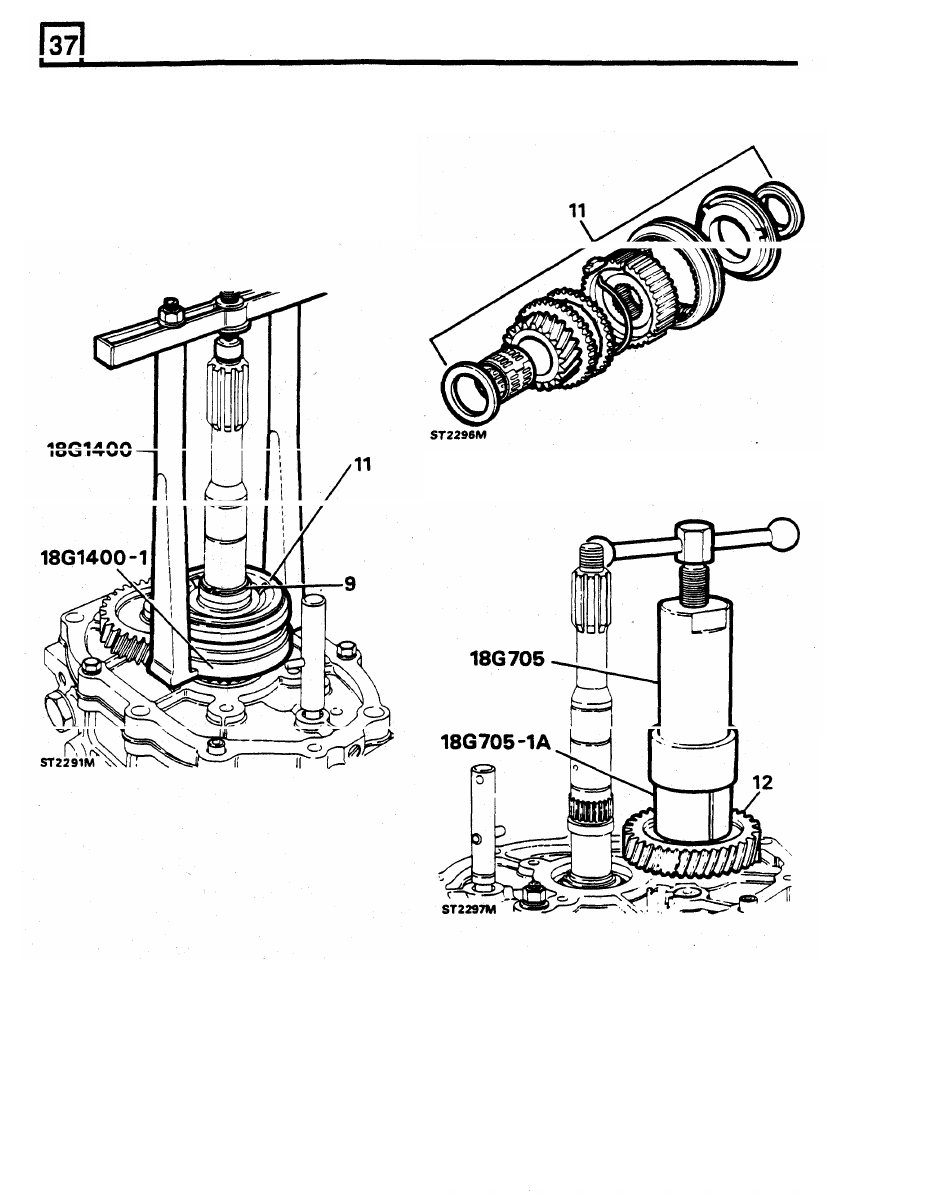

Remove  circlip  retaining  mainshaft  fifth  gear

synchromesh.

10.

Fit special

tool 18G  1400-1  and  18G  1400 as

illustrated.

CAUTION: ensure the puller feet locate in the two

cut-outs

in

18G 1400-1

and between the pins.

11.

Remove fifth gear  synchromesh.

12.  Remove layshaft fifth  gear  using  special

tools

18G

705

and  18G 705-1A.

Main gear case.

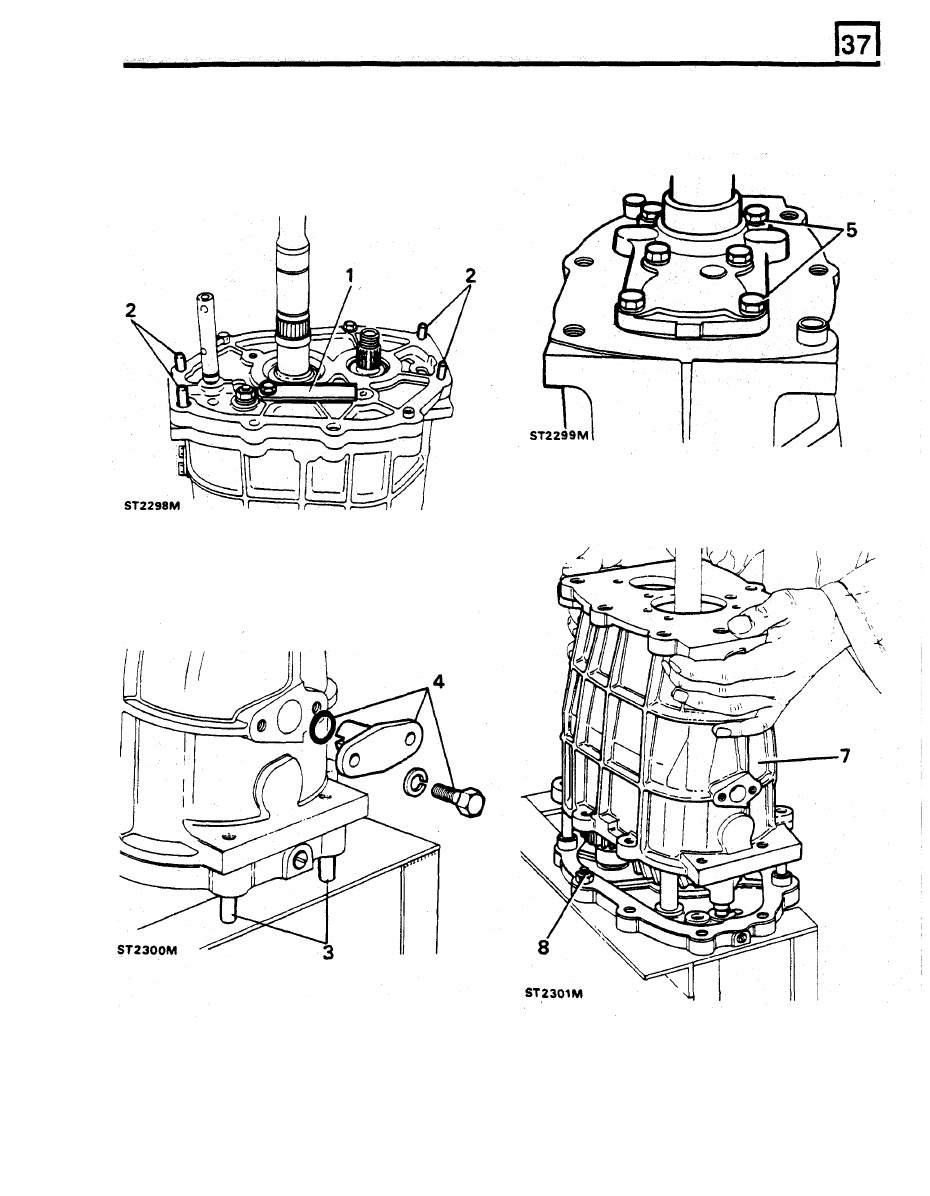

1.

Secure  reverse  shaft  retainer,  manufactured

tool  "A, to centre  plate

2.  Fit  studs,  manufactured  tool  "B"  to  gear  case.

LT77S MANUAL GEARBOX

5.  Remove  front  cover  and  gasket.
6.  Retrieve  selective  washers.

7.

Remove bolts and

lift-off

gear  case.

8.

Secure centre plate with nut  and  bolt.

3.

Invert  gear  case  and  locate  studs  in

workstand  holes.

4.

Remove selector  shaft

spool

retainer.

LT77S

MANUAL GEARBOX

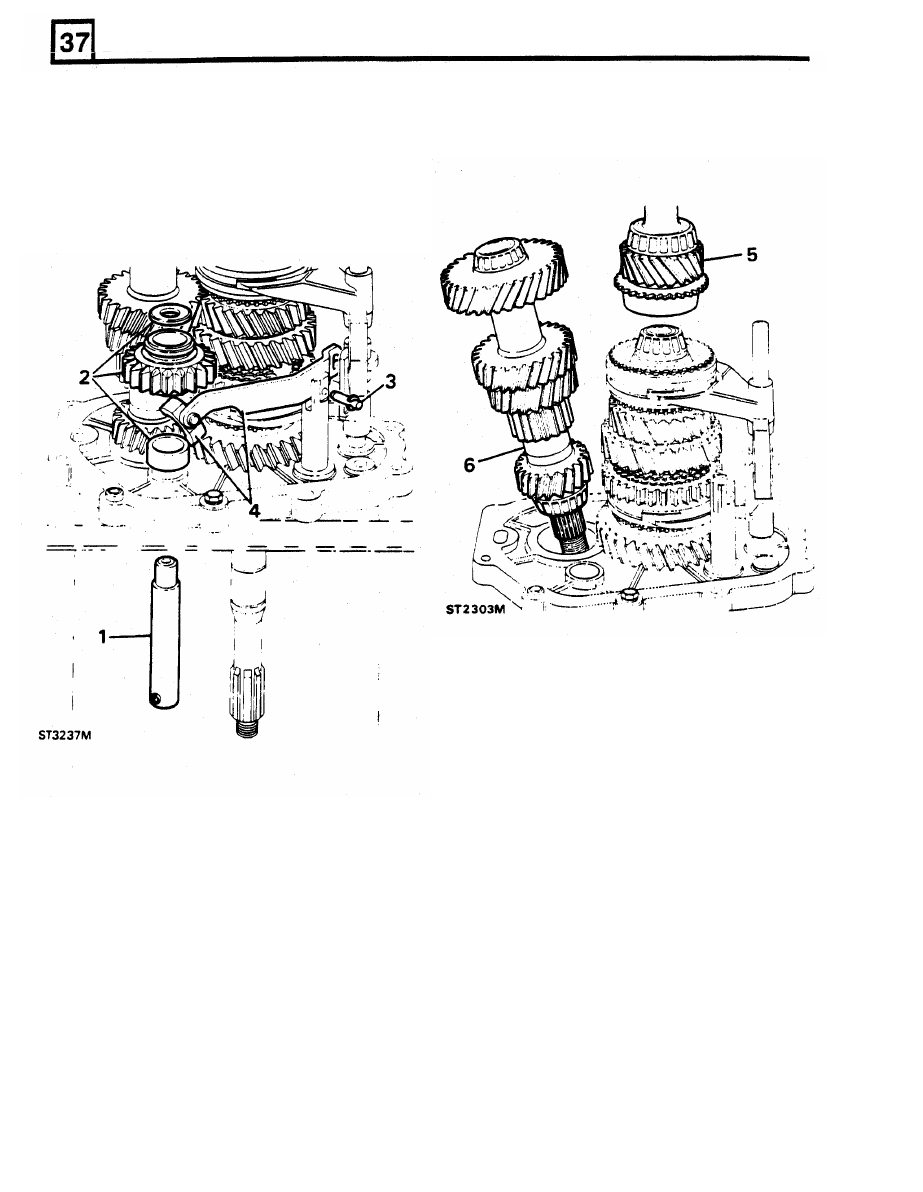

REVERSE SHAFT, LAYSHAFT AND MAINSHAFT

1.

Remove retainer

(tool

"A")  and reverse shaft.

2.  Remove  thrust  washer,  reverse  gear  and

spacer.

3.

Remove  reverse  lever  pin  with

"E"  clip

attached.

4.

Remove lever and slipper pad.

5.

Remove input shaft  and fourth gear baulk ring.

6.

Remove  layshaft  by  tilting,  as  illustrated and
lifting mainshaft.

7.

Unscrew  plug  and  remove  spring  and

outboard detent

ball.

8.

Align  fifth  gear  selector  pin  with  centre  plate
slot.

9.

Remove mainshaft, gears,  selectors and forks.

10.

Remove selector

fork assembly from gears.
