Defender (1993+). Manual - part 37





COOLING  SYSTEM  FAULT DIAGNOSIS

SYMPTOM

POSSIBLE

CAUSE

CURE

A-EXTERNAL LEAKAGE  1.Loose

hose

clips

1.Tighten

2Defective rubber hose

2.Renew

3. Damaged radiator seams

3. Rectify

4. Excessive wear  in the water pump  4. Renew

5. Loose

core plugs

5. Renew

6. Damaged gaskets

6. Renew

7. Leaks at the heater connections

7. Rectify

or plugs
8. Leak

at

the water temperature

8. Tighten

gauge plug

1. Defective cylinder head gasket

2. Cracked cylinder wall
3. Loose cylinder head bolts

1. Boiling

2. Internal or external leakage
3. Restricted radiator or  inoperative

B-INTERNAL  LEAKAGE

1. Renew. Check engine

oil

for

contamination

and refill as necessary
2. Renew cylinder block
3. Tighten. Check engine for

oil

contamination

and refill as necessary

1. Ascertain

the cause

of engine overheating

and correct as necessary
2. See items A and B
3. Flush radiator or renew the thermostat as
necessary

1. See

item D

2. Refill
3. Use air pressure from engine side of the
radiator and thoroughly clean matrix

C-WATER  LOSS

F-OVERHEATING

1. Poor circulation

2. Dirty oil and sludge in engine
3. Radiator fins choked with chaff,
mud, etc
4. lncorrect ignition timing

4. Check using electronic equipment

5. Insufficient coolant

5. See item D

6. Low

oil level

6. Replenish

7. Tight engine

7. New engines are very tight and moderate
speeds should be maintained for the first

1,000

miles

8. Choked or damaged exhaust pipe  8. Rectify or  renew silencer
or silencer
9. Dragging brakes

9. Adjust brakes

10. Overloading

vehicle

10.

ln the hands

of the operator

11. Driving

in heavy sand or  mud

12. Engine labouring

on gradients

13. Low gear work
14. Excessive engine idling

16. Defective thermostat

16. Renew

11. In the hands of the operator
12.

In the hands of the operator

13.ln the hands of the operator
14.

In the hands of the operator

15. lnaccurate temperature gauge

15. Renew

D -P O O R   CIRCULATION

1. Restriction

in  system

1. Check

hoses  for  crimps,  reverse-flush  the

2. lnsufficient coolant

2. Replenish

3. lnoperative water pump

3. Renew

4. Loose fan belt

4. Adjust

5. Inoperative  thermostat

5.Renew

radiator, and clear the system

of rust and

sludge

SYMPTOM

POSSIBLE

CAUSE

CURE

E-CORROSION

1. Excessive

impurity in the water

1. Use

only

soft, clean water together

with

correct anti-freeze or inhibitor mixture

2.

lnfrequent flushing and draining of  2. The cooling system should

be

drained and

system

flushed thoroughly at least once a year

3.

lncorrect anti-freeze mixtures

3.

Certain anti-freeze solutions have a

corrosive effect

on parts of the cooling

system. Only recommended solutions should
be

used.

G-OVERCOOLING

1. Defective thermostat

1. Renew

2. Inaccurate temperature gauge

2.Renew

MANIFOLDS AND EXHAUST

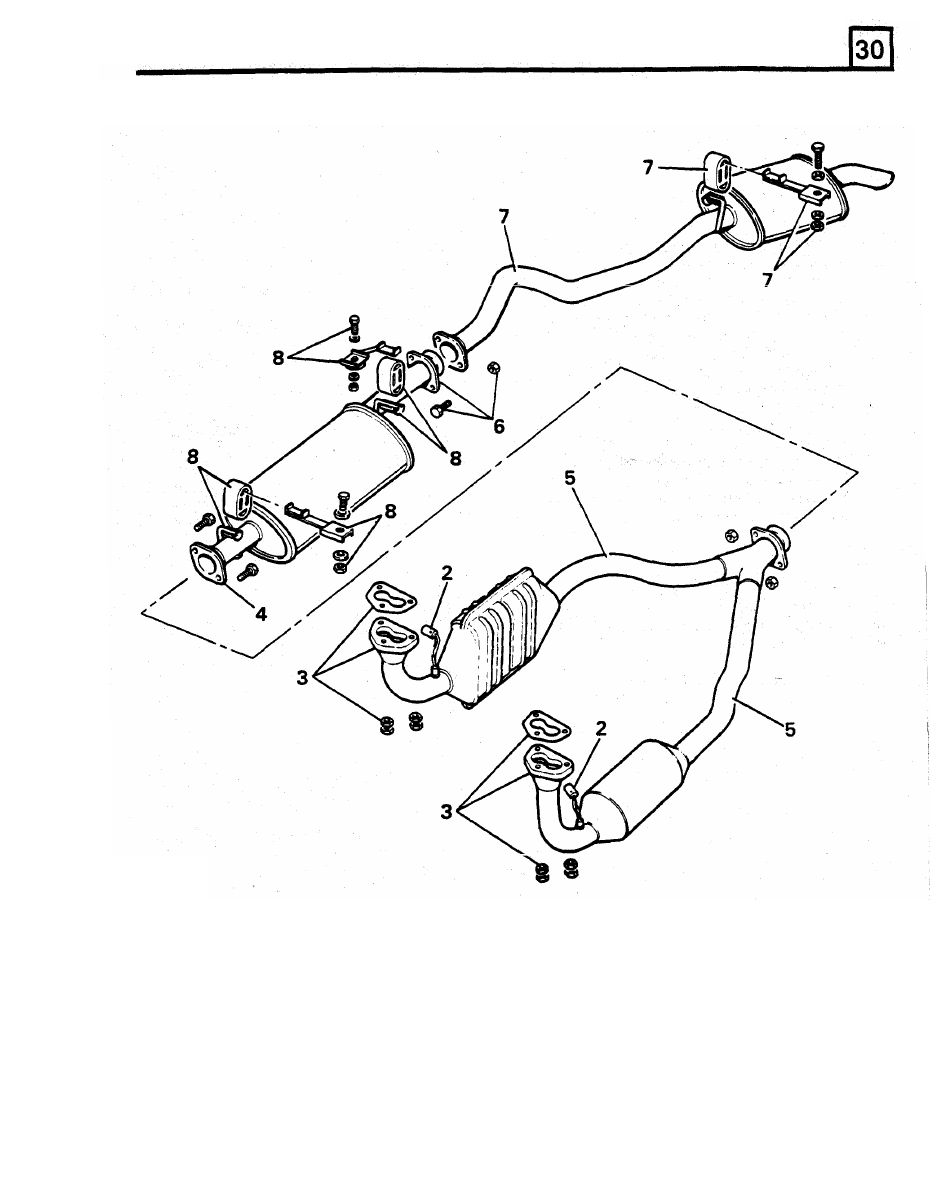

EXHAUST SYSTEM  COMPLETE

ST3420M

NOTE:  Ensure  no  exhaust  leaks  are  evident  in

either  a  new  or  old  exhaust  system,  as  this

will

affect vehicle performance.

disconnect any components until exhaust system

WARNING:  To  prevent  personal  injury  occurring
from

a  hot  exhaust  system,

DO

NOT  attempt  to

has cooled down.

MANIFOLDS

AND EXHAUST

EXHAUST SYSTEM

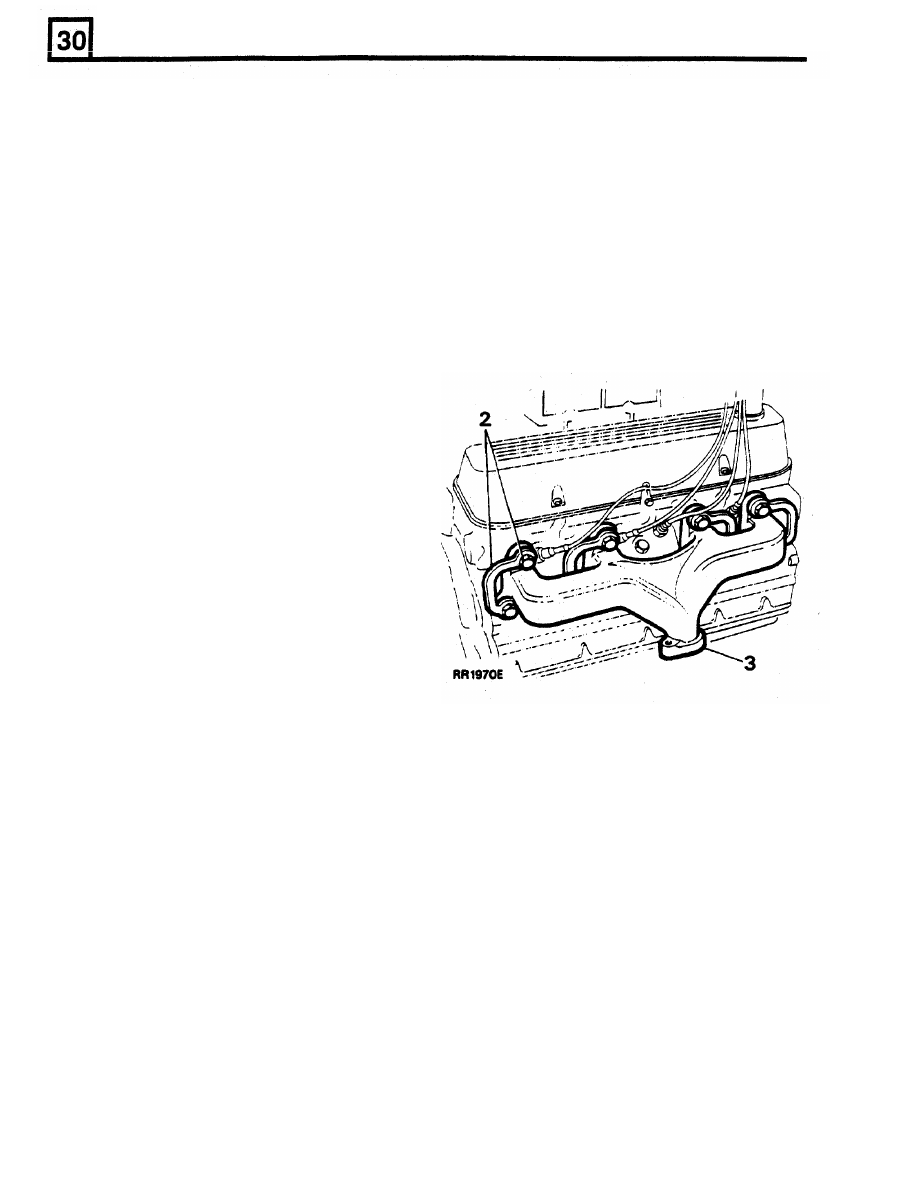

EXHAUST MANIFOLD

Remove and refit

Removing

Left hand

Remove and  refit

1.

Raise  the  vehicle  on  a  suitable  hoist  and

Right hand

apply the parking brake.

2.

Disconnect  the  electrical  plugs  from  the

Removing

heated oxygen sensors.

3.

Remove  the  three  nuts  securing  each  front

pipe

to

the manifold. and remove the gaskets.

4.

Remove  the  two  nuts  and  bolts  securing  the

front  pipe to the intermediate pipe.

5.

Withdraw  the front  pipes with catalysts.

3.  Remove the manifold(s) and old gaskets.

6.  Remove  the  two  nuts  and  bolts  securing  the

intermediate pipe to the tail pipe.

7.

Remove the nut and bolt securing the tail pipe

mounting  bracket.  Withdraw  the  tail  pipe  and
silencer, and collect the rubber mounting.

8.

Remove

the

nut

and

bolt

securing

intermediate  pipe  front  and  rear  mountings.
Withdraw  the  intermediate  pipe  and  silencer

and collect the rubber mountings.

1.

Disconnect  the  front  exhaust  pipe(s) from  the

2.

Tap  back the bolt locking tabs and remove the

eight bolts, lock tabs  and washers.

Refitting

NOTE:  Apply  Firegum Putty,  part  no.

15608

to all

exhaust  system  joints  with  the  exception  of  the
exhaust  flange  to  manifold flange,  where  a  new

gasket should be fitted.

9.  Reverse the removal instructions.

Refitting

4.

Ensure  that  the  mating  surfaces

of

the

cylinder  head and  exhaust  manifold are  clean
and smooth.

5.

Coat  the  threads  of  each  bolt  with  anti-seize
compound.

6.  Place  the  manifold  and  new  gaskets  in

position  on  the  cylinder  head  and  fit  the
securing  bolts,  new  lockplates  and  plain
washers. The plain washers are

fitted

between

the manifold and lockplates.

7.

Evenly tighten the manifold bolts to the correct

torque,  see torque wrench settings section 06,
and bend over the lockplate tabs.

8.

Reconnect the  front  exhaust  pipe,  using  new

exhaust flange gaskets.

INTAKE MANIFOLD

The  removal  and  refit

of

the  intake  manifold

is

incorporated

in

the  Fuel  Injection  System,  Section

19.

manifold(s).
