Defender (1993+). Manual - part 36





COOLING

SYSTEM

COOLING SYSTEM

DRAIN AND  FILL COOLING  SYSTEM

Engine  Protection

WARNING:  Do  not  remove the  radiator filler  cap

To  prevent corrosion of the aluminium engine parts

it

when  the  engine  is  hot  because  the  cooling

is vital that the cooling system is filled with a solution

system  is  pressurized  and  personal  scalding

of  clean  water  and  anti-freeze  winter  and  summer.

could result.

Never

fill

or  top-up  with  water  only,  always  add

anti-freeze. Never use salt  water  otherwise corrosion

will

occur.  In  certain  territories  where  the  only

available  water  supply  may  have some  salt  content,
use  only  clean  rainwater  or  distilled  water,  with
anti-freeze added.
Use  only Universal  anti-freeze  or  permanent  type
ethylene base,  without  methanol  containing,

suitable inhibitor for  aluminium engine parts. Use one
part  of  anti-freeze  to  one  part  water.  Anti-freeze
should  be  used even  in  climates  where  is  it  not
necessary  as  a  corrosion

inhibitor.

No

other

corrosion  inhibitor  should  be  used.  A  concentration
of at least 50% should be maintained.
Anti-freeze can remain in the cooling system and

will

provide  adequate  protection for

two

years  provided

that  the  specific  gravity  of  the  coolant  is  checked
before the  onset

of

the second winter  and topped-up

with  new anti-freeze as required.
The  specific  gravity  can  be  checked  with  a
hydrometer and a 50% concentration at

68°

(20°

C shouId read

1.075.

2.

Disconnect  bottom  hose  and  drain  cooling

Land Rovers  leaving  the  factory  have  the  cooling

system. Connect hose after draining.

system filled  with  a

50%

anti-freeze  mixture.  This

3.

To  drain  the  expansion  tank  remove  it  from

gives  protection  against  frost  down  to  minus

47°

the  vehicle,  empty.  flush-out  and  refit.  If

(minus  53°  F ) .

necessary renew the expansion tank  hose.

After  the  second  winter  the  system  should  be

4.

Make up  a solution

of  anti-freeze and water  in

drained  and  thoroughly  flushed.  Before  adding  new

a  separate  container  in  the  concentration

anti-freeze  examine  all  joints  and  renew  defective

required.  The  cooling  system  capacity  is

hoses

to make sure that the system is leak proof.

quoted in the  data  section. Therefore

to

allow

See  SECTION

09

for  protection quantities.

for  topping  up  and

the

expansion  tank  make

up a quantity

in excess

of  this quantity.

5.  Although  anti-freeze  may  not  be  required  it

should

be  used  as  an  inhibitor  see  under

'Engine  Protection'.

6.

Fill

the  system  through  the  radiator  filler  plug

until the coolant is just below the filler neck.

7.

Fit the plug but  do  not over  tighten.

8.

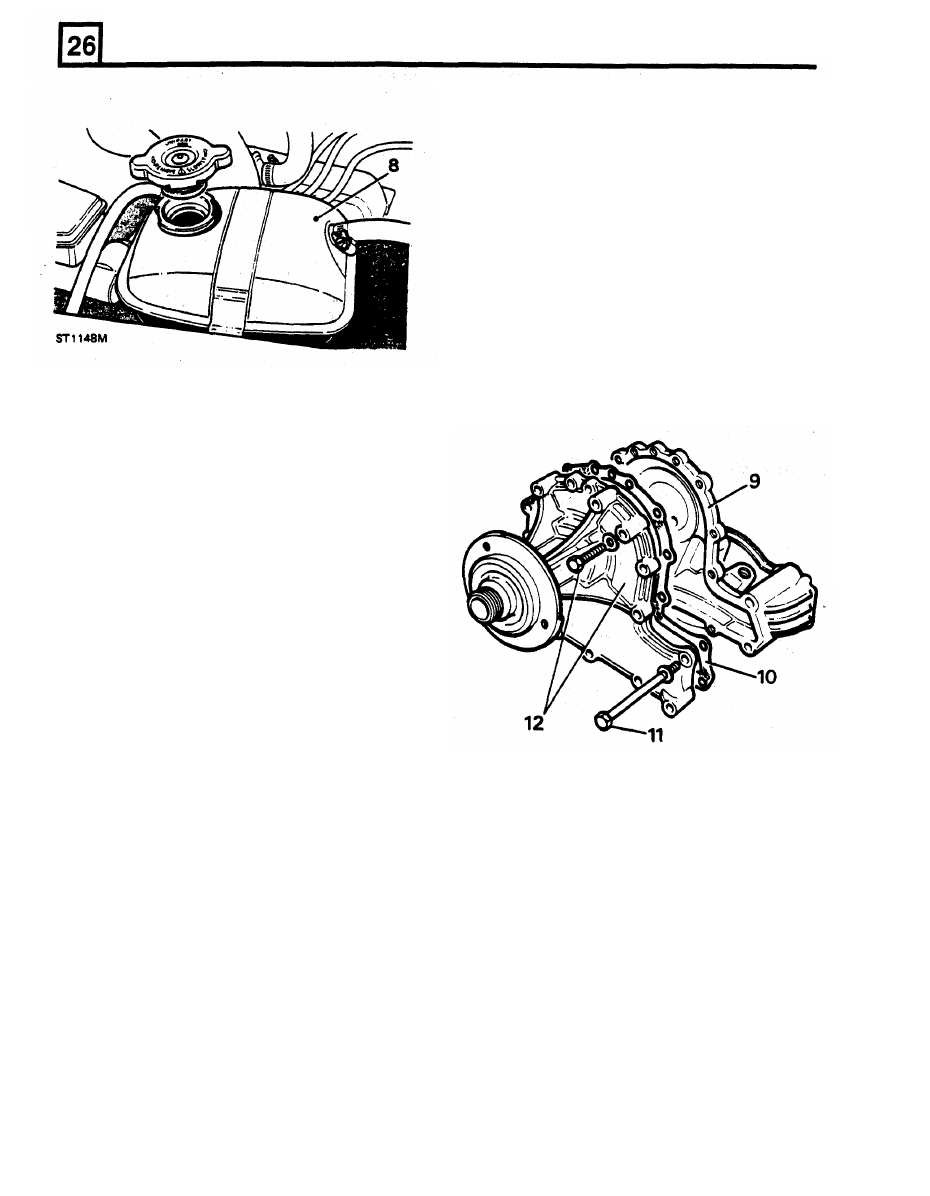

Half  fill  the  expansion  tank  with  coolant  and
secure the cap correctly.

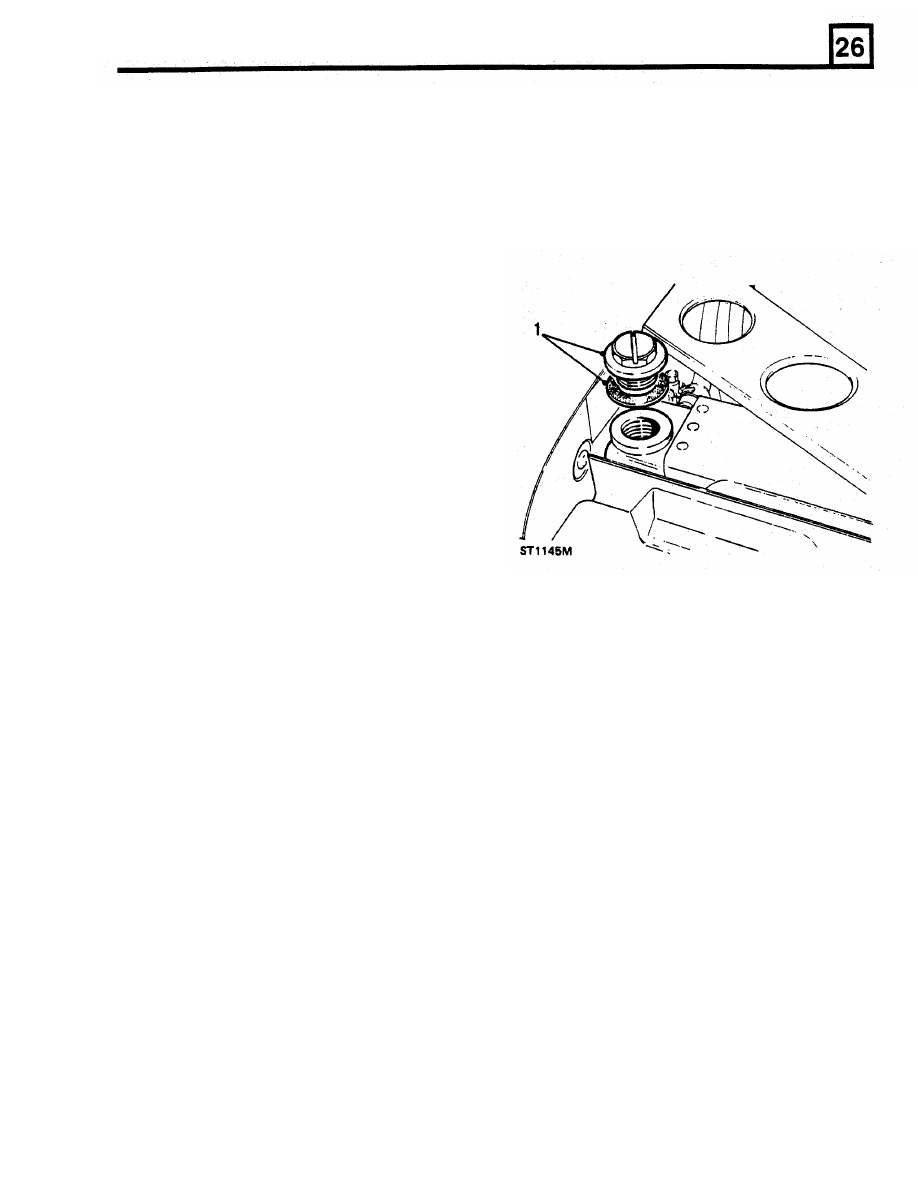

1.

Remove the radiator filler  plug.

COOLING

SYSTEM

To

Refit

9.

Clean  the  timing  cover  mating  face  and
ensure all trace

of

old gasket is removed.

10.  Smear  a  small  quantity  of  grease  on  both

sides of a  new  gasket and  place

it

in position

on the timing cover.

11.

Clean  the  threads  of  the  four  long  bolts  that
penetrate the  cylinder  block  and  apply  Loctite
572

to

the threads.

12.

Fit the  water  pump

to  the  engine  and  secure

with  the  retaining

bolts

and  single  stud  that

also secures

the

alternator adjustment strap.

13.

Fit  the  bottom  hose

to

the  water  pump  and

radiator.

14.

Fit the fan cowl,

if

removed.

15.

Fit and tension the drive belt.

9.

Start  and  run  the  engine  until  normal

16.

Fit the fan and viscous coupling.

operating  temperature  is  reached.  Allow  the
engine

to

cool

and  check  the  levels  in  the

radiator  and  expansion  tank  and  top  up

if

necessary.  Finally  check  all  hose connections
for  leaks.

REMOVING

WATER PUMP

NOTE:  The following  instructions cover the  basic

vehicle  without  air  conditioning  and  power

steering.  It  may  therefore

be

necessary  to

remove other items in order to gain access to the

water pump.

To Remove

1.

Disconnect the battery.

2.  Disconnect  the  bottom hose from  the  radiator

to drain the cooling system.

3.

Using a cranked open-ended spanner, remove

17.

Fill  the  cooling  system

with

the  required

the fan  and viscous coupling assembly, noting

concentration  of  recommended  anti-freeze  in

that it has a left-handed thread.

accordance  with  the  instructions  in  this
section.

4.

If

necessary, remove the

fan

cowl.

5.  Remove the fan drive belt.

18.

Connect the  battery  and  run the  engine while

6.

Remove

the

bottom  hose

from

the  water

checking for  leaks.

7.

Release the  alternator  adjustment  strap  from

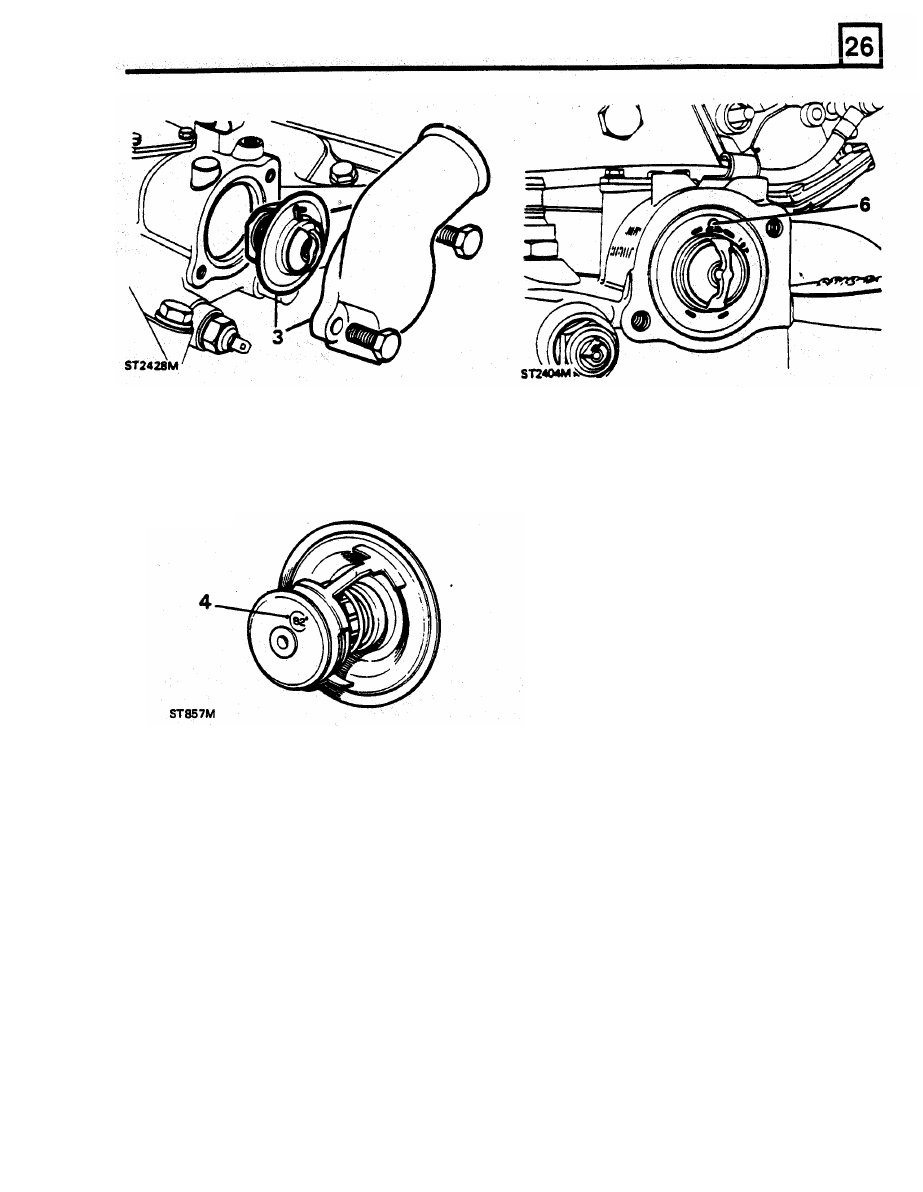

REMOVING THERMOSTAT

8.  Remove the  fourteen  bolts  and  withdraw  the

To Remove

ST3166M

pump.

the water  pump stud.

water  pump and gasket.

1.

Disconnect  the  battery  and  drain  the  cooling

NOTE:

Information  relating  to  the  inspection

of

system.

the  water  pump  is  contained  in  the  engine

2.  Remove any pipes,  hoses,  or other  items  that

overhaul section 12.

may inhibit access to the thermostat housing.

3.

Remove  the  thermostat  cover  and  withdraw

the  thermostat.  Clean  any  deposits

from

the

housing and the cover.

COOLING SYSTEM

4.

The  temperature  at  which  the  thermostat

7.  Fit  the  thermostat  cover  using  a  new  gasket.

should  be  fully  open  is  stamped  on  the

Coat  the  threads

of

the  retaining screws  with

forward  end  of  the  thermostat.  The  following

Loctite

572

and  tighten  the  screws  evenly

to

method  can  be  used

to

determine

if

the

the correct torque.

thermostat

is

satisfactory  and  suitable  for

8.  Connect  all  pipes  and  hoses  and  refill  the

refitting.

cooling  system  in  accordance  with  the

instructions in this section.

5.

Place  the  thermostat  and  a  Centigrade

thermometer

in  a  laboratory  beaker,  or  a

suitable alternative, half

full of  water.  Heat the

water  and  observe  the  temperature  at  which
the  thermostat  opens.

If

faulty,  discard  the

thermostat.

To Refit

6.

The thermostat has a small vent  hole in which

is fitted  a 'jiggle'  pin

to keep the  hole clear.  Fit

the  thermostat  to  the  housing  ensuring  that
this  vent  is  uppermost  at  the

12

o'clock

position.

If

fitted

in any  other  way,  an  air  lock

could  result  in  the  water  passages  causing
overheating and coolant

loss from the system.

COOLING

SYSTEM

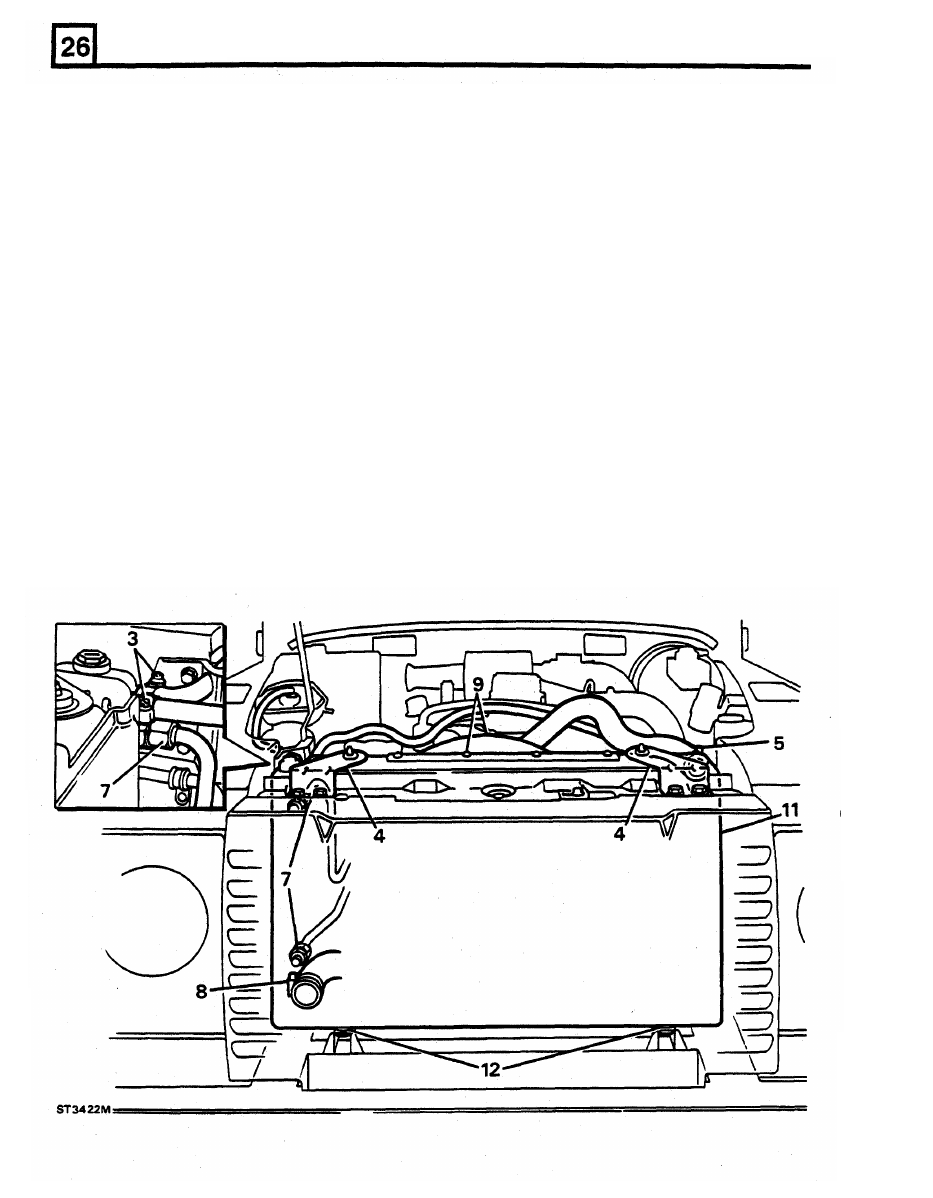

REMOVING RADIATOR

To Refit

To remove

12.  Lower  the  radiator  into  position in  the  engine

compartment,  ensuring  that  the

two

pegs  at

1.

Disconnect the battery.

the  bottom  of  the  radiator  locate

in  the

2.

Drain the cooling system.

corresponding  rubber  pads  in  the  cross

3.

Disconnect the  expansion and  overflow  hoses

member brackets.

from the top of  the radiator.

13.

Locate the cowling into the clips at  the bottom

4.

Release  radiator  support  bracket  fixings  and

of  the  radiator  and  secure  it

to

the  top  with

detach brackets.

the four  screws.

5.  Slacken top  hose clip, detach hose and  place

14.

Secure  the  top  of  the  radiator  with  the

two

aside.

brackets and bolts.

6.

Place a suitable container under the oil cooler

15.

Secure the top and bottom hoses.

hose connections.

16.

Connect the

oil

cooler  hoses

to

the radiator.

7.

Disconnect

oil  cooler  hoses  at  cooler  and

17.

Connect  the  expansion  tank  and  overflow

place aside.

hoses.  Ensure  all  hose  clips  are  fully

8.  Slacken  bottom  hose  clip,  detach  hose  and

tightened.

place aside.

18.  Refill  cooling  system  with  correct  coolant

9.

Remove  the  screws  securing  the  cowling  to

mixture.

the radiator.

10.

Lift  the  cowling  out

of

the  clips  at  the  bottom

of

the  radiator  and  push  it  back  towards  the

engine.

11.

Carefully

lift

the  radiator  out  of  the  engine

compartment.

19.  Check and

top up engine oil as necessary.
