Defender Electric Diagrams. Manual - part 255

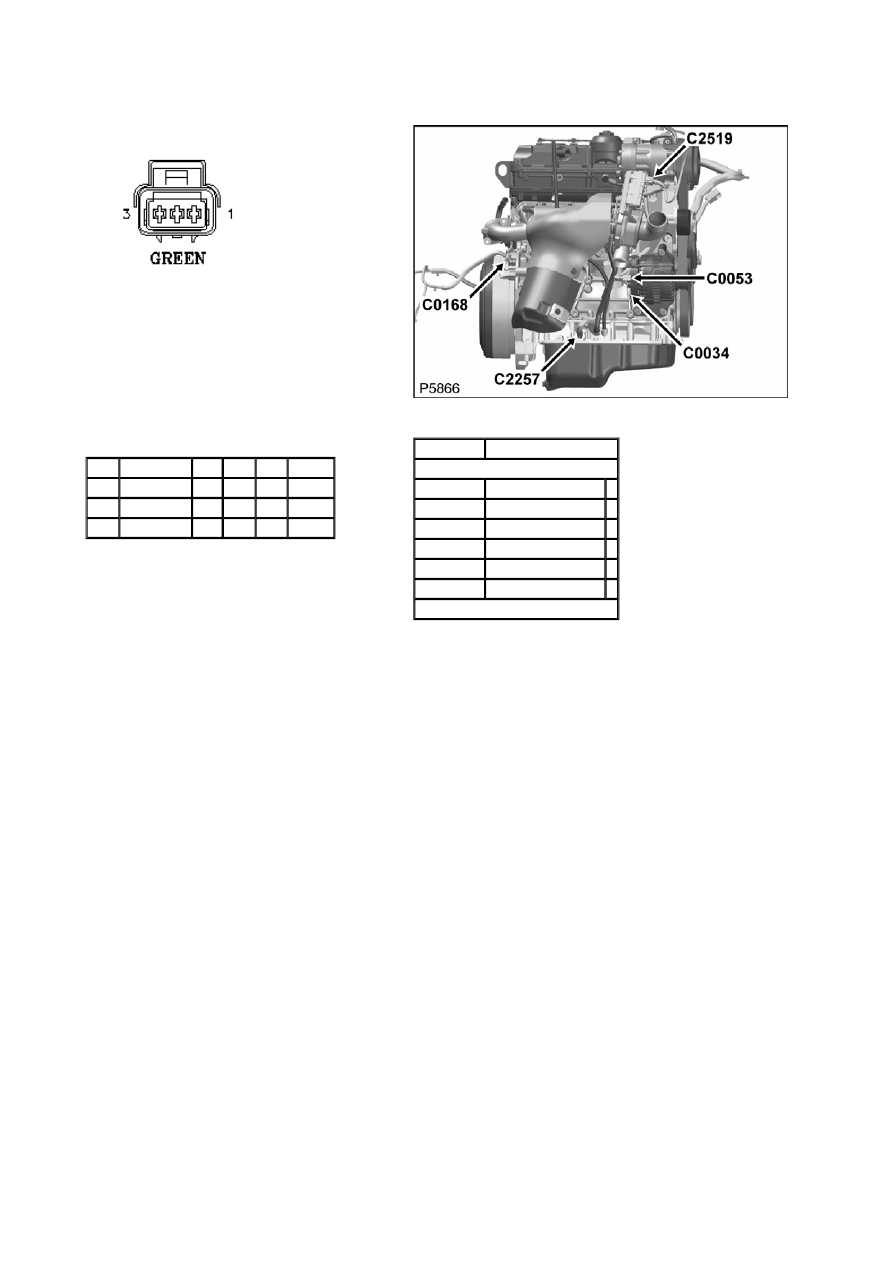

Connector: C2257

Description: Sensor-Oil temperature-level

Location: RH side of engine





Part No.:

YPC911090



Colour: GREEN

Cavities: 3WY

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPE100740

0.75 GP

254

C0411

2

YPE100740

0.75 NY

254

C0411

3

YPE100740

0.75 OS

254

C0411

Service Repair Kits




CSA

0.50- 0.75 CSA

Cavities: 1,2,3

YMI900970

SRK ITEM 0.75CSA

1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED 1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB900990

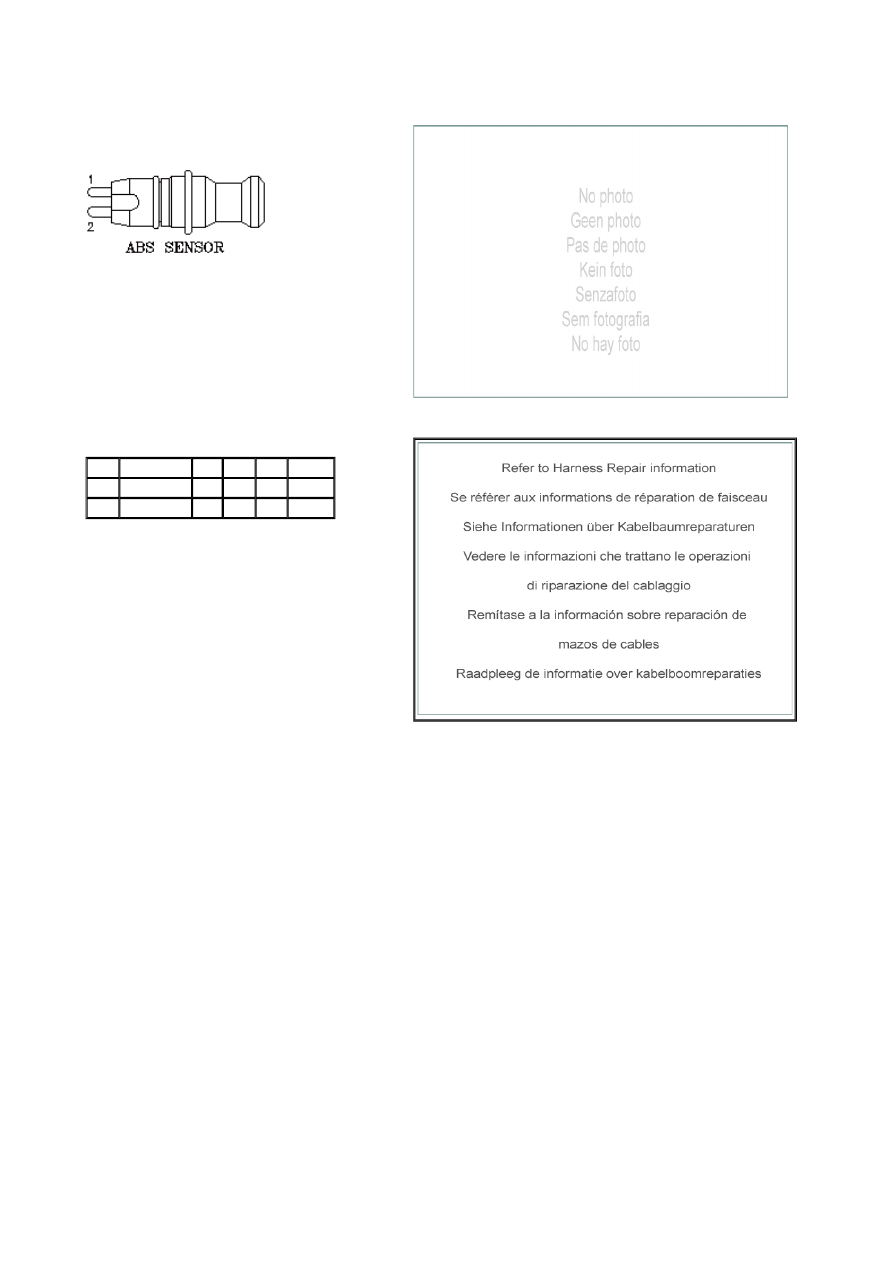

Connector: C2367

Description: Wheel speed Sensor-Front-RH

Location: Beneath front of vehicle RH side





Part No.:

XUD802610



Colour:

Cavities:

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

ASSEMBLY 0.5D G

10

C0505

2

ASSEMBLY 0.5D G

10

C0505

Service Repair Kits

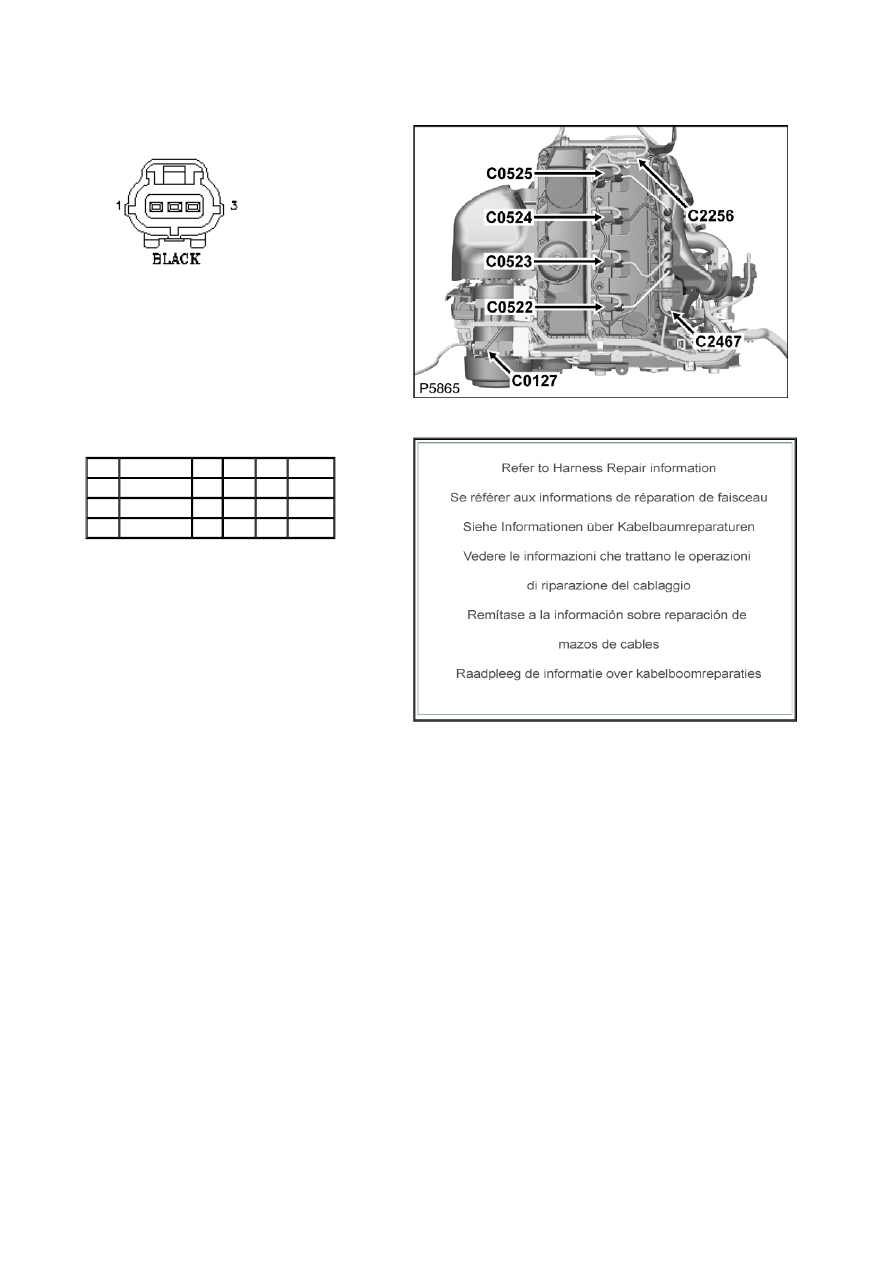

Connector: C2467

Description: Sensor-Pressure-Fuel rail

Location: Top of engine - LH side





Part No.:

YPC911080



Colour: BLACK

Cavities: 3WY

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL902960

0.75 OU

254

C0411

2

YPL902960

0.75 UN

254

C0411

3

YPL902960

0.75 NU

254

C0411

Service Repair Kits

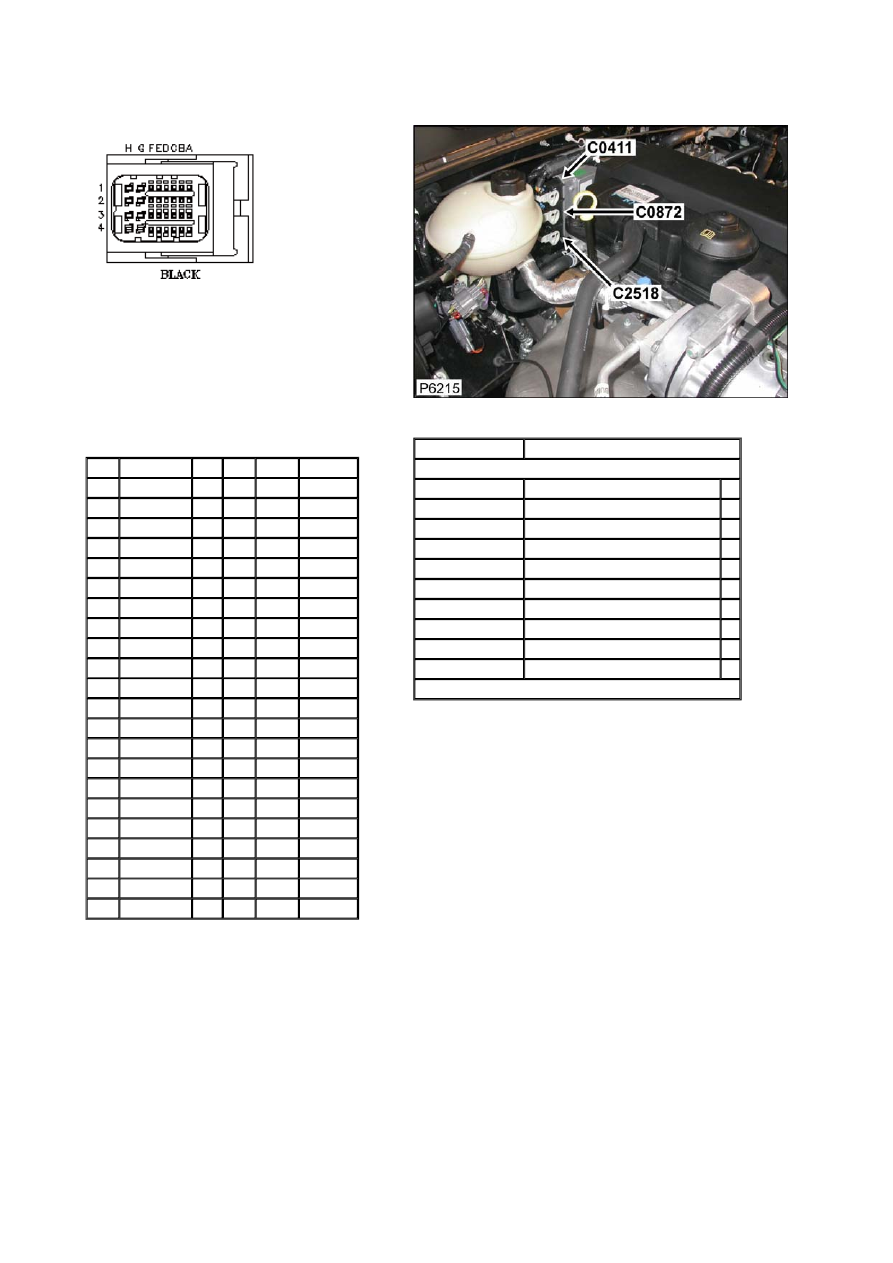

Connector: C2518

Description: Engine control-module (ECM)

Location: Rear of engine compartment - center





Part No.:

YPC801020



Colour:

Cavities:

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT

DESTN

H1

YPL801240

0.75 BY

254

C0162

H2

YPL900440

1.5

UW

254

C0162

E2

YPL101310

0.5

PW

254

C0053

G4

YPL801240

1.0

WP

254

C0272

G3

YPL801240

1.0

YU

254

C0272

E4

YPL101310

0.5

GP

254

S/JOINT 5

B1

YPL101310

0.5

U

254

C0149

E1

YPL101310

0.5

GW

254

S/JOINT 4

D1

YPL101910

0.75 G

254

S/JOINT 1

D4

YPL101310

0.5

NU

254

C0176

F2

YPL101310

0.5

G

254

C2251

C3

YPL101310

0.5

PS

254

C0149

B2

YPL101310

0.5

YP

254

C0149

B3

YPL101310

0.5

YU

254

C0195

F3

YPL101310

0.5

SU

254

C0272

B4

YPL101910

0.75 O

254

C3356

C4

YPL101910

0.75 OY

254

C3356

D2

YPL101910

0.75 OG

254

C0176

G2

YPL900440

1.5

ON

EN_H9 C2519

G1

YPL900440

1.5

OW

EN_H9 C2519

F1

YPL101310

0.5

OY

254

C1558

D3

YPL101910

0.75 ON

254

C0176

Service Repair Kits




CSA

0.75- 0.75 CSA

Cavities: E2,E4,B1,E1,D1,D4,F2,C3,B2,B3,F3,B4,C4,D2,F1,D3

VDK500010

SRK ITEM GENERAL

1

VDK500070

SRK ITEM MQ EXTRACT TOOL

1

VDK500080

SRK ITEM MPQ EXTRACT TOOL

1

YMI000870

SRK ITEM MQS FAMILY 0.75CSA

1

YPQ000100

SRK ITEM

1

YRV000040

SRK ITEM PIDG RED

1

YRW000390

SRK ITEM

1

YRW500010

SRK ITEM

1

YRW500060

SRK ITEM MQ FAMILY

1

YRW500070

SRK ITEM MPQ FAMILY

1

VUB500080
