Defender Electric Diagrams. Manual - part 176

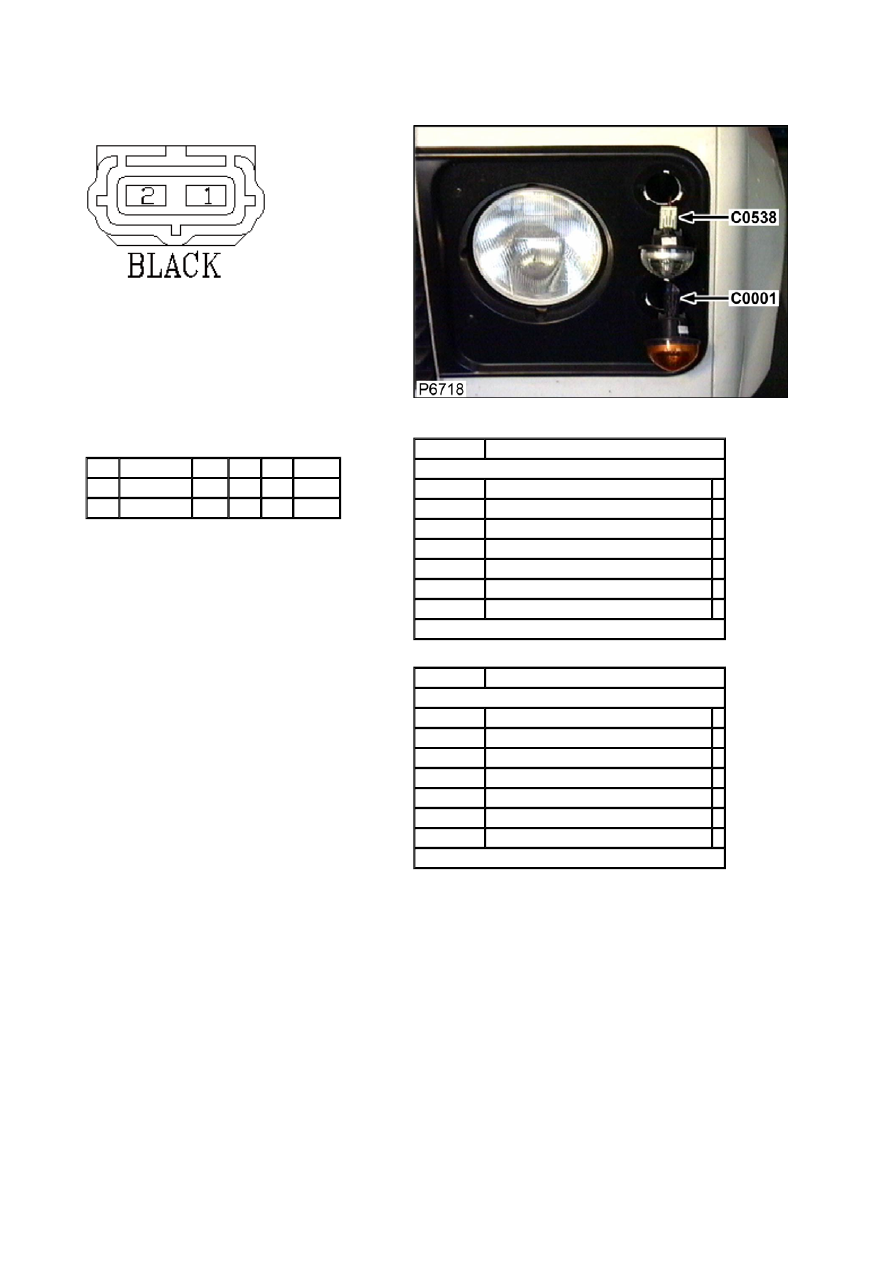

Connector: C0001

Description: Turn signal indicator/ hazard warning lamp-Front LH

Location: Front corner of engine compartment - LH side





Part No.:

YPC10070



Colour: BLACK

Cavities: 2WY

Harness:

WING LH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL10062

0.5D

B

ALL CTAP

2

AFU3802

0.75D GR

ALL C1265

Service Repair Kits







CSA

0.70- 2.00 CSA

Cavities: 2

VDK500010 SRK ITEM GENERAL

1

YMI000320

SRK ITEM ECONOSEAL FAMILY 2.0CSA 1

YPQ000110 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000050 SRK ITEM PIDG BLUE

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001680



CSA

0.20- 0.50 CSA

Cavities: 1

VDK500010 SRK ITEM GENERAL

1

YMI000330

SRK ITEM ECONOSEAL FAMILY 0.5CSA 1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001690



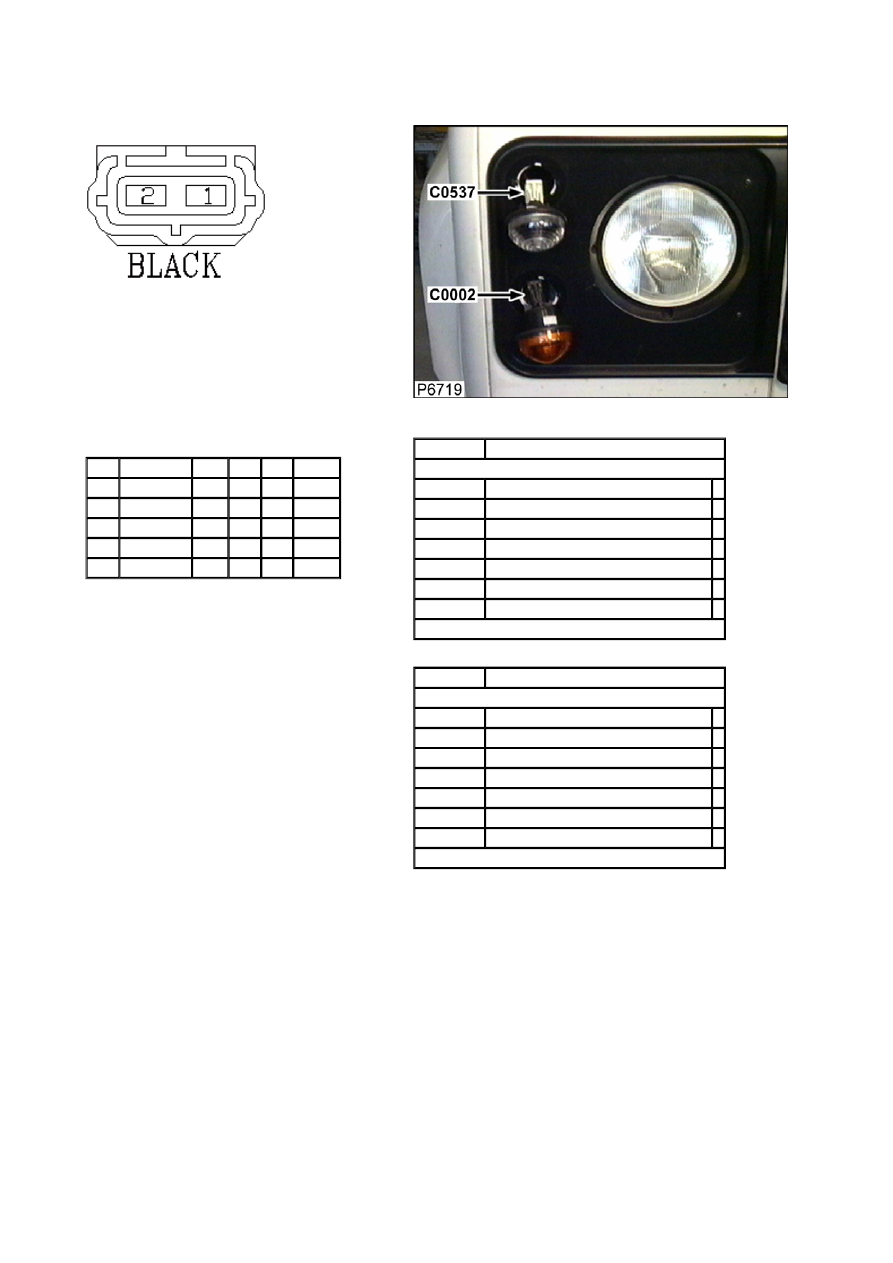

Connector: C0002

Description: Turn signal indicator/ hazard warning lamp-Front RH

Location: Front corner of engine compartment - RH side





Part No.:

YPC10070



Colour: BLACK

Cavities: 2WY

Harness:

WING RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

AFU3802

1.0D

B

1

CTAP

1

AFU3802

1.0D

B

2

CTAP

1

YPL10062

0.5D

B

3

CTAP

1

AFU3802

1.0D

B

5

CTAP

2

AFU3802

0.75D GW

ALL C1267

Service Repair Kits







CSA

0.70- 2.00 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

YMI000320

SRK ITEM ECONOSEAL FAMILY 2.0CSA 1

YPQ000110 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000050 SRK ITEM PIDG BLUE

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001680



CSA

0.20- 0.50 CSA

Cavities: 1

VDK500010 SRK ITEM GENERAL

1

YMI000330

SRK ITEM ECONOSEAL FAMILY 0.5CSA 1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001690



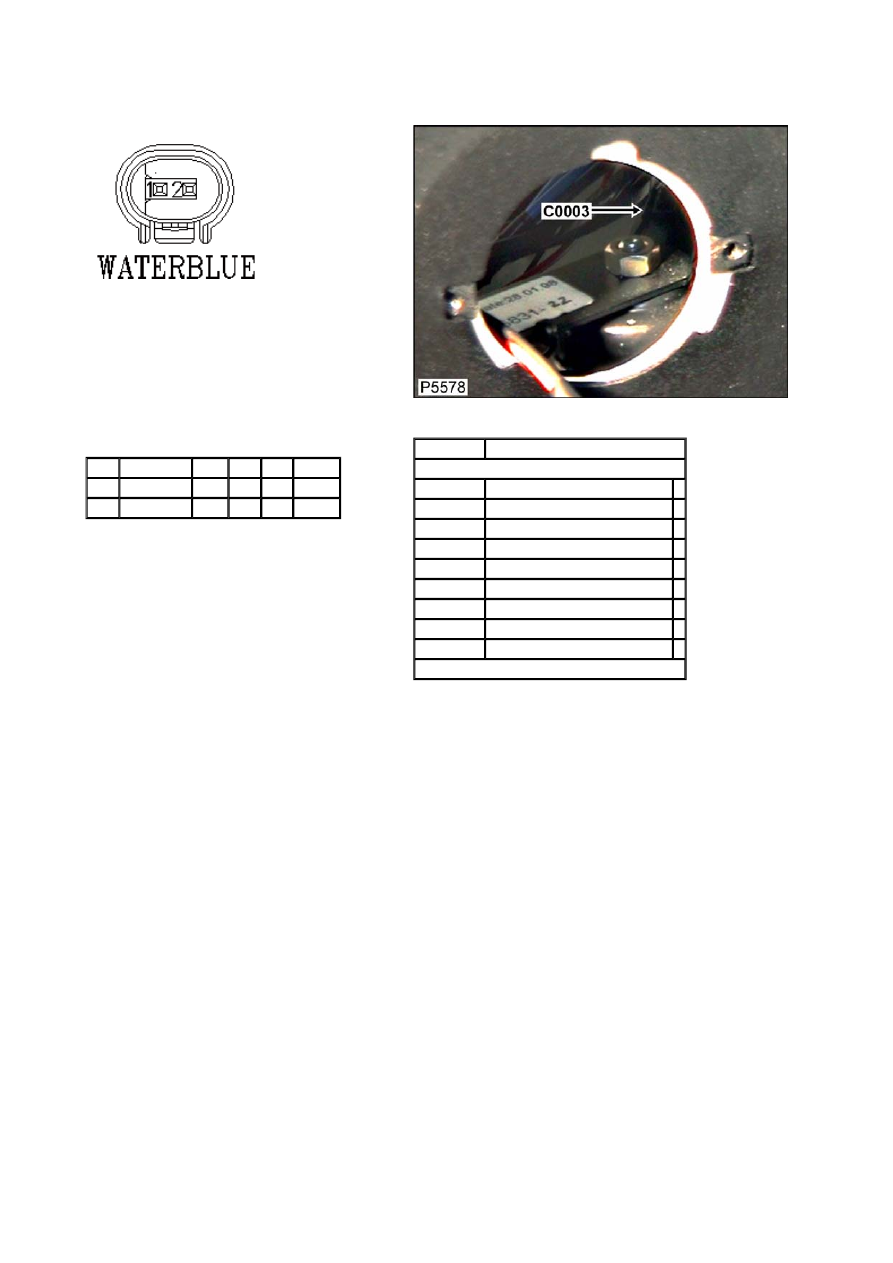

Connector: C0003

Description: Horn-LH

Location: Behind LH headlamp





Part No.:

YPC110600



Colour:

Cavities:

Harness:

WING LH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL101510

0.75D B

2

C0013

2

YPL101510

0.75D PB

2

C1265

Service Repair Kits




CSA

0.75- 0.75 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

VDK500070 SRK ITEM MQ EXTRACT TOOL

1

VDK500080 SRK ITEM MPQ EXTRACT TOOL 1

YMI000950

SRK ITEM MQS FAMILY 0.75CSA 1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB500150



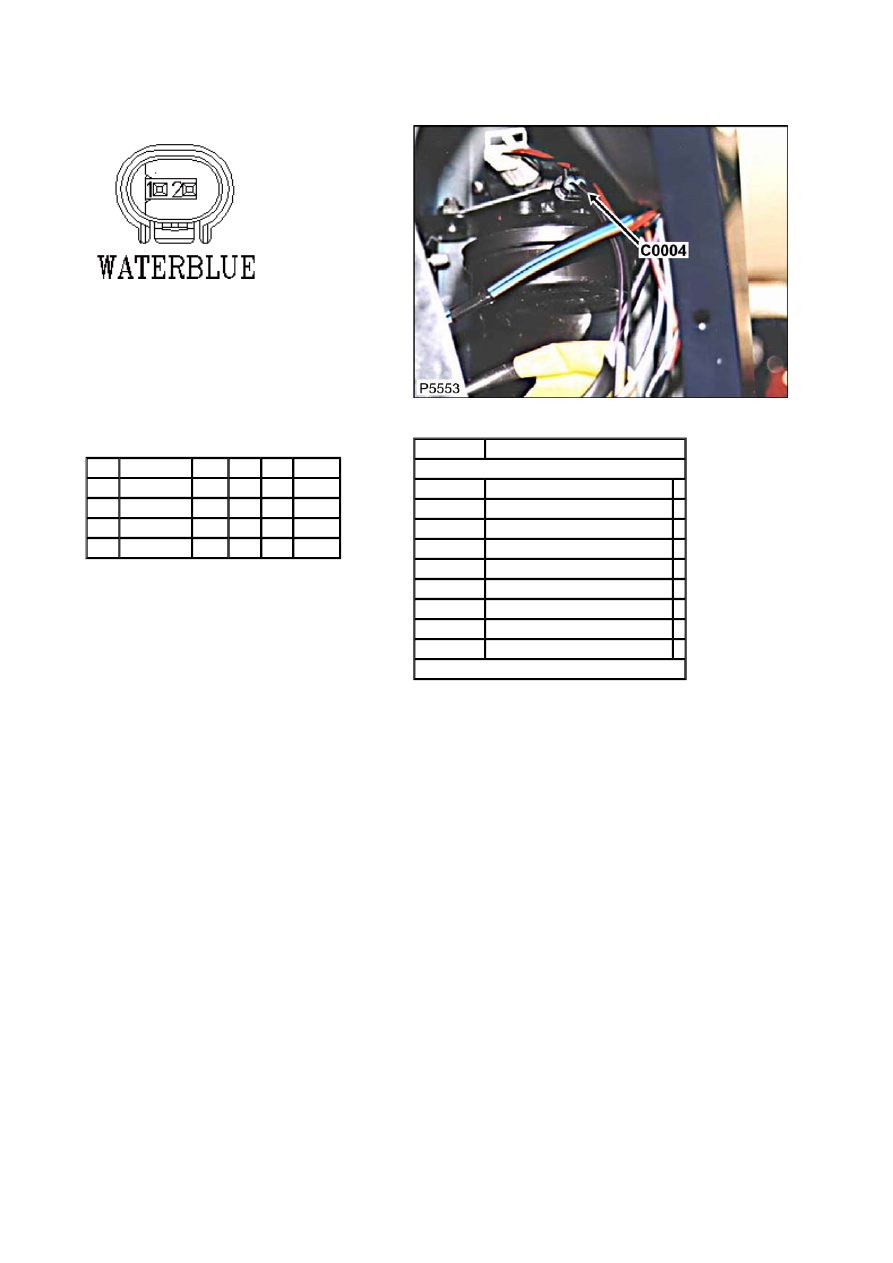

Connector: C0004

Description: Horn-RH

Location: Behind RH headlamp





Part No.:

YPC110600



Colour:

Cavities:

Harness:

WING RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL101510

0.75D B

1

C0012

1

YPL101510

0.75D B

2

C0012

1

YPL101510

0.75D B

5

C0012

2

YPL101510

0.75D PB

4

C1267

Service Repair Kits




CSA

0.75- 0.75 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

VDK500070 SRK ITEM MQ EXTRACT TOOL

1

VDK500080 SRK ITEM MPQ EXTRACT TOOL 1

YMI000950

SRK ITEM MQS FAMILY 0.75CSA 1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB500150
