Defender Electric Diagrams. Manual - part 154

C0549

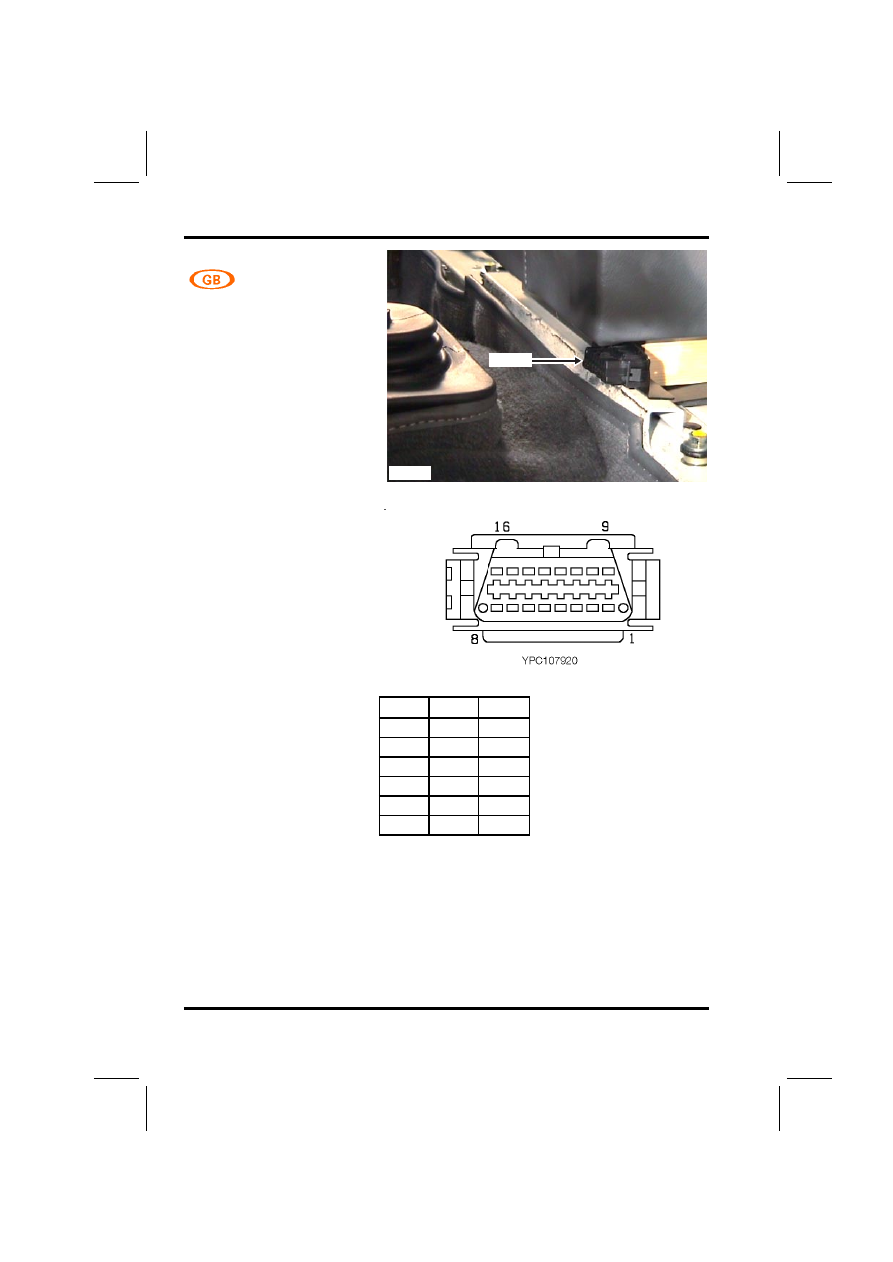

CONNECTOR

DEFENDER 1999 MY

Diagnostic socket

Female
BLACK

Behind front of centre
console

P5775

C0549

Cav

Col

CCT

4

B

27

5

B

27

7

K

21

8

OLG

17

8

OLG

16

16

P

27

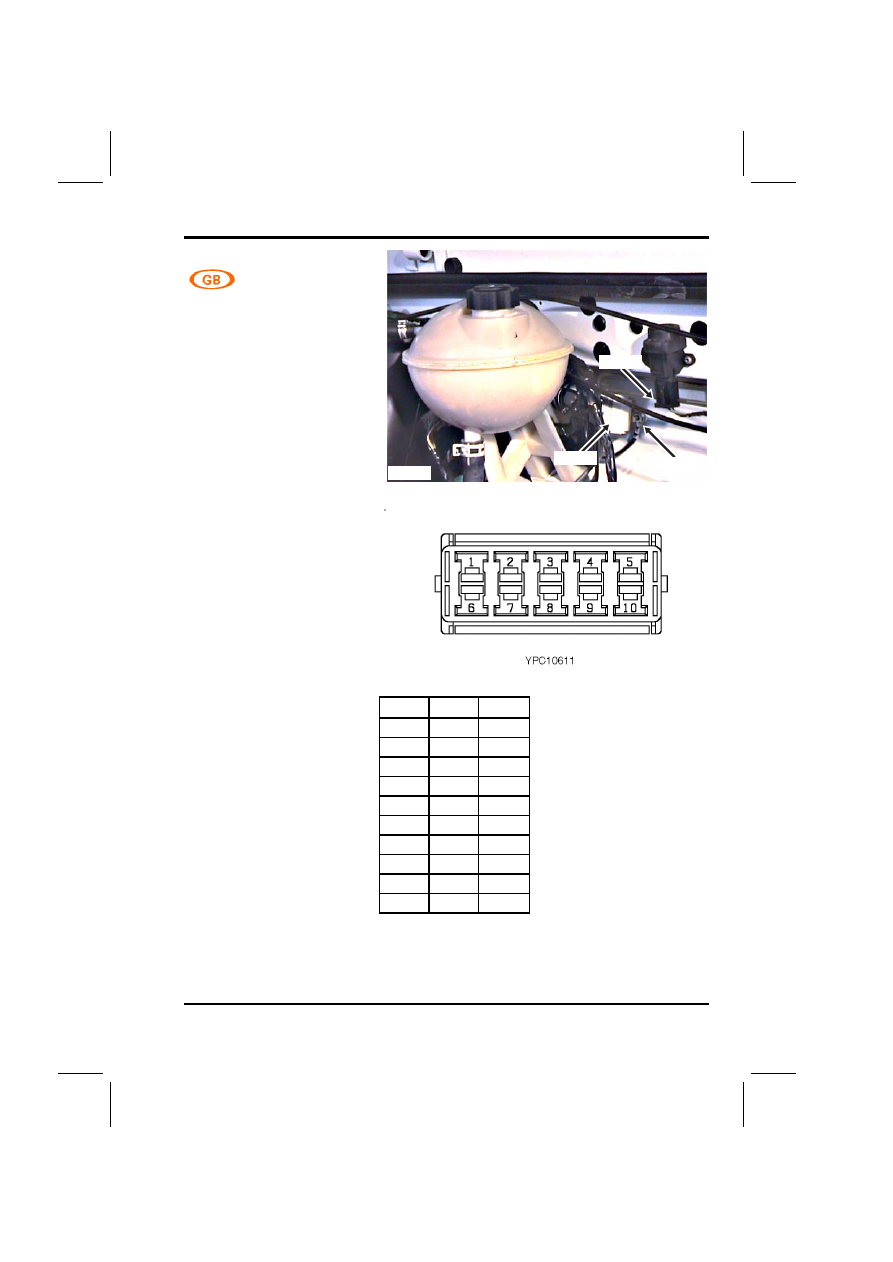

CONNECTOR

C0550

DEFENDER 1999 MY

Header - Earth

Female
LIGHT GREY

Top of bulkhead - centre

P5568

C0123

C0362

C0550

Cav

Col

CCT

1

B

ALL

2

B

ALL

3

B

ALL

4

B

ALL

5

B

ALL

6

B

ALL

7

B

ALL

8

B

ALL

9

B

ALL

10

B

12

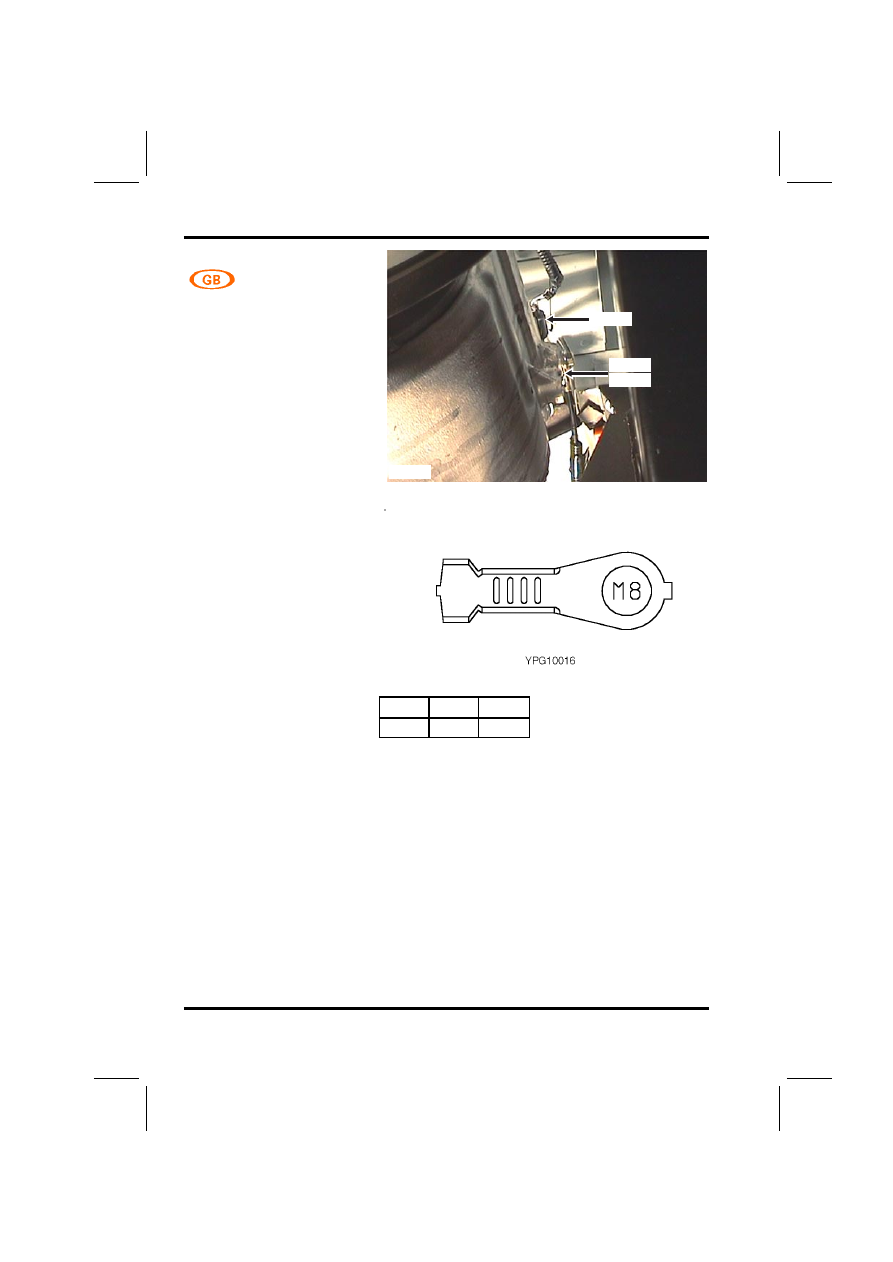

C0556

CONNECTOR

DEFENDER 1999 MY

Earth

Eyelet
TIN-PLATE

LH side of transfer box

P5590

C0685

C0556
C0557

Cav

Col

CCT

1

B

ALL

CONNECTOR

C0557

DEFENDER 1999 MY

Earth

Eyelet
TIN-PLATE

LH side of transfer box

P5590

C0685

C0556
C0557

Cav

Col

CCT

1

B

ALL
