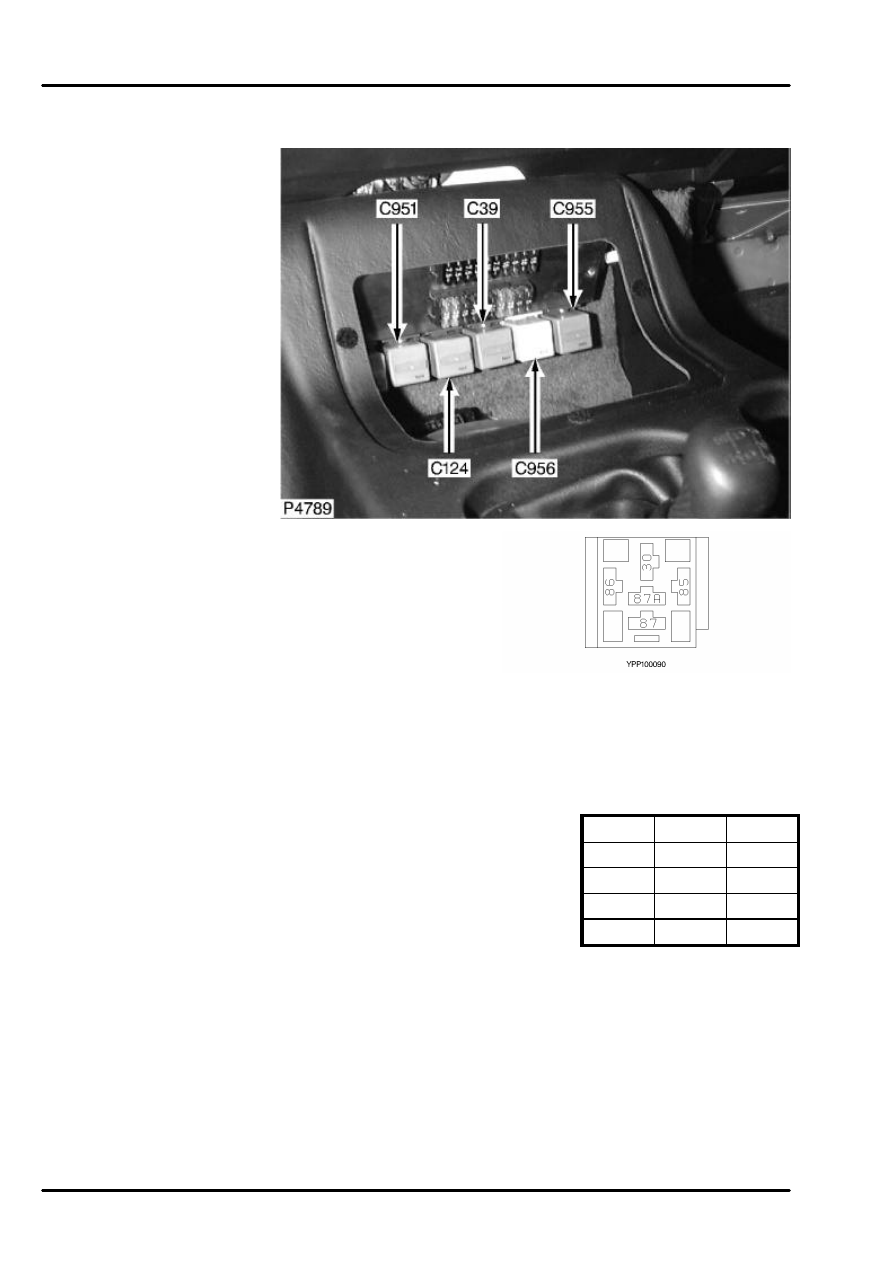

   CONNECTOR DETAILS

DEFENDER 90 NAS

C956

C956
SHIFT INTERLOCK
5 Way
Female
YELLOW
Behind front of center
console

Cav

Color Cct

30

SB

ALL

85

BR

ALL

86

YB

ALL

87

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C957

C957
DAYTIME RUNNING
LAMPS RELAY
5 Way
Female
BLACK
Behind front of center
console

Cav

Color Cct

30

UW

ALL

85

WG

ALL

86

UK

ALL

87

B

ALL

87A

N

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C958

C958
CONTROL UNIT -
EMISSION
MAINTENANCE
REMINDER
5 Way
Female
BLACK
Behind front of center
console

Cav

Color Cct

30

B

ALL

85

PY

ALL

86

P

ALL

87

YK

ALL

87A

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C959

C959
SPEED SENSOR
HARNESS TO MAIN
HARNESS
4 Way
Male
BLACK
Beneath front passenger's
seat

Cav

Color Cct

1

R

ALL

2

R

ALL

3

R

ALL

4

R

ALL
