CONNECTOR DETAILS

DEFENDER 90 NAS

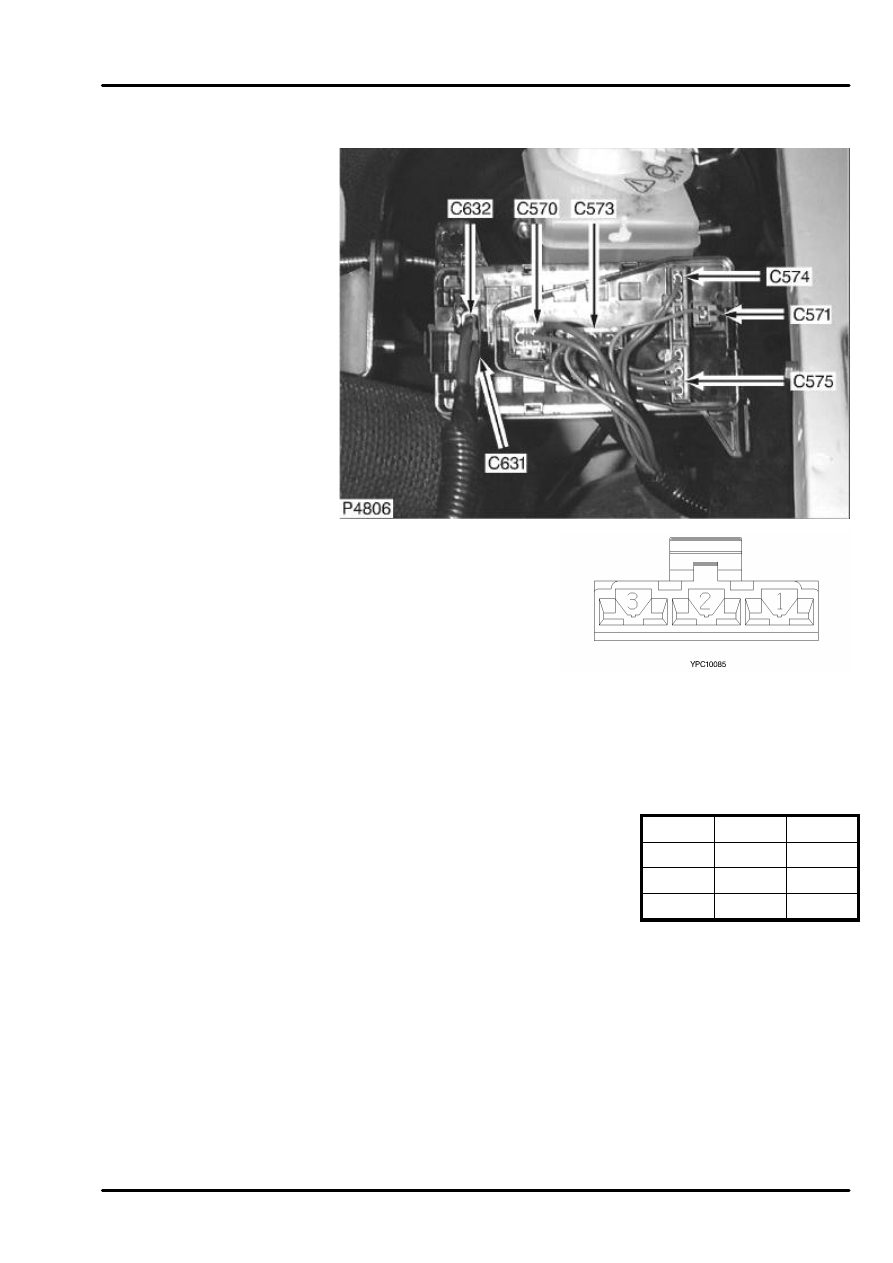

C575

C575
FUSE BOX - ENGINE
COMPARTMENT
3 Way
Female
NATURAL
LH side of engine
compartment

Cav

Color Cct

1

NLG

ALL

2

PW

ALL

3

P

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

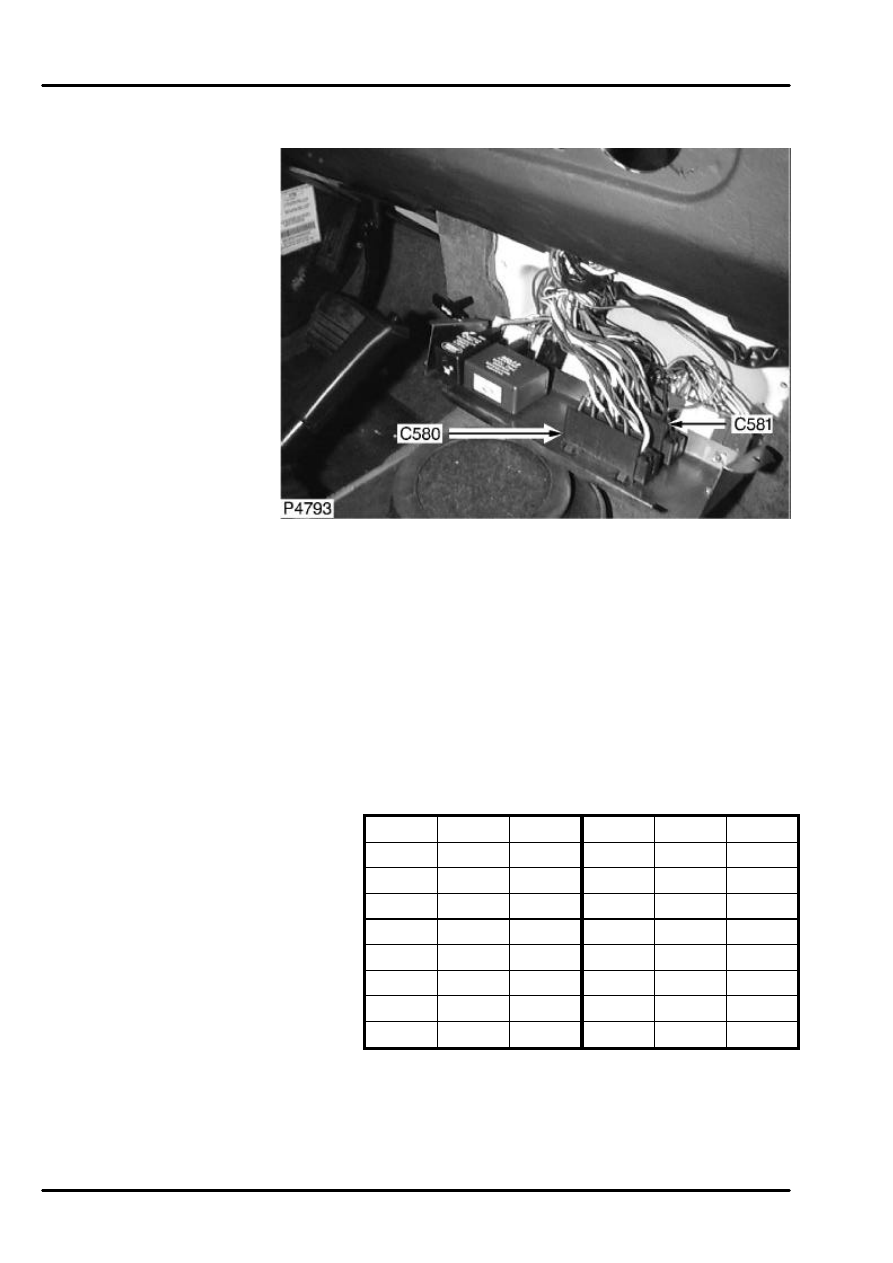

C580

C580
FUSE BOX -
PASSENGER
COMPARTMENT

Behind passenger
compartment fusebox

t:\compuset\erl\faceview\51167493.tif

Cav

Color Cct

Cav

Color Cct

1

W

ALL

12

WLG

ALL

2

WG

ALL

13

UR

ALL

3

N

ALL

14

UB

ALL

4

P

ALL

16

UK

ALL

6

P

ALL

17

UW

ALL

7

WO

ALL

18

UO

ALL

8

PG

ALL

20

US

ALL

10

WK

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

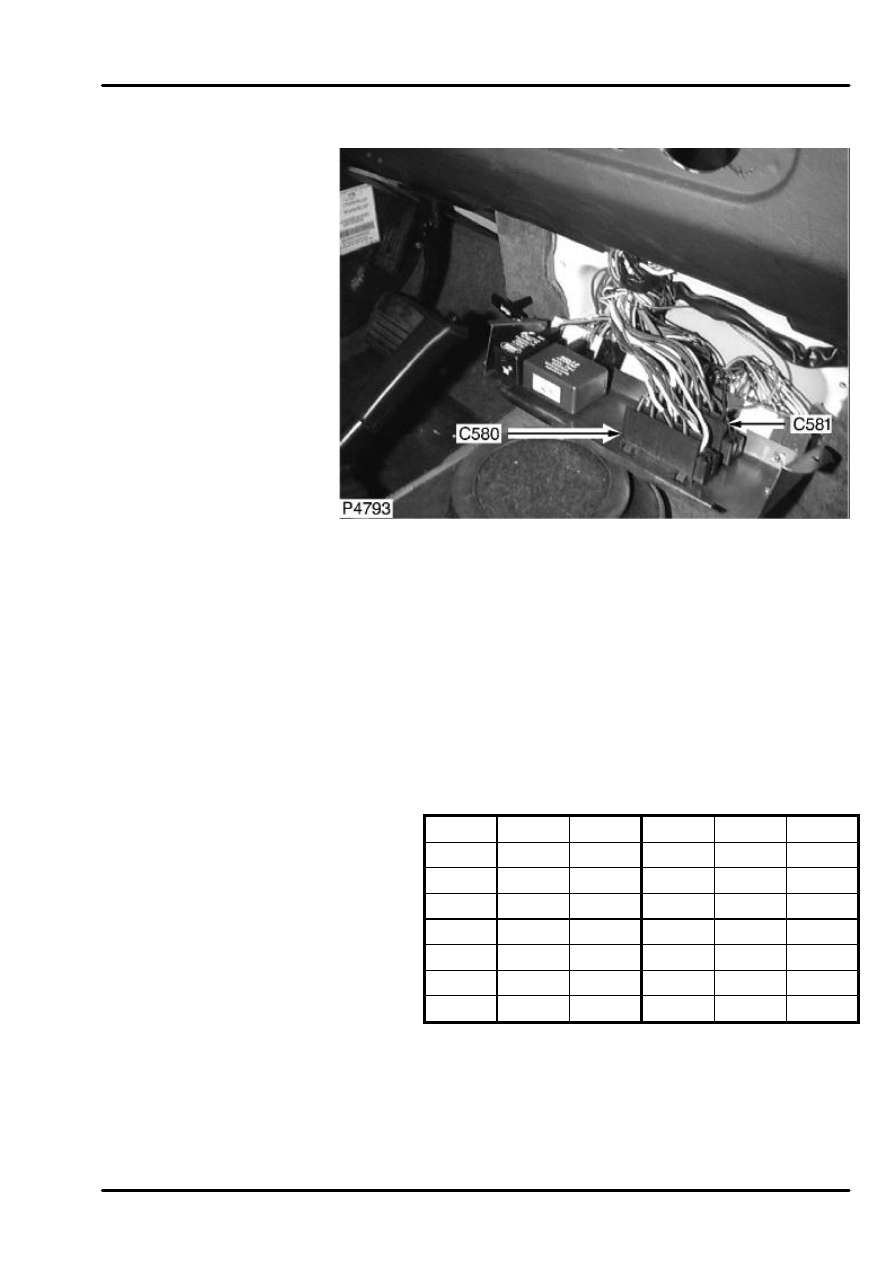

C581

C581
FUSE BOX -
PASSENGER
COMPARTMENT

Behind passenger
compartment fusebox

t:\compuset\erl\faceview\51167493.tif

Cav

Color Cct

Cav

Color Cct

1

R

ALL

12

NW

ALL

2

RB

ALL

13

W

ALL

4

RO

ALL

14

G

ALL

5

NP

ALL

16

G

ALL

6

P

ALL

18

GO

ALL

8

P

ALL

20

WG

ALL

10

NS

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C615

C615

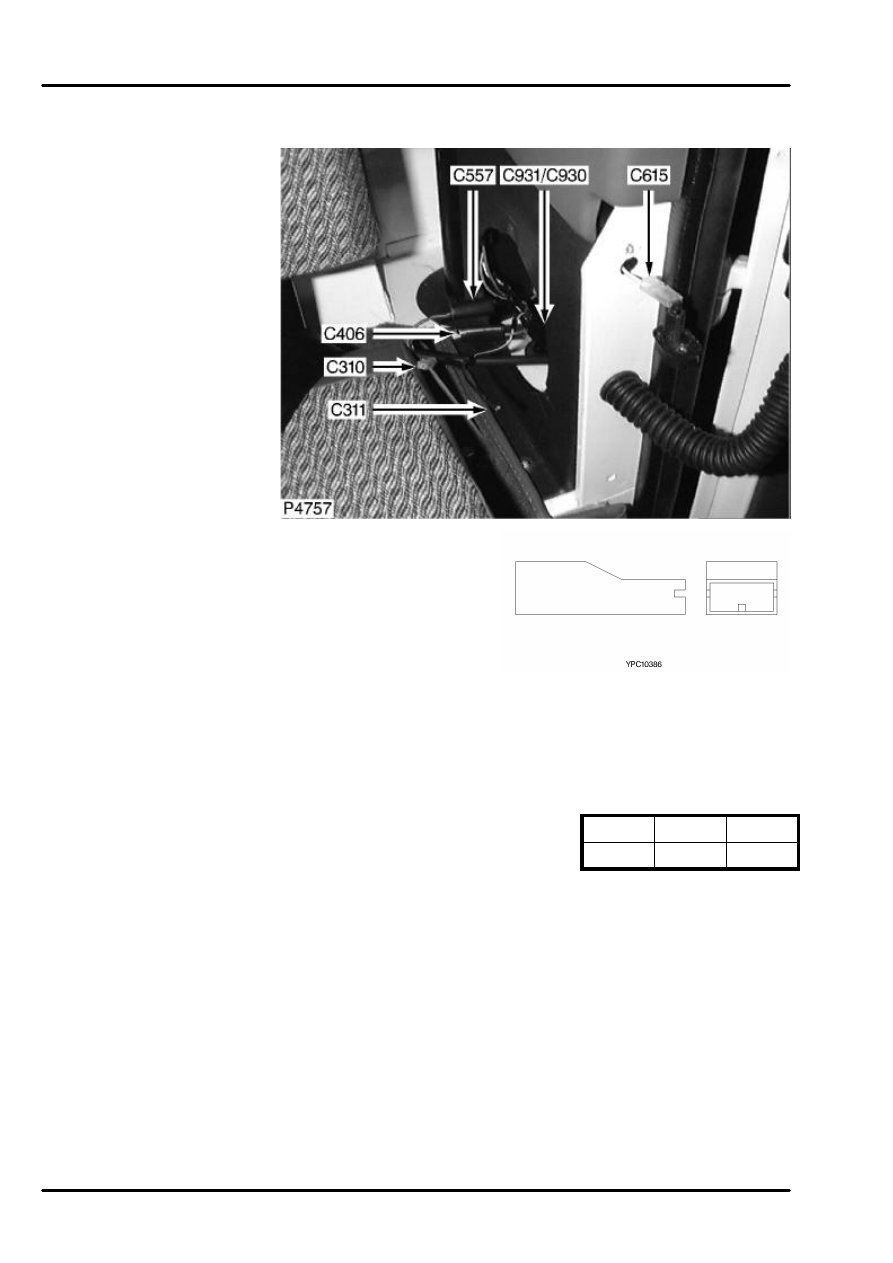

TAILGATE SWITCH
1 Way
Female
NATURAL
Behind RH rear speaker

Cav

Color Cct

1

PW

ALL
