   CONNECTOR DETAILS

DEFENDER 90 NAS

REV: 9/97

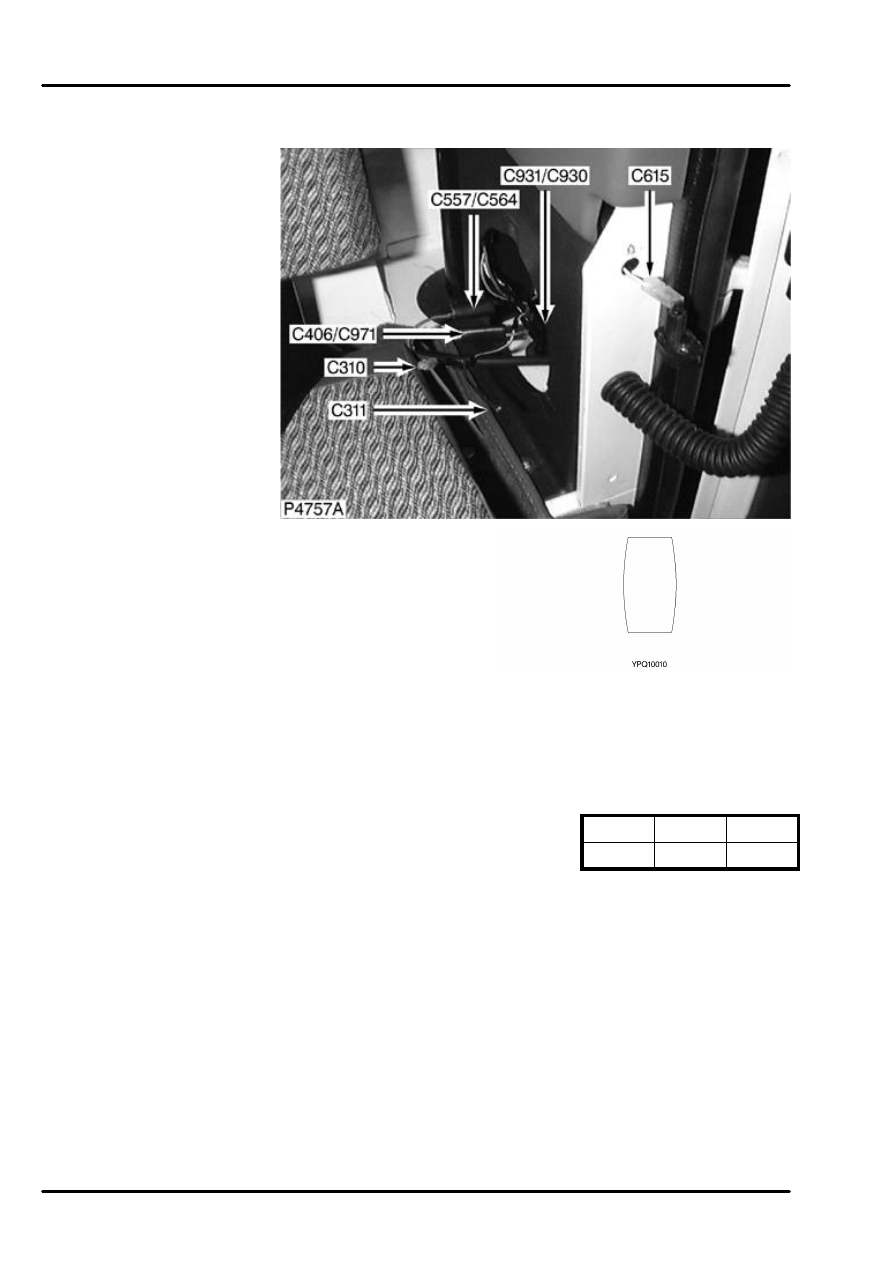

C557

C557
BRAKE LAMP - HIGH
MOUNTED
2 Way
Male
BLACK
Behind RH rear speaker

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

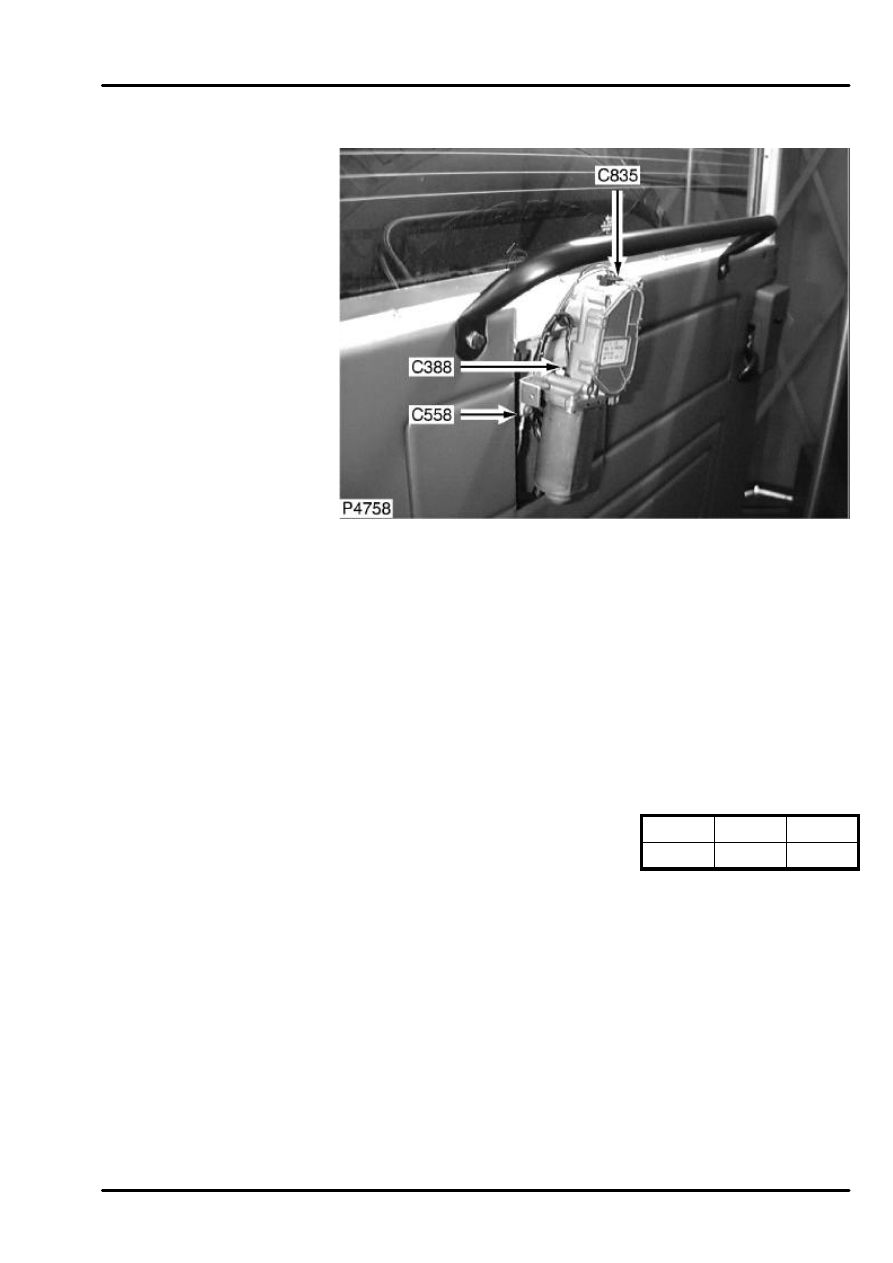

C558

C558
GROUND EYELET 3

Center of taildoor, behind
trim panel

t:\compuset\erl\faceview\51107278.tif

Cav

Color Cct

1

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

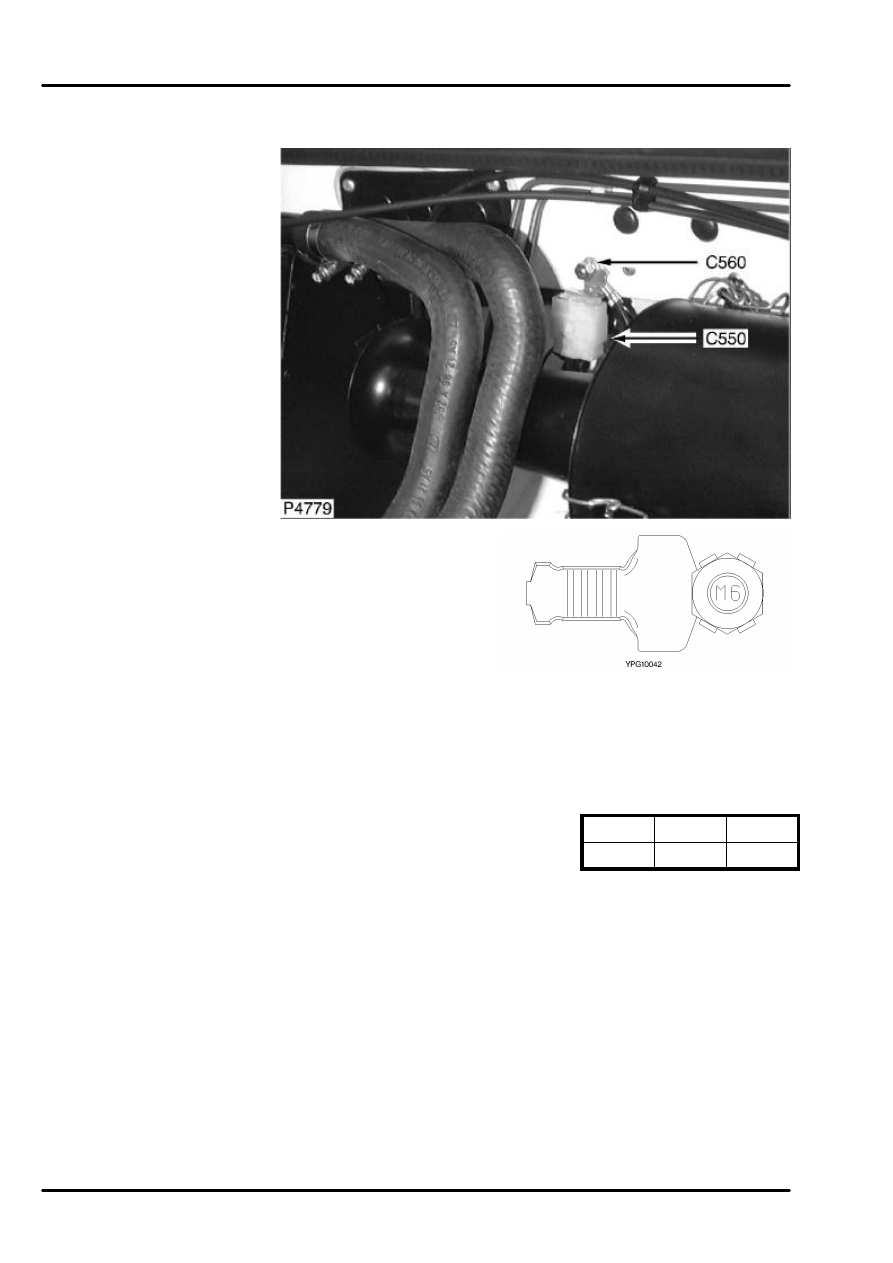

C560

C560
GROUND EYELET 5
1 Way

BRASS
Top of fire wall - center

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

REV: 9/97

DEFENDER NAS 90

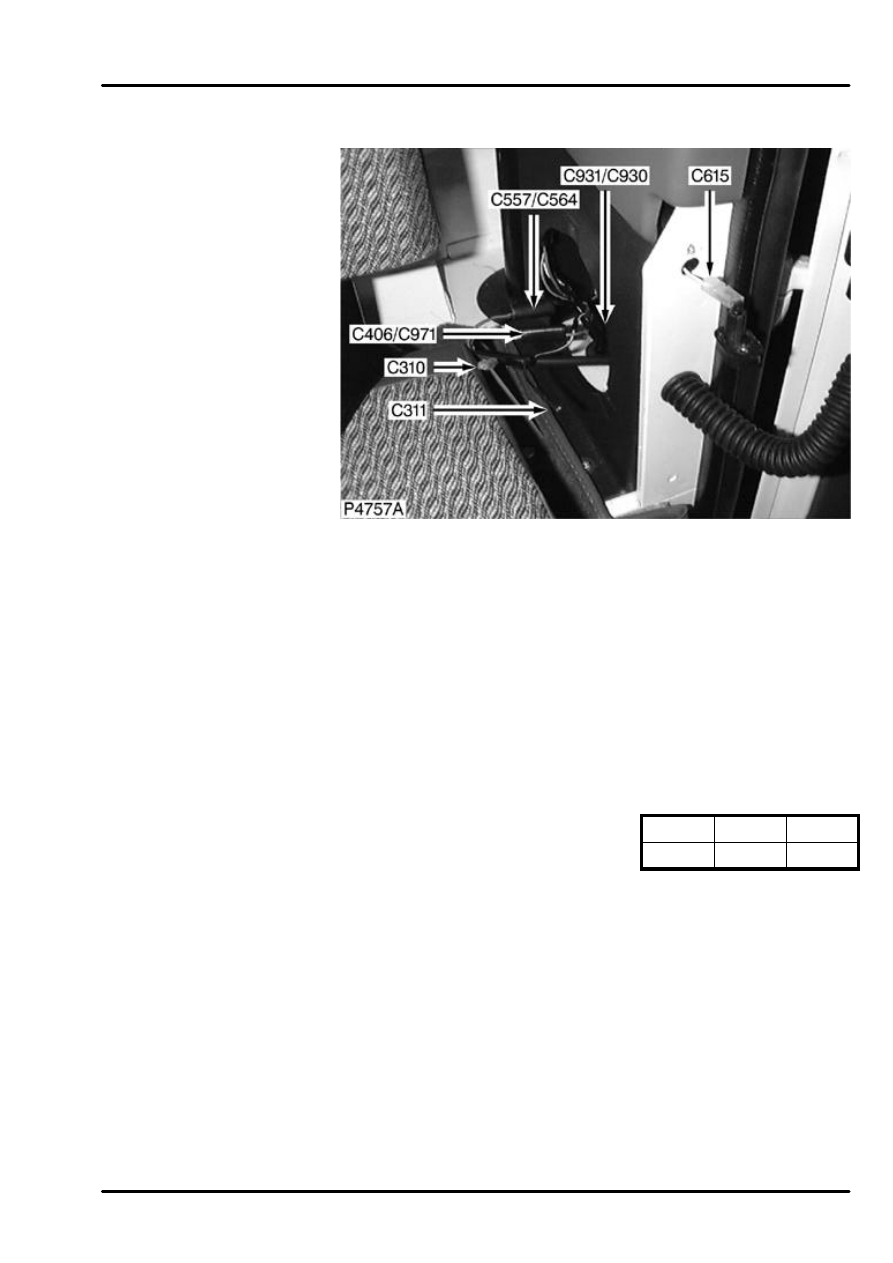

C564

C564
BRAKE LAMP - HIGH
MOUNTED
2 Way
Female
BLACK
Behind RH rear speaker

No connector face view

Cav

Color Cct

1

B

ALL
