   CONNECTOR DETAILS

DEFENDER 90 NAS

REV: 9/97

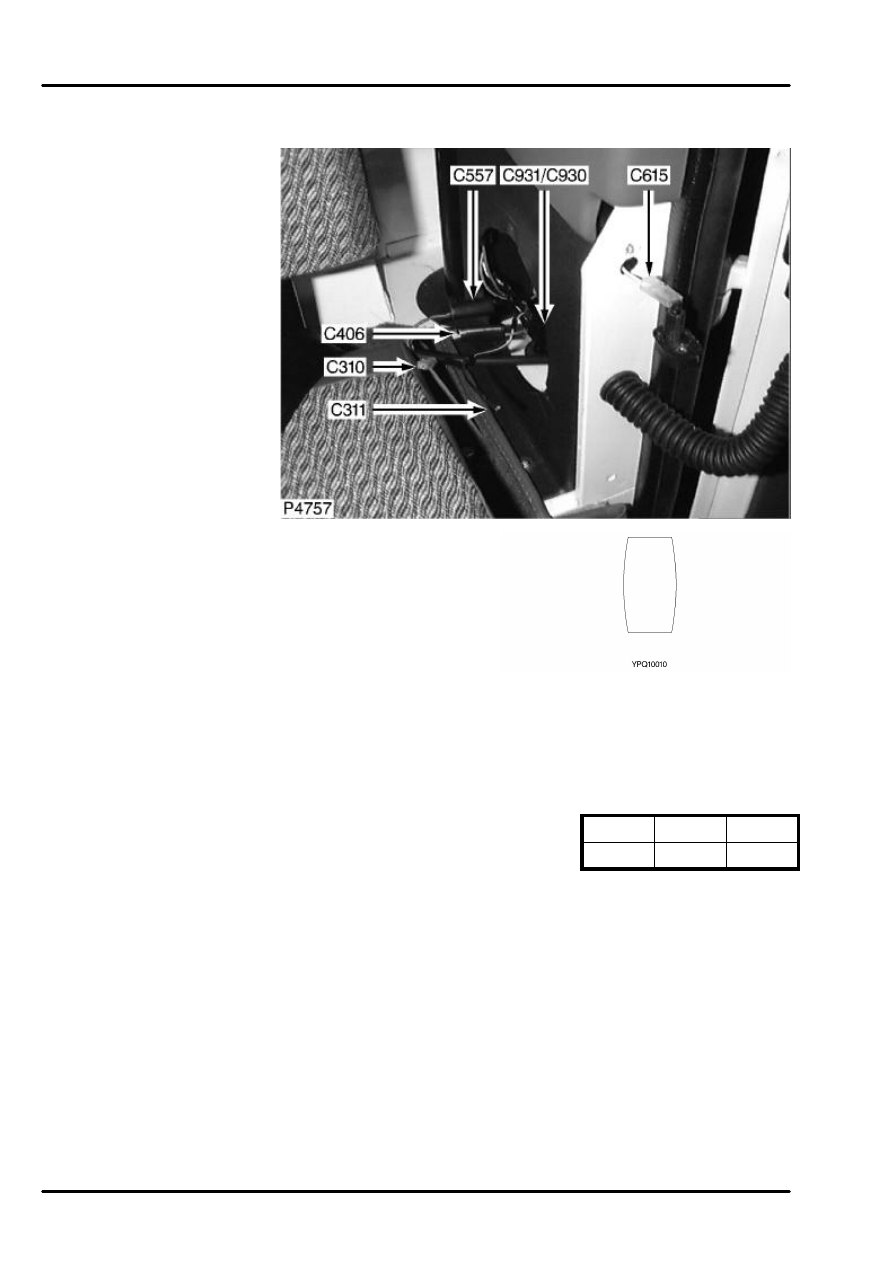

C406

C406
BRAKE LAMP - HIGH
MOUNTED
2 Way
Male
BLACK
Behind RH rear speaker

Cav

Color Cct

1

GP

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

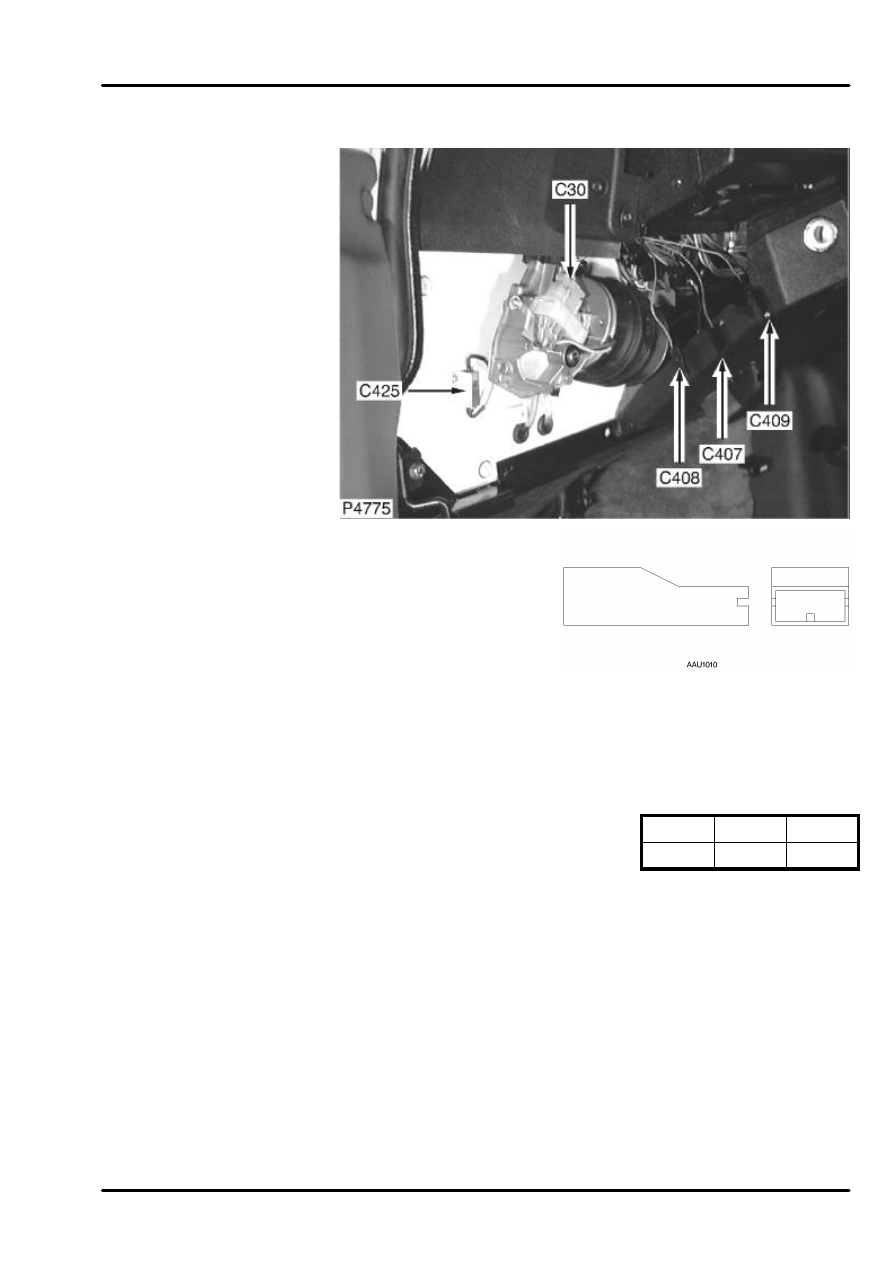

C407

C407
SIDE LAMP FEED
1 Way
Female
BLACK
Under LH side of dash

Cav

Color Cct

1

RB

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

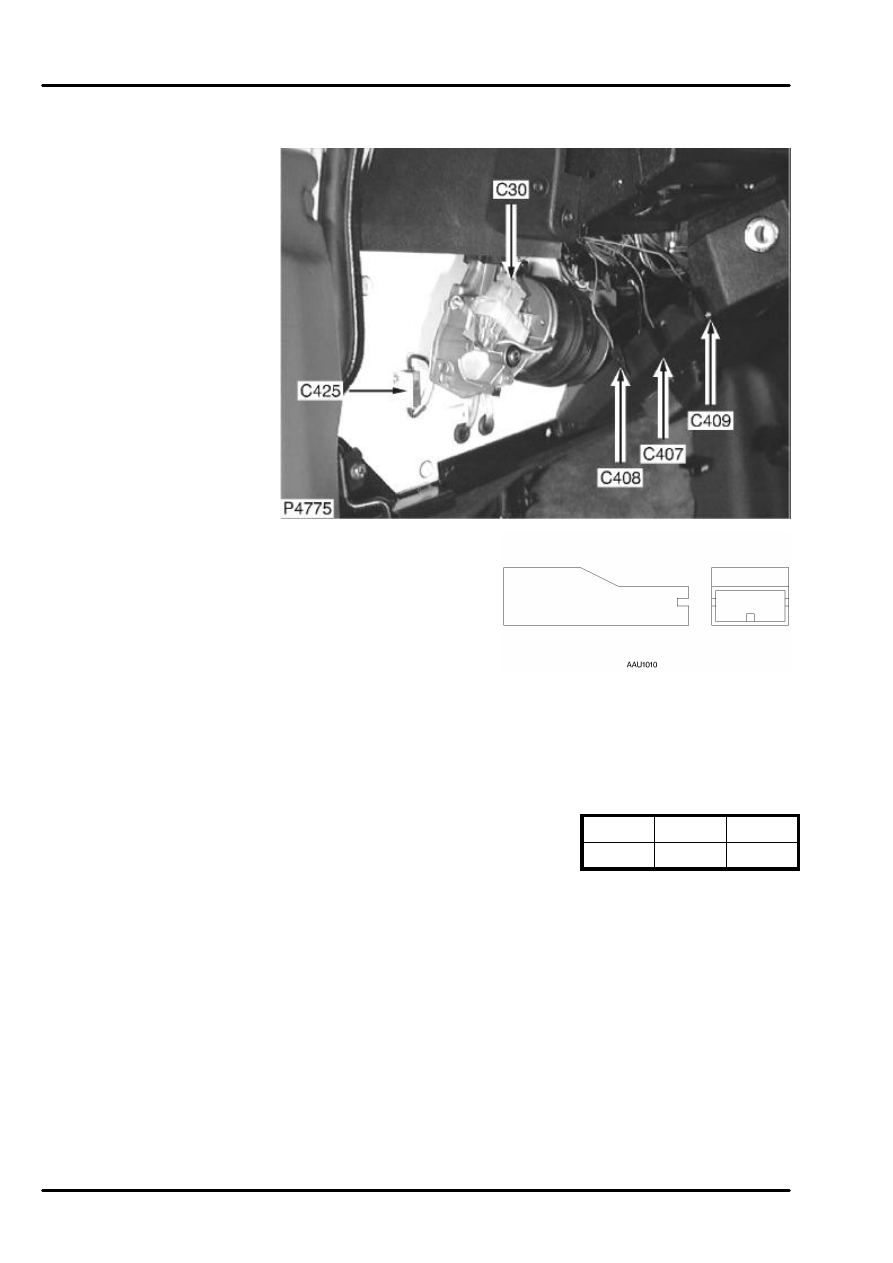

C408

C408
MAIN LAMP FEED
1 Way
Female
BLACK
Under LH side of dash

Cav

Color Cct

1

UO

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C409

C409
DIP LAMP FEED
1 Way
Female
BLACK
Under LH side of dash

Cav

Color Cct

1

UB

ALL
