   CONNECTOR DETAILS

DEFENDER 90 NAS

C102

C102

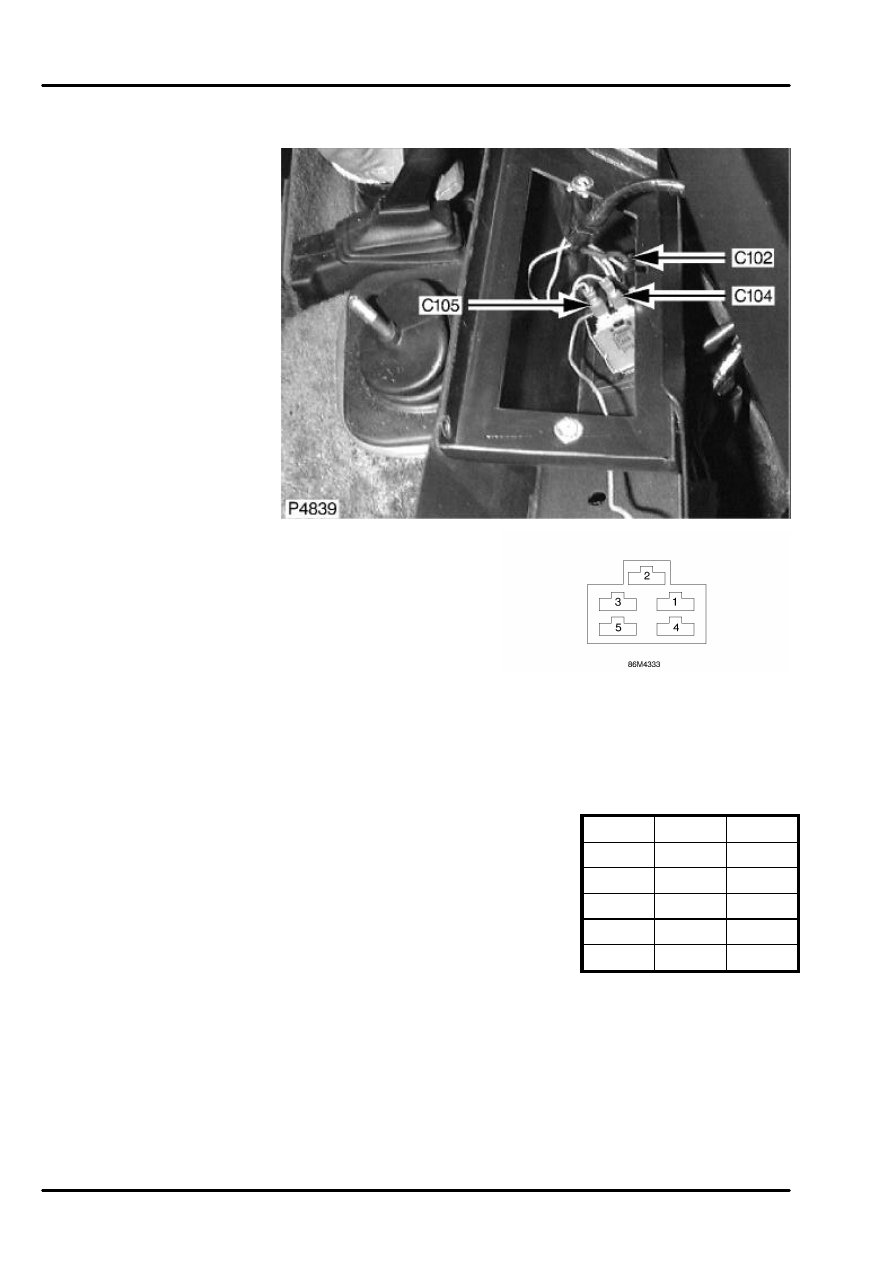

BLOWER MOTOR
SWITCH
5 Way
Female
BLACK
Behind center of dash

Cav

Color Cct

1

U

ALL

2

G

ALL

3

R

ALL

4

UY

ALL

5

N

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C103

C103

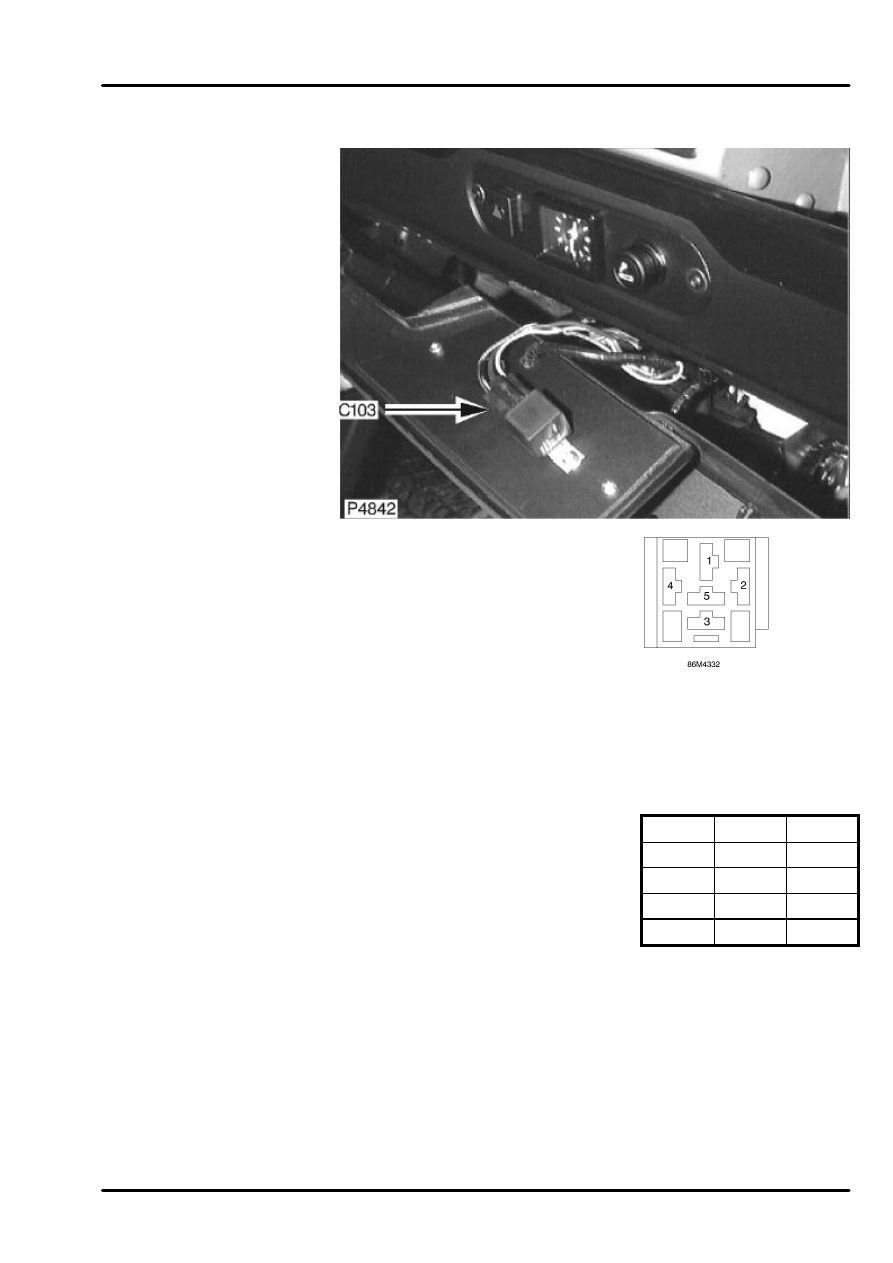

LOGIC RELAY
5 Way
Female
BLACK
Behind center of dash

Cav

Color Cct

1

UR

ALL

2

B

ALL

3

B

ALL

4

UY

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C104

C104

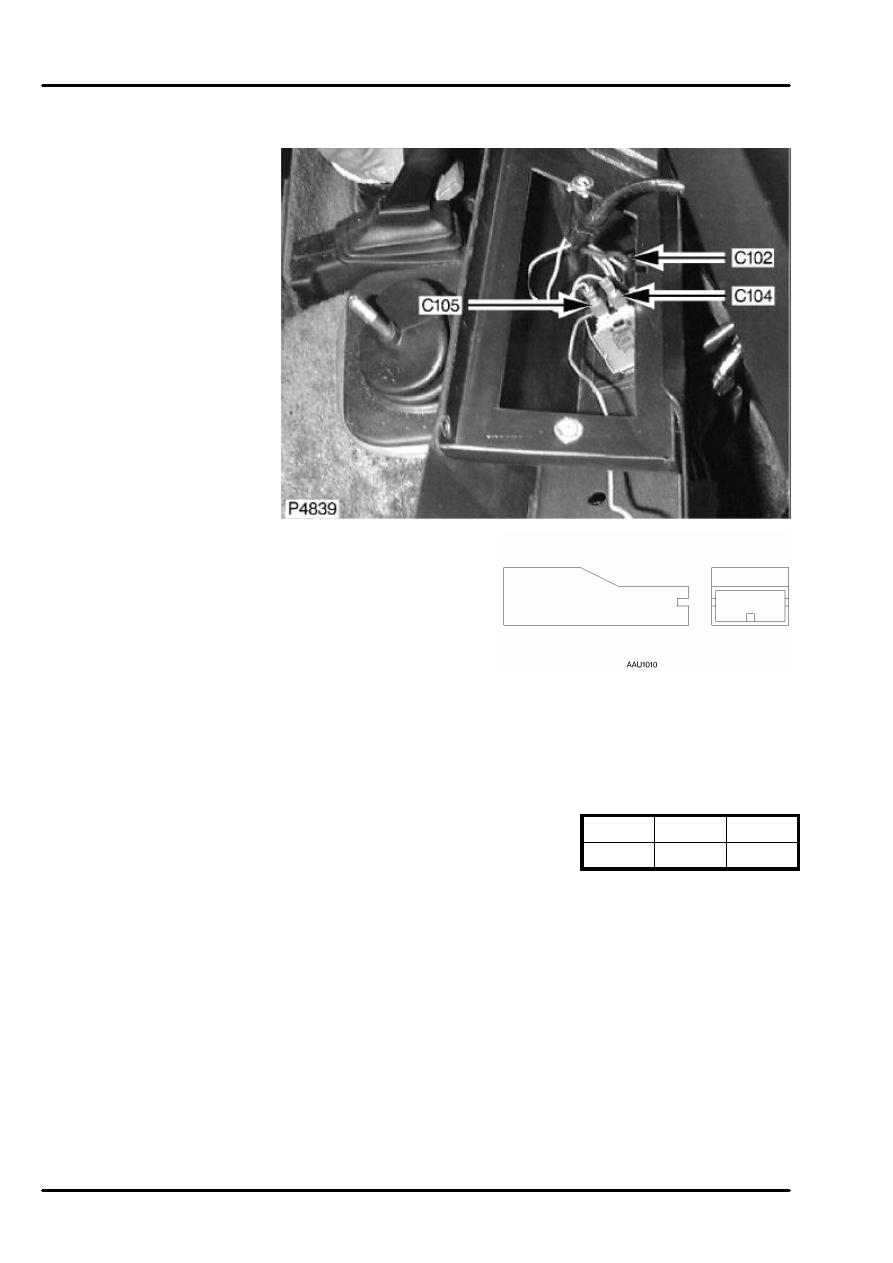

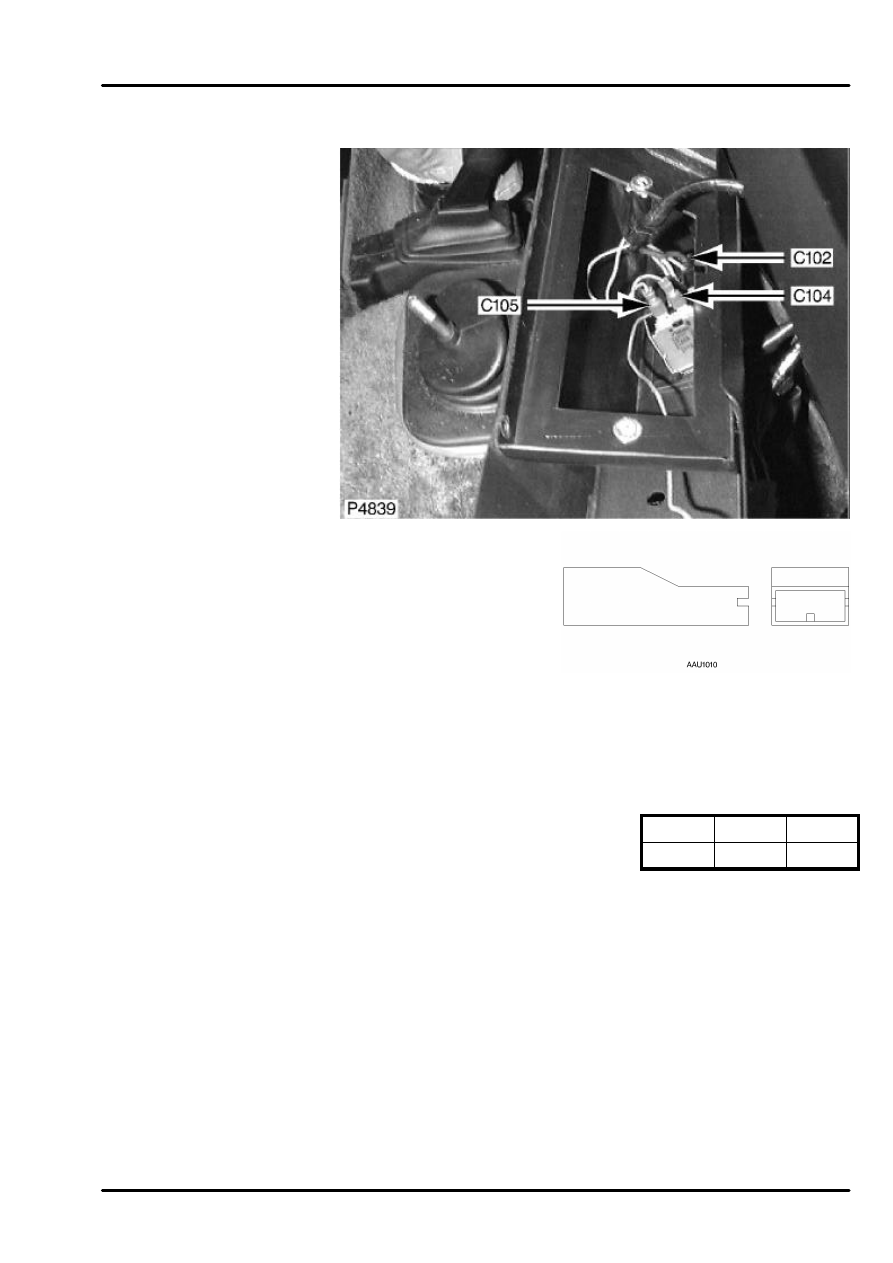

AIR CONDITIONING
THERMOSTAT
1 Way
Female
BLUE
Behind center of dash

Cav

Color Cct

1

UR

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C105

C105
AIR CONDITIONING
THERMOSTAT
1 Way
Female
BLUE
Behind center of dash

Cav

Color Cct

1

UR

ALL
