   CONNECTOR DETAILS

DEFENDER 90 NAS

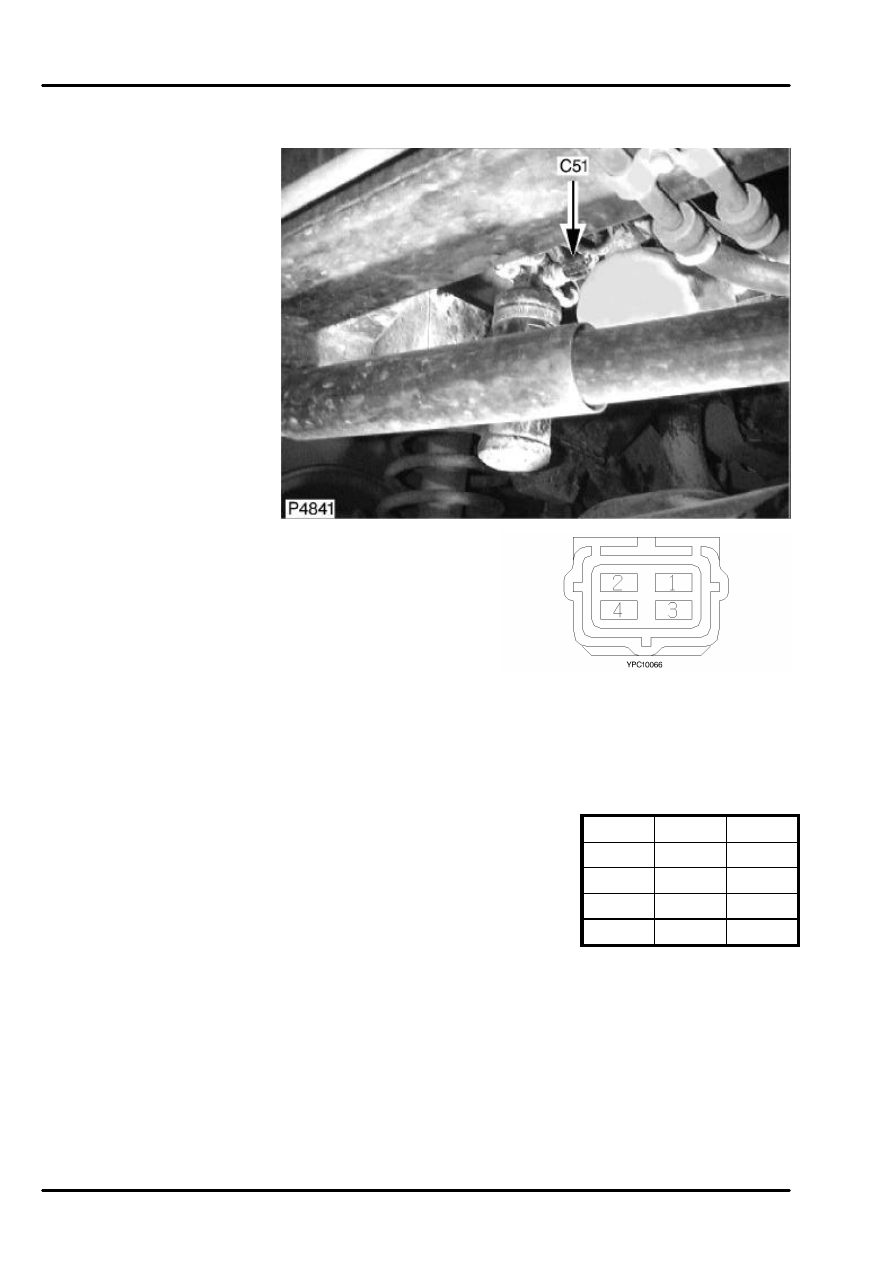

C51

C51
TRINARY SWITCH
4 Way
Female
BLACK
Lower RH front of engine
compartment

Cav

Color Cct

1

YW

ALL

2

UR

ALL

3

B

ALL

4

UW

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

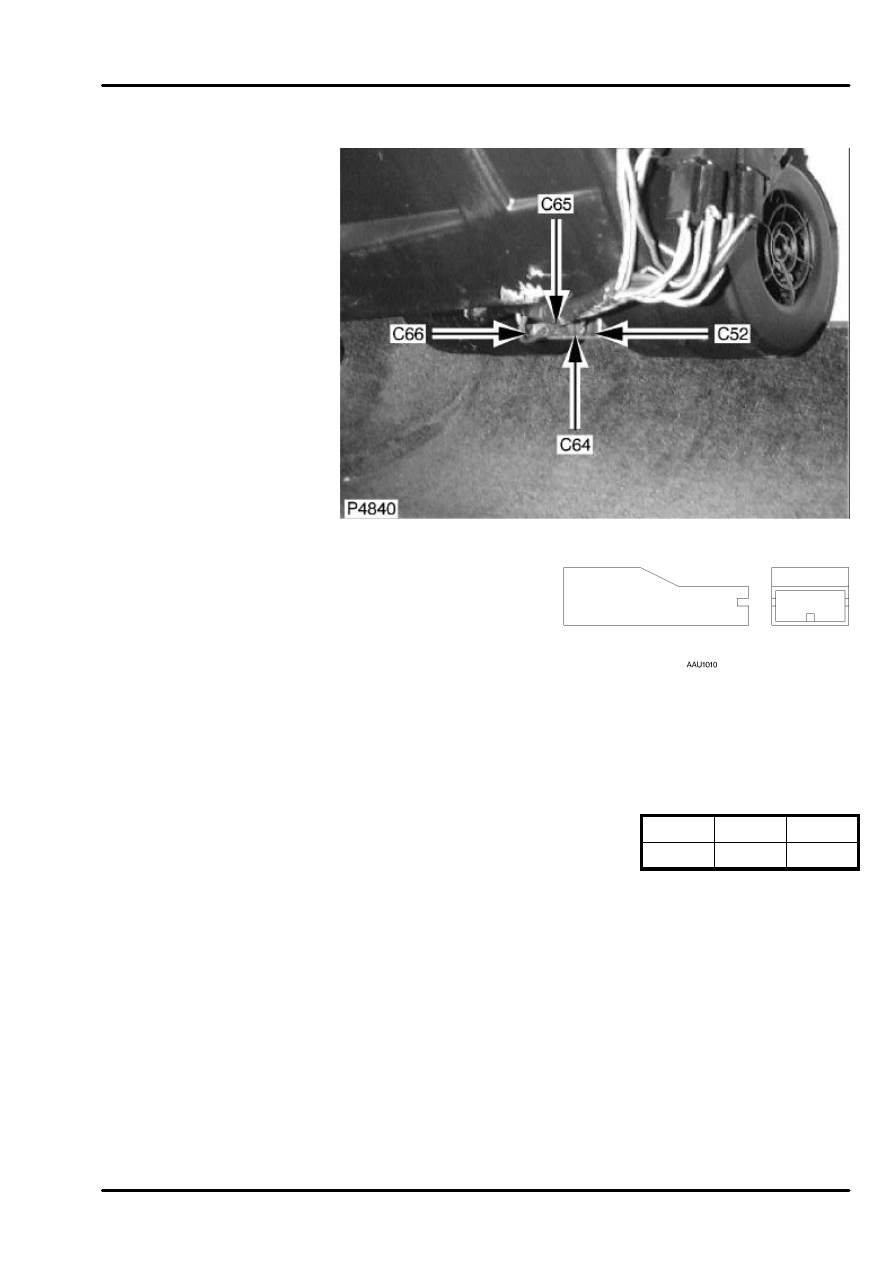

C52

C52
BLOWER SPEED 1
1 Way
Female
BLACK
Passenger's footwell

Cav

Color Cct

1

U

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

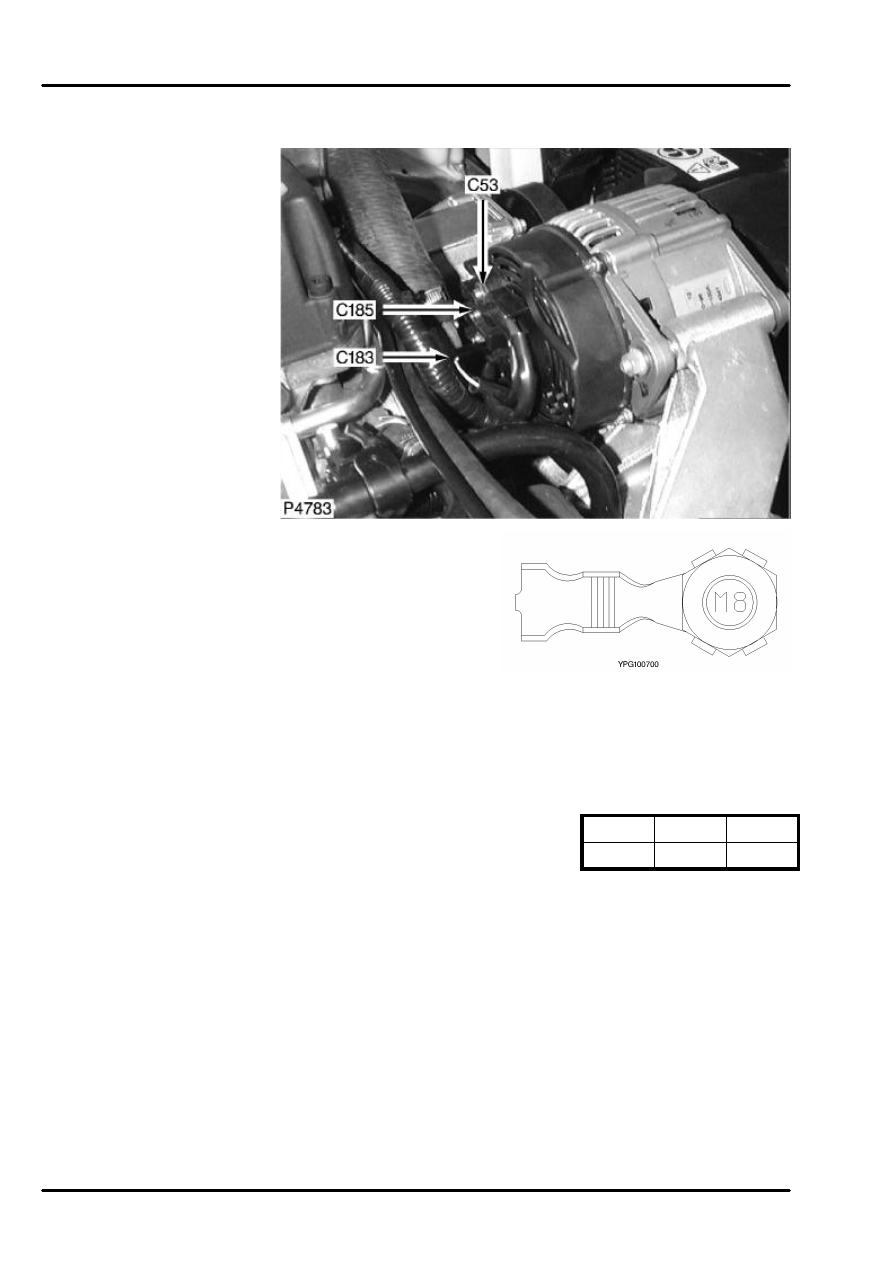

C53

C53
GENERATOR -
CONTROL
1 Way

BRASS
Front of engine - center

Cav

Color Cct

1

N

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

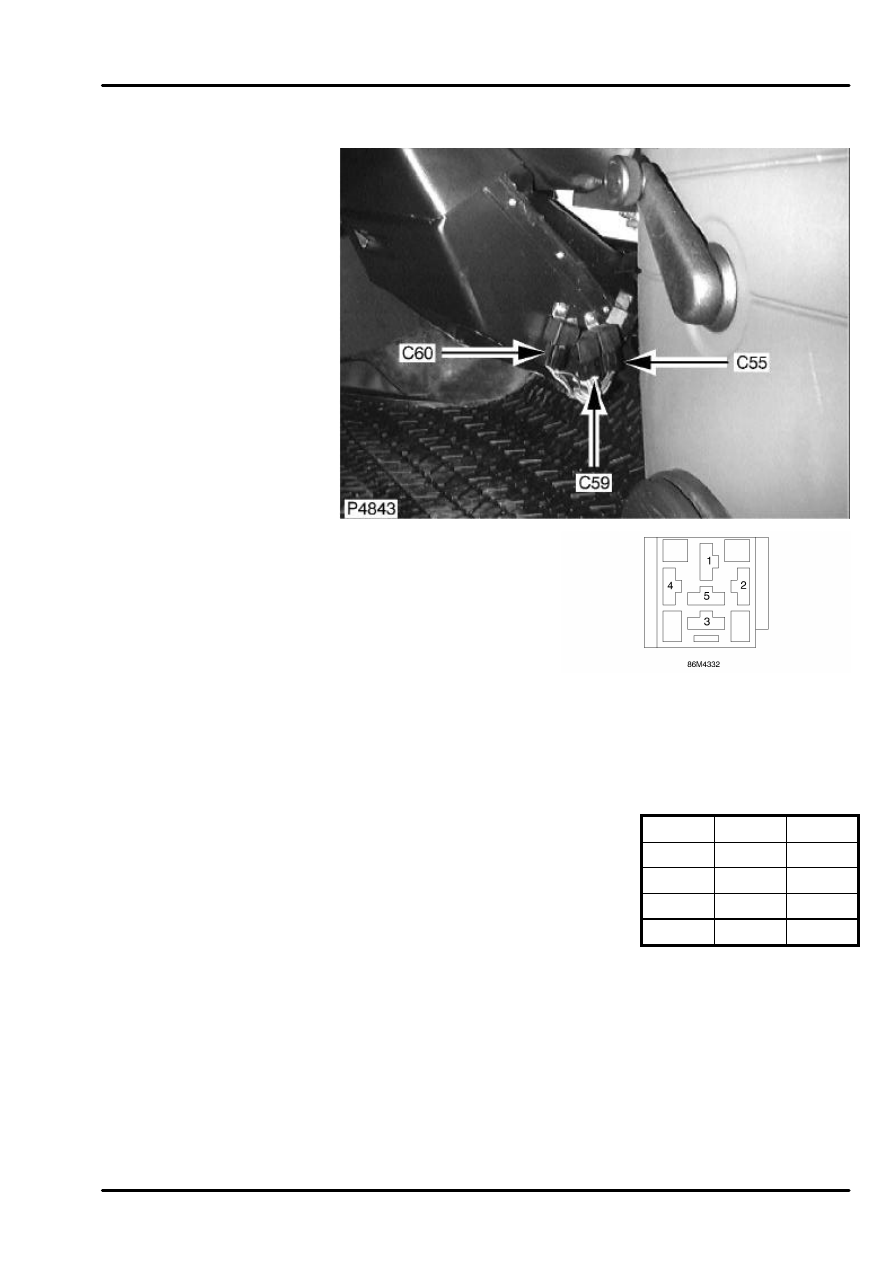

C55

C55
BLOWER RELAY
5 Way
Female
BLACK
Passenger's footwell

Cav

Color Cct

1

PS

ALL

2

B

ALL

3

N

ALL

4

G

ALL
