Defender. Manual - part 227

Speakers - Speakers

Description and Operation

OVERVIEW

For additional information, refer to:

Audio System

 (415-01A Audio Unit, Description and Operation).

Speakers - Instrument Panel Speaker

Removal and Installation

Removal

1. NOTE: RH shown, LH similar.

Release the instrument panel speaker.

Remove the 4 screws.

2. Remove the instrument panel speaker.

Disconnect the 2 electrical connectors.

Installation

1. To install, reverse the removal procedure.

Speakers - D-Pillar Speaker

Removal and Installation

Removal

1. NOTE: LH shown, RH similar.

Release the speaker.

Remove the 4 screws.

2. Remove the speaker.

Disconnect the 2 electrical connectors.

Installation

1. To install, reverse the removal procedure.

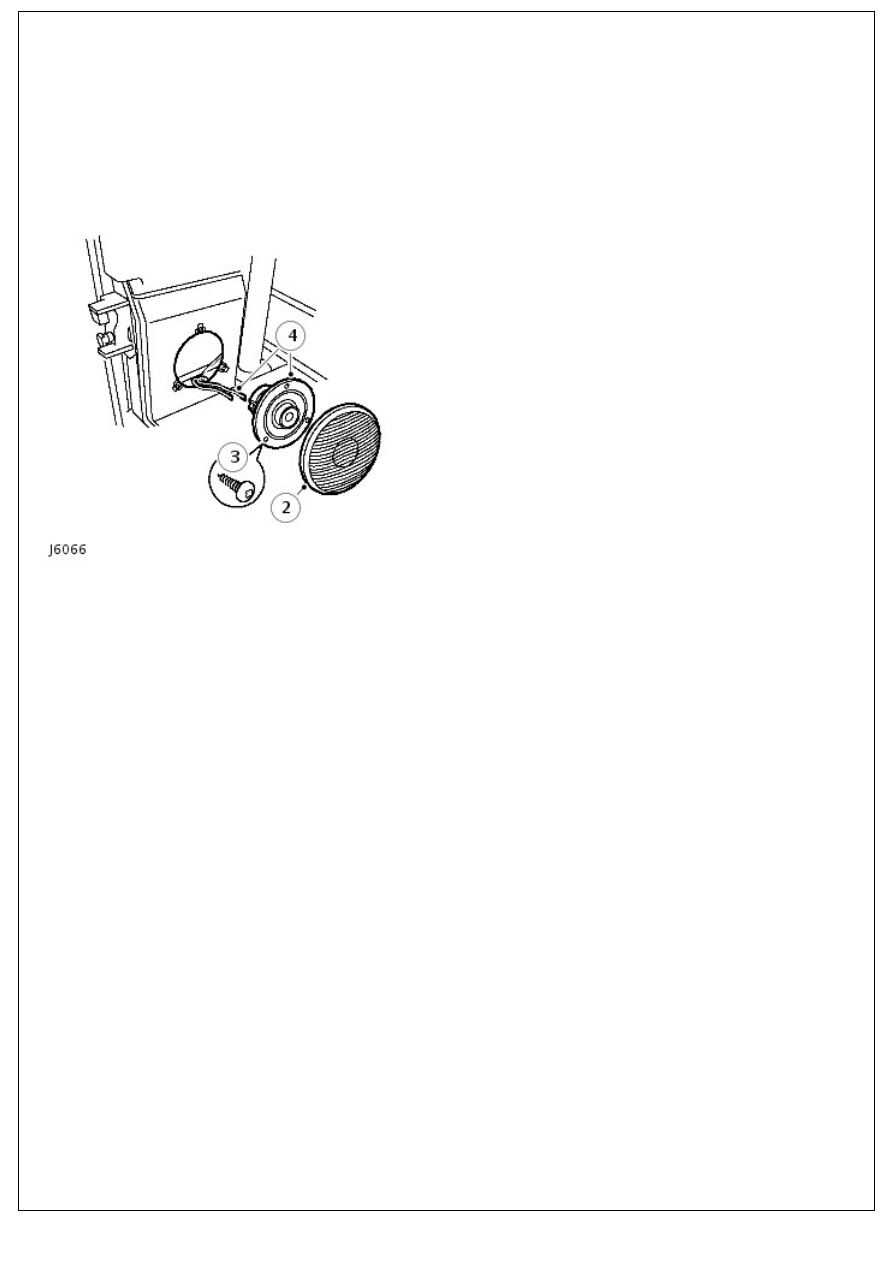

Speakers - Rear Door Speaker

Removal and Installation

Removal

1. Raise rear seat cushion and fit stowage strap.
2. Carefully prise grille from speaker.
3. Remove 3 screws and withdraw speaker from trim panel.

4. Disconnect 2 electrical leads and remove speaker.

Installation

1. Connect 2 electrical leads, position speaker and secure with

screws.

2. Position grille and press firmly to secure.
