Instrument Cluster - Instrument Cluster

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

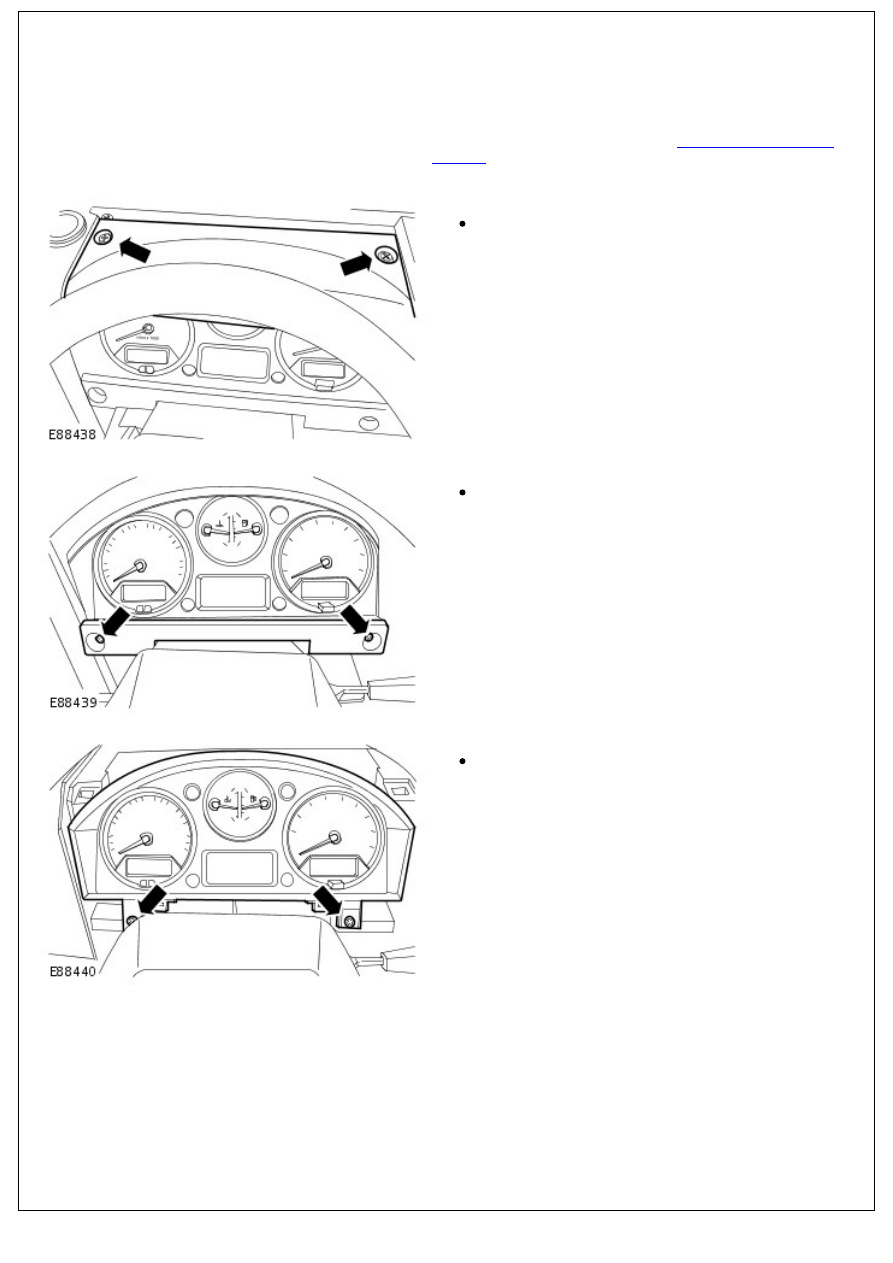

2. Remove the instrument cluster upper finisher.

Remove the 2 screws.

3. Remove the instrument cluster lower finisher.

Remove the 2 screws.

4. Release the instrument cluster.

Remove the 2 screws.

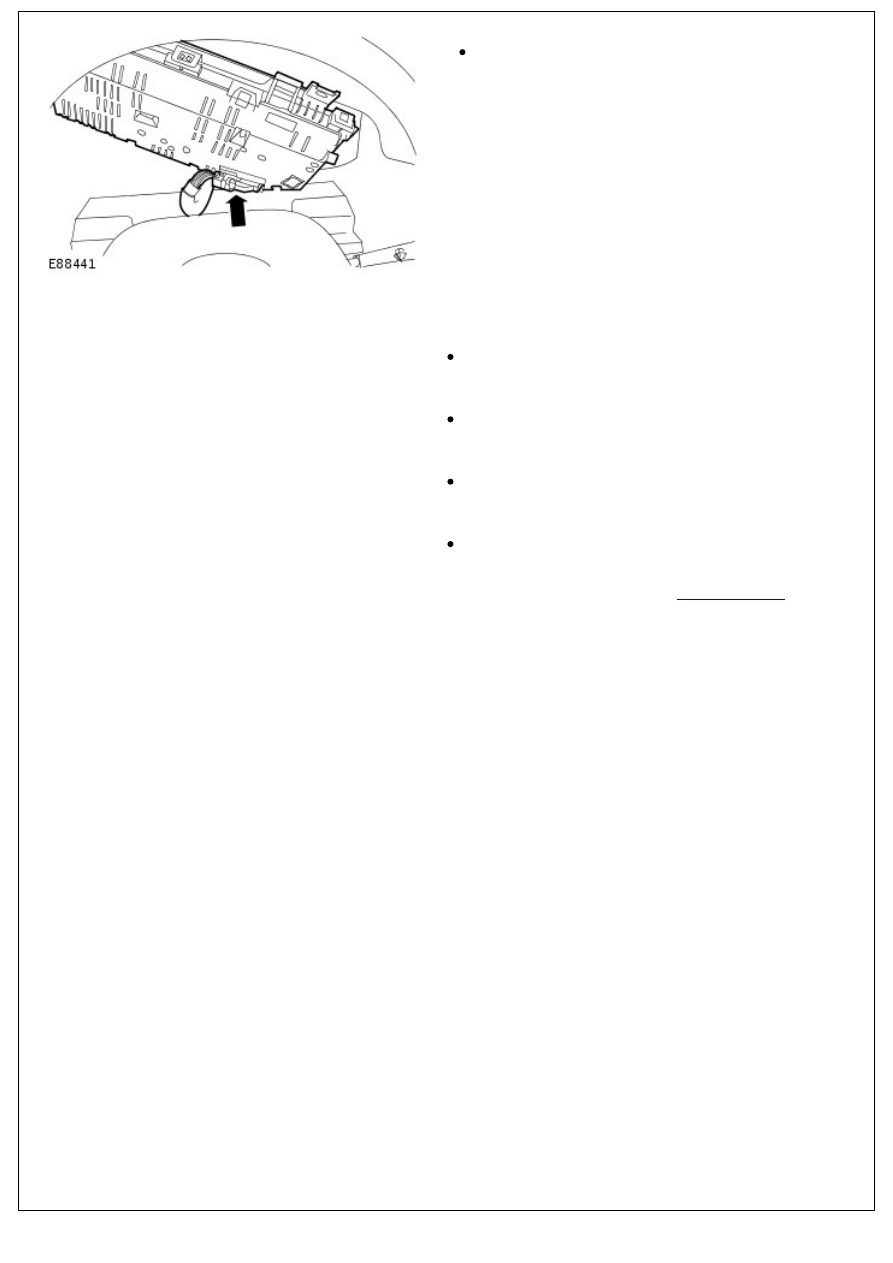

5. Remove the instrument cluster.

5. Remove the instrument cluster.

Disconnect the electrical connector.

Installation

1. Install the instrument cluster.

Connect the electrical connector.

2. Secure the instrument cluster.

Install the 2 screws.

3. Install the instrument cluster lower finisher.

Install the 2 screws.

4. Install the instrument cluster upper finisher.

Install the 2 screws.

5. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

6. Using the approved Land Rover diagnostic equipment,

configure the instrument cluster.

Horn - Horn

Removal and Installation

Removal

1. Remove LH headlamp.

For additional information, refer to:

Headlamp Assembly

(417-01 Exterior Lighting, Removal and Installation).

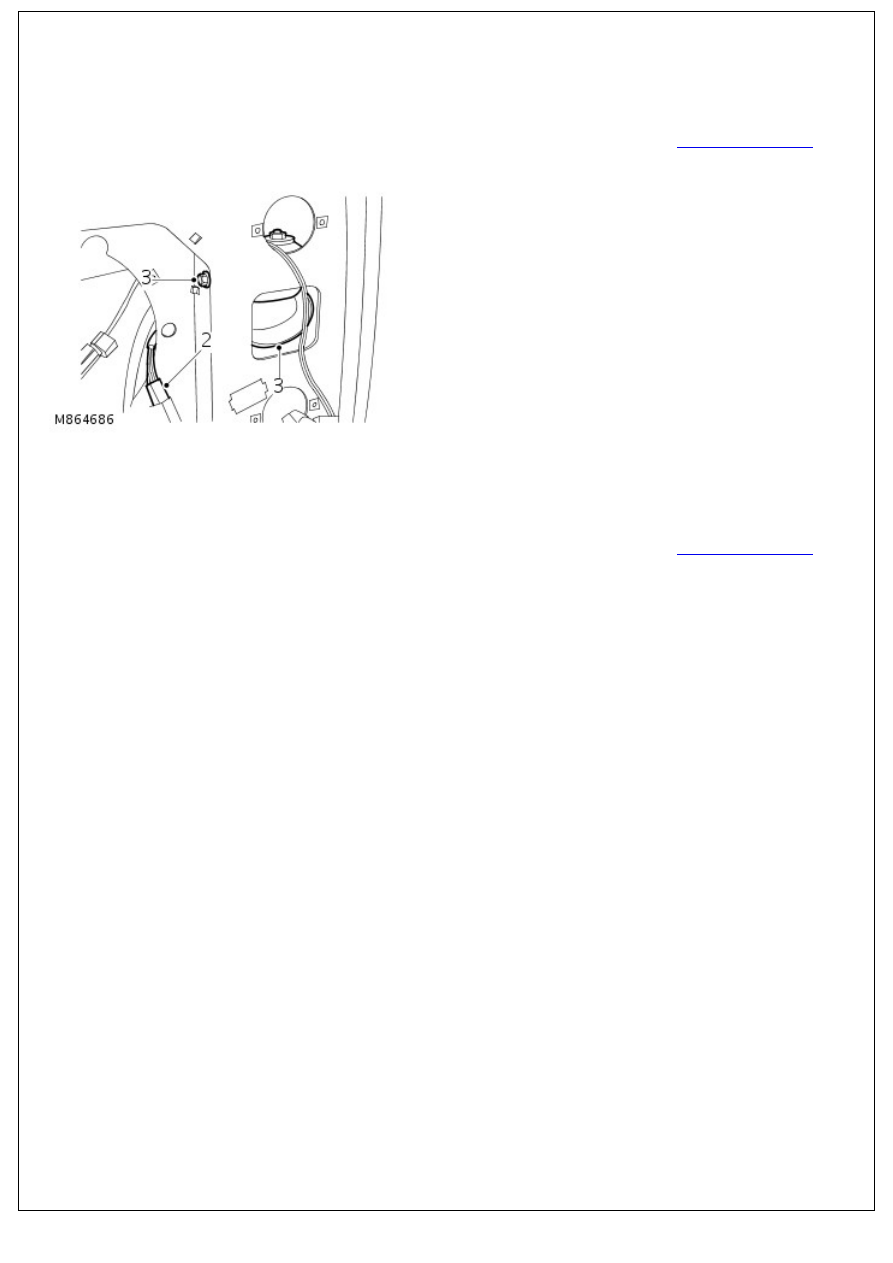

2. Disconnect horn multiplug.

3. Remove nut and remove horn from mounting bracket.

Installation

1. Position horn, tighten securing and connect multiplug.
2. Fit LH headlamp.

For additional information, refer to:

Headlamp Assembly

(417-01 Exterior Lighting, Removal and Installation).

Clock -

Torque specifications

Description

Nm

lb-ft

Clock support bracket

1

1
