Defender. Manual - part 194





Fuel System - General Information - Diesel Filter Water Drain-Off

General Procedures

• WARNINGS:

 The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent

fire and explosion.

 Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable

vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

 Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related

components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result

in personal injury.

 If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and seek immediate medical

attention.

 Wash hands thoroughly after fuel handling, as prolonged contact may cause irritation. Should irritation develop,

seek medical attention.

CAUTION: Diesel fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is

therefore essential that absolute cleanliness is observed when working with these components. Always install blanking

plugs to any open orifices or lines. Failure to follow this instruction may result in foreign matter ingress to the fuel

injection system.

1. Drain the fuel filter element.

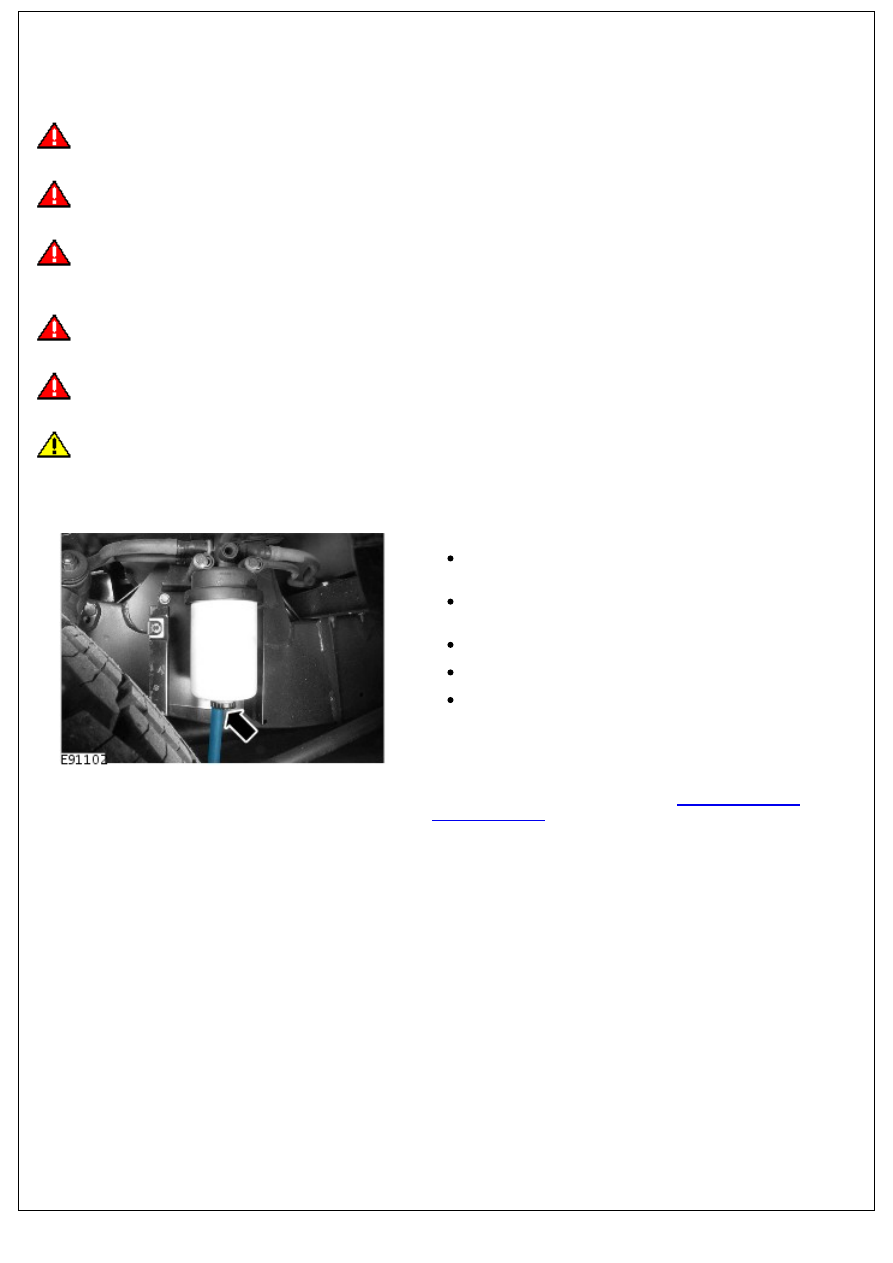

Attach a suitable drain tube to the fuel filter water drain

off port.

Loosen the water drain off port one complete turn and

allow the fuel to drain into a container.

Tighten the water drain off port.

Remove the drain tube.

Remove the container.

2. Bleed the fuel system.

For additional information, refer to:

Low-Pressure Fuel

System Bleeding

 (310-00 Fuel System - General Information,

General Procedures).

Fuel System - General Information - Fuel Tank Draining

General Procedures

1. Remove battery cover.
2. Disconnect both leads from battery, earth lead first.

WARNING: Fuel vapour is highly flammable and in contained spaces is also explosive and toxic. Always have a fire

extinguisher containing FOAM, CO2, GAS OR POWDER close at hand when handling or draining fuel.

3. Using a fuel recovery appliance, drain the fuel from the tank

into a sealed container. Follow the manufacturers instructions

for the connection and safe use of the appliance.

4. Remove filler cap and insert hose into filler neck.
5. Connect bowser earth line. Drain fuel.
6. Connect battery leads.
7. Fit battery cover.

Fuel System - General Information - Low-Pressure Fuel System Bleeding

General Procedures

Special Tool(s)

Hand pressure pump

310-110

• WARNINGS:

 After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow this instruction

may result in personal injury.

 Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable

vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

 Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related

components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result

in personal injury.

 If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and seek immediate medical

attention.

 This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling

precautions. Failure to follow these instructions may result in personal injury.

 Wash hands thoroughly after fuel handling, as prolonged contact may cause irritation. Should irritation develop,

seek medical attention.

• CAUTIONS:

 Diesel fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore

essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to

any open orifices or lines. Failure to follow this instruction may result in foreign matter ingress to the fuel injection

system.

 Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible.

Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system

and may result in later malfunction.

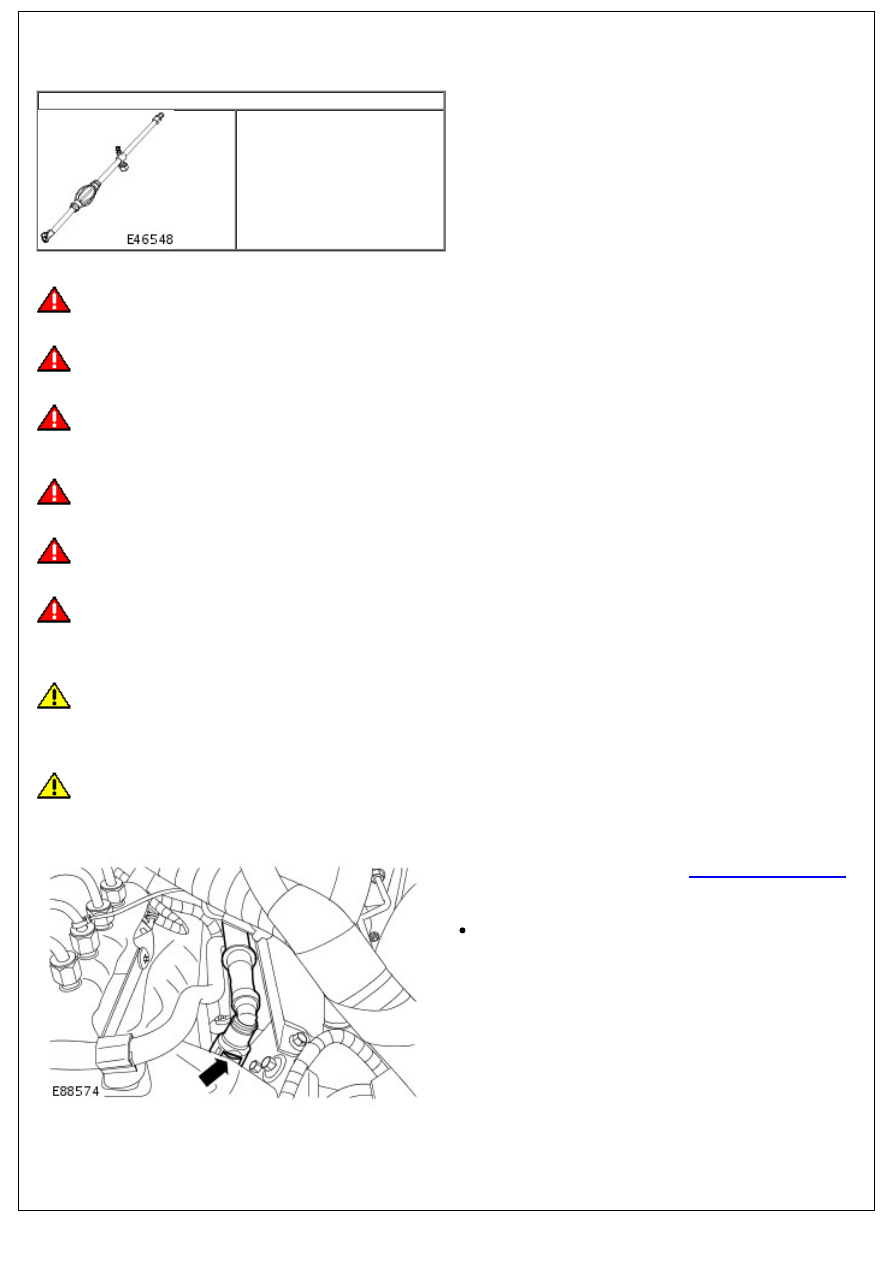

1. Disconnect the fuel injection pump supply line.

For additional information, refer to:

Quick Release Coupling

(310-00 Fuel System - General Information, General

Procedures).

Position an absorbent cloth to collect any fluid spillage.

2. Install the special tool.

2. Install the special tool.

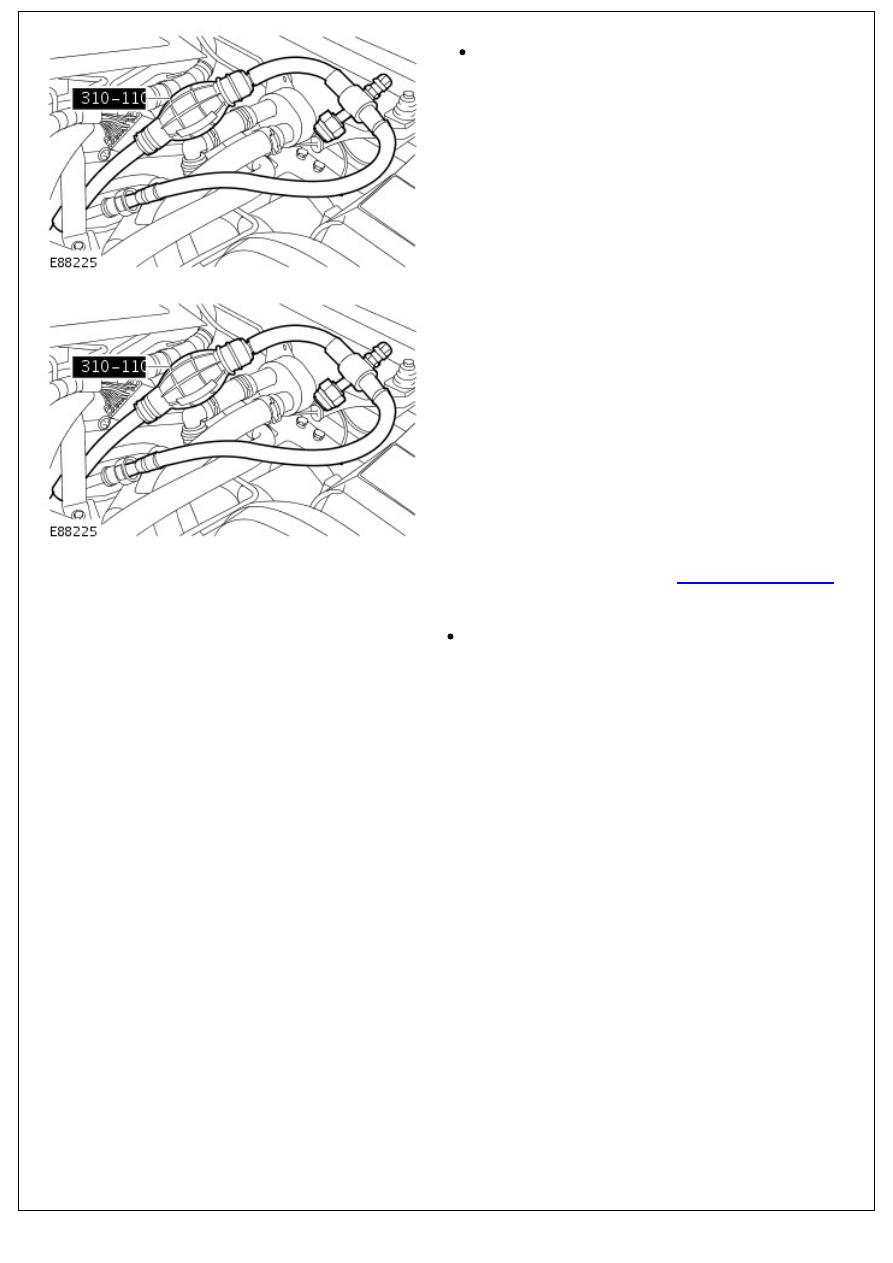

Operate the hand pressure pump special tool until fuel

starts to flow through the clear plastic pipe and the

special tool becomes firm.

3. Remove the special tool.

4. Connect the fuel injection pump supply line.

For additional information, refer to:

Quick Release Coupling

(310-00 Fuel System - General Information, General

Procedures).

Remove the absorbent cloth.
