Defender. Manual - part 182





Transfer Case - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Transfer Case High/Low Range Selector Rod Adjustment

General Procedures

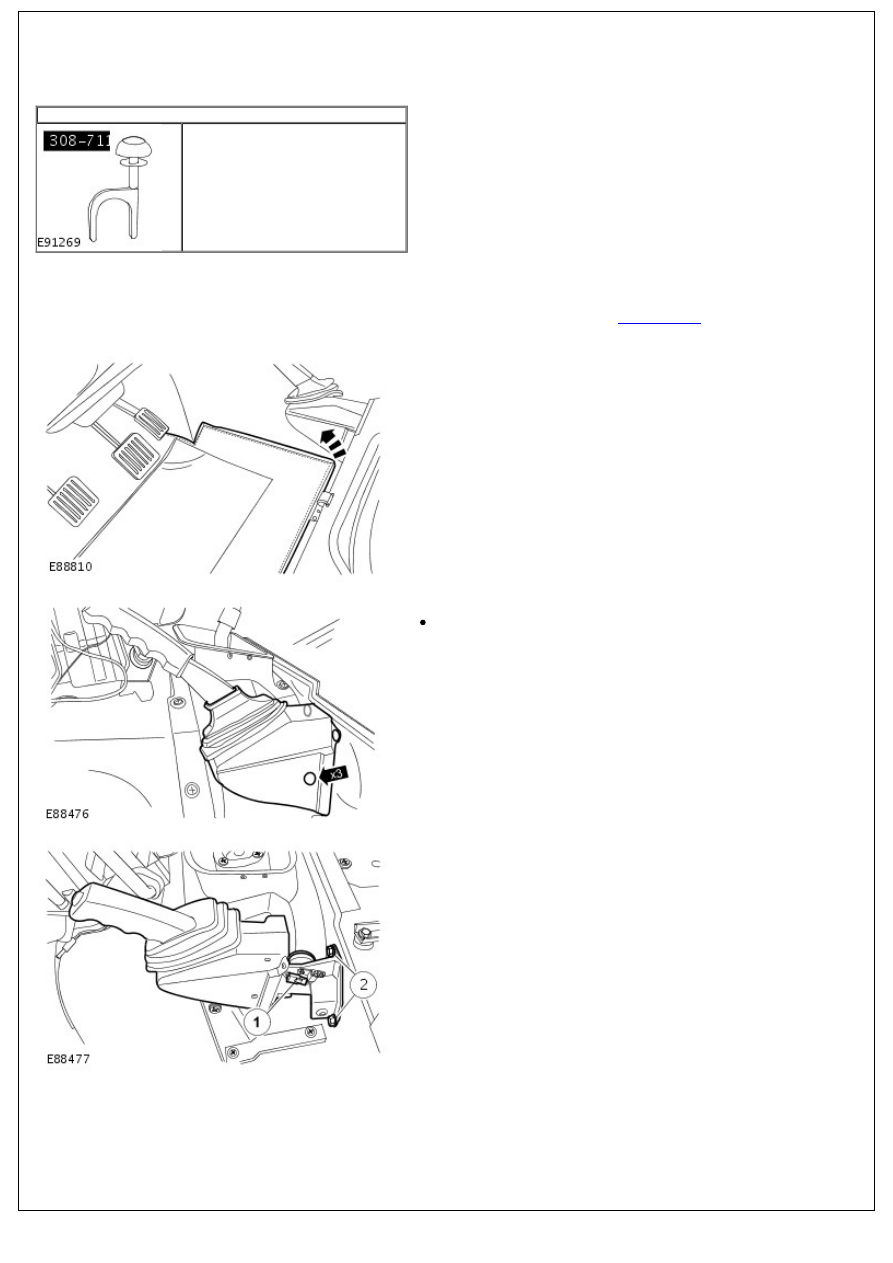

Special Tool(s)

Locking Tool High/Low Selector

308-711

• NOTE: If carrying out this procedure after replacing the transfer case high/low range selector linkage, carry out steps

13 - 19.

1. Remove the floor console.

For additional information, refer to:

Floor Console

 (501-12

Instrument Panel and Console, Removal and Installation).

2. Reposition the LH carpet.

3. Remove the parking brake lever gaiter.

Remove the 3 clips.

4. Release the parking brake lever.

1. Disconnect the electrical connector.

2. Remove the 2 bolts.

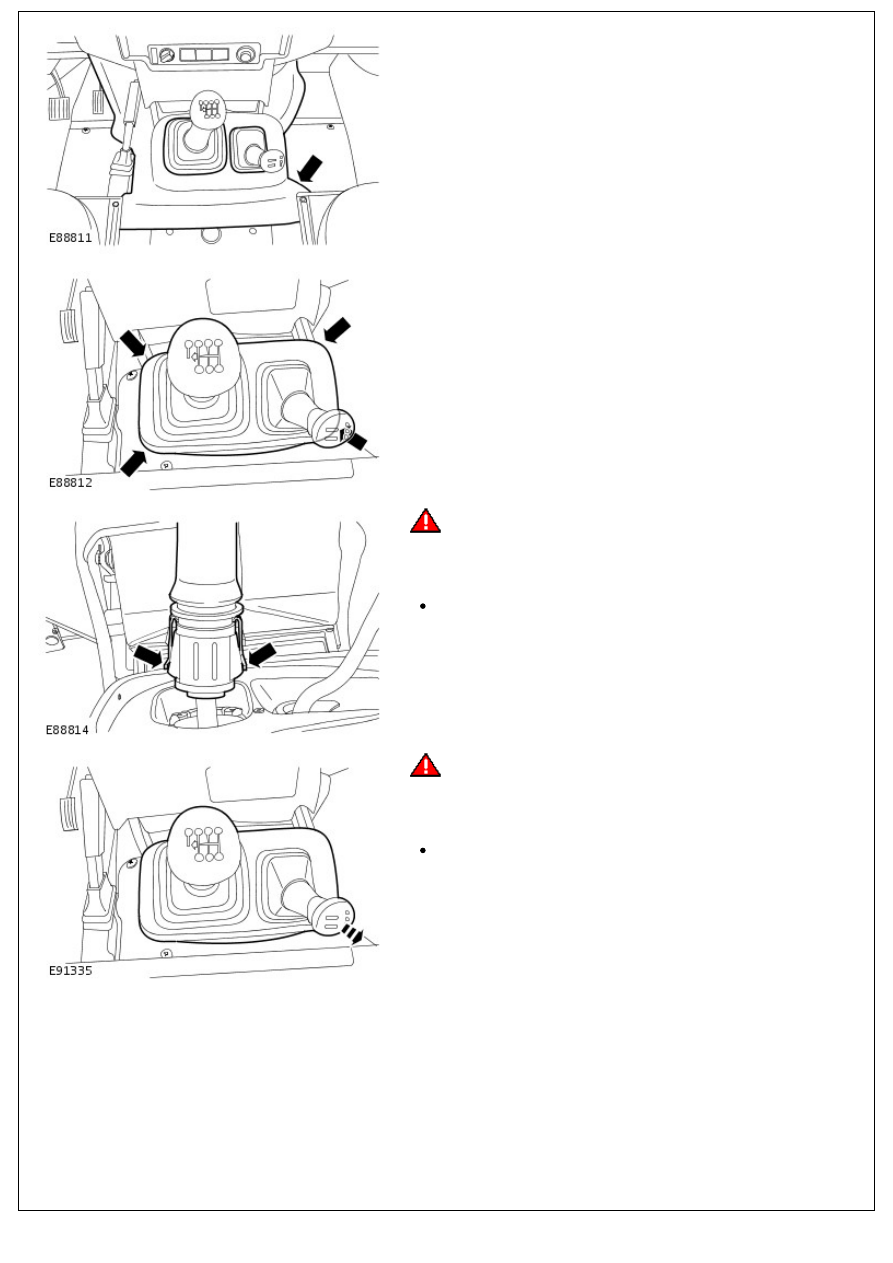

5. Remove the transmission cover panel floor covering.

5. Remove the transmission cover panel floor covering.

6. NOTE: Do not detach the gaiter from the selector knobs.

Detach the gaiter from the transmission cover panel.

7.

WARNING: The gearshift lever knob will be released

suddenly, keep face clear during removal. Failure to follow

this instruction may result in personal injury.

Release the gearshift lever knob.

Release the 2 clips.

8.

WARNING: The high/low range selector lever knob

will be released suddenly, keep face clear during removal.

Failure to follow this instruction may result in personal injury.

Remove the gaiter and selector levers.

Detach the high/low range selector lever.

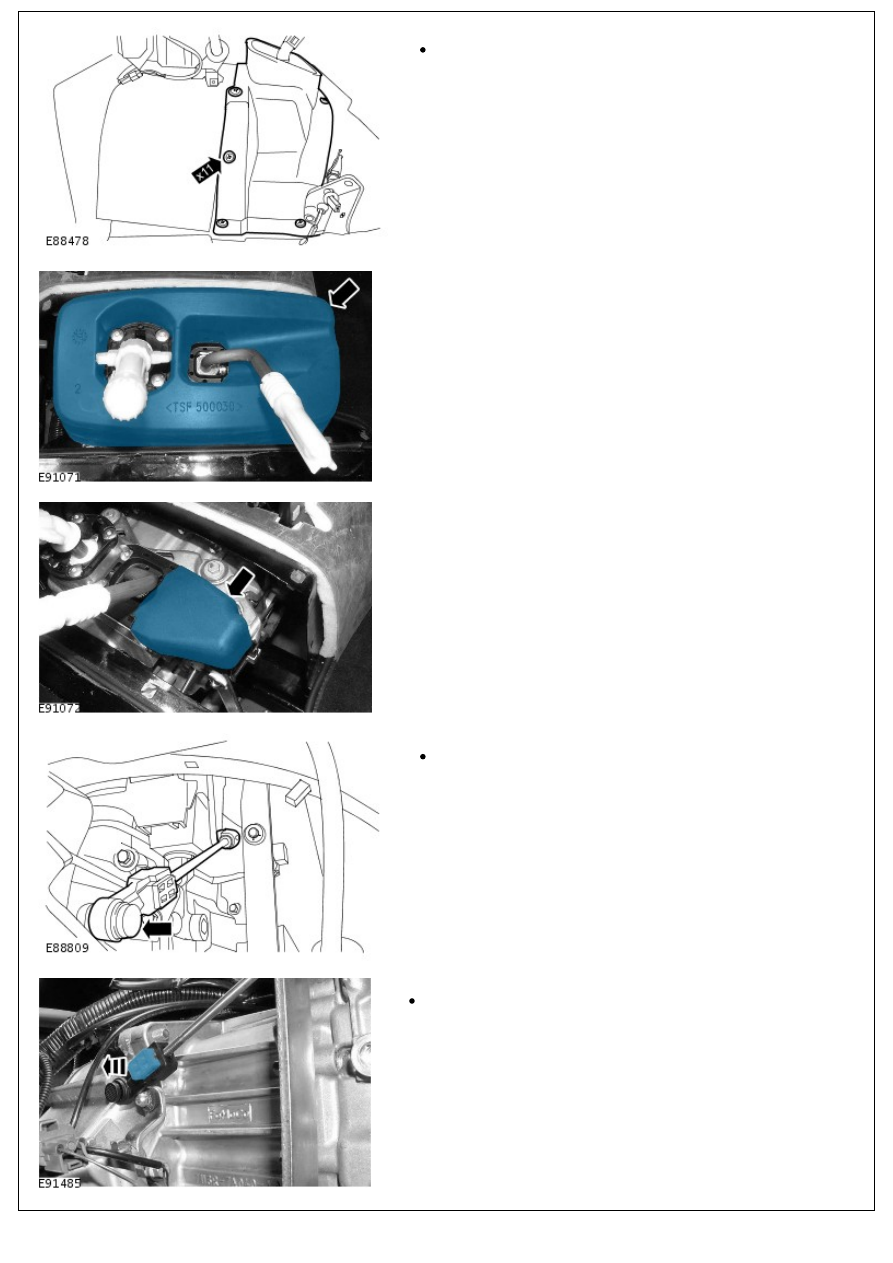

9. Remove the transmission cover panel.

9. Remove the transmission cover panel.

Remove the 11 screws.

10. NOTE: Position the differential lock to the left, to reduce

tension on the insulation.

Remove the insulation pad.

11. Remove the insulation pad support bracket.

12. Disconnect the transfer case high/low range selector rod.

Press the button to release the transfer case high/low

range selector rod.

13. Release the adjuster.

Release the locking block.

14.

WARNING: Do not work on or under a vehicle

supported only by a jack. Always support the vehicle on safety

stands.

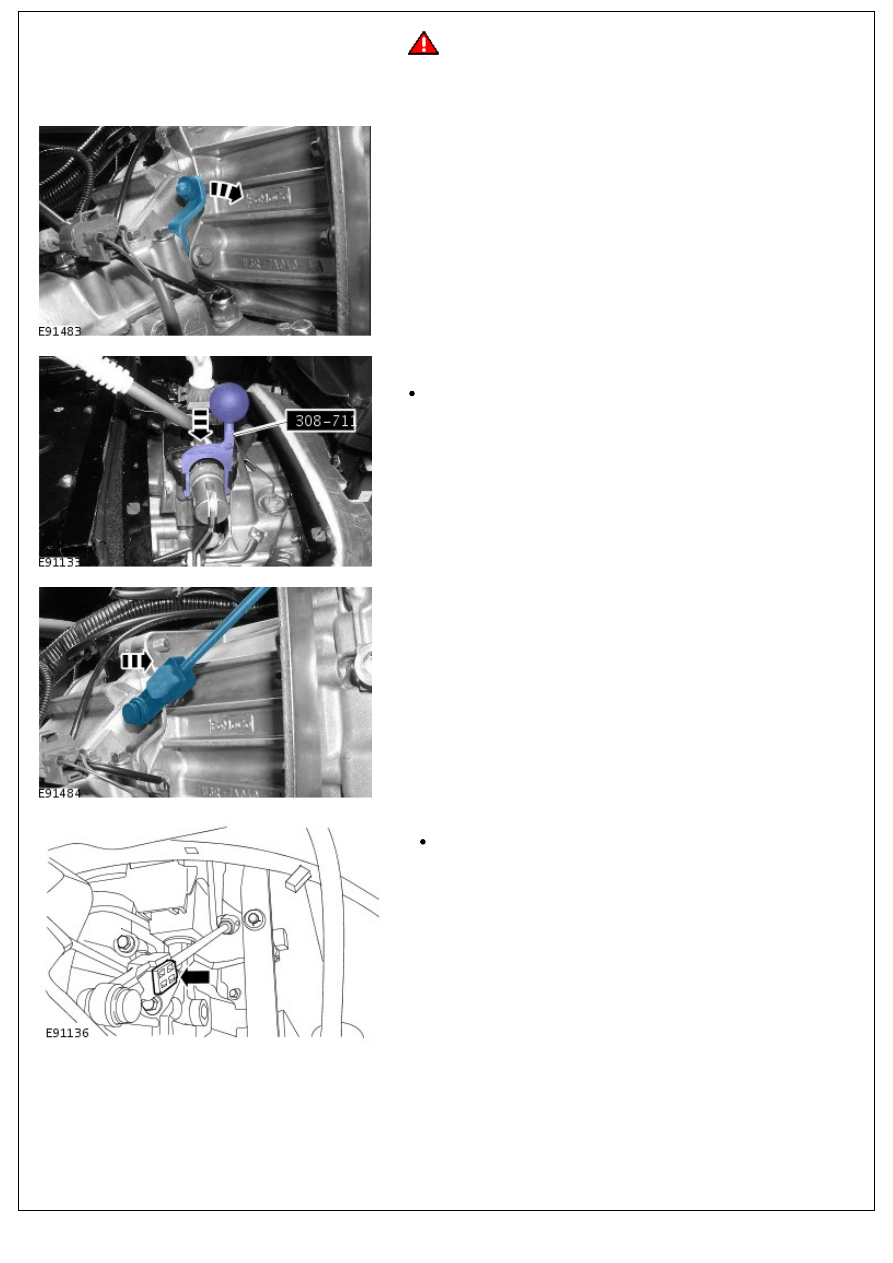

Raise and support the vehicle.

15. NOTE: It may be necessary to rotate the road wheels to

confirm that high range is fully engaged.

Make sure that high range is fully engaged on the transfer

case.

16. Using the special tool, set the transfer case high/low range

selector lever in high range.

Insert the special tool.

17. NOTE: Make sure the transfer case high/low range selector

rod is fully engaged on the ball joint and not the foam washer.

Connect the transfer case high/low range selector rod.

18. Push in the locking block.

Fully engage the locking block.

19. Remove the special tool.
