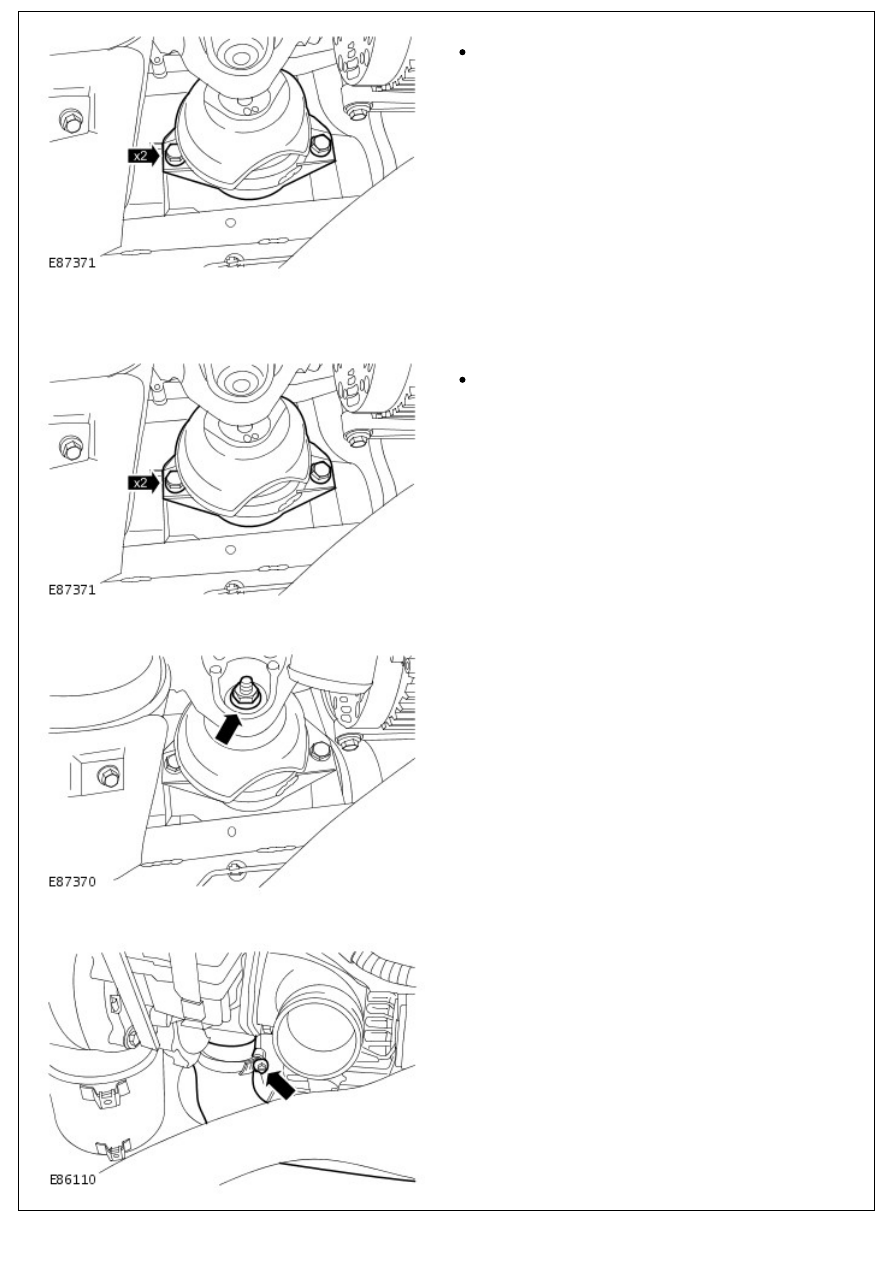

10. Remove the RH engine mount.

Remove the 2 bolts.

Installation

1. To install, reverse the removal procedure.

Tighten to 80 Nm (59 lb.ft).

2. Tighten to 80 Nm (59 lb.ft).

3. Tighten to 3 Nm (2 lb.ft).

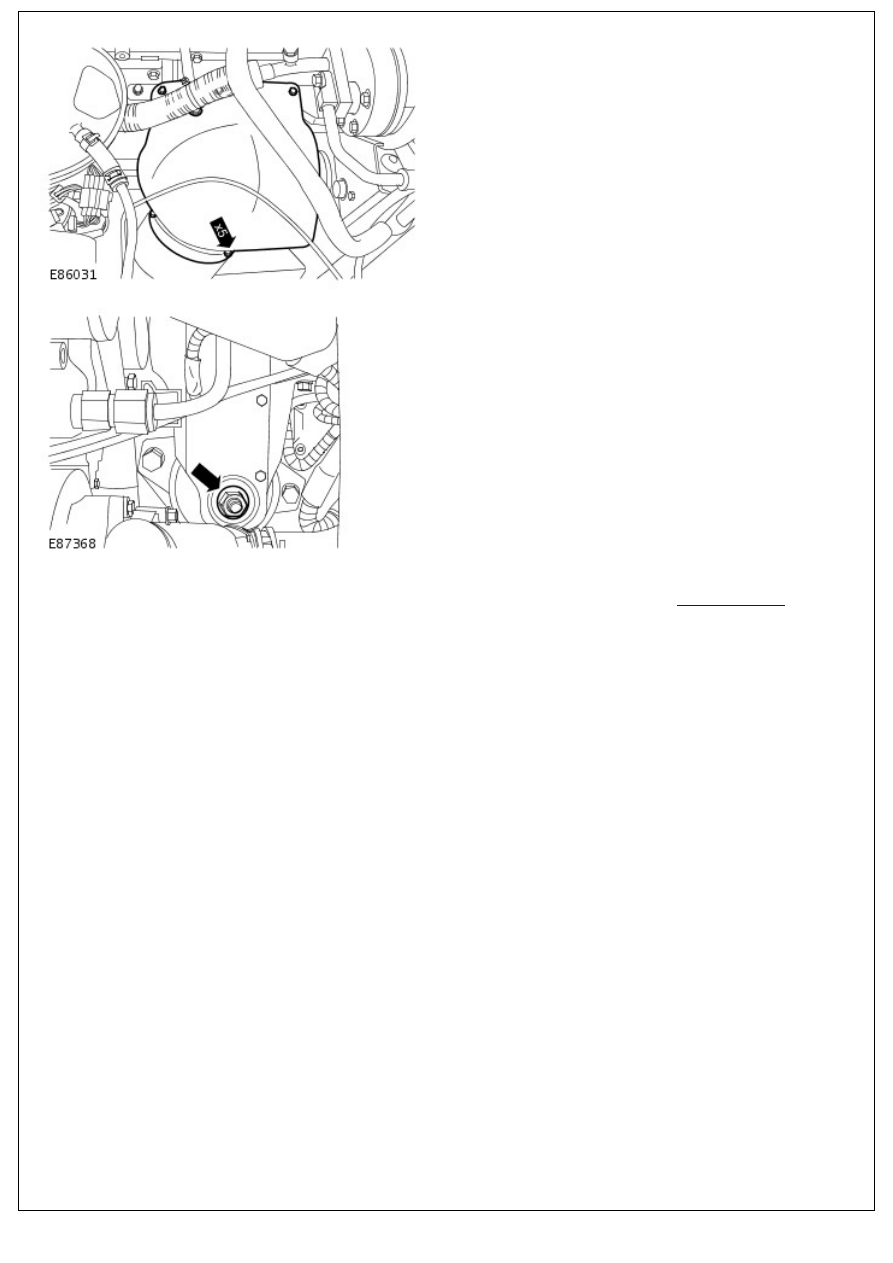

4. Tighten to 10 Nm (7 lb.ft).

5. Tighten to 80 Nm (59 lb.ft).

6. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

Engine - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma - Exhaust

Manifold

In-vehicle Repair

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the turbocharger.

For additional information, refer to:

Turbocharger

 (303-04B

Fuel Charging and Controls - Turbocharger - 2.4L Duratorq-

TDCi HPCR (103kW/140PS) - Puma, Removal and

Installation).

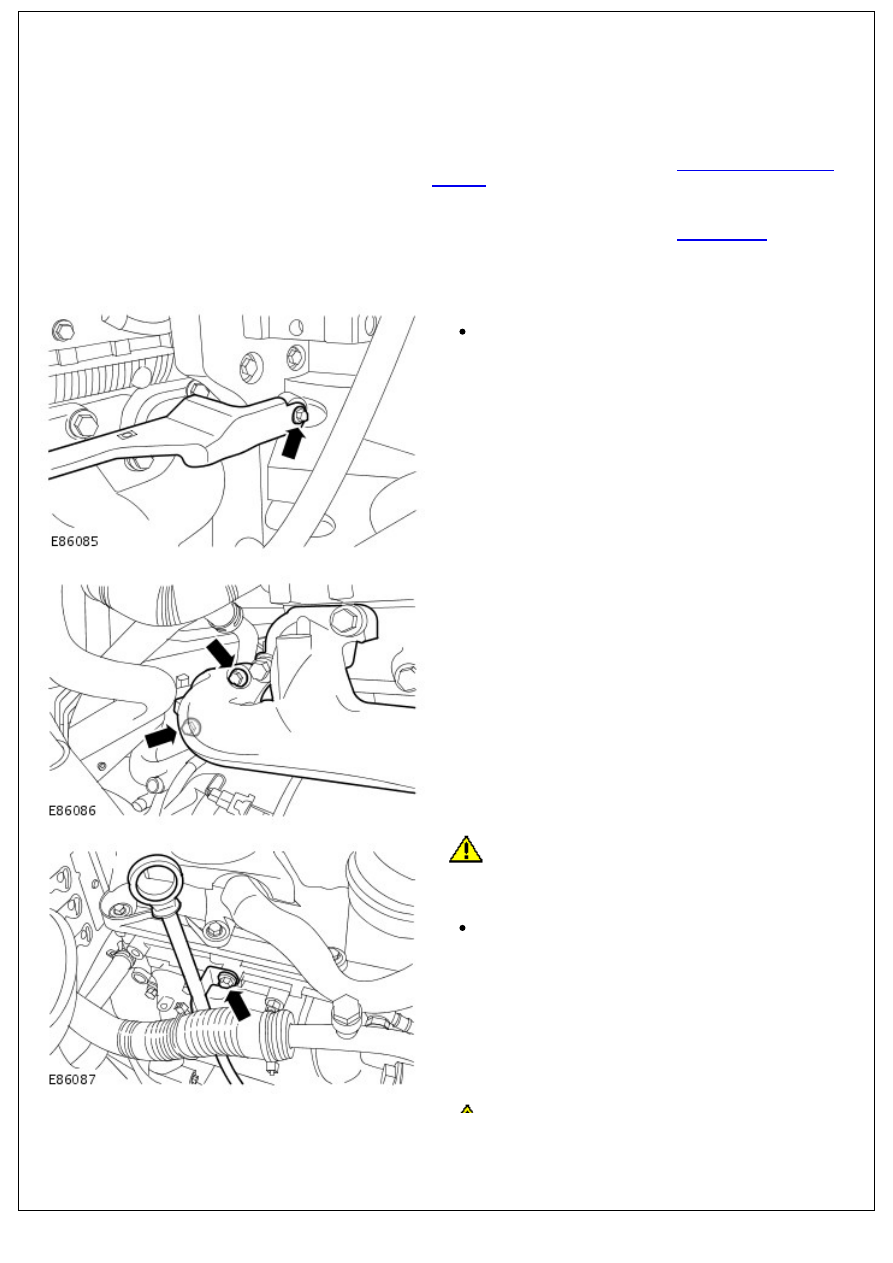

3. Remove the turbocharger heat shield bracket.

Remove the bolt.

4. Remove the 2 exhaust manifold to exhaust gas

recirculation (EGR) cooler bolts.

5.

CAUTION: Make sure that all openings are sealed. Use

new blanking caps.

Remove the oil level indicator and oil level tube.

Remove and discard the O-ring seal.

CAUTION: Make sure that all openings are sealed.

6.

CAUTION: Make sure that all openings are sealed.

Use new blanking caps.

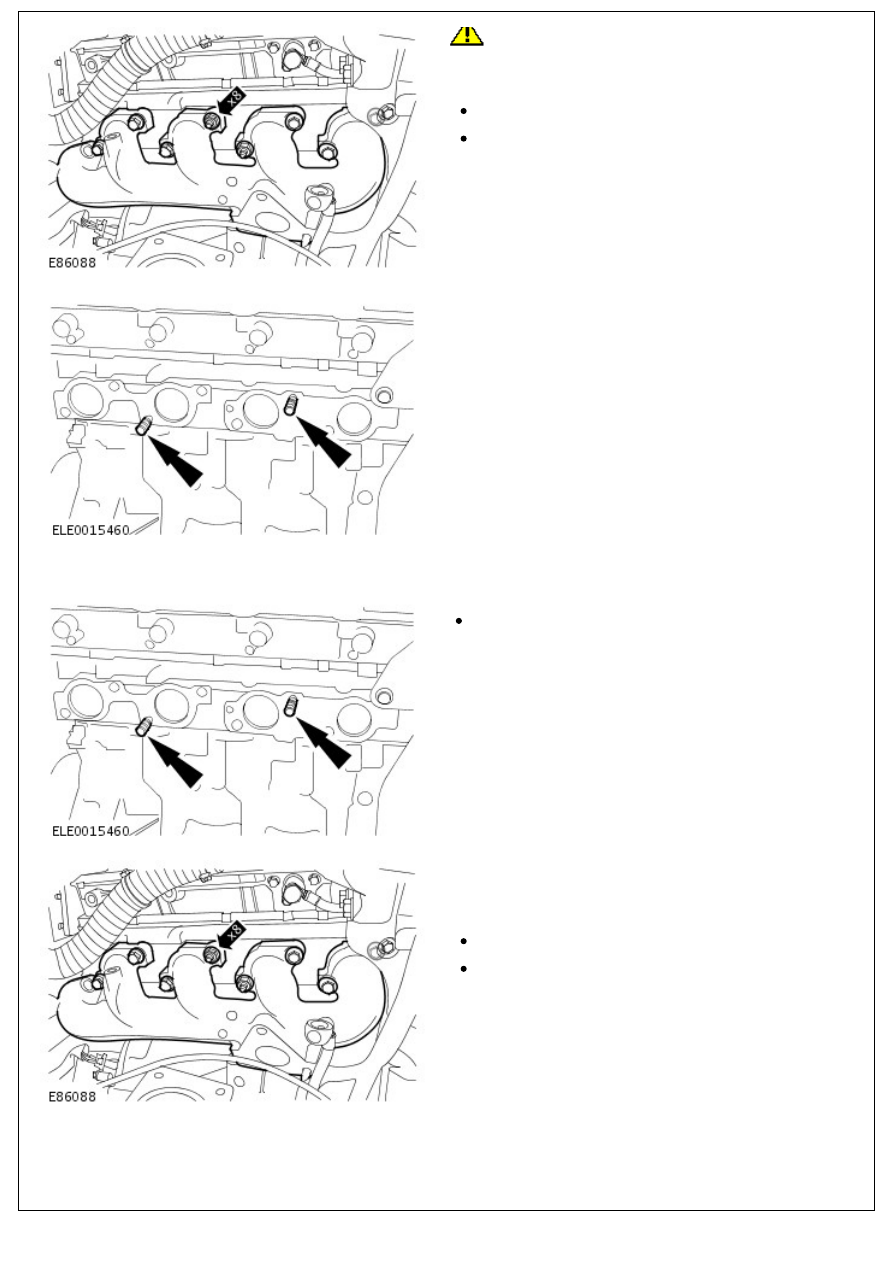

Remove the exhaust manifold.

Remove the 6 bolts and 2 nuts.

Remove and discard the exhaust manifold gasket.

7. Remove and discard the 2 exhaust manifold studs.

Installation

1. Install new exhaust manifold studs.

Tighten to 20 Nm (14 lb.ft).

2. NOTE: Remove and discard the blanking caps.

• NOTE: Clean the component mating faces.

Install the exhaust manifold.

Install a new exhaust manifold gasket.

Tighten to 40 Nm (30 lb.ft).

3. NOTE: Remove and discard the blanking caps.
