Defender. Manual - part 48





Steering System - General Information -

Steering

Steering

geometry

Steering wheel

diameter

412 mm (16.22 in)

Front wheel

alignment

-10' ± 10' toe-out

Rear wheel

alignment

+5' ± 15' toe-in

Camber angle -

Front

-10' ± 45'

Camber angle -

Rear

-10' ± 45'

Castor angle

3° 15' ± 45'

Cross castor

1° Maximum

Cross camber -

Front

1° Maximum

Cross camber -

Rear

1° Maximum

Swivel pin

inclination - static

7° Check with vehicle on level ground at EEC kerb weight. Rock the front of the vehicle up and

down to allow it to take up normal static position.

Turning circle between kerbs

90 Models
265/75 x 16 tires

12.65 m (41.5 ft)

All other tires

11.70 m (38.4 ft)

110 Models
750 x 16 tires

13.41 m (44 ft)

130 Models
750 x 16 tires

15.24 m (50 ft)

Steering box and pump

Steering box make and type

Adwest Varamatic - worm and roller

Steering box ratio

Variable: Straight ahead - 19.3:1 on lock - 14.3:1

Steering wheel turns - lock to lock

3.375

Steering pump make and type

JTekt P4

Power steering system

Fluids and capacities

Power steering fluid

Texaco Cold Climate 33270

Fluid capacity - steering gear and reservoir - LHD

2.90 litres (5.0 pints)

Fluid capacity - steering gear and reservoir - RHD

3.40 litres (6.00 pints)

Torque specifications

Description

Nm

lbf-ft

Drag link to drop arm

40

30

Ball joint nuts

40

30

Clamp bolt (M6)

9

7

Steering column bracket nuts

22

16

Steering wheel nut

43

32

Tie bar to mounting nut initial torque

80

60

Tie bar to mounting nut final torque

110

80

Universal joint pinch bolt

30

22

Steering gear adjuster locknut

60

45

Steering gear drop arm nut

175

130

Steering gear sector shaft cover to steering box

75

55

Steering gear to chassis

80

60

Steering gear fluid pipes 14mm thread

15

11

Steering gear fluid pipes 16mm thread

20

15

Steering gear tie bar

80

60

Power steering pump high pressure fluid pipe

20

15

Power steering pump mounting

35

25

Power steering pump pulley bolts

10

7

Power steering pump hose clamp

3

2

Power steering pump front mounting plate bolts

9

7

Power steering reservoir hose clamp

3

2

Fixing size

Nm

lbf-ft

M5

6

4.5

M6

9

7

M8

25

18

M10

45

33

M12

90

65

M14

105

77

M16

180

133

1/4 in

9

7

5/16 in

24

18

3/8 in

39

29

7/16 in

78

58

! in

90

65

5/8 in

135

100

Torque specifications in the table above are for all screws and bolts used, except for those specifically referred to in the

Torque specifications table.

Steering System - General Information - Steering System

Description and Operation

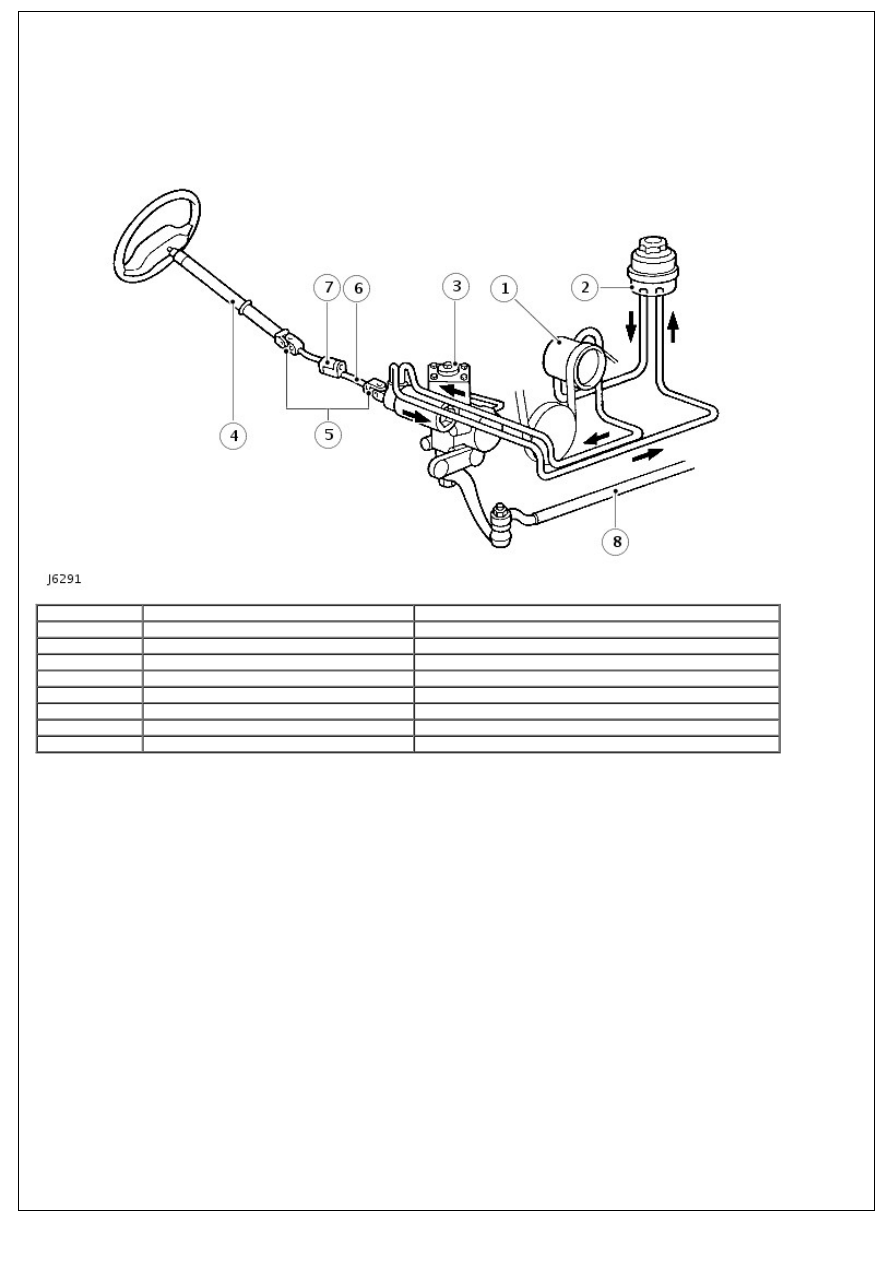

Power steering system

Item

Part Number

Description

1.

-

Hydraulic pump

2.

-

Fluid reservoir

3.

-

Steering box

4.

-

Upper column

5.

-

Universal joints

6.

-

Lower shaft

7.

-

Compression joint

8.

-

Drag link

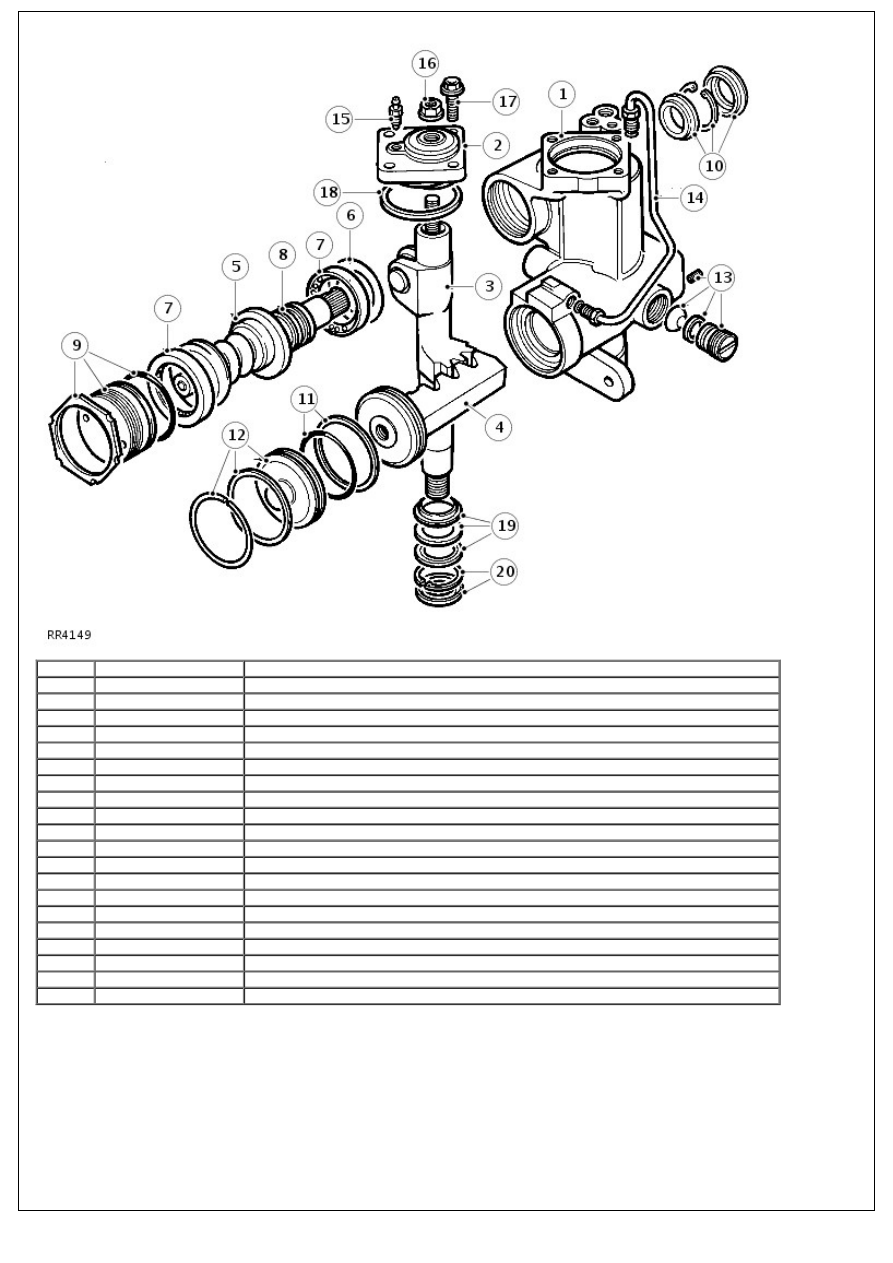

Power steering box components

Item

Part Number

Description

1.

-

Housing complete with sector shaft bearings

2.

-

Cover plate complete with bearing

3.

-

Sector shaft

4.

-

Hydraulic piston/rack

5.

-

Worm/valve and torsion bar assembly

6.

-

Shims for centralizing worm/valve

7.

-

Ball race

8.

-

'Teflon' seals for valve sleeve

9.

-

Bearing adjuster, locknut and seal

10.

-

Worm shaft pressure seal, circlip and dirt excluder

11.

-

'Teflon' and rubber seal for piston

12.

-

End cover seal and snap ring

13.

-

Adjustment components for piston/rack

14.

-

Hydraulic pipe

15.

-

Bleed screw

16.

-

Sector shaft adjustment lock nut with seal

17.

-

Cover plate bolts

18.

-

Cover plate seal

19.

-

Seal, washer and backup seal

20.

-

Circlip and dust cover

GENERAL

The steering system incorporates a compression joint in the lower shaft and is designed to collapse on impact. The mis-

alignment of the upper steering column with the steering box and the inclusion of two universal joints, is also designed

to prevent the column moving toward the driver under frontal impact.

The steering box is located behind the first chassis cross member and is connected to the road wheel swivel housing by

a drag link and track rod. A hydraulic damper absorbs shocks in the steering, caused by road wheel deflections when

operating on rough terrain.

Power steering system

The power steering system comprises a hydraulic pump which is belt driven from the engine and supplied with fluid from
