Defender. Manual - part 38





10. Bleed brakes.

For additional information, refer to:

Brake System Bleeding

(206-00 Brake System - General Information, General

Procedures).

11. Depress brake pedal to seat pads onto discs.
12. Install road wheels, remove axle stands and tighten nuts to

130 Nm (96 lbf.ft).

Rear Disc Brake - Brake Disc

Removal and Installation

Removal

1. Remove rear wheel bearing and hub assembly.

For additional information, refer to:

Wheel Bearing and Wheel

Hub

 (204-02 Rear Suspension, Removal and Installation).

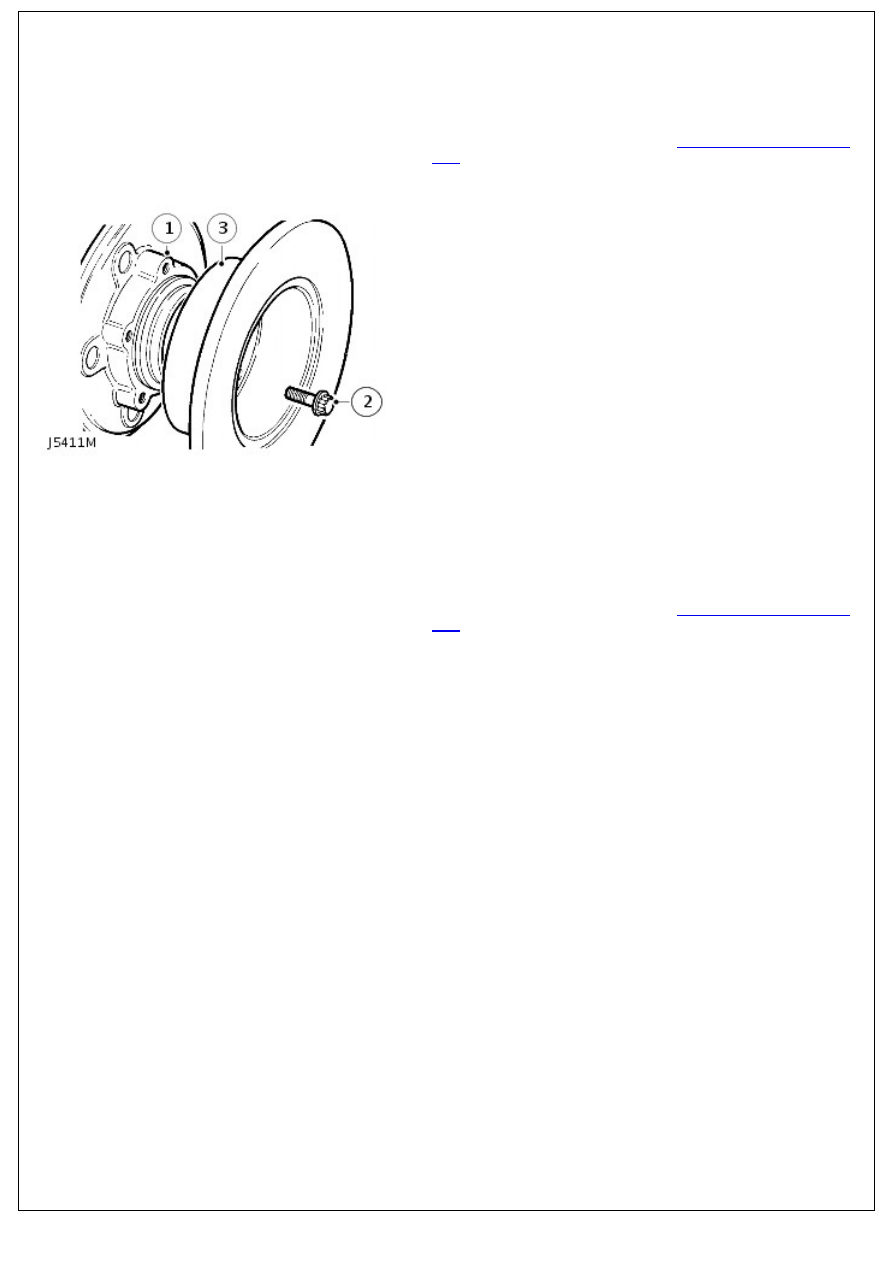

2. Remove disc bolts.

3. Remove disc from rear hub.

Installation

1. Install disc to rear hub.
2. Install disc bolts. Tighten to 73 Nm (54 lbf.ft).
3. Check total disc run out, this must not exceed 0,15 mm

(0.006 in). If necessary reposition disc.

4. Install rear wheel bearing and hub assembly.

For additional information, refer to:

Wheel Bearing and Wheel

Hub

 (204-02 Rear Suspension, Removal and Installation).

5. Disc reclamation.

6. NOTE: The brake disc MUST BE renewed if the minimum

running thickness stamped on the disc is recorded.

Check disc thickness. This dimension may be machined to

minimum thickness of 12 mm. Machine equal amounts off

each face.

Parking Brake and Actuation - Parking Brake Shoe and Lining Adjustment

General Procedures

• NOTE: The parking brake should be fully operational on third notch of ratchet.

1. Raise one rear wheel clear of ground and support on axle

stand.

2. Release parking brake lever.

3. Tighten brake adjuster to 25 Nm (18 lbf.ft) to fully expand

shoes to drum.

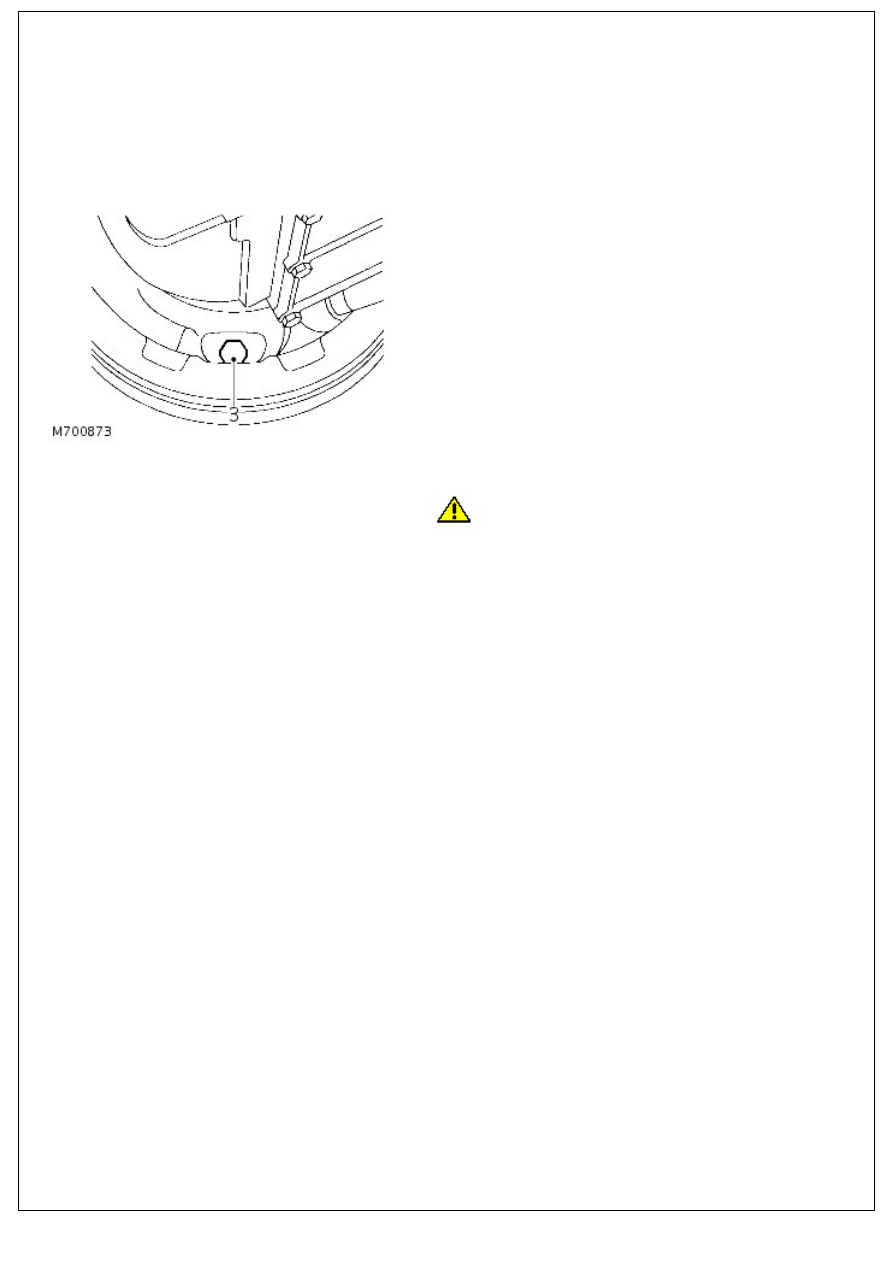

4. Back off adjuster 1! turns, check that drum is free to

rotate.

5.

CAUTION: Cable adjustment must ONLY be used for

initial setting and to compensate for cable stretch. It MUST NOT

be used to take up brake shoe wear, which MUST be adjusted

at brake drum.

Check operation of parking brake lever to give pawl 2 notches

free movement on ratchet before being fully operational on

third notch of ratchet. Adjust parking brake accordingly if

lever travel exceeds the above tolerance.

6. Remove axle stand and wheel chock.

Parking Brake and Actuation - Parking Brake Cable

Removal and Installation

Removal

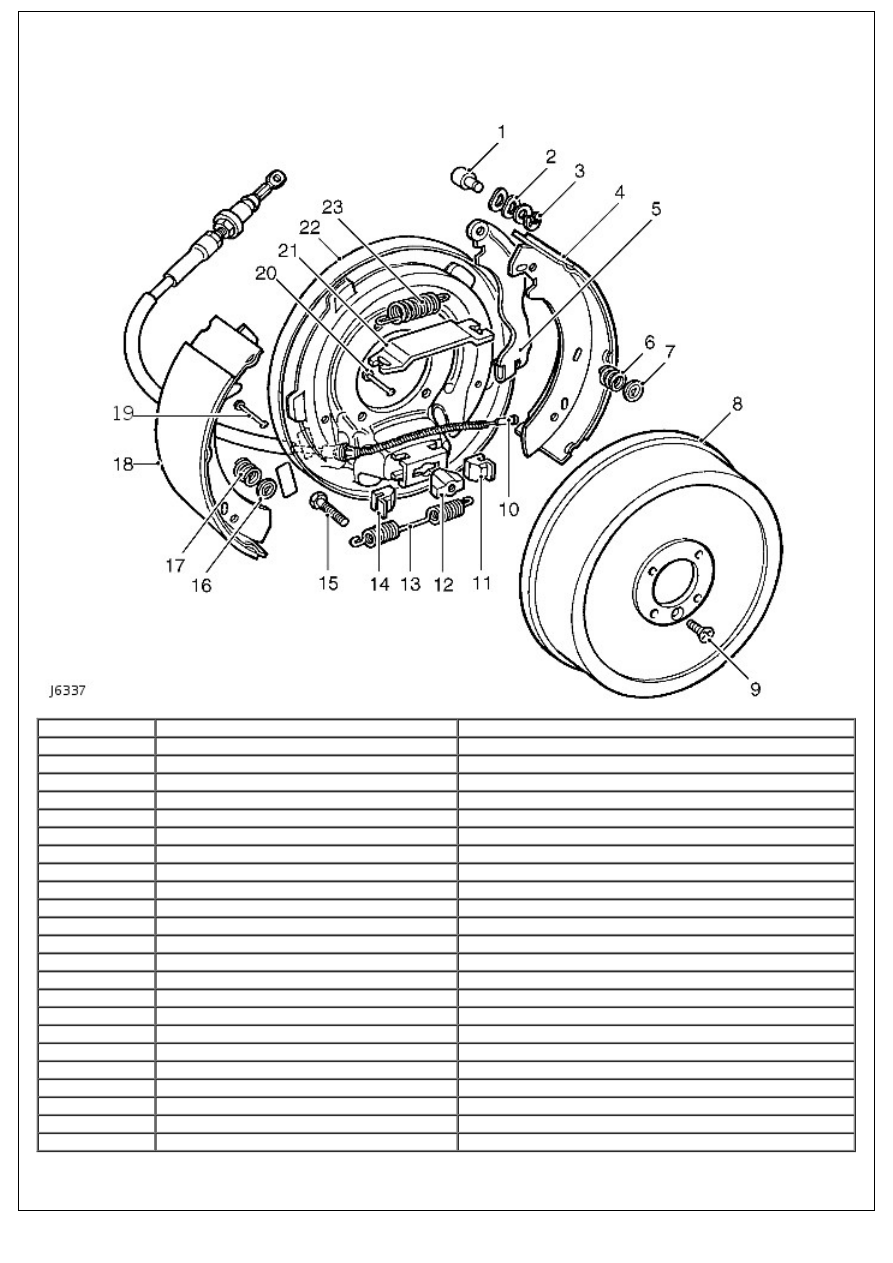

Item

Part Number

Description

1

-

Pin

2

-

Washer

3

-

'C' Circlip

4

-

Brake shoe

5

-

Cable lever

6

-

Hold down spring

7

-

Dished washer

8

-

Brake drum

9

-

Screw

10

-

Brake cable

11

-

Adjuster slide

12

-

Adjuster nut

13

-

Spring

14

-

Adjuster slide

15

-

Adjuster bolt

16

-

Dished washer

17

-

Hold down spring

18

-

Brake shoe

19

-

Hold down pin

20

-

Hold down pin

21

-

Abutment plate

22

-

Back plate

23

-

Spring

1. Park vehicle on level ground, chock road wheels and release

parking brake. Alternatively, raise vehicle on ramp.
