COOLING SYSTEM

WARNING!

•

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never open a cooling system
pressure cap when the radiator or coolant bottle is
hot.

•

Keep hands, tools, clothing, and jewelry away from
the radiator cooling fan when the hood is raised.
The fan starts automatically and may start at any
time, whether the engine is running or not.

•

When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition to
the OFF position. The fan is temperature controlled
and can start at any time the ignition is in the ON
position.

Engine Coolant Checks

Check the engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant is dirty, the system
should be drained, flushed, and refilled with fresh
Organic Additive Technology (OAT) coolant (conforming
to MS.90032) by an authorized dealer. Check the front
of the A/C condenser for any accumulation of bugs,
leaves, etc. If dirty, clean by gently spraying water from
a garden hose vertically down the face of the
condenser.

Check the engine cooling system hoses for brittle rub-
ber, cracking, tears, cuts, and tightness of the connec-
tion at the coolant recovery bottle and radiator. Inspect
the entire system for leaks. DO NOT REMOVE THE
COOLANT PRESSURE CAP WHEN THE COOLING SYSTEM
IS HOT.

Cooling System — Drain, Flush And Refill

NOTE:

Some vehicles require special tools to add coolant prop-
erly. Failure to fill these systems properly could lead to
severe internal engine damage. If any coolant is needed
to be added to the system please contact an authorized
dealer.

If the engine coolant (antifreeze) is dirty or contains
visible sediment, have an authorized dealer clean and
flush with Organic Additive Technology (OAT) coolant
(conforming to MS.90032).

For the proper maintenance intervals

page 290.

Selection Of Coolant

Refer to Engine Fluids And Lubricants

page 345.

NOTE:

•

Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) engine
coolant, may result in engine damage and may
decrease corrosion protection. OAT engine coolant is
different and should not be mixed with Hybrid
Organic Additive Technology (HOAT) engine coolant
or any “globally compatible” coolant. If a non-OAT
engine coolant is introduced into the cooling system

in an emergency, the cooling system will need to be
drained, flushed, and refilled with fresh OAT coolant
(conforming to MS.90032), by an authorized dealer
as soon as possible.

•

Do not use water alone or alcohol-based engine
coolant products. Do not use additional rust inhibi-
tors or antirust products, as they may not be com-
patible with the radiator engine coolant and may
plug the radiator.

•

This vehicle has not been designed for use with pro-
pylene glycol-based engine coolant. Use of propyl-
ene glycol-based engine coolant is not
recommended.

•

Some vehicles require special tools to add coolant
properly. Failure to fill these systems properly could
lead to severe internal engine damage. If any cool-
ant is needed to be added to the system please con-
tact an authorized dealer.

Adding Coolant

Your vehicle has been built with an improved engine
coolant (OAT coolant conforming to MS.90032) that
allows extended maintenance intervals. This engine
coolant (antifreeze) can be used up to 10 years or
150,000 miles (240,000 km) before replacement. To
prevent reducing this extended maintenance period, it
is important to use the same engine coolant (OAT cool-
ant conforming to MS.90032) throughout the life of
your vehicle.

Please review these recommendations for using
Organic Additive Technology (OAT) engine coolant that
meets the requirements of the manufacturer Material
Standard MS.90032.

SERVICING AND MAINTENANCE

305

When adding engine coolant:

•

We recommend using Mopar® Antifreeze/Coolant
10 Year/150,000 Mile (240,000 km) Formula OAT
that meets the requirements of the manufacturer
Material Standard MS.90032.

•

Mix a minimum solution of 50% OAT engine coolant
that meets the requirements of the manufacturer
Material Standard MS.90032 and distilled water.
Use higher concentrations (not to exceed 70%) if
temperatures below −34°F (−37°C) are anticipated.
Please contact an authorized dealer for assistance.

•

Use only high purity water such as distilled or deion-
ized water when mixing the water/engine coolant
solution. The use of lower quality water will reduce
the amount of corrosion protection in the engine
cooling system.

NOTE:

•

It is the owner's responsibility to maintain the proper
level of protection against freezing according to the
temperatures occurring in the area where the
vehicle is operated.

•

Use care when filling under hood fluids such as
engine oil, washer fluid, antifreeze, etc. to minimize
spillage onto top of engine. Any excess fluid that is
spilled onto the top of the engine should be
removed using compressed air or an absorbent
cloth.

•

Mixing engine coolant types is not recommended
and can result in cooling system damage. If HOAT
and OAT coolant are mixed in an emergency, have
an authorized dealer drain, flush, and refill with OAT
coolant (conforming to MS.90032) as soon as
possible.

Cooling System Pressure Cap

The cap must be fully tightened to prevent loss of
engine coolant (antifreeze), and to ensure that engine
coolant will return to the radiator from the coolant
expansion bottle/recovery tank (if equipped).

The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing
surfaces.

WARNING!

•

Do not open a hot engine cooling system. Never
add engine coolant (antifreeze) when the engine is
overheated. Do not loosen or remove the cap to
cool an overheated engine. Heat causes pressure
to build up in the cooling system. To prevent scald-
ing or injury, do not remove the pressure cap while
the system is hot or under pressure.

•

Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or engine
damage may result.

Disposal Of Used Coolant

Used ethylene glycol-based coolant (antifreeze) is a
regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
rules for your community. To prevent ingestion by ani-
mals or children, do not store ethylene glycol-based

coolant in open containers or allow it to remain in
puddles on the ground, clean up any ground spills
immediately. If ingested by a child or pet, seek emer-
gency assistance immediately.

Coolant Level

The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine off and cold, the level of the engine coolant
(antifreeze) in the bottle should be between the ranges
indicated on the bottle.

The radiator normally remains completely full, so there
is no need to remove the radiator/coolant pressure cap
unless checking for engine coolant freeze point or
replacing coolant. Advise your service attendant of this.
As long as the engine operating temperature is satisfac-
tory, the coolant bottle need only be checked once a
month.

When additional engine coolant is needed to maintain
the proper level, only OAT coolant that meets the
requirements of the manufacturer Material Standard
MS.90032 should be added to the coolant bottle. Do
not overfill.

Cooling System Notes

NOTE:

When the vehicle is stopped after a few miles/
kilometers of operation, you may observe vapor coming
from the front of the engine compartment. This is nor-
mally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot engine
coolant (antifreeze) to enter the radiator.

If an examination of your engine compartment shows
no evidence of radiator or hose leaks, the vehicle may
be safely driven. The vapor will soon dissipate.

306

SERVICING AND MAINTENANCE

•

Do not overfill the coolant expansion bottle.

•

Check the coolant freeze point in the radiator and in
the coolant expansion bottle. If engine coolant
needs to be added, the contents of the coolant
expansion bottle must also be protected against
freezing.

•

If frequent engine coolant additions are required,
the cooling system should be pressure tested for
leaks.

•

Maintain engine coolant concentration at a mini-
mum of 50% OAT coolant (conforming to MS.90032)
and distilled water for proper corrosion protection of
your engine which contains aluminum components.

•

Make sure that the coolant expansion bottle over-
flow hoses are not kinked or obstructed.

•

Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.

•

Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs
may result in unsatisfactory engine cooling perfor-
mance, poor gas mileage, and increased emissions.

BRAKE SYSTEM

In order to ensure brake system performance, all brake
system components should be inspected periodically.
For the proper maintenance intervals

page 290.

WARNING!

Riding the brakes can lead to brake failure and possi-
bly a collision. Driving with your foot resting or riding
on the brake pedal can result in abnormally high

(Continued)

WARNING!

brake temperatures, excessive lining wear, and pos-
sible brake damage. You would not have your full
braking capacity in an emergency.

Fluid Level Check — Brake Master

Cylinder

The fluid level of the master cylinder should be checked
whenever the vehicle is serviced, or immediately if the
Brake System Warning Light is on. If necessary, add
fluid to bring level within the designated marks on the
side of the reservoir of the brake master cylinder. Be
sure to clean the top of the master cylinder area before
removing cap. With disc brakes, fluid level can be
expected to fall as the brake pads wear. Brake fluid
level should be checked when pads are replaced. If the
brake fluid is abnormally low, check the system for
leaks.

WARNING!

•

Use only manufacturer's recommended brake fluid

page 347. Using the wrong type of brake fluid

can severely damage your brake system and/or
impair its performance. The proper type of brake
fluid for your vehicle is also identified on the origi-
nal factory installed hydraulic master cylinder
reservoir.

•

To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that has
been in a tightly closed container. Keep the master
cylinder reservoir cap secured at all times. Brake
fluid in an open container absorbs moisture from

(Continued)

WARNING!

the air resulting in a lower boiling point. This may
cause it to boil unexpectedly during hard or pro-
longed braking, resulting in sudden brake failure.
This could result in a collision.

•

Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.

•

Do not allow petroleum-based fluid to contaminate
the brake fluid. Brake seal components could be
damaged, causing partial or complete brake fail-
ure. This could result in a collision.

AUTOMATIC TRANSMISSION

Special Additives

The manufacturer strongly recommends against using
any special additives in the transmission. Automatic
Transmission Fluid (ATF) is an engineered product and
its performance may be impaired by supplemental addi-
tives. Therefore, do not add any fluid additives to the
transmission. Avoid using transmission sealers as they
may adversely affect seals.

CAUTION!

Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.

SERVICING AND MAINTENANCE

307

Fluid Level Check

The fluid level is preset at the factory and does not
require adjustment under normal operating conditions.
Routine fluid level checks are not required; therefore
the transmission has no dipstick. An authorized dealer
can check your transmission fluid level using special
service tools. If you notice fluid leakage or transmission
malfunction, visit an authorized dealer immediately to
have the transmission fluid level checked. Operating
the vehicle with an improper fluid level can cause
severe transmission damage.

CAUTION!

If a transmission fluid leak occurs, visit an authorized
dealer immediately. Severe transmission damage
may occur. An authorized dealer has the proper tools
to adjust the fluid level accurately.

Fluid And Filter Changes

Under normal operating conditions, the fluid installed at
the factory will provide satisfactory lubrication for the
life of the vehicle.

Routine fluid and filter changes are not required. How-
ever, change the fluid and filter if the fluid becomes
contaminated (with water, etc.), or if the transmission is
disassembled for any reason.

Selection Of Lubricant

It is important to use the proper transmission fluid to
ensure optimum transmission performance and life.
Use only the manufacturer's specified transmission
fluid

page 347. It is important to maintain the

transmission fluid at the correct level using the recom-
mended fluid.

NOTE:

No chemical flushes should be used in any transmis-
sion; only the approved lubricant should be used.

CAUTION!

Using a transmission fluid other than the manufactur-
er’s recommended fluid may cause deterioration in
transmission shift quality and/or torque converter
shudder.

FRONT/REAR AXLE FLUID

For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons
the exterior surfaces of the axle assembly should be
inspected. If gear oil leakage is suspected inspect the
fluid level.

Front Axle Fluid Level Check

The front axle oil level needs to be no lower than
1/8 inch (3 mm) below the bottom of the fill hole.

The front axle fill and drain plugs should be tightened to
22 to 29 ft-lb (30 to 40 N·m).

CAUTION!

Do not overtighten the plugs as it could damage them
and cause them to leak.

Rear Axle Fluid Level Check

The rear axle oil level needs to be no lower than
1/8 inch (3 mm) below the bottom of the fill hole.

The rear axle fill and drain plugs should be tightened to
22 to 29 ft-lb (30 to 40 N·m).

CAUTION!

Do not overtighten the plugs as it could damage them
and cause them to leak.

Selection Of Lubricant

Use only the manufacturer's recommended fluid

page 347.

TRANSFER CASE

Fluid Level Check

For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons
the exterior surfaces of the transfer case assembly
should be inspected. If oil leakage is suspected inspect
the fluid level.

Adding Fluid

Add fluid at the filler hole, until it runs out of the hole,
when the vehicle is in a level position.

Drain

First remove fill plug, then remove drain plug. Recom-
mended tightening torque for drain and fill plugs is
15 to 25 ft-lb (20 to 34 N·m).

CAUTION!

When installing plugs, do not overtighten. You could
damage them and cause them to leak.

308

SERVICING AND MAINTENANCE

Selection Of Lubricant

Use only the manufacturer's recommended fluid

page 347.

FUSES

General Information

WARNING!

•

When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating
as the original fuse. Never replace a fuse with
another fuse of higher amp rating. The use of a
fuse with a rating other than indicated may result
in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
Never replace a blown fuse with metal wires or any
other material. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to use proper
fuses may result in serious personal injury, fire
and/or property damage.

•

Before replacing a fuse, make sure that the igni-
tion is off and that all the other services are
switched off and/or disengaged.

•

If the replaced fuse blows again, contact an autho-
rized dealer.

•

If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

The fuses protect electrical systems against excessive
current.

When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.

Also, please be aware that using power outlets for
extended periods of time with the engine off may result
in vehicle battery discharge.

Underhood Fuses

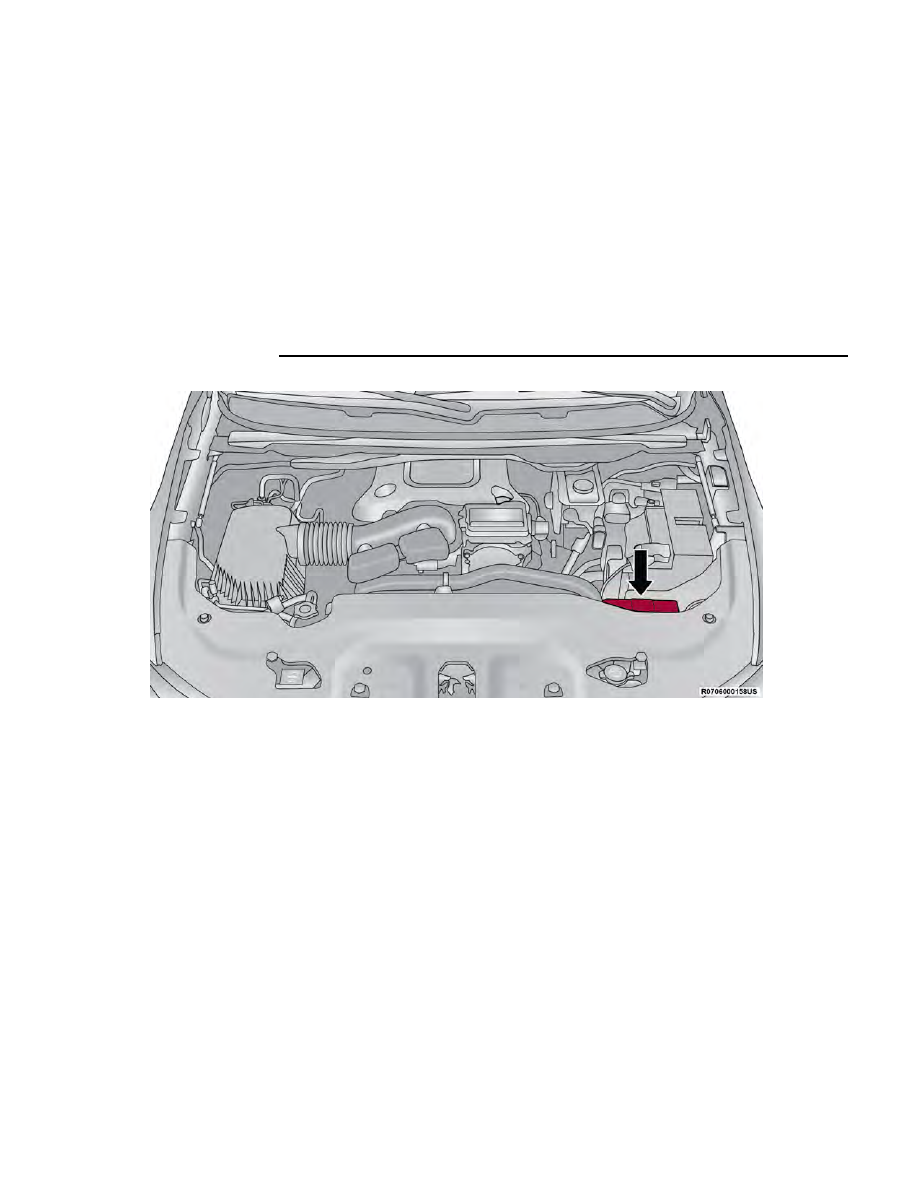

The Power Distribution Center (PDC) is located on the
passenger side of the engine compartment, behind the
headlamp. This center contains cartridge fuses, micro
fuses, relays, and circuit breakers. A description of each

fuse and component may be stamped on the inside
cover, otherwise the cavity number of each fuse is
stamped on the inside cover that corresponds to the
following chart.

CAUTION!

When installing the Power Distribution Center cover, it
is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the Power Distribution Center and
possibly result in an electrical system failure.

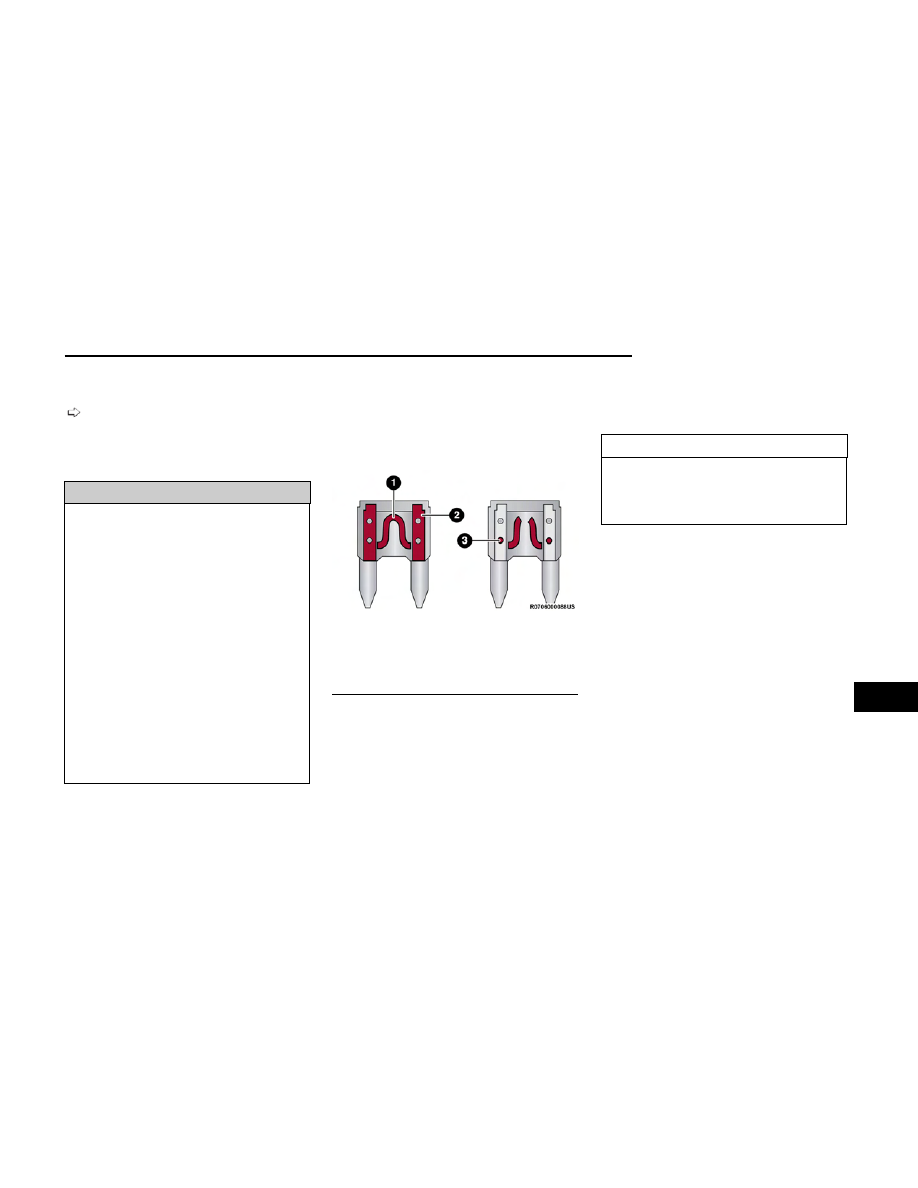

Blade Fuses

1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade Fuse with a bad/not functional fuse element
(blown fuse)

SERVICING AND MAINTENANCE

309

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F01

–

Crank Batt

F02

80 Amp Gray

–

Elec Pwr Str #1

F03

500 Amp Gray

–

Starter

F04

250 Amp Gray

–

Alternator

F05

80 Amp Gray

–

Elec Pwr Str #2

F06

Shunt

–

Aux Battery *

F07

100 Amp Gray

–

Rad Fan

F08

–

Spare

F09

80 Amp Gray

–

IPDC

F10

150 Amp Gray

–

RPDC

F11

150 Amp Gray

–

PCR *

F12

–

Spare

F13

40 Amp Green

–

Starter

F14

–

10 Amp Red

GNMM */ VPMS *

F15

–

10 Amp Red

ECM *

F16

–

15 Amp Blue

Cluster

F17A

–

10 Amp Red

EPS

F17B

–

10 Amp Red

ATMM *

F18

–

Spare

F19

30 Amp Pink

–

BSM #2 Valves *

F20

–

Spare

F21

–

Spare

F22

–

Spare

F23A

–

10 Amp Red

ECM / PPU * / MGU * / BSM / SLM

F23B

–

10 Amp Red

AIR SUSPENSION / ELSD-RR / EPS

SERVICING AND MAINTENANCE

311

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F24

–

20 Amp Blue

XFR Fuel Pump *

F25

–

SPARE

F26

50 Amp Red

–

BSM Motor #2 *

F27

30 Amp Pink

–

Rear Defroster

F28

–

Spare

F29

–

Spare

F30

–

Spare

F31

40 Amp Green

–

BCM Feed #3

F32

–

Spare

F33

30 Amp Pink

–

PWR Side Steps *

F34

–

Spare

F35

–

Spare

F36

50 Amp Red

–

BCM Feed #1

F37

30 Amp Pink

–

DTCM

F38

50 Amp Red

–

BCM Feed #2

F39

–

Spare

F40

–

5 Amp Tan

Batt Snsr #1

F41

–

20 Amp Yellow

CADM MAP *

F42

–

Spare

F43

–

10 Amp Red

ECM

F44

–

Spare

F45

–

Spare

F46

–

5 Amp Tan

Batt Snsr #2*

F47

–

10 Amp Red

BPCM

F48

–

10 Amp Red

CVPAM

312

SERVICING AND MAINTENANCE

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F49

–

30 Amp Green

Air Suspension Valves

F50

–

Spare

F51

–

20 Amp Yellow

Fuel Pmp * / FPCM *

F52

–

Spare

F53

–

Spare

F54

–

20 Amp Yellow

Headlamp LT

F55

–

Spare

F56

–

Spare

F57

–

Spare

F58

–

Spare

F59

50 Amp Red

–

Air Suspension

F60

–

Spare

F61

–

Spare

F62

–

Spare

F63

–

20 Amp Yellow

Camera Washer Frt

F64

–

Spare

F65

–

15 Amp Blue

ACT Grille Shutter / ACT Air Dam / Coolant Valve LCVM * / RATVM

F66

–

20 Amp Yellow

Horns

F67

–

10 Amp Red

DTCM / Switchable Engine Mount / BSM #2

F68

–

20 Amp Yellow

Headlamp RT

F69

–

Spare

F70

–

20 Amp Yellow

IGN Coil * / IGN Cap */ Fuel Inj */ ISCM *

F71

–

Spare

F72

–

Spare

F73

–

Spare

SERVICING AND MAINTENANCE

313

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F74

–

5 Amp Tan

MGU *

F75

30 Amp Pink

–

Front Wiper

F76

–

Spare

F77

–

20 Amp Yellow

TCM SBW

F78

–

20 Amp Yellow

Short Runner Valve / ECM

F79

–

15 Amp Blue

Fuel INJ * / Surge Solenoid * / Oil Sensor * / Air Valve * / OBD

Bypass * / O2 Heaters *

F80

20 Amp Blue

–

ECM

F81

40 Amp Green

–

BCM Feed #4

F82

–

Spare

F83

–

Spare

F84

–

Spare

F85

–

10 Amp Red

PCR *

F86

50 Amp Red

–

BSM Feed 1

F87

–

Spare

F88

50 Amp Red

–

BSM Feed 2

F89

–

Spare

F90

–

Spare

F91

–

Spare

F92

20 Amp Blue

–

Front De-Icer *

F93

25 Amp Clear

–

Fuel Pmp *

F94

–

10 Amp Red

A/C Comp Clutch

F95

–

Spare

F96

–

Spare

F97

–

Spare

F98A

–

15 Amp Blue

Cooling Fan *

314

SERVICING AND MAINTENANCE

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F98B

–

15 Amp Blue

Pmp Battery Cooling *

F99

–

Spare

F100

–

Spare

F101

–

Spare

F102

25 Amp Clear

–

Fuel Pmp *

F103

–

Spare

F104

–

Spare

F105A

–

Spare

F105B

–

15 Amp Blue

LTR Coolant Pump

Interior Power Distribution Center

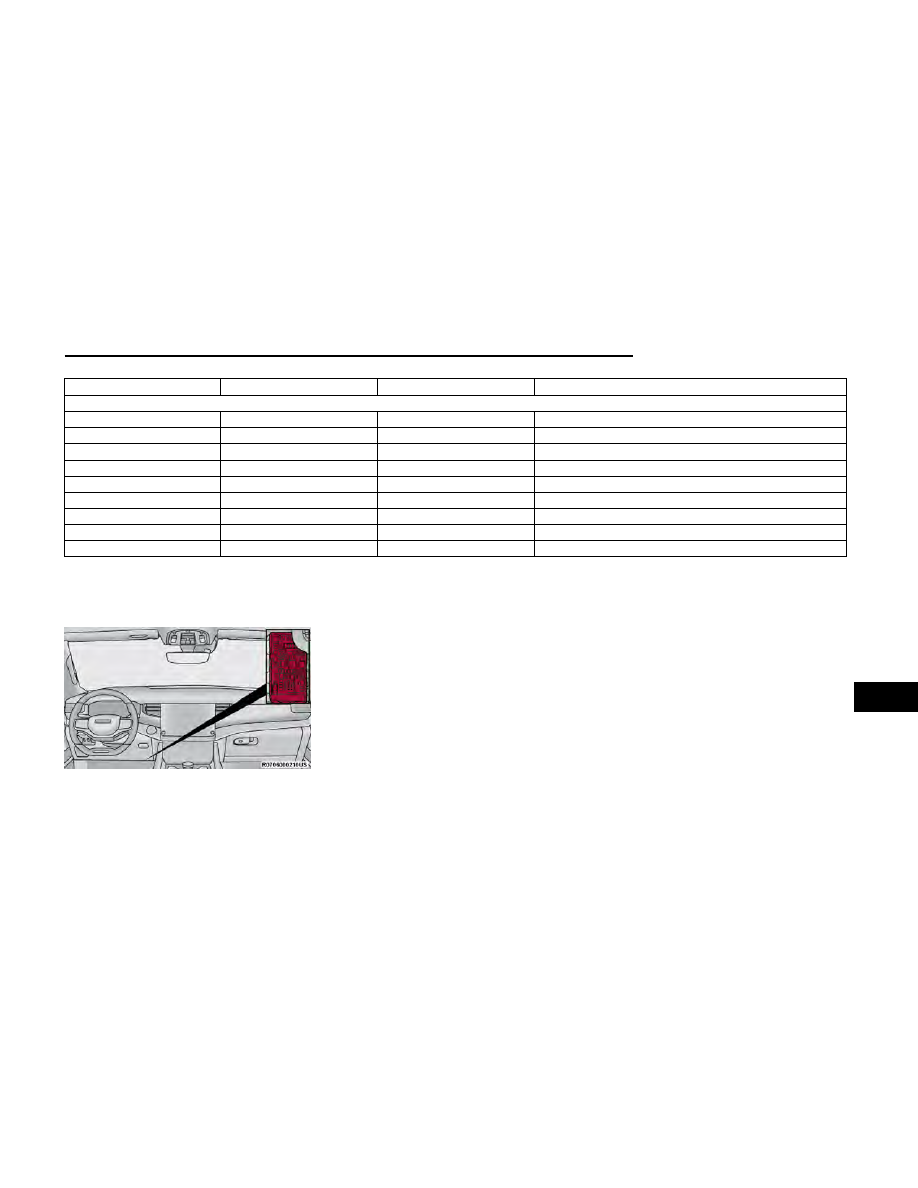

The Interior Power Distribution Center is located under
the driver’s instrument panel. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers.

NOTE:

Fuses for safety systems must be serviced by an autho-
rized dealer.

Interior Power Distribution Center Location

SERVICING AND MAINTENANCE

315

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F01

–

Spare

F02

–

Spare

F03

–

15 Amp Blue

MOD Seat Heater Frt (Steering Wheel) *

F04

–

10 Amp Red

Night Vision Module / Driver Monitoring Camera (DMC)

F05

–

Spare

F06

–

Spare

F07

–

Spare

F08

–

10 Amp Red

Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock /

HUD

F09

–

Spare

F10

40 Amp Green

–

HVAC Blower Motor

F11

–

Spare

F12

–

20 Amp Yellow

Assy Cigar Lighter

F13

–

10 Amp Red

Assy Mirror Inside Rearview / Sunroof Single - Dual Pane / Port

UC1 Dual USB RR / Interior Monitoring Camera

F14

–

10 Amp Red

Refrigerator Box / In Vehicle Safe *

F15A

–

Spare

F15B

–

Spare

F16

–

10 Amp Red

MOD ORC

F17

–

Spare

F18

–

Spare

F19

–

Spare

F20

–

10 Amp Red

Overhead Console Assy (OHC) W/Sunshade / Intrusion Module

F21

30 Amp Pink

–

Trailer Tow Electric Brake - Aftermarket

F22

–

Spare

F23

–

Spare

316

SERVICING AND MAINTENANCE

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F24

–

Spare

F25

–

Spare

F26

–

Spare

F27

–

Spare

F28

–

Spare

F29

–

Spare

F30

–

Spare

F31

–

Spare

F32

–

10 Amp Red

MOD ICS Switch Bank / SW Bank Upper / SW EPB / Aux Switch Bank

Module (ASBM) / Mod HVAC Cntrl Frt / Humidity Rain Light Sensor

(HRLS)

F33

–

15 Amp Blue

Transfer case SW / SW Bank Lower / Mod ICS Switch Bank Rear /

Climate Control Display / Suspension SW *

F34

–

Spare

F35

–

10 Amp Red

IRCAM Heater

F36

–

Spare

F37

–

Spare

F38

–

Spare

F39

–

Spare

F40

–

Spare

F41A

–

Spare

F41B

–

Spare

F42A

–

Spare

F42B

–

10 Amp Red

MOD HVAC Control Frt

F43A

–

Spare

F43B

–

Spare

SERVICING AND MAINTENANCE

317

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F44

–

15 Amp Blue

MOD Cluster CCN / MOD SGW (Cybersecurity)

F45

30 Amp Pink

–

MOD Inverter 150W

F46

–

Spare

F47A

–

Spare

F47B

–

Spare

F48A

–

Spare

F48B

–

Spare

F49

–

7.5 Amp Brown

MOD RF HUB / Module Ignition (MD KIN)

F50A

–

10 Amp Red

Port UCI Dual USB Rear

F50B

–

10 Amp Red

Port Diagnostics 1 & 2

F51A

–

Spare

F51B

–

Spare

F52

–

Spare

F53

–

20 Amp Yellow

MOD CMCM (Radio)

F54A

–

Spare

F54B

–

Spare

F55

–

Spare

F56

–

Spare

F57

–

Spare

F58

–

Spare

F59

–

Spare

F60

–

Spare

F61

–

Spare

F62A

–

Spare

F62B

–

Spare

318

SERVICING AND MAINTENANCE

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F63A

–

15 Amp Blue

Port UC1 Dual USB Frt / Wireless Charging Pad MOD (WCPM) - High/

Premium Only

F63B

–

15 Amp Blue

Telematics Box Module (TBM) / Mod-DCSD /Mod FPDM

F64A

–

10 Amp Red

MOD ORC

F64B

–

10 Amp Red

Steering Column Control Module (SCCM)

F65

–

5 Amp Tan

MOD SGW (Cybersecurity)

F66

–

Spare

CB1

–

Spare

CB2

–

Spare

CB3

–

Spare

CB4

–

Spare

CB5

–

Spare

CB6

–

Spare

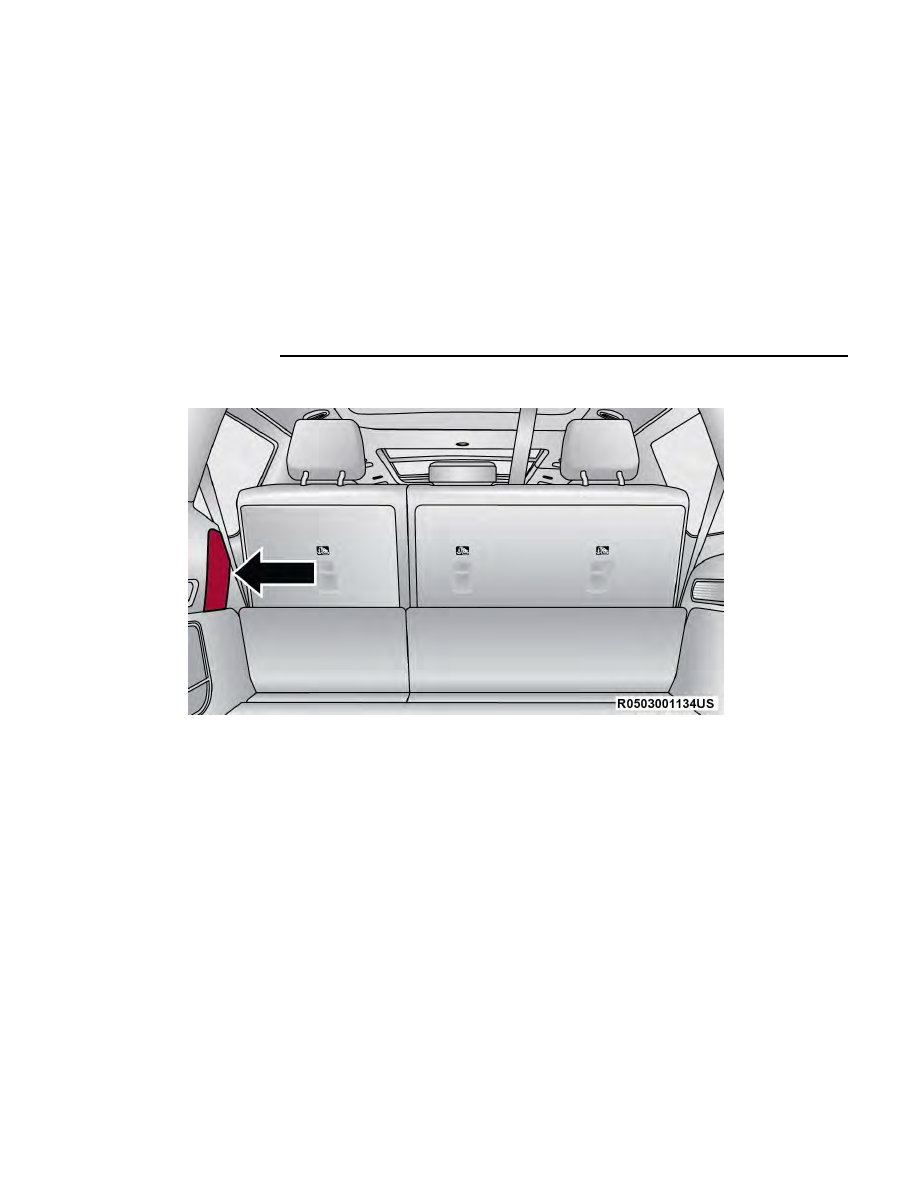

SERVICING AND MAINTENANCE

319

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F05

150 Amp Gray

–

Underhood Power Distribution Center Battery Feed

F06

–

Spare

F07

–

Spare

F08

–

Spare

F09

–

Spare

F10

–

Spare

F11

–

Spare

F12

–

Spare

F13

30 Amp Pink

–

Air Compressor (Tire Inflator)

F14

25 Amp Clear

–

MTR Sunshade Sunroof

F15A

–

Spare

F15B

–

10 Amp Red

Hands Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Rr

F16

–

Spare

F17

–

Spare

F18

25 Amp Clear

–

Power Liftgate Module

F19A

–

10 Amp Red

L2+ Driver Alert Lighting Module

F19B

–

10 Amp Red

Animation Lighting RR-LT

F20A

–

15 Amp Blue

Central ASAS Decision Module (CADM) - LO

F20B

–

Spare

F21A

–

Spare

F21B

–

10 Amp Red

Sunroof - Dual Pane 2nd & 3rd Row Seat SW-Illumination

F22

–

Spare

F23

–

10 Amp Red

Rear Seat Entertainment (Driver / Passenger)

F24

–

Spare

F25

30 Amp Pink

–

Mod Door MUX Passenger

SERVICING AND MAINTENANCE

321

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F26

–

Spare

F27

–

Spare

F28

30 Amp Pink

–

MOD Memory / Power Seat (Passenger Frt)

F29A

–

10 Amp Red

Animation Lighting RR-RT

F29B

–

10 Amp Red

Animation Lighting RR-LT

F30

30 Amp Pink

–

MOD Memory / Power Seat (Driver Frt)

F31

–

Spare

F32

–

Spare

F33

–

Spare

F34

30 Amp Pink

–

MOD Door MUX Driver

F35

25 Amp Clear

–

Integrated Trailer Tow Module #2

F36A

–

10 Amp Red

Intelligent Event Base Lighting Module

F36B

–

Spare

F37

25 Amp Clear

–

Integrated Trailer Tow Module #1

F38

–

Spare

F39

–

Spare

F40

–

30 Amp Green

Mod Audio Amplifier #1A

F41

–

Spare

F42A

–

10 Amp Red

RSE Video USB Console Frt/Port Media Hub FPDM

F42B

–

Spare

F43

–

Spare

F44A

–

20 Amp Yellow

12 Volt Power Outlet Cargo Area (Ign)

F44B

–

20 Amp Yellow

12 Volt Power Outlet Cargo Area (Battery)

F45

–

20 Amp Yellow

MOD CRSM (Heated Seat RR RT)

F46

30 Amp Pink

–

Folding Seat Module 3rd Row Feed #1 *

322

SERVICING AND MAINTENANCE

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F47

–

Spare

F48

–

Spare

F49

–

Spare

F50

–

15 Amp Blue

Seat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod

(SSMP) *

F51

–

Spare

F52

–

20 Amp Yellow

MOD CRSM (Heat Seat RR LT) *

F53

30 Amp Pink

–

Electronic Limited Slip Differential (ELSD) Rear #1 *

F54

–

Spare

F55

30 Amp Pink

–

Folding Seat Modules 3rd Row Feed #2 *

F56

–

Spare

F57

–

10 Amp Red

Mod HVAC RR / Mod Occupant Classic / CVPAM / Mod Parktronics /

ITCM

F58

–

15 Amp Blue

3rd Row Additional USB charge (Only LT - RT) / Port Pwr USB Console

UBS (CH Only)

F59

–

5 Amp Beige

Smart Door Handle Rear Rt

F60

25 Amp Clear

–

RR_HVAC Blower

F61

–

Spare

F62

–

20 Amp Yellow

Module Seat Heater Frt (Driver) *

F63

30 Amp Pink

–

Assy Trailer Tow Receptacle B+

F64

–

10 Amp Red

Module Smart Phone As Key

F65

–

Spare

F66

20 Amp Blue

–

MOD Door MUX Passenger Rear - Smart Motor

F67

–

30 Amp Green

MOD Audio Amplifier #1B

F68

–

Spare

F69

–

20 Amp Yellow

L2+ Central ASAS Decision Module (CADM) MID *

SERVICING AND MAINTENANCE

323

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

F70

–

10 Amp Red

Video Routing Module (VRM)

F71

–

5 Amp Beige

Smart Door Handle Driver

F72

–

Spare

F73

–

Spare

F74

–

Spare

F75

–

5 Amp Beige

Smart Door Handle Rear Lt.

F76

–

5 Amp Beige

Smart Door Handle Passenger

F77

–

Spare

F78

–

Spare

F79

–

Spare

F80

–

Spare

F81

–

20 Amp Yellow

Module Seat Heater Frt (PASS) *

F82

–

10 Amp Red

Animation Lighting RR / Air Compressor (Tire Inflator) / Animation

Lighting Liftgate Taillamp

F83

–

Spare

F84

–

15 Amp Blue

SNSR_UWB (1-7)

F85

–

Spare

F86

–

15 Amp Blue

Lumbar Support Driver & Passenger SW *

F87

–

Spare

F88

20 Amp Blue

–

MOD Door MUX Driver Rear - Smart Motor

CB1

–

20 Amp Yellow

Power Outlet RR

324

SERVICING AND MAINTENANCE

BULB REPLACEMENT

Replacement Bulbs, Names, And Part

Numbers

Your vehicle is equipped with LED lamps. In the event of
a light malfunction, please see an authorized dealer for
LED replacement.

TIRES

TIRE SAFETY INFORMATION

Tire safety information will cover aspects of the follow-
ing information: Tire Markings, Tire Identification Num-
bers, Tire Terminology and Definitions, Tire Pressures,
and Tire Loading.

Tire Markings

NOTE:

•

P (Passenger) — Metric tire sizing is based on US
design standards. P-Metric tires have the letter “P”
molded into the sidewall preceding the size designa-
tion. Example: P215/65R15 95H.

•

European — Metric tire sizing is based on European
design standards. Tires designed to this standard
have the tire size molded into the sidewall beginning
with the section width. The letter "P" is absent from
this tire size designation. Example:
215/65R15 96H.

•

LT (Light Truck) — Metric tire sizing is based on US
design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall pre-
ceding the size designation. Example:
LT235/85R16.

•

Temporary spare tires are designed for temporary
emergency use only. Temporary high pressure com-
pact spare tires have the letter “T” or “S” molded
into the sidewall preceding the size designation.
Example: T145/80D18 103M.

•

High flotation tire sizing is based on US design stan-
dards and it begins with the tire diameter molded
into the sidewall. Example: 31x10.5 R15 LT.

Tire Markings

1 — US DOT Safety Standards Code
(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and Tempera-
ture Grades

SERVICING AND MAINTENANCE

325

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P

= Passenger car tire size based on US design standards, or

"....blank...."

= Passenger car tire based on European design standards, or

= Light truck tire based on US design standards, or

T or S

= Temporary spare tire or

= Overall diameter in inches (in)

215, 235, 145

= Section width in millimeters (mm)

65, 85, 80

= Aspect ratio in percent (%)

•

Ratio of section height to section width of tire, or

10.5

= Section width in inches (in)

= Construction code

•

"R" means radial construction, or

•

"D" means diagonal or bias construction

15, 16, 18

= Rim diameter in inches (in)

Service Description:
95

= Load Index

•

A numerical code associated with the maximum load a tire can carry

= Speed Symbol

•

A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions

•

The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading, road conditions,
and posted speed limits)

Load Identification:

Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:

•

= Extra load (or reinforced) tire, or

•

= Light load tire or

•

C, D, E, F, G

= Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load

– Maximum load indicates the maximum load this tire is designed to carry

Maximum Pressure

– Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

326

SERVICING AND MAINTENANCE

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code,
located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is not found on the outboard side,
then you will find it on the inboard side of the tire.

EXAMPLE:

DOT MA L9 ABCD 0301

DOT

= Department of Transportation

•

This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

= Code representing the tire manufacturing location (two digits)

= Code representing the tire size (two digits)

ABCD

= Code used by the tire manufacturer (one to four digits)

= Number representing the week in which the tire was manufactured (two digits)

•

03 means the 3rd week

= Number representing the year in which the tire was manufactured (two digits)

•

01 means the year 2001

•

Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031 could represent the
3rd week of 1981 or 1991

Tire Terminology And Definitions

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours, or driven
less than 1 mile (1.6 km) after sitting for a minimum of three hours. Inflation pressure is measured in units of psi (pounds per
square inch) or kPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for this tire. The maximum inflation pres-
sure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

Vehicle manufacturer's recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the original equipment tire sizes and the rec-
ommended cold tire inflation pressures.

SERVICING AND MAINTENANCE

327

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on the
driver’s side B-pillar or the rear edge of the driver's side
door.

Check the inflation pressure of each tire, including the
spare tire (if equipped), at least monthly and inflate to
the recommended pressure for your vehicle.

Tire And Loading Information Placard

This placard tells you important information about the:

1. Number of people that can be carried in the vehicle.

2. Total weight your vehicle can carry.

3. Tire size designed for your vehicle.

4. Cold tire inflation pressures for the front, rear, and

spare tires.

The vehicle maximum load on the tire must not exceed
the load carrying capacity of the tire on your vehicle.
You will not exceed the tire's load carrying capacity if
you adhere to the loading conditions, tire size, and cold
tire inflation pressures specified on the Tire And Load-
ing Information Placard

page 166.

NOTE:

Under a maximum loaded vehicle condition, Gross Axle
Weight Rating (GAWR) for the front and rear axles must
not be exceeded.

For further information on GAWR, vehicle loading, and
trailer towing

page 166.

To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX kg or
XXX lb” on the Tire And Loading Information Placard.
The combined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here.

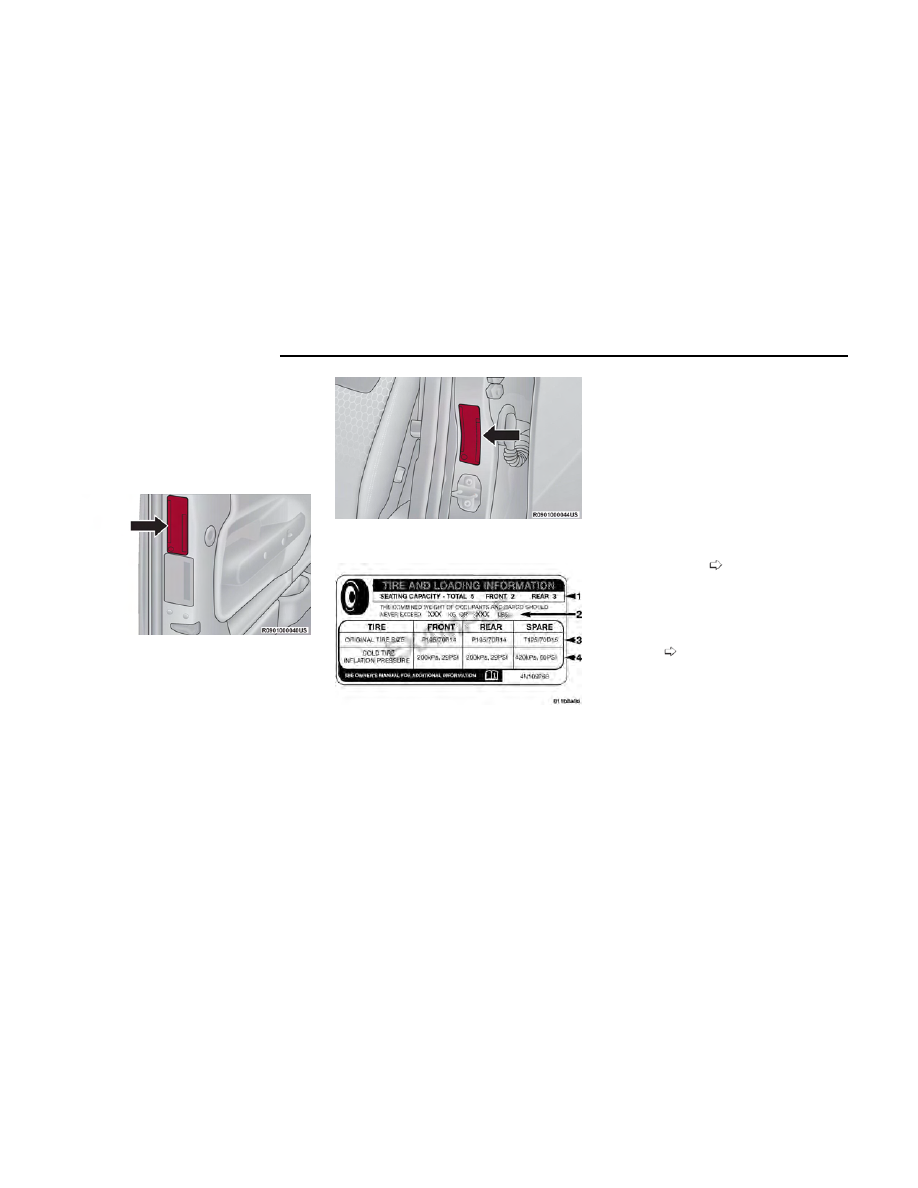

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

328

SERVICING AND MAINTENANCE

Steps For Determining Correct Load

Limit—

(1) Locate the statement “The com-
bined weight of occupants and cargo
should never exceed XXX kg or
XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.

(3) Subtract the combined weight of
the driver and passengers from XXX kg
or XXX lbs.

(4) The resulting figure equals the
available amount of cargo and luggage
load capacity. For example, if “XXX”
amount equals 1400 lbs. and there
will be five 150 lbs passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5x150) = 650 lbs.)

(5) Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.

(6) If your vehicle will be towing a
trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and lug-
gage load capacity of your vehicle.

Metric Example For Load Limit

For example, if “XXX” amount equals 635 kg and there
will be five 68 kg passengers in your vehicle, the
amount of available cargo and luggage load capacity is
295 kg (635-340 (5x68) = 295 kg) as shown in step 4.

NOTE:

•

If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. The follow-
ing table shows examples on how to calculate total
load, cargo/luggage, and towing capacities of your
vehicle with varying seating configurations and num-
ber and size of occupants. This table is for illustra-
tion purposes only and may not be accurate for the
seating and load carry capacity of your vehicle.

•

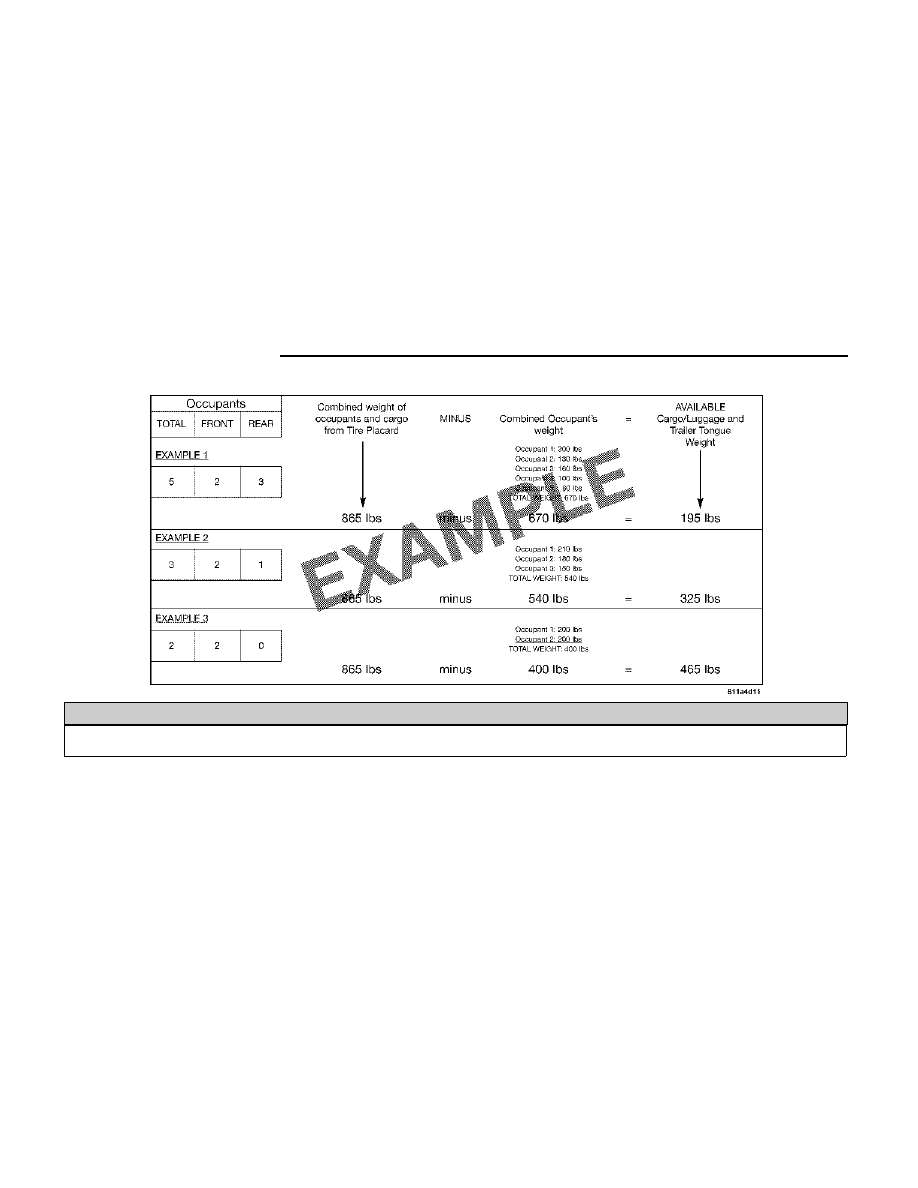

For the following example, the combined weight of
occupants and cargo should never exceed 865 lbs
(392 kg).

SERVICING AND MAINTENANCE

329

TIRES — GENERAL INFORMATION

Tire Pressure

Proper tire inflation pressure is essential to the safe
and satisfactory operation of your vehicle. Four primary
areas are affected by improper tire pressure:

•

Safety

•

Fuel Economy

•

Tread Wear

•

Ride Comfort and Vehicle Stability

Safety

WARNING!

•

Improperly inflated tires are dangerous and can
cause collisions.

•

Underinflation increases tire flexing and can result
in overheating and tire failure.

•

Overinflation reduces a tire's ability to cushion
shock. Objects on the road and chuckholes can
cause damage that result in tire failure.

•

Overinflated or underinflated tires can affect
vehicle handling and can fail suddenly, resulting in
loss of vehicle control.

•

Unequal tire pressures can cause steering prob-
lems. You could lose control of your vehicle.

•

Unequal tire pressures from one side of the vehicle
to the other can cause the vehicle to drift to the
right or left.

•

Always drive with each tire inflated to the recom-
mended cold tire inflation pressure.

Both underinflation and overinflation affect the stability
of the vehicle and can produce a feeling of sluggish
response or over responsiveness in the steering.

NOTE:

•

Unequal tire pressures from side to side may cause
erratic and unpredictable steering response.

•

Unequal tire pressure from side to side may cause
the vehicle to drift left or right.

Fuel Economy

Underinflated tires will increase tire rolling resistance
resulting in higher fuel consumption.

Tread Wear

Improper cold tire inflation pressures can cause abnor-
mal wear patterns and reduced tread life, resulting in
the need for earlier tire replacement.

Ride Comfort And Vehicle Stability

Proper tire inflation contributes to a comfortable ride.
Overinflation produces a jarring and uncomfortable
ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on the
driver's side B-pillar or rear edge of the driver's side
door.

At least once a month:

•

Check and adjust tire pressure with a good quality
pocket-type pressure gauge. Do not make a visual
judgment when determining proper inflation. Tires
may look properly inflated even when they are
under-inflated.

•

Inspect tires for signs of tire wear or visible damage.

CAUTION!

After inspecting or adjusting the tire pressure, always
reinstall the valve stem cap. This will prevent mois-
ture and dirt from entering the valve stem, which
could damage the valve stem.

Inflation pressures specified on the placard are always
“cold tire inflation pressure”. Cold tire inflation pressure
is defined as the tire pressure after the vehicle has not
been driven for at least three hours, or driven less than
1 mile (1.6 km) after sitting for a minimum of three
hours. The cold tire inflation pressure must not exceed
the maximum inflation pressure molded into the tire
sidewall.

Check tire pressures more often if subject to a wide
range of outdoor temperatures, as tire pressures vary
with temperature changes.

Tire pressures change by approximately 1 psi (7 kPa)
per 12°F (7°C) of air temperature change. Keep this in
mind when checking tire pressure inside a garage,
especially in the Winter.

Example: If garage temperature = 68°F (20°C) and the
outside temperature = 32°F (0°C) then the cold tire
inflation pressure should be increased by 3 psi
(21 kPa), which equals 1 psi (7 kPa) for every 12°F
(7°C) for this outside temperature condition.

Tire pressure may increase from 2 to 6 psi (13 to
40 kPa) during operation. DO NOT reduce this normal
pressure build up or your tire pressure will be too low.

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe speeds and
within posted speed limits. Where speed limits or condi-
tions are such that the vehicle can be driven at high
speeds, maintaining correct tire inflation pressure is

SERVICING AND MAINTENANCE

331

very important. Increased tire pressure and reduced
vehicle loading may be required for high-speed vehicle
operation. Refer to an authorized tire dealer or original
equipment vehicle dealer for recommended safe oper-
ating speeds, loading and cold tire inflation pressures.

WARNING!

High speed driving with your vehicle under maximum
load is dangerous. The added strain on your tires
could cause them to fail. You could have a serious
collision. Do not drive a vehicle loaded to the maxi-
mum capacity at continuous speeds above 75 mph
(120 km/h).

Radial Ply Tires

WARNING!

Combining radial ply tires with other types of tires on
your vehicle will cause your vehicle to handle poorly.
The instability could cause a collision. Always use
radial ply tires in sets of four. Never combine them
with other types of tires.

Tire Repair

If your tire becomes damaged, it may be repaired if it
meets the following criteria:

•

The tire has not been driven on when flat.

•

The damage is only on the tread section of your tire
(sidewall damage is not repairable).

•

The puncture is no greater than a quarter of an inch
(6 mm).

Consult an authorized tire dealer for tire repairs and
additional information.

Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced
immediately with another Run Flat tire of identical size
and service description (Load Index and Speed Sym-
bol). Replace the tire pressure sensor as well as it is not
designed to be reused.

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of infla-
tion pressure. This rapid loss of inflation is referred to
as the Run Flat mode. A Run Flat mode occurs when
the tire inflation pressure is of/or below 14 psi (96
kPa). Once a Run Flat tire reaches the run flat mode it
has limited driving capabilities and needs to be
replaced immediately. A Run Flat tire is not repairable.
When a Run Flat tire is changed after being driven in a
Run Flat mode 14 psi (96 kPa) condition, please
replace the TPMS sensor as it is not designed to be
reused.

NOTE:

TPMS sensor must be replaced after driving the vehicle
on a flat tire condition.

It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the Run Flat
mode.

For more information

page 240.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions, do
not spin your vehicle's wheels above 30 mph (48 km/h)
or for longer than 30 seconds continuously without
stopping.

For further information

page 286.

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure some-
one. Do not spin your vehicle's wheels faster than
30 mph (48 km/h) for more than 30 seconds con-
tinuously when you are stuck, and do not let anyone
near a spinning wheel, no matter what the speed.

Tread Wear Indicators

Tread wear indicators are in the original equipment
tires to help you in determining when your tires should
be replaced.

These indicators are molded into the bottom of the
tread grooves. They will appear as bands when the
tread depth becomes 1/16 of an inch (1.6 mm). When
the tread is worn to the tread wear indicators, the tire
should be replaced.

For further information

page 333.

Tire Tread

1 — Tread Wear Indicators

332

SERVICING AND MAINTENANCE

Life Of Tire

The service life of a tire is dependent upon varying fac-
tors including, but not limited to:

•

Driving style

•

Tire pressure - Improper cold tire inflation pressures
can cause uneven wear patterns to develop across
the tire tread. These abnormal wear patterns will
reduce tread life, resulting in the need for earlier tire
replacement.

•

Distance driven

•

Performance tires, tires with a speed rating of V or
higher, and Summer tires typically have a reduced
tread life. Rotation of these tires per the vehicle
scheduled maintenance is highly recommended.

WARNING!

Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have a collision resulting
in serious injury or death.

NOTE:

Wheel valve stem must be replaced as well when
installing new tires due to wear and tear in existing
tires.

Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.

Replacement Tires

The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressures. The
manufacturer strongly recommends using tires equiva-
lent to the originals in size, quality and performance
when replacement is needed. For more information

page 332. Refer to the Tire And Loading Informa-

tion Placard or the Vehicle Certification Label for the
size designation of your tire. The Load Index and Speed
Symbol for your tire will be found on the original equip-
ment tire sidewall.

For more information relating to the Load Index and
Speed Symbol of a tire

page 326.

It is recommended to replace the two front tires or two
rear tires as a pair. Replacing just one tire can seriously
affect your vehicle’s handling. If you ever replace a
wheel, make sure that the wheel’s specifications match
those of the original wheels.

It is recommended you contact an authorized tire
dealer or original equipment dealer with any questions
you may have on tire specifications or capability. Failure
to use equivalent replacement tires may adversely
affect the safety, handling, and ride of your vehicle.

WARNING!

•

Do not use a tire, wheel size, load rating, or speed
rating other than that specified for your vehicle.
Some combinations of unapproved tires and
wheels may change suspension dimensions and
performance characteristics, resulting in changes
to steering, handling, and braking of your vehicle.
This can cause unpredictable handling and stress
to steering and suspension components. You could

(Continued)

WARNING!

lose control and have a collision resulting in seri-
ous injury or death. Use only the tire and wheel
sizes with load ratings approved for your vehicle.

•

Never use a tire with a smaller load index or capac-
ity, other than what was originally equipped on
your vehicle. Using a tire with a smaller load index
could result in tire overloading and failure. You
could lose control and have a collision.

•

Failure to equip your vehicle with tires having
adequate speed capability can result in sudden
tire failure and loss of vehicle control.

CAUTION!

Replacing original tires with tires of a different size
may result in false speedometer and odometer
readings.

TIRE TYPES

All Season Tires — If Equipped

All Season tires provide traction for all seasons (Spring,
Summer, Autumn, and Winter). Traction levels may vary
between different all season tires. All Season tires can
be identified by the M+S, M&S, M/S or MS designation
on the tire sidewall. Use All Season tires only in sets of
four; failure to do so may adversely affect the safety
and handling of your vehicle.

SERVICING AND MAINTENANCE

333

Summer Or Three Season Tires —

If Equipped

Summer tires provide traction in both wet and dry con-
ditions, and are not intended to be driven in snow or on
ice. If your vehicle is equipped with Summer tires, be
aware these tires are not designed for Winter or cold
driving conditions. Install Winter tires on your vehicle
when ambient temperatures are less than 40°F (5°C)
or if roads are covered with ice or snow. For more infor-
mation, contact an authorized dealer.

Summer tires do not contain the all season designation
or mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and handling of your vehicle.

WARNING!

Do not use Summer tires in snow/ice conditions. You
could lose vehicle control, resulting in severe injury or
death. Driving too fast for conditions also creates the
possibility of loss of vehicle control.

Snow Tires

Some areas of the country require the use of
snow tires during the Winter. Snow tires can
be identified by a mountain/snowflake sym-
bol on the tire sidewall.

If you need snow tires, select tires equivalent in size
and type to the original equipment tires. Use snow tires
only in sets of four; failure to do so may adversely affect
the safety and handling of your vehicle.

Snow tires generally have lower speed ratings than
what was originally equipped with your vehicle and
should not be operated at sustained speeds over
75 mph (120 km/h). For speeds above 75 mph

(120 km/h) refer to original equipment or an authorized
tire dealer for recommended safe operating speeds,
loading and cold tire inflation pressures.

While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
poorer than that of non-studded tires. Some states pro-
hibit studded tires; therefore, local laws should be
checked before using these tire types.

SPARE TIRES — IF EQUIPPED

NOTE:

For vehicles equipped with Tire Service Kit instead of a
spare tire, please refer to “Tire Service Kit” in “In Case
Of Emergency” for further information.

CAUTION!

Because of the reduced ground clearance, do not
take your vehicle through an automatic car wash with
a compact or limited use temporary spare installed.
Damage to the vehicle may result.

For restrictions when towing with a spare tire desig-
nated for temporary emergency use

page 173.

Spare Tire Matching Original Equipped

Tire And Wheel — If Equipped

Your vehicle may be equipped with a spare tire and
wheel equivalent in look and function to the original
equipment tire and wheel found on the front or rear
axle of your vehicle. This spare tire may be used in the
tire rotation for your vehicle. If your vehicle has this
option, refer to an authorized tire dealer for the recom-
mended tire rotation pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency use
only. You can identify if your vehicle is equipped with a
compact spare by looking at the spare tire description
on the Tire And Loading Information Placard located on
the driver’s side door opening or on the sidewall of the
tire. Compact spare tire descriptions begin with the let-
ter “T” or “S” preceding the size designation. Example:
T145/80D18 103M.

T, S = Temporary Spare Tire

Since this tire has limited tread life, the original equip-
ment tire should be repaired (or replaced) and rein-
stalled on your vehicle at the first opportunity.

Do not install a wheel cover or attempt to mount a con-
ventional tire on the compact spare wheel, since the
wheel is designed specifically for the compact spare
tire. Do not install more than one compact spare tire
and wheel on the vehicle at any given time.

WARNING!

Compact and collapsible spares are for temporary
emergency use only. With these spares, do not drive
more than 50 mph (80 km/h). Temporary use spares
have limited tread life. When the tread is worn to the
tread wear indicators, the temporary use spare tire
needs to be replaced. Be sure to follow the warnings,
which apply to your spare. Failure to do so could
result in spare tire failure and loss of vehicle control.

334

SERVICING AND MAINTENANCE

Collapsible Spare Tire — If Equipped

The collapsible spare is for temporary emergency use
only. You can identify if your vehicle is equipped with a
collapsible spare by looking at the spare tire description
on the Tire And Loading Information Placard located on
the driver’s side door opening or on the sidewall of the
tire.

Collapsible spare tire description example:
165/80-17 101P.

Since this tire has limited tread life, the original equip-
ment tire should be repaired (or replaced) and rein-
stalled on your vehicle at the first opportunity.

Inflate collapsible tire only after the wheel is properly
installed to the vehicle. Inflate the collapsible tire using
the electric air pump before lowering the vehicle.

Do not install a wheel cover or attempt to mount a con-
ventional tire on the collapsible spare wheel, since the
wheel is designed specifically for the collapsible spare
tire.

WARNING!

Compact and Collapsible spares are for temporary
emergency use only. With these spares, do not drive
more than 50 mph (80 km/h). Temporary use spares
have limited tread life. When the tread is worn to the
tread wear indicators, the temporary use spare tire
needs to be replaced. Be sure to follow the warnings,
which apply to your spare. Failure to do so could
result in spare tire failure and loss of vehicle control.

Full-Size Spare — If Equipped

The Full-Size spare is for temporary emergency use
only. This tire may look like the originally equipped tire
on the front or rear axle of your vehicle, but it is not.
This spare tire may have limited tread life. When the
tread is worn to the tread wear indicators, the tempo-
rary use Full-Size spare tire needs to be replaced. Since
it is not the same as your original equipment tire,
replace (or repair) the original equipment tire and rein-
stall on the vehicle at the first opportunity.

Limited Use Spare — If Equipped

The limited use spare tire is for temporary emergency
use only. This tire is identified by a label located on the
limited use spare wheel. This label contains the driving
limitations for this spare. This tire may look like the
original equipped tire on the front or rear axle of your
vehicle, but it is not. Installation of this limited use
spare tire affects vehicle handling. Since it is not the
same as your original equipment tire, replace (or repair)
the original equipment tire and reinstall on the vehicle
at the first opportunity.

WARNING!

Limited use spares are for emergency use only. Instal-
lation of this limited use spare tire affects vehicle
handling. With this tire, do not drive more than the
speed listed on the limited use spare wheel. Keep
inflated to the cold tire inflation pressures listed on
your Tire And Loading Information Placard located on
the driver’s side B-pillar or the rear edge of the driv-
er’s side door. Replace (or repair) the original equip-
ment tire at the first opportunity and reinstall it on
your vehicle. Failure to do so could result in loss of
vehicle control.

WHEEL AND WHEEL TRIM CARE

All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly
using mild (neutral Ph) soap and water to maintain their
luster and to prevent corrosion. Wash wheels with the
same soap solution recommended for the body of the
vehicle and remember to always wash when the sur-
faces are not hot to the touch.

Your wheels are susceptible to deterioration caused by
salt, sodium chloride, magnesium chloride, calcium
chloride, etc., and other road chemicals used to melt
ice or control dust on dirt roads. Use a soft cloth or
sponge and mild soap to wipe away promptly. Do not
use harsh chemicals or a stiff brush. They can damage
the wheel’s protective coating that helps keep them
from corroding and tarnishing.

CAUTION!

Avoid products or automatic car washes that use acidic
solutions or strong alkaline additives or harsh brushes.
Many aftermarket wheel cleaners and automatic car
washes may damage the wheel's protective finish. Such
damage is not covered by the New Vehicle Limited War-
ranty. Only car wash soap, Mopar® Wheel Cleaner or
equivalent is recommended.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush,
metal polishes or oven cleaner. These products may
damage the wheel's protective finish. Such damage is
not covered by the New Vehicle Limited Warranty.
Only car wash soap, Mopar® Wheel Cleaner or
equivalent is recommended.

(Continued)

SERVICING AND MAINTENANCE

335

NOTE:

If you intend parking or storing your vehicle for an
extended period after cleaning the wheels with wheel
cleaner, drive your vehicle and apply the brakes to
remove the water droplets from the brake components.
This activity will remove the red rust on the brake rotors
and prevent vehicle vibration when braking.

CAUTION!

If your vehicle is equipped with these specialty
wheels, DO NOT USE wheel cleaners, abrasives, or
polishing compounds. They will permanently damage
this finish and such damage is not covered by the
New Vehicle Limited Warranty. HAND WASH ONLY
USING MILD SOAP AND WATER WITH A SOFT CLOTH.
Used on a regular basis; this is all that is required to
maintain this finish.

SNOW TRACTION DEVICES

Use of traction devices require sufficient tire-to-body
clearance. Due to limited clearance, the following snow
traction devices are recommended. Follow these rec-
ommendations to guard against damage:

•

Snow traction device must be of proper size for the
tire, as recommended by the snow traction device
manufacturer.

•

No other tire sizes are recommended for use with
the snow traction device.

•

Please see the following table for recommended tire
size, axle and snow traction device:

Wagoneer

4x2

Trim Level

Axle

Tire/Wheel Size

Snow Traction Device (Maximum Pro-

jection Beyond Tire Profile Or

Equivalent)

Series 1

Rear

275/65R18
275/55R20

S Class

Series 2
Series 3

275/55R20

4x4

Trim Level

Axle

Tire/Wheel Size

Snow Traction Device (Maximum Pro-

jection Beyond Tire Profile Or

Equivalent)

Series 1
Series 2

Rear

275/65R18
275/55R20

S Class

Series 3

275/55R20

336

SERVICING AND MAINTENANCE

Grand Wagoneer

4x2

Trim Level

Axle

Tire/Wheel Size

Snow Traction Device (Maximum Pro-

jection Beyond Tire Profile Or

Equivalent)

Series 1

Rear

275/55R20

S Class

Series 2

Series 3

4x4

Trim Level

Axle

Tire/Wheel Size

Snow Traction Device (Maximum Pro-

jection Beyond Tire Profile Or

Equivalent)

Series 1

Rear

275/55R20

S Class

Series 2

Series 3

WARNING!

Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredict-
able handling. You could lose control and have a
collision.

CAUTION!

To avoid damage to your vehicle or tires, observe the
following precautions:

•

Because of restricted traction device clearance
between tires and other suspension components,
it is important that only traction devices in good
condition are used. Broken devices can cause seri-

(Continued)

CAUTION!

ous damage. Stop the vehicle immediately if noise
occurs that could indicate device breakage.
Remove the damaged parts of the device before
further use.

•

Install device as tightly as possible and then
retighten after driving about ½ mile (0.8 km).

•

Do not exceed 30 mph (48 km/h).

•

Drive cautiously and avoid severe turns and large
bumps, especially with a loaded vehicle.

•

Do not drive for a prolonged period on dry
pavement.

(Continued)

CAUTION!

•

Observe the traction device manufacturer’s
instructions on the method of installation, operat-
ing speed, and conditions for use. Always use the
suggested operating speed of the device manufac-
turer’s if it is less than 30 mph (48 km/h).

•

Do not use traction devices on a compact spare
tire.

SERVICING AND MAINTENANCE

337

TIRE ROTATION
RECOMMENDATIONS

The tires on the front and rear of your vehicle operate
at different loads and perform different steering, han-
dling, and braking functions. For these reasons, they
wear at unequal rates.

These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on On/Off-Road
type tires. Rotation will increase tread life, help to main-
tain mud, snow, and wet traction levels, and contribute
to a smooth, quiet ride.

For the proper maintenance intervals

page 290.

More frequent rotation is permissible if desired. The
reasons for any rapid or unusual wear should be cor-
rected prior to rotation being performed.

NOTE:

The premium Tire Pressure Monitoring System will auto-
matically locate the pressure values displayed in the
correct vehicle position following a tire rotation.

The suggested rotation method is the “rearward cross”
shown in the following diagram.

DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES

The following tire grading categories
were established by the National High-
way Traffic Safety Administration. The
specific grade rating assigned by the
tire's manufacturer in each category is
shown on the sidewall of the tires on
your vehicle.

All passenger vehicle tires must con-
form to Federal safety requirements in
addition to these grades.

TREADWEAR

The Treadwear grade is a comparative
rating, based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course. For example, a tire graded
150 would wear one and one-half
times as well on the government
course as a tire graded 100. The rela-
tive performance of tires depends
upon the actual conditions of their
use, however, and may depart signifi-
cantly from the norm due to variations
in driving habits, service practices, and
differences in road characteristics and
climate.

TRACTION GRADES

The Traction grades, from highest to
lowest, are AA, A, B, and C. These
grades represent the tire's ability to
stop on wet pavement, as measured
under controlled conditions on speci-
fied government test surfaces of
asphalt and concrete. A tire marked C
may have poor traction performance.

Tire Rotation (Rearward Cross)

338

SERVICING AND MAINTENANCE

WARNING!

The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not
include acceleration, cornering,
hydroplaning, or peak traction
characteristics.

TEMPERATURE GRADES

The Temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat,
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause
the material of the tire to degenerate
and reduce tire life, and excessive tem-
perature can lead to sudden tire fail-
ure. The grade C corresponds to a level
of performance, which all passenger
vehicle tires must meet under the Fed-
eral Motor Vehicle Safety Standard No.

109. Grades B and A represent higher
levels of performance on the labora-
tory test wheel, than the minimum
required by law.

WARNING!

The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Exces-
sive speed, under-inflation, or exces-
sive loading, either separately or in
combination, can cause heat buildup
and possible tire failure.

STORING THE VEHICLE

If you are storing your vehicle for more than three
weeks, we recommend that you take the following steps
to minimize the drain on your vehicle's battery:

•

Disconnect the negative cable from battery.

•

Before you store your vehicle or keep it out of ser-
vice (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system
is started again.

BODYWORK

PROTECTION FROM ATMOSPHERIC
AGENTS

Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make
roads passable in snow and ice and those that are
sprayed on trees and road surfaces during other sea-
sons are highly corrosive to the metal in your vehicle.
Outside parking, which exposes your vehicle to airborne
contaminants, road surfaces on which the vehicle is
operated, extreme hot or cold weather and other
extreme conditions will have an adverse effect on paint,
metal trim, and underbody protection.

The following maintenance recommendations will
enable you to obtain maximum benefit from the corro-
sion resistance built into your vehicle.

What Causes Corrosion?

Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.

The most common causes are:

•

Road salt, dirt and moisture accumulation.

•

Stone and gravel impact.

•

Insects, tree sap and tar.

•

Salt in the air near seacoast localities.

•

Atmospheric fallout/industrial pollutants.

SERVICING AND MAINTENANCE

339

BODY AND UNDERBODY
MAINTENANCE

Cleaning Headlights

Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone
breakage than glass headlights.

Plastic is not as scratch resistant as glass and there-
fore different lens cleaning procedures must be
followed.

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.

Do not use abrasive cleaning components, solvents,
steel wool or other aggressive material to clean the
lenses.

PRESERVING THE BODYWORK

Washing

•

Wash your vehicle regularly. Always wash your
vehicle in the shade using Mopar® Car Wash, or a
mild car wash soap, and rinse the panels completely
with water.

•

If insects, tar, or other similar deposits have accu-
mulated on your vehicle, use Mopar® Super Kleen
Bug and Tar Remover to remove.

•

Use a high quality cleaner wax, such as Mopar®
Cleaner Wax to remove road film, stains and to pro-
tect your paint finish. Use precautions to not scratch
the paint.

•

Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.

CAUTION!

•

Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder that will
scratch metal and painted surfaces.

•

Use of power washers exceeding 1,200 psi
(8,274 kPa) can result in damage or removal of
paint and decals.

Special Care

•

If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least
once a month.

•

It is important that the drain holes in the lower
edges of the doors, rocker panels, and trunk be kept
clear and open.

•

If you detect any stone chips or scratches in the
paint, touch them up immediately.

•

If your vehicle is damaged due to a collision or simi-
lar cause that destroys the paint and protective
coating, have your vehicle repaired as soon as
possible.

•

If you carry special cargo such as chemicals, fertiliz-
ers, de-icer salt, etc., be sure that such materials
are well packaged and sealed.

•

If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.

•

Use Mopar® Touch Up Paint on scratches as soon
as possible. An authorized dealer has touch up
paint to match the color of your vehicle.

INTERIORS

SEATS AND FABRIC PARTS

Use Mopar® Total Clean to clean fabric upholstery and
carpeting.

WARNING!

Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in closed
areas they may cause respiratory harm.

Seat Belt Maintenance

Do not bleach, dye or clean the belts with chemical sol-
vents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.

If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the
vehicle to wash them. Dry with a soft cloth.

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.

WARNING!

A frayed or torn seat belt could rip apart in a collision
and leave you with no protection. Inspect the seat
belt system periodically, checking for cuts, frays, or
loose parts. Damaged parts must be replaced imme-
diately. Do not disassemble or modify the seat belt
system. If your vehicle is involved in a collision, or if
you have questions regarding seat belt or retractor

(Continued)

340

SERVICING AND MAINTENANCE

WARNING!

conditions, take your vehicle to an authorized FCA
dealer or authorized FCA Certified Collision Care Pro-
gram facility for inspection.

PLASTIC AND COATED PARTS

Use Mopar® Total Clean to clean vinyl upholstery.

CAUTION!

•

Direct contact of air fresheners, insect repellents,
suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away
immediately.

•

Damage caused by these type of products may not
be covered by your New Vehicle Limited Warranty.

Cleaning Plastic Instrument Cluster

Lenses

The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.

Clean with a wet soft cloth. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
cloth. Dry with a soft cloth.

LEATHER SURFACES

Mopar® Total Clean is specifically recommended for
leather upholstery.

The leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather uphol-
stery and should be removed promptly with a damp
cloth. Stubborn soils can be removed easily with a soft
cloth and Mopar® Total Clean. Care should be taken to
avoid soaking your leather upholstery with any liquid.
Please do not use polishes, oils, cleaning fluids, sol-
vents, detergents, or ammonia-based cleaners to clean
your leather upholstery.

NOTE:

If equipped with light colored leather, it tends to show
any foreign material, dirt, and fabric dye transfer more
so than darker colors. The leather is designed for easy
cleaning, and the manufacturer recommends Mopar®
total care leather cleaner applied on a cloth to clean
the leather seats as needed.

CAUTION!

Do not use alcohol and alcohol-based and/or ketone-
based cleaning products to clean leather upholstery,
as damage to the upholstery may result.

GLASS SURFACES

All glass surfaces should be cleaned on a regular basis
with Mopar® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive
type cleaner. Use caution when cleaning the inside rear
window equipped with electric defrosters or windows
equipped with radio antennas. Do not use scrapers or
other sharp instruments that may scratch the elements.

When cleaning the rearview mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.

SERVICING AND MAINTENANCE

341

TECHNICAL SPECIFICATIONS

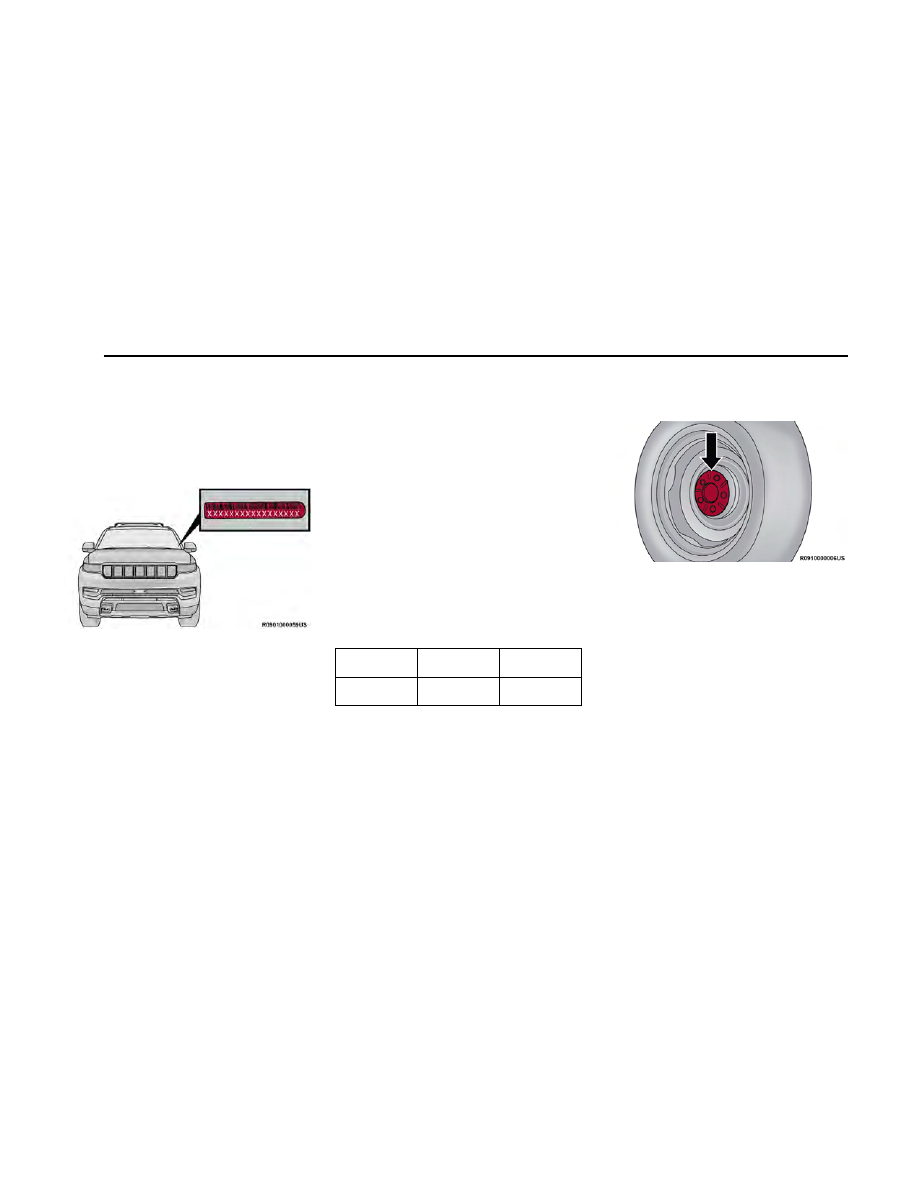

VEHICLE IDENTIFICATION NUMBER (VIN)

The VIN is found on a label located on the left front cor-
ner of the instrument panel pad, visible from outside of
the vehicle through the windshield.

NOTE:

It is illegal to remove or alter the VIN.

BRAKE SYSTEM

Your vehicle is equipped with dual hydraulic brake sys-
tems. If either of the two hydraulic systems lose normal
capability, the remaining system will still function. How-
ever, there will be some loss of overall braking effective-
ness. You may notice increased pedal travel during
application, greater pedal force required to slow or stop,
and potential activation of the Brake Warning Light.

In the event power assist is lost for any reason the
brakes will still function. However, the effort required to
brake the vehicle will be much greater than that
required with the power system operating.

WHEEL AND TIRE TORQUE
SPECIFICATIONS

Proper lug nut/bolt torque is very important to ensure
that the wheel is properly mounted to the vehicle. Any
time a wheel has been removed and reinstalled on the
vehicle, the lug nuts/bolts should be torqued using a
properly calibrated torque wrench using a six-sided
(hex) deep wall socket.

TORQUE SPECIFICATIONS

Lug Nut/Bolt

Torque

**Lug Nut/Bolt

Size

Lug Nut/Bolt

Socket Size

130 ft-lb

(176 N·m)

M14 x 1.50

22 mm

**Use only authorized dealer recommended lug nuts/
bolts and clean or remove any dirt or oil before
tightening.

Inspect the wheel mounting surface prior to mounting
the tire and remove any corrosion or loose particles.

Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice. Ensure that the
socket is fully engaged on the lug nut/bolt (do not
insert it half way).

NOTE:

If in doubt about the correct tightness, have them
checked with a torque wrench by an authorized dealer
or service station.

After 25 miles (40 km), check the lug nut/bolt torque to
be sure that all the lug nuts/bolts are properly
tightened.

Windshield VIN Label Location

Wheel Mounting Surface

342

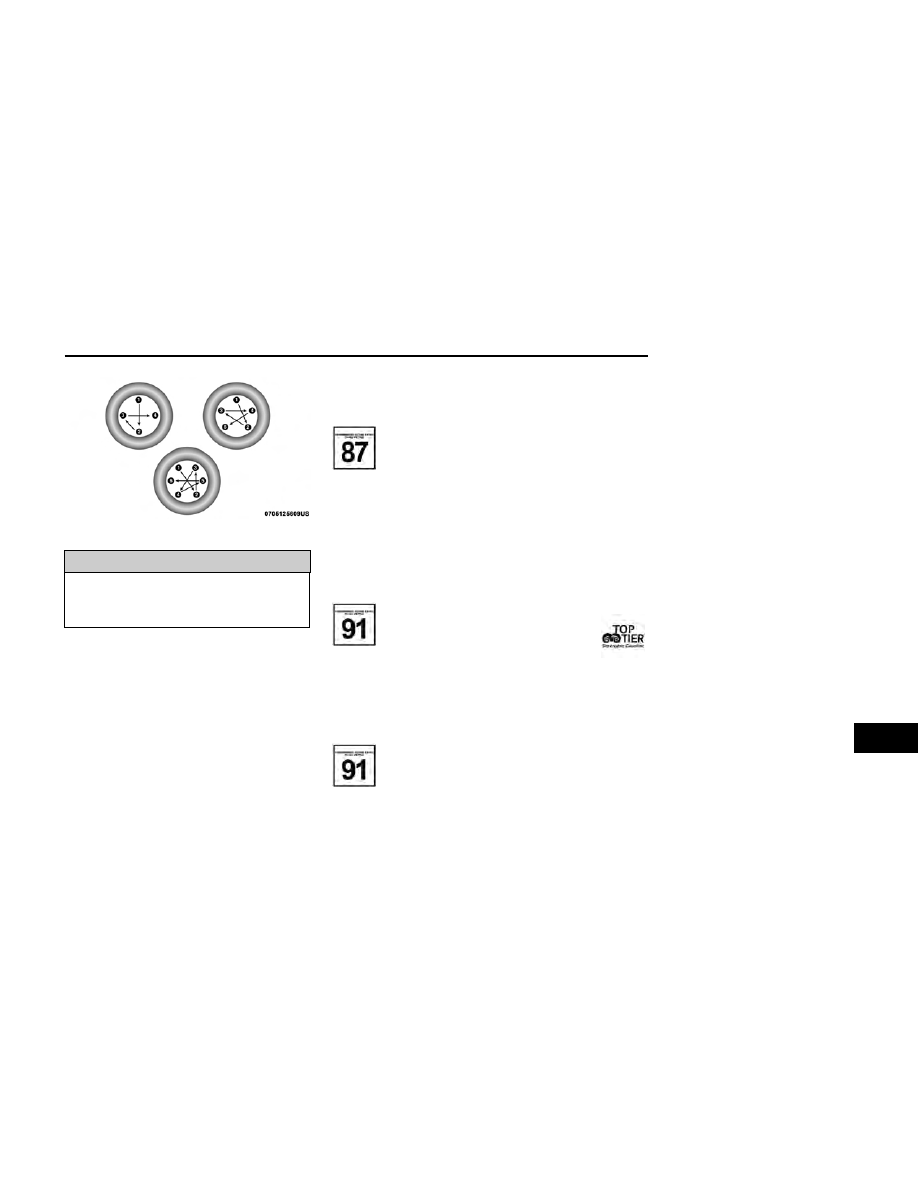

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts/bolts fully until the vehicle
has been lowered. Failure to follow this warning may
result in personal injury.

FUEL REQUIREMENTS

While operating on gasoline with the required octane
number, hearing a light knocking sound from the
engine is not a cause for concern. However, if the
engine is heard making a heavy knocking sound, see a
dealer immediately. Use of gasoline with an octane
number lower than recommended can cause engine
failure and may void the New Vehicle Limited Warranty.

Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience
these symptoms, try another brand of gasoline before
considering service for the vehicle.

3.0L STANDARD OUTPUT ENGINE

Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.

This engine is designed to meet all emis-
sions requirements, and provide satisfactory
fuel economy and performance, when using
high-quality unleaded regular gasoline hav-

ing an octane rating of 87, as specified by the (R+M)/
2 method. The use of 91 or higher octane premium
gasoline will allow these engines to operate to optimal
performance. This increase in performance is most
noticeable in hot weather or under heavy load condi-
tions such as while towing.

3.0L HIGH OUTPUT ENGINE

Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.

This engine is designed to meet all emission
regulations, provide optimal fuel economy
and performance when using high-quality
unleaded premium gasoline having a posted

octane number of 91 as specified by the (R+M)/
2 method. The use of 91 or higher octane premium
gasoline is required in this engine.

6.4L ENGINE

Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.

This engine is designed to meet all emission
regulations, provide optimal fuel economy
and performance when using high-quality
unleaded premium gasoline having a posted

octane number of 91 as specified by the (R+M)/
2 method. The use of 91 or higher octane premium
gasoline is required in these engines.

REFORMULATED GASOLINE

Many areas of the country require the use of cleaner-
burning gasoline referred to as “reformulated gasoline”.
Reformulated gasoline contains oxygenates and are
specifically blended to reduce vehicle emissions and
improve air quality.

The use of reformulated gasoline is recommended.
Properly blended reformulated gasoline will provide
improved performance and durability of engine and fuel
system components.

MATERIALS ADDED TO FUEL

Besides using unleaded gasoline with the proper
octane rating, gasolines that contain detergents, corro-
sion and stability additives are recommended. Using
gasolines that have these additives will help improve
fuel economy, reduce emissions, and maintain vehicle
performance.

Designated TOP TIER Detergent Gasoline
contains a higher level of detergents to fur-
ther aide in minimizing engine and fuel sys-
tem deposits. When available, the usage of

TOP TIER Detergent Gasoline is recommended. Visit
www.toptiergas.com for a list of TOP TIER Detergent
Gasoline retailers.

Designated TOP TIER Detergent Gasoline contains a
higher level of detergents to further aide in minimizing
engine and fuel system deposits. When available, the
usage of Top Tier Detergent Gasoline is recommended.
Visit www.toptiergas.com, at the link below, for a list of
TOP TIER Detergent Gasoline retailers.

Torque Patterns

TECHNICAL SPECIFICATIONS

343

Indiscriminate use of fuel system cleaning agents
should be avoided. Many of these materials intended
for gum and varnish removal may contain active sol-
vents or similar ingredients. These can harm fuel sys-
tem gasket and diaphragm materials.

GASOLINE/OXYGENATE BLENDS

Some fuel suppliers blend unleaded gasoline with oxy-
genates such as ethanol.

CAUTION!

DO NOT use E-85, gasoline containing methanol, or
gasoline containing more than 15% ethanol (E-15).
Use of these blends may result in starting and driv-
ability problems, damage critical fuel system compo-
nents, cause emissions to exceed the applicable
standard, and/or cause the Malfunction Indicator
Light to illuminate. Please observe pump labels as
they should clearly communicate if a fuel contains
greater than 15% ethanol (E-15).

Problems that result from using gasoline containing
more than 15% ethanol (E-15) or gasoline containing
methanol are not the responsibility of the manufacturer
and may void or not be covered under New Vehicle Lim-
ited Warranty.

DO NOT USE E-85 IN NON-FLEX
FUEL VEHICLES

Non-Flex Fuel Vehicles (FFV) are compatible with gaso-
line containing up to 15% ethanol (E-15). Use of gaso-
line with higher ethanol content may void the New
Vehicle Limited Warranty.

If a Non-FFV vehicle is inadvertently fueled with
E-85 fuel, the engine will have some or all of these
symptoms:

•

Operate in a lean mode.

•

OBD II Malfunction Indicator Light on.

•

Poor engine performance.

•

Poor cold start and cold drivability.

•

Increased risk for fuel system component corrosion.

CNG AND LP FUEL SYSTEM
MODIFICATIONS

Modifications that allow the engine to run on Com-
pressed Natural Gas (CNG) or Liquid Propane (LP) may
result in damage to the engine, emissions, and fuel
system components. Problems that result from running
CNG or LP are not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.

METHYLCYCLOPENTADIENYL
MANGANESE TRICARBONYL (MMT)
IN GASOLINE

MMT is a manganese-containing metallic additive that
is blended into some gasolines to increase octane.
Gasoline blended with MMT provides no performance
advantage beyond gasoline of the same octane number
without MMT. Gasoline blended with MMT reduces
spark plug life and reduces emissions system perfor-
mance in some vehicles. The manufacturer recom-
mends that gasoline without MMT be used in your
vehicle. The MMT content of gasoline may not be indi-

cated on the gasoline pump; therefore, you should ask
the gasoline retailer whether the gasoline contains
MMT. MMT is prohibited in Federal and California refor-
mulated gasoline.

FUEL SYSTEM CAUTIONS

CAUTION!

Follow these guidelines to maintain your vehicle’s
performance:

•

The use of leaded gasoline is prohibited by Federal
law. Using leaded gasoline can impair engine per-
formance and damage the emissions control
system.

•

An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate ser-
vice. Contact an authorized dealer for service
assistance.

•

The use of fuel additives, which are now being sold
as octane enhancers, is not recommended. Most
of these products contain high concentrations of
methanol. Fuel system damage or vehicle perfor-
mance problems resulting from the use of such
fuels or additives is not the responsibility of the
manufacturer and may void or not be covered
under the New Vehicle Limited Warranty.

NOTE:

Intentional tampering with the emissions control system
can result in civil penalties being assessed against you.

344

TECHNICAL SPECIFICATIONS

FLUID CAPACITIES

Component

Metric

Fuel (Approximate)

Short Wheel Base

26.5 gal

100 L

Long Wheel Base

30.5 gal

115 L

Engine Oil With Filter

3.0L Engine

7.5 qt

7.1 L

6.4L Engine

7 qt

6.6 L

Cooling System *

3.0L Engine

16.6 qt

15.7 L

3.0L Engine Intercooler

3.2 qt

3.0 L

6.4L Engine

18.4 qt

17.4 L

* Includes heater and coolant recovery bottle filled to MAX level.

ENGINE FLUIDS AND LUBRICANTS

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

We recommend using Mopar® Antifreeze/Coolant 10 Year/150,000 Mile
(240,000 km) Formula OAT (Organic Additive Technology) meeting the requirements of
the manufacturer Material Standard MS.90032.

Engine Coolant — Intercooler

We recommend using Mopar® Antifreeze/Coolant 10 Year/150,000 Mile
(240,000 km) Formula OAT (Organic Additive Technology) meeting the requirements of
the manufacturer Material Standard MS.90032.

TECHNICAL SPECIFICATIONS

345

Component

Fluid, Lubricant, or Genuine Part

Engine Oil — 3.0L SO Engine

We recommend using Mopar® SAE 0W-20 Full Synthetic Engine Oil, which meets the
requirements of the manufacturer Material Standard MS-6395. Equivalent full syn-
thetic SAE 0W-20 engine oil can be used but must have the API Starburst trademark
with a certification level of API-SP or later

page 298. API-SN+ is also acceptable.

CAUTION!

Usage of earlier API certification levels (such as API-SN or prior) can result in engine
damage and is not covered by the New Vehicle Limited Warranty.

Engine Oil — 3.0L HO Engine

We recommend using Mopar® API Certified SAE 0W-40 Full Synthetic Engine Oil,
which meets the requirements of the manufacturer Material Standard MS-A0921.
Equivalent full synthetic SAE 0W-40 engine oil can be used but must have the API
Donut trademark with a certification level of API-SP or later

page 298. API-SN+ is

also acceptable.

CAUTION!

Usage of earlier API certification levels (such as API-SN or prior) can result in engine
damage and is not covered by the New Vehicle Limited Warranty.

Engine Oil — 6.4L Engine

We recommend using Mopar® API Certified SAE 0W-40 Full Synthetic Engine Oil which
meets the requirements of the manufacturer Material Standard MS-A0921. Equivalent
full synthetic SAE 0W-40 engine oil can be used but must have the API Donut trade-
mark

page 298.

Fuel Selection – 3.0L SO Engine

87 Octane (R+M)/2 Method, 0-15% Ethanol (Do Not Use E-85). The manufacturer rec-
ommends the use of 91 Octane or Higher (R+M)/2 Method for optimum performance.

Fuel Selection – 3.0L HO Engine

91 Octane or Higher (R+M)/2 Method, 0-15% Ethanol (Do Not Use E-85).

Fuel Selection – 6.4L Engine

91 Octane or Higher (R+M)/2 Method, 0-15% Ethanol (Do Not Use E-85).

346

TECHNICAL SPECIFICATIONS

CHASSIS FLUIDS AND LUBRICANTS

Component

Fluid, Lubricant, or Genuine Part

Automatic Transmission

Use only Mopar® ZF 8 & 9 Speed ATF Automatic Transmission Fluid or equivalent. Fail-
ure to use the correct fluid may affect the function or performance of your
transmission.

Transfer Case

We recommend using Mopar® Mobile LT.

Axle Differential (Front)

We recommend using Mopar® GL-5 Synthetic Axle Lubricant SAE 75W-85.

Axle Differential (Rear) - With Electronic Limited Slip Differential (ELSD)

We recommend using Mopar® GL-5 Electronic Limited Slip Synthetic Axle Lubricant
SAE 75W-85 with integrated friction modifier.

Axle Differential (Rear) - With Mechanical Limited Slip Differential

We recommend using Mopar® GL-5 Mechanical Limited Slip Synthetic Axle Lubricant
SAE 75W-85 with integrated friction modifier.

Brake Master Cylinder

We recommend using Mopar® DOT 3 Brake Fluid, SAE J1703.

TECHNICAL SPECIFICATIONS

347

CUSTOMER ASSISTANCE

SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE

PREPARE FOR THE APPOINTMENT

All work to be performed may not be covered by the
warranty. Discuss additional charges with the service
manager. Keep a maintenance log of your vehicle's ser-
vice history. This can often provide a clue to the current
problem.

PREPARE A LIST

Make a written list of your vehicle's problems or the
specific work you want done. If you've had an accident
or work done that is not on your maintenance log, let
the service advisor know.

BE REASONABLE WITH REQUESTS

If you list a number of items and you must have your
vehicle by the end of the day, discuss the situation with
the service advisor and list the items in order of priority.
At many authorized dealers, you may obtain a rental
vehicle (additional charges may apply). If you need a
rental, it is advisable to make these arrangements
when you call for an appointment.

IF YOU NEED ASSISTANCE

FCA US LLC and its authorized dealers are interested in
your satisfaction. We want you to be happy with our
products and services.

Warranty service must be done by an authorized dealer.
We strongly recommend that you take the vehicle to an
authorized dealer. They know your vehicle the best, and
are most concerned that you get prompt and high qual-
ity service. FCA US LLC's authorized dealers have the
facilities, factory-trained technicians, special tools, and
the latest information to ensure the vehicle is fixed cor-
rectly and in a timely manner.

This is why you should always talk to an authorized
dealer’s service manager first. If for some reason you
are still not satisfied, talk to the general manager or
owner of the authorized dealer. They want to know if
you need assistance. If an authorized dealer is unable
to resolve the concern, you may contact FCA US LLC's
Customer Assistance center.

Any communication to FCA US LLC's customer center
should include the following information:

•

Owner's name and address

•

Owner's telephone number (home, mobile, and
office)

•

Authorized dealer name

•

Vehicle Identification Number (VIN)

•

Vehicle delivery date and mileage

ROADSIDE ASSISTANCE

Available 24 hours, 7 days a week.

Call 1-833-667-4825 or visit wagoneer.rsahelp.com
(USA)

Call 1-800-363-4869 or visit fca.roadsideaid.com
(CANADA)

Who is Covered

You are covered by Roadside Assistance services if you
are a purchaser for use of the vehicle. Roadside Assis-
tance services last for five years or 60,000 miles on the
odometer, whichever occurs first, calculated from the
start date of the Basic Limited Warranty, as set forth in
the Warranty Information book.

1. Towing services provided through Cross Country Motor Club, Inc.,

400 River's Edge Drive, Medford, MA 02155, except in AK, CA, HI, OR,

WI, and WY, where services are provided by Cross Country Motor Club

of California, Inc., 275 East Hillcrest Drive, Suite 165, Thousand Oaks,

CA 91360.

What to Do

If your vehicle requires jump start assistance, out of
gas/fuel delivery, tire service, lockout service or towing
as a result of a mechanical breakdown, dial toll-free:
USA: 833-667-4825/Canada: 800-363-4869. Provide
your name, Vehicle Identification Number (VIN) required
for covered services, license plate number, and your
location, including the telephone number from which
you are calling. Briefly describe the nature of the prob-
lem and answer a few simple questions. You will be
given the name of the service provider and an esti-
mated time of arrival. If you feel you are in an unsafe
situation, please let us know. With your consent, we will
contact local police or safety authorities.

If Unable to Contact Roadside Assistance

If you are unable to contact Roadside Assistance or
unable to provide a valid Vehicle Identification Number
(VIN), and you obtain towing services on your own, you
may submit your original receipts from the licensed tow-
ing or service facility, for services rendered within

348

30 days of the occurrence. Be sure to include your VIN,
odometer mileage at the time of service, and current
mailing address. We will process the claim based on
vehicle and service eligibility. If eligible, we will reim-
burse you for the reasonable amount actually paid,
based on the usual and customary charges for that ser-
vice in the area where they were provided. FCA US LLC’s
determination relating to reimbursement is final. Corre-
spondence should be mailed to:

FCA US LLC Customer Assistance

P.O. Box 9145

Medford, MA 02155

Attention Claims Department

FCA US LLC reserves the right to modify the terms or
discontinue the Roadside Assistance Program at any
time. The Roadside Assistance program is subject to
restrictions and conditions of use, which are deter-
mined solely by FCA US LLC.

Flat Tire Service

If you are inconvenienced by a flat tire, we will dispatch
a service provider to use your vehicle’s temporary spare
tire (if equipped) as recommended in your Owner’s
Manual. This is not a permanent flat tire repair.

Out of Gas/Fuel Delivery

Drivers cannot always count on a gas station being
nearby, especially when traveling away from home. We
will dispatch a service provider to deliver a small
amount of fuel (maximum two gallons) to get you to a
nearby station. This service is limited to two occur-
rences in a 12-month period.

Battery Jump Assistance

No time is a good time for a depleted battery. With
Roadside Assistance, you do not have to worry about
being stranded. We will dispatch a service provider to
provide you with a battery jump anytime, day or night.

Lockout Service

Whether the keys are locked in your vehicle or frozen
locks are keeping you from getting on your way, help is
just a phone call away. This service is limited to provid-
ing access to the vehicle’s seating area. It does not
cover the cost of replacement keys.

Towing Service

Our towing service gives you peace of mind and confi-
dence. If your vehicle becomes disabled as a result of a
mechanical breakdown, Roadside Assistance will dis-
patch a towing service to transport your vehicle to the
closest authorized Chrysler, Dodge, Jeep®, or Ram
dealer. If you choose to go to another dealer, you will be
responsible for the cost if the extra distance exceeds
50 miles.

WAGONEER CLIENT SERVICES - US

P.O. Box 21–8004

Auburn Hills, MI 48321–8004

Phone: (833) 667-4825

WAGONEER CLIENT SERVICES
CANADA

P.O. Box 1621

Windsor, Ontario N9A 4H6

Phone: 1-844-472-6301 (844-GRAND01)

MEXICO

Customer Relations Office

Av. Prolongacion Paseo de la Reforma, 1240

Sante Fe C.P. 05109

Mexico, D.F.

In Mexico City: (800) 505-1300

Outside Mexico City: +(52) 55 50817568

PUERTO RICO AND US VIRGIN
ISLANDS

FCA Caribbean LLC Customer Service

P.O. Box 191857

San Juan 00919-1857

Phone: 833 (667) 4825

CUSTOMER ASSISTANCE FOR THE
HEARING OR SPEECH IMPAIRED
(TDD/TTY)

To assist customers who have hearing difficulties, FCA
US LLC has installed special Telecommunication
Devices for the Deaf (TDD) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with FCA
US LLC by dialing 1-800-380-2479.

Canadian residents with hearing difficulties that require
assistance can use the special needs relay service
offered by Bell Canada. For TTY teletypewriter users,
dial 711 and for Voice callers, dial 1-800-855-0511 to
connect with a Bell Relay Service operator.

CUSTOMER ASSISTANCE

349

SERVICE CONTRACT

You may have purchased a service contract for a
vehicle to help protect you from the high cost of unex-
pected repairs after FCA US LLC's New Vehicle Limited
Warranty expires. The Mopar® Vehicle Protection plans
are the ONLY vehicle extended protection plans autho-
rized, endorsed and backed by FCA US LLC to provide
additional protection beyond your vehicle’s warranty. If
you purchased a Mopar® Vehicle Protection Plan, you
will receive Plan Provisions and an Owner Identification
Card in the mail within three weeks of the vehicle deliv-
ery date.

If you have any questions about the service contract,
call FCA US LLC’s Service Contract National Customer
Hotline at 1-800-521-9922.

For Canadian residents, you may have purchased addi-
tional coverage with an extended service contract. FCA
Canada Inc. stands fully behind its service contracts.
Be sure that the one you buy is a genuine Canada Inc.
service contract. We are not responsible for other com-
panies’ contracts. If you purchased a contract other
than a genuine FCA Canada Inc. service contract and
you have a problem, you will have to contact the admin-
istrator of that contract for resolution.

If you have any questions about the service contract,
call the FCA's Service Contract National Customer
Hotline at 1-844-472-6301 (844-GRAND01) English /
1-844-472-6301 (844-GRAND01) French).

FCA US LLC is not responsible for any service contract
you may have purchased from another manufacturer. If
you require service after the FCA US LLC New Vehicle
Limited Warranty expires, please refer to the contract
documents, and contact the person listed in those
documents.

We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools,
and training to assure that you are absolutely delighted
with the ownership experience.

WARRANTY INFORMATION

See the Warranty Information for the terms and provi-
sions of FCA US LLC warranties applicable to this
vehicle and market. Refer to www.mopar.com/om for
further information.

See the Warranty Information for the terms and provi-
sions of FCA Canada Inc. warranties applicable to this
vehicle and market. Refer to www.owners.mopar.ca/en/
for further information.

For French, refer to www.owners.mopar.ca/fr for further
information.

Use this QR code to access your digital
experience.

MOPAR® PARTS

Mopar® original equipment parts & accessories and
factory filled fluids are available from an authorized
dealer. They are recommended for your vehicle to keep
it operating at its best and maintain its original
condition.

REPORTING SAFETY DEFECTS

IN THE 50 UNITED STATES AND
WASHINGTON, D.C.

If you believe that your vehicle has a
defect that could cause a crash or
cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying FCA US
LLC.

If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in indi-
vidual problems between you, an
authorized dealer or FCA US LLC.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll free at
1-888-327-4236 (TTY:
1-800-424-9153); or go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New
Jersey Avenue, SE., West Building,

Scan me

350

CUSTOMER ASSISTANCE

Washington, D.C. 20590. You can also
obtain other information about motor
vehicle safety from
http://www.safercar.gov.

IN CANADA

If you believe that your vehicle has a
safety defect, you should contact the
Customer Service Department immedi-
ately. Canadian customers who wish to
report a safety defect to the Canadian
government should contact Transport
Canada, Motor Vehicle Defect Investi-
gations and Recalls at
1-800-333-0510 or go to
wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP.

PUBLICATION ORDER FORMS

To order the following manuals, you may use either the
website or the phone numbers listed below.

Service Manuals

These comprehensive Service Manuals provide a com-
plete working knowledge of the vehicle, system, and/or
components and is written in straightforward language
with illustrations, diagrams, and charts.

Diagnostic Procedure Manuals

Diagnostic Procedure Manuals are filled with diagrams,
charts and detailed illustrations. These manuals make
it easy to find and fix problems on computer-controlled
vehicle systems and features. They show exactly how to
find and correct problems, using step-by-step trouble-
shooting and drivability procedures, proven diagnostic
tests and a complete list of all tools and equipment.

To order a digital copy of your Service or Diagnostic Pro-
cedure manuals, visit:

www.techauthority.com (US and Canada).

Owner's Manuals

These Owner's Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific FCA US LLC vehicles.

To access your Owner's Information online, visit
www.mopar.com/om (US) or www.owners.mopar.ca
(Canada).

Or visit:

www.techauthority.com to order physical copies of
Owner’s Manuals (US).

Owner's Manuals, Radio Manuals and Warranty Infor-
mation Books can be ordered through Archway at:

•

1-800-387-1143 (Canada)

Change Of Ownership Or Address

*If you have purchased this vehicle used or have
changed your address, please provide the following
information and mail to:

FCA US LLC

P.O. Box 21–8008

Auburn Hills, MI 48321–8004

Make sure to include the following:

•

Date of Sale (mm/dd/yy)

•

Vehicle Indentification Number (17 Character ID
located on top left of the instrument panel)

•

Exact Odometer Reading

•

First and Last Name

•

Phone Number

•

Street Address, City, State and Zip Code

•

Email Address

*Applies to US residents only.

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired
operation.

Le présent appareil est conforme aux CNR d`Innova-
tion, Science and Economic Development applicables
aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:

1. l'appareil ne doit pas produire de brouillage, et

2. l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est sus-
ceptible d'en compromettre le fonctionnement.

CUSTOMER ASSISTANCE

351

Jeep Wagoneer (2024 year). Manual in english - page 10
