GETTING TO KNOW YOUR VEHICLE

HIGH VOLTAGE BATTERY

Your vehicle is equipped with a Lithium-ion high voltage
battery that is used to power the electric powertrain
systems and the 12 Volt vehicle electrical system.

The high voltage battery is located under the rear seat.

Lithium-ion batteries provide the following benefits:

•

Lithium-ion batteries are much lighter than other
types of rechargeable batteries of the same size.

•

Lithium-ion batteries hold their charge; they only
lose approximately three percent of their charge per
month.

•

Lithium-ion batteries have no memory, which means
that you do not have to completely discharge them
before recharging, as with some other batteries.

•

Lithium-ion batteries can be recharged and dis-
charged thousands of times.

High Voltage Battery Service Disconnect

The high voltage battery service disconnect is located
under the access panel, under the left side rear seat.
Only a qualified service technician should access the
high voltage battery service disconnect.

If your vehicle requires high voltage battery service, see
an authorized dealer.

WARNING!

•

Never try to remove the high voltage battery ser-
vice disconnect. The high voltage battery service
disconnect is used when your vehicle requires ser-
vice by a qualified technician at an authorized
dealership. Failure to follow this warning can result
in electrical shock, toxic emissions, fire, and other
hazards which can cause death or serious injury
including severe burns, respiratory injuries, and
blindness.

•

The high voltage battery and battery case have no
parts that you or an unqualified technician can
service. Under no circumstances should you or an
unqualified technician open, disassemble, pen-
etrate, or tamper with the high voltage battery, bat-
tery case, their cables, or connectors. Damage to
these components can result in electrical shock,
toxic emissions, fire, and other hazards which can
cause death or serious injury including severe
burns, respiratory injuries, and blindness. You
should take the vehicle to an authorized dealer-
ship for any service or maintenance on these high
voltage components.

•

The high voltage system can be hot during and
after starting, and when the vehicle is shut off or
charging. Be careful of both the high voltage and
the high temperature. Failure to do so can result in
severe burns.

Disposal of the High Voltage Battery

Your vehicle’s high voltage battery is designed to last
the life of your vehicle. See an authorized dealer for
information on the disposal of the battery if it should
require replacement.

WARNING!

Your vehicle contains a sealed Lithium-ion high voltage
battery. If the battery is disposed of improperly, there is
a risk of electrical shock and toxic emissions which can
cause severe burns, respiratory injuries, fires, and other
hazards resulting in serious injury or death.

General Information

The vehicle is also equipped with a Battery Manage-
ment system that is designed to:

•

Ensure safe operation

•

Maximize driving range

•

Maximize the life expectancy of the high voltage
battery

NOTE:

During vehicle start up and shut down, a clicking noise
may be heard from within the vehicle. When the vehicle
is preparing to start, the high voltage battery contactors
inside the battery are closed to make the stored elec-
tricity inside available for vehicle use. After the vehicle
is shut down, the contactors open, to electrically isolate
the battery from other vehicle systems. The clicking
noise is the sound of these contactors as they open
and close during normal operation.

5538906_24_JL_OM_EN_USC_t_E1.pdf 15

5/22/2023 9:02:16 AM

WARNING!

In the event of a collision:

•

If your vehicle is still drivable, pull off to the side of
the road when safe to do so, place the transmis-
sion in the PARK position, apply the parking brake,
and turn the vehicle off.

•

Beware of any exposed high-voltage parts or
cables. To avoid electrical shock which can result
in serious injury or death, never touch wiring, con-
nectors, and other high-voltage parts, such as the
inverter unit and the Lithium-ion battery.

•

Leaks or damage to the Lithium-ion battery may
result in a fire and toxic emissions which can
cause severe burns, respiratory injuries, and other
serious injuries or death. If you discover these
leaks, contact emergency services immediately.
Since the fluid leak may be Lithium Manganate
from the Lithium-ion battery, never touch the fluid
leak inside or outside of the vehicle. If the fluid
contacts your skin or eyes, wash these areas
immediately with a large amount of water and
obtain immediate medical attention to help avoid
serious injury.

•

If a fire occurs inside your vehicle, leave the
vehicle as soon as possible. Only use a type ABC,
BC, or C fire extinguisher that is meant for use on
electrical fires. Using a small amount of water, or
the incorrect fire extinguisher can result in serious
injury or death from electrical shock.

•

If you are not able to safely assess the vehicle due to
vehicle damage, do not touch the vehicle. Leave the
vehicle and contact emergency services. Advise first
responders that this is a hybrid-electric vehicle.

(Continued)

WARNING!

•

In the event of an accident that requires bodywork,
refer to an authorized dealership.

BATTERY CONDITIONING

In extreme temperatures, high or low, the high voltage
battery may need to be conditioned, and therefore may
require the vehicle to be plugged in.

If the ambient temperature is 5°F (-15°C) or below at
vehicle shut down, the instrument cluster will display
the message “Plug In Vehicle To Condition Battery”.

If the battery temperature is below -22°F (-30°C), or
131°F (55°C) or above, the vehicle will NOT start:

•

If the vehicle is plugged in at these battery tempera-
tures, the instrument cluster will display the mes-
sage “Please Leave Key In RUN — Battery Condition-
ing Needed”.

•

If the vehicle is not plugged in at these battery tem-
peratures, the “Plug In Vehicle To Condition Battery”
will be shown in the instrument cluster display.

NOTE:

•

When the “Please Leave Key In RUN — Battery Con-
ditioning Needed” message is displayed, keep the
ignition in the RUN position for the battery to
recover. Place the ignition back in the OFF position
when the message disappears, and then start the
vehicle. When this message is displayed, do not
operate any air conditioning controls.

•

Under these high or low temperatures, while the
vehicle is plugged in and the ignition is in the OFF
position, the vehicle may “wake up” to precondition
the high voltage battery for use.

•

It is recommended that the vehicle be plugged in
overnight when possible to maximize the electric
range of the vehicle.

•

It is recommended that the high voltage battery not
be exposed to direct sunlight in high temperature
environments while the vehicle is OFF. This may
lower the life of the battery.

The messages will only be displayed when the ignition
is in the RUN position and the high voltage battery is
not ready to provide propulsion power. The messages
will also display if there was a failed attempt to achieve
READY state when the high voltage battery cell tem-
peratures were either too cold, or too hot.

OFF-BOARD POWER PANEL —
IF EQUIPPED

WARNING!

IMPORTANT SAFETY INSTRUCTIONS PERTAINING TO
RISK OF FIRE OR ELECTRIC SHOCK:

This publication

contains important instructions and warnings that
should be followed during the use of the Off-Board
Power Panel feature. Before using the Off-Board
Power Panel, make sure to check the equipment for
any leaks or water damage. Failure to follow these
warnings and instructions can result in electrical
shock and fire which can cause death or serious
injury.

(Continued)

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 16

5/22/2023 9:02:16 AM

WARNING!

•

The engine may idle during use to power the out-
lets. A running engine emits exhaust containing
carbon monoxide, which can cause injury or death
if inhaled. Never use in closed or confined spaces.

•

Never use the Off-Board Power Panel, vehicle charg-
ing port, or 3-pin outlet power plug while in use with
wet hands. Always handle the Off-Board Power Panel
with dry hands. Never use or allow the Off-Board
Power Panel to get wet. Do not use it in wet or damp
locations, and do not submerge it in water. Only use
electrical equipment with a waterproof function/
rating, or use it in a waterproof environment. Do not
use in environments with rain or high humidity.

•

Never insert metal objects into the Off-Board Power
Panel connectors, or in the vehicle charging port, as
this action can damage the connection terminals.

•

Never disassemble the Off-Board Power Panel.

•

Do not overload electrical extension cords.

•

If there is a risk of lightning, do not use the Off-
Board Power Panel system outside the vehicle.

•

When the Off-Board Power Panel is in operation,
the vehicle’s cooling fan can operate automatically
even if the vehicle is turned off. Do not put your
hands near the cooling fan while it is operating.

•

Never use electrical equipment that requires a
continuous power supply, such as medical equip-
ment. The power supply may be interrupted
depending on the vehicle’s condition.

The Off-Board Power Panel enables the transfer of energy
from the vehicle to the external load (utility tools, electric
toaster, dryer, or camping equipment), which is connected
to a power socket on the Off-Board Power Panel.

NOTE:

•

When the Off-Board Power Panel is plugged in, and
the button is not pushed on the panel, the vehicle
will not receive the needed information for providing
power to the load. The vehicle will alert an “External
issue detected” pop up and fault indications. When
the button on the power panel is pressed, the faults
will be cleared and the power transfer will happen.

•

Once the Off-Board Power Panel is enabled, and the
power transfer does not begin for 60 minutes, the
authentication will time out. Turn on the vehicle to
re-authenticate use of the Off-Board Power Panel.

•

During the 60 minutes the authentication is valid,
and when power transfer is not in progress, the Off-
Board Power Panel may transition to sleep mode. In
that case, pushing the Off-Board Power Panel button
will turn the feature on and loads can be connected
to draw power.

•

The Off-Board Power Panel will be reset to OFF every time
the Off-Board Power Panel assembly is unplugged.

•

When the Off-Board Power Panel assembly is
plugged in, the vehicle will not be able to achieve a
drive ready state.

•

When the Off-Board Power Panel is activated,
re-authenticating the key will be required to achieve a
drive ready state.

The Off-Board Power Panel provides maximum flexibility
in powering off-board loads using the high voltage sys-
tem under three modes of operation:

Hybrid Mode

○

Hybrid Mode offers a balance of efficiency and
duration of power availability.

○

Press the Max Regeneration button and once
illuminated Hybrid mode is activated.

○

Defaults to engine-on as the mode is entered (if
not already running). Runs for a minimum of five
seconds then shuts off if required conditions
are met

○

Battery charges till minimum threshold percent-
age is reached, then the engine shuts off.
Hybrid charging/depletion cycle commences
and the engine runs as necessary and turns
on/off periodically

○

A low-fuel warning is displayed on the instrument
cluster display, and the engine shuts off. The
panel draws power from the battery until mini-
mum SOC is reached (engine never restarts)

Electric Mode

○

Available if the SOC is above the minimum
threshold

○

High voltage battery provides power until
depleted, then the panel deactivates

○

Engine never turns on

Generator Mode

○

Engine runs to charge the battery and power the
system (run post-start required)

○

Engine runs, while charging the battery, until a
low fuel-level is reached or the battery SOC is
maxed

○

Low-fuel warning displayed on the instrument
cluster display or the battery SOC is reached.
The engine shuts off and the panel draws power
from the battery until the minimum SOC is
reached if engine never restarts

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 17

5/22/2023 9:02:16 AM

NOTE:

If the off-board power panel is in Hybrid Mode and the
Max Regeneration button is pressed for a second time,
the off-board power panel will default to Generator
Mode if the engine is ON and running. The off-board
power panel will default to Electric Mode if the battery
SOC is above the minimum threshold plus the engine is
off. If the engine is off and the SOC is below the mini-
mum threshold the system will fault and will turn off.

CAUTION!

IMPORTANT SAFETY INSTRUCTONS PERTAINING TO
POWER PANEL USE AND OPERATION:

It is important to

follow these instructions and cautions of the Off-
Board Power Panel’s overall use and operation. Fail-
ure to follow these instructions may result in damage
to the Off-Board Power Panel, vehicle, and/or
appliance.

•

Never leave electrical equipment/appliances con-
nected and operating on the Off-Board Power
Panel unattended.

•

It is recommended to plug electrical equipment/
appliances directly into the Off-Board Power Panel.

•

Never use high power electrical equipment/
appliances such as an air conditioner, washing
machine, or dryer.

•

This product contains lithium-ion battery and
should be disposed appropriately to avoid fire and
environmental impact. Do not dispose with regular
household garbage.

The energy to support the loads are provided by the
high voltage battery in the vehicle. The inverter in the
vehicle will convert the direct current (DC) power from
the high voltage battery to alternating current (AC)
power to support the loads.

The Off-Board Power Panel has an internal recharge-
able battery that will start the Off-Board communica-
tions with your electric vehicle. Should the internal bat-
tery be low/discharged, you will need to use an external
USB Type C power source to start up the Off-Board
Power Panel.

NOTE:

Ensure you have a Type C USB power source or external
adapter that can provide 5V/2A to the Type C connector.

Battery Check Mode

In this procedure, the Off-Board Power Panel cannot be
connected to the vehicle:

1. Push the AC ON button on the power panel for one

second and release to start up the Off-Board Power
Panel internal power. The power indicator will turn
ON then OFF.

2. Push the AC ON button again one time and release.

The ignition indicator will flash one time and con-
tinue to flash three times to indicate there is suffi-
cient power to start the Off-Board Power Panel.

NOTE:

If it does not flash three times, it means the internal
battery is low. Use an external Type C, or use a Type
C USB power source to charge the internal battery.

Normal Operation Mode

NOTE:

The vehicle has to be on in order to enable this feature.

1. Connect the Off-Board Power Panel electric plug to

your electric vehicle.

2. Push the AC ON button one time and release. The

Off-Board Power Panel power indicator will turn ON
then OFF, and the vehicle indicator light will flash.

3. Engage your vehicle’s V2L function to provide AC

power to the Off-Board Power Panel. Once enabled,
this will permit the use of the Off-Board Power Panel
to be used with your vehicle.

4. The Off-Board Power Panel is ready to provide AC

power to the AC outlets.

NOTE:

Ensure your electrical equipment/appliance’s power
switch is in the OFF position before inserting the plug
into the power outlet of the Off-Board Power Panel.

CAUTION!

Power off and disconnect and Off-Board Power Panel
if any electrical equipment/appliance has a strange
odor, or begins to smoke while they are powered ON
or operating.

5. To disable the AC power to the AC outlets, push the

AC ON button one time and release. The AC power to
the outlets will be disconnected.

NOTE:

The vehicle will turn off the V2L function and stop
providing power to the Off-Board Power Panel power.

Resetting The Off-Board Power Panel

1. If the ground fault circuit interrupter (GFCI) is trig-

gered, it will shut off AC power into latch mode and
the power LED will flash for 20 seconds.

2. To reset the V2L, unplug the EV coupler for 10 sec-

onds and plug it in again.

3. Push the AC ON button for the control pilot signal to

communicate with the vehicle to restart and Off-
Board Power Panel power on process.

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 18

5/22/2023 9:02:16 AM

REGENERATIVE BRAKING SYSTEM
(RBS)

Your vehicle has a RBS. The RBS replenishes the vehi-
cle's high voltage battery during deceleration, and is
particularly useful in stop-and-go city traffic. The elec-
tric motors, which propel the vehicle forward, can oper-
ate as generators when braking. The RBS recharges the
high voltage battery under certain braking conditions by
recapturing energy that would otherwise be lost while
braking. The electric power that is generated goes back
into the high voltage battery for later use, for example
when acceleration is desired.

The RBS uses conventional hydraulic friction brakes,
regenerative braking, or a combination to slow the
vehicle. If the system detects slippery conditions while
braking, ONLY friction is used to slow the vehicle. The
RBS can result in extended life of the hydraulic service
brakes; however, all inspection, scheduled mainte-
nance, and service intervals for the vehicle service
brakes must be followed.

Max Regeneration

Max Regeneration is a supplemental feature of the
RBS. When activated, it will use the RBS to help slow
the vehicle when the driver releases the accelerator
pedal. This feature allows you to moderately reduce
driving speed without pressing the brake pedal. It is
always necessary to apply the brake pedal to bring the
vehicle to a complete stop.

This feature can be activated by pressing the Max
Regeneration button, below the radio screen.

NOTE:

The Max Regeneration feature will remain on once
selected, even after the vehicle is restarted.

E-SELECT MODE

This system allows the driver to select different modes
by pushing the following buttons located below the
headlight switch.

•

Hybrid: Depletes electric range first, then gas range.

○

Automatically switches between using gas and
battery for greatest efficiency and performance.

○

Best HVAC and acceleration performance.

○

Default Mode.

•

Electric: Prevents the engine from running, unless
you absolutely need it.

○

Acceleration and heating performance may be
degraded.

○

Engine will switch on during a Wide Open Throttle
(WOT) event, or if cruise control requires it.

○

Vehicle will automatically switch to Hybrid mode
upon reaching 0% State Of Charge (SOC) or due
to system needs.

○

Not allowed with manual gate operation unless in
4WD Low and Selec-Speed Control (SSC) is
active.

•

e-Save: Engine only. Saves the current SOC/Electric
range for later.

○

SOC/Electric range may increase, but will not
decrease under most driving conditions. Under
heavy load, such as while pulling a trailer, SOC
may decrease.

○

Engine may turn off at a stop.

○

You can further customize the e-Save operation
in the radio,

page 201.

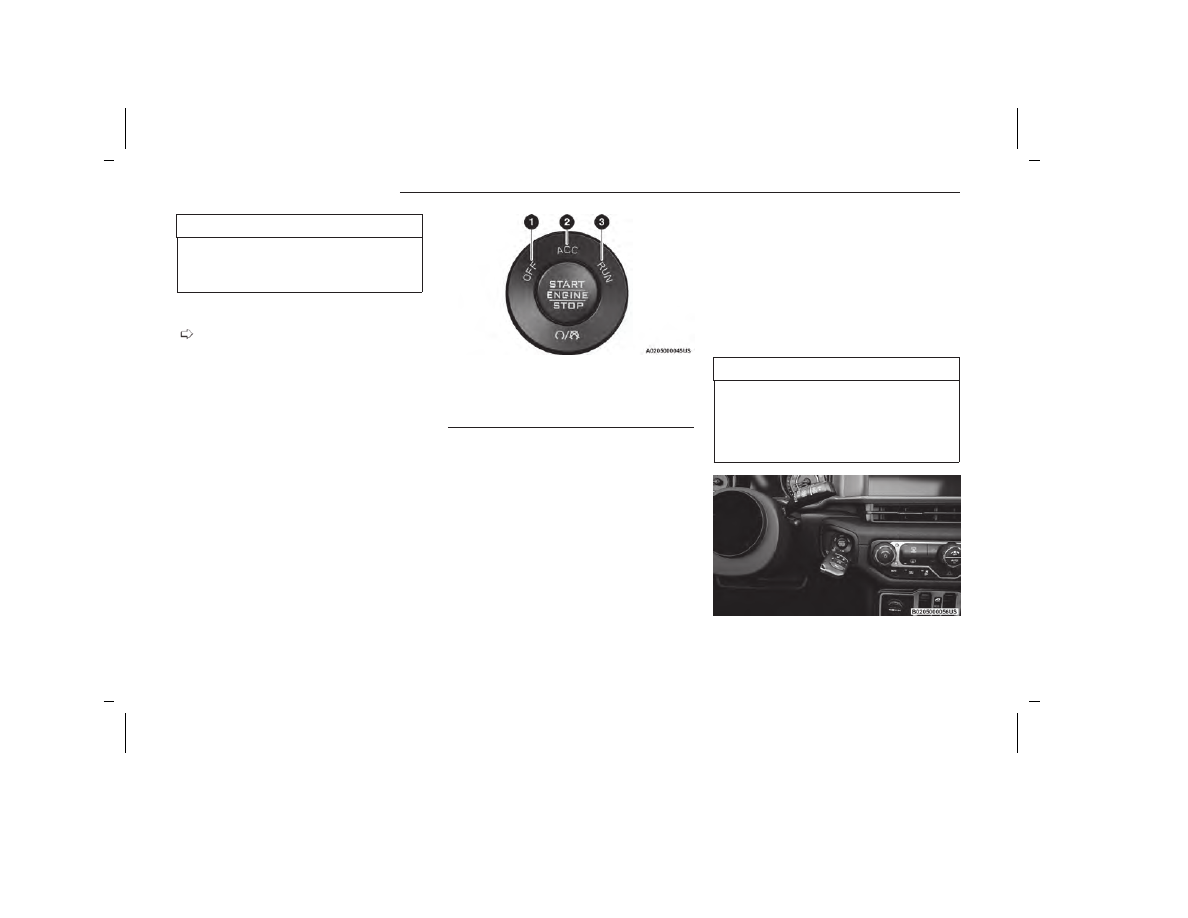

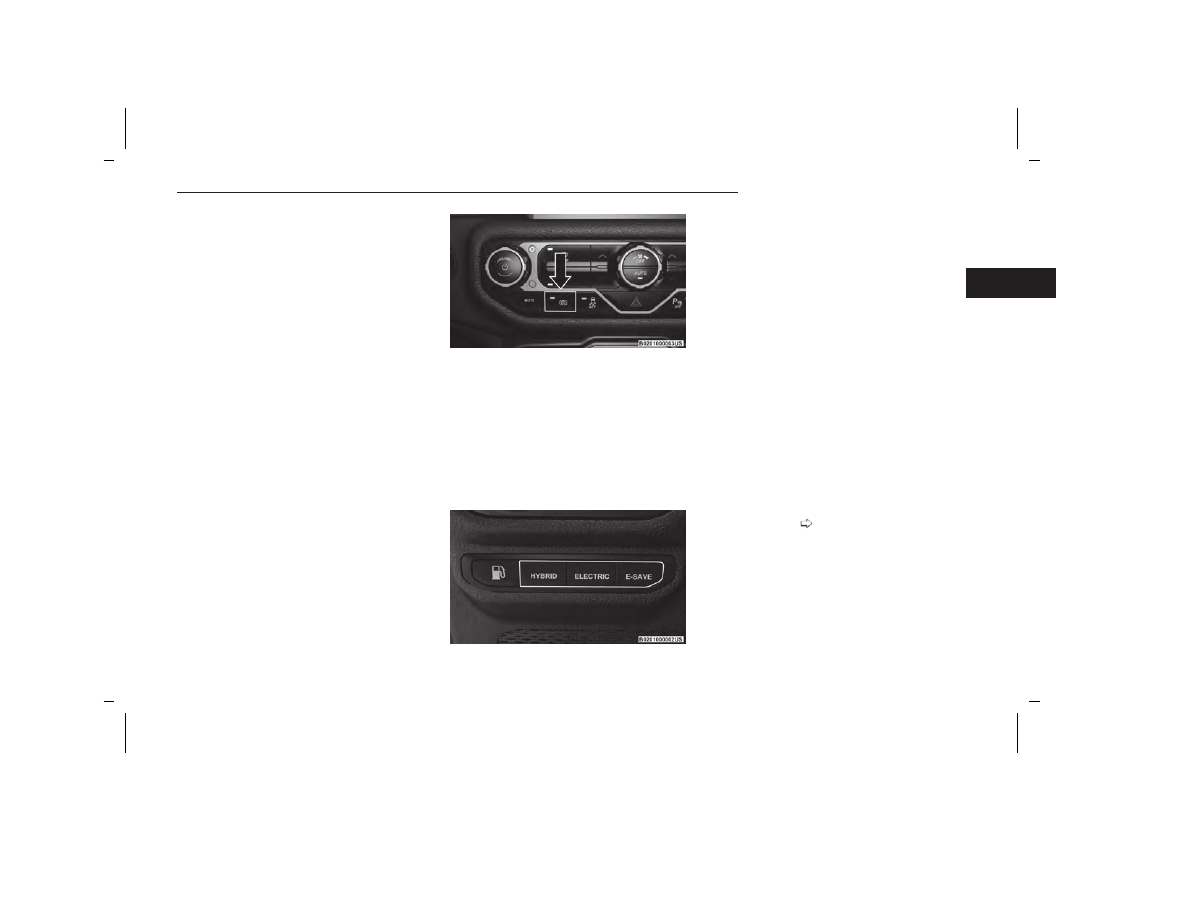

Max Regeneration Button

E-Select Mode Switch

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 19

5/22/2023 9:02:16 AM

HIGH VOLTAGE CHARGING OPERATION

SAE J1772 CHARGING INLET

Your vehicle uses an industry standard SAE
J1772 charge inlet (vehicle charge inlet) for both AC
Level 1 (120 V) and AC Level 2 (240 V) charging.

Open the charge port door by pushing near the rear
outer edge of the door, near the center to unlatch. To
close the charge port door, engage the door latch by
pushing on the rear outer edge near the center.

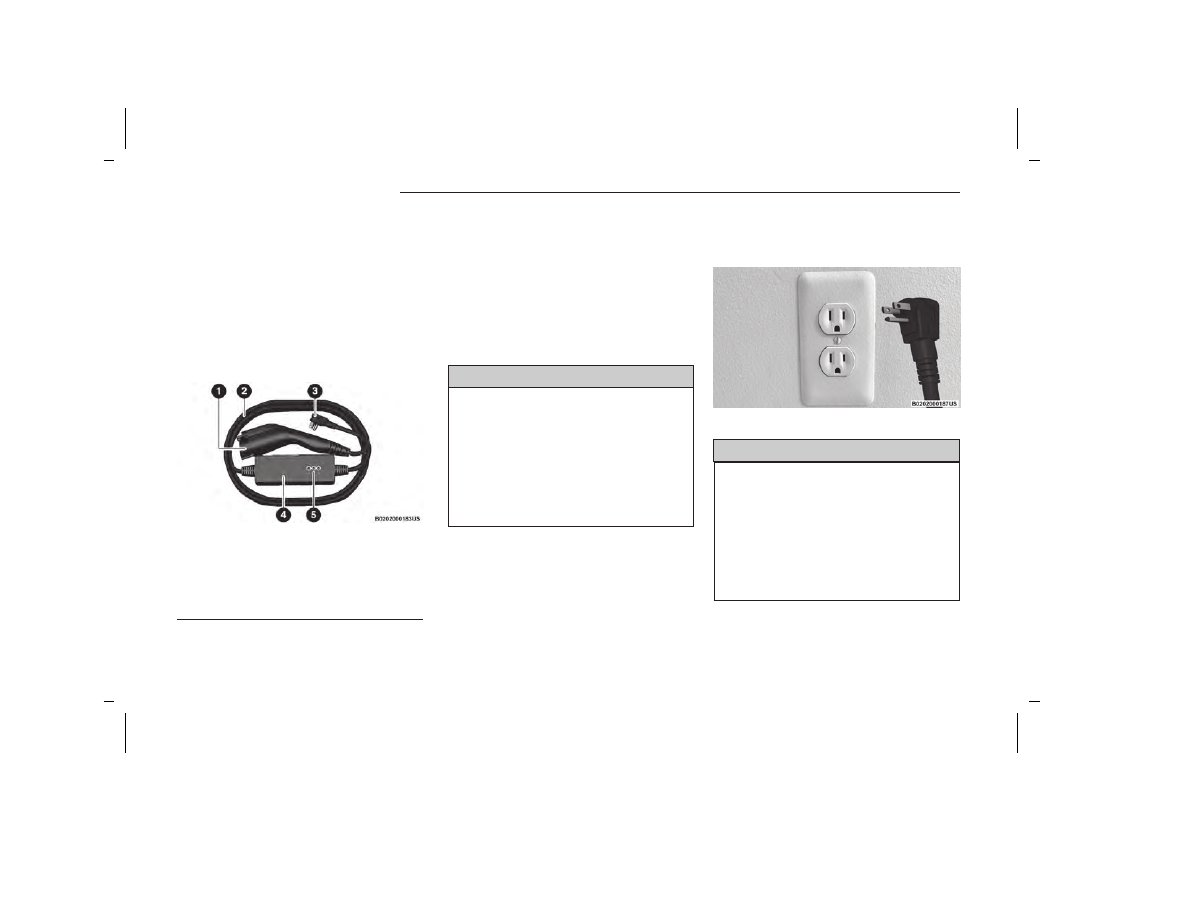

AC LEVEL 1 CHARGING
(120 VOLT, 12 AMP)

Your vehicle is equipped with a 120 Volt AC, SAE J1772
Level 1 Electric Vehicle Supply Equipment (EVSE), also
referred to as a Portable Charging Cordset (EVSE). AC
Level 1 charging requires a conventional NEMA 5-15R
120 Volt AC grounded wall outlet along with the Portable
Charging Cordset (EVSE) provided with the vehicle.

WARNING!

Please be sure to follow the warnings below. Failure
to do so may result in serious injury or death

•

Discontinue use of the Portable Charging Cordset
(EVSE) immediately if the plug or outlet becomes
hot to the touch or if you notice any unusual odors.

•

Do not use the Portable Charging Cordset (EVSE)
in building structures that use fuse-based circuit
protection. Use only with electrical circuits pro-
tected by circuit breakers.

•

Do not use the Portable Charging Cordset (EVSE) if
other devices are plugged into the same circuit.

•

When unplugging the Portable Charging Cordset
(EVSE) from the wall outlet, be sure to pull by the
plug, and not the cord.

•

Do not pull, twist, bend, step on or drag the cord of
the Portable Charging Cordset (EVSE).

•

Stop using the Portable Charging Cordset (EVSE)
immediately if charging stops before it’s completed
when the plug or cord is moved or adjusted.

•

Do not use the Portable Charging Cordset (EVSE) if
the plug has a loose connection with the wall out-
let or if the wall outlet is damaged or rusted.

•

If in any doubt about the wall outlet and/or circuit,
contact a qualified electrician.

•

Do not use if a malfunction occurs or if the Por-
table Charging Cordset (EVSE) has been damaged
in any manner. It is recommended that you contact
an authorized dealership.

(Continued)

WARNING!

•

There are no user serviceable parts inside the Por-
table Charging Cordset (EVSE). Do not attempt to
repair or service the Portable Charging Cordset
(EVSE), doing so will void the New Vehicle
Warranty.

WARNING!

INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR
ELECTRIC SHOCK:

Electrical shock, fire, and other

serious hazards can occur if the Portable Charging
Cordset (EVSE) is not used properly. This vehicle uses
a high voltage current. Failure to follow the proper
charging instructions in this publication can cause
serious injury or death. There are no serviceable
parts in the Portable Charging Cordset (EVSE). Do not
open, disassemble, penetrate, or tamper with the

(Continued)

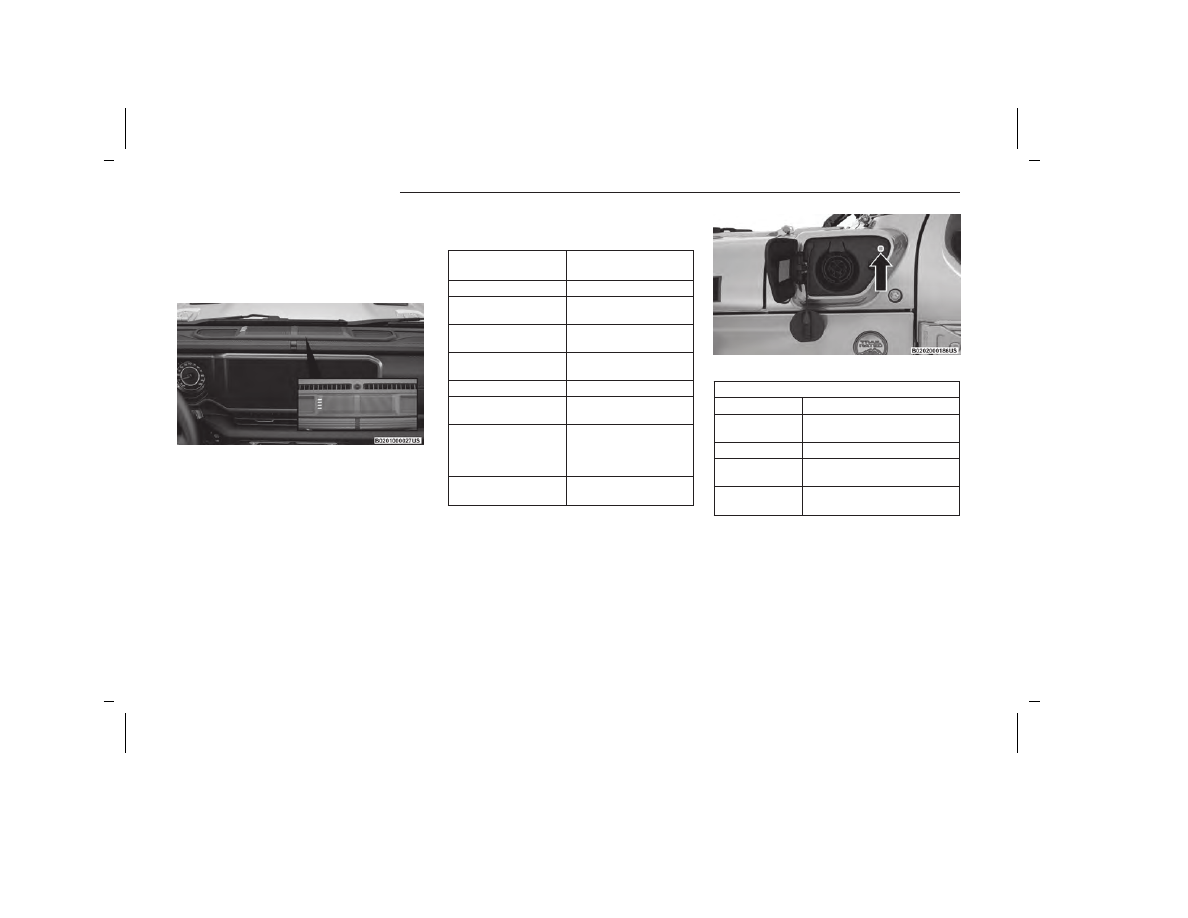

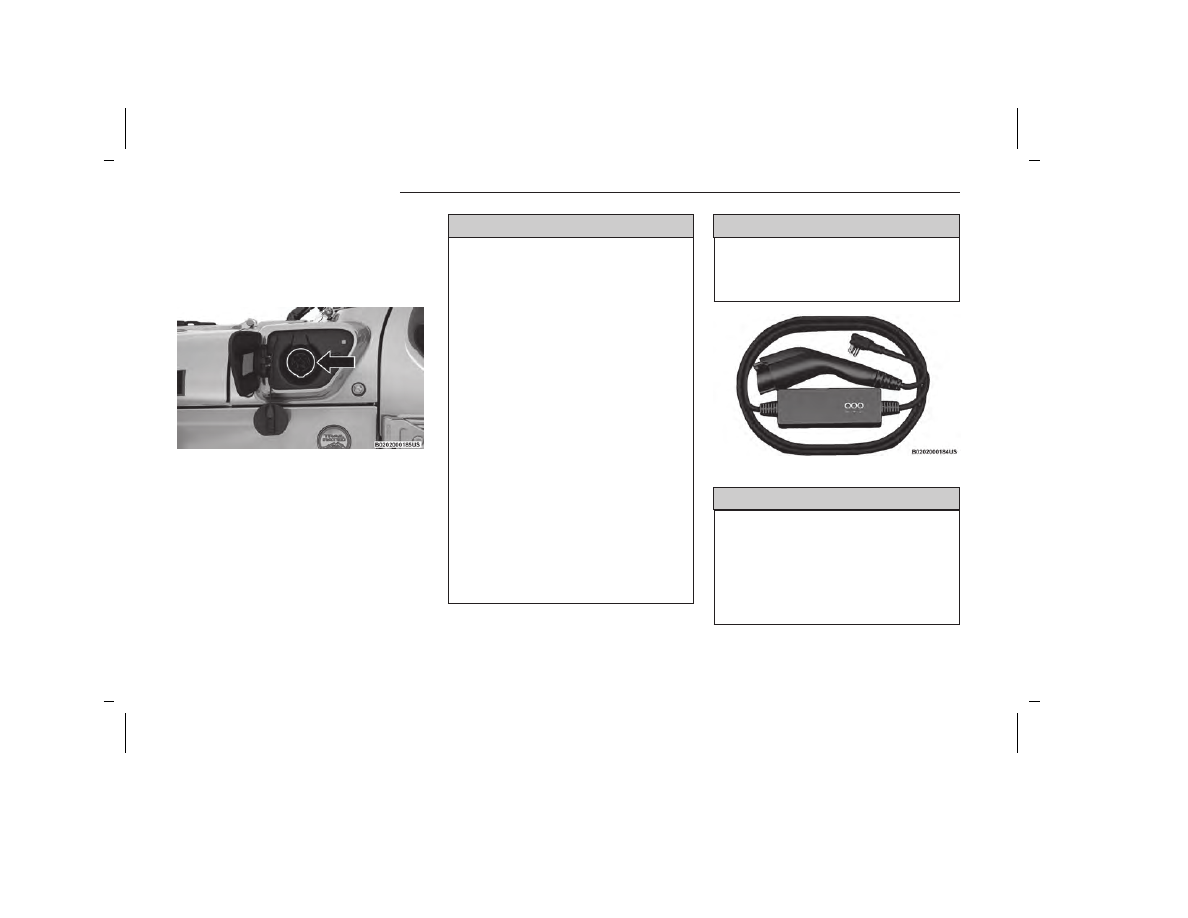

Vehicle Charge Inlet Location

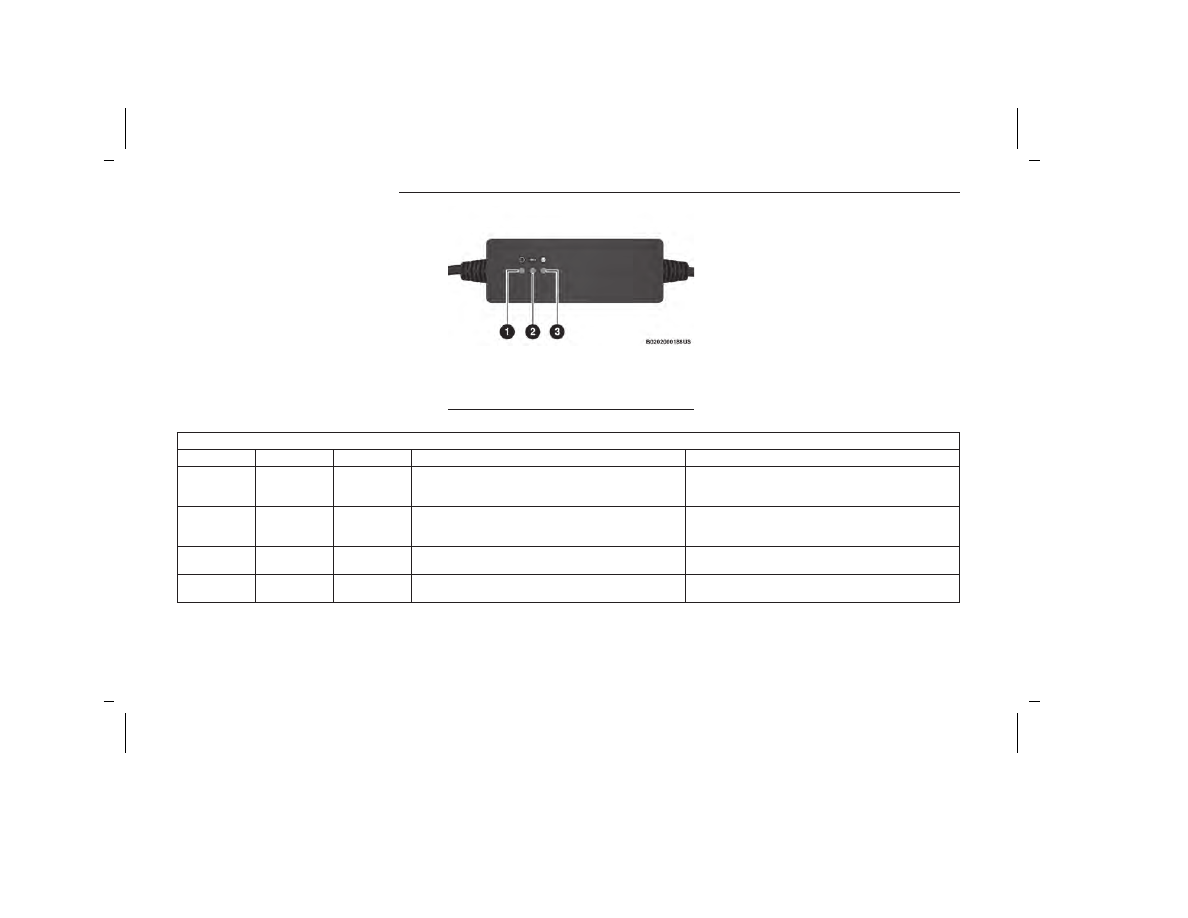

Portable Charging Cordset (EVSE)

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 20

5/22/2023 9:02:16 AM

WARNING!

Portable Charging Cordset (EVSE). Failure to follow
this warning can result in electrical shock, fire, prop-
erty damage, and death or serious injury.

The Portable Charging Cordset (EVSE) is stored in the
rear cargo area below the load floor. To access this
area, lift up the cargo strap of the load floor cover, and
remove the Portable Charging Cordset (EVSE) from the
storage bag in the bin below.

Moving, Transporting, And Storage Instructions

After use, the Portable Charging Cordset (EVSE) should
be placed in the storage bag and put back in the cargo
storage area. If the Portable Charging Cordset (EVSE)
will be left outside the vehicle, be sure to protect the
device’s connection end from moisture, dirt, and debris
accumulation and contamination.

NOTE:

The Portable Charging Cordset (EVSE) is used for AC
Level 1 charging only.

WARNING!

IMPORTANT SAFETY INSTRUCTIONS PERTAINING TO
A RISK OF FIRE OR ELECTRIC SHOCK:

This publica-

tion contains important instructions and warnings
that should be followed during charging operations.
Failure to follow these warnings and instructions can
result in electrical shock and fire which can cause
death or serious injury.

•

Read this entire publication before using the Por-
table Charging Cordset (EVSE).

•

Do not put fingers or objects into the Portable
Charging Cordset (EVSE) connector.

•

Do not use the Portable Charging Cordset (EVSE) if
the flexible power cord is frayed, broken, has
cracked insulation, or any other signs of damage.

•

Do not use the Portable Charging Cordset (EVSE) if
the enclosure or the connector is broken, cracked,
open, or shows any other indication of damage.

•

Do not use the Portable Charging Cordset (EVSE)
with an extension cord or plug adapters.

•

The Portable Charging Cordset (EVSE) may attempt
to reset and run after a power interruption.

•

There are no user serviceable parts inside the Por-
table Charging Cordset (EVSE). Do not attempt to
repair or service the Portable Charging Cordset
(EVSE) yourself – personal injury may result.

•

When using a charging station with the Portable
Charging Cordset (EVSE) attached, ensure the
charging station’s cable is not visibly damaged
before plugging into the vehicle.

(Continued)

WARNING!

•

Do not allow children to operate the Portable
Charging Cordset (EVSE). Adult supervision is man-
datory when children are in proximity to the charge
station that is in use.

•

Do not use a charge station or vehicle charge inlet
that is worn or damaged with the AC Level 2 charg-
ing cable. Plugging into worn or damaged recep-
tacles may cause damage to the Portable Charging
Cordset (EVSE) and vehicle.

•

Ensure that the Portable Charging Cordset (EVSE)
is always stored in a safe place. Do not expose the
EVSE J1772 vehicle connector to rain or wet condi-
tions. Avoid allowing water or other liquids to pour
or drip onto the vehicle connection end of the
J1772 EVSE connector. If water penetrates the
electrical device, the risk of electrical shock
increases. Ensure that all plugs and cables are
free of moisture before using the Portable Charg-
ing Cordset (EVSE).

•

In a collision, a loose Portable Charging Cordset
(EVSE) in the vehicle could cause injury. It could fly
around in a sudden stop and strike someone in the
vehicle. Do not store the Portable Charging Cordset
(EVSE) on the cargo load floor, or in the passenger
compartment.

•

The Portable Charging Cordset (EVSE) has been
tested for use in temperatures ranging from -40°F
to 122°F (-40°C to 50°C).

•

The Portable Charging Cordset (EVSE) should be
stored at temperatures between -40°F and 176°F
(-40°C and 80°C).

•

SAVE THESE INSTRUCTIONS.

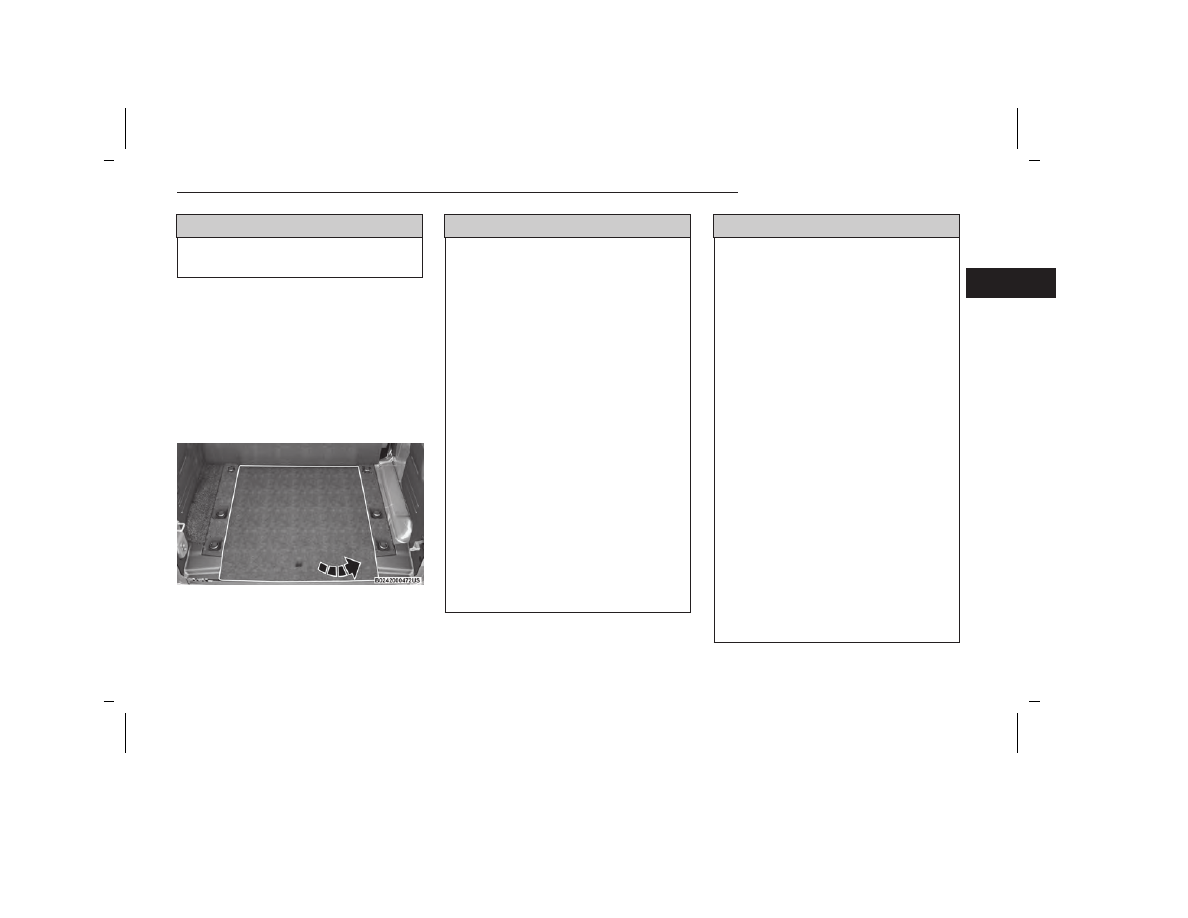

Load Floor Cover

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 21

5/22/2023 9:02:17 AM

Portable Charging Cordset (EVSE)

The Portable Charging Cordset (EVSE) is compliant with
SAE J1772, and applicable for use with vehicles fitted
with standard SAE J1772 charge inlets. The Portable
Charging Cordset (EVSE) includes:

•

A Charge Connector

•

A NEMA 6 rated enclosure with a Charge Current
Interrupt Device (CCID) with status indicator display

•

An AC Power Cord with a NEMA 5–15P right angle
plug

•

An indoor/outdoor charge cable, EV-rated

•

A Status Indicator Display

Grounding Instructions

For A Grounded, Cord-Connected Product:

The Portable Charging Cordset (EVSE) must be grounded.
If it should malfunction or break down, grounding provides
a path of least resistance for an electric current to reduce
the risk of electric shock. The Portable Charging Cordset
(EVSE) is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.

WARNING!

INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR
ELECTRIC SHOCK:

Do not use the Portable Charging

Cordset (EVSE) on electrical circuits with two-prong
outlets; use with improper outlets could result in elec-
tric shock, fire, property damage, and death or seri-
ous injury. Check with a qualified electrician if you are
in doubt as to whether the wall outlet is properly
grounded. Do not modify the plug prongs provided
with the Portable Charging Corset (EVSE) – if it does
not fit the outlet, you must have a proper outlet
installed by a qualified electrician.

Portable Charging Cordset (EVSE)

Installation And Operating Instructions

1. Always insert the AC plug prongs of the Portable

Charging Cordset (EVSE) into a 15 A, or 20 A,
120 VAC, 60 Hz, grounded wall outlet first. Do not
use an extension cord, outlet/plug adapter, or a
worn outlet. The Portable Charging Cordset (EVSE)
will not operate safely unless it is plugged directly
into the wall outlet.

NOTE:

The Portable Charging Cordset (EVSE) should be
plugged into a dedicated circuit, not a circuit shared
with other devices drawing electricity on the circuit.

WARNING!

INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR
ELECTRIC SHOCK:

Do not use the Portable Charging

Portable Charging Cordset (EVSE)

1 — Charge Connector
2 — Charge Cable
3 — AC Plug
4 — EVSE Enclosure
5 — Status Indicator Display

AC Plug And Wall Receptacle

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 22

5/22/2023 9:02:17 AM

2. Check to see if the Portable Charging Cordset

(EVSE) is ready to charge by reviewing the indicator
lights.

3. If the Portable Charging Cordset (EVSE) is ready to

charge, ensure the vehicle is in PARK, and then con-
nect the charge connector to the vehicle’s charge
inlet. You will hear a “click” when the charge con-
nector is inserted correctly and coupled with the
vehicle’s charge inlet.

4. When the vehicle commences charging, the green

indicator light will turn on.

NOTE:

The vehicle should start charging automatically. If
not, please check the following:

○

Portable Charging Cordset (EVSE) — The Portable
Charging Cordset (EVSE) status indicator lights
illuminate green, red, or yellow to identify the
charging status

page 24.

○

Wall Outlet — Check whether the wall outlet is
functional (no power outage) and/or plug the
Portable Charging Cordset (EVSE) into a different
wall outlet.

○

Charging Schedule — Check whether the charg-
ing schedules have been enabled. If enabled,
check that you are within the scheduled time
and day of the week. If a charging schedule has
been enabled in the vehicle, and it is outside the
time and day of the week, you may override the
schedule for this charging event by plugging in
the charge connector, unplugging it, and then

plugging it back into the vehicle charge inlet.
Complete the double plug sequence within
10 seconds for it to override the set schedule.

○

Hood Ajar — Check whether the hood is open.
Charging is disabled while the hood is open, and
will resume when the hood closes.

5. To stop the charging process, disconnect the Por-

table Charging Cordset (EVSE) from the vehicle first,
and then from the wall outlet. To disengage the
vehicle coupler, push the button on the connector.

6. Close the inlet door when a Portable Charging Cord-

set (EVSE) is not connected to the vehicle.

NOTE:

It is good practice to keep the ignition in the OFF posi-
tion while conducting Level 1 charging. This minimizes
any additional vehicle loads the Portable Charging Cord-
set (EVSE) has to support. The additional electrical
loads will extend the high voltage battery charging time.

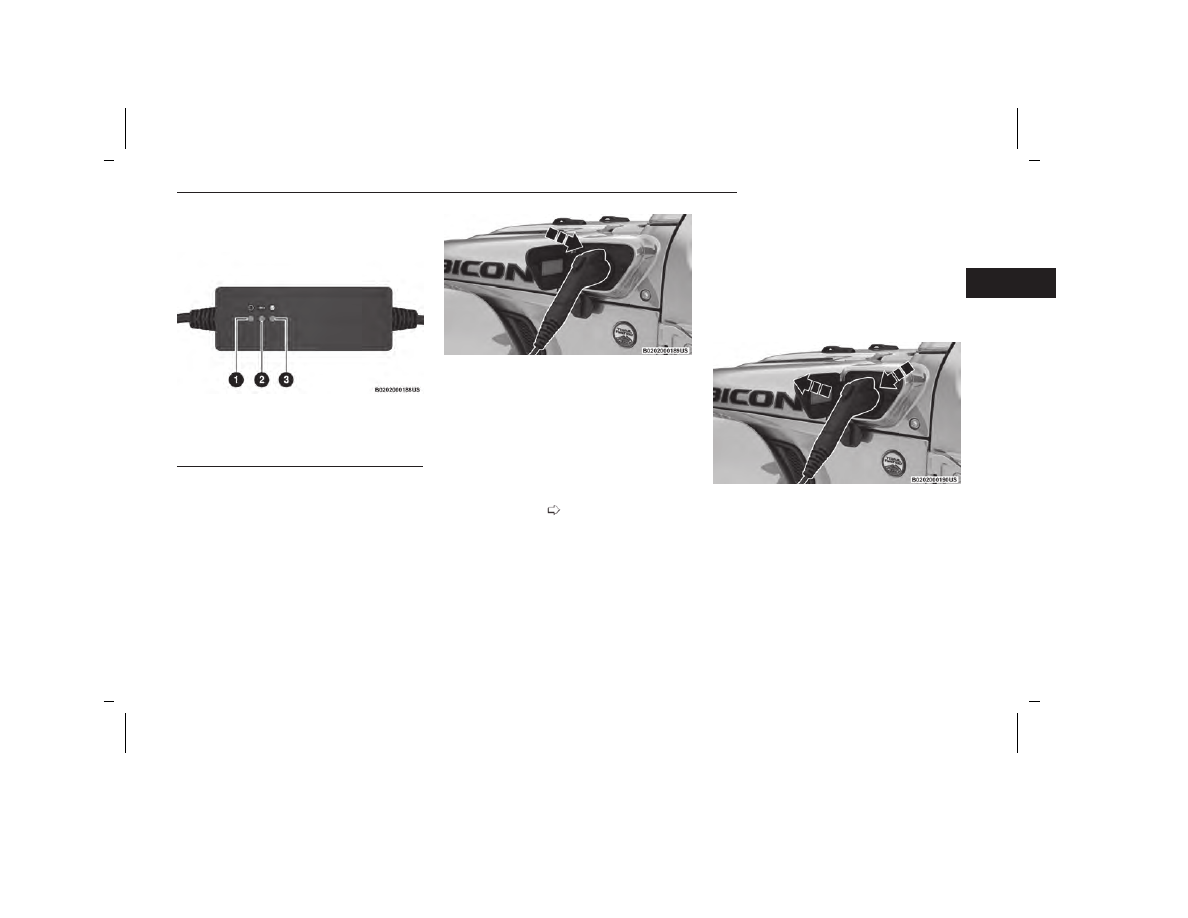

Portable Charging Cordset (EVSE) Indicator Lights

1 — AC Power Indicator Light
2 — Fault Indicator Light
3 — Check Outlet Indicator Light

Inserting The Charge Connector Into The Vehicle Charge

Inlet

Removing The Charge Connector From The Vehicle Charge

Inlet

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 23

5/22/2023 9:02:17 AM

Troubleshooting Using The Status

Indicator Display

If the vehicle is not charging properly, consult the status
indicator lights.

The

Green LED

signals correct operation of the system.

The

Red LED

signals a failure in the charging system.

The

Yellow LED

signals a failure with the outlet.

Any faults in charging are displayed by the LEDs, either
steady or flashing, located on the status indicator dis-
play of the Portable Charging Cordset (EVSE). Refer to
the following troubleshooting table.

Portable Charging Cordset (EVSE) Charging System Failure Troubleshooting

Green LED

Red LED

Yellow LED

Description

Action/Consequences

OFF

Portable Charging Cordset (EVSE) not connected to the
domestic charging outlet or power failure in the domestic
power supply mains.

OFF

There are no faults in the domestic power supply mains, so
the Portable Charging Cordset (EVSE) can be connected to
the charge inlet on the vehicle.

ON (Flashing)

Overheating at the charging outlet of the domestic power
supply mains.

When the normal temperature is reached, the system will
make a new charge attempt at a lower current level.

OFF

ON (Flashing)

Charging to a lower current level due to overheating of the
charging outlet of the domestic power supply mains.

LED Indicator Lights

1 — Green LED
2 — Red LED
3 — Yellow LED

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 24

5/22/2023 9:02:17 AM

Portable Charging Cordset (EVSE) Charging System Failure Troubleshooting

Green LED

Red LED

Yellow LED

Description

Action/Consequences

ON (Flashing)

Overheating at the charging outlet of the domestic power
supply mains.

Carefully disconnect the Portable Charging Cordset (EVSE)
from both the vehicle and power outlet and wait for the plug
and outlet to return to normal temperatures. Then, recon-
nect the Portable Charging Cordset (EVSE) to the power out-
let and vehicle and charge again.
Contact a qualified electrician in case of a new anomaly.

ON (2 Blinks)

Lack of grounding cable in the charging outlet of the domes-
tic power supply mains.

The system will make a new charge attempt after 30 sec-
onds (6 attempts in total).

ON (2 Blinks)

Lack of grounding cable in the charging outlet of the domes-
tic power supply mains.

The new charge attempt failed. Disconnect the Portable
Charging Cordset (EVSE) from the vehicle and the outlet
and reconnect it, then try to charge again.
Contact a qualified electrician in case of a new anomaly.

ON (Flashing)

OFF

Domestic mains power incorrectly supplied.

The system will make a new charge attempt after 30 sec-
onds (6 attempts total).
If the fault persists, disconnect the Portable Charging Cord-
set (EVSE) from the vehicle and the outlet and reconnect it,
then try to charge again.
Contact a qualified electrician in case of a new anomaly.

ON (Flashing)

OFF

Charge Current Interrupt Device (CCID) fault trip over one sec-
ond after relay closure. Portable Charging Cordset (EVSE) retry-
ing to charge the vehicle.

The system will make a new charge attempt after 30 sec-
onds (6 attempts in total).

OFF

Charge Current Interrupt Device (CCID) fault, Retry
Exhausted or Retry is disallowed if trips within one second
of relay closure.

The new charge attempt failed. Disconnect the Portable
Charging Cordset (EVSE) from the vehicle and the outlet
and reconnect it, then try to charge again.
Contact an authorized dealership in case of a new anomaly.

OFF

Dispersion of the electricity on the vehicle.

Disconnect the Portable Charging Cordset (EVSE) from the
vehicle and the outlet and reconnect it, then try to charge
again.
Contact an authorized dealership in case of a new anomaly.

ON (Flashing)

OFF

Electric charging current too high.

The system will make a new charge attempt after 30 sec-
onds (6 attempts total).

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 25

5/22/2023 9:02:17 AM

Portable Charging Cordset (EVSE) Charging System Failure Troubleshooting

Green LED

Red LED

Yellow LED

Description

Action/Consequences

ON (7 Blinks)

OFF

Electric charging current too high.

ON (2 Blinks)

OFF

Charging abnormality on the vehicle.

The system will make a new charge attempt after 30 sec-
onds (6 attempts total).
If the fault persists, disconnect the Portable Charging Cord-
set (EVSE) from the vehicle and the domestic power outlet
and reconnect it, then try to charge again.
Contact an authorized dealership in case of a new anomaly.

ON (3 Blinks)

OFF

Portable Charging Cordset (EVSE) failure.

ON (4 Blinks)

OFF

ON (5 Blinks)

OFF

ON (6 Blinks)

OFF

Guidelines for preventing fire and electric shock:

•

Ensure the Portable Charging Cordset (EVSE) is posi-
tioned so it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.

•

There are no user serviceable parts inside.

•

Do not use the Portable Charging Cordset (EVSE) if it
is visibly damaged. Contact an authorized dealer-
ship for service.

•

Do not place fingers, or any other objects inside the
charge connector.

•

Do not allow children to operate the Portable Charg-
ing Cordset (EVSE). Adult supervision is mandatory
when children are in proximity when the Portable
Charging Cordset (EVSE) is in use.

•

Do not use the Portable Charging Cordset (EVSE)
with an extension cord or plug adapters.

•

Do not unplug the Portable Charging Cordset (EVSE)
from the wall outlet during a charging operation.

NOTE:

During normal operation, the charge connector or AC
plug may feel warm. If either one feels hot during charg-
ing, unplug the Portable Charging Cordset (EVSE) and
have a qualified electrician inspect the wall outlet
before you continue charging

page 352.

WARNING!

INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR
ELECTRIC SHOCK:

Do not use the Portable Charging

Cordset (EVSE) with an outlet that is worn or dam-
aged. Failure to follow this warning can result in elec-
trical shock, fire, property damage, and death or seri-
ous injury.

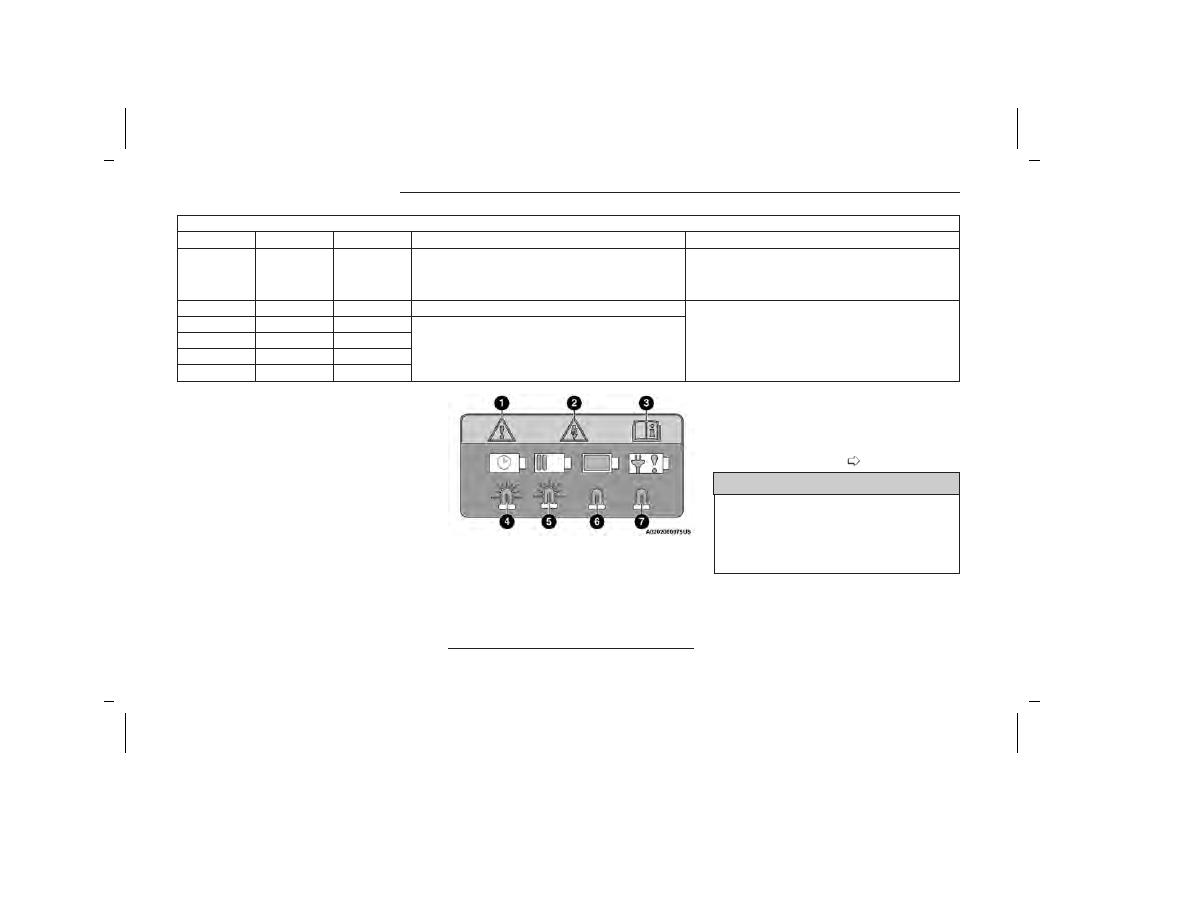

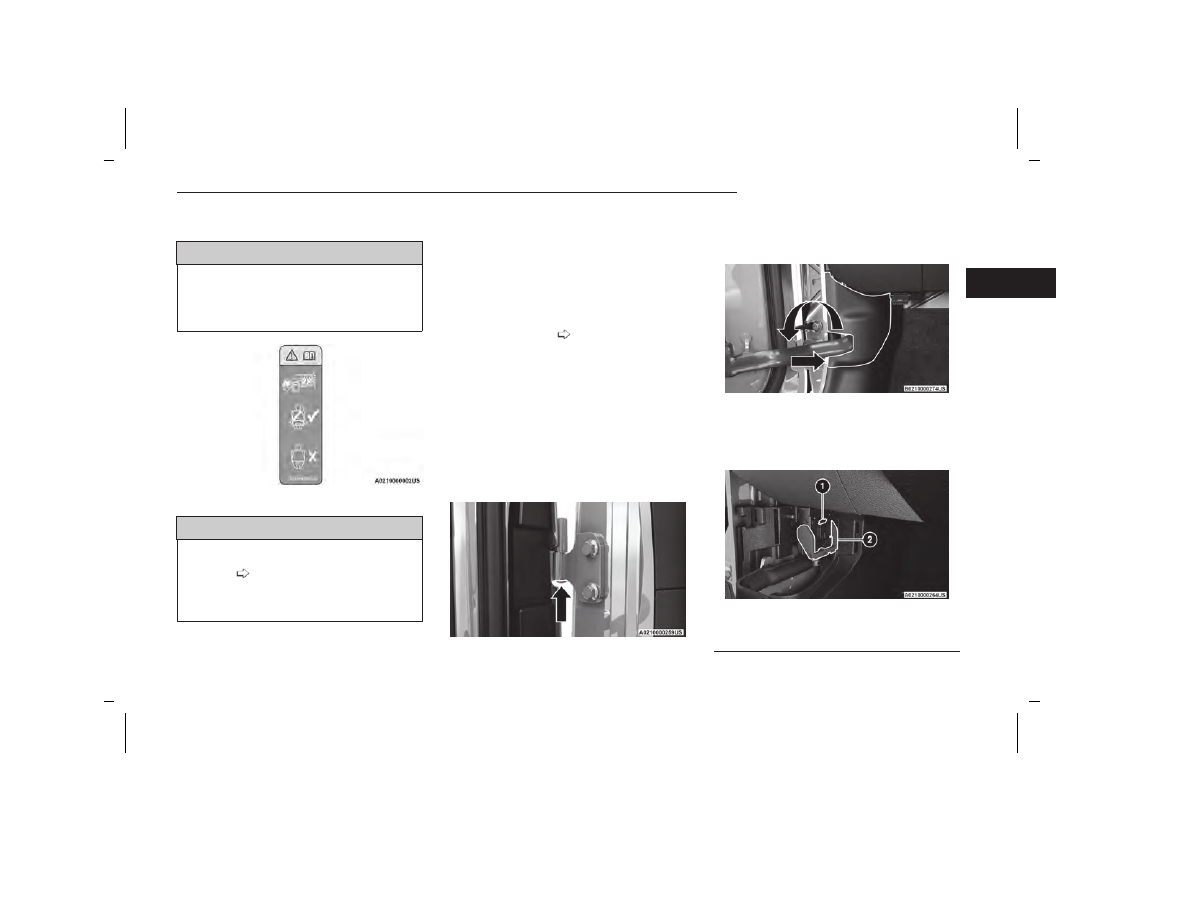

Charging Inlet Warning Label

1 — Dangerous Situation
2 — Risk Of Electric Shock
3 — Reference Owner’s Information
4 — Charging Timer Set
5 — Charging Procedure In Progress
6 — Charging Procedure Complete
7 — Fault In Charging Procedure

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 26

5/22/2023 9:02:17 AM

AC LEVEL 2 CHARGING
(240 VOLT, 40 AMP)

AC Level 2 (240 Volt) charging requires a 240 Volt,
Level 2 Electric Vehicle Supply Equipment (EVSE) charg-
ing station. A 40 Amp Level 2 EVSE for home installa-
tion is recommended.

When using public charging stations, ensure the charging
station is ready to provide charge and the vehicle is in
PARK before the Level 2 EVSE is plugged into the vehicle’s
charge inlet. You will hear a “click” when the charge con-
nector is inserted correctly and is coupled with the vehi-
cle’s charge inlet.

NOTE:

The vehicle should start charging automatically. If not,
please check the following:

•

Charging Station — Check the indications and
instructions at the charging station.

•

Charging Schedule — Check whether the charging
schedule is enabled and if so, whether the vehicle is
currently within the scheduled charge time/day
(weekday/weekend). If the charging schedule is
enabled within the vehicle, you may override it for this
charging event by plugging in the charge connector,
unplugging it, and then plugging it back into the
vehicle charge inlet. Complete the double plug
sequence within 10 seconds for it to override the set
schedule.

•

Hood Ajar — Check whether the hood is open. Charg-
ing is disabled while the hood is open, and will
resume when the hood closes.

To stop the charging process:

•

Press the “STOP” button located on the front of the
EVSE station.

•

Press the button located on the Level 2 EVSE
vehicle connector.

•

Remove the connector from the vehicle charge inlet.

•

Plug the charge handle into the Level 2 EVSE station
and coil the charging cord onto its holder. Do not
leave the charging cord lying on the ground.

CHARGING TIMES

The following factors determine the time it takes to
charge the high voltage battery:

•

The high voltage battery’s current state of charge

•

The type of Electric Vehicle Supply Equipment
(EVSE) used (Level 1 – 120 V or Level 2 – 240 V)

•

Ambient temperature

•

Whether the vehicle’s ignition is in the RUN position
during charging

NOTE:

•

The following charging times are estimates based
on charging a high voltage battery that has a <1%
State Of Charge (SOC) value displayed in the instru-
ment cluster.

•

Charging times will vary based on the age, condi-
tion, SOC, available current being provided to the
charger from its energy source, and temperature of
the high voltage battery.

•

Charging times may be longer if a thermal self-
protection reduces the charging current from the
EVSE being used.

•

If the vehicle’s ignition is in either the ACC or RUN
position, the vehicle charge indicator may not indi-
cate greater than a 99% SOC and will continue to
charge the vehicle, due to the vehicle loads.

Type of EVSE

Estimated Charge Time

Level 1
(120 V/15 A)

Approximately 12 hours

Level 2
(240 V/30 A or 32 A)

Approximately 2 hours

VEHICLE CHARGE INDICATORS

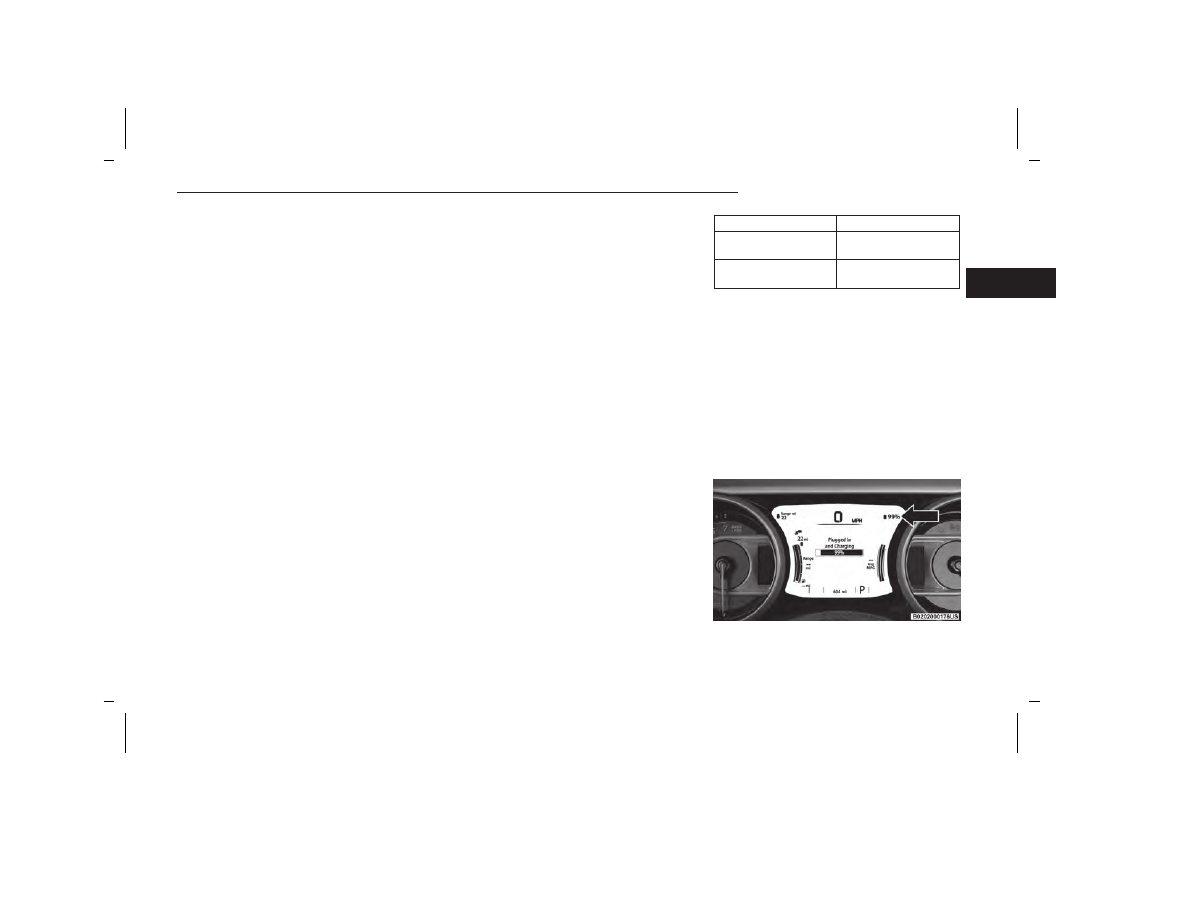

Instrument Cluster High Voltage Battery Display

There is a battery display indicator located on the
instrument cluster. The battery display will indicate the
current State Of Charge (SOC) for the high voltage bat-
tery; with the percentage value located to the right of
the symbol. When plugged in, the battery symbol also
indicates the battery level along with messages about
the charge or whether the system is waiting to charge
due to the charge schedule. These will appear unless
there is a charging fault. A green plug telltale will be
shown in the cluster, as well as applicable messaging
when charging.

High Voltage Battery Display

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 27

5/22/2023 9:02:17 AM

Instrument Panel State Of Charge Indicator

In addition to the battery display in the instrument clus-
ter, your vehicle is equipped with a visual SOC indicator.
The SOC indicator is made up of four lights that are
mounted to the top center of the instrument panel,
which will illuminate when the vehicle is plugged into
the charging system.

The SOC indicator provides a visual indication of the
high voltage battery’s charge status during charging. It
is also used to indicate a charging problem as well as
waiting for a scheduled charge to begin.

NOTE:

•

The lights scroll one at a time when the vehicle is
plugged in outside of its charging schedule time/day
of the week, and it is waiting on the schedule to
begin charging.

•

In extreme hot or cold environments, the lights on
the SOC indicator may not illuminate. Charge status
is available in the instrument cluster display. In the
event of an error in the charging process, the outer
two lights will blink.

•

When the hood is open, the lights on the SOC indi-
cator will not be illuminated.

Number Of Indicator

Lights Illuminated

Percent Of Battery

Charge

1st light blinks

0 – 25%

1st light on, 2nd light

blinks

26 – 50%

1st and 2nd lights on,

3rd light blinks

51 – 75%

1st, 2nd, and 3rd lights

on, 4th light blinks

76 – 99%

All four lights on

100%

Two outer lights are

blinking

Indicates an error in the

charging process

Lights turn on one at a

time from left to right

(when looking at the

front of the vehicle)

Indicates system is waiting

for scheduled time in

charge schedule to begin

charging

All lights turn on, then

immediately turn off

Indicates a successful

plug-in

NOTE:

For each segment of lights illuminated indicating the
percent of battery charge, two different blink rates are
used. A blink rate of 1 second on/1 second off indi-
cates that the first half is charging. The blink rate will
increase to 0.5 second on/0.5 second off to indicate
that the second half is charging. When the battery is
fully charged, the blinking stops and the lights remain
illuminated as charging continues.

Next to the charging inlet, there is an LED that changes
color based on charging status.

LED Charging Inlet

LED Light Color

Status

Blue

Indicates that the system is wait-

ing for a scheduled recharge.

Flashing Green

Charging process in place.

Solid Green

Indicates the vehicle is fully

charged.

Blinking Red

Indicates a fault in the charging

system.

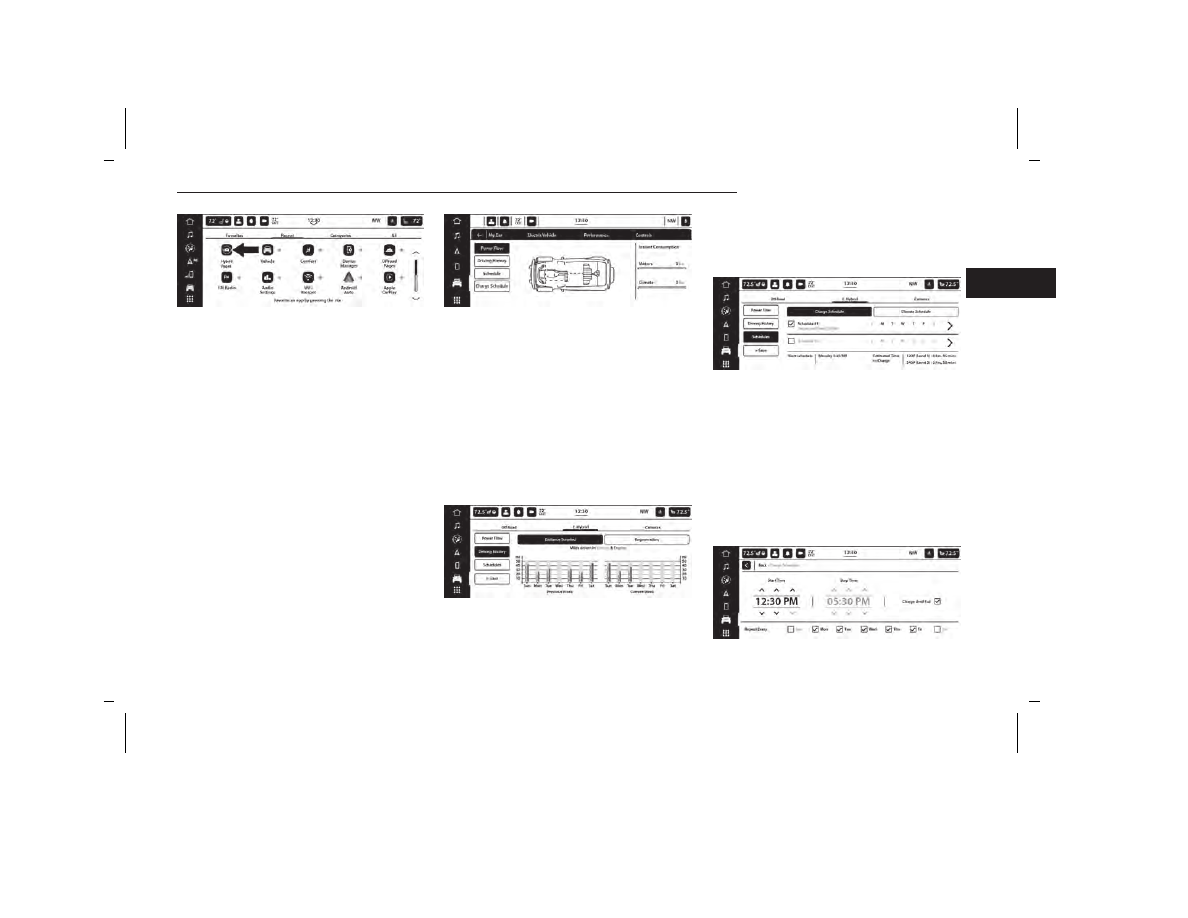

HYBRID ELECTRIC PAGES

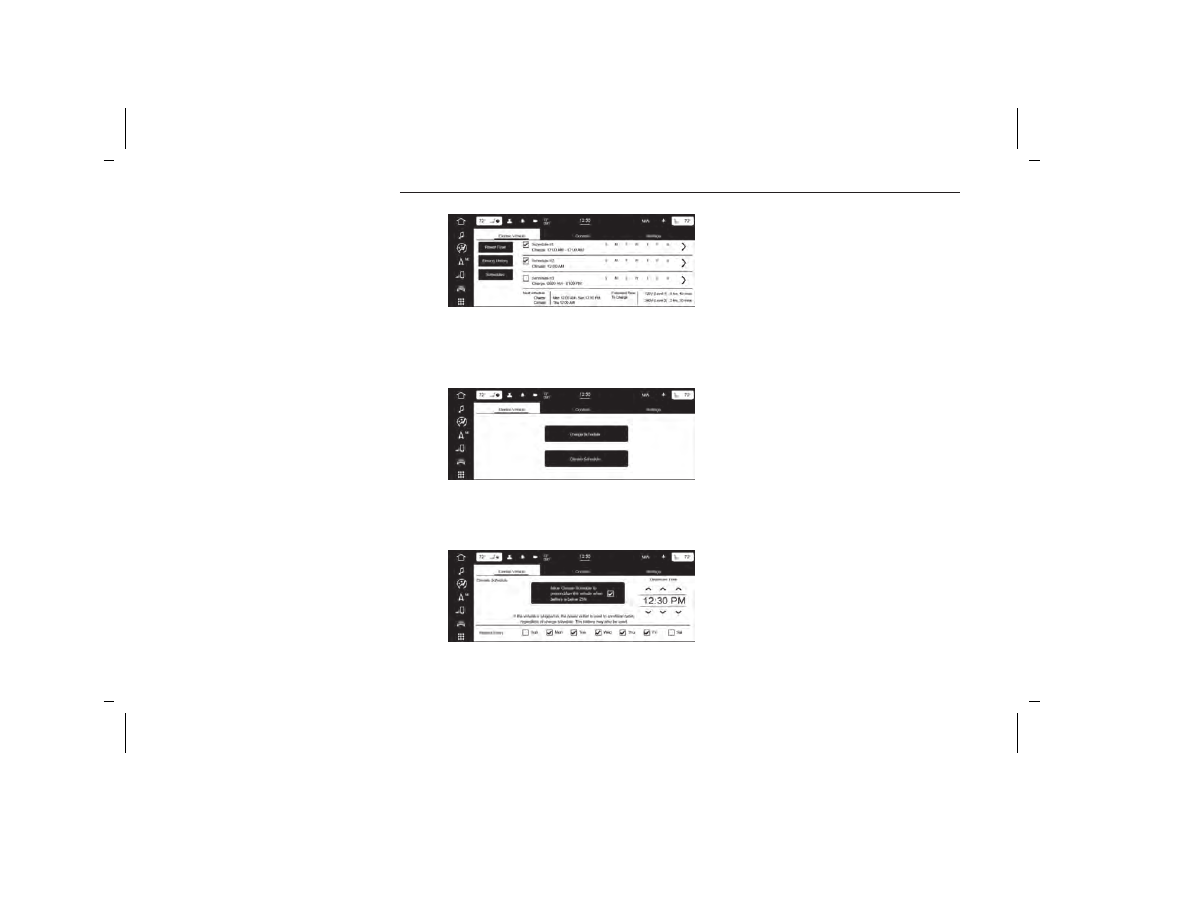

Within your Uconnect system is the Hybrid Electric App
that allows you to see your vehicle’s power flow, under-
stand your driving history, and set a charging schedule
for your vehicle’s high voltage battery. To access this
app, press the Apps button on the main menu bar of
the radio’s touchscreen, and locate the Hybrid Electric
App. Pressing the app icon brings you to a set of hybrid
electric pages: Power Flow, Driving History, Charging
Schedule, e-Save, and Charge Settings (if equipped).

State Of Charge Indicator

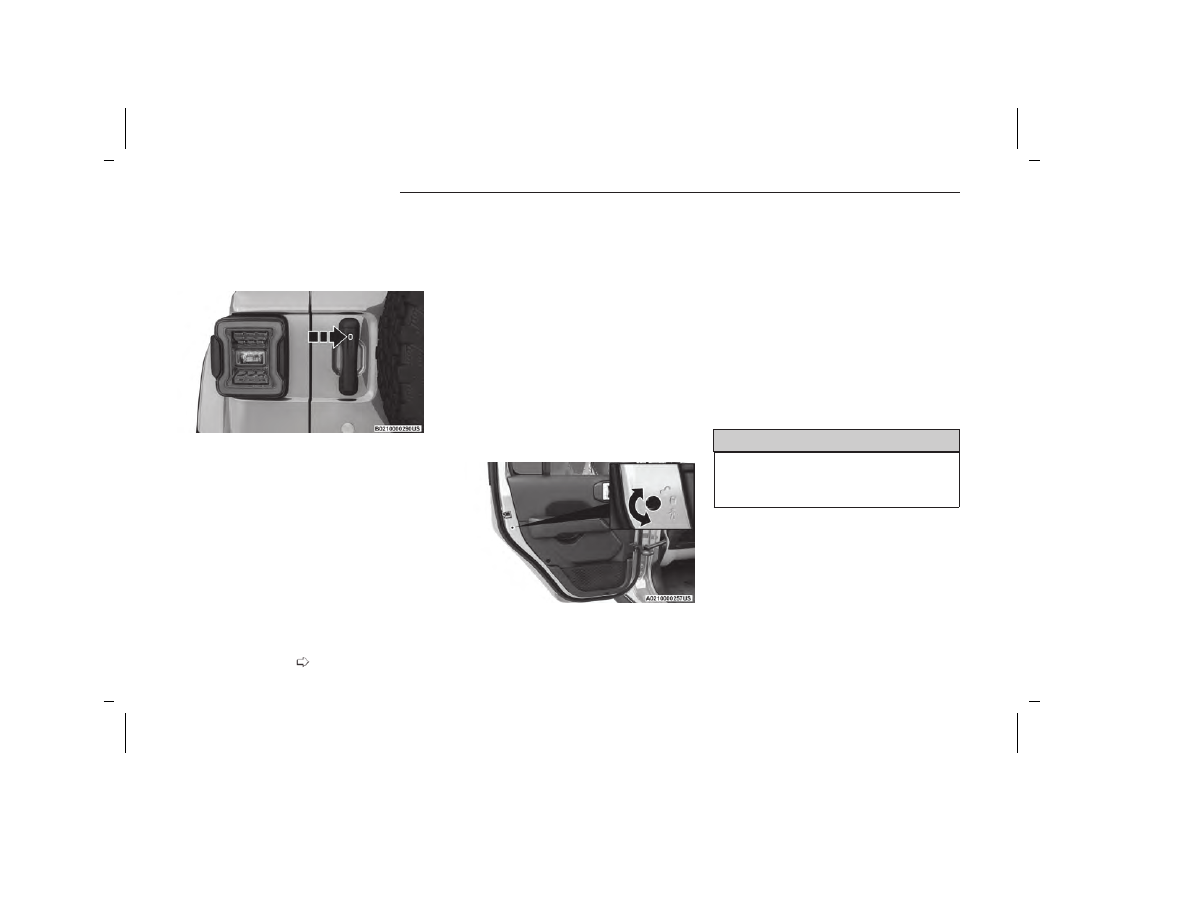

Charging Inlet LED Location

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 28

5/22/2023 9:02:17 AM

Power Flow

The Power Flow screen shows the current power read-
ings for all of the following:

•

Engine - Shows the amount of power (in kW) the
engine is generating. Based on vehicle operating
conditions, this power is used to: propel the vehicle,
provide passenger compartment heating, power
vehicle electrical loads, and charge the high voltage
battery. Engine operation is controlled to maximize
fuel economy.

•

Battery - Shows the amount of power (in kW) the
high voltage battery is currently providing/
absorbing. A negative kW indicates the vehicle’s
high voltage battery is charging.

•

Climate - Shows the amount of power (in kW) the
Climate Control system is using to maintain the cur-
rent interior temperature.

Power Flow paths are indicated by the direction of the
arrows on the touchscreen.

Driving History

The Driving History screen shows the miles (km) driven
in both Full Electric and Hybrid (battery and engine pow-
ered) modes for both the previous week and the current
week. The data is displayed in a bar graph: Electric
mode in teal and Hybrid mode in blue.

On the bar graph, miles (km) driven on the same day in
Electric mode (battery only) are always shown below
miles (km) driven in Hybrid mode. When one day of the
week exceeds 100 miles (160 km) driven, the values
for miles (km) driven in Electric and Hybrid modes will
be listed above the bar graph in respective colors (teal
for Electric and blue for Hybrid).

Charging Schedule

To set a charging schedule, select the Hybrid Electric
App on the touchscreen and follow these steps:

1. Select “Schedules”.

2. Select one of the three charging schedules by press-

ing the appropriate arrow on the right side of the
screen.

3. Select if Scheduled Charging should “Charge Until

Full”.

4. Set the Charge Start Time: Hours, Minutes, and

AM/PM.

NOTE:

This is to occur every week (as long as the vehicle is
connected to a Charging Cable).

Apps Menu Screen

Power Flow Screen

Driving History Screen

Charging Schedules Screen

Set Charge Schedule

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 29

5/22/2023 9:02:17 AM

5. When done, press the back arrow. The active sched-

ule will be indicated by the check mark to the right
of the schedule event line. The Event Action and
Time will be displayed.

6. To add another Scheduled Charging event, repeat

these steps.

NOTE:

A maximum of two independent Scheduled Charging
events can be scheduled at a given time.

If “Charge Until Full” is selected, the vehicle must be
plugged in within five minutes of the start time. The
following are situations in which “Charge Until Full” may
not be honored:

•

If selected for five days (Monday through Friday),
and the vehicle is plugged in five or more minutes
after the start time on any of those days, “Charge
Until Full” will not be honored for that day. “Charge
Until Full” will resume on the next day at the sched-
uled time.

•

If there are multiple plug/unplug events after first
being plugged in within five minutes, “Charge Until
Full” will not be honored for that day.

•

If other schedules (Charge Interval, etc.) are set at a
later time in addition to “Charge Until Full” being
selected, and the vehicle is plugged in five or more
minutes after the scheduled start time, “Charge
Until Full” will not be honored for that day. The next
available schedule will be followed.

NOTE:

•

If the charging schedule is not enabled, the vehicle
will charge whenever plugged in. It is not necessary
to set up the charging schedule to charge the
vehicle.

•

If the vehicle is plugged in outside of the charging
schedule set in the Uconnect system (and Charge
Until Full is not selected), the vehicle’s battery will
not charge. Charging will only begin immediately if
the vehicle is plugged in within the time and day of
the week set in the schedule. Otherwise, charging
will automatically begin when the selected charge
time/day of the week occurs or whenever the
vehicle is plugged in with no charge schedule set.

•

Scheduled Charging may be bypassed and charging
will begin automatically if the high voltage battery
State Of Charge (SOC) is below its optimal operating
point.

•

If the vehicle is turned off outside of the charging
window, a radio pop-up message will be displayed,
which provides an option to begin charging the
vehicle immediately. The pop-up message asks the
driver if they would like to “Charge Now?” and pro-
vides other information, including the next charging
schedule start time and estimated time to charge
the battery to 100%. If within one hour of selecting
“Yes,” the vehicle is connected to a powered Charg-
ing Cable, the vehicle will immediately begin to
charge (temporarily ignoring any set charge sched-
ule). To fully deactivate the charge schedule, refer to
the “Schedules” feature within the Hybrid Electric
App.

•

The charging schedule can also be overridden if the
Charging Cable is plugged in, unplugged, and then
plugged in a second time to the vehicle. After the
first plug in ofthe vehicle, wait until the battery
charge indicator on the instrument panel lights up
before unplugging. This “double plug sequence” will
override the schedule that is set in the radio, and

begin charging the vehicle immediately. The double
plug sequence must be completed within 10 sec-
onds for it to override the programmed schedule.

•

If “Charge Until Full” is selected, and the vehicle is
plugged in after the start time of the schedule, the
vehicle will start charging when it reaches the start
time the next day. If you would like to begin charging
immediately, and continue charging until the vehicle
is fully charged, you can select the “Charge Now”
option or use the double plug override option.

There is also a Climate Schedule which can be set and
managed for climate or cabin conditioning.

SCHEDULE BYPASS

NOTE:

If the vehicle is turned off outside of the charging win-
dow, a radio pop-up message will be displayed. The
pop-up message asks the driver if they would like to
“Charge Now?” and provides the next charging sched-
ule start time and estimated time to charge the battery
to 100%. If within one hour of selecting “Yes”, the
vehicle is connected to a powered EVSE, the vehicle will
immediately begin to charge (temporarily ignoring any
set charge schedule). To fully deactivate the charge
schedule, select the “Enable Schedule” checkbox until
the check mark is removed from the box.

The charging schedule can also be overridden if an
EVSE is plugged in, unplugged, and then plugged in a
second time to the vehicle. This double plug sequence
will override the set schedule in the Hybrid Electric
Pages App, and begin charging the vehicle immediately.
The double plug sequence must be completed within
10 seconds for it to override the programmed schedule.

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 30

5/22/2023 9:02:17 AM

e-Save

The fourth screen within the Hybrid Electric Pages App
is the e-Save screen. From this screen, you can specify
the behavior of the e-Save drive mode:

•

Battery Save - Maintains the high voltage State of
Charge at its current level under most driving
scenarios.

NOTE:

The SOC may increase if there is sufficient energy
capture through regenerative braking.

•

Battery Charge - Uses additional power from the gas
engine to increase the high voltage State of Charge,
up to 95% capacity.

NOTE:

For information on jump starting your vehicle,

page 274.

Charge Settings — If Equipped

The fifth screen within the Hybrid Electric App is the
Charge Setting screen. From this screen, you can select
the rate at which your vehicle charges. Rate selections
1 (low rate of charge) through 5 (high rate of charge)
are available. The lower the selected rate, the longer it
will take for your vehicle to reach a full charge.

The Charge Setting can be adjusted by pressing the “+”
or “-” buttons, and the estimated time until full charge
will update on the right side of the screen to reflect the
selected Charge Setting.

NOTE:

•

The Charge Setting will be saved each time the
vehicle is turned off, then back on again.

•

For information on jump starting your vehicle,
[[REFER: JUMP_START]].

KEYS

KEY FOB

Your vehicle is equipped with a key fob which supports
Passive Entry, Remote Keyless Entry (RKE), Keyless
Enter ‘n Go™ (if equipped), and Remote Start
(if equipped). The key fob allows you to lock or unlock
the doors and swing gate from distances up to approxi-
mately 66 ft (20 m). The key fob does not need to be
pointed at the vehicle to activate the system. The key
fob also contains a mechanical flip key.

NOTE:

•

The key fob’s wireless signal may be blocked if the
key fob is located next to a mobile phone, laptop, or
other electronic device. This may result in poor
performance.

•

With the ignition on and the vehicle moving at
2 mph (4 km/h), all RKE commands are disabled.

WARNING!

Push the Mechanical Key Release Button only with the
key fob facing away from your body, especially your eyes
and objects that may be damaged, such as clothing.

CAUTION!

The electrical components inside of the key fob may
be damaged if the key fob is subjected to strong elec-
trical shocks. In order to ensure complete efficiency
of the electronic devices inside of the key fob, avoid
exposing the key fob to direct sunlight.

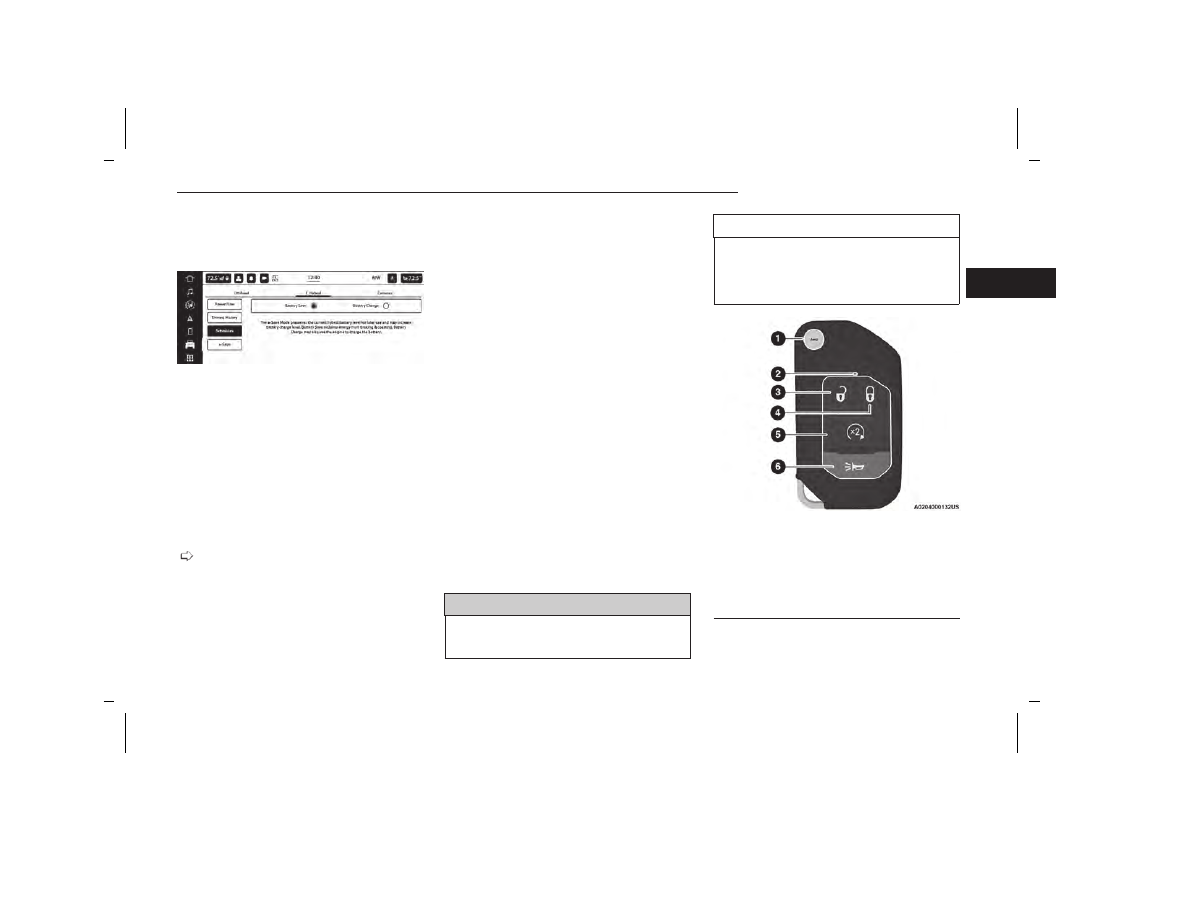

e-Save Screen

Key Fob

1 — Mechanical Key Release Button
2 — LED Indicator
3 — Unlock Button
4 — Lock Button
5 — Remote Start Button
6 — Panic Button

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 31

5/22/2023 9:02:17 AM

NOTE:

•

In case the ignition switch does not change with the
push of a button, the key fob may have a low or fully
depleted battery. A low key fob battery condition
may be indicated by a message in the instrument
cluster display, or by the LED light on the key fob. If
the LED key fob light no longer illuminates from key
fob button pushes, then the key fob battery requires
replacement.

•

Improper disposal of key fob batteries may be harm-
ful to the environment. Please see an authorized
dealer for proper battery disposal

page 352.

To Lock/Unlock The Doors And Swing

Gate

Push and release the unlock button on the key fob once
to unlock the driver’s door, or twice to unlock all the
doors and swing gate. To lock all the doors, push the
lock button once.

When the doors are unlocked, the turn signals will
flash. When the doors are locked, the turn signals will
flash and the horn will chirp.

NOTE:

All doors can be programmed to unlock on the first
push of the unlock button through the Uconnect Set-
tings

page 201.

Key Left Vehicle Feature

If a valid key fob is no longer detected inside the vehicle
while the vehicle’s ignition system is in the ON/RUN or
START position, the message “Key Fob Has Left The
Vehicle” will be shown in the instrument cluster display
along with an interior chime. An exterior audible and
visual alert will also be activated to warn the driver.

The vehicle’s horn will rapidly chirp three times along
with a single flash of the vehicle’s exterior lights.

NOTE:

•

The doors have to be open and then closed in order
for the vehicle to detect a key fob. The Key Left
Vehicle feature will activate when the first door is
closed and no key fob is detected in the vehicle. If
the warning has been activated, and the other doors
are closed, no other warnings will be issued.

•

These alerts will not be activated in situations where
either the vehicle’s engine is left running with the
key fob inside, or the key fob’s wireless signals are
blocked.

Using The Panic Feature

To turn the Panic feature on or off, push the Panic but-
ton on the key fob. When the Panic feature is activated,
the turn signals will flash, the horn may pulse on and
off (if equipped with horn alarm), and the interior lights
will turn on.

The Panic feature will stay on for three minutes unless
you turn it off by either pushing the Panic button a sec-
ond time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.

NOTE:

•

The interior lights will turn off if you place the igni-
tion in the ON/RUN position while the Panic feature
is activated. However, the exterior lights and horn
(if equipped with horn alarm) will remain on.

•

You may need to be closer than 66 ft (20 m) from
the vehicle when using the key fob to turn off the
Panic feature due to the radio frequency noises
emitted by the system.

Replacing The Battery In The Key Fob

The recommended replacement battery is CR2450.

NOTE:

•

Customers are recommended to use a battery
obtained from Mopar®. Aftermarket coin battery
dimensions may not meet the original OEM coin
battery dimensions.

•

Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
for further information.

•

Do not touch the battery terminals that are on the
back housing or the printed circuit board.

•

When a key fob battery is low, a warning will be indi-
cated on the vehicle’s instrument cluster, and the
fob LED will no longer illuminate with a button press.

1. Remove the back cover of the fob by inserting a flat-

blade screwdriver into the slot on the bottom of the
fob. Pry until the cover unsnaps being careful not to
damage the seal. Proceed counterclockwise to pry the
remaining snaps until the battery cover can be
removed.

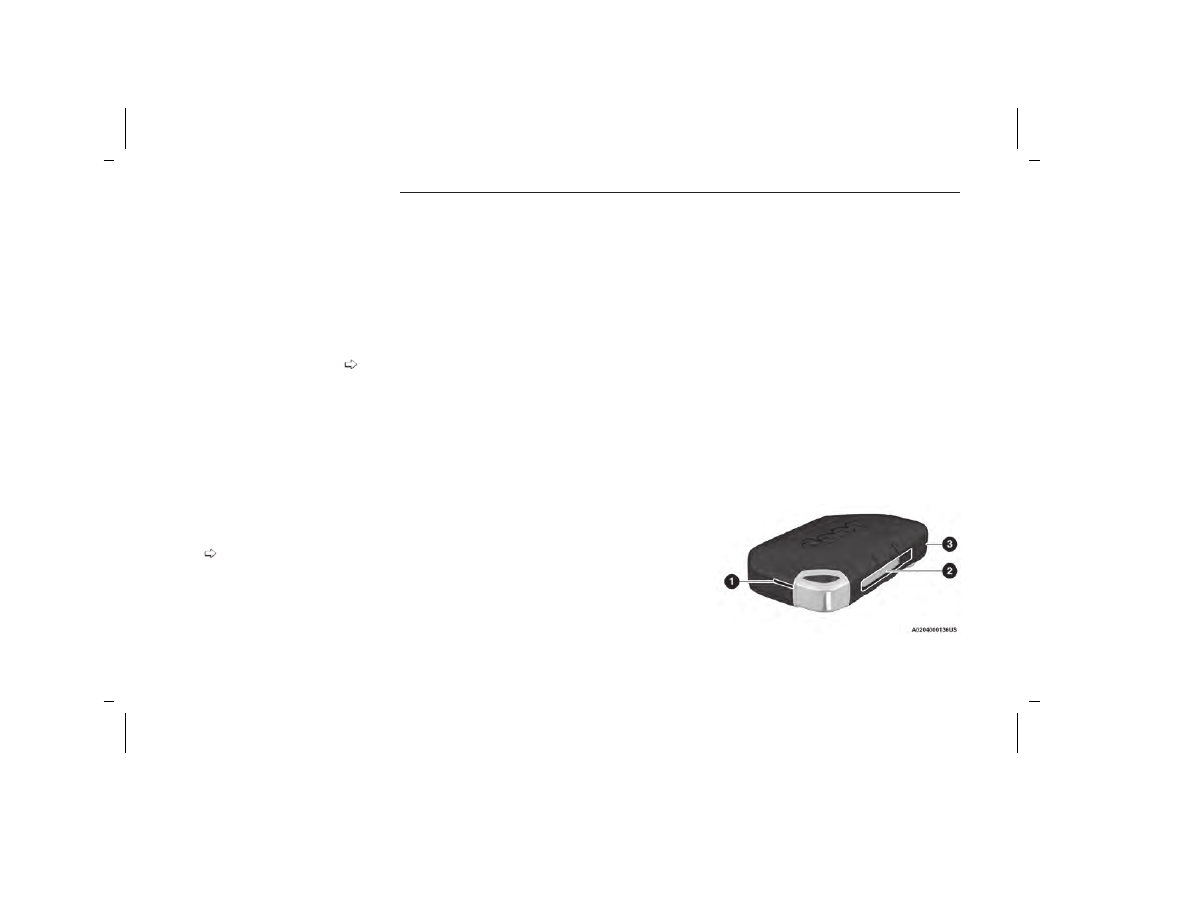

1-3 – Back Cover Pry Points

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 32

5/22/2023 9:02:17 AM

2. Remove the depleted battery by inserting a small

flat-blade screwdriver into the battery removal slot
and sliding the battery forward and up being careful
not to damage the electronic board underneath.

3. Install the new battery into the key fob, making sure

the positive (+) side is facing up. Slide the battery
until it is seated securely below the tabs.

4. Reassemble the back cover making sure it is prop-

erly aligned before snapping it back in place.

WARNING!

•

The integrated key fob contains a coin cell battery.
Do not ingest the battery; there is a chemical burn
hazard. If the coin cell battery is swallowed, it can
cause severe internal burns in just two hours and
can lead to death.

•

If you think a battery may have been swallowed or
placed inside any part of the body, seek immediate
medical attention.

(Continued)

WARNING!

•

Keep new and used batteries away from children.
If the battery compartment does not close
securely, stop using the product and keep it away
from children.

Programming And Requesting

Additional Key Fobs

Programming the key fob may be performed by an
authorized dealer.

NOTE:

•

Once a key fob is programmed to a vehicle, it cannot
be repurposed and reprogrammed to another
vehicle.

•

Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the
vehicle.

WARNING!

•

Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle
unattended.

•

For vehicles equipped with Keyless Enter ‘n Go™
Ignition, always remember to place the ignition in
the OFF position when exiting the vehicle.

Duplication of key fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.

NOTE:

•

When having the Sentry Key Immobilizer system
serviced, bring all vehicle keys with you to an autho-
rized dealer.

•

Key fob with mechanical flip key must be ordered to
the correct key cut to match the vehicle locks.

SENTRY KEY

The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The sys-
tem does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is
locked or unlocked.

The system uses a key fob, keyless push button ignition
and a Radio Frequency (RF) receiver to prevent unau-
thorized vehicle operation. Therefore, only key fobs that
are programmed to the vehicle can be used to start and
operate the vehicle. The system cannot reprogram a
key fob obtained from another vehicle.

After placing the ignition in the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for
a bulb check. If the light remains on after the bulb
check, it indicates that there is a problem with the elec-
tronics. In addition, if the light begins to flash after the
bulb check, it indicates that someone attempted to
start the engine with an invalid key fob. If a valid key fob
is used to start the engine but there is an issue with the
vehicle electronics, the engine will start and shut off
after two seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than
10 seconds), it indicates that there is a fault in the elec-
tronics. Should this occur, have the vehicle serviced as
soon as possible by an authorized dealer.

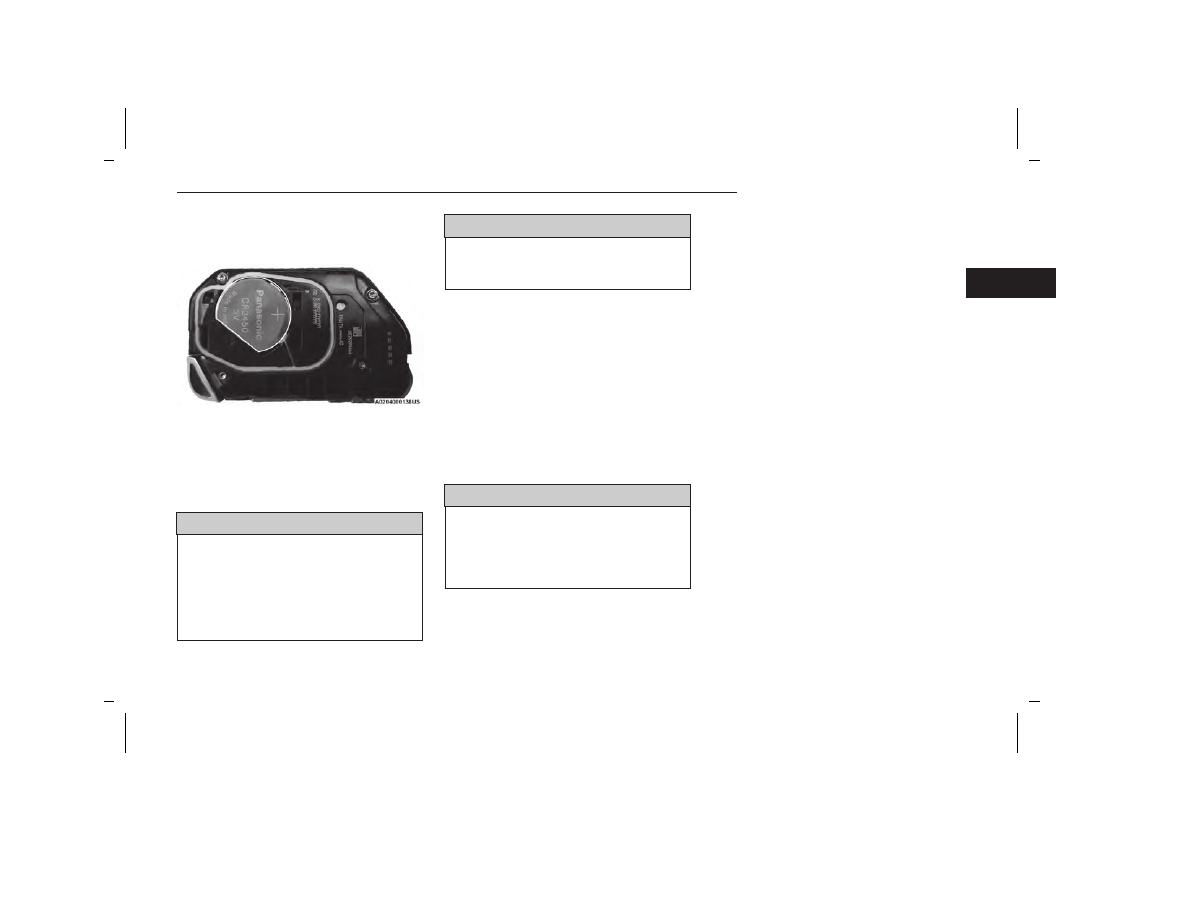

Battery Replacement

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 33

5/22/2023 9:02:17 AM

CAUTION!

The Sentry Key Immobilizer system is not compatible
with some aftermarket Remote Start systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics

page 352.

NOTE:

A key fob that has not been programmed is also consid-
ered an invalid key.

IGNITION SWITCH

KEYLESS ENTER ‘N GO™ IGNITION

This feature allows the driver to operate the ignition
switch with the push of a button as long as the key fob
is in the passenger compartment.

The START/STOP ignition button has several operating
modes that are labeled and will illuminate when in posi-
tion. These modes are OFF, ACC, RUN, and START.

The push button ignition can be placed in the following
modes:

OFF

•

The engine is stopped.

•

Some electrical devices (e.g. power locks, alarm,
etc.) are available.

ACC

•

Engine is not started.

•

Some electrical devices (e.g. climate controls,
heated seats, etc.) are available.

RUN

•

Driving position.

•

All electrical devices are available.

START

•

The engine will start.

NOTE:

In case the ignition switch does not change with the
push of the START/STOP ignition button, the key fob
may have a low or depleted battery. In this situation, a
backup method can be used to operate the ignition
switch. Put the nose side of the key fob (side with the
mechanical flip key) against the START/STOP ignition
button and push to operate the ignition switch.

CAUTION!

•

Do not press the mechanical key against the
START/STOP ignition button.

•

Do not use sharp metal objects (e.g. screwdriver
etc.) to pry the button out of the ignition switch.
This button comes as an assembly, and is not
removable. This can damage the silicone shield.

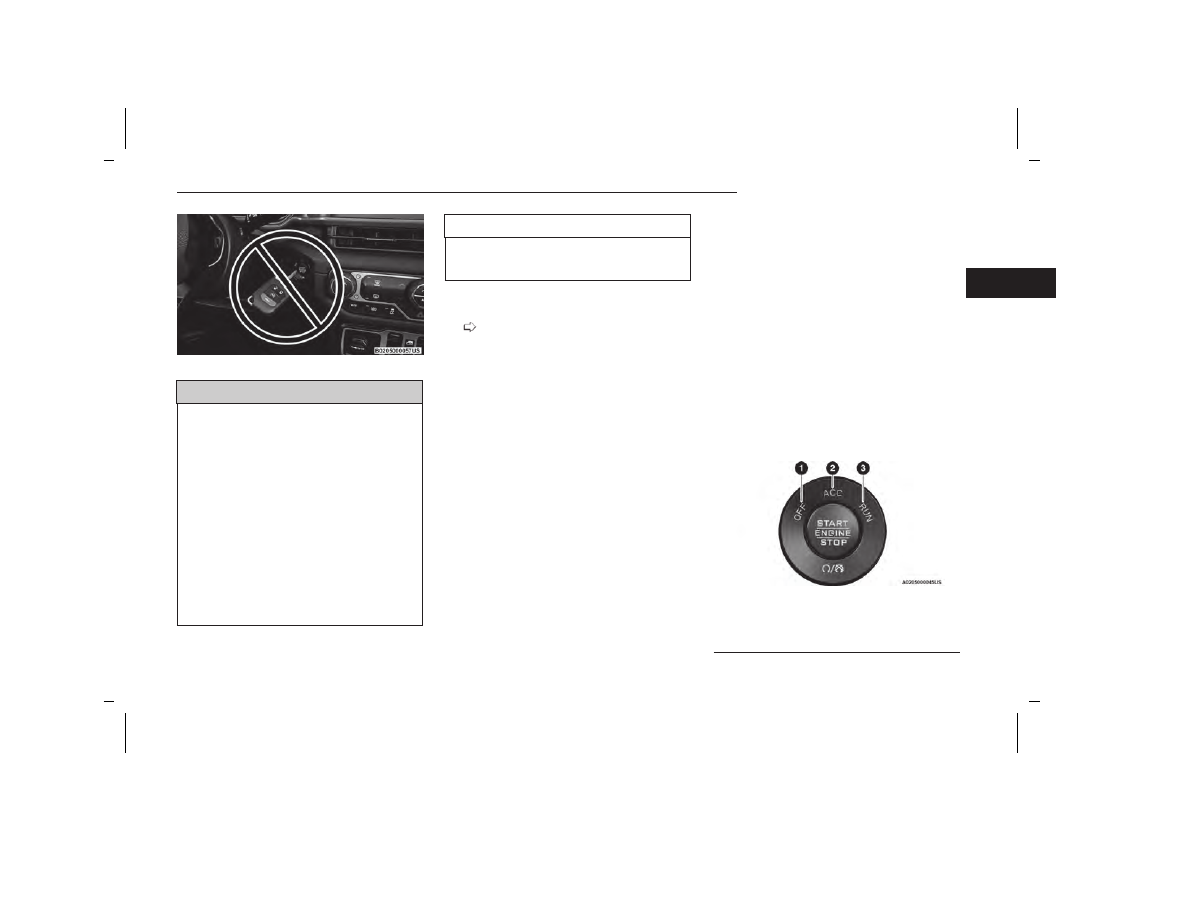

START/STOP Ignition Button

1 — OFF
2 — ACC
3 — RUN

Backup Starting Method

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 34

5/22/2023 9:02:17 AM

WARNING!

•

When exiting the vehicle, always remove the key
fob from the vehicle and lock your vehicle.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

•

Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or oth-
ers could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.

•

Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave the Keyless Enter ‘n Go™ Ignition in the
ON/RUN position. A child could operate power win-
dows, other controls, or move the vehicle.

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves.
Always remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.

NOTE:

•

For more information on normal starting, see

page 143.

•

When opening the driver's door with the ignition in
the ON/RUN position (engine not running), a chime
will sound to remind you to place the ignition in the
OFF position. In addition to the chime, the message
will display “Ignition Or Accessory On” in the cluster.

KEYLESS ENTER ‘N GO™
IGNITION — PHEV ONLY

This feature allows the driver to operate the ignition
switch with the push of a button as long as the key fob
is in the passenger compartment.

NOTE:

This vehicle is equipped with an automatic shutdown
feature. If the vehicle is left with the ignition in the RUN
position (engine not running) with gear selector in PARK
for 30 minutes, it will automatically turn off the vehicle.
If the driver door is opened, then closed while propul-
sion is active and the vehicle is in PARK, the vehicle will
shut down. Notifications have been designed into this
feature to raise awareness of the timed event by show-
ing messages in the instrument cluster display.

The instrument cluster display will also show the message
“Ready to Drive” accompanied with three audible chimes
while the driver door is opened while the ignition state is
in READY mode. The interior warnings will occur regard-
less of whether the key fob remains in the vehicle or is

removed. The horn will sound three times, and the turn
signals will flash, if the key fob is removed from the
vehicle while the ignition state is in READY mode.

To restart the vehicle, follow the normal process for
starting your vehicle.

The Keyless Push Button Ignition has several operating
modes that are labeled and will illuminate when in posi-
tion. These modes are OFF, ACC, RUN, and START.

NOTE:

•

Pushing the START/STOP ignition button may only acti-
vate the Electric Propulsion system and not start the
vehicle’s engine (if running the engine is not currently
required by the Hybrid system). READY will show in the
instrument cluster display whenever the vehicle is
operating in Electric mode and the vehicle is
stationary.

•

If the vehicle’s ignition is in either ACC or RUN, the
vehicle charge indicator may not display a value
greater than 99% state of charge due to vehicle loads.

Do Not Use Mechanical Key

Keyless Push Button Ignition

1 — OFF
2 — ACC
3 — RUN

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 35

5/22/2023 9:02:17 AM

The ignition can be placed in the following positions:

OFF

•

The vehicle is stopped

•

Some electrical devices are available

ACC

•

Some electrical devices are available

•

Mechanical power (vehicle propulsion) is not available

RUN

•

Driving position

•

All electrical devices are available

•

As long as READY appears in the instrument cluster
display, it does not matter if the engine is running or
not, vehicle propulsion is available

START

•

The vehicle will start

NOTE:

Vehicle propulsion is only available after the vehicle has
passed through the START position.

Conditions Which May Cause The Engine To Run

•

When the Hybrid Battery State of Charge (SOC) has
reached <1%

•

When applying maximum vehicle acceleration

•

While maintaining the Exhaust System Catalyst Tem-
perature in Hybrid or e-Save modes

•

When the hood is open with the ignition in RUN,
post-START mode

•

When Manual Mode/Tip Mode is in use

•

When the engine is temporarily operating in Fuel
and Oil Refresh Mode (e.g. if the system detects a
stale fuel or aged oil condition after a long period
without combustion engine operation)

•

When the vehicle is started in very cold ambient
temperatures

•

When the vehicle is in a lower ambient temperature
and may need to support passenger compartment
heating

CAUTION!

•

Do not press the mechanical key against the
START/STOP ignition button.

•

Do not use sharp metal objects (e.g. screwdriver
etc.) to pry the button out of the ignition switch.
This button comes as an assembly, and is not
removable. This can damage the silicone shield.

NOTE:

In extreme climates (hot or cold environments), the
vehicle will need to be plugged in prior to starting the
vehicle, or the vehicle may not start.

WARNING!

•

When leaving the vehicle, always remove the key
fob from the vehicle and lock your vehicle.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

(Continued)

WARNING!

•

Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave the Keyless Enter ‘n Go™ Ignition in the ACC
or RUN position. A child could operate power win-
dows, other controls, or move the vehicle.

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for theft. Always
turn the vehicle off, remove the key fobs from the
vehicle, and lock all the doors when leaving the
vehicle unattended.

NOTE:

If the brake is pressed and the ignition is placed in the
RUN position with an EVSE connected to the vehicle,
the instrument cluster display will not display the
READY state. When the Electric Vehicle Supply Equip-
ment (EVSE) is unplugged from the vehicle, the vehicle
will go into the READY state. If the vehicle is not shifted
out of PARK 30 minutes after being unplugged, the
vehicle will disable the READY state. After an additional
30 minutes with no change in ignition status, the igni-
tion will turn off and the vehicle will power down.

For more information on normal starting, see

page 146.

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 36

5/22/2023 9:02:17 AM

REMOTE START — IF EQUIPPED

This system uses the key fob to start the
engine conveniently from outside the vehicle
while still maintaining security. The system has
a range of approximately 328 ft (100 m).

Remote Start is used to defrost windows in cold
weather and to reach a comfortable climate in all ambi-
ent conditions before the customer enters the vehicle.

NOTE:

•

The vehicle must be equipped with an automatic
transmission to be equipped with Remote Start.

•

Obstructions between the vehicle and key fob may
reduce this range

page 352.

WARNING!

•

Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains carbon mon-
oxide which is odorless and colorless. Carbon mon-
oxide is poisonous and can cause serious injury or
death when inhaled.

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

HOW TO USE REMOTE START

Push and release the Remote Start button on the key
fob twice within five seconds. The vehicle doors and
swing gate will lock, the turn signals will flash twice,
and the horn will chirp twice. Pushing the Remote Start
button again will shut the engine off.

NOTE:

•

With Remote Start, the engine will only run for
15 minutes.

•

Remote Start can only be used twice.

•

If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.

•

The park lamps will turn on and remain on during
Remote Start mode.

•

For security, power window operation is disabled
when the vehicle is in the Remote Start mode.

•

The ignition must be placed in the ON/RUN position
before the Remote Start sequence can be repeated
for a third cycle.

All of the following conditions must be met before the
engine will remote start:

•

Gear selector in PARK

•

Doors closed

•

Hood closed

•

Swing gate closed

•

Hazard switch off

•

Brake switch inactive (brake pedal not pressed)

•

Battery at an acceptable charge level

•

Panic button not pushed

•

System not disabled from previous Remote Start
event

•

Vehicle Security system indicator flashing

•

Ignition in OFF position

•

Fuel level meets minimum requirement

•

All removable doors must not be removed

•

Malfunction Indicator Light (MIL) not illuminated

WARNING!

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

TO EXIT REMOTE START MODE

To drive the vehicle after starting the Remote Start sys-
tem, either push and release the unlock button on the key
fob to unlock the doors, or unlock the vehicle using Key-
less Enter ‘n Go™ — Passive Entry via the door handles,
and disarm the Vehicle Security system (if equipped).
Then, prior to the end of the 15 minute cycle, push and
release the START/STOP ignition button.

The Remote Start system will turn the engine off if the
Remote Start button on the key fob is pushed again, or
if the engine is allowed to run for the entire 15 minute
cycle. Once the ignition is placed in the ON/RUN posi-
tion, the climate controls will resume previously set
operations (temperature, blower control, etc.).

NOTE:

•

To avoid unintentional shutdowns, the system will
disable for two seconds after receiving a valid
Remote Start request.

•

For vehicles equipped with the Keyless Enter ‘n Go™
— Passive Entry feature, the message “Remote Start
Active — Push Start Button” will display in the instru-
ment cluster display until you push the START/STOP
ignition button.

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 37

5/22/2023 9:02:17 AM

REMOTE START FRONT DEFROST
ACTIVATION — IF EQUIPPED

When Remote Start is active, and the outside ambient
temperature is 40°F (4.5°C) or below, the system will
automatically activate front defrost for 15 minutes or
less. The timing is dependent on the ambient tempera-
ture. Once the timer expires, the system will automati-
cally adjust the settings depending on ambient condi-
tions. See “Remote Start Comfort Systems —
If Equipped” in the next section for detailed operation.

REMOTE START COMFORT
SYSTEMS — IF EQUIPPED

When Remote Start is activated, the front and rear
defroster will automatically turn on in cold weather con-
ditions. The heated steering wheel and driver heated
seat feature will turn on if programmed in the Comfort
menu screen within Uconnect Settings

page 201.

In warm weather, the driver vented seat feature will
automatically turn on when Remote Start is activated, if
programmed in the Comfort menu screen. The vehicle
will adjust the climate control settings dependent on
the outside ambient temperature.

NOTE:

If the vehicle is equipped with a rear climate system, it
will remain off to allow for optimal front row
performance.

Automatic Temperature Control (ATC) — If Equipped

The climate controls will automatically adjust to the
optimal temperature and mode settings dependent on
the outside ambient temperature. This will occur until
the ignition is placed in the ON/RUN position where the
climate controls will resume their previous settings.

Manual Temperature Control (MTC) — If Equipped

•

In ambient temperatures of 40°F (4.5°C) or below,
the climate settings will default to maximum heat,
with fresh air entering the cabin. If the front defrost
timer expires, the vehicle will enter Mix mode.

•

In ambient temperatures from 40°F (4.5°C) to
78°F (26°C), the climate settings will be based on
the last settings selected by the driver.

•

In ambient temperatures of 78°F (26°C) or above,
the climate settings will default to MAX A/C, Bi-Level
mode, with Recirculation on.

For more information on ATC, MTC, and climate control
settings, see

page 74.

NOTE:

These features will stay on through the duration of
Remote Start, or until the ignition is placed in the
ON/RUN position. The climate control settings will
change, and exit the automatic defaults, if manually
adjusted by the driver while the vehicle is in Remote
Start mode. This includes turning the climate controls
off using the OFF button.

REMOTE START WINDSHIELD
WIPER DE-ICER ACTIVATION —
IF EQUIPPED

When Remote Start is active and the outside ambient
temperature is less than 33°F (0.6°C), the Windshield
Wiper De-Icer will activate. Exiting Remote Start will
resume its previous operation. If the Windshield Wiper
De-Icer was active, the timer and operation will
continue.

REMOTE START CANCEL MESSAGE

One of the following messages will display in the instru-
ment cluster display if the vehicle fails to remote start
or exits Remote Start prematurely:

•

Remote Start Canceled — Door Open

•

Remote Start Canceled — Hood Open

•

Remote Start Canceled — Fuel Low

•

Remote Start Canceled — Swing Gate Open

•

Remote Start Canceled — Time Expired

•

Remote Start Canceled — System Fault

•

Remote Start Disabled — Start Vehicle To Reset

The instrument cluster display message stays active
until the ignition is placed in the ON/RUN position.

REMOTE START — IF EQUIPPED
(PHEV Only)

NOTE:

Remote Start while the vehicle is plugged in may not
always start the engine.

This system uses the key fob to start the
vehicle conveniently from outside the vehicle
while still maintaining security. The system
has a range of 328 ft (100 m).

Remote Start also activates the Climate Control system
in temperatures above 80°F (26.7°C), and the heated
seats (if equipped) and heated steering wheel
(if equipped) in temperatures below 40°F (4.4°C).

NOTE:

Obstructions between the vehicle and key fob may
reduce this range.

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 38

5/22/2023 9:02:18 AM

HOW TO USE REMOTE START

All of the following conditions must be met before the
vehicle will remote start:

•

Gear selector in PARK

•

Doors closed

•

Hood closed

•

Swing gate closed

•

Hazard switch off

•

Brake switch inactive (brake pedal not pressed)

•

12 Volt battery at an acceptable charge level

•

Key fob Panic button not pushed

•

System not disabled from previous Remote Start
event

•

Vehicle Security system indicator flashing

•

Ignition in OFF position

•

Fuel level meets minimum requirement

•

All removable doors must not be removed

•

Malfunction Indicator Light (MIL) is off while the
vehicle’s propulsion system is active

WARNING!

•

Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains carbon mon-
oxide (CO) which is odorless and colorless. Carbon
monoxide is poisonous and can cause serious
injury or death when inhaled.

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

TO ENTER REMOTE START MODE

Push and release the Remote Start button on the key
fob twice within five seconds. The vehicle doors will
lock, the turn signals will flash twice (if enabled in
Uconnect Settings), and the horn will chirp twice (if
enabled in Uconnect Settings). Then the engine/vehicle
will start, and the vehicle will remain in the Remote
Start mode for a 15 minute cycle.

NOTE:

•

The vehicle can be started two consecutive times
(two 15 minute cycles) using the key fob. After two
Remote Start events have occurred, the ignition
must be placed in the RUN position before any addi-
tional Remote Start requests can be received.

•

The parking lights will turn on and remain on during
Remote Start mode.

•

For security, power window operation is disabled
when the vehicle is in the Remote Start mode.

TO EXIT REMOTE START MODE
WITHOUT DRIVING THE VEHICLE

Push and release the Remote Start button one time or
allow the Remote Start cycle to complete the entire
15 minute cycle.

In addition, the ignition can be placed in the RUN (Pro-
pulsion System Available) position by pushing the igni-
tion button with the key fob inside the vehicle, and then
pushing the ignition button one more time to place the
ignition in the OFF position.

NOTE:

•

To avoid unintentional shutdowns, the system will
disable for two seconds after receiving a valid
Remote Start request.

•

For additional functions of the Remote Start system,
see

page 38.

SCHEDULED CABIN CONDITIONING
(SCC)

This feature allows the driver to pre-condition (warm up
or cool down) the passenger cabin based on a planned
departure time. The target temperature is preset to the
same values used by the Remote Start feature. Unlike
Remote Start, the driver does not need to initiate the
cabin conditioning by pushing the Remote Start button,
instead, a programmed departure time will be used.
Also, all scheduled cabin conditioning will be powered
by the vehicle’s high voltage battery working in conjunc-
tion with any EVSE connected to the vehicle. Unlike
Remote Start, in SCC the vehicle’s gas engine will not
start to provide power or heat for cabin conditioning.

In order to conserve the vehicle’s high voltage battery
power, the driver can choose between allowing the bat-
tery to be drained of power down to <1%, or to stop the
SCC when the high voltage battery has been depleted
to 25% State Of Charge (SOC). The battery percentages
are displayed in the instrument cluster display.

A maximum of three independent schedule event tim-
ers are available for use by the SCC feature and Sched-
uled Charging feature for charging the high voltage bat-
tery. The timers may be used in any combination for
SCC and Scheduled Charging, but only three total tim-
ers are available.

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 39

5/22/2023 9:02:18 AM

The SCC event times are used to wake up the vehicle so
that the Climate Control system can condition the pas-
senger cabin prior to the scheduled departure time.
Based on vehicle operating conditions, ambient tem-
perature, and the next programmed departure time, the
vehicle will determine when to begin cabin conditioning.
Cabin conditioning can begin up to 30 minutes prior to
the scheduled departure time, provided the stated high
voltage battery conditions are met.

The SCC will continue for a maximum of 15 minutes
after the scheduled departure time.

Once a scheduled event has been created, it can be
applied to one or more days of the week. The sched-
uled event can also be set to occur only during the cur-
rent week, or repeat every week until the feature is
turned off or the event is changed.

All of the following conditions must be met before the
vehicle will initiate a scheduled SCC event:

•

Gear selector in PARK

•

Doors Closed

•

Hood Closed

•

Liftgate Closed

•

Hazard switch off

•

12 Volt battery at an acceptable charge level

•

Key fob not located inside the vehicle

•

Ignition in the OFF position

•

Remote Start has not been activated

Scheduling An SCC Event:

1. Select the Hybrid Electric App on the touchscreen.

2. Select “Schedules”.

3. Select the schedule to be set (1,2, or 3) by pressing

the appropriate arrow on the right side of the
touchscreen.

4. Choose “Climate Schedule”.

5. Select if SCC should stop when the high voltage bat-

tery drops to 25% or lower.

6. Set the Departure Time: Hours, Minutes, and AM/PM.

7. Select the days that this SCC event will occur. The

“Repeat” indicator illuminates to indicate that SCC
will occur every week on the selected day(s), at the
selected time.

If you uncheck the “Repeat” option, all the days of
the week will be grayed out and the vehicle will per-
form only one SCC event, which will occur at the
next available time that matches the SCC event time
(regardless of what day it was originally set to occur
before “Repeat” was unchecked).

8. To schedule another SCC event, press the X and

repeat these steps.

VEHICLE SECURITY SYSTEM —
IF EQUIPPED

The Vehicle Security system monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. When the alarm is activated, the
interior switches for door locks are disabled. The
Vehicle Security system provides both audible and vis-
ible signals. If something triggers the alarm, the Vehicle
Security system will provide the following audible and
visible signals: the horn will pulse, the park lamps
and/or turn signals will flash, and the Vehicle Security
Light in the instrument cluster will flash.

TO ARM THE SYSTEM

Follow these steps to arm the Vehicle Security system:

1. If any doors or windows are open, close them.

2. Make sure the vehicle’s ignition is placed in the OFF

position.

Schedules Screen

Select Climate Schedule

Set Climate Schedule

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 40

5/22/2023 9:02:18 AM

3. Perform one of the following methods to lock the

vehicle:

○

Push lock on the interior power door lock switch
with the driver and/or passenger door open.

○

Push the lock button on the exterior Passive
Entry door handle with a valid key fob available
in the same exterior zone

page 42.

○

Push the lock button on the key fob.

NOTE:

The Vehicle Security system will not arm if you lock the
doors using the manual door lock.

TO DISARM THE SYSTEM

The Vehicle Security system can be disarmed using any
of the following methods:

•

Push the unlock button on the key fob.

•

Grab the Passive Entry door handle (if equipped)

page 42.

•

Cycle the vehicle ignition system out of the OFF
position.

NOTE:

•

The driver's door key cylinder cannot arm or disarm
the Vehicle Security system.

•

When the Vehicle Security system is armed, the inte-
rior power door lock switches will not unlock the
doors.

The Vehicle Security system is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security system will arm regardless of whether

you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security system.

If the Vehicle Security system is armed and the battery
becomes disconnected, the Vehicle Security system will
remain armed when the battery is reconnected; the
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security system.

REARMING OF THE SYSTEM

If something triggers the alarm and no action is taken
to disarm it, the Vehicle Security system will turn the
horn off after a 29 second cycle (with five seconds
between cycles and up to eight cycles if the trigger
remains active) and then rearm itself.

SECURITY SYSTEM MANUAL
OVERRIDE

The Vehicle Security system will not arm if you lock the
doors using the manual door lock.

DOORS

CAUTION!

Careless handling and storage of the removable door
panels may damage the seals, causing water to leak
into the vehicle’s interior.

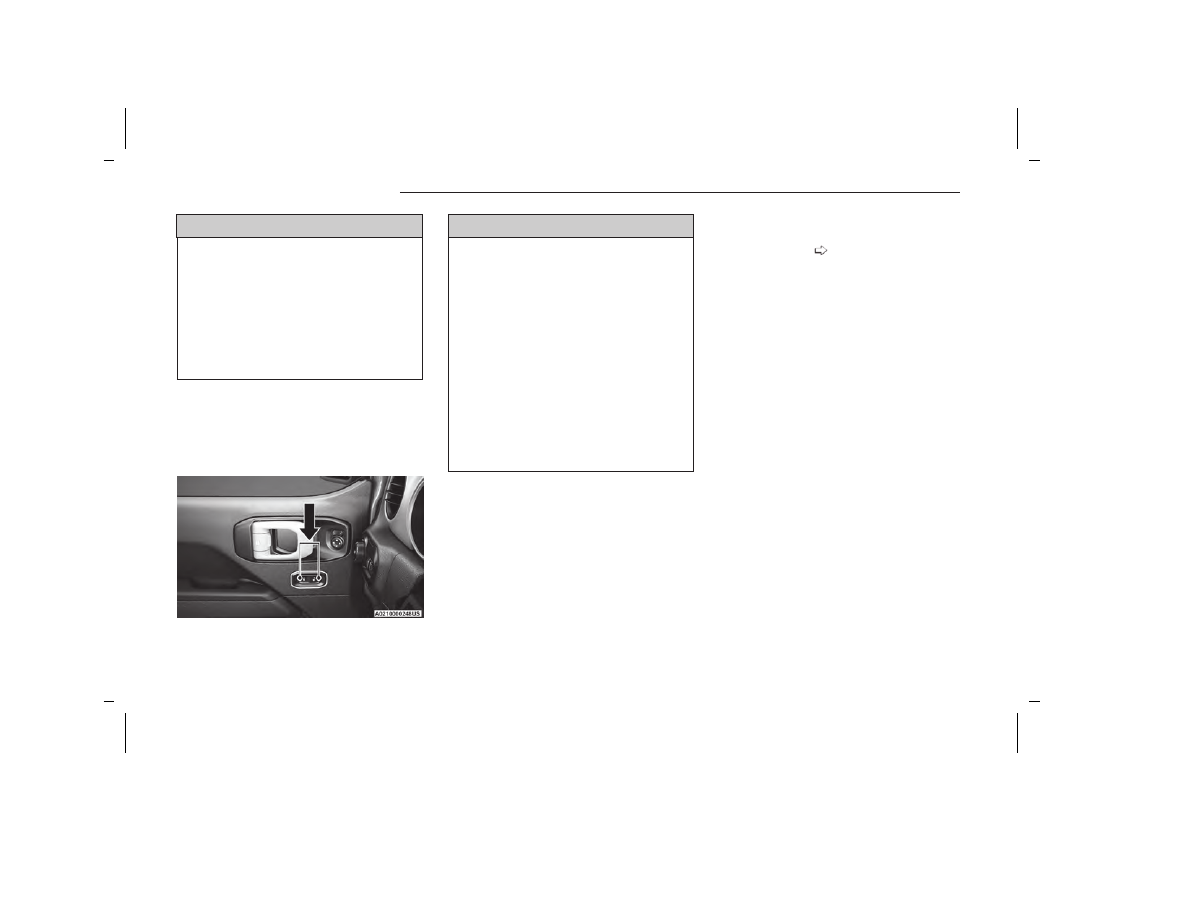

MANUAL DOOR LOCKS

All doors are equipped with an interior rocker-type door
lock lever. To lock a door when leaving your vehicle,
push the rocker lever forward to the lock position and
close the door. To unlock the door, push the rocker lever
rearward.

NOTE:

The mechanical key can be used to lock or unlock the
doors, swing gate (if equipped with a lock), glove com-
partment, and console storage.

WARNING!

•

For personal security reasons and safety in a colli-
sion, lock the vehicle doors when you drive, as well
as when you park and exit the vehicle.

•

When exiting the vehicle, always switch off the igni-
tion and remove the key from the vehicle. Unsuper-
vised use of vehicle equipment may cause severe
personal injuries and death.

(Continued)

Manual Door Lock

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 41

5/22/2023 9:02:18 AM

WARNING!

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

•

Do not leave the key fob in or near the vehicle or in
a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.

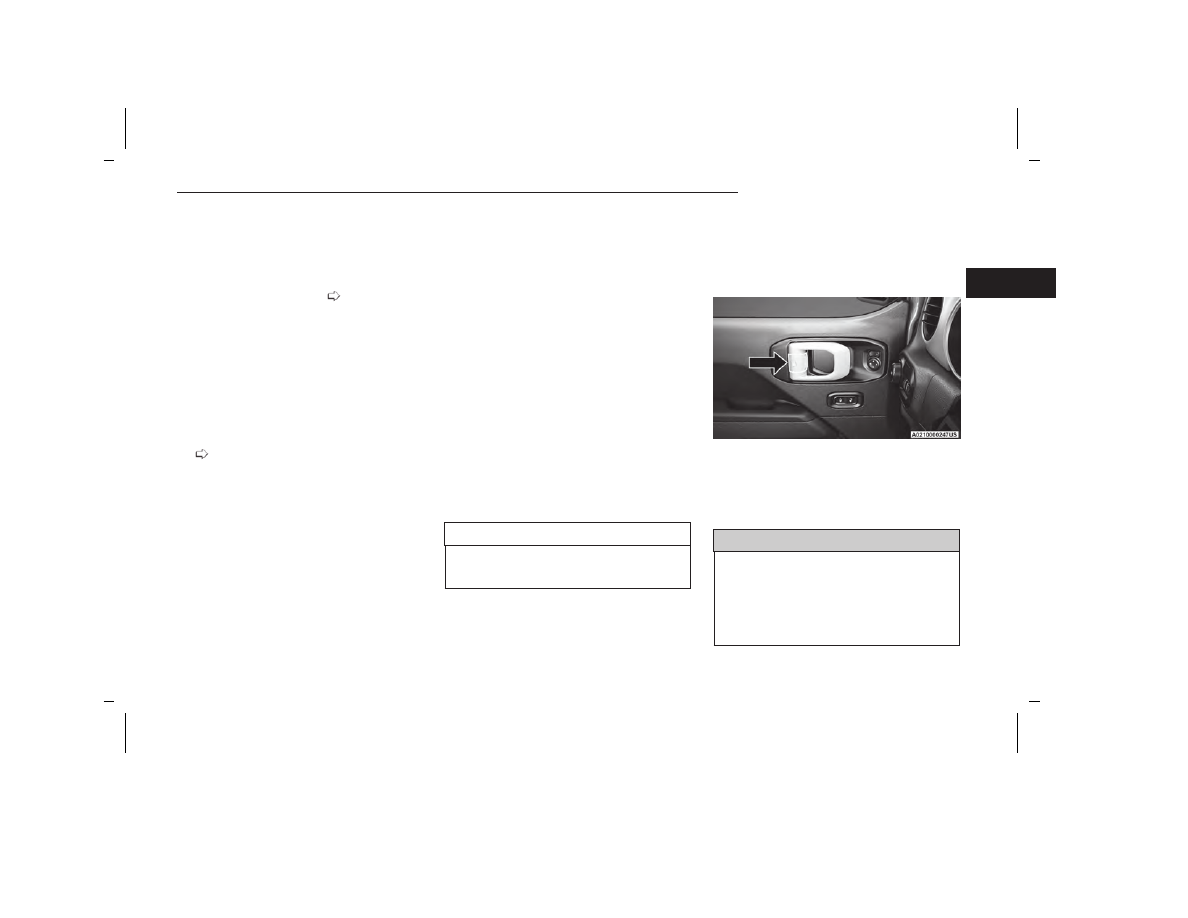

POWER DOOR LOCKS —
IF EQUIPPED

The power door lock switch is located on each front
door panel. Push the switch forward to unlock the
doors, and rearward to lock the doors.

WARNING!

•

For personal security reasons and safety in a colli-
sion, lock the vehicle doors when you drive, as well
as when you park and exit the vehicle.

•

When exiting the vehicle, always switch off the igni-
tion and remove the key from the vehicle. Unsuper-
vised use of vehicle equipment may cause severe
personal injuries and death.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

•

Do not leave the key fob in or near the vehicle or in
a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.

KEYLESS ENTER ‘N GO™ —
PASSIVE ENTRY (IF EQUIPPED)

The Passive Entry system is a feature that allows you to
lock and unlock the vehicle’s door(s) and swing gate
without having to push the key fob lock or unlock
buttons.

NOTE:

•

Passive Entry may be programmed on/off within the
Uconnect Settings

page 201.

•

The key fob may not be detected by the vehicle Pas-
sive Entry system if it is located next to a mobile
phone, laptop, or other electronic device; these
devices may interfere with the key fob’s wireless
signal and prevent the Passive Entry system from
locking/unlocking the vehicle.

•

Passive Entry Unlock initiates illuminated approach
(low beams, license plate lamp, parking lights) for
whichever duration is set between 0, 30, 60 or
90 seconds. Passive Entry Unlock also initiates two
flashes of the turn signals.

•

If wearing gloves, if it has been raining/snowing, or
there is salt/dirt covering the Passive Entry door
handle, the unlock sensitivity can be affected,
resulting in a slower response time.

•

The doors may unlock when water is sprayed on the
Passive Entry door handles, if the key fob is located
outside of the vehicle within 5 ft (1.5 m) of the
handle.

•

If the vehicle is unlocked by Passive Entry and no
door is opened within 60 seconds, the vehicle will
relock and, if equipped, will arm the Vehicle Security
system.

Power Door Lock Switch

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 42

5/22/2023 9:02:18 AM

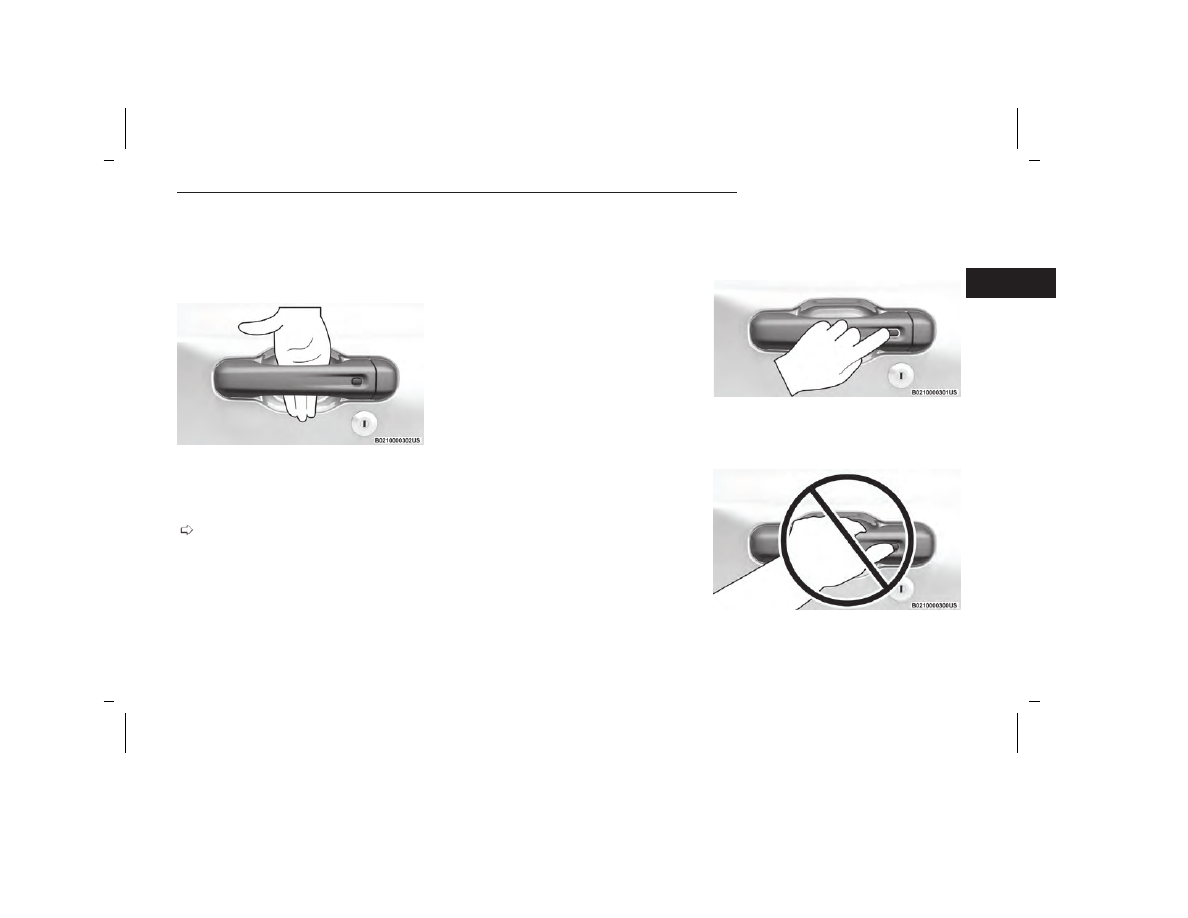

To Unlock From The Driver or Passenger Side

With a valid Passive Entry key fob within 5 ft (1.5 m) of
the door handle, grab the handle to unlock the vehicle.
Grabbing the driver’s door handle will unlock the driver
door automatically. Grabbing the passenger door
handle will unlock all doors and the swing gate
automatically.

NOTE:

Either the driver door only or all doors will unlock when
you grab hold of the front driver’s door handle, depend-
ing on the selected setting in the Uconnect system

page 201.

Frequency Operated Button Integrated Key
(FOBIK-Safe)

To minimize the possibility of unintentionally locking a
Passive Entry key fob inside your vehicle, the Passive
Entry system is equipped with an automatic door
unlock feature which will function only if the ignition
switch is in the OFF position.

FOBIK-Safe only executes in vehicles with a START/
STOP ignition. There are three situations that trigger a
FOBIK-Safe search in any Passive Entry vehicle:

•

A lock request is made by a valid Passive Entry key
fob while a door is open.

•

A lock request is made by the Passive Entry door
handle while a door is open.

•

A lock request is made by the door panel switch
while the door is open.

When any of these situations occur, after all open doors
are shut, the FOBIK-Safe search will be executed. If it
detects a Passive Entry key fob inside the vehicle, the
vehicle will unlock and alert the customer. If Passive
Entry is disabled using Uconnect system, the key fob
protection described in this section remains
active/functional.

NOTE:

The vehicle will only unlock the doors during a FOBIK-
Safe operation when a valid Passive Entry key fob is
detected inside the vehicle. The vehicle will not unlock
the doors when any of the following conditions are true:

•

A second valid Passive Entry key fob is detected out-
side of the vehicle (within 5 ft (1.5 m) of a Passive
Entry door handle).

•

The doors are manually locked using the door lock
knobs.

•

Three attempts are made to lock the doors using
the door panel switch, and then the doors are
closed.

To Lock The Vehicle’s Doors And Swing Gate

With one of the vehicle’s Passive Entry key fobs within
5 ft (1.5 m) of the driver or passenger front door
handles, pushing the Passive Entry lock button will lock
the vehicle doors and the swing gate.

NOTE:

DO NOT grab the door handle when pushing the door
handle lock button. This could unlock the door(s).

The vehicle doors can also be locked by using the lock
button located on the vehicle’s interior door panel.

Grab The Door Handle To Unlock

Push The Door Handle Button To Lock

DO NOT Grab The Door Handle When Locking

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 43

5/22/2023 9:02:18 AM

To Unlock/Enter The Swing Gate

The swing gate Passive Entry unlock feature is built into
the swing gate handle. With a valid Passive Entry key
fob within 5 ft (1.5 m) of the swing gate handle, grab
the swing gate handle to unlock the swing gate auto-
matically, and pull the swing gate to open.

To Lock The Swing Gate

With a valid Passive Entry key fob within 5 ft (1.5 m) of
the swing gate handle, pushing the Passive Entry lock
button will lock the vehicle doors and the swing gate.

NOTE:

•

After pushing the door handle button, you must wait
two seconds before you can lock or unlock the doors,
using any Passive Entry door handle. This is done to
allow you to check if the vehicle is locked by pulling
the door handle without the vehicle unlocking.

•

If Passive Entry is disabled using the Uconnect Set-
tings, the key fob protection described in "Frequency
Operated Button Integrated Key (FOBIK-Safe)"
remains active/functional.

•

The Passive Entry system will not operate if the key
fob battery is depleted

page 352.

AUTOMATIC DOOR LOCKS —
IF EQUIPPED

The Automatic Door Lock feature default condition is
enabled. When enabled, the door locks will lock auto-
matically when the vehicle's speed exceeds 15 mph
(24 km/h). The Automatic Door Lock feature can be
enabled or disabled by an authorized dealer per written
request of the customer. Please see an authorized
dealer for service.

CHILD-PROTECTION DOOR LOCK
SYSTEM — REAR DOORS

To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a
Child-Protection Door Lock system.

To use the system, open each rear door, use a flat-
blade screwdriver (or mechanical flip key) and rotate
the dial to the lock or unlock position.

NOTE:

•

When the Child-Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door
lock is in the unlocked position.

•

After disengaging the Child-Protection Door Lock
system, always test the door from the inside to
make certain it is in the unlocked position.

•

After engaging the Child-Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the locked position.

•

For emergency exit with the system engaged, move
the lock lever rearward (located on the door trim
panel), lower the window and open the door with the
outside door handle.

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged (locked).

NOTE:

Always use this device when carrying children. After
engaging the child lock on both rear doors, check for
effective engagement by trying to open a door with the
internal handle. Once the Child-Protection Door Lock
system is engaged, it is impossible to open the doors
from inside the vehicle. Before getting out of the car, be
sure to check that there is no one left inside.

Swing Gate Passive Entry Lock Button

Child-Protection Door Lock Function

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 44

5/22/2023 9:02:18 AM

FRONT DOOR REMOVAL

WARNING!

Do not drive your vehicle on public roads with the
doors removed as you will lose the protection they
can provide. This procedure is furnished for use dur-
ing off-road operation only. Failure to follow this
warning can result in death or serious personal injury.

WARNING!

•

All occupants must wear seat belts during off-road
operation with doors removed. For off-road driving
tips, see

page 195.

•

Do not store detached doors inside of the vehicle,
as they may cause personal injury in the event of
an accident.

Outside rearview mirrors are mounted on the doors. If you
choose to remove the doors, see an authorized dealer for
a replacement cowl-mounted outside mirror. Federal law
requires outside mirrors on vehicles for on-road use.

NOTE:

•

Doors are heavy; use caution when removing them.

•

Hinge pin can break if overtightened during door
reinstall (Max Torque: 7.5 ft· lb / 10 N·m). For off-
road driving tips, see

page 195.

•

When front doors are removed, the message “Blind
Spot Alert Temporarily Unavailable” will display in
the instrument cluster display. Power Mirrors and
Power Door Locks will also be unavailable.

To remove the front doors, proceed as follows:

1. Roll down the glass window to prevent any damage.

2. Remove the hinge pin screws from the upper and

lower outside hinges (using a #T50 Torx head driver).

NOTE:

The hinge pin screws and nuts can be stowed in the
rear cargo tray located under the rear load floor.

3. Remove the plastic wiring access door under the

instrument panel by sliding the plastic panel along the
door frame toward the seats until the tabs are
detached.

NOTE:

Do not force open; this will break the plastic cover.

4. Pull up on the red locking tab to unlock the wiring

harness.

Door Removal Warning Label

Hinge Pin Screw

Wiring Access Door

Closed Wiring Harness

1 – Red Locking Tab
2 – Wiring Harness Lever (Closed Position)

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 45

5/22/2023 9:02:18 AM

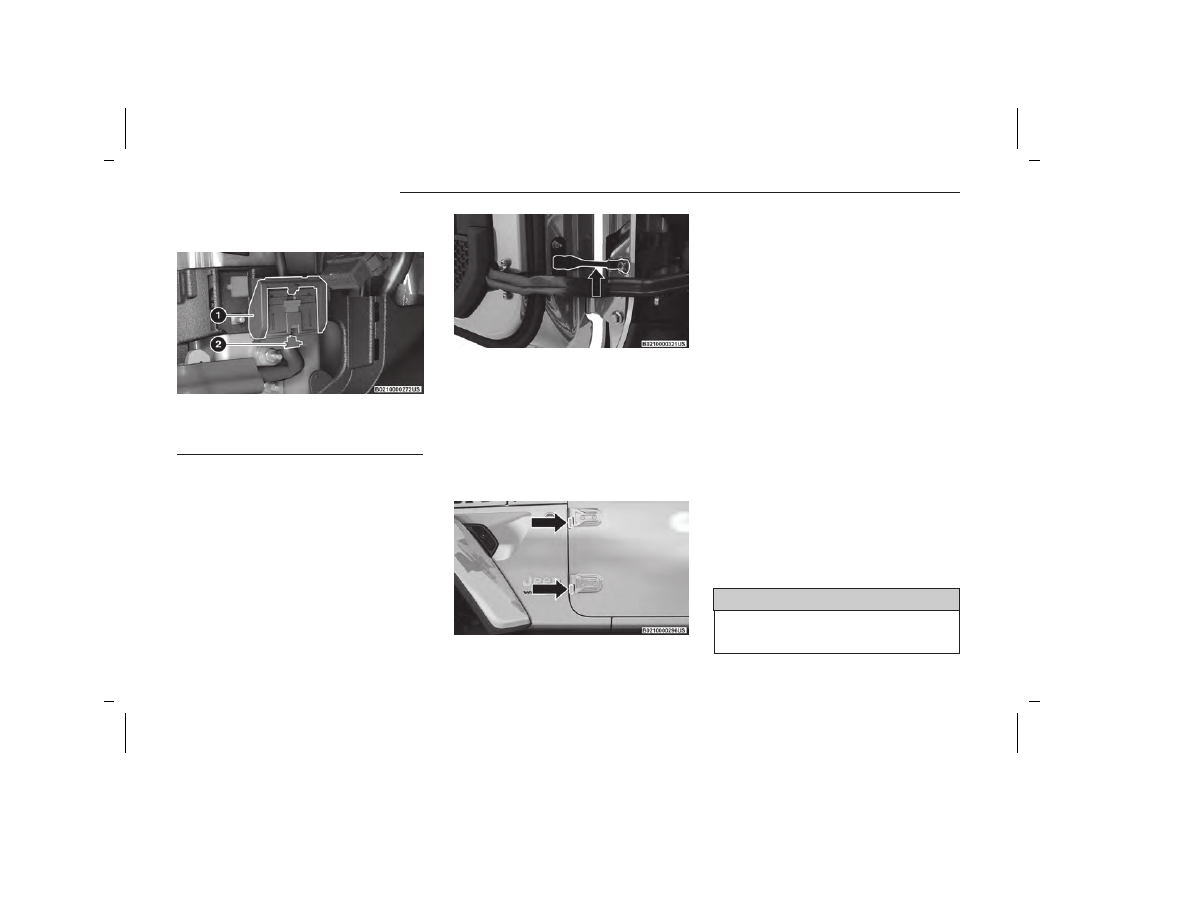

5. Push and hold down the black security tab under

the wiring harness, and lift the harness lever into
the open position.

6. With the wiring harness open, pull

straight

down-

ward on the wiring connector to unplug. Store the
wiring connector in the lower door basket.

7. With the door in the open position, remove the

check screw from the door check attachment on the
bodyside (using a #T40 Torx head driver).

NOTE:

Keep the check arm in the extended position for
easier reinstallation. See the note later in this sec-
tion if the check arm gets pushed into the door
while the door is off.

8. With the door open, lift the door with the help of

another person, to clear the hinge pins from their
hinges and remove the door.

To Install The Front Doors

1. Locate the upper and lower hinge pins on the door,

and lower them into the body hinges on the vehicle.

NOTE:

The upper hinge pin is longer, which can be used to
assist in guiding the door into place during installation.

2. With the door in the open position, align the door

check bracket with the hole on the bodyside. Insert
the check screw and tighten using a #40 Torx head
driver to 19.9 ft· lb (27.0 N·m).

3. Insert the upper and lower hinge pin screws into the

body hinges. Tighten the screws using a #T50 Torx
head driver to 3.8 ft· lb / 5.2 N·m.

NOTE:

If the check arm is stuck inside the door, follow these
instructions to install the check arm.

1. Insert the check arm screw into the check arm

bracket. Ensure the screw is in the correct
orientation.

2. Slowly pull on the screw to draw the check arm out

until you encounter increased resistance. Do not
attempt to pull the check arm all the way out.

3. While sitting inside the vehicle, hold the door par-

tially closed and insert the screw into the hole on
the body.

4. Using your fingers, turn the screw clockwise at least

two full turns. Gently pull on the screw to ensure it is
secure.

5. Using the door handle, slowly push the door open.

The check arm will be pulled out of the door. You
may hear the check arm pop against the screw.

6. Fully tighten the screw as instructed.

WARNING!

To avoid personal injury be sure to keep your arms,
hands, fingers and all objects clear of the check arm
area during the removal and installation procedures.

Open Wiring Harness

1 – Wiring Harness Lever (Open Position)
2 – Black Security Tab

Door Check Arm

Hinge Pin Locations

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 46

5/22/2023 9:02:18 AM

Jeep Wrangler (2024 year). Manual in english - page 1
