Jeep Grand Cherokee (2024 year). Manual in english

Setting Name

Description

Sound Horn With Remote Start

This setting will sound the horn when the remote start is activated from the key fob.

Remote Door Unlock, Door Lock/1st
Press Of Key Fob Unlocks

This setting will change how many pushes of the Unlock button on the key fob are needed to unlock all the doors. The “Driver Door”
setting will only unlock the driver door on the first push on the Unlock button. The “All Doors” setting will unlock all doors with only
one push of the Unlock button.

Passive Entry

This setting will allow you to turn the Passive Entry feature (Keyless Enter ‘n Go™) on or off.

Personal Settings Linked To Key Fob

This setting will recall preset radio stations and driver seat position that have been linked to the key fob.

Power Liftgate Alert

This setting will chime an audible alert when the power liftgate is raising or lowering. Selectable options are “On” and “Off”.

Hands-Free Power Liftgate

This setting will use hands-free technology to automatically open or close the power liftgate. Selectable options are “On” and “Off”.

Auto Relock

This setting will lock the doors after 30 seconds of the doors remaining unlocked. The available options are “On” and “Off”.

Seats & Comfort

When Seats & Comfort button is pressed on the touchscreen, the system displays the options related to the vehicle’s comfort systems when remote start has been activated or
the vehicle has been started.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Easy Exit Seats

This setting will automatically move the driver seat rearward when the engine is shut off. The available settings are “On” and “Off”.

Auto-On Driver Heated/Ventilated Seat &
Heated Steering Wheel With Vehicle Start

This setting will activate the vehicle’s comfort systems and heated seats or heated steering wheel when the vehicle is remote
started or ignition is started. The “Off” setting will not activate the comfort systems. The “Remote Start” setting (if equipped) will
only activate the comfort systems when using Remote Start. The “All Start” setting will activate the comfort systems whenever the
vehicle is started.

3rd Row Seat Recline Lockout

This setting will activate the 3rd Row Seat Recline Lockout. Selectable options are “Off”, “Lock On Ignition”, and “Always Locked”.

210

MULTIMEDIA

Key Off Options

When the Key Off Options button is pressed on the touchscreen, the system displays the options related to vehicle shutoff. These settings will only activate when the ignition is
set to OFF.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Sound Horn With Lower

This setting will sound the horn when the Lower button is pressed on the key fob.

Flash Lights With Lower

This setting will flash the lights when the Lower button is pressed on the key fob.

Easy Exit Seat

This setting adjusts the seats to make exiting the vehicle easier.

Headlight Off Delay

This setting will allow you to set the amount of time the headlights remain on after the vehicle has been turned off. The available
settings are “0 sec”, “30 sec”, “60 sec”, and “90 sec”.

Auto Entry/Exit Suspension

This setting will turn the Auto Entry/Exit Suspension system on or off.

Radio Off Delay

This setting will keep the radio on for the selected amount of time after vehicle shut off. The available options are “0 sec”,
“45 sec”, “5 min”, and “10 min”.

Radio Off With Door

This setting will keep the radio on when a door is opened or until the Radio Off Delay time is reached. The available settings are
“On” and “Off”.

Windows With Key Fob

This setting will allow you to control window function while the vehicle is off. The available options are “On” and “Off”.

Suspension

When the Suspension button is pressed on the touchscreen, the system will display settings related to the vehicle’s air suspension.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Auto Entry/Exit Suspension

This setting will turn the Auto Entry/Exit Suspension system on or off.

Display Suspension Messages

This setting will display suspension messages in the Instrument Cluster Display. The “All” setting will display all available messages.
The “Warnings Only” setting will only display warning messages.

MULTIMEDIA

211

Setting Name

Description

Tire Jack Mode

This setting will disable the Air Suspension system to assist in changing a spare tire.

Auxiliary Mode

This setting will allow you to set the Auxiliary Suspension Mode. The available options are “Off”, “Transport Mode”, and “Wheel
Alignment Mode”. In Transport Mode, the vehicle will not auto level when being transported by another vehicle. In Wheel Alignment
Mode, the vehicle will not auto level when a wheel alignment is being performed.

Audio

When the Audio button is pressed on the touchscreen, the system displays options related to the vehicle’s sound system. These settings can change the audio location within
the vehicle, adjust the bass or treble levels, and auto-play settings from an audio device or smartphone.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Balance/Fade

This setting will adjust audio levels from specific speakers in the front/back and left/right of the vehicle. The Speaker icon can be
moved to set audio location.

Equalizer

This setting will adjust the “Bass”, “Mid”, and “Treble” ranges of the audio.

Speed Adjusted Volume

This setting will adjust audio volume as speeds increase. At a higher setting, the volume will increase more as the vehicle speeds
up. The available settings are “Off”, “1”, “2”, and “Max”.

Surround Sound

This setting will turn the Surround Sound system on or off.

AUX Volume Offset

This setting will tune the audio levels from a device connected through the AUX port. The available settings are “+” and “-”.

Auto Play

This setting will automatically begin playing audio from a connected device.

Auto-On Radio

This setting will automatically turn the radio on when the vehicle is started, if selected. The available settings are “Off”, “On”, and
“Recall Last”. With Recall Last, the system resumes the previous task before vehicle shut off.

Radio off With Door

This setting will keep the radio on when a door is opened or until the Radio Off Delay time is reached. The available settings are
“On” and “Off”.

Volume Adjustment

This setting will allow you to set the audio volume levels for each option (Media, Phone, Navigation, etc.). You can set the volume
between 0 and 38.

Media Expander

This setting will allow you to turn the Media Expander setting “On” or “Off”.

Loudness

This setting will improve audio quality at lower volumes.

212

MULTIMEDIA

Notifications

When the Notifications button is pressed on the touchscreen, the system displays the options related to Notifications for the system.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Notification Sounds

Turn this setting “On” or “Off” to hear notification sounds throughout your system.

App Drawer Favoriting Pop-Ups

This setting turns the App Favorited pop-up on or off.

App Drawer Unfavoriting Pop-Ups

This setting turns the App Unfavorited pop-up on or off.

New Text Message Pop-Ups

This setting turns receiving/storing a pop-up for new text messages of any connected phone on or off.

Missed Calls Message

This setting turns receiving/storing a pop-up for missed calls of any connected phone on or off.

Navigation Pop-Ups

This setting turns receiving/storing predictive Navigation Pop-Ups on or off.

SiriusXM® Setup

When the SiriusXM® Setup button is pressed on the touchscreen, the system displays the options related to SiriusXM® satellite radio. These settings can be used to skip spe-
cific radio channels and restart favorite songs from the beginning.

NOTE:

•

A subscription to SiriusXM® satellite radio is required for these settings to be functional.

•

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

SiriusXM® Account, Profile, And Settings

This setting will redirect you to the SiriusXM® Settings menu within the SiriusXM® menu.

Block Explicit

This setting will skip over content labeled as explicit. The available settings are “On” and “Off”.

MULTIMEDIA

213

Accessibility — If Equipped

After pressing the Accessibility button on the touchscreen, the following setting will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Video Button Readback

This setting will turn the Video Button Readback feature on or off.

Software Updates

When the Software Updates button is pressed on the touchscreen, the system will display the setting related to updating the Uconnect software.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Software Downloads over Wi-Fi

This setting will allow software updates to happen over Wi-Fi. Selectable options for the setting are “On” and “Off”.

System Information

After pressing the System Information button on the touchscreen, the following settings will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Version Information

When this feature is selected, a Version Information screen will appear, displaying information about the version of your radio.

License Information

When this feature is selected, a License Information screen will appear, displaying the licensing information of your radio.

Passenger License Information

When this feature is selected, Passenger License Information is displayed.

214

MULTIMEDIA

Reset

When the Reset button is pressed on the touchscreen, the system displays the options related to resetting the Uconnect system back to its default settings. These settings can
clear personal data and reset selected settings from other menus.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Restart Radio

This setting will reboot the radio.

Reset Apps Drawer To Default Order

This setting will return the apps drawer to the default order. The available options are “Yes” and “Cancel”. The X button can also be
pressed to cancel the screen.

Restore Settings to Default

This setting will return all the previously changed settings to their factory defaults.

Clear Personal Data

This setting will display a pop-up that gives you the option to clear all personal data from the system, including Bluetooth® devices
and presets.

Reset Wi-Fi Password For Projection

This setting will allow you to reset the vehicle’s Wi-Fi password for smartphone projection. The available options are “Yes” and
“Cancel”. The X button can also be pressed to cancel the screen.

Reset Performance Values

This setting will reset the performance values for your vehicle.

Factory Reset

This setting will restore the radio to its factory default settings.

STEERING WHEEL AUDIO CONTROLS

The remote sound system controls are located on the
rear surface of the steering wheel at the three and nine
o’clock positions.

The right-hand control is a rocker-type switch with a
push button in the center and controls the volume and
mode of the sound system. Pushing the top of the
rocker switch increases the volume, and pushing the
bottom of the rocker switch decreases the volume.

Pushing the right-hand control’s center button makes
the radio switch between the various modes available
(AM/FM/SXM or Media, etc.)

The left-hand control is a rocker-type switch with a push
button in the center. The function of the left-hand con-
trol is different depending on which mode you are in.

The following describes the left-hand control operation
in each mode:

Steering Wheel Audio Controls

MULTIMEDIA

215

RADIO OPERATION

Pushing the top of the switch will seek up for the next
available station, and pushing the bottom of the switch
will seek down for the next available station.

The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset button.

MEDIA MODE

Pushing the top of the switch once goes to the next
track on the selected media (AUX/USB/Bluetooth®).
Pushing the bottom of the switch once goes to the
beginning of the current track, or to the beginning of
the previous track if it is within eight seconds after the
current track begins to play.

PASSENGER SCREEN — IF EQUIPPED

Your vehicle may be equipped with a Passenger Screen
located above the glove compartment on the passenger
side of the vehicle. From the Passenger Screen, you will
be able to access similar features seen within the
Uconnect radio, such as media functions, Rear Seat
Entertainment with Amazon FireTV Built-in, Navigation,
and device management.

To begin using the Passenger Screen, push the Power
button in the center stack, or press the Power button
under the Controls tab within the Uconnect system. The
Passenger Screen can be turned off by accessing the
Control screen and pressing the Power Off button.

You must link Bluetooth® headphones to the Passen-
ger Screen to begin listening to the system’s audio

page 219.

NOTE:

The Passenger Screen will need to be turned On each
time the vehicle is started, and the system will display
the Home screen upon boot up.

PASSENGER SCREEN
PERMISSIONS

Through the Uconnect system, features within the Pas-
senger Screen can be activated and deactivated
through Passenger Screen Permissions. To access Per-
missions, press the Vehicle button in the Menu Bar and
select the Settings tab. Then, press the Passenger
Screen Settings menu. Press the On button for the Pas-
senger Screen Permissions setting to activate
Permissions.

By default, the Passenger Screen Permissions setting is
set to “Off”, and the driver will need to give permission
for the different features.

When Permissions is turned “On”, you can individually
select the permissions for the followings:

•

Navigation

•

Device Manager

•

Rear Seat Entertainment — If Equipped

Passenger Screen Permissions can also be activated
through the Controls screen, under the Vehicle button
in the Menu Bar. If “Deny Passenger Screen Permis-
sions” is turned “On”, the setting will switch itself to
“Off”.

HOME SCREEN

Passenger Screen Permissions Settings Menu

Passenger Screen Home Screen

1 — Home Screen Button
2 — Notifications Button
3 — Controls Button
4 — Feature Cards

216

MULTIMEDIA

When the Passenger Screen is started up and no other
media was running during the last ignition cycle, the
Home screen will display. Here, you can select from the
features of the Passenger Screen. On the left side of
the screen, you can access “Notifications and System
Controls”.

The Notifications button (the bell) will take you to the
Notifications screen, identical to what is seen in the
main radio.

You can cycle between the features by swiping left or
right on the touchscreen. When accessing a feature,
press the Home button on the left side to access the
feature view and select a different feature.

The available features are:

•

Audio

•

Video & Images

•

HDMI

•

Rear Seat Entertainment — If Equipped

•

Navigation

•

Devices

•

Cameras

Controls Screen

From the Controls Screen, you can adjust the daytime/
nighttime brightness of the screen, change headphone
volume, and power off the Passenger Screen.

To change the brightness, adjust the slider up or down,
or press the Up or Down Arrow button located next to
the slider. “Up” will increase brightness; “Down” will
decrease brightness. Daytime and nighttime brightness
levels will vary, and the adjustment maximum/
minimum will differ depending on the time of day.

To change the headphone volume, adjust the slider up
or down, or press the Up or Down Arrow button located

next to the slider. “Up” will increase the volume; “Down”
will decrease the volume.

NOTE:

Headphone volume can also be manually adjusted from
the headphones. Changing the headphone volume
manually will not reflect in the headphone volume
slider on the Passenger Screen.

If the Screen Off button is pressed, the Passenger
Screen will continue to operate, but the screen will go
dark. Tap the screen again to return to the display.
While the screen is off, audio will continue to play from
the Passenger Screen.

The Power Off button will fully shut down the Passenger
Screen. No audio or video will play from it.

AUDIO AND VIDEO

Audio allows you to listen to your favorite radio station,
a connected USB device, or connected media device.
You can directly change the source on the Home screen
by pressing the Source button in the feature. You can
also expand it by pressing the Full Screen View button.

To change the media source, press the Source button
and then press on the desired source. The available
sources are:

•

Live Radio (FM, AM, SXM)

•

Bluetooth®

•

USB 1

•

USB 2

Passenger Screen Controls Screen

1 — Screen Off
2 — Display Brightness
3 — Manage Headphones
4 — Headphone Volume
5 — Power Off
6 — Mute Headphones

Audio Feature

1 — All Sources Tab
2 — Now Playing Tab
3 — Browse Tab

MULTIMEDIA

217

•

AUX

•

AV 1 — If Equipped

•

AV 2 — If Equipped

•

Rear Screen 1 Listen In — If Equipped

•

Rear Screen 2 Listen In — If Equipped

NOTE:

•

Audio devices connected via Bluetooth® must be
done through the Device Manager in the radio. For
more information on pairing a device, refer to your
Uconnect Radio Instruction Manual.

•

If the driver is listening to “Live Radio”, the option
will not be available in the Passenger Screen. Select
“Now Playing On Radio” to listen to the currently
playing station. If the driver selects a radio station
while the Passenger Screen is playing live radio con-
tent, the feed will end on the Passenger Screen and
control will be given to the Uconnect system.

On the Preset menu, you will be able to listen to saved
radio presets. Press the desired preset to begin
listening.

The Browse tab will let you browse through different
radio stations or audio saved onto a USB or audio
device. Press “Browse” and select from the different
folders. You can scroll up and down to view the options
within those folders. Press on the desired radio station
or audio track to begin playing it.

When the USB source is selected, you can chose a
video file to play if saved to a USB device. Press
“Browse” and locate the folder with the video file. Press
the video file name, and it will begin to play on the Pas-
senger Screen.

NOTE:

Not all video files will be supported from a USB. Certain
video files may require digital rights to view or play.
These may be unavailable for playback on the Passen-
ger Screen.

REAR SEAT ENTERTAINMENT WITH
AMAZON FIRE TV BUILT-IN —
IF EQUIPPED

Rear Seat Entertainment with Fire TV built-in will let you
control and listen in to the content being played on the
rear entertainment screens. You can view the contents
of the rear screens, lock the rear screens, change the
source of the rear screens, or turn the rear screens on
or off

page 221.

HDMI PROJECTING

HDMI lets you connect a device to the provided HDMI
port, using an HDMI cable, and project the device
directly to the Passenger Screen. To begin, plug a
device into the HDMI port. Then, press the HDMI button
on the touchscreen.

HDMI will continue to show the menu bar and Head-
phone Paring button.

NOTE:

•

The HDMI Card will not automatically launch when a
new device is connected. The HDMI Card will show a
device connected, and the Card will need to be
pressed.

•

If the user disconnects a device from the HDMI port
while the HDMI Card is in full screen, the system will
close HDMI and reload the Home screen.

Playing A Video

1 — Source Bar
2 — Now Playing Tab
3 — Browse Button
4 — Preset Bar
5 — Related Button
6 — Seek Down Button
7 — Tune Button
8 — Seek Up Button
9 — Replay Button

218

MULTIMEDIA

DEVICE MANAGER

Device Manager provides an easy place to view all the
devices connected to the Uconnect system and lets you
pair the Driver’s smartphone to the Uconnect system.
You will also pair Bluetooth® headphones to the Pas-
senger Screen from this screen.

For more information on pairing your smartphone, refer
to your Uconnect Radio Instruction Manual.

To pair a set of Bluetooth® Headphones:

1. If viewing Device Manager in full screen, press the

Add Device button. If viewing Device Manager on the
Home screen, press “Pair Bluetooth® headphones”.

2. From the pop-up, press “Search For Headphones”.

The system will begin searching for the Bluetooth®
signal of your headphones.

3. Select the name of your headphones from the list of

possible devices. The system will connect to the
headphones.

NOTE:

The Passenger Screen will connect to previously paired
Bluetooth® headphones after Passenger Screen
activation.

Removing Bluetooth® Headphones

1. From the Controls screen, press the Manage Head-

phones button.

2. Press the Settings button (gear icon) next to the set

of headphones you wish to remove.

3. Press “Delete Device”; the Bluetooth® headphones

will be removed from the system.

NAVIGATION

Navigation allows you to assist the driver in searching
for destinations using Uconnect’s built-in Navigation
system. For information on the full functionality of Navi-
gation, refer to your Uconnect Radio Instruction
Manual.

When a new route is selected from the Passenger
Screen, a confirmation will be sent to the driver. The
driver will be able to confirm or deny the route.

NOTE:

Using Navigation on the Passenger Screen will not
affect the Navigation screen in the Uconnect system.
The Driver can continue to use Navigation while the
Passenger Screen can “suggest” new routes or stops.

CAMERA

Camera will display the equipped vehicle camera feed.
When selected, press the desired Camera button. The
feed from that camera will display in the center of the
touchscreen. Press the X button or Back Arrow button
to return to the Home screen.

NOTE:

The Passenger Screen will lose access to a camera if
the driver chooses to view it on the Uconnect system or
if a condition would activate the camera on the
Uconnect system (the rearview camera being activated
when the vehicle is shifted into REVERSE).

3RD PARTY APPS

If equipped, your vehicle may contain some 3rd party
apps, which will further enhance your Uconnect system.

McIntosh

McIntosh is a 3rd party app that can enhance your
Uconnect system’s media player. For the app to be
effective, there must be audio playback in the Uconnect
media player. McIntosh can control the playback of
audio as well as display the output level decibel meters.

To launch the app, begin playing audio and follow these
steps:

1. Press the Apps button.

2. Press the McIntosh app.

Device Manager

1 — Device Settings Button
2 — Phone Connectivity Button
3 — Media Connectivity Button
4 — Android Auto™/Apple CarPlay® Button
5 — Add Device Button
6 — Manage Headphone Button
7 — Do Not Disturb Button
8 — Two Active Phones Button

MULTIMEDIA

219

The McIntosh app will allow you to perform the following
when listening to music:

NOTE:

The Seek feature will not work while using Bluetooth®.

Skip Backward

Press to skip backward. Press and hold to fast rewind.

Play/Pause

Press to play/pause the track.

Skip Forward

Press to skip forward. Press and hold to fast forward.

Repeat

Press to repeat track. Press again to repeat playlist. Press again to turn off (works only
with a USB device).

Change Channel Down

Press to change channel down. Press and hold to seek channel down. While using
AM/FM, pressing the channel down will change the frequency by 0.1. Pressing and
holding in AM/FM will seek channels.

Change Channel Up

Press to change channel up. Press and hold to seek channel up. While using AM/FM,
pressing the channel up will change the frequency by 0.1. Pressing and holding in
AM/FM will seek channels.

Press to access McIntosh settings.

About

Press to learn more about McIntosh.

Audio

Press to open the audio settings page of the Uconnect media player.

McIntosh

220

MULTIMEDIA

NOTE:

To change the source within the app, press the source
name. Pressing this will open a menu with all available
sources. To change the audio source outside of the
app, press the Media button, and then press the
Sources button.

To exit the app, press any of the buttons on the Bottom
Menu Bar.

Day/Night Mode

Press the Menu button in the upper left-hand corner to
access McIntosh settings. Tap on a Mode to set it as
the default, or tap “Auto Mode” to enable your screen to
automatically switch between Day and Night Modes.

Theater Mode

Press the Menu button in the upper left-hand corner to
access McIntosh settings. Under the Theater Mode sec-
tion, select “On” to bring forward the McIntosh meters.
This will enlarge the meters for a more prominent view.

NOTE:

Theater Mode will engage after 10 seconds without
input from the user.

For more information on McIntosh, the McIntosh app
and its functionality, please visit
https://www.mcintoshlabs.com.

REAR SEAT ENTERTAINMENT (RSE) WITH
AMAZON FIRE TV BUILT-IN —
IF EQUIPPED

OVERVIEW

Rear Seat Entertainment with Fire TV built-in is
designed to give your family years of enjoyment.

Fire TV lets passengers enjoy a wide variety of content
from popular apps (subscriptions may be required).
Stream videos, play games, listen to music, get informa-
tion, and watch downloaded programs all while on the
road. Two Voice Remotes with Alexa are included with
the system. Press the Microphone button on the Voice
Remote with Alexa to easily find, launch, and control
content. Check sports scores, play music, control smart
home devices, or see your live camera feeds (compat-
ible smart home device required and sold separately).
In addition to streaming and downloaded content,
changing the input in Fire TV also enables you to:

•

Mirror what’s on your phone or tablet to Fire TV via
Miracast capable devices

•

Stream your favorite shows with Fire TV

•

Plug and play a variety of standard video games or
devices into the HDMI port

•

Listen to audio over wired or wireless headphones
(not included, customer will have to provide their
own or play audio through in-cabin speakers with
Listen In feature in front seat)

•

Plug and play a variety of devices into the front seat
Video USB port. USB ports located under the rear
screens are charge only

•

Watch content individually on each rear display or
mirror across both displays to watch together

NOTE:

Vehicle must be in an active and usable cellular range
and properly equipped with a Uconnect 5 system and
Rear Seat Entertainment with Fire TV package. Stream-
ing requires a Wi-Fi connection and registered Amazon
account to run Fire TV in the vehicle. Streaming service
subscriptions are not included. Services and features
are subject to change or withdrawal at any time, may
not be available in all areas and languages, and may
require separate subscriptions.

Please review this Owner's Manual to become familiar
with RSE features and operation.

GETTING STARTED

1 — Rear Seat Entertainment (Rear Touchscreen)
2 — Headphone Jack
3 — USB C Charging Port
4 — HDMI Port
5 — Uconnect System (Front Touchscreen)

Rear Screen Entertainment For Uconnect 5/5 NAV

MULTIMEDIA

221

There are four different ways to operate the features of
Rear Seat Entertainment with Fire TV built-in:

•

Voice Remote with Alexa

•

Front radio screen

•

Passenger screen (if equipped)

•

Individual rear touchscreens for Rear Seat Enter-
tainment with Fire TV built-in touch on each rear
screen

For information on the front media hub USB/AUX ports,

page 86.

ACCESSING REAR SEAT
ENTERTAINMENT WITH FIRE TV
BUILT-IN FROM THE FRONT RADIO
SCREEN

You can access your Rear Seat Entertainment with Fire
TV built-in system by following these steps:

Option 1

1. Press the Media button.

2. Press the Rear Seat button icon.

Option 2

1. Press the Apps button on the bottom of the

touchscreen.

2. Press the Uconnect Theater button on the touch-

screen. You may need to navigate to different pages
in the Apps drawer to find the Uconnect Theater
button.

ACCESSING REAR SEAT
ENTERTAINMENT WITH FIRE TV
BUILT-IN FROM THE REAR
SCREENS

You can also access your Rear Seat Entertainment with
Fire TV built-in by choosing one of the following options:

Option 1

•

The system will automatically turn on when the
vehicle is started. Pushing the power button on the
Voice Remote with Alexa will turn the system back
on if it was manually shut off. If the screen is inac-
tive and goes to a screen saver, the system can be
woken up by either tapping the screen or pushing
any button on the Voice Remote with Alexa.

Option 2

•

Swiping on either of the rear touchscreens.

NOTE:

When using the rear screens, the system will launch
with Fire TV.

ACCESSING REAR SEAT
ENTERTAINMENT WITH FIRE TV
BUILT-IN FROM THE PASSENGER
SCREEN — IF EQUIPPED

You can also access Rear Seat Entertainment with Fire
TV built-in content from the Passenger Screen.

Follow these steps:

1. Access the Home screen for the Passenger Screen.

2. Swipe right on the Home screen and select Fire TV

Rear Seat Entertainment Controls.

FIRST TIME STARTING UP
(USING THE REAR SCREENS)

Boot-up Screen

When turning on the system for the first time from the
rear screens, a boot-up screen will appear on the sys-
tem displaying the Fire TV logo.

During this boot-up sequence, language options will be
available for the system.

Voice Remote with Alexa Pairing

After the boot-up sequence is complete, the system will
then give the option to pair a Voice Remote with Alexa
(two are included with the system).

Follow the on-screen instructions for how to pair a Voice
Remote with Alexa to the system. Two Voice Remotes
with Alexa are included to be paired with each rear
screen.

A Voice Remote with Alexa can be paired to each rear
screen. It will function with the rear screen it was paired
with. The pairing steps will need to be done for each
rear screen.

NOTE:

If the Voice Remote with Alexa pairing fails, on-screen
instructions will appear for trying to pair again.

Connecting to a Network

During the start-up process, the system will need to be
connected to a network to function. Multiple network
sources can be options for the system.

Some options for a network connection are:

•

Wi-Fi Hotspot using a capable smartphone (if acti-
vated, it will show as a possible network for the sys-
tem on the screen).

•

Outside connection like a home Wi-Fi network.

222

MULTIMEDIA

•

In-vehicle Wi-Fi.

NOTE:

When a network is connected to the system for the first
time, an over-the-air-software update will take place
using the Wi-Fi connection. It is recommended that an
unlimited Wi-Fi connection, if available, be used during
this update. After this first-time update, updates will
only occur when one is available.

Account Sign-in

The next step will be the option to sign in to your Ama-
zon account.

There are two options to sign into the system:

•

I already have an Amazon account:

already existing Amazon account

•

I am new to Amazon:

Create a new Amazon Account

If “I am new to Amazon” is selected, follow the
on-screen steps to set up an Amazon account with the
system.

Parental Controls

Another feature that will appear during this first time
set up is parental controls.

When the parental controls page appears, it will give
the options “Enable Parental Controls” and “No Paren-
tal Controls”. If “Enable Parental Controls” is selected,
follow the on-screen steps to set up parental controls
for the system.

ALEXA VOICE CONTROL

A feature with Rear Seat Entertainment with Fire TV
built-in that enhances your experience is Alexa. It is
simple to get started using this feature. Push the Micro-
phone button at the top of the Voice Remote with Alexa
to activate Alexa and get started.

LISTEN VIA VEHICLE SPEAKERS

A feature within Rear Seat Entertainment with Fire TV
built-in is the front radio Listen feature. On the front
radio Home screen for Fire TV, select the Listen button
in the top right corner on either card for Screen 1 or 2.
This will allow you to have either rear screen play audio
through all the speakers in the vehicle.

QUICK MENU

Accessing the quick menu will give you more options for
Fire TV.

To access the quick menu, tap the screen and it will
appear. The quick menu is also accessible by pushing
the Gear/Settings button on the Voice Remote with
Alexa.

Some options of the quick menu are:

•

Power

— This will power the screen off.

•

On-Screen Remote

— This will bring up the

on-screen remote to use with the system.

•

Back

— This will let you go back a page.

•

Home

— This will take you to the Home screen.

•

Gear/Settings

— This will let you access certain set-

tings in the system. For more setting options, select
“Settings” within the on-screen Gear/Settings
menu.

•

Vehicle

— This will bring up the Vehicle menu. From

here you can adjust rear climate controls and the
Are We There Yet? app.

PARENTAL CONTROLS
(USING THE REAR SCREENS)

If parental controls were not set during the first time
start up of the system, they can be set by following
these steps:

1. Push the Gear/Settings button on the Voice Remote

with Alexa or tap the screen to access Settings in
the “quick menu”.

2. Select the Gear/Settings icon on the screen.

3. Select “Settings” on the screen.

4. While in Settings, select “Preferences”.

5. Select “Parental Controls”; from here you can turn

Parental Controls on or off and set up a PIN for the
controls using the Voice Remote with Alexa.

VOICE REMOTE WITH ALEXA
PAIRING
(USING THE REAR SCREENS)

If the Voice Remote with Alexa needs to be paired again
or a new remote is being paired, follow these
procedures:

1. Install batteries into the remote.

2. Tap the screen and Select the Gear/Settings icon on

the screen.

3. Select “Settings” on the screen.

4. In Settings, select “Controllers & Bluetooth®

Devices”.

5. From this menu, select “Add New Remote”.

MULTIMEDIA

223

6. Follow the on-screen steps for Voice Remote with

Alexa pairing.

A long press on the Home button can also re-pair a
Voice Remote with Alexa that has become
disconnected.

NOTE:

Your vehicle is included with two Voice Remotes with
Alexa. A Voice Remote with Alexa can be paired to each
rear screen. It will function with the rear screen it was
paired with. The pairing steps will need to be done for
each rear screen.

MEDIA SOURCES INPUT (USING
THE FRONT RADIO AND REAR
SCREENS)

Front Radio Screen

Users can select inputs for each rear screen from the
front radio touchscreen by selecting the Rear Seat tab
and choosing the desired content by selecting “Launch
Source” on the Screen 1 or Screen 2 tab.

Inputs available within Launch Source under “Inputs”
are “Fire TV”, “HDMI”, and “USB”.

Rear Screens

To select inputs on the rear screen, scroll down on the
Fire TV Home screen and select your desired input
under “Input”.

Inputs can also be selected from the Brand tab in the
top menu. While in this tab, scroll down to “Inputs” for
selection options.

NOTE:

The Brand tab naming in the top menu will depend on
the naming of the vehicle’s brand.

VOICE REMOTE WITH ALEXA

Power Button

— Turns the screen for the selected

channel on or off.

5-way Navigation Control

— This control has options

by pressing the Circle button Up, Down, Left, or
Right to navigate on-screen for selections and push-
ing the center button to confirm selections.

Back

— Push to exit out of menus or return to the

previous screen.

Home

— Push to return to the Fire TV Home screen.

Seek Backward/Rewind Button

— Push and hold to

fast rewind through the current audio track or video
chapter. Push once to revert back to the previous
track.

Volume

— Push the - button to decrease the volume

and + button to increase the volume.

Channel Guide

— Push to access the channel guide

for the system.

Mute

— Mutes headphone audio.

Prime Video

— Push to launch Prime Video app.

10.

App 1

— Push to navigate to App 1.

11.

Microphone Button

— Push to activate Alexa.

12.

— Push to access the Fire TV menu.

13.

Seek Forward Button

— Push and hold to fast for-

ward through the current audio track or video
chapter. Push once to skip to the next track.

14.

Play/Pause Button ||

— Begin/resume or pause

disc play.

15.

Channel +/-

— Push the up or down arrow button

on the Channel button to browse channels avail-
able in Fire TV.

16.

Recent

— Push to access recently viewed content

on Fire TV.

17.

Gear/Settings

— Push to bring up setting options

for Fire TV.

18.

App 2

— Push to launch App 2.

Voice Remote With Alexa

224

MULTIMEDIA

19.

Vehicle Button

— Push to activate the Vehicle

menu.

REPLACING THE VOICE REMOTE
WITH ALEXA BATTERIES

Each Voice Remote with Alexa requires two AAA batter-
ies for operation.

To replace the batteries:

1. Locate the battery compartment on the back of the

Voice Remote with Alexa, then slide the battery
cover downward.

2. Remove the old batteries and follow battery recy-

cling procedures for your area.

3. Install new batteries, making sure to orient them

according to the polarity diagram shown inside the
battery compartment.

4. Slide the battery compartment cover back on.

REAR SEAT ENTERTAINMENT WITH
FIRE TV BUILT-IN STREAMING
(USING THE FRONT RADIO AND
REAR SCREENS)

Access Using Launch Source

To access Rear Seat Entertainment with Fire TV built-in
from the front radio, press the Media tab located on the
bottom menu bar. Then select the Rear Seat option
located on the top menu bar. Select “Launch Source”,
and then under “Inputs” select “Fire TV Home”.

Access Using Browse Media

Selecting “Browse Media” on the front radio screen will
give access to different media within Rear Seat Enter-
tainment with Fire TV built-in.

These options will be in the top menu of “Browse
Media” and include:

•

Fire TV

— Selecting “Fire TV” will show streaming

options for categories and to select apps. This
option will be selectable on the left slider menu in
“Browse Media”. While in “Browse Media” under
Fire TV, it will display recent activity under “Recent”.
This will display recent videos viewed from Fire TV
and recent downloads as well.

•

USB Video

— Under “USB Videos”, videos will appear

that are options with a USB device connected to
Rear Seat Entertainment with Fire TV built-in.

•

USB Music

— Under “USB Music”, music will appear

that are options with a USB device connected to
Rear Seat Entertainment with Fire TV built-in.

Access Using the Voice Remote with Alexa and Rear
Screens

Rear passengers will be able to access some options
for streaming by pressing the “Prime Video”, “App 1”, or
“App 2” button on the Voice Remote with Alexa. Select-
ing one of those buttons on the Voice Remote with
Alexa will take you to the home page for that respective
streaming service. Turning on either of the rear screens
will launch Fire TV. By default, the rear screens will
always launch in Fire TV. More streaming options can
be selected on the Fire TV home page.

Fire TV

Fire TV is your source for online streaming with Rear
Seat Entertainment with Fire TV built-in.

NOTE:

A data source needs to be connected to the system for
streaming to be accessible. This can be set up when
Fire TV is turned on for the first time from the rear
screens. Some of these options can be an in-vehicle 4G
Wi-Fi hot spot, capable Wi-Fi hot spot from a mobile
device, or Wi-Fi from an outside source like a home or a
garage.

To access Fire TV on the front screen, select “Launch
Source” on the front radio rear seat screen and then
“Fire TV Home” under the Inputs.

Viewing from the front radio screen or passenger
screen mirrors or controls the Fire TV experience from
one of the rear Fire TV displays.

The menu bar for Fire TV will have the options for
“Home”, “Find”, “Library”, “Brand”, and “Live”.

Below the menu bar will be streaming options linked to
your Prime account like “Prime Video”.

The front radio screen offers some options:

•

Power

— This will turn Fire TV on or off.

•

Screen 1 and Screen 2 Toggle

— This toggles

between the Rear Screens (for use with front radio
screen only).

•

Collapse

— While viewing on the front radio screen,

this will collapse the screen to dashboard view.

•

Source Drawer

— This will open the “Source Drawer”

and the source logo will be displayed on the icon.

•

Browse Media

— This will open the “Browse Media”

pop-up.

•

Back

— This will let you go back the previous page.

•

Fire TV Home

— This will take you back to the Fire

TV home page.

•

— This will open the Fire TV menu.

MULTIMEDIA

225

•

Remote icon

— This will display the on-screen

remote.

NOTE:

Front radio screen mirroring and watching can only be
done when the vehicle is in PARK. The vehicle must be
in an active and usable cellular range and properly
equipped with a Uconnect 5 NAV system and Rear Seat
Entertainment with Fire TV package. For streaming, a
Wi-Fi connection and registered Amazon account are
required to run Fire TV in the vehicle. Streaming service
subscriptions are not included. Services and features
are subject to change or withdrawal at any time, may
not be available in all areas and languages, and may
require separate subscriptions.

FIRE TV APPS/GAMES
(USING THE REAR SCREENS)

Apps and games can be accessed using Rear Seat
Entertainment with Fire TV built-in.

To access Apps on the rear screen, turn on the system
and select “Find” in the top menu. On the Find page,
select “App Store®”. Within the App Store® you can
download free apps and games or purchase apps and
games. From here you can also select from all the apps
and games that have been downloaded.

ARE WE THERE YET?

When a navigation route has been set from the
Uconnect system, the second-row passengers can use
“Are We There Yet?” for an animated screen showing
distance and time remaining on navigation routes, as
well as the estimated time of arrival with pop-up
notifications.

Some screen information includes:

•

Decrease Timing Between Notifications Button

•

Notifications ON/OFF Button

•

Increase Timing Between Notifications Button

•

Arrival Time

•

Time Remaining Until Destination Is Reached

•

Distance Remaining

To access “Are We There Yet?” from the rear screens,
follow these steps:

1. Tap one of the rear screens and select the Vehicle

icon or push the Vehicle button on the Voice Remote
with Alexa.

2. Select “Are We There Yet?” near the bottom of the

menu on the first page of options.

USING THE VIDEO USB PORT

Plug in a USB drive or mass storage device and play
your favorite music or movies.

NOTE:

To view USB media on the rear screens, insert a USB
drive into the port. The USB drive port is located under
the radio controls in the instrument panel.

On the rear screen you can browse the content of the
USB device by going to the USB source in the inputs.
Use the search feature to find your media faster.

PLAY VIDEO GAMES

Connect the video game console to either of the HDMI
ports located behind either of the first row seats.

NOTE:

Certain high-end video games may exceed the power
limit of the vehicle's Power Inverter

page 89.

HEADPHONES OPERATION

Rear Seat Entertainment with Fire TV built-in does not
come equipped with headphones. Customers will need
to provide their own wireless headphones that can be
paired with the system using Bluetooth®. Customers
can also use their own wired headphones and plug
them into a Headphone Jack located under one of the
rear screens.

Headphone Jack/HDMI/USB

1 — Headphone Jack (Headphone Output Only)
2 — USB Port (Charge Only)
3 — HDMI Port

226

MULTIMEDIA

Wireless Headphones Pairing

To pair wireless headphones with Rear Seat Entertain-
ment with Fire TV built-in using the rear screens, follow
these steps:

1. Push the Gear/Settings button on the Voice Remote

with Alexa or tap the screen.

2. Select the Gear/Settings icon on the screen.

3. Select “Settings” on the screen.

4. While in Settings, select “Controllers & Bluetooth®

Devices”.

5. Select “Other Bluetooth® Devices” and follow the

on-screen steps for pairing.

While multiple headphones can be paired, only one will
output audio at a time.

REAR CLIMATE CONTROLS

The Rear Climate Controls can also be controlled using
Rear Seat Entertainment with Fire TV built-in

page 77.

Rear Climate Controls can be accessed by using the
Vehicle menu. Tap on either rear screen and select the
Vehicle icon or press the Vehicle button on the Voice
Remote with Alexa. Then select the Rear Climate Con-
trols option.

Options within Rear Climate Controls are:

Icon

Description

Climate Control ON Button

Press and release this button to turn the Rear Climate Controls on.

OFF

Climate Control OFF Button

Press and release this button to turn the Rear Climate Controls off.

SYNC

SYNC Button

Pressing this button will sync both sides of the Rear Climate Controls.

AUTO Button

Automatically controls the rear interior cabin temperature by adjusting airflow distribution and amount. Toggling this function will cause the system to switch
between Manual mode and Automatic mode.

MULTIMEDIA

227

Icon

Description

Rear Passenger Temperature Up and Down Buttons

Provides the rear passengers with independent temperature control. Press the button on the touchscreen to increase or decrease the temperature. The tem-
perature will get warmer as you move up toward the red arrow and colder as you move down toward the blue arrow.

Headliner

Mode

Headliner Mode

Air comes from the outlets in the headliner. Each of these outlets can be individually adjusted to direct the flow of air. Moving the air vanes of the outlets to
one side will shut off the airflow.

Bi-Level Mode

Air comes from both the headliner outlets and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode is designed to provide cooler air out of the headliner outlets and warmer air from the floor outlets.

Floor Mode

Air comes from the floor outlets.

228

MULTIMEDIA

Icon

Description

1,2,3, etc.

Blower Control

Blower Control is used to regulate the amount of air forced through the Climate system. There are seven blower speeds available. Adjusting the blower will
cause Automatic mode to switch to Manual operation.

LEGAL & COMPLIANCE

To access Legal and Compliance information about
Rear Seat Entertainment with Fire TV built-in from the
rear screens, follow these steps:

1. Push the Gear/Settings button on the Voice Remote

with Alexa or tap the screen.

2. Select the Gear/Settings icon on the screen.

3. Select “Settings” on the screen.

4. While in the Settings menu, select “My Fire TV” and

then “Legal & Compliance”.

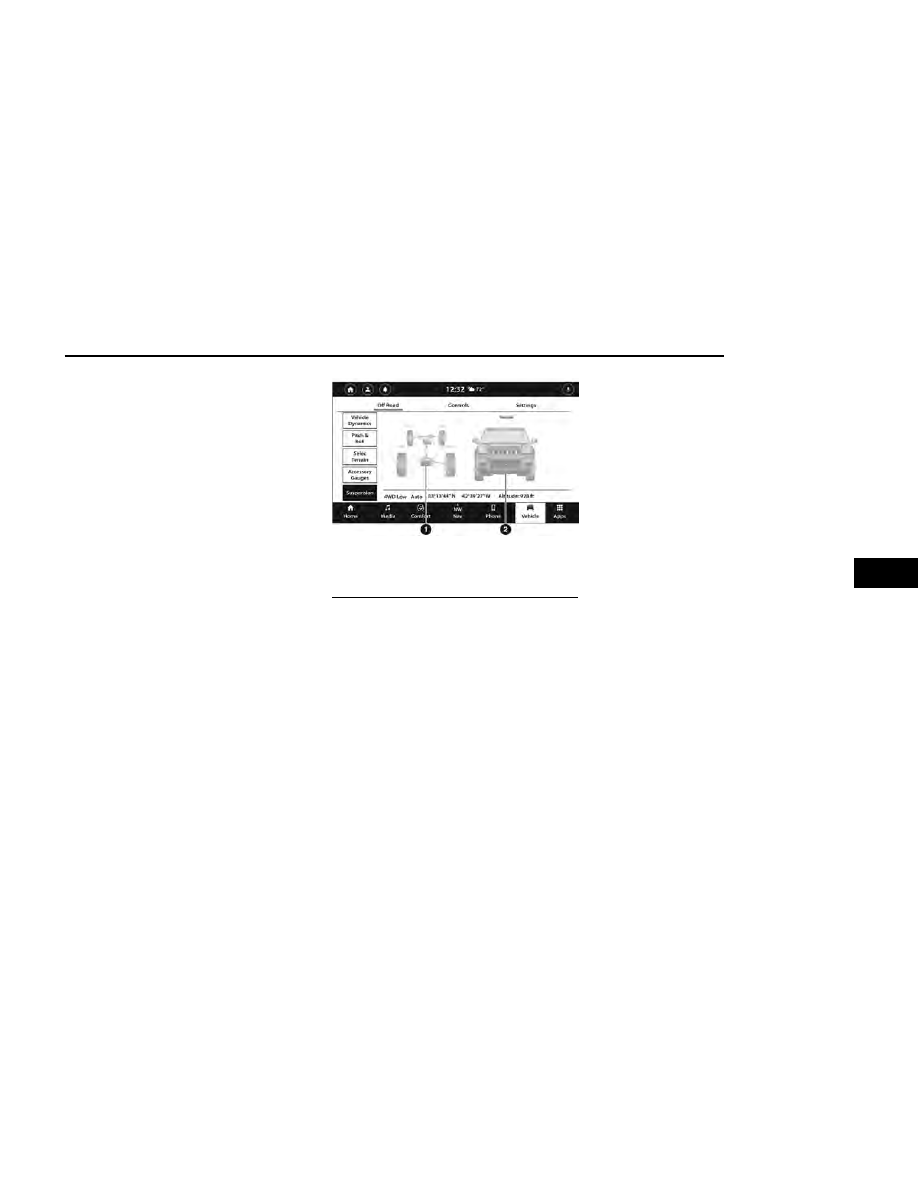

OFF-ROAD PAGES — IF EQUIPPED

Your vehicle may be equipped with Off-Road Pages,
which provides the vehicle status information while
operating on off-road conditions. It supplies information
relating to the vehicle ride height, the status of the
transfer case, the pitch and roll of the vehicle, and the
active Selec-Terrain Mode.

To access Off-Road Pages, press the Off Road button
on the touchscreen from the Vehicle menu, and then
press “Launch Off-Road”.

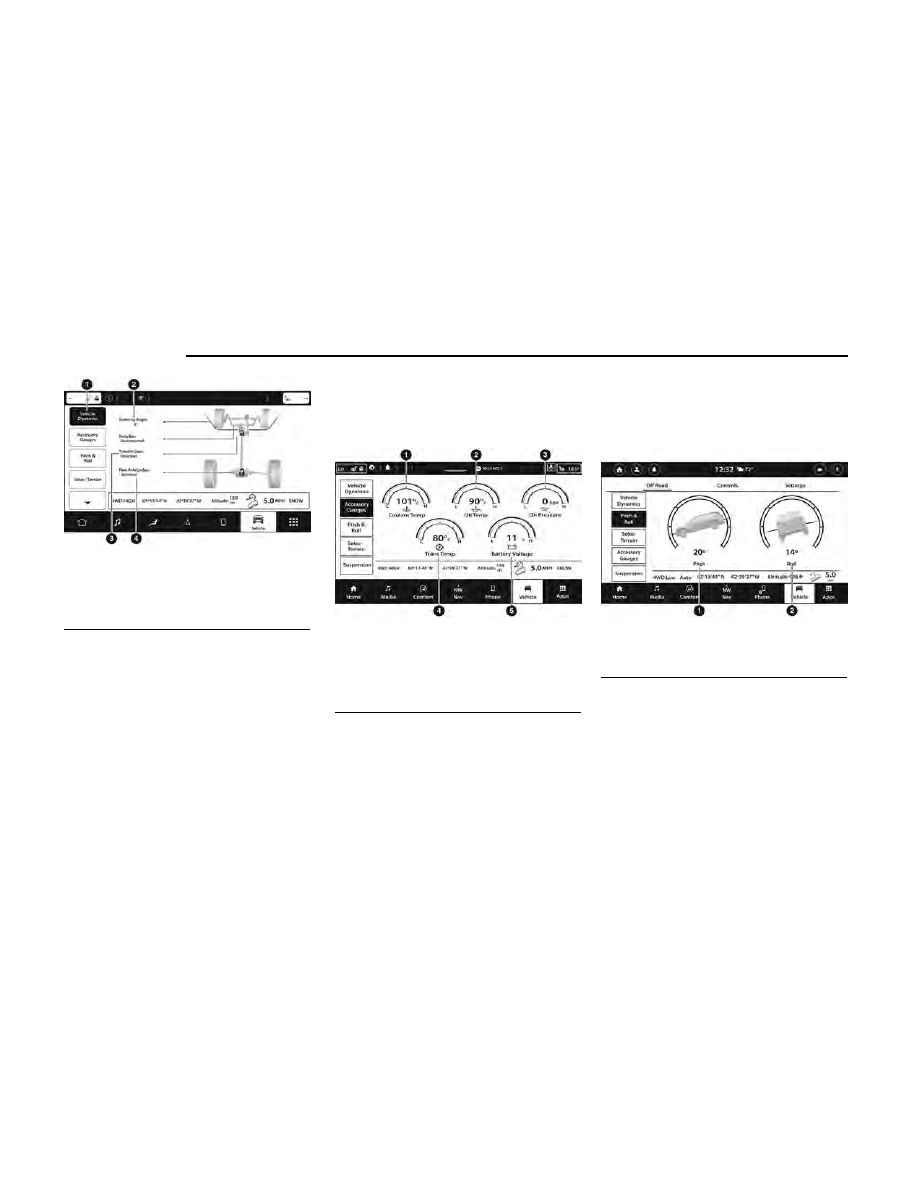

Off-Road Pages has the following selectable pages:

•

Vehicle Dynamics

•

Accessory Gauges

•

Pitch & Roll

•

Selec-Terrain — If Equipped

•

Suspension — If Equipped

•

Forward Facing Camera — If Equipped

NOTE:

With a Connected Services subscription (if equipped),
you can record your Off-Road data and send it directly
to the mobile app. Press the Record button to begin.

OFF-ROAD PAGES STATUS BAR

The Off-Road Pages Status Bar is located along the bot-
tom of Off-Road Pages and is present on each of the
selectable page options. It provides continually updat-
ing information for the following items:

•

Current Transfer Case Status

•

Current Selec-Terrain Mode

•

Current Latitude/Longitude

•

Current Altitude of the vehicle

•

Status of Hill Descent Control or Selec-Speed Con-
trol Selected Speed in mph (km/h).

•

Current Terrain Mode

VEHICLE DYNAMICS

The Vehicle Dynamics page displays information con-
cerning the vehicle’s drivetrain.

The following information is displayed:

•

Steering angle in degrees

•

Status of Transfer Case

•

Status of the Rear Axle Locker — If Equipped

•

Status of Sway Bar — If Equipped

Status Bar

1 — Transfer Case Status
2 — Current Latitude/Longitude
3 — Current Altitude
4 — Hill Descent Control Or Selec-Speed Control
5 — Current Terrain Mode

MULTIMEDIA

229

ACCESSORY GAUGES

The Accessory Gauges page displays the current status
of the vehicle’s Coolant Temperature, Oil Temperature,
Oil Pressure, Transmission Temperature, and Battery
Voltage.

PITCH & ROLL

The Pitch & Roll page displays the vehicle’s current
pitch (angle up and down) and roll (angle side to side)
in degrees. The Pitch & Roll gauges provide a visualiza-
tion of the current vehicle angle.

SELEC-TERRAIN — IF EQUIPPED

The Selec-Terrain page displays the current Selec-
Terrain Mode through a high resolution image. Adjust-
ing the Selec-Terrain Mode will alter the image on the
screen. The vehicle must be in the ON/RUN position to
display Selec-Terrain information.

The selectable modes are as follows:

•

Rock — Vehicle Must Be In 4WD Low

•

Sand/Mud

Vehicle Dynamics Menu

1 — Vehicle Dynamics
2 — Steering Angle
3 — Transfer Case Status
4 — Rear Axle Status

Accessory Gauges Menu

1 — Coolant Temperature
2 — Oil Temperature
3 — Oil Pressure
4 — Transmission Temperature
5 — Battery Voltage

Pitch & Roll Menu

1 — Current Pitch
2 — Current Roll

230

MULTIMEDIA

•

Snow

•

Auto — Default

•

Sport

NOTE:

The Off-Road Pages Status Bar will also display the cur-
rent Selec-Terrain Mode.

SUSPENSION — IF EQUIPPED

The Suspension page displays information concerning
the vehicle’s suspension.

The following information is displayed:

•

Wheel Articulation

•

Current Ride Height Status

○

Off-Road 2

○

Off-Road 1

○

Normal

○

Aero

○

Entry/Exit

NOTE:

The wheel articulation will be represented by a yellow
color in the Wheel Articulation. If Ride Height is
adjusted, the Ride Height indicator on the screen will
switch to the appropriate height and the Wheel Articula-
tion will show the movement and change in height.

TRAIL RECORDING — IF EQUIPPED

Overview

The Trail Recording feature can be accessed from a
variety of different ways: within the Vehicle Dashboard
screen or within the Off-Road Pages. There will be
options within “Trail Recording” where you can start
recording your trail or view saved recordings where you
can see previous trails recorded.

Recording A Trail And Stop Recording

To start recording a trail, select “Start Recording”
towards the bottom of the touchscreen. Once selected,
your trail will start recording for as long as desired.

When the trail is over, press “Stop Recording”. Select
whether to save the trail in which the trail will be saved
and will appear in “Saved Recordings”. Selecting “Can-
cel” will not save the trail, and the trail will be deleted.

NOTE:

After 30 miles (48 km) a notification will appear on the
touchscreen asking if you want to keep recording.

Adding a Waypoint — If Equipped

On the bottom left-hand side of the touchscreen select
“Add Waypoint” from the trail recording screen. This will
allow the user to pin a location along the trail, both dur-
ing and after the recording. There are three selectable
options to mark a Waypoint: a Waypoint can be placed
whether the vehicle is in or out of motion, but can only
be edited when the vehicle is not moving. As a default,
Waypoints are named chronologically in the order in
which the Waypoints are marked or added. They can be
renamed later by pressing the edit icon located to the
right of the defaulted Waypoint name.

•

Places

•

Obstacle

•

Guidance

NOTE:

A Waypoint can be placed whether or not the vehicle is
in motion, but can only be edited when the vehicle is
not moving.

Expand/Collapse View

While in the Trail Recording screen, press the Expand
button located to the right of the Map View to enlarge
the Trail Map screen during recordings. Once in
expanded view, press the collapse icon which will
shrink the trail map during screen recordings.

Suspension Menu

1 — Wheel Articulation
2 — Current Ride Height

MULTIMEDIA

231

Editing A Trail

After finishing recording a trail, there will be a scale to
rate the difficulty of the trail for future reference. The
scale is from 1-10 with one being the easiest and
10 being the most difficult.

NOTE:

Setting the difficulty is not required to save the trail and
can be edited afterwards.

Editing/Deleting a Waypoint

To edit a Waypoint, select the desired Waypoint on the
map. Once selected, choose the type of Waypoint. Once
selected, choose a sub-type that describes the Way-
point. Waypoint sub-types are listed in the following
table. Once the Waypoint has been edited, press the
Save button.

To delete the Waypoint, select the desired Waypoint on
the map, then press the Delete Waypoint button.

POI

Obstacles

Guidance

Camping

Mud

Bare Left

Scenic View

Rock

Bare Right

Staging Area

Sand

Dead End

Trailhead

Steep Ascent

Hard Left

Water

Steep Descent

Hard Right

Water

Slow

Route Closure

Waypoints can be renamed later by pressing the pencil
icon located to the right of the defaulted Waypoint
name. Selecting the pencil icon will bring up a keyboard
which will allow you to customize the Waypoint name.

NOTE:

Editing Waypoints is not available while the vehicle is in
motion. To edit and customize Waypoints, the vehicle
must not be in motion.

If you want to delete a Waypoint, select the Waypoint
that you created and press the Delete Waypoint button
located towards the bottom of your touchscreen. The
pop-up, “Your waypoint was deleted successfully” will
appear on your touchscreen once the Waypoint was
successfully deleted.

Saving And Canceling A Trail

When finished editing a trail, select “Save”. The trail will
be stored in the Saved Recordings tab.

Selecting “Cancel” will delete the trail, and a pop-up
screen will appear asking if you are sure that you want
to cancel your current trail recording. Selecting “No,
Don’t Cancel” or the X button will take you back to the
Waypoint editing screen. Selecting “Yes, Cancel” will
discard the selected trail recording.

Saved Trails

To view previously saved trails, click the Saved Record-
ings button on the Trail Recording home page. Once
entering Saved Recordings, a list of previously saved
trails will be listed. The Remove Icon button to the far
right of each trail will delete the trail. To delete all trails,
select “Delete All” towards the bottom of the
touchscreen.

NOTE:

Saved recordings can be accessed even once the Brand
connect services subscription has expired.

After selecting a saved recording, options will be avail-
able to view, edit, delete, or export the recording onto a
USB device. Pressing “View Performance Data” will
showcase the vehicle’s pitch, roll, altitude, and location

for each selected Waypoint. A Snapshot feature is avail-
able, where a photo of the performance data can be
exported to a connected USB device.

Export a Recording onto a USB

After selecting a saved recording, press the Export but-
ton towards the bottom of the touchscreen and select
the USB icon option. There will be a pop-up message
afterwards stating whether or not the export was
successful.

ADVENTURE GUIDES — IF EQUIPPED

To access the Adventure Guides feature, press the
Vehicle icon on the lower menu bar of your touch-
screen. From the Vehicle Dashboard, press “Adventure
Guides”.

To search for an off-road trail:

1. Press the search box and enter an address or

keyword.

Adventure Guides App

232

MULTIMEDIA

NOTE:

○

An active subscription to Brand Connect con-
nected services is required to access the Adven-
ture Guides feature. If you do not have an active
subscription, click the Register button on the
touchscreen and follow the prompts.

○

If there is no network connection, a message will
display on your touchscreen, “Data connection
temporarily not available. Please try again later.”
Press “OK”, and ensure there is a stable network
connection.

○

If there are no search results within the area in
which you added the address or keyword, the
message “No Results Found” will display on your
touchscreen.

2. The distance to each search result will appear on

the left of each destination. The difficulty level of
each trail will show towards the right of each desti-
nation. Select the trail you wish to navigate to.

NOTE:

○

Press the Map View button to view an expanded
summary of each trail and its difficulty level.

NOTE:

Each trail detail screen will provide you information
such as an address, phone number, typical open/
close times, and vehicle requirements.

3. Press the Preview Trail button to view the trail info.

Press the Start Recording button which will bring
you to the Off Road Pages screen where you will be
able to save the recording, view saved recordings,
and see the distance to your destination.

Search For An Off-Road Trail

Trail Difficulty

Map View Button

Expanded Trail Difficulty View

Preview Trail

MULTIMEDIA

233

NOTE:

Pressing the Back arrow on the Trail Info page will
bring you back to the trail detail screen.

4. Press the “Go Here” button which will send the

directions to your TomTom Navigation system.

5. If the trail does not exist within your Uconnect sys-

tem’s local memory, press the Download button. If
the trail already exists, meaning it has already been
downloaded at some point, press the Check For
Updates button.

The following are the different pages that are unique to
each Trail Info page:

NOTE:

•

Highlights:

Provides general information on the trail

name, trails difficulty range, and experience icons.

•

Advanced Rating System:

Provides information

such as recommended vehicle for the trail and a
“Concerns” tab that provides information about
what to be prepared for when driving on the
selected trail. Only the Concerns that are highlighted
are applicable to the trail.

•

Technical Rating:

Provides a brief description of the

trail as well as a “Mandatory” rating and an
“Optional” rating. Next to each rating is an “i” icon
that provides a rating legend for trail difficulty with
1 being the easiest and 10 being the most difficult.

•

Waypoints:

The last page provides information on

different Waypoints along the trail such as distance
from selected Waypoint and navigation routes to
other Waypoints along the trail.

NOTE:

•

“Trail Updated Successfully” will display towards the
top of your touchscreen if the trail update was com-
pleted properly. If “Trail could not update. Not
enough space” appears, you will need to clear up
space under your “Downloaded Trails” by removing
trails that are no longer needed or desired. “No
Updates available” means the trail you have
selected is up-to-date.

•

Pressing “X” on any of these screens will take you
back to the trail details screen.

Trails Near You

The Trails Near You feature will show the first 20 trails
based on 500 miles (805 km) within your current vehi-
cle’s location.

NOTE:

If there are no trails within a 500-mile (805-km) radius
within your current vehicle’s location, “No Results
Found” will appear on your touchscreen.

Preloaded Trails

Press “Preloaded Trails” to see a list of trails that are
preloaded onto your Uconnect system.

NOTE:

“Preloaded Trails” cannot be deleted from the list, as
they are the default trails that remain on your system
permanently.

Downloaded Trails

Any trail that you wish to download, press the Download
button on the trail you have selected.

NOTE:

•

“Trail Downloaded Successfully” will display towards
the top of your touchscreen if the trail was down-
loaded properly. Once the download has been suc-
cessful, “Check for updates” will be available if you
wish to check the trail for updates.

Go Here Navigation Button

Preloaded Trails

234

MULTIMEDIA

•

“Downloaded Trails Full. Free up some space” will
display towards the top of your touchscreen if there
is not enough space. Press the Downloaded Trails
button to remove existing trails.

Press the Remove icon to remove a trail from the list.
You will be presented with a confirmation, “Are you sure
you want to delete this trail?”. Press “Yes” to show the
trail was deleted successfully, or press “No” or the X
button which will bring you back to the Downloaded
Trails list.

Go All Access

Selecting the “Go All Access” button on the main Adven-
ture Guides page will display the Manage Account
screen. On this screen you can purchase an All Access
membership which provides the entire catalog of
offroad trails. A QR code will be present on the screen
to purchase a All Access membership.

NOTE:

If a trail has a grayed out icon to the far right, that indi-
cates that an All Access membership is required in
order to view the trail.

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance
from your radio. This condition may be lessened or
eliminated by repositioning the mobile phone within the
vehicle. This condition is not harmful to the radio. If
your radio performance does not satisfactorily improve
from repositioning the mobile phone, it is recom-
mended that the volume be turned down or off during
mobile phone operation when not using the Uconnect
system.

REGULATORY AND SAFETY
INFORMATION

US/CANADA

Exposure to Radio Frequency Radiation

The radiated output power of the internal wireless radio
is far below the FCC and IC radio frequency exposure
limits. Nevertheless, the wireless radio will be used in
such a manner that the radio is 8 inches (20 cm) or
further from the human body.

The internal wireless radio operates within guidelines
found in radio frequency safety standards and recom-
mendations, which reflect the consensus of the scien-
tific community.

The radio manufacturer believes the internal wireless
radio is safe for use by consumers. The level of energy
emitted is far less than the electromagnetic energy
emitted by wireless devices such as mobile phones.
However, the use of wireless radios may be restricted in
some situations or environments, such as aboard air-
planes. If you are unsure of restrictions, you are encour-
aged to ask for authorization before turning on the wire-
less radio

page 383.

Remove Downloaded Trails

MULTIMEDIA

235

SAFETY

SAFETY FEATURES

ANTI-LOCK BRAKE SYSTEM (ABS)

The ABS provides increased vehicle stability and brake
performance under most braking conditions. The sys-
tem automatically prevents wheel lock and enhances
vehicle control during braking.

The ABS performs a self-check cycle to ensure that the
ABS is working properly. During this self-check, you may
hear a slight clicking sound as well as some related
motor noises.

The ABS is activated during braking when the system
detects one or more wheels are beginning to lock. Road
conditions such as ice, snow, gravel, bumps, railroad
tracks, loose debris, or panic stops may increase the
likelihood of ABS activation(s).

You also may experience the following normal charac-
teristics when the ABS activates:

•

ABS motor noise or clicking sounds (you may con-
tinue to hear for a short time after the stop)

•

Brake pedal pulsations

•

A slight drop of the brake pedal at the end of the
stop

The ABS is designed to function with the Original Equip-
ment Manufacturer (OEM) tires. Modification may result
in degraded ABS performance.

WARNING!

•

The ABS contains sophisticated electronic equip-
ment that may be susceptible to interference
caused by improperly installed or high output radio
transmitting equipment. This interference can
cause possible loss of anti-lock braking capability.
Installation of such equipment should be per-
formed by qualified professionals.

•

Pumping of the Anti-Lock Brakes will diminish their
effectiveness and may lead to a collision. Pumping
makes the stopping distance longer. Just press
firmly on your brake pedal when you need to slow
down or stop.

•

The ABS cannot prevent the natural laws of physics
from acting on the vehicle, nor can it increase
braking or steering efficiency beyond that afforded
by the condition of the vehicle brakes and tires or
the traction afforded.

•

The ABS cannot prevent collisions, including those
resulting from excessive speed in turns, following
another vehicle too closely, or hydroplaning.

•

The capabilities of an ABS equipped vehicle must
never be exploited in a reckless or dangerous man-
ner that could jeopardize the user’s safety or the
safety of others.

Anti-Lock Brake System (ABS) Warning

Light

The yellow ABS Warning Light will turn on when the igni-
tion is placed in the ON/RUN mode and may stay on for
as long as four seconds.

If the ABS Warning Light remains on or comes on while
driving, it indicates that the anti-lock portion of the
brake system is not functioning and that service is
required. However, the conventional brake system will
continue to operate normally if the ABS Warning Light is
on.

If the ABS Warning Light is on, the brake system should
be serviced as soon as possible to restore the benefits
of Anti-Lock Brakes. If the ABS Warning Light does not
come on when the ignition is placed in the ON/RUN
mode, have the light repaired as soon as possible.

DROWSY DRIVER DETECTION
(DDD) — IF EQUIPPED

DDD detects when the driver is feeling fatigued and
warns the driver to pull over and take a break.

To Activate/Deactivate

DDD can be activated and deactivated through the
Uconnect system by selecting the following in order:

1. “Safety & Driving Assistance”

2. “Drowsy Driver Detection”

236

WARNING!

The DDD system is an aid for driving and does not
relieve the driver of the responsibility of driving the
vehicle. Always drive alert and get plenty of rest
before driving. If you experience fatigue while driving,
do not wait for the DDD to intervene with a warning.
Choose a safe and secure location where you can pull
over safely for a break. Only return to the road when
you are in the right physical and mental condition to
prevent endangering yourself and others.

System Operation

Using feedback obtained from the driver’s steering pat-
terns, any buttons/switches that are pressed, and from
the front camera, the system implements two operating
logics:

•

The first operating logic takes the driving style into
account, observing the road and detecting to what
extent the driver can continue driving with few lane
crossing events.

•

The second operating logic measures the time
spent behind the wheel with the vehicle speed
above 40 mph (60 km/h) and below 100 mph
(160 km/h).

If the driving style indicates that the driver is unable to
follow the road trajectory and respect the horizontal
lane markings while within the operating speed range
of the system, a pop up will display on the instrument
cluster display to suggest that the driver should stop for
a break. An audible signal will also sound.

If the driver

accepts

the suggestion provided by the sys-

tem by pushing the “OK” button on the left side of the
steering wheel, the message will disappear from the
display.

If the driver

does not acknowledge

the warning, it will

be displayed for 60 seconds and then disappear.

NOTE:

In the event of a DDD system failure, a dedicated mes-
sage will appear in the instrument cluster display.

REAR SEAT REMINDER ALERT
(RSRA)

RSRA alerts of the possible presence of an object, pas-
senger, or pet in the rear seats through a visual and
auditory notification. When the system is activated, it
displays the message "Check Rear Seat" on the instru-
ment cluster display and sounds an auditory alert upon
the driver placing the ignition in the OFF position to exit
the vehicle. The system will activate automatically if a
rear door is opened within 10 minutes of the ignition
being placed in the ON/RUN position. RSRA should be
used as a reminder to check the rear seats, it does not
directly detect objects, passengers, or pets and is only
activated when the previous conditions are met.

To enable or disable RSRA, see

page 199.

WARNING!

•

Before exiting a vehicle, always come to a com-
plete stop, then shift the automatic transmission
into PARK and apply the parking brake.

•

Always make sure the keyless ignition node is in
the OFF position, key fob is removed from the
vehicle and vehicle is locked.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in
a vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.

ELECTRONIC BRAKE CONTROL
(EBC) SYSTEM

Your vehicle is equipped with an advanced EBC system.
This system includes the Anti-Lock Brake System (ABS),
Brake Assist System (BAS), Electronic Brake Force Dis-
tribution (EBD), Electronic Roll Mitigation (ERM), Elec-
tronic Stability Control (ESC), Hill Start Assist (HSA), and
Traction Control System (TCS). These systems work
together to enhance both vehicle stability and control in
various driving conditions.

Your vehicle may also be equipped with Rain Brake
Support (RBS), Ready Alert Braking (RAB), and Trailer
Sway Control (TSC).

DDD Warning Message

SAFETY

237

Brake Assist System (BAS)

The BAS is designed to optimize the vehicle’s braking
capability during emergency braking maneuvers. The
system detects an emergency braking situation by
sensing the rate and amount of brake application and
then applies optimum pressure to the brakes. This can
help reduce braking distances. The BAS complements
the Anti-Lock Brake System (ABS). Applying the brakes
very quickly results in the best BAS assistance. To
receive the benefit of the system, you must apply con-
tinuous braking pressure during the stopping sequence
(do not “pump” the brakes). Do not reduce brake pedal
pressure unless braking is no longer desired. Once the
brake pedal is released, the BAS is deactivated.

WARNING!

The Brake Assist System (BAS) cannot prevent the
natural laws of physics from acting on the vehicle, nor
can it increase the traction afforded by prevailing
road conditions. BAS cannot prevent collisions,
including those resulting from excessive speed in
turns, driving on very slippery surfaces, or hydroplan-
ing. The capabilities of a BAS-equipped vehicle must
never be exploited in a reckless or dangerous man-
ner, which could jeopardize the user's safety or the
safety of others.

Brake System Warning Light

The red Brake System Warning Light will turn on when
the ignition is placed in the ON/RUN mode and may
stay on for as long as four seconds.

If the Brake System Warning Light remains on or comes
on while driving, it indicates that the brake system is
not functioning properly and that immediate service is

required. If the Brake System Warning Light does not
come on when the ignition is placed in the ON/RUN
mode, have the light repaired as soon as possible.

Electronic Brake Force Distribution

(EBD)

EBD manages the distribution of the braking torque
between the front and rear axles by limiting braking
pressure to the rear axle. This is done to prevent over-
slip of the rear wheels to avoid vehicle instability, and to
prevent the rear axle from entering ABS before the front
axle.

Electronic Roll Mitigation (ERM)

ERM anticipates the potential for wheel lift by monitor-
ing the driver’s steering wheel input and the speed of
the vehicle. When ERM determines that the rate of
change of the steering wheel angle and vehicle’s speed
are sufficient to potentially cause wheel lift, it then
applies the appropriate brake and may also reduce
engine power to lessen the chance that wheel lift will
occur. ERM can only reduce the chance of wheel lift
occurring during severe or evasive driving maneuvers; it
cannot prevent wheel lift due to other factors, such as
road conditions, leaving the roadway, or striking objects
or other vehicles.

WARNING!

Many factors, such as vehicle loading, road condi-
tions and driving conditions, influence the chance
that wheel lift or rollover may occur. ERM cannot pre-
vent all wheel lift or rollovers, especially those that
involve leaving the roadway or striking objects or
other vehicles. The capabilities of an ERM-equipped

(Continued)

WARNING!

vehicle must never be exploited in a reckless or dan-
gerous manner which could jeopardize the user's
safety or the safety of others.

Electronic Stability Control (ESC)

ESC enhances directional control and stability of the
vehicle under various driving conditions. ESC corrects
for oversteering or understeering of the vehicle by
applying the brake of the appropriate wheel(s) to assist
in counteracting the following conditions. Engine power
may also be reduced to help the vehicle maintain the
desired path.

•

Oversteer — when the vehicle is turning more than
appropriate for the steering wheel position.

•

Understeer — when the vehicle is turning less than
appropriate for the steering wheel position.

ESC uses sensors in the vehicle to determine the
vehicle path intended by the driver and compares it to
the actual path of the vehicle. When the actual path
does not match the intended path, ESC applies the
brake of the appropriate wheel to assist in counteract-
ing the oversteer or understeer condition.

The ESC Activation/Malfunction Indicator Light located
in the instrument cluster will start to flash as soon as
the ESC system becomes active. The ESC Activation/
Malfunction Indicator Light also flashes when the Trac-
tion Control System (TCS) is active. If the ESC
Activation/Malfunction Indicator Light begins to flash
during acceleration, ease up on the accelerator and
apply as little throttle as possible. Be sure to adapt your
speed and driving to the prevailing road conditions.

238

SAFETY

WARNING!

•

Electronic Stability Control (ESC) cannot prevent
the natural laws of physics from acting on the
vehicle, nor can it increase the traction afforded by
prevailing road conditions. ESC cannot prevent
accidents, including those resulting from excessive
speed in turns, driving on very slippery surfaces, or
hydroplaning. ESC also cannot prevent accidents
resulting from loss of vehicle control due to inap-
propriate driver input for the conditions. Only a
safe, attentive, and skillful driver can prevent acci-
dents. The capabilities of an ESC equipped vehicle
must never be exploited in a reckless or dangerous
manner which could jeopardize the user’s safety or
the safety of others.

•

Vehicle modifications, or failure to properly main-
tain your vehicle, may change the handling charac-
teristics of your vehicle, and may negatively affect
the performance of the ESC system. Changes to
the steering system, suspension, braking system,
tire type and size or wheel size may adversely
affect ESC performance. Improperly inflated and
unevenly worn tires may also degrade ESC perfor-
mance. Any vehicle modification or poor vehicle
maintenance that reduces the effectiveness of the
ESC system can increase the risk of loss of vehicle
control, vehicle rollover, personal injury and death.

ESC Operating Modes

Depending upon model and mode of operation, the ESC
system may have multiple operating modes.

ESC On

This is the normal operating mode for the ESC. When-
ever the vehicle is started, the ESC system will be in
this mode. This mode should be used for most driving
conditions. Alternate ESC modes should only be used
for specific reasons as noted in the following
paragraphs.

Partial Off

This mode may be useful if the vehicle becomes stuck.
This mode may modify TCS and ESC thresholds for acti-
vation, which allows for more wheel spin than normally
allowed.

To enter the “Partial Off” mode, momentarily push the
ESC OFF button and the ESC OFF Indicator Light will
illuminate. To turn the ESC on again, momentarily push
the ESC OFF button and the ESC OFF Indicator Light will
turn off.

NOTE:

For vehicles with multiple partial ESC modes, the push
and release of the button will toggle the ESC modes.
Multiple attempts may be required to return to "ESC On"
mode.

WARNING!

•

When in “Partial Off” mode, the TCS functionality
of ESC (except for the limited slip feature
described in the TCS section) has been disabled
and the ESC OFF Indicator Light will be illuminated.
When in “Partial Off” mode, the engine power
reduction feature of TCS is disabled, and the
enhanced vehicle stability offered by the ESC sys-
tem is reduced.

(Continued)

WARNING!

•

Trailer Sway Control (TSC) is disabled when the
ESC system is in the “Partial Off” mode.

ESC Activation/Malfunction Indicator

Light And ESC OFF Indicator Light

The ESC Activation/Malfunction Indicator
Light in the instrument cluster will come on
when the ignition is placed in the ON/RUN
mode. It should go out with the engine run-

ning. If the ESC Activation/Malfunction Indicator Light
comes on continuously with the engine running, a mal-
function has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
speeds greater than 30 mph (48 km/h), see an autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected.

The ESC Activation/Malfunction Indicator Light starts to
flash as soon as the tires lose traction and the ESC sys-
tem becomes active. The ESC Activation/Malfunction
Indicator Light also flashes when TCS is active. If the
ESC Activation/Malfunction Indicator Light begins to
flash during acceleration, ease up on the accelerator
and apply as little throttle as possible. Be sure to adapt
your speed and driving to the prevailing road
conditions.

The ESC OFF Indicator Light indicates the
customer has elected to have the Electronic
Stability Control (ESC) in a reduced mode.

SAFETY

239

NOTE:

•

The ESC Activation/Malfunction Indicator Light and
the ESC OFF Indicator Light come on momentarily
each time the ignition is placed in the ON/RUN
mode.

•

Each time the ignition is placed in the ON/RUN
mode, the ESC system will be on even if it was
turned off previously.

•

The ESC system will make buzzing or clicking
sounds when it is active. This is normal; the sounds
will stop when ESC becomes inactive following the
maneuver that caused the ESC activation.

Hill Descent Control (HDC) — If Equipped

HDC is intended for low speed off-road driv-
ing while in 4WD Low. HDC maintains vehicle
speed while descending hills during various
driving situations. HDC controls vehicle

speed by actively controlling the brakes.

HDC Has Three States:

1. Off (feature is not enabled and will not activate).

2. Enabled (feature is enabled and ready but activation

conditions are not met, or driver is actively overrid-
ing with brake or throttle application).

3. Active (feature is enabled and actively controlling

vehicle speed).

Enabling HDC

HDC is enabled by pushing the HDC switch, but the fol-
lowing conditions must also be met to enable HDC:

•

The driveline is in 4WD Low.

•

The vehicle speed is below 5 mph (8 km/h).

•

The parking brake is released.

•

The driver door is closed.

Activating HDC

Once HDC is enabled it will activate automatically if
driven down a grade of sufficient magnitude. The set
speed for HDC is selectable by the driver, and can be
adjusted by using the gear shift +/-. The following sum-
marizes the HDC set speeds:

HDC Target Set Speeds

•

P = No set speed. HDC may be enabled but will not
activate.

•

R = 0.6 mph (1 km/h)

•

N = 1.2 mph (2 km/h)

•

D = 0.6 mph (1 km/h)

•

1st = 0.6 mph (1 km/h)

•

2nd = 1.2 mph (2 km/h)

•

3rd = 1.8 mph (3 km/h)

•

4th = 2.5 mph (4 km/h)

•

5th = 3.1 mph (5 km/h)

•

6th = 3.7 mph (6 km/h)

•

7th = 4.3 mph (7 km/h)

•

8th = 5.0 mph (8 km/h)

NOTE:

During HDC the +/- shifter input is used for HDC target
speed selection, but will not affect the gear chosen by
the transmission. When actively controlling HDC the
transmission will shift appropriately for the driver-
selected set speed and corresponding driving
conditions.

Driver Override

The driver may override HDC activation with throttle or
brake application at any time.

Deactivating HDC

HDC will be deactivated but remain available if any of
the following conditions occur:

•

The driver overrides HDC set speed with throttle or
brake application.

•

The vehicle speed exceeds 20 mph (32 km/h) but
remains below 40 mph (64 km/h).

•

The vehicle is on a downhill grade of insufficient
magnitude, is on level ground, or is on an uphill
grade.

•

The vehicle is shifted to PARK.

Disabling HDC

HDC will be deactivated and disabled if any of the fol-
lowing conditions occur:

•

The driver pushes the HDC switch.

•

The driveline is shifted out of 4WD Low.

•

The parking brake is applied.

•

The driver door opens.

•

The vehicle is driven greater than 20 mph
(32 km/h) for greater than 70 seconds.

•

The vehicle is driven greater than 40 mph
(64 km/h) (HDC exits immediately).

•

HDC detects excessive brake temperature.

Feedback To The Driver

The instrument cluster has an HDC icon and the HDC
switch has an LED icon, which offers feedback to the
driver about the state HDC is in.

•

The cluster icon and switch light will illuminate and
remain on solid when HDC is enabled or activated.
This is the normal operating condition for HDC.

•

The cluster icon and switch light will flash for several
seconds, then extinguish when the driver pushes
the HDC switch but enable conditions are not met.

240

SAFETY

•

The cluster icon and switch light will flash for several
seconds, then extinguish when HDC disables due to
excess speed.

•

The cluster icon and switch light will flash when HDC
deactivates due to overheated brakes. The flashing
will stop and HDC will activate again once the
brakes have cooled sufficiently.

WARNING!

HDC is only intended to assist the driver in controlling
vehicle speed when descending hills. The driver must
remain attentive to the driving conditions and is
responsible for maintaining a safe vehicle speed.

Hill Start Assist (HSA)

HSA is designed to mitigate roll back from a complete
stop while on an incline. If the driver releases the brake
while stopped on an incline, HSA will continue to hold
the brake pressure for a short period. If the driver does
not apply the throttle before this time expires, the sys-
tem will release brake pressure and the vehicle will roll
down the hill as normal.

The following conditions must be met in order for HSA
to activate:

•

The feature must be enabled.

•

The vehicle must be stopped.

•

The parking brake must be off.

•

The driver door must be closed.

•

The vehicle must be on a sufficient grade.

•

The gear selection must match vehicle uphill direc-
tion (i.e., vehicle facing uphill is in forward gear;
vehicle backing uphill is in REVERSE (R) gear).

•

HSA will work in REVERSE gear and all forward
gears. The system will not activate if the transmis-
sion is in PARK (P) or NEUTRAL (N). For vehicles
equipped with a manual transmission, if the clutch
is pressed, HSA will remain active.

WARNING!

There may be situations where the Hill Start Assist
(HSA) will not activate and slight rolling may occur,
such as on minor hills or with a loaded vehicle, or
while pulling a trailer. HSA is not a substitute for
active driving involvement. It is always the driver’s
responsibility to be attentive to distance to other
vehicles, people, and objects, and most importantly
brake operation to ensure safe operation of the
vehicle under all road conditions. Your complete
attention is always required while driving to maintain
safe control of your vehicle. Failure to follow these
warnings can result in a collision or serious personal
injury.

Disabling And Enabling HSA

This feature can be turned on or turned off. To change
the current setting, proceed as follows:

•

If disabling HSA using Uconnect Settings, see

page 199 for further information.

Towing With HSA

HSA will also provide assistance to mitigate roll back
while towing a trailer.

WARNING!

•

If you use a trailer brake controller with your trailer,
the trailer brakes may be activated and deacti-
vated with the brake switch. If so, there may not be
enough brake pressure to hold both the vehicle
and the trailer on a hill when the brake pedal is
released. In order to avoid rolling down an incline
while resuming acceleration, manually activate the
trailer brake or apply more vehicle brake pressure
prior to releasing the brake pedal.

•

HSA is not a parking brake. Always apply the park-
ing brake fully when exiting your vehicle. Also, be
certain to place the transmission in PARK.

•

Failure to follow these warnings can result in a col-
lision or serious personal injury.

Rain Brake Support (RBS)

RBS may improve braking performance in wet condi-
tions. It will periodically apply a small amount of brake
pressure to remove any water buildup on the front
brake rotors. It functions when the windshield wipers
are in LO or HI speed. When RBS is active, there is no
notification to the driver and no driver interaction is
required.

Ready Alert Braking (RAB)

RAB may reduce the time required to reach full braking
during emergency braking situations. It anticipates
when an emergency braking situation may occur by
monitoring how fast the throttle is released by the
driver. The Electronic Brake Controller (EBC) will pre-
pare the brake system for a panic stop.

SAFETY

241

Jeep Grand Cherokee (2024 year). Manual in english - page 7
