Red Warning Lights

Door Open Warning Light

Drowsiness Detected Warning Light

Electric Power Steering (EPS) Fault Warning Light

Electronic Throttle Control (ETC) Warning Light

Engine Temperature Warning Light

Hood Open Warning Light

INTRODUCTION

Red Warning Lights

Liftgate Open Warning Light

Oil Pressure Warning Light

Oil Temperature Warning Light

Seat Belt Reminder Warning Light

Transmission Fault Warning Light

Transmission Temperature Warning Light

Red Warning Lights

Vehicle Security Warning Light

Yellow Warning Lights

Anti-Lock Brake System (ABS) Warning Light

Electric Park Brake Warning Light

Electronic Stability Control (ESC) Active Warning Light

Electronic Stability Control (ESC) OFF Warning Light

Fuel Cutoff Warning Light

INTRODUCTION

Yellow Warning Lights

Fuel Level Sensor Failure Warning Light

Active Lane Management Warning Light

Service Active Lane Management Warning Light

Low Coolant Level Warning Light

Low Fuel Warning Light

Low Washer Fluid Warning Light

Yellow Warning Lights

Engine Check/Malfunction Indicator (MIL) Warning Light

Service Adaptive Cruise Control (ACC) Warning Light

Service 4WD Warning Light

Service Forward Collision Warning (FCW) Light

Service Stop/Start System Warning Light

Tire Pressure Monitoring System (TPMS) Warning Light

INTRODUCTION

Yellow Warning Lights

Towing Hook Breakdown Warning Light

Yellow Indicator Lights

4WD Low Indicator Light

4WD Lock Indicator Light

Auto HOLD! Fault Indicator Light

Forward Collision Warning (FCW) Indicator Light

Forward Collision Warning (FCW) OFF Indicator Light

Yellow Indicator Lights

Immobilizer Fail/VPS Electrical Alarm Indicator Light

Green Indicator Lights

Active Lane Management Indicator Light

Adaptive Cruise Control (ACC) Set With No Target Detected Indicator

Light

Adaptive Cruise Control (ACC) Set With Target Detected Light

Auto HOLD Indicator Light

Automatic High Beam Indicator Light

INTRODUCTION

Green Indicator Lights

Cruise Control SET Indicator Light

Front Fog Indicator Light

Parking/Headlights On Indicator Light

Sport Mode Indicator Light

Stop/Start Active Indicator Light

Turn Signal Indicator Lights

White Indicator Lights

Hill Descent Control (HDC) Indicator Light

page 81

Idle Coasting Indicator Light

Active Lane Management Indicator Light

page 81

Cruise Control Ready Indicator Light

Blue Indicator Lights

High Beam Indicator Light

page 81

INTRODUCTION

GETTING TO KNOW YOUR VEHICLE

KEYS

KEY FOBS

Your vehicle is equipped with a keyless ignition key fob.

The keyless ignition key fob supports Passive Entry,
Remote Keyless Entry (RKE), Keyless Enter ‘n Go™
(if equipped), Remote Start (if equipped), and remote
power liftgate operation. The keyless ignition key fob
supports vehicles equipped with a START/STOP ignition
button. The keyless ignition key fob also includes an
emergency key, which is stored in the rear of the key
fob.

The key fob allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft
(20 m). The key fob does not need to be pointed at the
vehicle to activate the system.

NOTE:

•

The key fob’s wireless signal may be blocked if the
key fob is located next to a mobile phone, laptop, or
other electronic device. This may result in poor
performance.

•

With the ignition on and the vehicle moving at
2 mph (4 km/h), all RKE commands are disabled.

NOTE:

In case the ignition switch does not change with the
push of a button, the key fob may have a low or fully
depleted battery. A low key fob battery can be verified
by referring to the instrument cluster, which will display
directions to follow

To Unlock/Lock The Doors And Liftgate

Push and release the unlock button on the key fob once
to unlock the driver’s door. If selected within Uconnect
Settings, pushing the unlock button twice within five
seconds will unlock all the doors and the liftgate. To
lock all the doors and the liftgate, push the lock button
once

When the doors are unlocked, the turn signals will flash
and the illuminated entry system will be activated.
When the doors are locked, the turn signals will flash
and the horn will chirp.

Key Left Vehicle Feature

If a valid key fob is no longer detected inside the vehicle
while the vehicle’s ignition system is in the ON/RUN or
START position, the message “Key Fob Has Left The
Vehicle” will be shown in the instrument cluster display
along with an interior chime. An exterior audible and
visual alert will also be activated to warn the driver.

The vehicle’s horn will rapidly chirp three times along
with a single flash of the vehicle’s exterior lights.

NOTE:

•

The doors have to be open and then closed in order
for the vehicle to detect a key fob. The Key Left
Vehicle feature will activate when the first door is
closed and no key fob is detected in the vehicle. If
the warning has been activated, and the other doors
are closed, no other warnings will be issued.

•

These alerts will not be activated in situations where
either the vehicle’s engine is left running with the
key fob inside, or the key fob’s wireless signals are
blocked.

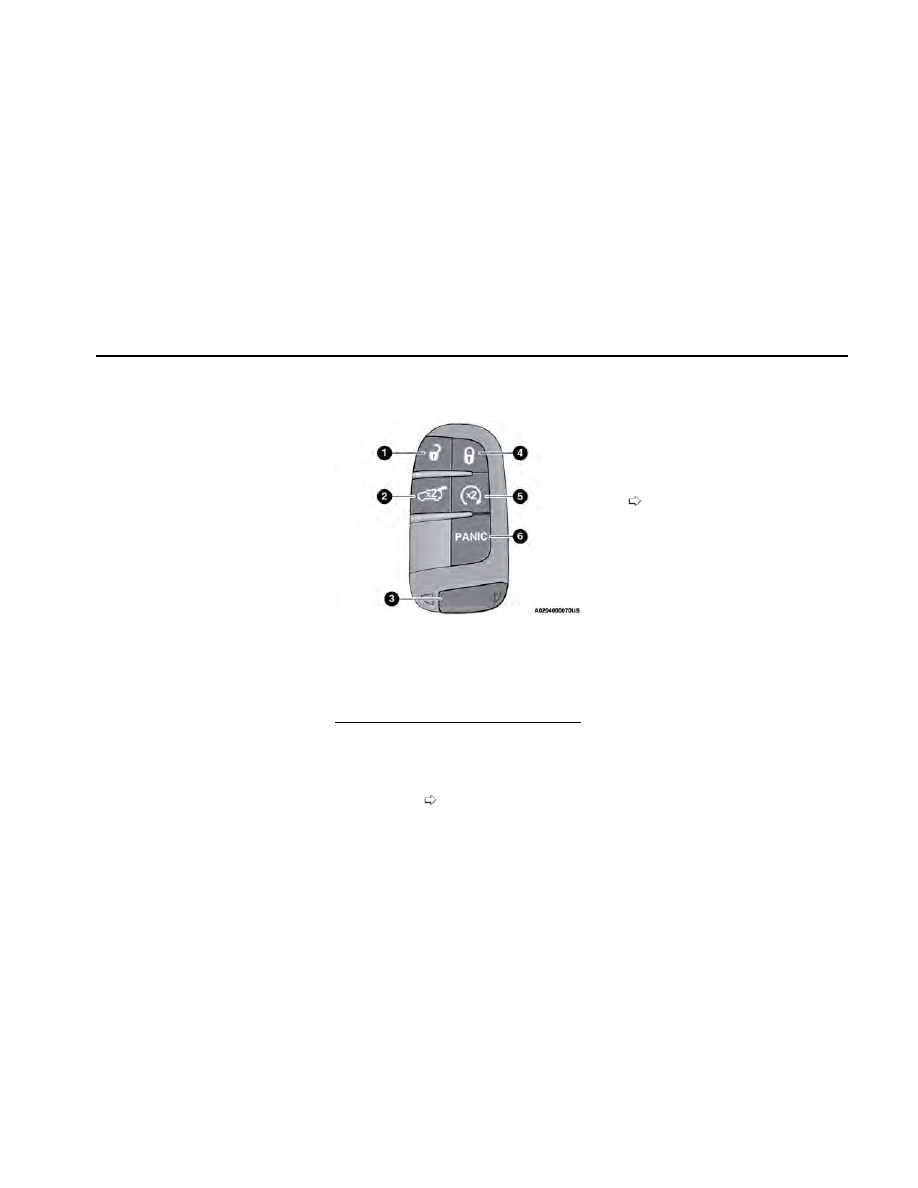

Key Fob

1 — Unlock Button
2 — Liftgate Button
3 — Emergency Key
4 — Lock Button
5 — Remote Start Button
6 — Panic Button

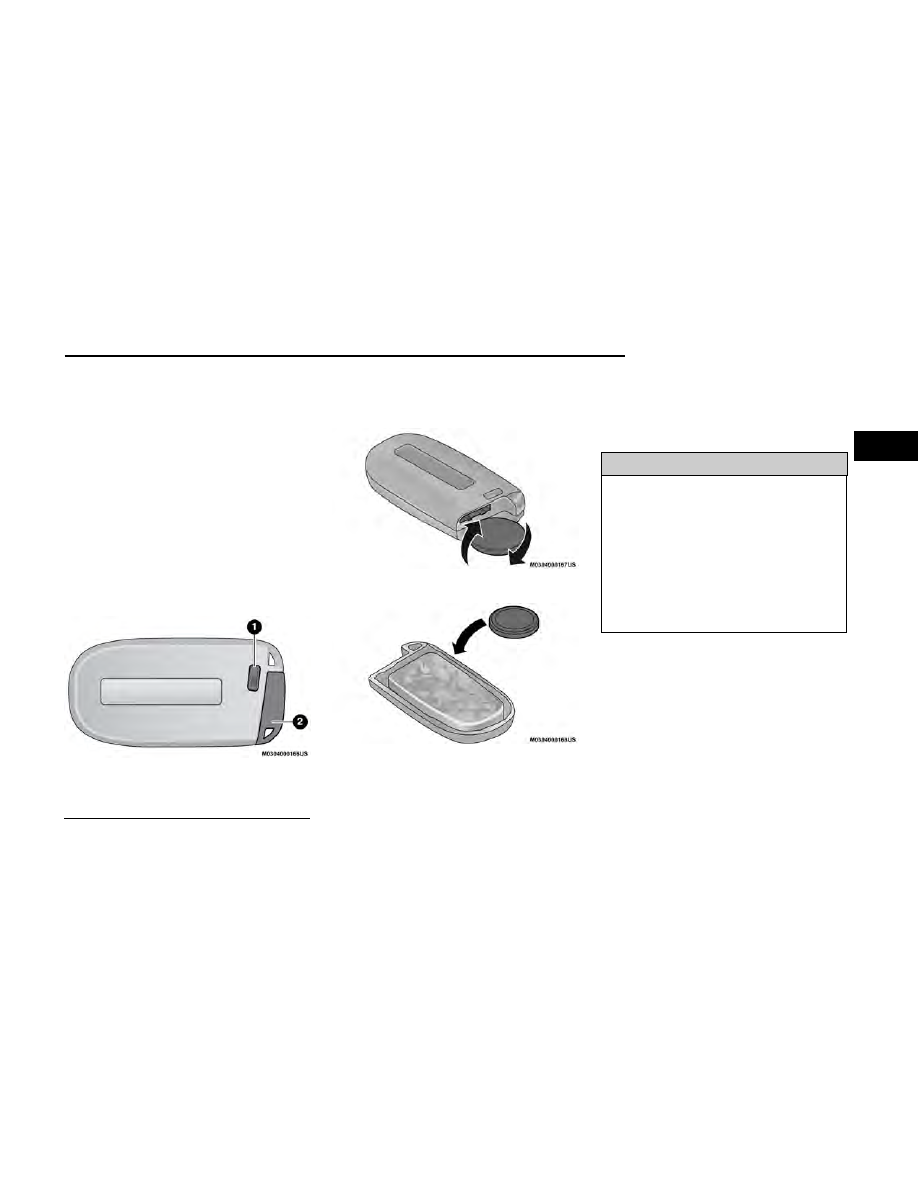

Replacing The Battery In The Key Fob

The replacement battery is one CR2032 battery.

NOTE:

•

Customers are recommended to use a battery
obtained from Mopar®. Aftermarket coin battery
dimensions may not meet the original OEM coin
battery dimensions.

•

Perchlorate material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
for further information.

•

Do not touch the battery terminals that are on the
back housing or the printed circuit board.

Key Fob:

1. Remove the emergency key (2) by sliding the emer-

gency key release (1) on the back of the key fob and
pulling the emergency key out with your other hand.

2. Separate the key fob halves using a #2 flat-blade

screwdriver or a coin, and gently pry the two halves
of the key fob apart. Make sure not to damage the
seal during removal.

3. Remove the back cover to access and replace the

battery. When replacing the battery, match the (+)
sign on the battery to the (+) sign on the inside of
the battery clip, located on the back cover. Avoid

touching the new battery with your fingers. Skin oils
may cause battery deterioration. If you touch a bat-
tery, clean it with rubbing alcohol.

4. To assemble the key fob case, snap the two halves

together.

WARNING!

•

The integrated key fob contains a coin cell battery.
Do not ingest the battery; there is a chemical burn
hazard. If the coin cell battery is swallowed, it can
cause severe internal burns in just two hours and
can lead to death.

•

If you think a battery may have been swallowed or
placed inside any part of the body, seek immediate
medical attention.

•

Keep new and used batteries away from children.
If the battery compartment does not close
securely, stop using the product and keep it away
from children.

Programming And Requesting

Additional Key Fobs

Programming the key fob may be performed by an
authorized dealer.

NOTE:

•

Once a key fob is programmed to a vehicle, it cannot
be repurposed and reprogrammed to another
vehicle.

•

Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the
vehicle.

Emergency Key Removal

1 — Emergency Key Release
2 — Emergency Key

Separating Case With A Coin

Key Fob Battery Replacement

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle
unattended.

•

For vehicles equipped with Keyless Enter ‘n Go™
Ignition, always remember to place the ignition in
the OFF position when exiting the vehicle.

Duplication of key fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.

NOTE:

•

When having the Sentry Key Immobilizer system
serviced, bring all vehicle keys with you to an autho-
rized dealer.

•

Keys must be ordered to the correct key cut to
match the vehicle locks.

SENTRY KEY

The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The sys-
tem does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is
locked or unlocked.

The system uses a key fob, keyless push button ignition
and a Radio Frequency (RF) receiver to prevent unau-
thorized vehicle operation. Therefore, only key fobs that
are programmed to the vehicle can be used to start and
operate the vehicle. The system cannot reprogram a
key fob obtained from another vehicle.

After placing the ignition in the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for
a bulb check. If the light remains on after the bulb
check, it indicates that there is a problem with the elec-
tronics. In addition, if the light begins to flash after the
bulb check, it indicates that someone attempted to
start the engine with an invalid key fob. In the event
that a valid key fob is used to start the engine but there
is an issue with the vehicle electronics, the engine will
start and shut off after two seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than
10 seconds), it indicates that there is a fault in the elec-
tronics. Should this occur, have the vehicle serviced as
soon as possible by an authorized dealer.

CAUTION!

The Sentry Key Immobilizer system is not compatible
with some aftermarket Remote Start systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics

NOTE:

A key fob that has not been programmed is also consid-
ered an invalid key.

IGNITION SWITCH

KEYLESS ENTER ‘N GO™ IGNITION

This feature allows the driver to operate the ignition
with the push of a button as long as the key fob is in the
passenger compartment.

The START/STOP ignition button has three operating
modes. The three modes are OFF, ON/RUN, and START.

The push button ignition can be placed in the following
modes:

OFF

•

The engine is stopped.

•

Some electrical devices (e.g. power locks, alarm,
etc.) are still available.

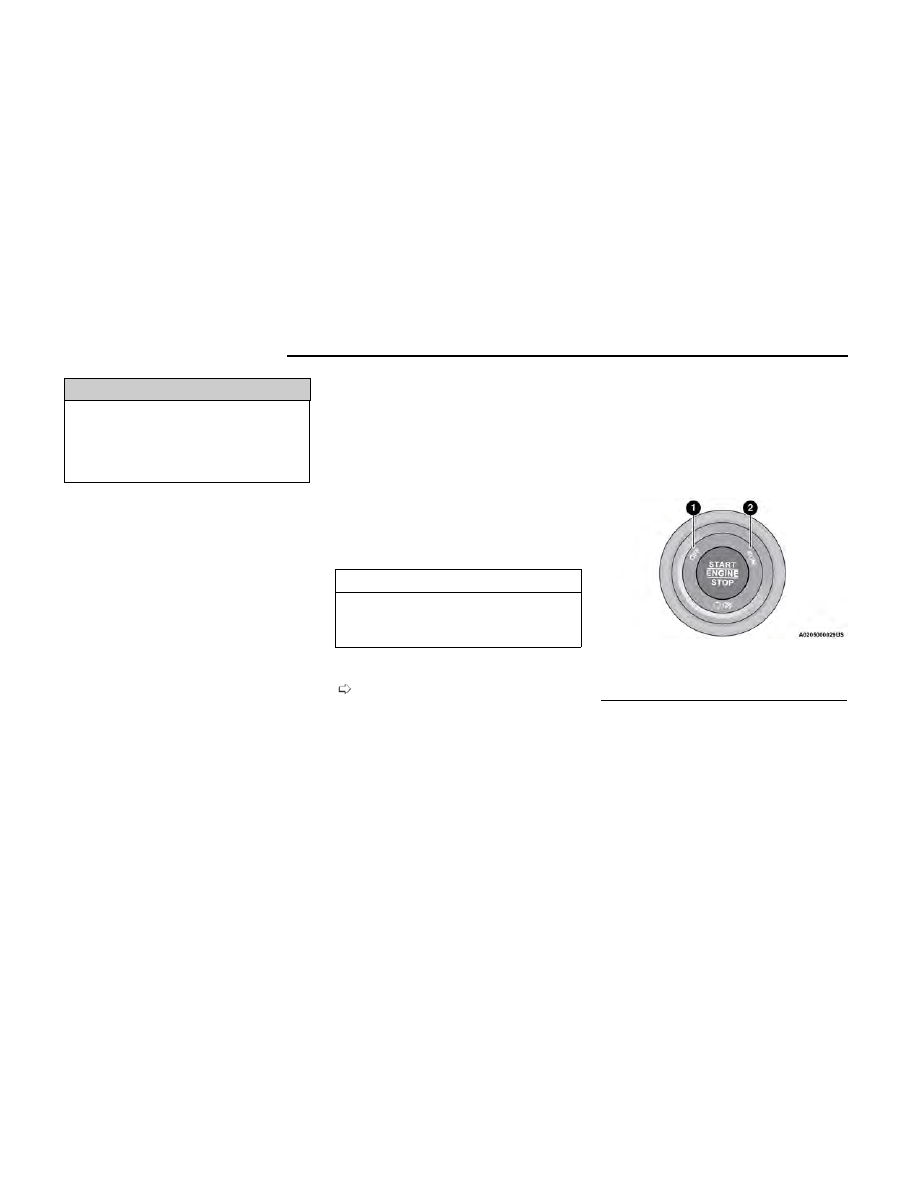

START/STOP Ignition Button

1 — OFF
2 — ON/RUN

GETTING TO KNOW YOUR VEHICLE

ON/RUN

•

Driving mode.

•

All electrical devices are available (e.g. climate con-
trols, heated seats, etc.).

START

•

The engine will start.

NOTE:

If the ignition state/mode does not change with the
push of a button, the key fob may have a low or
depleted battery. In this situation, a backup method can
be used to operate the ignition switch. Put the nose
side (side opposite of the emergency key) of the key fob
against the START/STOP ignition button and push to
operate the ignition.

WARNING!

•

When exiting the vehicle, always remove the key
fob from the vehicle and lock your vehicle.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

(Continued)

WARNING!

•

Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or oth-
ers could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.

•

Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with Key-
less Enter ‘n Go™ in the ON/RUN position. A child
could operate power windows, other controls, or
move the vehicle.

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves.
Always remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.

NOTE:

•

For information on normal starting, see

page 83.

•

When opening the driver's door and the ignition is in
the ON/RUN (engine not running) position, a chime
will sound to remind you to place the ignition in the
OFF position. In addition to the chime, the “Vehicle
On” message will display in the cluster.

REMOTE START — IF EQUIPPED

This system uses the key fob to start the
engine conveniently from outside the vehicle
while still maintaining security. The system has
a range of approximately 328 ft (100 m).

Remote Start is used to defrost windows in cold
weather and to reach a comfortable climate in all ambi-
ent conditions before the customer enters the vehicle.

NOTE:

Obstructions between the vehicle and key fob may
reduce this range

WARNING!

•

Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains carbon mon-
oxide (CO) which is odorless and colorless. Carbon
monoxide is poisonous and can cause serious
injury or death when inhaled.

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

HOW TO USE REMOTE START

Push and release the Remote Start button on the key
fob twice within five seconds. The vehicle doors will
lock, the parking lights will flash, and the horn will chirp
twice (if programmed). Then, the engine will start, and
the vehicle will remain in the Remote Start mode for a
15 minute cycle. Pushing the Remote Start button a
third time shuts the engine off.

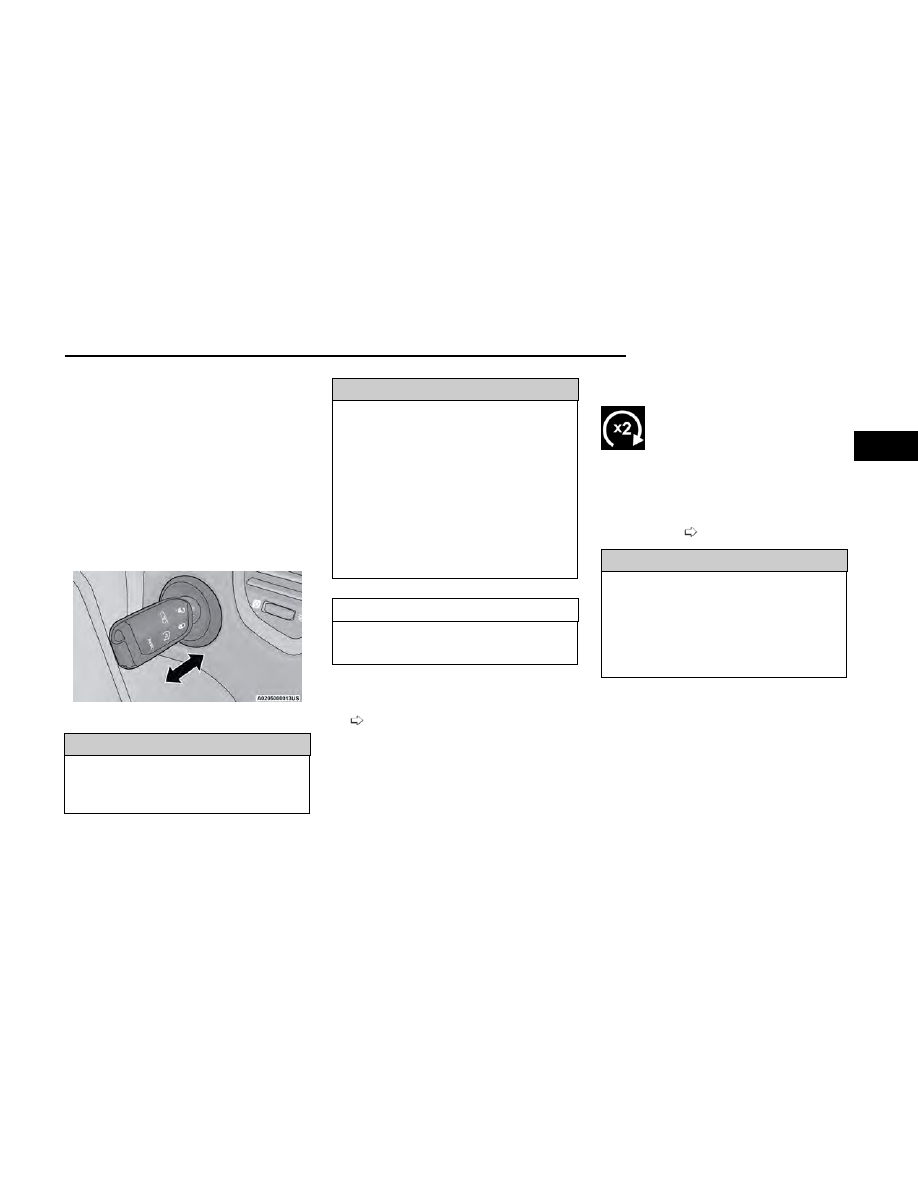

Starting The Ignition With Depleted Key Fob Battery

GETTING TO KNOW YOUR VEHICLE

To drive the vehicle, push the unlock button and place
the ignition in the ON/RUN position.

NOTE:

•

With Remote Start, the engine will only run for
15 minutes.

•

Remote Start can only be used twice.

•

If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.

•

The parking lights will turn on and remain on during
Remote Start mode.

•

For security, power window and power sunroof
operation (if equipped) are disabled when the
vehicle is in the Remote Start mode.

•

The ignition must be placed in the ON/RUN position
before the Remote Start sequence can be repeated
for a third cycle.

All of the following conditions must be met before the
engine will remote start:

•

Gear selector in PARK

•

Doors closed

•

Hood closed

•

Liftgate closed

•

Hazard switch off

•

Brake switch inactive (brake pedal not pressed)

•

Battery at an acceptable charge level

•

Panic button not pushed

•

System not disabled from previous Remote Start
event

•

Vehicle Security Light flashing (if equipped)

•

Ignition in the OFF position

•

Fuel level meets minimum requirement

•

Vehicle Security system is not signaling an intrusion

•

Malfunction Indicator Light is not illuminated

WARNING!

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

TO EXIT REMOTE START MODE

To drive the vehicle after starting the Remote Start sys-
tem, push and release the START/STOP ignition button
prior to the end of the 15 minute cycle.

The Remote Start system will turn the engine off if the
Remote Start button on the key fob is pushed again, or
if the engine is allowed to run for the entire 15 minute
cycle. Once the ignition is placed in the ON/RUN posi-
tion, the climate controls will resume previously set
operations (temperature, blower control, etc.).

NOTE:

•

For vehicles not equipped with the Keyless Enter ‘n
Go™ — Passive Entry feature, the ignition switch
must be in the ON/RUN position in order to drive the
vehicle.

•

For vehicles equipped with the Keyless Enter ‘n Go™
— Passive Entry feature, the message “Remote Start
Active — Push Start Button” will show in the instru-
ment cluster display until you push the START/STOP
ignition button.

•

To avoid unintentional shutdowns, the system will
disable for two seconds after receiving a valid
Remote Start request.

REMOTE START FRONT DEFROST
ACTIVATION — IF EQUIPPED

When Remote Start is active, and the outside ambient
temperature is 40°F (4.5°C) or below, the system will
automatically activate front defrost for 15 minutes or
less. The timing is dependent on the ambient tempera-
ture. Once the timer expires, the system will automati-
cally adjust the settings depending on ambient condi-
tions. See “Remote Start Comfort Systems —
If Equipped” in the next section for detailed operation.

REMOTE START COMFORT
SYSTEMS — IF EQUIPPED

When Remote Start is activated, the front and rear
defrost will automatically turn on in cold weather. The
heated steering wheel and driver heated seat feature
will turn on if programmed in the Comfort menu screen
within Uconnect Settings

page 133. In warm

weather, the driver vented seat feature will automati-
cally turn on when Remote Start is activated, if pro-
grammed in the Comfort menu screen. The vehicle will
adjust the climate control settings depending on the
outside ambient temperature.

GETTING TO KNOW YOUR VEHICLE

Automatic Temperature Control (ATC) — If Equipped

The climate controls will automatically adjust to the
optimal temperature and mode settings depending on
the outside ambient temperature. This will occur until
the ignition is placed in the ON/RUN position where the
climate controls will resume their previous settings.

Manual Temperature Control (MTC) — If Equipped

•

In ambient temperatures of 40°F (4.5°C) or below,
the climate settings will default to maximum heat,
with fresh air entering the cabin. If the front defrost
timer expires, the vehicle will enter Mix mode.

•

In ambient temperatures from 40°F (4.5°C) to
78°F (26°C), the climate settings will be based on
the last settings selected by the driver.

•

In ambient temperatures of 78°F (26°C) or above,
the climate settings will default to MAX A/C, Bi-Level
mode, with Recirculation on.

For more information on ATC, MTC, and climate control
settings, see

page 42.

NOTE:

These features will stay on through the duration of
Remote Start, or until the ignition is placed in the
ON/RUN position. The climate control settings will
change, and exit the automatic defaults, if manually
adjusted by the driver while the vehicle is in Remote
Start mode. This includes turning the climate controls
off using the OFF button.

REMOTE START WINDSHIELD
WIPER DE-ICER ACTIVATION —
IF EQUIPPED

When Remote Start is active and the outside ambient
temperature is less than 33°F (0.6°C), the Windshield
Wiper De-Icer will activate. Exiting Remote Start will
resume its previous operation. If the Windshield Wiper
De-Icer was active, the timer and operation will
continue.

REMOTE START ABORT MESSAGE —
IF EQUIPPED

One of the following messages will display in the instru-
ment cluster display if the vehicle fails to remote start
or exits Remote Start prematurely:

•

Remote Start Aborted — Door Open

•

Remote Start Aborted — Hood Open

•

Remote Start Aborted — Fuel Low

•

Remote Start Aborted — Liftgate Open

•

Remote Start Disabled — Start Vehicle To Reset

•

Remote Start Aborted — Too Cold

•

Remote Start Aborted — Time Expired

The message will stay active until the ignition is placed
in the ON/RUN position.

VEHICLE SECURITY SYSTEM

The Vehicle Security system monitors the vehicle doors,
hood, liftgate, and the Keyless Enter ‘n Go™ Ignition for
unauthorized operation. While the Vehicle Security sys-
tem is armed, interior switches for door locks and lift-
gate release are disabled. If something triggers the sys-
tem, the Vehicle Security system will provide the
following audible and visible signals:

•

The horn will pulse

•

The turn signals will flash

•

The Vehicle Security Light in the instrument cluster
will flash

NOTE:

•

The Vehicle Security system is factory adjusted to
standards from different countries.

•

The Vehicle Security system is a complementary
security system developed to hinder the occurrence
of vehicle theft and prevent vandalism. It does not
prevent the theft of your vehicle; the system is a
deterrent.

•

The Vehicle Security system does not monitor glass
breakage or the movement of objects or people
inside the vehicle. The alarm does not intervene in
the case of vehicle tilt variations when it is parked.

TO ARM THE SYSTEM

Follow these steps to arm the Vehicle Security system:

1. Make sure the vehicle’s ignition is placed in the OFF

position.

○

For vehicles equipped with Keyless Entry, make
sure the vehicle’s keyless ignition system is OFF.

GETTING TO KNOW YOUR VEHICLE

2. Perform one of the following methods to lock the

vehicle:

○

Push the lock button on the interior power door
lock switch with the driver and/or passenger
door open.

○

Push the lock button on the exterior Passive
Entry door handle with a valid key fob available
in the same exterior zone

page 21.

○

Push the lock button on the key fob.

3. If any doors are open, close them.

When the Vehicle Security system is armed, the Vehicle
Security Light (located in the lower left portion of the
instrument cluster display) will begin to flash every
three seconds until it is disarmed.

NOTE:

If the system is armed by pushing the lock button on
the interior door panel, the Vehicle Security Light will
flash rapidly for about 15 seconds once the door is
closed, then slow down to every three seconds.

TO DISARM THE SYSTEM

The Vehicle Security system can be disarmed using any
of the following methods:

•

Push the unlock button on the key fob.

•

Grab the Passive Entry door handle to unlock the
door

page 21.

•

Cycle the ignition out of the OFF position to disarm
the system.

NOTE:

•

The driver's door key cylinder and the liftgate button
on the key fob cannot arm or disarm the Vehicle
Security system.

•

The Vehicle Security system remains armed during
power liftgate entry. Pushing the liftgate button will
not disarm the Vehicle Security system. If someone
enters the vehicle through the opened liftgate, then
opens any door, the alarm will sound.

•

When the Vehicle Security system is armed, the inte-
rior power door lock switches will not unlock the
doors.

The Vehicle Security system is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security system will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security system.

If the Vehicle Security system is armed and the battery
becomes disconnected, the Vehicle Security system will
remain armed when the battery is reconnected; the
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security system.

REARMING OF THE SYSTEM

If something triggers the alarm, and no action is taken
to disarm it, the Vehicle Security system will turn the
horn off after approximately 90 seconds, and then the
Vehicle Security system will rearm itself.

SECURITY SYSTEM MANUAL
OVERRIDE

The Vehicle Security system will not arm if you lock the
doors using the manual door lock.

DOORS

MANUAL DOOR LOCKS

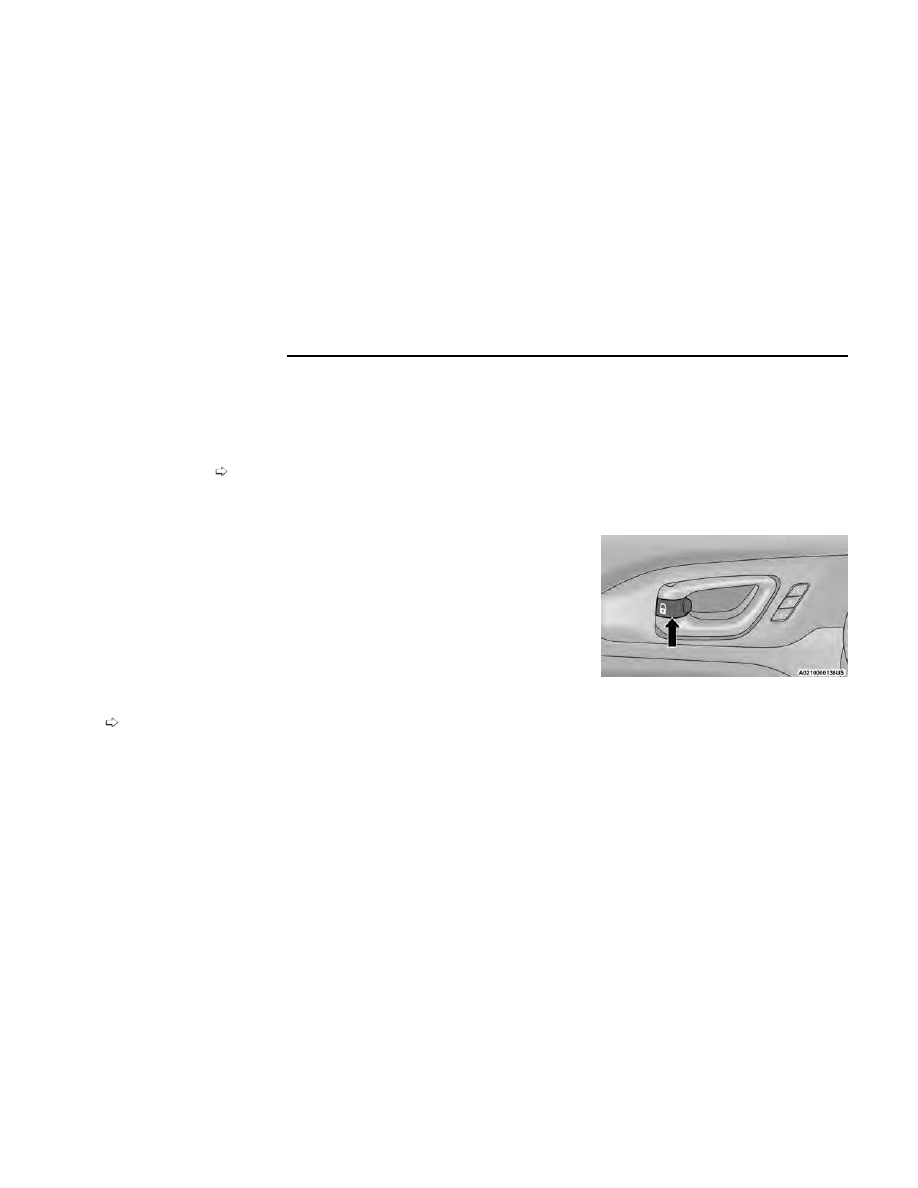

The door locks can be manually locked from inside the
vehicle by using the door lock knob.

To lock each door, rotate the door lock knob on each
door trim panel forward until the lock indicator is
shown. To unlock the front doors, pull the inside door
handle to the first detent or rotate the door lock button
until the lock indicator is hidden. To unlock the rear
doors, rotate the door lock button until the lock indica-
tor is hidden. If the door lock button is locked (lock indi-
cator visible) when you shut the door, the door will
remain locked. Therefore, make sure the key fob is not
inside the vehicle before closing the door.

Manual Door Lock Knob

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

Manually locking the vehicle will not arm the Vehicle
Security system.

•

The manual door locks will not lock or unlock the
liftgate.

WARNING!

•

For personal security and safety in the event of a
collision, lock the vehicle doors before you drive as
well as when you park and exit the vehicle.

•

When exiting the vehicle, always remove the key
fob from the vehicle and lock your vehicle.
If equipped with a Keyless Enter ‘n Go™ Ignition,
always make sure the keyless ignition is in the OFF
position, remove the key fob from the vehicle and
lock the vehicle. Unsupervised use of vehicle
equipment may cause severe personal injuries or
death.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a num-
ber of reasons. A child or others could be seriously
or fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.

•

Do not leave the key fob in or near the vehicle, or
in a location accessible to children. Do not leave
the Keyless Enter ‘n Go™ Ignition in the ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.

POWER DOOR LOCKS

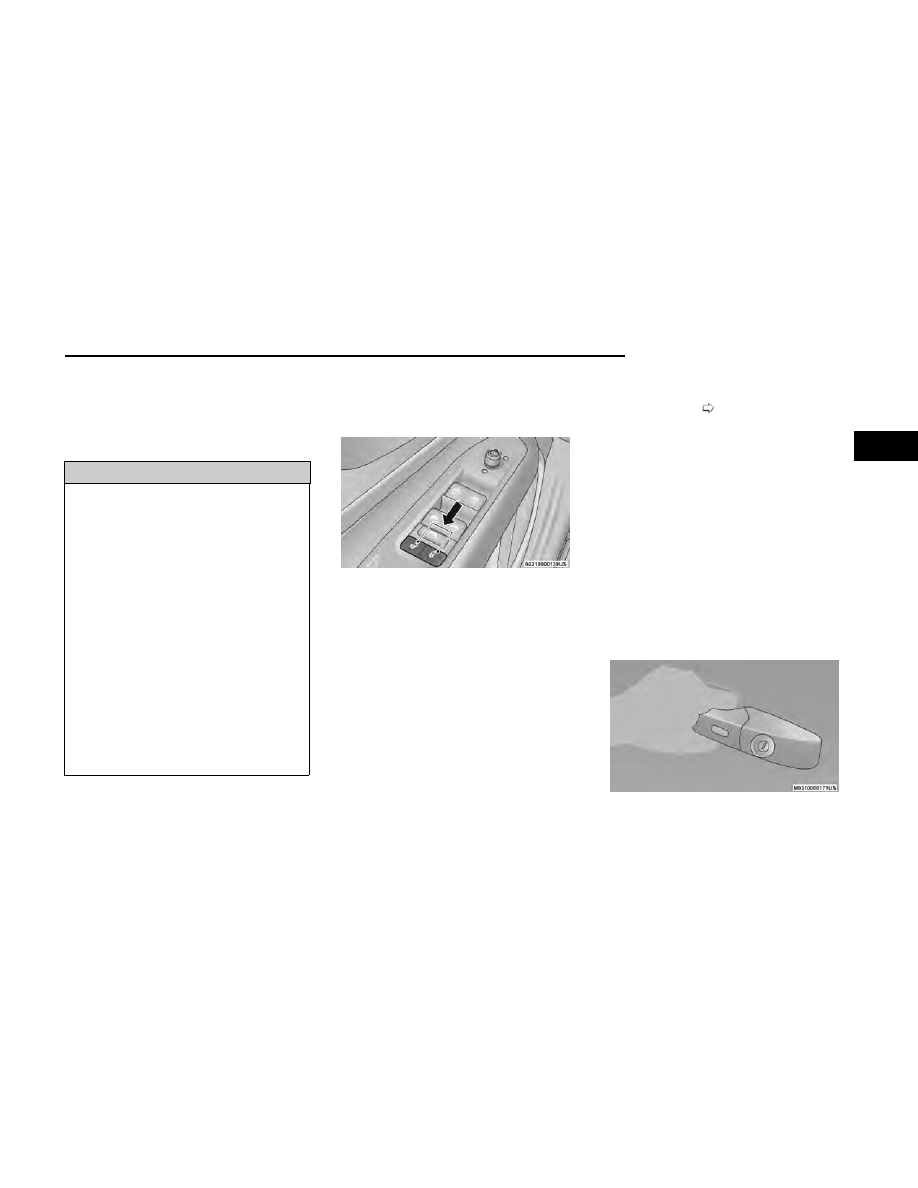

The power door lock switches are located on each front
door panel. Push the switch to lock or unlock the doors
and liftgate.

If you push the power door lock switch while the ignition
is in the ON/RUN position, and any door or the liftgate
is open, the power locks will not operate. This prevents
you from accidentally locking the key fob in the vehicle.
Placing the ignition in the OFF position or closing the
doors and liftgate will allow the locks to operate.

KEYLESS ENTER ‘N GO™ —
PASSIVE ENTRY

The Passive Entry system is an enhancement to the
vehicle’s Remote Keyless Entry system and a feature of
Keyless Enter ‘n Go™ — Passive Entry. This feature
allows you to lock and unlock the vehicle’s door(s) with-
out having to push the key fob lock or unlock buttons.

NOTE:

•

Passive Entry may be programmed on/off through
Uconnect Settings

•

The key fob may not detect the Passive Entry system
if it is located next to a mobile phone, laptop or
other electronic device; these devices may block the
key fob’s wireless signal and prevent the Passive
Entry system from locking and unlocking the vehicle.

•

If wearing gloves, if it has been raining/snowing, or
there is salt/dirt covering the Passive Entry door
handle, the unlock sensitivity can be affected,
resulting in a slower response time.

•

The doors may unlock when water is sprayed on the
Passive Entry door handles, if the key fob is located
outside of the vehicle within 5 ft (1.5 m) of the handle.

•

If the vehicle is unlocked by Passive Entry and no door
is opened within 60 seconds, the vehicle will relock
and, if equipped, will arm the Vehicle Security system.

To Unlock From The Driver's Side Or Passenger’s Side

With a valid Passive Entry key fob within 5 ft (1.5 m) of
either front door handle, grab the door handle to unlock
the door automatically.

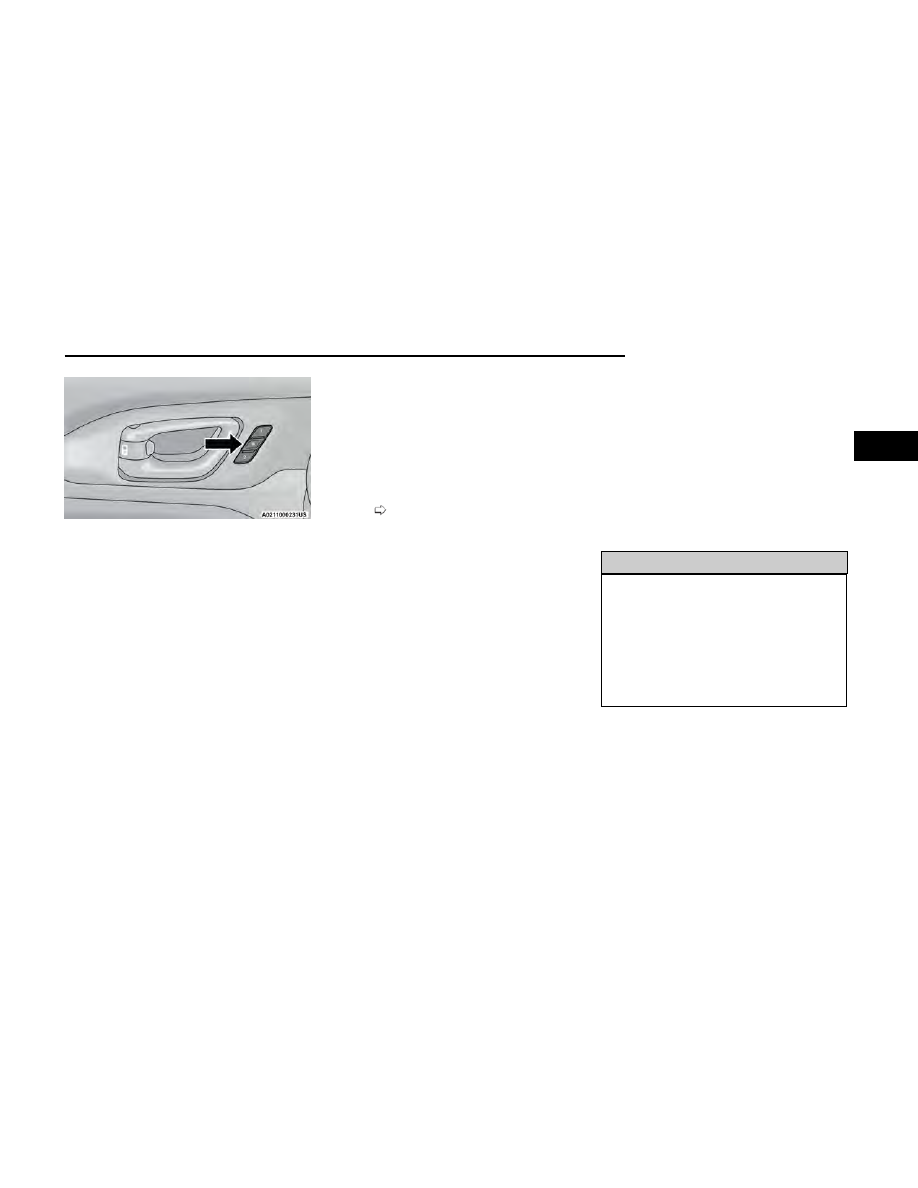

Power Door Lock Switch

Grab The Door Handle To Unlock

GETTING TO KNOW YOUR VEHICLE

•

Either the driver door only or all doors will unlock
when you grab hold of the front driver’s door handle,
depending on the selected setting in the Uconnect
system

•

All doors and the liftgate will unlock when the front
passenger door handle is grabbed regardless of the
driver’s door unlock preference setting.

Frequency Operated Button Integrated Key
(FOBIK-Safe)

To minimize the possibility of unintentionally locking a
Passive Entry key fob inside your vehicle, the Passive
Entry system is equipped with an automatic door
unlock feature which will function if the ignition switch
is in the OFF position.

There are three situations that trigger a FOBIK-Safe
search in any Passive Entry vehicle:

•

A lock request is made by a valid Passive Entry key
fob while a door is open.

•

A lock request is made by the Passive Entry door
handle while a door is open.

•

A lock request is made by the door panel switch
while the door is open.

When any of these situations occur, after all open doors
are shut, the FOBIK-Safe search will be executed. If it
detects a Passive Entry key fob inside the vehicle and it
does not detect any Passive Entry key fobs outside the
vehicle, then the vehicle will unlock and alert the
customer.

NOTE:

The vehicle will only unlock the doors when a valid Pas-
sive Entry key fob is detected inside the vehicle. The
vehicle will not unlock the doors when any of the follow-
ing conditions are true:

•

The doors are manually locked using the door lock
knobs.

•

Three attempts are made to lock the doors using
the door panel switch and then the doors are
closed.

•

There is a valid Passive Entry key fob outside the
vehicle and within 5 ft (1.5 m) of either Passive
Entry door handle.

To Lock The Vehicle’s Doors And Liftgate

With one of the vehicle’s Passive Entry key fobs within
5 ft (1.5 m) of either front door handle, push the Pas-
sive Entry lock button located on the outside door
handle to lock the vehicle doors and liftgate.

NOTE:

DO NOT grab the door handle when pushing the door
handle lock button. This could unlock the door(s).

NOTE:

•

After pushing the door handle button, you must wait
two seconds before you can lock or unlock the
doors, using either Passive Entry door handle. This
is done to allow you to check if the vehicle is locked
by pulling the door handle without the vehicle
unlocking.

•

If Passive Entry is disabled using the Uconnect set-
tings, the key fob protection described in "Frequency
Operated Button Integrated Key (FOBIK-Safe)"
remains active/functional.

•

The Passive Entry system will not operate if the key
fob battery is depleted.

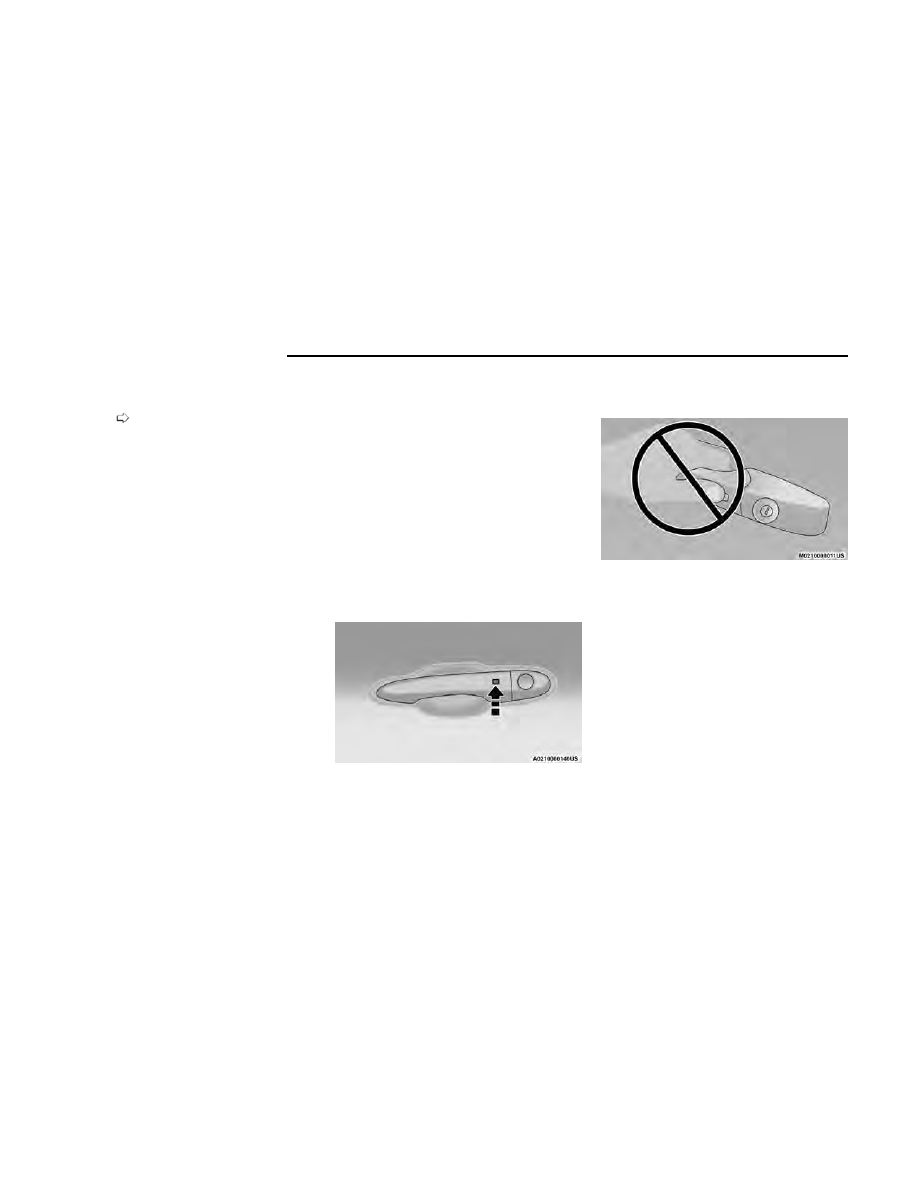

Push The Door Handle Button To Lock

DO NOT Grab The Door Handle When Locking

GETTING TO KNOW YOUR VEHICLE

To Unlock/Enter The Liftgate

The liftgate Passive Entry unlock feature is built into the
electronic liftgate release handle. With a valid Passive
Entry key fob within 5 ft (1.5 m) of the liftgate, push the
electronic liftgate release handle to open.

AUTOMATIC DOOR LOCKS —
IF EQUIPPED

The auto door lock feature default condition is enabled.
When enabled, the door locks will lock automatically
when the vehicle speed exceeds 15 mph (24 km/h).
The auto door lock feature is enabled or disabled by an
authorized dealer per written request of the customer.
Please see an authorized dealer for service.

AUTOMATIC UNLOCK DOORS ON EXIT

The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is enabled.

2. All doors are closed.

3. The gear selector was not in PARK, then is placed in

PARK.

4. Any door is opened.

CHILD-PROTECTION DOOR LOCK
SYSTEM — REAR DOORS

To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a
Child-Protection Door Lock system.

To use the system, open each rear door, use a flat-
blade screwdriver (or emergency key) and rotate the
dial to the lock or unlock position. When the system on
a door is engaged, that door can only be opened by
using the outside door handle even if the inside door
lock is in the unlocked position.

NOTE:

•

When the Child-Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door
lock is in the unlocked position.

•

After disengaging the Child-Protection Door Lock
system, always test the door from the inside to
make certain it is in the desired position.

•

After engaging the Child-Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the desired position.

•

For emergency exit with the system engaged, rotate
the door lock button until the lock indicator is hid-
den (unlocked position), roll down the window, and
open the door with the outside door handle.

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged (locked).

NOTE:

Always use this device when carrying children. After
engaging the child lock on both rear doors, check for
effective engagement by trying to open a door with the
internal handle. Once the Child-Protection Door Lock
system is engaged, it is impossible to open the doors
from inside the vehicle. Before getting out of the
vehicle, be sure to check that there is no one left
inside.

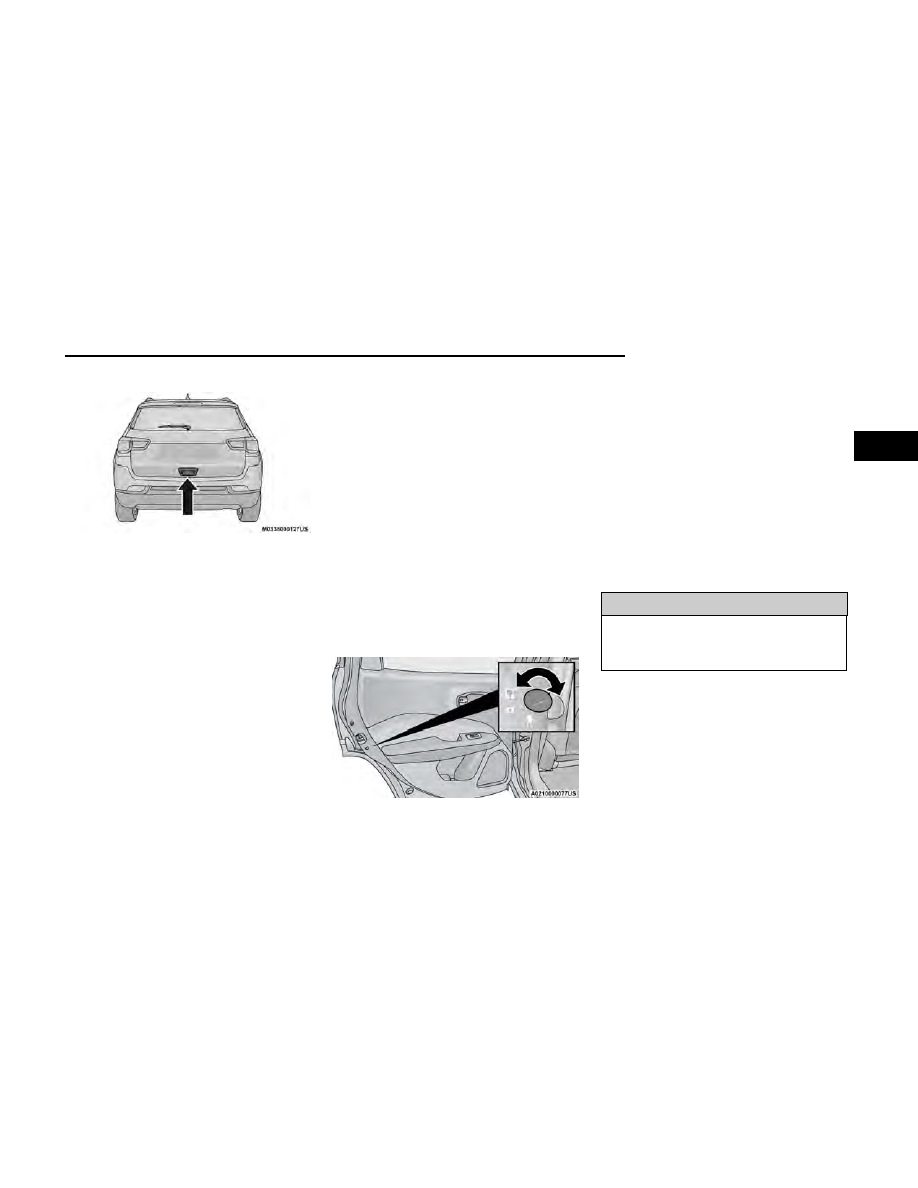

Electronic Liftgate Release Handle

Child-Protection Door Lock Function

GETTING TO KNOW YOUR VEHICLE

STEERING WHEEL

TILT/TELESCOPING STEERING
COLUMN

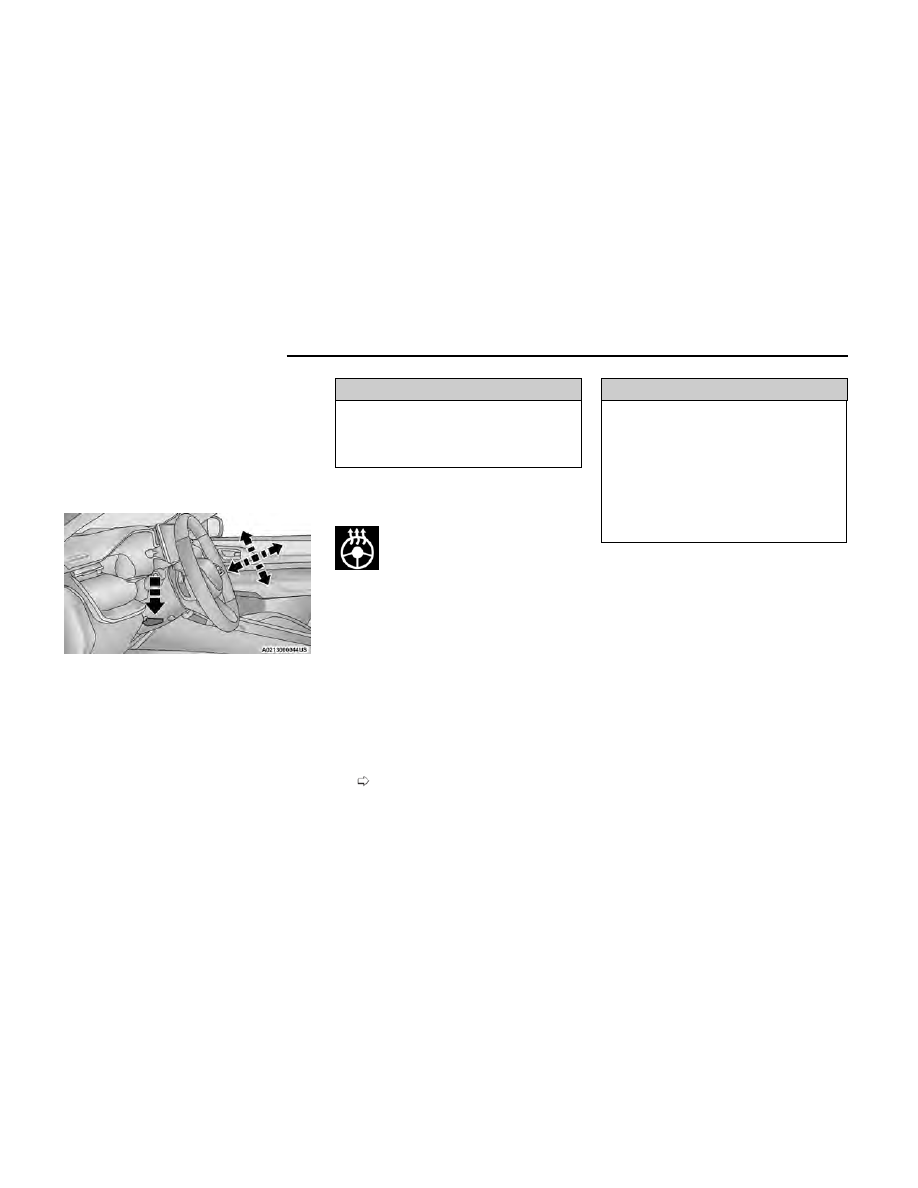

This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping lever
is located below the steering wheel at the end of the
steering column.

To unlock the steering column, push the control handle
downward (toward the floor). To tilt the steering column,
move the steering wheel upward or downward as
desired. To lengthen or shorten the steering column,
pull the steering wheel outward or push it inward as
desired. To lock the steering column in position, push
the control handle upward until fully engaged.

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driving
with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.

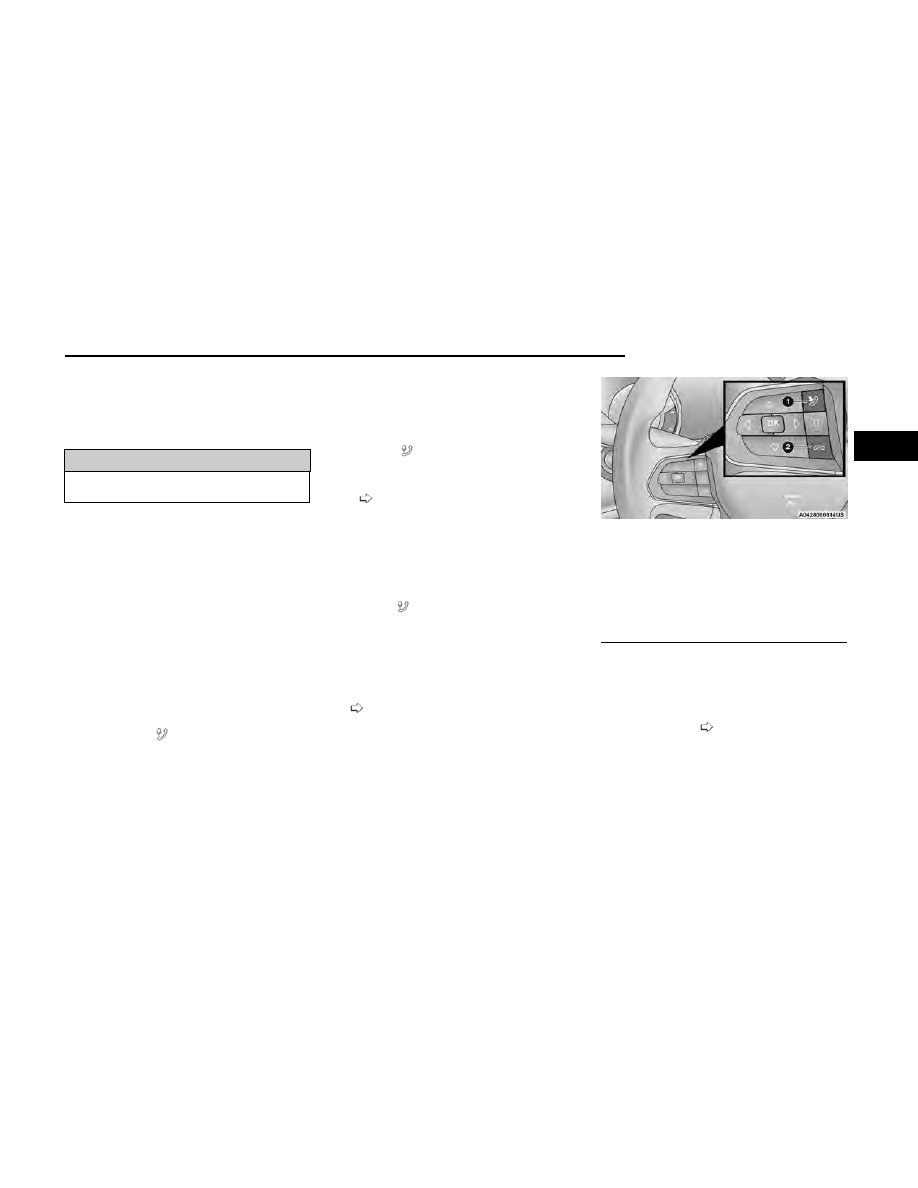

HEATED STEERING WHEEL —
IF EQUIPPED

The steering wheel contains a heating ele-
ment that helps warm your hands in cold
weather. The heated steering wheel has only
one temperature setting. Once the heated

steering wheel has been turned on, it will stay on until
the operator turns it off. The heated steering wheel may
not turn on when it is already warm.

The heated steering wheel control button is located
within the Uconnect system. You can gain access to the
control button through the climate screen or the con-
trols screen.

•

Press the heated steering wheel button once to turn
the heating element on.

•

Press the heated steering wheel button a second
time to turn the heating element off.

NOTE:

The engine must be running for the heated steering
wheel to operate.

For information on use with the Remote Start system,
see

page 18.

WARNING!

•

Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabe-
tes, spinal cord injury, medication, alcohol use,
exhaustion, or other physical conditions must exer-
cise care when using the steering wheel heater. It
may cause burns even at low temperatures, espe-
cially if used for long periods.

•

Do not place anything on the steering wheel that
insulates against heat, such as a blanket or steer-
ing wheel covers of any type and material. This
may cause the steering wheel heater to overheat.

DRIVER MEMORY SETTINGS —
IF EQUIPPED

This feature allows the driver to save up to two different
memory profiles for easy recall through a memory
switch. Each memory profile saves desired position set-
tings for the following features:

•

Driver seat position

•

Easy Entry/Exit seat (if equipped)

•

A set of desired radio station presets

NOTE:

Your vehicle is equipped with two key fobs, each can be
linked to either memory position 1 or 2.

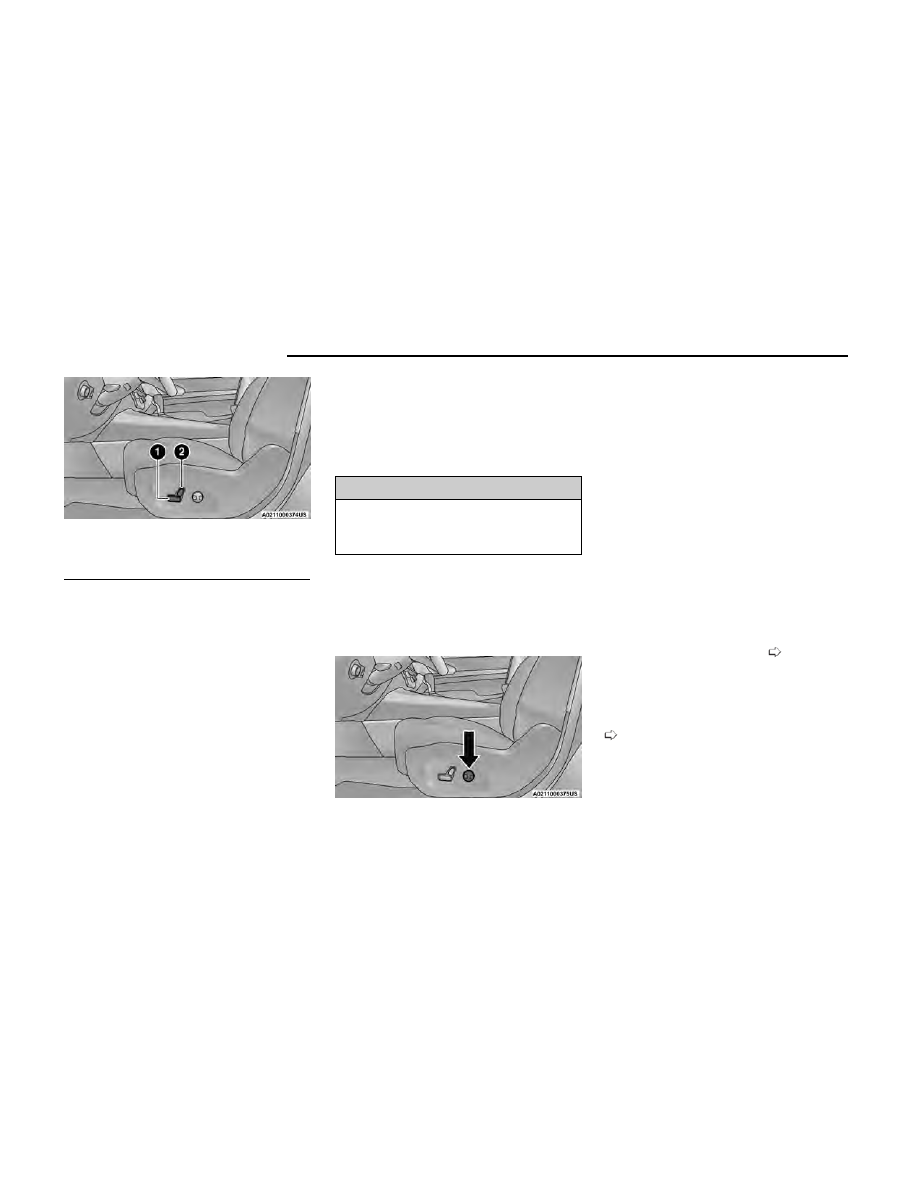

The memory setting switch is located on the driver’s
door trim panel. The switch consists of three buttons:

•

The set (S) button, which is used to activate the
memory save function.

•

The (1) and (2) buttons which are used to recall
either of two saved memory profiles.

Tilt/Telescoping Lever

GETTING TO KNOW YOUR VEHICLE

PROGRAMMING THE MEMORY
FEATURE

To create a new memory profile, perform the following:

NOTE:

Saving a new memory profile will erase an existing pro-
file from memory.

1. Place the vehicle’s ignition in the ON position.

2. Adjust all memory profile settings to desired prefer-

ences (i.e., seat and radio station presets).

3. Push the set (S) button on the memory switch, and

then push the desired memory button (1 or 2) within
five seconds. The instrument cluster display will dis-
play which memory position is being set.

NOTE:

Memory profiles can be set without the vehicle in PARK,
but the vehicle must be in PARK to recall a memory
profile.

LINKING AND UNLINKING THE
REMOTE KEYLESS ENTRY KEY FOB
TO MEMORY

Your remote keyless entry key fob can be programmed
to recall one of two saved memory profiles.

NOTE:

Before programming your key fob you must select the
“Memory Linked To FOB” feature through the Uconnect
Settings

To program your key fob, perform the following:

1. Place the vehicle’s ignition in the OFF position.

2. Select the desired memory profile (1) or (2).

3. Push and release the set (S) button on the memory

switch, then within five seconds push and release
the button labeled (1) or (2) accordingly. “Memory
Profile Set” (1 or 2) will display in the instrument
cluster display.

4. Push and release the lock button on the key fob

within 10 seconds.

NOTE:

Your key fob can be unlinked from your memory set-
tings by pushing the set (S) button, followed by pushing
the unlock button on the key fob within 10 seconds.

MEMORY POSITION RECALL

NOTE:

The vehicle must be in PARK to recall memory posi-
tions. If a recall is attempted when the vehicle is not in
PARK, a message will display in the instrument cluster
display.

To recall the memory settings for driver one or two,
push the desired memory button number (1 or 2) or the
unlock button on the key fob linked to the desired
memory position.

A recall can be canceled by pushing any of the memory
buttons (S, 1, or 2) during a recall. When a recall is can-
celed, the driver seat will stop moving. A delay of one
second will occur before another recall can be selected.

SEATS

Seats are a part of the Occupant Restraint system of
the vehicle.

WARNING!

•

It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

Memory Switches

GETTING TO KNOW YOUR VEHICLE

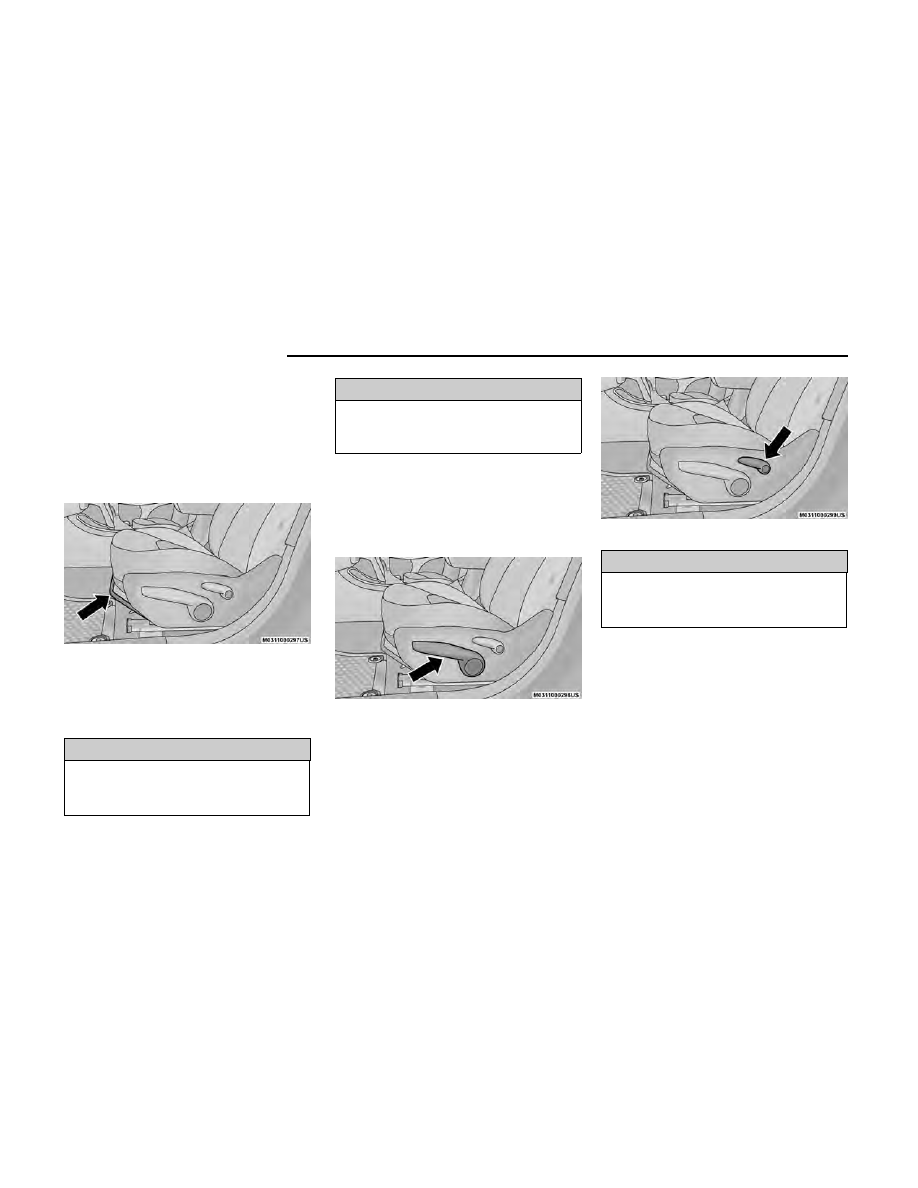

MANUAL ADJUSTMENT (FRONT
SEATS) — IF EQUIPPED

Manual Front Seat Forward/Rearward

Adjustment

Some models may be equipped with manual front
seats. The seats can be adjusted forward or rearward
by using a bar located by the front of the seat cushion,
near the floor.

While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.

WARNING!

•

Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

(Continued)

WARNING!

•

Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

Manual Seat Height Adjustment —

If Equipped

The driver’s seat height can be raised or lowered by
using a lever, located on the outboard side of the seat.
Pull upward on the lever to raise the seat height or push
downward on the lever to lower the seat height.

Manual Front Seat Recline Adjustment

To adjust the seatback, lift the lever located on the out-
board side of the seat, lean back to the desired position
and release the lever. To return the seatback, lift the
lever, lean forward and release the lever.

WARNING!

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.

Fold-Forward Front Passenger Seat —

If Equipped

This feature allows for extended cargo space. When the
seat is folded flat, it is an extension of the load floor
surface (allowing long cargo to fit from the rear hatch
up to the instrument panel). The fold-forward seatback
has a softback surface that you can use as a work sur-
face when the seat is folded forward and the vehicle is
not in motion.

Pull upward on the recline lever to fold or unfold the
seat.

Front Seat Adjustment

Seat Height Adjustment

Recline Lever

GETTING TO KNOW YOUR VEHICLE

NOTE:

You may experience deformation in the seat cushion
from the seat belt buckles if the seats are left folded for
an extended period of time. This is normal and by sim-
ply unfolding the seats to the open position, over time
the seat cushion will return to its normal shape.

WARNING!

Adjusting a seat while the vehicle is moving is danger-
ous. The sudden movement of the seat could cause
you to lose control. Adjust any seat only while the
vehicle is parked.

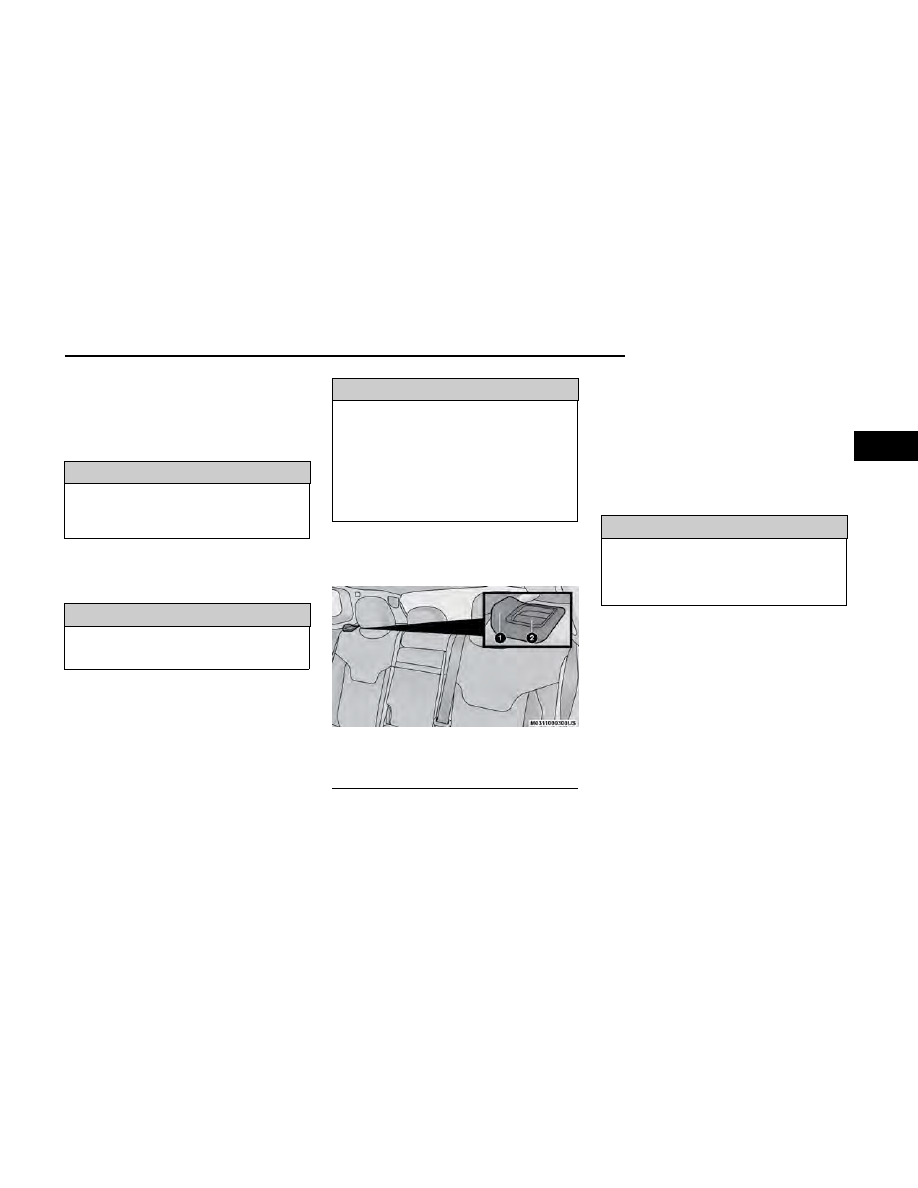

MANUAL ADJUSTMENT (REAR
SEATS)

WARNING!

Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.

60/40 Split Folding Rear Seat With

Fold-Flat Feature

To provide additional storage area, each rear seat can
be folded flat. This allows for extended cargo space and
still maintains some rear seating room.

NOTE:

Prior to folding the rear seat, it may be necessary to
position the front seat to its mid-track position. Also, be
sure that the front seats are fully upright and positioned
forward. This will allow the rear seat to fold down easily.

WARNING!

•

It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

TO LOWER THE REAR SEAT

1. Pull the seatback release lever located on either

side of the upper outer edge of the seat.

2. Fold that side of the rear seatback completely

forward.

TO RAISE THE REAR SEAT

NOTE:

If interference from the cargo area prevents the seat-
back from fully locking, you will have difficulty returning
the seat to its proper position.

Raise the seatback and lock it into place.

The release lever will show a red indicator while in the
unlocked position. Once the seat is locked in, the red
indicator will no longer be visible.

WARNING!

Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.

POWER ADJUSTMENT (FRONT
SEATS) — IF EQUIPPED

Some models may be equipped with a power driver's
seat and/or power passenger seat. The power seat
switch and power seat recliner switch are located on
the outboard side of the seat near the floor. Use the
power seat switch to adjust seat height, angle, or
forward/rearward position. Use the power seat recline
switch to adjust the angle of the seatback.

Rear Seat Release Lever

1 — Seat Belt Guide
2 — Seatback Release Lever

GETTING TO KNOW YOUR VEHICLE

Forward Or Rearward Adjustment

The seat can be adjusted both forward and rearward.
Push the seat switch forward or rearward, the seat will
move in the direction of the switch. Release the switch
when the desired position has been reached.

Height Adjustment

The height of the seats can be adjusted up or down.
Pull upward or push downward on the seat switch, the
seat will move in the direction of the switch. Release
the switch when the desired position is reached.

Tilt Adjustment

The angle of the seat cushion can be adjusted up or
down. Pull upward or push downward on the front of the
seat switch and the front of the seat cushion will move
in the direction of the switch.

Reclining The Seatback Forward Or

Rearward

The seatback can be reclined both forward and rear-
ward. Push the seat recliner switch forward or rearward.
The seatback will move in the direction of the switch.
Release the switch when the desired position has been
reached.

WARNING!

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger seats
may be equipped with power lumbar. The power lumbar
switch is located on the outboard side of the power
seat. Push the switch forward to increase the lumbar
support. Push the switch rearward to decrease the lum-
bar support.

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat positioning
to enhance driver mobility when entering and exiting
the vehicle.

The distance the driver seat moves depends on where
you have the driver seat positioned when you place the
vehicle’s ignition in the OFF position.

•

When you place the vehicle’s ignition in the OFF
position, the driver seat will move about 2.4 inches
(60 mm) rearward if the driver seat position is
greater than or equal to 2.7 inches (67.7 mm) for-
ward of the rear stop. The seat will return to its pre-
viously set position when you place the vehicle’s
ignition in the RUN position.

•

The Easy Entry/Easy Exit feature is disabled when
the driver seat position is less than 0.9 of an inch
(22.7 mm) forward of the rear stop. At this position,
there is no benefit to the driver by moving the seat
for Easy Exit or Easy Entry.

When enabled in Uconnect Settings, Easy Entry and
Easy Exit positions are stored in each memory setting
profile of the Driver Memory Settings

page 24.

NOTE:

The Easy Entry/Exit feature is not enabled when the
vehicle is delivered from the factory. The Easy Entry/
Exit feature is enabled (or later disabled) through the
programmable features in the Uconnect Settings

Power Seat Switches

1 — Power Seat Switch
2 — Power Recline Switch

Power Lumbar Switch

GETTING TO KNOW YOUR VEHICLE

HEATED SEATS — IF EQUIPPED

WARNING!

•

Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabe-
tes, spinal cord injury, medication, alcohol use,
exhaustion or other physical condition must exer-
cise care when using the seat heater. It may cause
burns even at low temperatures, especially if used
for long periods of time.

•

Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cush-
ion. This may cause the seat heater to overheat.
Sitting in a seat that has been overheated could
cause serious burns due to the increased surface
temperature of the seat.

Front Heated Seats — If Equipped

The front heated seats control buttons are
located within the Uconnect system. You can
gain access to the control buttons through
the climate screen or the controls screen.

•

Press the heated seat button once to turn the HI
setting on.

•

Press the heated seat button a second time to turn
the LO setting on.

•

Press the heated seat button a third time to turn the
heating elements off.

If your vehicle is equipped with a medium heat setting:

•

Press the heated seat button once to turn the HI
setting on.

•

Press the heated seat button a second time to turn
the MED setting on.

•

Press the heated seat button a third time to turn the
LO setting on.

•

Press the heated seat button a fourth time to turn
the heating elements off.

If the HI level setting is selected, the system will auto-
matically switch to LO level after approximately 60 min-
utes of continuous operation. At that time, the display
will change from HI to LO, indicating the change. The LO
level setting will turn off automatically after approxi-
mately 45 minutes.

NOTE:

The engine must be running for the heated seats to
operate.

For information on use with the Remote Start system,
see

page 18.

Rear Heated Seats

On some models, the two outboard rear
seats are equipped with heated seats. The
heated seat switches for these seats are
located on the rear of the center console.

There are two heated seat switches that allow the rear
passengers to operate the seats independently. Indica-
tor lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for off.

•

Push the heated seat button once to turn the HI
setting on.

•

Push the heated seat button a second time to turn
the LO setting on.

•

Push the heated seat button a third time to turn the
heating elements off.

NOTE:

The level of heat selected will stay on until the operator
changes it.

FRONT VENTILATED SEATS —
IF EQUIPPED

Located in the seat cushion and seat back are
fans that draw the air from the passenger
compartment and move air through fine per-
forations in the seat cover to help keep the

driver and front passenger cooler in higher ambient tem-
peratures. The fans operate at two speeds: HI and LO.

The front ventilated seats control buttons are located
within the Uconnect system. You can gain access to the
control buttons through the climate screen or the con-
trols screen.

•

Press the ventilated seat button once to choose HI.

•

Press the ventilated seat button a second time to
choose LO.

•

Press the ventilated seat button a third time to turn
the ventilated seat off.

If your vehicle is equipped with a medium fan setting:

•

Press the ventilated seat button once to choose HI.

•

Press the ventilated seat button a second time to
choose MED.

•

Press the ventilated seat button a third time to
choose LO.

•

Press the ventilated seat button a fourth time to
turn the ventilated seat off.

NOTE:

The engine must be running for the ventilated seats to
operate.

For information on use with the Remote Start system,
see

page 18.

GETTING TO KNOW YOUR VEHICLE

HEAD RESTRAINTS

Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear
impact. Head restraints should be adjusted so that the
top of the head restraint is located above the top of
your ear.

WARNING!

•

All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the
head restraints are placed in their proper positions
in order to minimize the risk of neck injury in the
event of a crash.

•

Head restraints should never be adjusted while the
vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.

NOTE:

Do not reverse the head restraints (making the rear of
the head restraint face forward) in an attempt to gain
additional clearance to the back of your head.

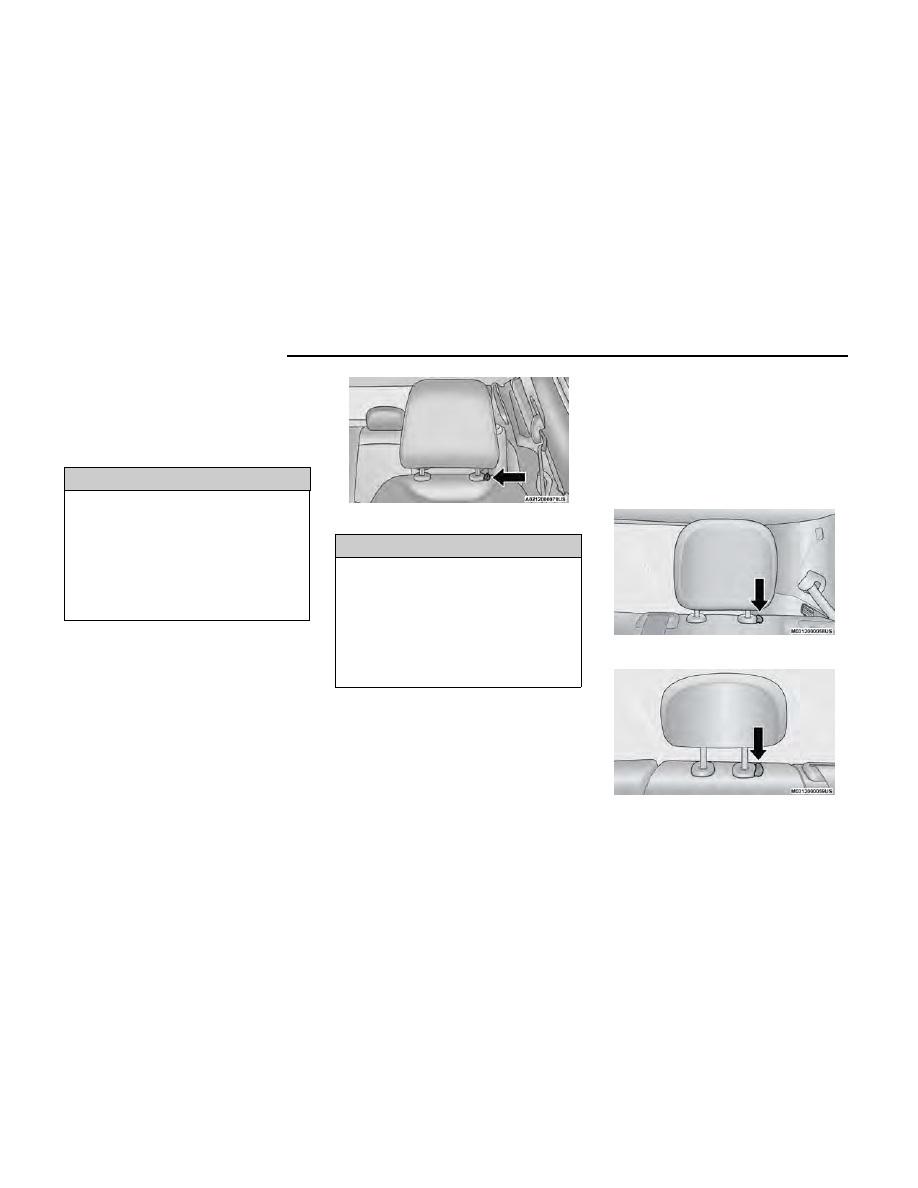

Front Head Restraint Adjustment

Your vehicle is equipped with front two way driver and
passenger head restraints.

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjust-
ment button, located at the base of the head restraint,
and push downward on the head restraint.

WARNING!

•

NOTE:

The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see an authorized
dealer.

Rear Head Restraints

The rear head restraints have two positions: up or down.
When the center seat is being occupied, the head
restraint should be in the raised position. When there is
no occupant in the center seat, the head restraint can be
lowered for maximum visibility for the driver.

Head Restraint Adjustment Button

Outboard Head Restraint Adjustment Button

Center Head Restraint Adjustment Button

GETTING TO KNOW YOUR VEHICLE

NOTE:

The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see an authorized
dealer.

WARNING!

ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants.

UCONNECT VOICE RECOGNITION QUICK
TIPS — IF EQUIPPED

INTRODUCING VOICE
RECOGNITION

Start using Uconnect Voice Recognition with these help-
ful quick tips. It provides the key Voice Commands and
tips you need to know to control your vehicle’s Voice
Recognition (VR) system.

BASIC VOICE COMMANDS

The following Voice Commands can be given at any
point while using your Uconnect system.

Push the VR button

or say the vehicle’s Wake Up

word, “Hey Uconnect” or “Hey Jeep®”. The factory
default Wake Up word is set to “Hey Uconnect” and can
be reprogrammed through the Uconnect Settings. After
the beep, say:

•

“

Cancel

” to stop a current voice session.

•

“

Help

” to hear a list of suggested Voice Commands.

•

“

Repeat

” to listen to the system prompts again.

Notice the visual cues that inform you of your Voice
Recognition system’s status.

GET STARTED

The VR button

is used to activate/deactivate your

Voice Recognition system. You can also use the sys-
tem’s “Wake Up” word to activate voice recognition. The
Wake Up word can be set through the Uconnect Set-
tings

Helpful hints for using Voice Recognition:

•

Reduce background noise. Wind noise and passen-
ger conversations are examples of noise that may
impact recognition.

•

Speak clearly at a normal pace and volume while
facing straight ahead.

•

Each time you give a Voice Command, first push the
VR button

or say the “Wake Up” word, wait until

after the beep, then say your Voice Command.

•

You can interrupt the help message or system
prompts by pushing the VR button and saying a
Voice Command from the current category.

•

You can also interrupt the help message or system
prompts by speaking. This feature is called “barge-
in” and can be set through the Uconnect Settings

ADDITIONAL INFORMATION

© 2023 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. SiriusXM® and
all related marks and logos are trademarks of
SiriusXM® Radio Inc.
