GETTING TO KNOW YOUR VEHICLE

ANUAL

LIMATE

ONTROL

ESCRIPTIONS

UNCTIONS

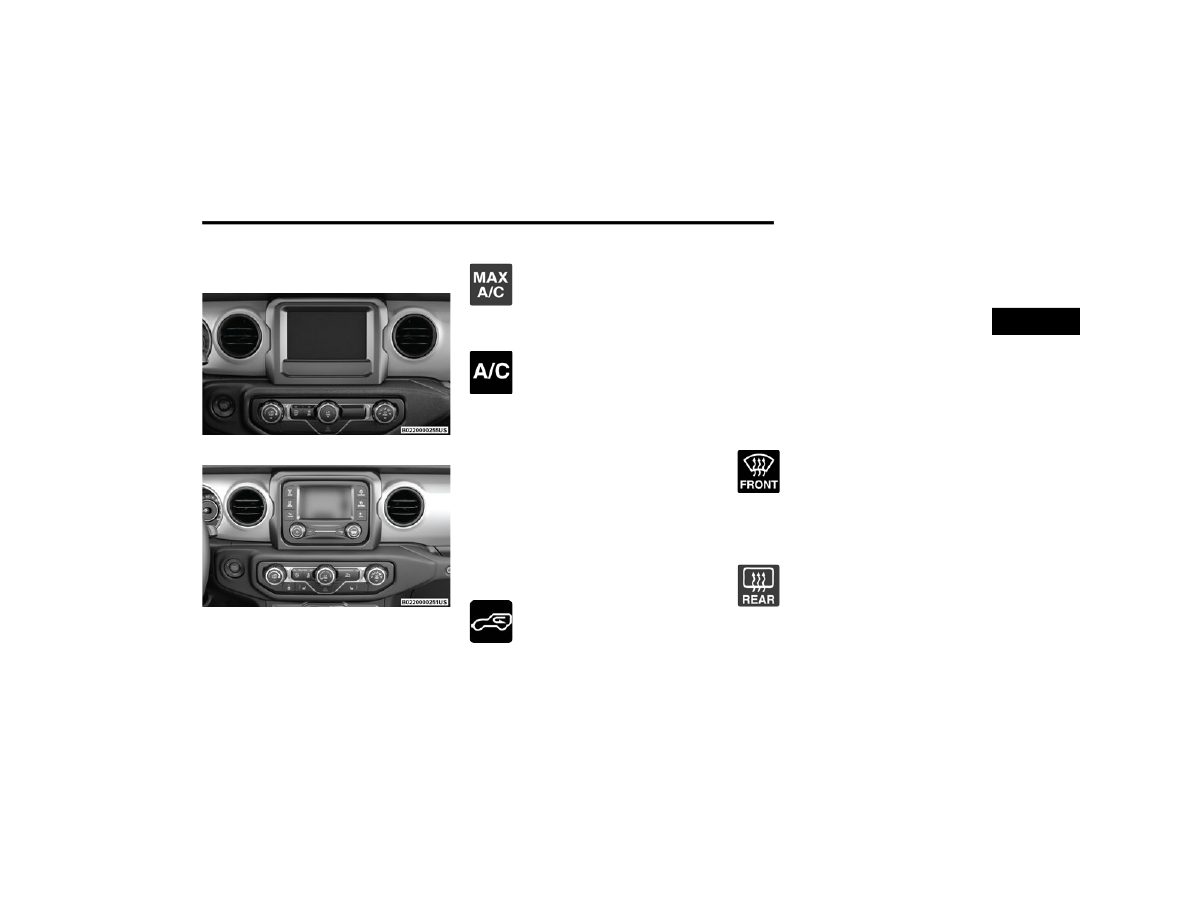

Uconnect 4 With 7-inch Display Manual Climate Controls

Uconnect 3 With 5-inch Display Manual Climate Controls

MAX A/C Setting — If Equipped

Set the temperature control knob to the MAX

A/C setting to change the current setting to the

coldest output of air. Moving the temperature

control knob away from the MAX A/C setting

causes the MAX A/C operation to exit.

A/C Button

Push the A/C button to engage the Air

Conditioning (A/C). The A/C indicator

illuminates when A/C is on.

NOTE:



For Manual Climate Controls, if the system is in Mix,

Floor or Defrost Mode, the A/C can be turned off, but

the A/C system shall remain active to prevent fogging

of the windows.



If fog or mist appears on the windshield or side glass,

select Defrost mode, and increase blower speed if

needed.



If your air conditioning performance seems lower than

expected, check the front of the A/C condenser

(located in front of the radiator), for an accumulation of

dirt or insects. Clean with a gentle water spray from the

front of the radiator and through the condenser.

Recirculation Button

Push the recirculation button on the faceplate

to change the system between recirculation

mode and outside air mode. The Recirculation

indicator and the A/C indicator (if equipped)

illuminate when the Recirculation button is pressed.

Recirculation can be used when outside conditions such

as smoke, odors, dust, or high humidity are present.

Recirculation can be used in all modes except for Defrost.

Recirculation may be unavailable if conditions exist that

could create fogging on the inside of the windshield. The

A/C can be deselected manually without disturbing the

mode control selection. Continuous use of the

Recirculation mode may make the inside air stuffy and

window fogging may occur. Extended use of this mode is

not recommended.
On systems with Manual Climate Controls (if equipped),

the Recirculation mode is not allowed in Defrost mode to

improve window clearing operation. Recirculation is

disabled automatically if this mode is selected. Attempting

to use Recirculation while in this mode causes the LED in

the control button to blink and then turns off.

Front Defrost Setting

Turn the Mode Control knob to the Front

Defrost mode setting. Air comes from the

windshield and side window demist outlets.

When the Defrost button is selected, the blower

level may increase. Use Defrost mode with maximum

temperature settings for best windshield and side window

defrosting and defogging.

Rear Defrost Button

Push and release the Rear Defrost Control

button to turn on the rear window defroster and

the heated outside mirrors (if equipped). The

Rear Defrost indicator illuminates when the

rear window defroster is on. The rear window defroster

automatically turns off after 10 minutes.

GETTING TO KNOW YOUR VEHICLE

Temperature Control

Temperature Control regulates the temperature of the air

forced through the climate system.

The temperature increases as you turn the

temperature control knob clockwise.

The temperature decreases as you turn the

temperature control knob counterclockwise.

Heater Only
Turning the temperature control knob clockwise increases

the heating temperature and turning the temperature

control knob counterclockwise decreases the heating

temperature.

NOTE:

The numbers within the temperature display will only

appear if your vehicle is equipped with an Automatic

Climate Control system.

Blower Control

Blower Control regulates the amount of air

forced through the climate system. There are

seven blower speeds available. The blower

speeds increase as you turn the blower control

knob clockwise from the lowest blower setting. The blower

speed decreases as you turn the blower control knob

counterclockwise.

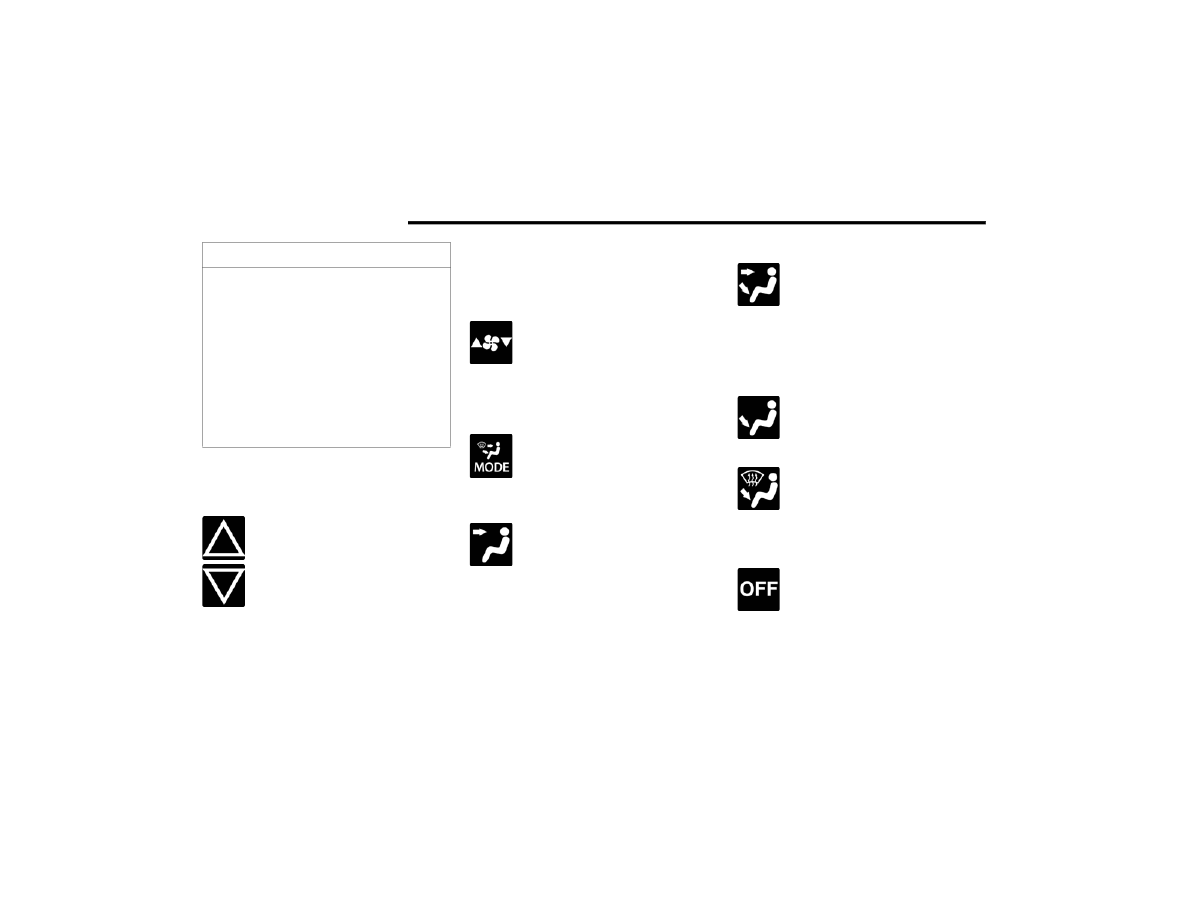

Mode Control

Turn the mode control knob to adjust airflow

distribution. The airflow distribution mode can

be adjusted so air comes from the instrument

panel outlets, floor outlets, defrost outlets and

demist outlets.

Panel Mode

Air comes from the outlets in the instrument

panel. Each of these outlets can be individually

adjusted to direct the flow of air. The air vanes

of the center outlets and outboard outlets can

be moved up and down or side to side to regulate airflow

direction. There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow from

these outlets.

Bi-Level Mode

Air comes from the instrument panel outlets

and floor outlets. A slight amount of air is

directed through the defrost and side window

demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to

provide cooler air out of the panel outlets and warmer air

from the floor outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the defrost

and side window demister outlets.

Mix Mode

Air is directed through the floor, defrost, and

side window demister outlets. This setting

works best in cold or snowy conditions that

require extra heat to the windshield. This

setting is good for maintaining comfort while reducing

moisture on the windshield.

Climate Control OFF

To turn the Climate Controls off, turn the blower

control knob to the OFF (O) position.

CAUTION!

Failure to follow these cautions can cause damage to

the heating elements:



Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on the

interior surface of the window. Use a soft cloth and a

mild washing solution, wiping parallel to the heating

elements. Labels can be peeled off after soaking

with warm water.



Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the

window.



Keep all objects a safe distance from the window.

GETTING TO KNOW YOUR VEHICLE

UTOMATIC

EMPERATURE

ONTROL

(ATC) — I

QUIPPED

Automatic Operation

1. Push the AUTO button on the faceplate, or the AUTO

button on the touchscreen on the Automatic

Temperature Control (ATC) Panel.

2. Next, adjust the temperature that you would like the

system to maintain by adjusting the driver and

passenger temperature control buttons. Once the

desired temperature is displayed, the system will

achieve and automatically maintain that comfort

level.

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will

experience the greatest efficiency by simply allowing

the system to function automatically.

NOTE:



It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts

the temperature, mode, and blower speed to provide

comfort as quickly as possible.



The temperature can be displayed in US or Metric units

by selecting the US/Metric customer-programmable

feature within Uconnect Settings

page 184.

To provide you with maximum comfort in the Automatic

mode during cold start-ups, the blower fan will remain on

low until the engine warms up. The blower will increase in

speed and transition into Auto mode.

Manual Operation Override

This system offers a full complement of manual override

features. The AUTO symbol in the front ATC display will be

turned off when the system is being used in the manual

mode.

LIMATE

OICE

OMMANDS

Adjust vehicle temperatures hands-free and keep

everyone comfortable while you keep moving ahead.
Push the VR button on the steering wheel. After the beep,

say one of the following commands:



“Set the driver temperature to 70 degrees”



“Set the passenger temperature to 70 degrees”

Did You Know: Voice Command for Climate may only be

used to adjust the interior temperature of your vehicle.

Voice Command will not work to adjust the heated seats

or steering wheel if equipped.

PERATING

IPS

Refer to the chart at the end of this section for suggested

control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a

high-quality antifreeze coolant to provide proper corrosion

protection and to protect against engine overheating. OAT

coolant (conforming to MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling system is

functioning properly and the proper amount, type, and

concentration of coolant is used. Use of the Air

Recirculation mode during Winter months is not

recommended, because it may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control system

when the vehicle is being stored for an extended period of

time, see

page 359.

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,

and/or humid weather. To clear the windows, select

Defrost or Mix mode and increase the front blower speed.

Do not use the Recirculation mode without A/C for long

periods, as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of the

windshield, is free of obstructions, such as leaves. Leaves

collected in the air intake may reduce airflow, and if they

enter the plenum, they could plug the water drains. In

Winter months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and pollen

from the air. Contact an authorized dealer to service your

cabin air filter, and to have it replaced when needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system may

automatically adjust airflow to maintain cabin comfort.

Customer settings will be maintained upon return to an

engine running condition.

GETTING TO KNOW YOUR VEHICLE

Operating Tips Chart

The following chart is for Manual Override Operation.

INTERIOR STORAGE AND EQUIPMENT

TORAGE

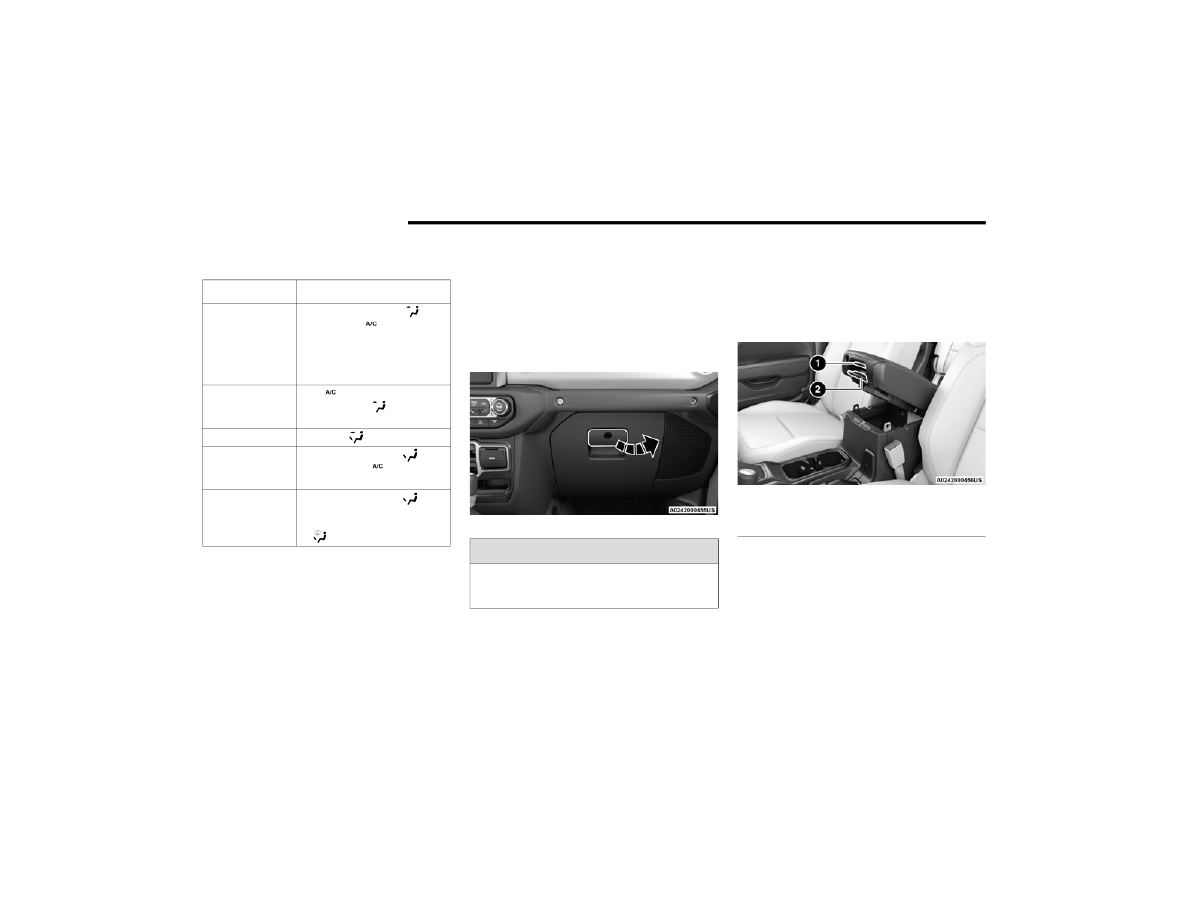

Glove Compartment

The glove compartment is located on the passenger side

of the instrument panel.
To open the glove compartment, pull the release handle.

Glove Compartment

Console Storage Compartment

The center console has both an upper and lower storage

compartment.
To open the upper storage compartment, lift the top latch.

To access the lower storage compartment, lift the bottom

latch.

Console Storage Latches

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is

Very Hot

Set the mode control to

(Panel Mode),

(A/C) on, and

blower on high. Roll down the

windows for a minute to flush out

the hot air. Adjust the controls as

needed to achieve comfort.

Warm Weather

Turn

(A/C) on and set the

mode control to

(Panel

Mode).

Cool Sunny

Operate in

(Bi-Level Mode).

Cool & Humid

Conditions

Set the mode control to

(Floor

Mode) and turn

(A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

(Floor

Mode). If windshield fogging

starts to occur, move the control

(Mix Mode).

WARNING!

Do not operate this vehicle with a glove compartment in

the open position. Driving with the glove compartment

open may result in injury in a collision.

1 — Upper Compartment Latch
2 — Lower Compartment Latch

GETTING TO KNOW YOUR VEHICLE

Rear Storage Compartment — If Equipped

The rear cargo area storage compartment is located

underneath the load floor.
To access the storage compartment, lift up on the cargo

strap/handle at the rear of the cargo area.

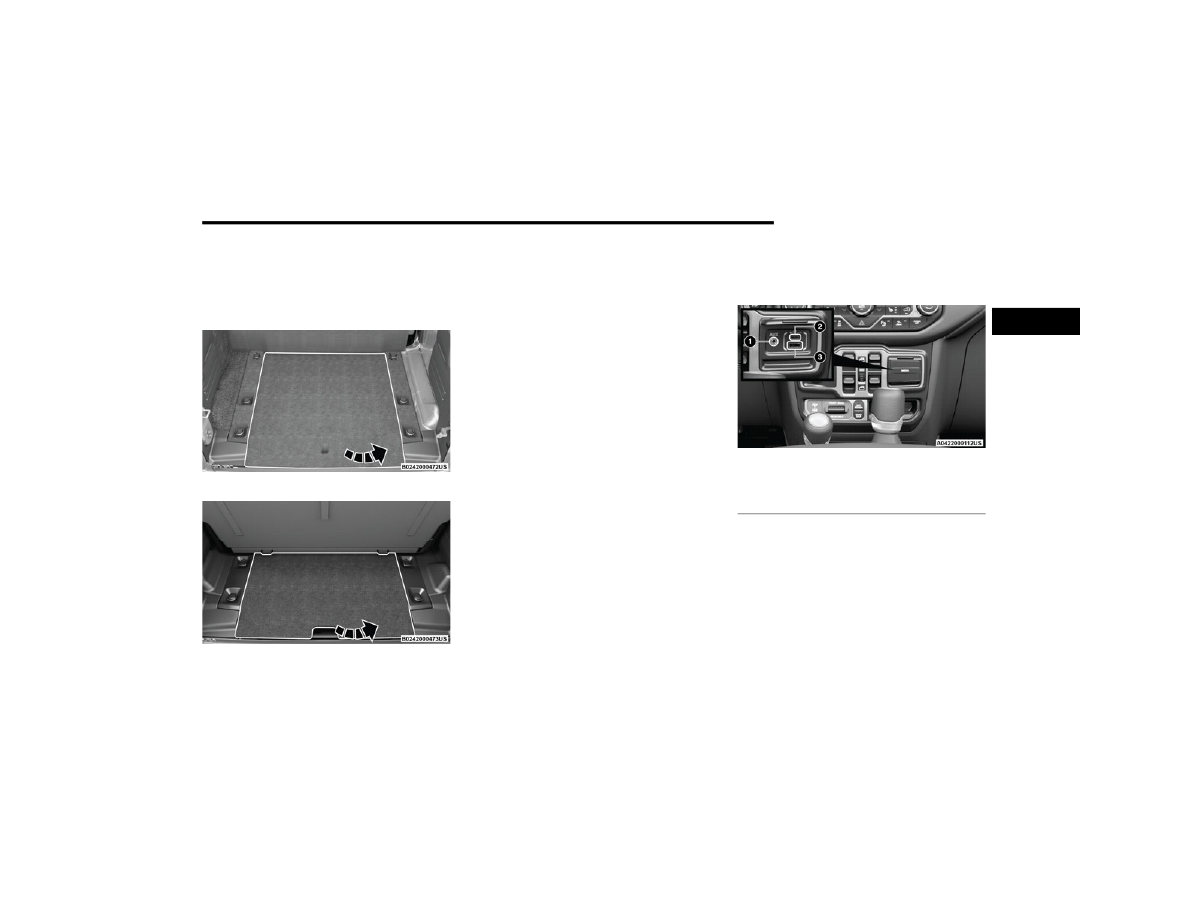

Rear Storage Cover (Four Door Models)

Rear Storage Cover (Two Door Models)

IGHTED

UPHOLDERS

— I

QUIPPED

On some vehicles, the front cupholders are equipped with

a light ring that illuminates the cupholders for the front

passengers. The light ring is controlled by the Dimmer

Controls

page 53.

USB/AUX C

ONTROL

The Media Hub is located on the instrument panel, below

the climate controls. Behind the media hub access door,

the Media Hub contains one AUX port, a Type C USB port

and one standard USB port. Both USB ports allow you to

play music from MP3 players, smartphones or USB

devices through the vehicle’s sound system.
Plugging in a smartphone device to a USB port may

activate Android Auto™ or Apple CarPlay® features, if

equipped. For further information, refer to Android Auto™

or Apple Carplay®

page 222 or in the Uconnect Radio

Instruction Manual.
The Smart Charging USB ports provide power to your

device up to an hour after the vehicle is turned off.

NOTE:



Once a device is connected to the USB port, it will begin

charging and is ready for use with the system. Type C

and Type A charge-only USB ports can be used at the

same time but cannot be used simultaneously while

playing media. When both Type C and Type A

charge-only USB ports are in use they will be charged at

a reduced rate.



Both ports share a single data connection. The user

cannot switch between Type A or Type C.

For example, if a device is plugged into the Type A USB port

and another device is plugged into the Type C USB port, a

message will appear and allow you to select which device

to use.

Media Hub

Located inside the center console, a second USB port

allows you to play music from USB devices through your

vehicle’s sound system.
Third and fourth USB ports (if equipped) are located

behind the center console, above the power inverter. Both

ports are charge only.

1 — AUX Port
2 — Type C USB Port
3 — Type A USB Port

GETTING TO KNOW YOUR VEHICLE

USB On The Back Of The Center Console

When a new device or smartphone is plugged into the USB

ports, the following message may display depending on

the device being utilized:



“A new device is now connected. Previous connection

was lost.”



“(Phone Name) now connected. Previous connection

was lost.”



“Another device is in use through the same USB port.

Please disconnect the first device to use the second

device.”

NOTE:

Charge unsupported devices with the Charge Only USB

ports. If an unsupported device is plugged into a Media

USB port, a message will display on the touchscreen that

the device is not supported by the system.

OWER

UTLETS

There are two 12 Volt (13 Amp) auxiliary power outlets that

can provide power for accessories designed for use with

the standard power outlet adapters.
The front power outlet is located in the center of the

instrument panel below the climate controls, and is

powered from the ignition switch. Power is available when

the ignition switch is in the ON/RUN or ACC position.

Front Power Outlet

On vehicles equipped with a rear subwoofer, there is a

second power outlet located in the rear cargo area and is

powered directly from the vehicle’s battery.

Rear Cargo Power Outlet

Power Outlets Fuse Locations

WARNING!

Do not plug in or remove the external device while

driving. Failure to follow this warning could result in a

collision.

1 — F43 Fuse 20A Yellow Rear Power Outlet (battery

powered at all times)
2 — F45 Fuse 20A Yellow Rear Power Outlet (powered

when the ignition switch is in the ON/RUN or ACC

position)

GETTING TO KNOW YOUR VEHICLE

(Continued)

OWER

NVERTER

— I

QUIPPED

There is a 115 Volt, 150 W inverter outlet located on the

back of the center console to convert DC current to AC

current.
This outlet can power cellular phones, electronics and

other low power devices requiring power up to 150 W.

Certain video game consoles exceed this power limit, as

will most power tools.

Power Inverter

The power inverter is designed with built-in overload

protection. If the power rating of 150 W is exceeded, the

power inverter automatically shuts down. Once the

electrical device has been removed from the outlet, the

inverter should automatically reset. If the power rating

exceeds approximately 170 W, the power inverter may

have to be reset manually.

CAUTION!



Do not exceed the maximum power of 160 W

(13 Amp) at 12 Volt. If the 160 W (13 Amp) power

rating is exceeded, the fuse protecting the system

will need to be replaced.



Power outlets are designed for accessory plugs only.

Do not insert any other object in the power outlets as

this will damage the outlet and blow the fuse.

Improper use of the power outlet can cause damage

not covered by your New Vehicle Limited Warranty.

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!



Many accessories that can be plugged in draw power

from the vehicle's battery, even when not in use (i.e.,

cellular phones, etc.). Eventually, if plugged in long

enough, the vehicle's battery will discharge suffi

ciently to degrade battery life and/or prevent the

engine from starting.



Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.), will degrade the

battery even more quickly. Only use these intermit

tently and with greater caution.



After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces

sories still plugged in), the vehicle must be driven a

sufficient length of time to allow the alternator to

recharge the vehicle's battery.



Power outlets are designed for accessory plugs only.

Do not hang any type of accessory or accessory

bracket from the plug. Improper use of the power

outlet can cause damage.

CAUTION!

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an electric

shock and failure.

GETTING TO KNOW YOUR VEHICLE

UXILIARY

WITCHES

— I

QUIPPED

Four auxiliary switches located in the lower switch bank of

the instrument panel can be used to power various

electrical devices. You have the ability to configure the

functionality of the auxiliary switches via the Uconnect

Settings

page 184.

All switches can be configured as follows:



Switch type operation: Latching or Momentary



Power source: Battery or Ignition



Ability to hold last state across key cycles: On or Off

Auxiliary Switches

NOTE:

Holding last state conditions are met when switch type is

set to latching and power source is set to ignition.
The auxiliary switches manage the relays that power four

blunt cut wires. These wires are located under the

instrument panel in the passenger compartment and

under the hood to the right, near the battery.

Auxiliary Switch Connections – Under Hood

Auxiliary Switch Connections – Under Instrument Panel

In addition to the four auxiliary switch wires, a fused

battery wire and ignition wire are also located in the

interior, in the passenger side under the instrument panel.
A kit of splices and heat shrink tubing are provided with

the auxiliary switches to aid in the connection/installation

of your electrical devices.

GETTING TO KNOW YOUR VEHICLE

Wire Color Chart

POWER WINDOWS — IF EQUIPPED

The power window switches are located on the instrument

panel below the climate controls. Push the switch

downward to open the window and upward to close the

window.
The top left switch controls the left front window and the

top right switch controls the right front window.

Power Window Switches

To open the window part way (manually), push the window

switch down briefly and release.

NOTE:

The power window switches will remain active for up to

10 minutes after ignition is placed in the OFF position.

Opening either front door will cancel this feature.
Four-Door Models
The lower left switch controls the left rear passenger

window, and the lower right switch controls the right rear

passenger window.

NOTE:

There are window switches located on the rear of the

center console for the rear passenger windows in the

four-door model.

Circuit Function

Fuse

Wire Color

Locations

Aux Switch 1

F93 – 40 Amp

Beige/Pink

Interior (passenger side under instrument panel) & Underhood (right side near battery)

Aux Switch 2

F92 – 40 Amp

Green/Pink

Interior (passenger side under instrument panel) & Underhood (right side near battery)

Aux Switch 3

F103 – 15 Amp

Orange/Pink

Interior (passenger side under instrument panel) & Underhood (right side near battery)

Aux Switch 4

F108 – 15 Amp

Dark Blue/Pink

Interior (passenger side under instrument panel) & Underhood (right side near battery)

Battery

F72 – 10 Amp

Red/White

Interior (passenger side under instrument panel)

Ignition

F50 – 10 Amp

Pink/Orange

Interior (passenger side under instrument panel)

WARNING!

Never leave children unattended in a vehicle, and do

not let children play with power windows. Do not leave

the key fob in or near the vehicle, or in a location

accessible to children. Occupants, particularly

unattended children, can become entrapped by the

windows while operating the power window switches.

Such entrapment may result in serious injury or death.

GETTING TO KNOW YOUR VEHICLE

UTO

-D

OWN

EATURE

The driver door power and the passenger door power

window switches have an Auto-Down feature. Push the

window switch down to the second detent and release,

and the window will go down automatically.
To stop the window from going all the way down during the

Auto-Down operation, pull up on the switch briefly.

INDOW

OCKOUT

WITCH

Window Lockout Switch

The window lockout switch allows you to disable the

window controls on the rear passenger doors. To disable

the window controls, rotate the switch downward. To

enable the window controls, rotate the switch upward.

IND

UFFETING

Wind buffeting can be described as the perception of

pressure on the ears or a helicopter-type sound in the

ears. Your vehicle may exhibit wind buffeting with the

windows down in certain open or partially open positions.

This is a normal occurrence and can be minimized. If the

buffeting occurs with the rear windows open, open the

front and rear windows together to minimize the buffeting.

WRANGLER TOPS

ROVIDED

OOLS

For your convenience, a tool kit is provided with your

vehicle located in the center console. This kit includes the

necessary tools required for the operations described in

the following sections. All pieces fit into the ratchet for

easy use.

NOTE:

The soft top and the hard top are to be used inde

pendently. Your vehicle warranty will not cover damage

resulting from both tops being installed at the same time.

Provided Tools

If your vehicle is equipped with a Dual Top (four door

models only), the soft top system will be provided in a

separate box located in the rear of the vehicle for shipping

purposes only.

WARNING!

There is no anti-pinch protection when the window is

almost closed. Be sure to clear all objects from the

window before closing.

1 — Ratchet
2 — #T50 Torx Head Driver
3 — #T40 Torx Head Driver
4 — 15 mm Socket

GETTING TO KNOW YOUR VEHICLE

(Continued)

OWERING

OFT

NTO

UNRIDER

® P

OSITION

Use this QR code to access your digital

experience.

If the temperature is below 72°F (24°C) and/or the top

has been folded down for a period of time, the top will

appear to have shrunk when you raise it, making it difficult

to put up. This is caused by a natural contraction of the

vinyl or acrylic materials of the fabric top.
Place the vehicle in a warm area. Pull steadily on the top

fabric. The vinyl will stretch back to its original size and the

top can then be installed. If the temperature is 41°F (5°C)

or below, do not attempt to put the top down or roll the

rear or side curtains.

WARNING!



The fabric quarter windows and fabric top are

designed only for protection against the elements.

Do not rely on them to contain occupants within the

vehicle or to protect against injury during an acci

dent. Remember, always wear seat belts.



Make sure hands and fingers are clear of all pinch

points when installing and removing the soft tops.

The lift assist mechanism and side bows may cause

serious injury if fingers or hands get caught in

between.

CAUTION!

The soft top is not designed to carry any additional

loads such as roof racks, spare tires, building, hunting,

or camping supplies, and/or luggage, etc. Also, it was

not designed as a structural member of the vehicle

and, thus, cannot properly carry any additional loads

other than environmental (rain, snow, etc.).

CAUTION!



Do not run a fabric top through an automatic car

wash. Window scratches and wax buildup may result.



Do not lower the top when the temperature is below

41°F (5°C). Damage to the top may result.



Do not move your vehicle until the top has been

either fully attached to the windshield frame, or fully

lowered.



Do not fully lower the top with the windows installed.

Window and top damage may occur.



For important information on cleaning and caring for

your vehicle's fabric top

page 361.



Do not use any tools (screwdrivers, etc.) to pry or

force any of the clamps, clips, or retainers securing

the soft top. Do not force or pry the soft top frame

work when opening or closing. Damage to the top

may result.

Failure to follow these cautions may cause interior water

damage, stains or mildew on the top material:



It is recommended that the top be free of water prior

to opening it. Operating the top, opening a door or

lowering a window while the top is wet may allow

water to drip into the vehicle's interior.



Careless handling and storage of the soft top may

damage the seals, causing water to leak into the

vehicle's interior.



The soft top must be positioned properly to ensure

sealing. Improper installation can cause water to leak

into the vehicle's interior.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

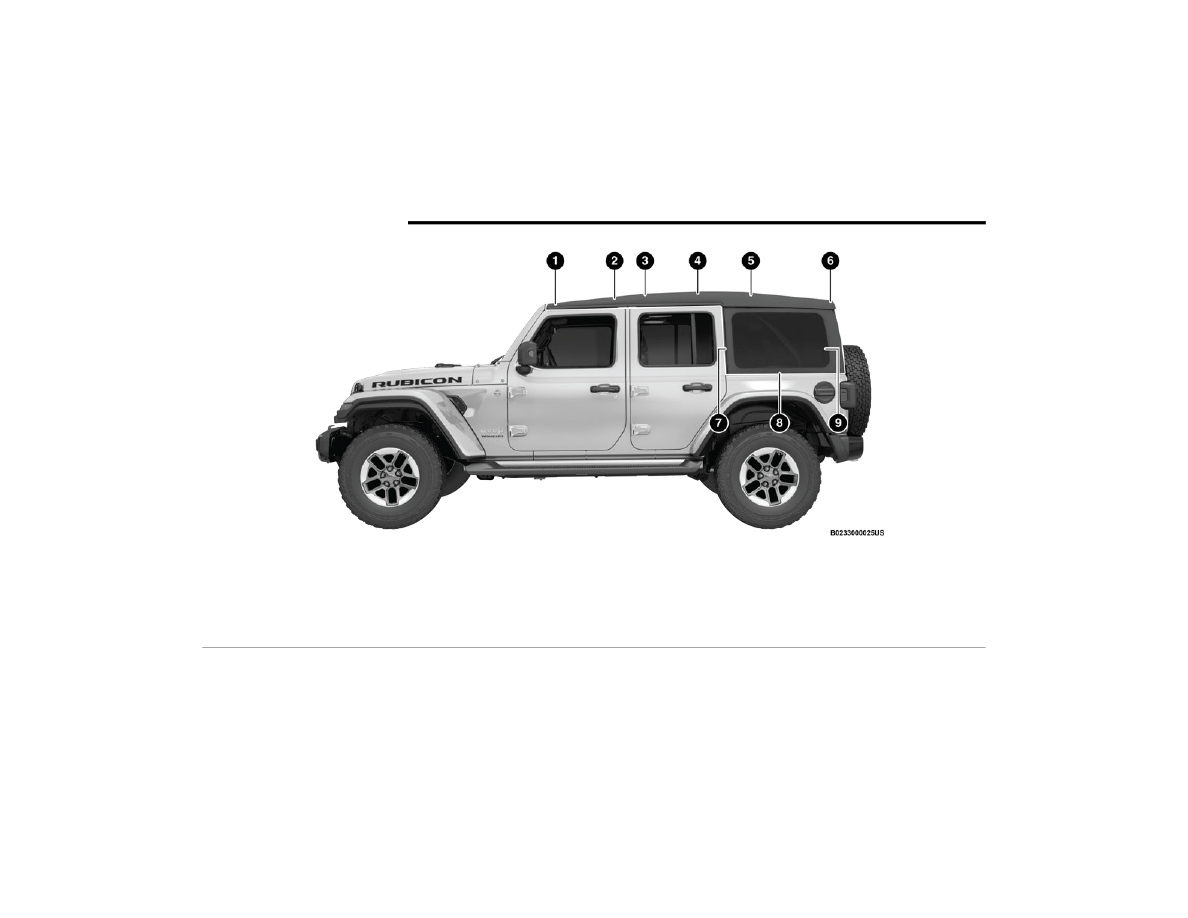

Four Door Side View Components

1 — #1 Bow

6 — #6 Bow

2 — #2 Bow

7 — Front Window Retainer

3 — #3 Bow

8 — Lower Window Retainer

4 — #4 Bow

9 — Rear Quarter Window

5 — #5 Bow

GETTING TO KNOW YOUR VEHICLE

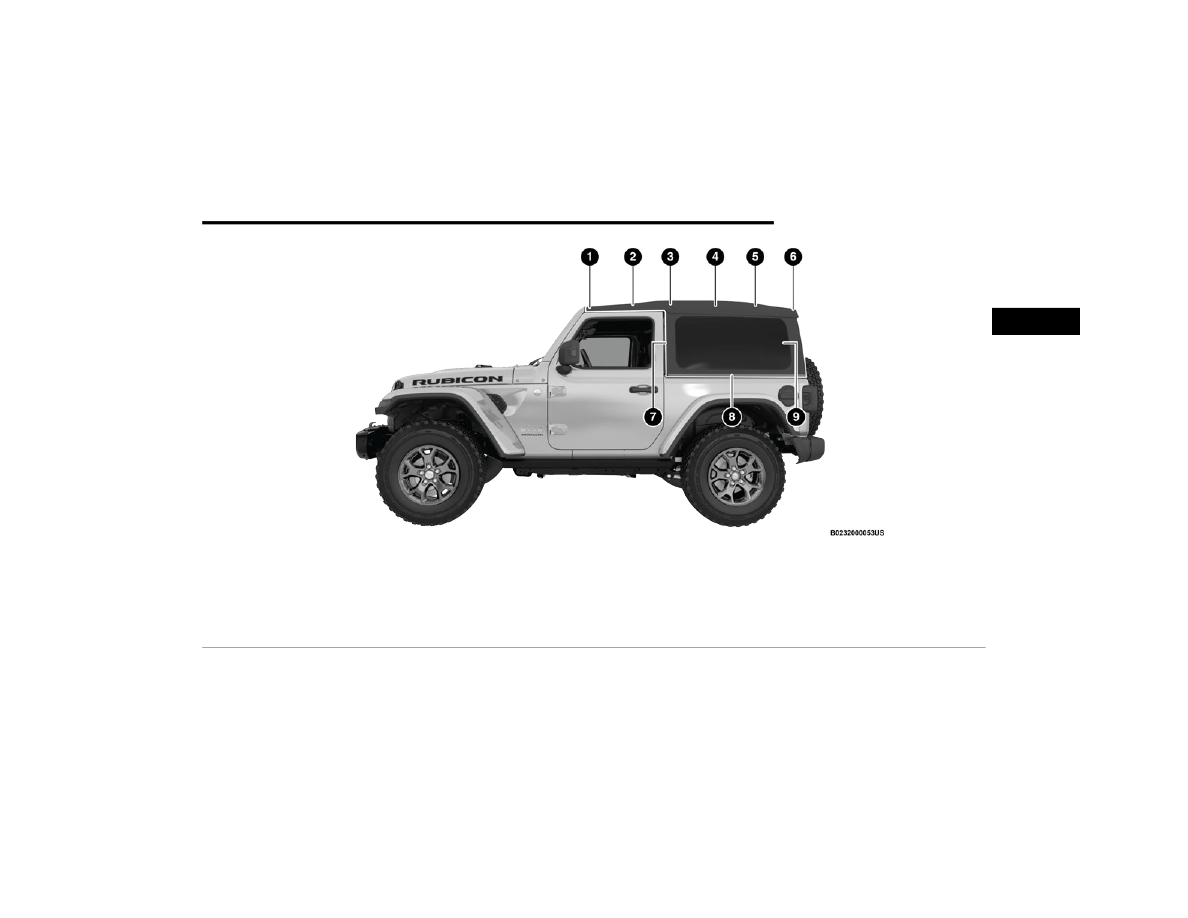

Two Door Side View Components

1 — #1 Bow

6 — #6 Bow

2 — #2 Bow

7 — Front Window Retainer

3 — #3 Bow

8 — Lower Window Retainer

4 — #4 Bow

9 — Rear Quarter Window

5 — #5 Bow

GETTING TO KNOW YOUR VEHICLE

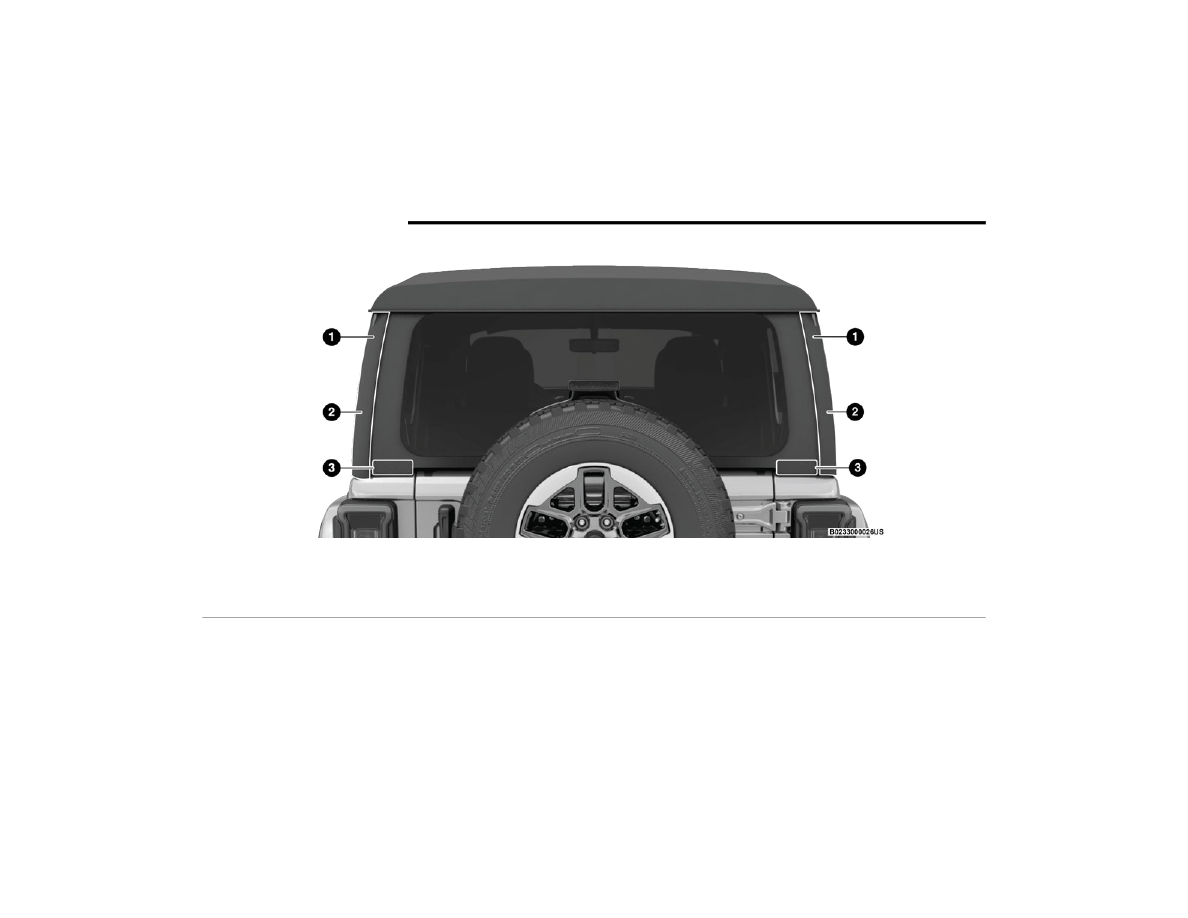

Two And Four Door Rear Components

1 — Rear Window Retainer Attachment Points
2 — Quarter Window Pillars
3 — Swing Gate Bar Retainers

GETTING TO KNOW YOUR VEHICLE

NOTE:



All lowering and raising the soft top instructions are

applicable to both two and four door model vehicles.



Images shown are of four door models, and appear

ance of two door model components may differ.

The following options are available to you when lowering

your vehicle’s soft top:



Sunrider® position with rear and quarter windows

installed



Sunrider® position with rear and quarter panels

removed



Sunrider® position with rear window installed and

quarter panels removed



Fully lowered position with rear and quarter windows

removed

Both quarter windows should be removed and installed

together.
Lowering The Soft Top Into Sunrider® Position
1. Fold both sun visors forward against the windshield.
2. Release the header latches from the crossbar by

pulling the handle downward. Make sure the hook is

disengaged from its receiver.

Step Two

3. From both the left and right sides, lift up on the #1

Bow of the soft top to start the operation.

Step Three

4. Move to the side of the vehicle and use the side link

to fold the soft top rearward into the Sunrider®

position.

Step Four

NOTE:

If leaving the soft top in the Sunrider® position, secure the

top by using the two hook-and-loop fasteners provided in

the center console.

Step Four

GETTING TO KNOW YOUR VEHICLE

NOTE:



The vehicle can be driven in the Sunrider® position

with the rear window and quarter panel assemblies

fully installed or completely removed.



The rear window and rear quarter windows must be

removed before fully lowering the soft top to prevent

damage to the top. Clean the side and rear windows

before removal to assist in preventing scratching

during removal of the soft top. If the plastic retainers

are difficult to operate due to road dust, etc., clean

them with a mild soap solution and a small brush.

Cleaning products are available through an authorized

dealer.

Removing The Soft Top Windows

NOTE:

Before fully lowering the soft top, the rear window and rear

quarter windows must be removed.
Remove The Rear Window:
1. With the swing gate open, remove the rear window’s

plastic retainers from the lower right and left

corners.

Step One

2. Grab the swing gate bar, rotate it outward and

upward releasing it from both the right and left

retainers.

Step Two (Left Side Shown)

3. While holding the window in place, slide the swing

gate bar to the left separating it from the rear window.

Store in soft window bag (if equipped), or a safe

location.

Step Three

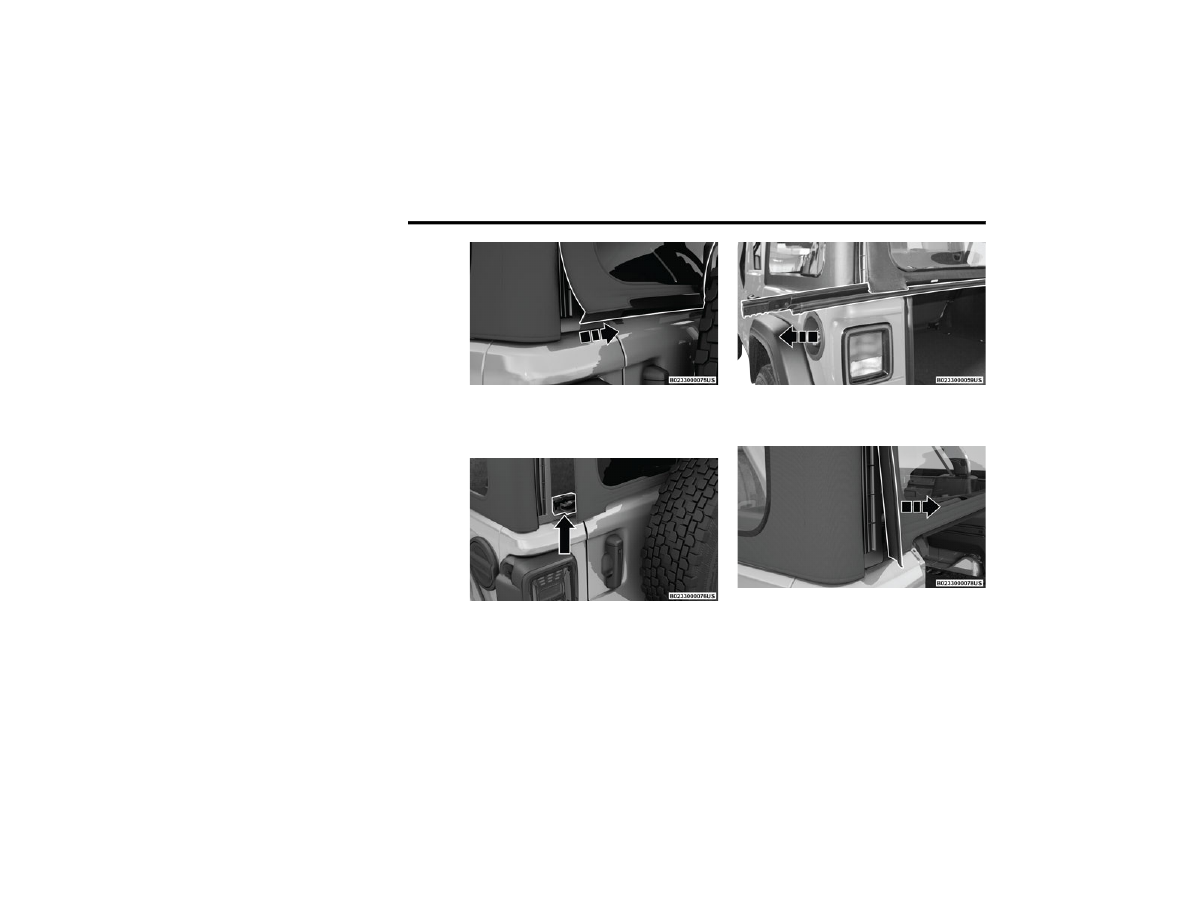

4. Remove the plastic retainers from both quarter

window pillars.

Step Four

Content .. 2 3 4 5 ..
