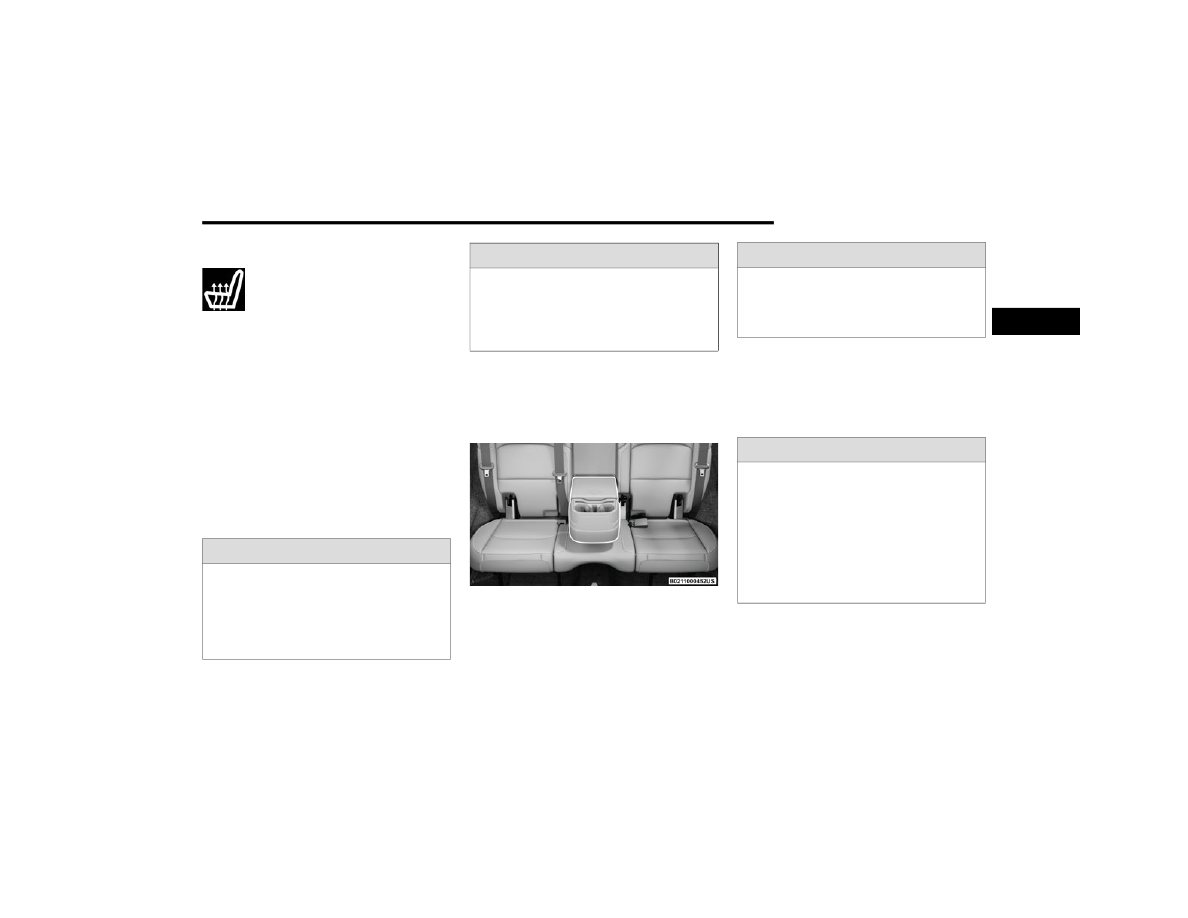

GETTING TO KNOW YOUR VEHICLE

41

(Continued)

H

EATED

 S

EATS

 — I

F

 E

QUIPPED

The heated seat control buttons are located on

the center instrument panel below the

touchscreen and also in the Climate Control

touchscreen menu.

Press the heated seat button once to turn the HI setting

on.

Press the heated seat button a second time to turn the

MED setting on.

Press the heated seat button a third time to turn the LO

setting on.

Press the heated seat button a fourth time to turn the

heating elements off.

NOTE:

The engine must be running for the heated seats to

operate.

The level of heat selected will stay on until the operator

changes it.

For information on use with the Remote Start system, see

Ú

page 18.

R

EAR

 S

EAT

 A

RMREST

 — I

F

 E

QUIPPED

The center part of the rear seat can also be used as a rear

armrest with cupholders. To unfold it, grab the pull strap

under the head restraint and pull it forward.

Rear Seat Armrest

NOTE:

The cupholder liner can be removed for cleaning.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of injury by

restricting head movement in the event of a rear impact.

Head restraints should be adjusted so that the top of the

head restraint is located above the top of your ear.

WARNING!

Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,

spinal cord injury, medication, alcohol use, exhaus

-

tion or other physical condition must exercise care

when using the seat heater. It may cause burns even

at low temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback that

insulates against heat, such as a blanket or cushion.

This may cause the seat heater to overheat. Sitting in

a seat that has been overheated could cause serious

burns due to the increased surface temperature of

the seat.

WARNING!

WARNING!

Be certain that the seatback is securely locked into

position. If the seatback is not securely locked into

position the seat will not provide the proper stability for

child seats and/or passengers. An improperly latched

seat could cause serious injury.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until the

head restraints are placed in their proper positions in

order to minimize the risk of neck injury in the event

of a crash.

Head restraints should never be adjusted while the

vehicle is in motion. Driving a vehicle with the head

restraints improperly adjusted or removed could

cause serious injury or death in the event of a colli

-

sion.

2

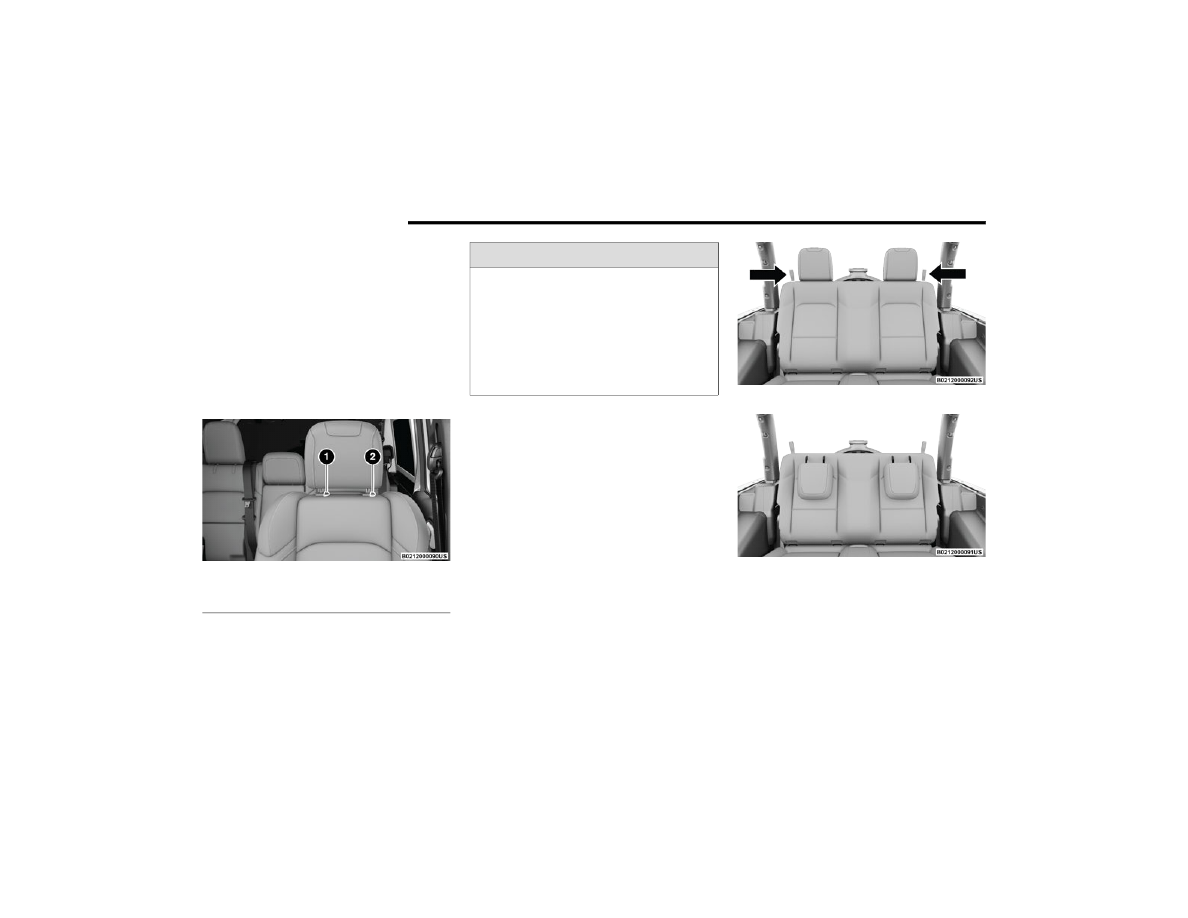

42

GETTING TO KNOW YOUR VEHICLE



Front Head Restraints

To raise the head restraint, pull upward on the head

restraint. To lower the head restraint, push the adjustment

button located on the base of the head restraint, and push

downward on the head restraint. The release button does

not need to be pushed to adjust the head restraint.
To remove the head restraint, raise it as far as it can go

then push the adjustment button and the release button

at the base of each post while pulling the head restraint

up. To reinstall the head restraint, put the head restraint

posts into the holes and push downward. Then adjust it to

the appropriate height.

Front Head Restraint

NOTE:

Do not reposition the head restraint 180 degrees to the

incorrect position in an attempt to gain additional

clearance to the back of the head.

Rear Head Restraints — Two Door Models

The rear seat is equipped with non-adjustable, but

foldable head restraints.
To fold the outboard head restraint, pull on the release

strap located on the upper outboard side of each rear

seat.

Rear Head Restraint Folding Strap Locations

Rear Head Restraints Folded

To return the head restraint to its upward position, lift up

on the head restraint until it locks into place.
For information on child seat tether routing, see

Ú

page 261.

1 — Release Button
2 — Adjustment Button

WARNING!

A loose head restraint thrown forward in a collision or

hard stop could cause serious injury or death to occu

-

pants of the vehicle. Always securely stow removed

head restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the

reinstallation instructions prior to operating the

vehicle or occupying a seat.

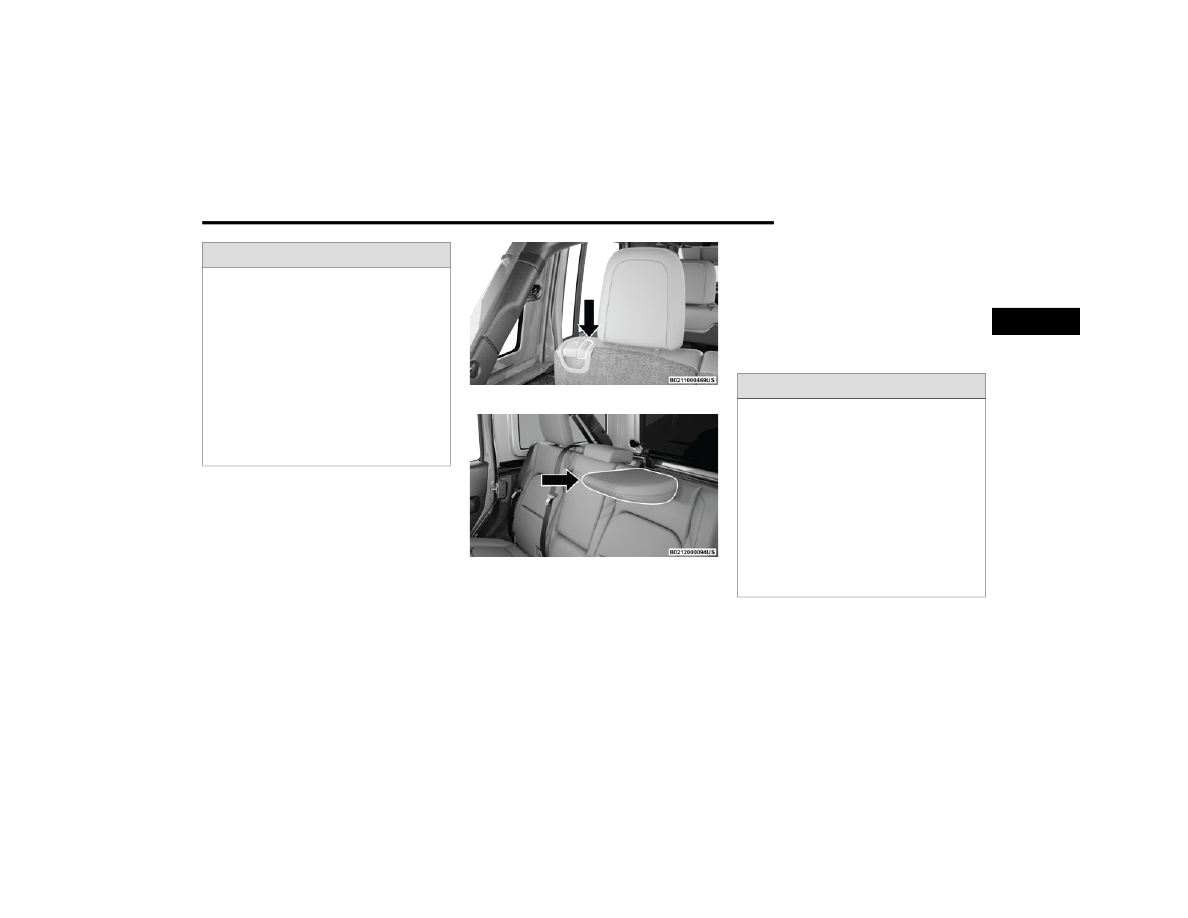

GETTING TO KNOW YOUR VEHICLE

43

Rear Head Restraints — Four Door Models

The rear seat is equipped with nonadjustable, but

foldable, outboard head restraints, as well as an

adjustable, removable center head restraint.
To fold the outboard head restraint, pull on the inner

release lever, located on the upper part of the rear seat.

Rear Head Restraint Lever

Rear Head Restraint Folded

To return the head restraint to its upward position, lift up

on the head restraint until it locks into place.
To raise the center head restraint, lift up on the head

restraint. To lower the center head restraint, push the

adjustment button, located at the base of the head

restraint, and push down on the head restraint.

To remove the center head restraint, push the release

button, located on the base of the head restraint, and pull

upward on the head restraint.
To install the head restraint, hold the release button while

pushing downward on the head restraint. For information

on child seat tether routing, see

Ú

page 261.

NOTE:

Lower the center head restraint to avoid contact with the

center console when folding the seat down.

WARNING!

Do not drive the vehicle without the rear seat head

restraints installed while passengers are occupying

the rear seat. In a collision, people riding in this area

without the head restraints installed are more likely

to be seriously injured or killed.

A loose head restraint thrown forward in a collision or

hard stop could cause serious injury or death to occu

-

pants of the vehicle. Always securely stow removed

head restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the

reinstallation instructions prior to operating the

vehicle or occupying a seat.

WARNING!

Do not drive the vehicle without the rear seat head

restraints installed while passengers are occupying

the rear seat. In a collision, people riding in this area

without the head restraints installed are more likely

to be seriously injured or killed.

A loose head restraint thrown forward in a collision or

hard stop could cause serious injury or death to occu

-

pants of the vehicle. Always securely stow removed

head restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the

reinstallation instructions prior to operating the

vehicle or occupying a seat.

2

44

GETTING TO KNOW YOUR VEHICLE



UCONNECT VOICE RECOGNITION

I

NTRODUCING

 V

OICE

 R

ECOGNITION

Start using Uconnect Voice Recognition with these helpful

quick tips. It provides the key Voice Commands and tips

you need to know to control your vehicle’s Voice

Recognition (VR) system.

Uconnect 3 With 5-inch Display

Uconnect 4 With 7-inch Display

Uconnect 4C/4C NAV With 8.4-inch Display

If you see the NAV icon on the bottom bar or in the Apps

menus of your 8.4-inch touchscreen, you have the

Uconnect 4C NAV system. If not, you have a Uconnect 4C

with 8.4-inch display system.

B

ASIC

 V

OICE

 C

OMMANDS

The following basic Voice Commands can be given at any

point while using your Uconnect system.
Push the VR button on the steering wheel. After the beep,

say:

“Cancel” to stop a current voice session.

“Help” to hear a list of suggested Voice Commands.

“Repeat” to listen to the system prompts again.

Notice the visual cues that inform you of your Voice

Recognition system’s status.

G

ET

 S

TARTED

The

 VR button is used to activate/deactivate your

Voice Recognition system.
Helpful hints for using Voice Recognition:

Reduce background noise. Wind noise and passenger

conversations are examples of noise that may impact

recognition.

Speak clearly at a normal pace and volume while facing

straight ahead.

Each time you give a Voice Command, first push the VR

button, wait until after the beep, then say your Voice

Command.

You can interrupt the help message or system prompts

by pushing the VR button and saying a Voice Command

from the current category.

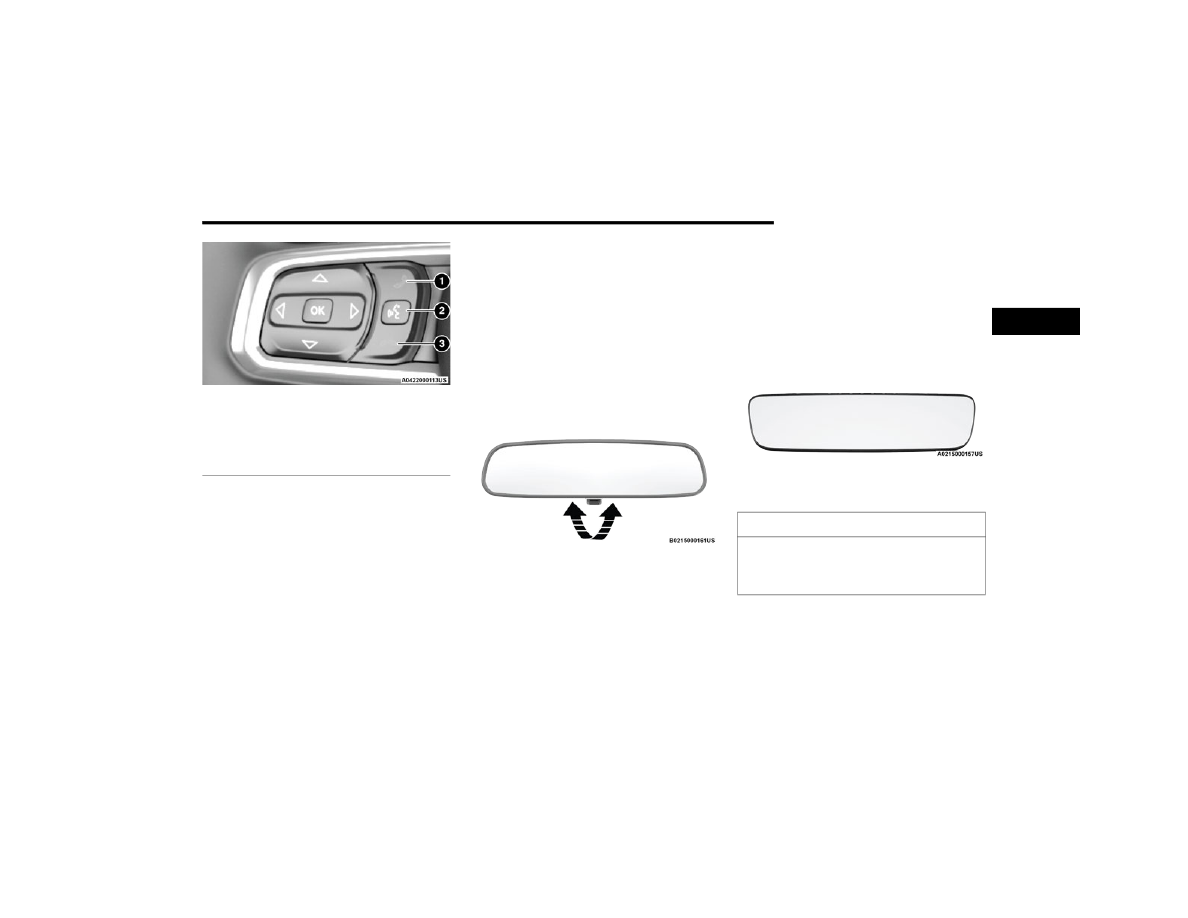

GETTING TO KNOW YOUR VEHICLE

45

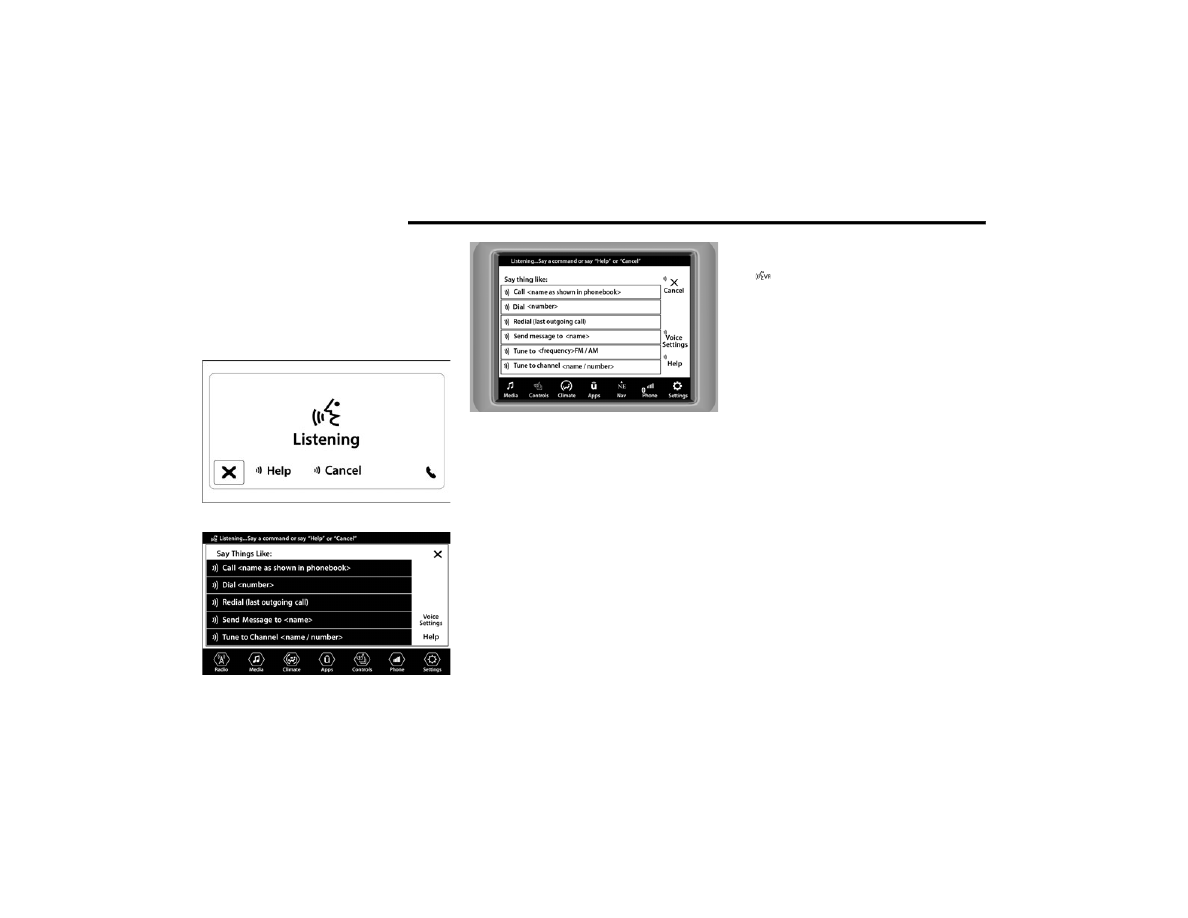

Uconnect Voice Command Buttons

A

DDITIONAL

 I

NFORMATION

Uconnect are registered trademarks and Mopar Owner

Connect is a trademark of FCA US LLC. SiriusXM® and all

related marks and logos are trademarks of SiriusXM®

Radio Inc.

Ú

page 381.

For Uconnect system support, call 1-877-855-8400

(24 hours a day 7 days a week) or visit DriveUconnect.com

(US) or DriveUconnect.ca (Canada).

MIRRORS

I

NSIDE

 R

EARVIEW

 M

IRROR

Manual Mirror — If Equipped

The rearview mirror can be adjusted up, down, left, and

right. The mirror should be adjusted to center on the view

through the rear window.
Headlight glare from vehicles behind you can be reduced

by moving the small control under the mirror to the night

position (toward the rear of the vehicle). The mirror should

be adjusted while set in the day position (toward the

windshield).

Adjusting Rearview Mirror

Automatic Dimming Mirror — If Equipped

The rearview mirror can be adjusted up, down, left, and

right. The mirror should be adjusted to center on the view

through the rear window.
The mirror automatically adjusts to headlight glare from

vehicles behind you.

NOTE:

The Automatic Dimming feature is disabled when the

vehicle is in REVERSE to improve the driver’s view.

Automatic Dimming Mirror

The Automatic Dimming feature can be turned on or off

through Uconnect Settings

Ú

page 184.

1 — Push To Start Or Answer A Phone Call And Send Or

Receive A Text
2 — Push The Voice Recognition Button To Begin Radio,

Media, And Climate Functions
3 — Push To End Call

CAUTION!

To avoid damage to the mirror during cleaning, never

spray any cleaning solution directly onto the mirror.

Apply the solution onto a clean cloth and wipe the

mirror clean.

2

46

GETTING TO KNOW YOUR VEHICLE



I

LLUMINATED

 V

ANITY

 M

IRRORS



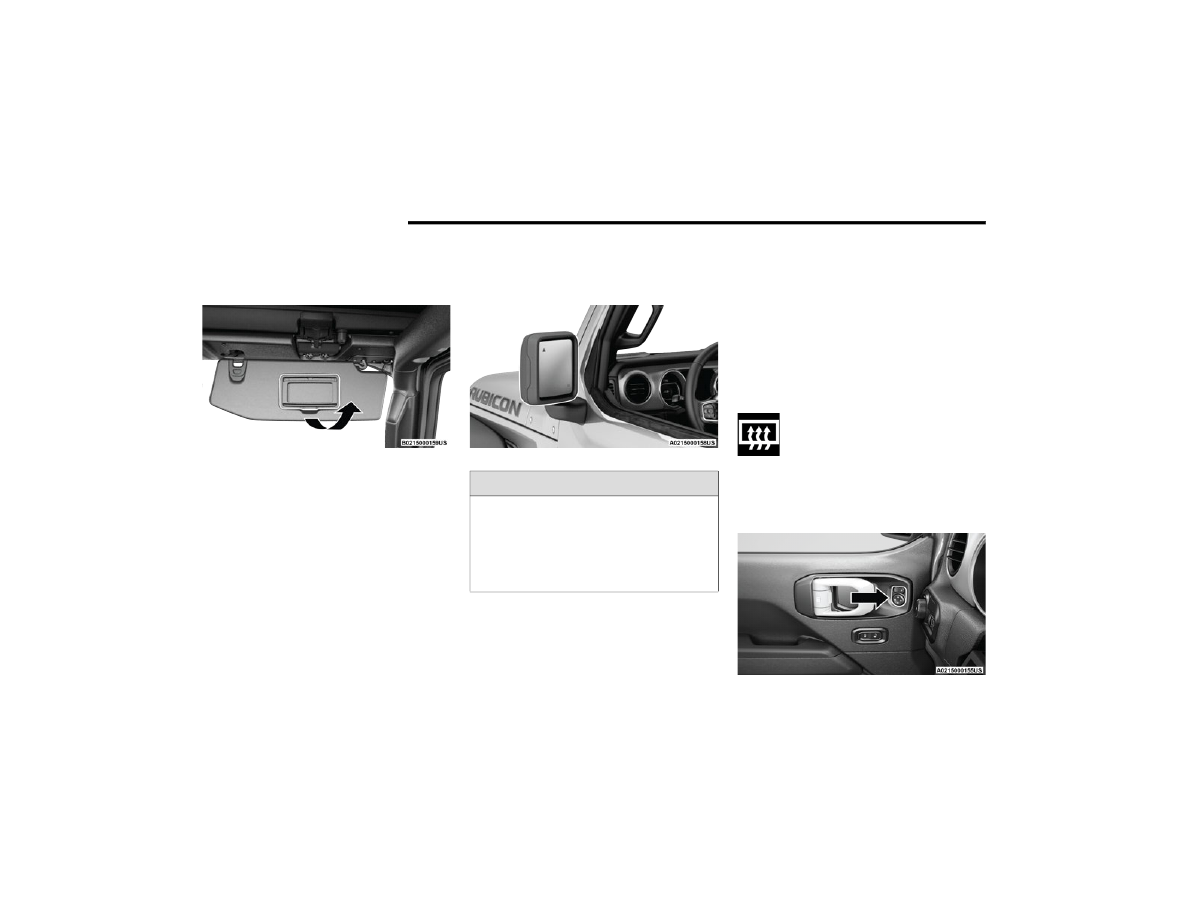

To access an illuminated vanity mirror, flip down one of the

visors and lift the cover.

Vanity Mirror

O

UTSIDE

 M

IRRORS



The outside mirror(s) can be adjusted to the center of the

adjacent lane of traffic to achieve the optimal view.

Outside Rearview Mirror

O

UTSIDE

 M

IRRORS

 W

ITH

 T

URN

S

IGNAL

 — I

F

 E

QUIPPED

Driver and passenger outside mirrors with turn signal

lighting contain LEDs, which are located in the upper outer

corner of each mirror.
The LEDs are turn signal indicators, which flash with the

corresponding turn signal lights in the front and rear of the

vehicle. Turning on the Hazard Warning flashers will also

activate these LEDs.

H

EATED

 M

IRRORS

 — I

F

 E

QUIPPED



These mirrors are heated to melt frost or ice.

This feature will be activated whenever you

turn on the rear window defroster (if equipped)

Ú

page 54.

P

OWER

 M

IRRORS

 — I

F

 E

QUIPPED



The power mirror controls are located on the door panel

next to the door handle.

Power Mirror Switch

WARNING!

Vehicles and other objects seen in the passenger side

convex mirror will look smaller and farther away than

they really are. Relying too much on your passenger

side mirror could cause you to collide with another

vehicle or other object. Use your inside mirror when

judging the size or distance of a vehicle seen in the

passenger side mirror.

GETTING TO KNOW YOUR VEHICLE

47

The power mirror controls consist of mirror select buttons

and a four-way mirror control switch. To adjust a mirror,

push either the L (left) or R (right) button to select the

mirror that you want to adjust.
Using the mirror control switch, push any of the four

arrows for the direction that you want the mirror to move.

UNIVERSAL GARAGE DOOR OPENER

(HOMELINK®) — IF EQUIPPED

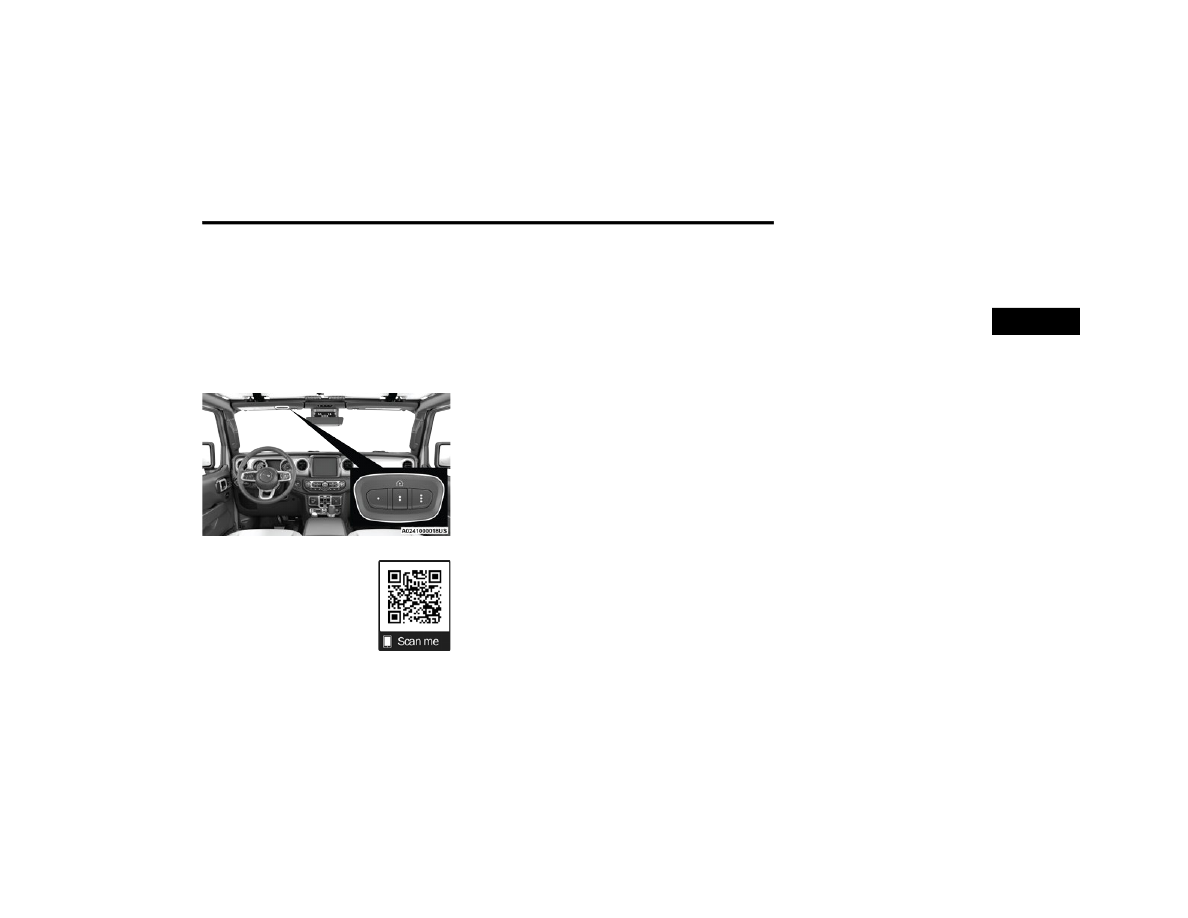

HomeLink® Buttons On Sun Visor

Use this QR code to access your digital

experience.

HomeLink® replaces up to three

hand-held transmitters that operate

devices such as garage door

openers, motorized gates, lighting,

or home security systems. The

HomeLink® unit is powered by your

vehicle’s 12 Volt battery.

The HomeLink® buttons that are located in the over

-

head console or sunvisor designate the three different

HomeLink® channels.

To operate HomeLink®, push and release any of the

programmed HomeLink® buttons. These buttons will

activate the devices they are programmed to with each

press of the corresponding HomeLink® button.

The HomeLink® indicator light is located above the

center button.

NOTE:

HomeLink® is disabled when the Vehicle Security system

is active

Ú

page 381.

B

EFORE

 Y

OU

 B

EGIN

 P

ROGRAMMING



H

OME

L

INK

®

For efficient programming and accurate transmission of

the radio-frequency signal, it is recommended that a new

battery be placed in the hand-held transmitter of the

device that is being programmed to the HomeLink®

system. Make sure your hand-held transmitter is

programmed to activate the device you are trying to

program your HomeLink® button to.
Ensure that your vehicle is parked outside of the garage

before you begin programming.
It is recommended that you erase all the channels of your

HomeLink® before you use it for the first time.

E

RASING

 A

LL

 T

HE

 H

OME

L

INK

®

C

HANNELS

To erase the channels, follow this procedure:
1. Place the ignition switch into the ON/RUN position.
2. Push and hold the two outside HomeLink® buttons

(I and III) for up to 20 seconds, or until the

HomeLink® indicator light flashes.

NOTE:

Erasing all channels should only be performed when

programming HomeLink® for the first time. Do not erase

channels when programming additional buttons.

I

DENTIFYING

 W

HETHER

 Y

OU

 H

AVE

 A

R

OLLING

 C

ODE

 O

R

 N

ON

-R

OLLING

 C

ODE



D

EVICE

Before programming a device to one of your HomeLink®

buttons, you must determine whether the device has a

rolling code or non-rolling code.
Rolling Code Devices
To determine if your device has a rolling code, a good

indicator is its manufacturing date. Typically, devices

manufactured after 1995 have rolling codes. A device with

a rolling code will also have a “LEARN” or “TRAIN” button

located where the antenna is attached to the device. The

button may not be immediately visible when looking at the

device. The name and color of the button may vary slightly

by manufacturer.

2

48

GETTING TO KNOW YOUR VEHICLE



NOTE:

The “LEARN” or “TRAIN” button is not the button you

normally use to operate the device.
Non-rolling Code Devices
Most devices manufactured before 1995 will not have a

rolling code. These devices will also not have a “LEARN” or

“TRAIN” button.

P

ROGRAMMING

 H

OME

L

INK

® T

O

 A

G

ARAGE

 D

OOR

 O

PENER

To program any of the HomeLink® buttons to activate your

garage door opener motor, refer to the following steps:

NOTE:

All HomeLink® buttons are programmed using this

procedure. You do not need to erase all channels when

programming additional buttons.
1. Place the ignition switch in the ON/RUN position.
2. Place the garage door opener transmitter 1 to

3 inches (3 to 8 cm) away from the HomeLink®

button you wish to program, while keeping the

HomeLink® indicator light in view.

3. Push and hold the HomeLink® button you want to

program while you push and hold the garage door

opener transmitter button you are trying to replicate.

4. Continue to hold both buttons and observe the

HomeLink® indicator light. The HomeLink® indicator

light will flash slowly and then rapidly. Once this

happens, release both buttons.

NOTE:

Make sure the garage door opener motor is plugged in

before moving on to the rolling code/non-rolling code final

steps.
Rolling Code Garage Door Opener Final Steps

NOTE:

You have 30 seconds in which to initiate rolling code final

step 2, after completing rolling code final step 1.
1. At the garage door opener motor (in the garage),

locate the “LEARN” or “TRAIN” button. This can

usually be found where the hanging antenna wire is

attached to the garage door opener motor. Firmly

push and release the “LEARN” or “TRAIN” button.

2. Return to the vehicle and push the programmed

HomeLink® button three times (holding the button

for two seconds each time). If the garage door opener

motor operates, programming is complete.

3. Push the programmed HomeLink® button to confirm

that the garage door opener motor operates. If the

garage door opener motor does not operate, repeat

the final steps for the rolling code procedure.

Non-Rolling Code Garage Door Opener Final Steps
1. Push and hold the programmed HomeLink® button

and observe the HomeLink® indicator light. If the

HomeLink® indicator light stays on constantly,

programming is complete.

2. Push the programmed HomeLink® button to confirm

that the garage door opener motor operates. If the

garage door opener motor does not operate, repeat

the steps from the beginning.

P

ROGRAMMING

 H

OME

L

INK

® T

O

 A

M

ISCELLANEOUS

 D

EVICE

The procedure on how to program HomeLink® to a

miscellaneous device follows the same procedure as

programming to a garage door opener

Ú

page 48. Be sure

to determine if the device has a rolling code, or non-rolling

code before beginning the programming process.

NOTE:

Canadian radio frequency laws require transmitter signals

to time-out (or quit) after several seconds of transmission,

which may not be long enough for HomeLink® to pick up

the signal during programming. Similar to this Canadian

law, some US gate operators are designed to time-out in

the same manner. The procedure may need to be

performed multiple times to successfully pair the device to

your HomeLink® buttons.

WARNING!

Your motorized door or gate will open and close while

you are programming the universal transceiver. Do

not program the transceiver if people or pets are in

the path of the door or gate.

Do not run your vehicle in a closed garage or

confined area while programming the transceiver.

Exhaust gas from your vehicle contains Carbon

Monoxide (CO) which is odorless and colorless.

Carbon Monoxide is poisonous when inhaled and

can cause you and others to be severely injured or

killed.

GETTING TO KNOW YOUR VEHICLE

49

R

EPROGRAMMING

 A S

INGLE



H

OME

L

INK

® B

UTTON

To reprogram a single HomeLink® button that has been

previously trained, without erasing all the channels,

proceed as follows. Be sure to determine if the new device

you want to program the HomeLink® button to has a

rolling code or a non-rolling code.
1. Place the ignition in the ON/RUN position, without

starting the engine.

2. Push and hold the desired HomeLink® button until

the HomeLink® Indicator light begins to flash after

20 seconds. Do not release the button.

3. Without releasing the button, proceed with Step 2 in

“Programming HomeLink® To A Garage Door

Opener” and follow all remaining steps.

C

ANADIAN

/G

ATE

 O

PERATOR



P

ROGRAMMING

For programming transmitters in Canada/United States

that require the transmitter signals to “time-out” after

several seconds of transmission.
Canadian radio frequency laws require transmitter signals

to time-out (or quit) after several seconds of transmission

– which may not be long enough for HomeLink® to pick up

the signal during programming. Similar to this Canadian

law, some U.S. gate operators are designed to time-out in

the same manner.
It may be helpful to unplug the device during the cycling

process to prevent possible overheating of the garage

door or gate motor.

1. Place the ignition in the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to

8 cm) away from the HomeLink® button you wish to

program while keeping the HomeLink® indicator light

in view.

3. Continue to press and hold the HomeLink® button,

while you press and release (cycle) your hand-held

transmitter every two seconds until HomeLink® has

successfully accepted the frequency signal. The

indicator light will flash slowly and then rapidly when

fully trained.

4. Watch for the HomeLink® indicator to change flash

rates. When it changes, it is programmed. It may take

up to 30 seconds or longer in rare cases. The garage

door may open and close while you are programming.

5. Press and hold the programmed HomeLink® button

and observe the indicator light.

NOTE:

If the indicator light stays on constantly, program

-

ming is complete and the garage door/device

should activate when the HomeLink® button is

pressed.

To program the two remaining HomeLink®

buttons, repeat each step for each remaining

button. DO NOT erase the channels.

If you unplugged the garage door opener/device for

programming, plug it back in at this time.

Reprogramming A Single HomeLink® Button

(Canadian/Gate Operator)
To reprogram a channel that has been previously trained,

follow these steps:
1. Place the ignition in the ON/RUN position.
2. Press and hold the desired HomeLink® button until

the indicator light begins to flash after 20 seconds.

Do not release the button.

3. Without releasing the button, proceed with

“Canadian/Gate Operator Programming” step 2 and

follow all remaining steps.

S

ECURITY

It is advised to erase all channels before you sell or turn in

your vehicle.
To do this, push and hold the two outside buttons for 20

seconds until the indicator flashes. Note that all channels

will be erased. Individual channels cannot be erased.
The HomeLink® Universal Transceiver is disabled when

the Vehicle Security system is active.

NOTE:

The universal garage door opener only operates when the

engine is running for security reasons associated with

removable tops and doors.

2

50

GETTING TO KNOW YOUR VEHICLE



T

ROUBLESHOOTING

 T

IPS

If you are having trouble programming HomeLink®, here

are some of the most common solutions:

Replace the battery in the garage door opener

hand-held transmitter.

Push the LEARN button on the garage door opener to

complete the training for a rolling code.

Did you unplug the device for programming and

remember to plug it back in?

If you have any problems, or require assistance, please

call toll-free 1-800-355-3515 or, on the Internet at

HomeLink.com for information or assistance.

EXTERIOR LIGHTS

H

EADLIGHT

 S

WITCH

The headlight switch is located on the left side of the

instrument panel. This switch controls the operation of the

headlights, parking lights, automatic headlights (if

equipped), instrument panel lights, interior lights, and fog

lights (if equipped).

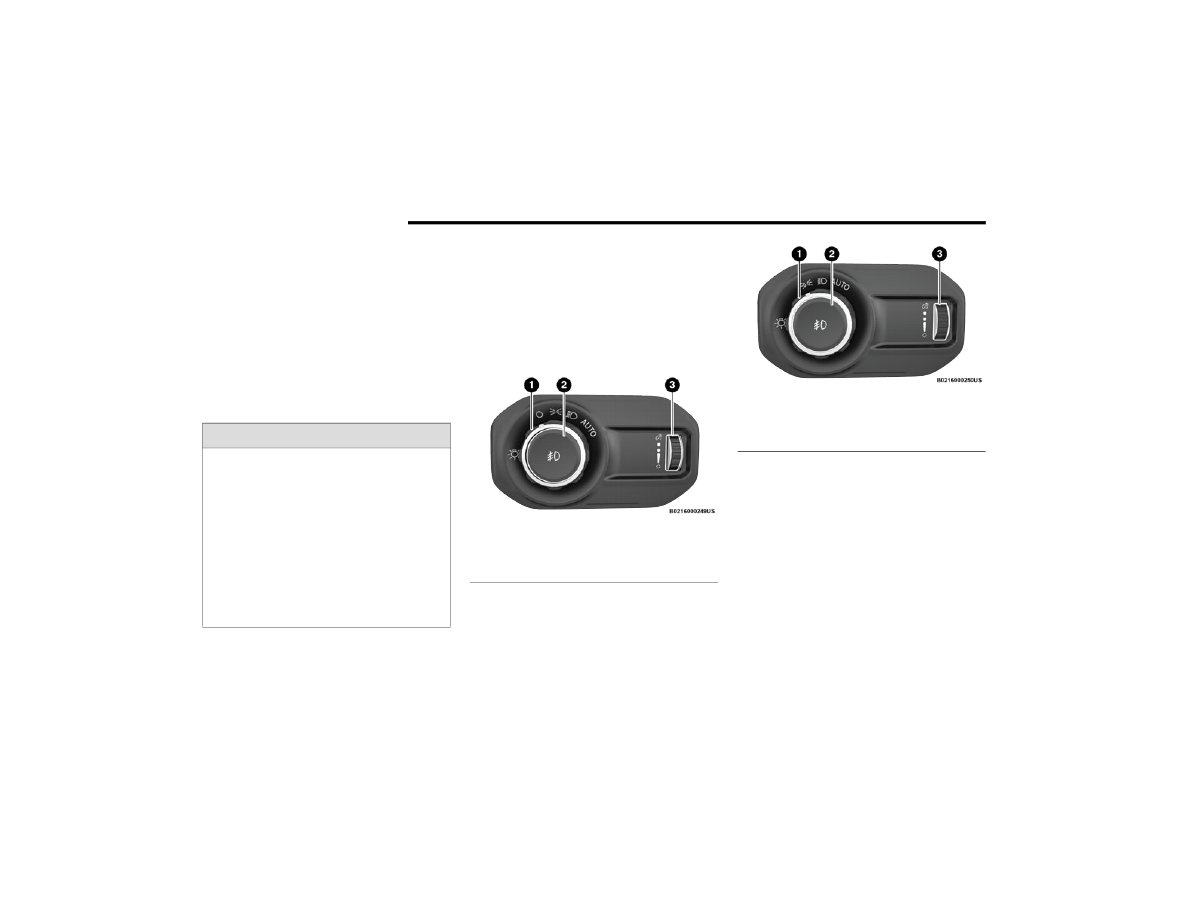

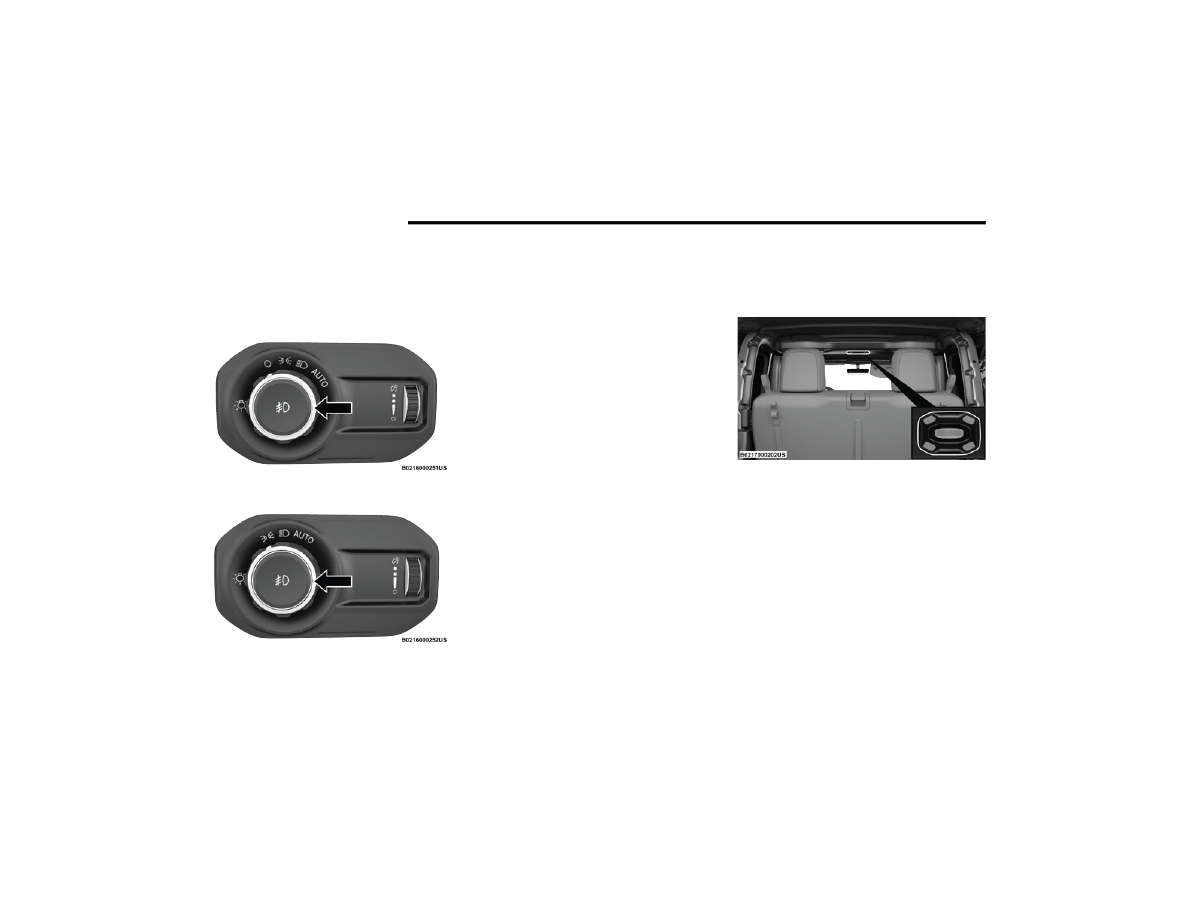

Headlight Switch

Headlight Switch (Vehicles Sold In Canada)

NOTE:

Vehicles sold in Canada are equipped with a headlight

switch with an AUTO and ON detent but without an OFF

detent. Headlights will be deactivated when the headlight

switch is placed in the parking lights position. However,

the Daytime Running Lights (DRLs) will be activated along

with the front and rear marker lights. The DRLs may be

deactivated when the parking brake is engaged.
Rotate the headlight switch clockwise to the first detent

for parking light and instrument panel light operation.

Rotate the headlight switch to the second detent for

headlight, parking light, and instrument panel light

operation.

WARNING!

Vehicle exhaust contains carbon monoxide, a

dangerous gas. Do not run your vehicle in the garage

while programming the transceiver. Exhaust gas can

cause serious injury or death.

Your motorized door or gate will open and close while

you are programming the universal transceiver. Do

not program the transceiver if people, pets or other

objects are in the path of the door or gate. Only use

this transceiver with a garage door opener that has a

“stop and reverse” feature as required by Federal

safety standards. This includes most garage door

opener models manufactured after 1982. Do not use

a garage door opener without these safety features.

1 — Headlight Control
2 — Fog Light Switch
3 — Dimmer Control

1 — Headlight Control
2 — Fog Light Switch
3 — Dimmer Control

GETTING TO KNOW YOUR VEHICLE

51

NOTE:

For vehicles sold in Canada, rotate the headlight switch

clockwise from the parking lights and instrument panel

lights position to the first detent to turn on headlights,

parking lights, and instrument panel lights. Rotate the

headlight switch to the second detent for the AUTO

position.

D

AYTIME

 R

UNNING

 L

IGHTS

 (DRL

S

) —

I

F

 E

QUIPPED



The Daytime Running Lights are active when the low

beams are not on, and the engine is running. DRLs may be

deactivated by applying the parking brake.

NOTE:

For vehicles sold in Canada, the Daytime Running

Lights will automatically deactivate when the front fog

lights are turned on.

On some vehicles, the Daytime Running Lights may

deactivate, or reduce intensity, on one side of the

vehicle (when a turn signal is activated on that side), or

on both sides of the vehicle (when the hazard warning

lights are activated).

H

IGH

/L

OW

 B

EAM

 S

WITCH



Push the multifunction lever toward the instrument panel

to switch the headlights to high beams. The lever will

return to the centered position. To return the headlights to

low beam, pull the lever toward the steering wheel, or

push the lever toward the instrument panel.

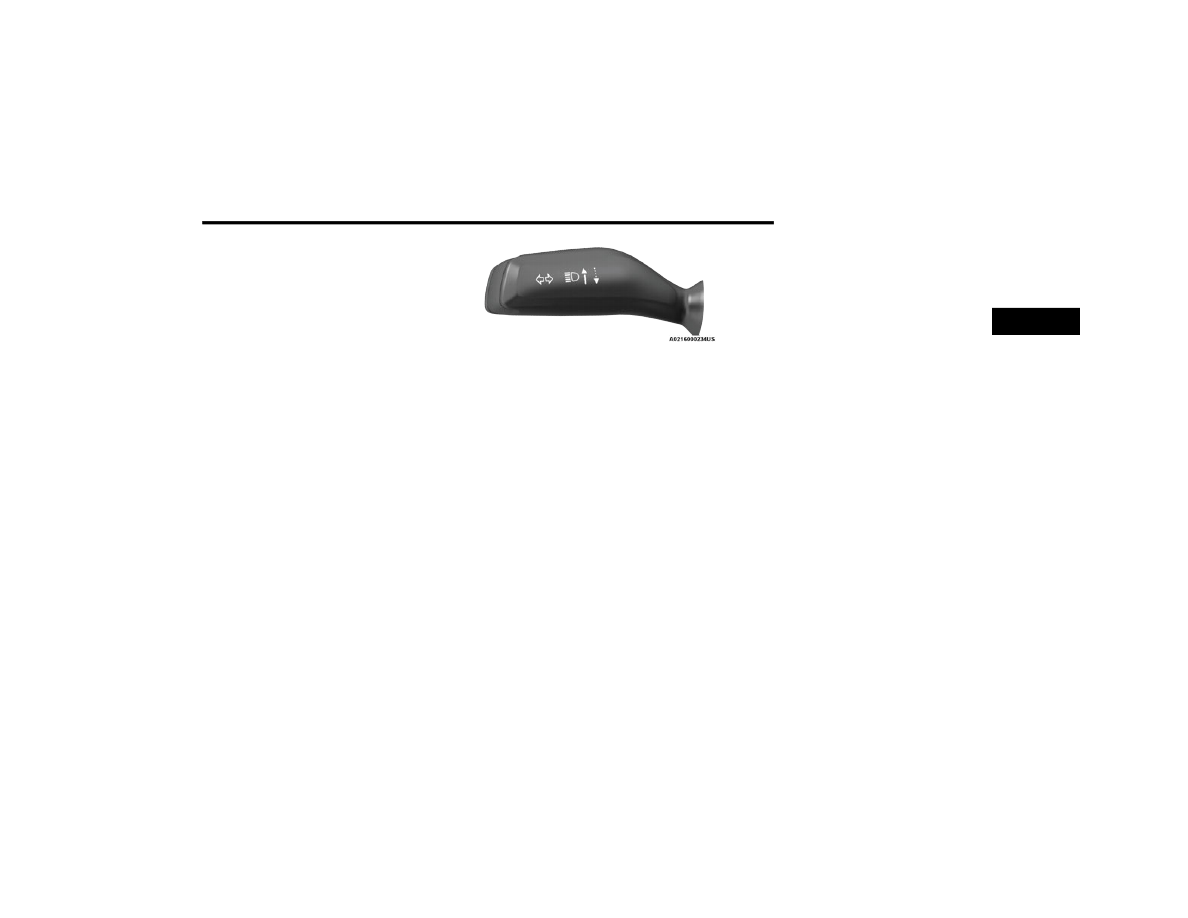

Multifunction Lever

A

UTOMATIC

 H

IGH

 B

EAM

 H

EADLAMP



C

ONTROL

 — I

F

 E

QUIPPED



The Automatic High Beam Headlamp Control system

provides increased forward lighting at night by

automatically controlling the high beams through the use

of a camera mounted on the vehicle’s header. This

camera detects vehicle specific light and automatically

switches from high beams to low beams until the

approaching vehicle is out of view.

NOTE:

The Automatic High Beam Headlamp Control can be

turned on or off by selecting “ON” under “Auto High

Beam” within your Uconnect Settings

Ú

page 184, as

well as turning the headlight switch to the AUTO posi

-

tion and placing the multifunction lever in the high

beam position.

Broken, muddy, or obstructed headlights and taillights

of vehicles in the field of view will cause headlights to

remain on longer (closer to the vehicle). Also, dirt, film,

and other obstructions on the windshield or camera

lens will cause the system to function improperly.

F

LASH

-T

O

-P

ASS



You can signal another vehicle with your headlights by

lightly pulling the multifunction lever toward you. This will

cause the high beam headlights to turn on, and remain on,

until the lever is released.

A

UTOMATIC

 H

EADLIGHTS

 — I

F

 E

QUIPPED



This system automatically turns the headlights on or off

according to ambient light levels. To turn the system on,

rotate the headlight switch clockwise to the last detent for

automatic headlight operation. When the system is on, the

headlight time delay feature is also on. This means the

headlights will stay on for up to 90 seconds after you place

the ignition into the OFF position. To turn the automatic

system off, move the headlight switch out of the AUTO

position.

NOTE:

The engine must be running before the headlights will

come on in the automatic mode.

L

IGHTS

-O

N

 R

EMINDER

If the headlights, parking lights, or cargo lights are left on

after the ignition is placed in the OFF position, a chime will

sound when the driver’s door is opened.

2

52

GETTING TO KNOW YOUR VEHICLE



F

RONT

 F

OG

 L

IGHTS

 — I

F

 E

QUIPPED

To activate the Front Fog Lights, turn on the parking lights

or low beam headlights and push the fog light switch.

Pushing the fog light switch a second time will turn the

front fog lights off.

Front Fog Light Switch

Front Fog Light Switch (Vehicles Sold In Canada)

T

URN

 S

IGNALS

Move the multifunction lever up or down to activate the

turn signals. The arrows on each side of the instrument

cluster flash to show proper operation.

NOTE:

If either light remains on and does not flash, or there is a

very fast flash rate, check for a defective outside light

bulb.

L

ANE

 C

HANGE

 A

SSIST

 — I

F

 E

QUIPPED

Lightly push the multifunction lever up or down, without

moving beyond the detent, and the turn signal will flash

three times then automatically turn off.

INTERIOR LIGHTS

I

NTERIOR

 C

OURTESY

 L

IGHTS

The courtesy lights will turn on when the front doors are

opened, by rotating the dimmer controls on the headlight

switch fully upward, or, if equipped, when the unlock

button is pushed on the key fob.

The interior courtesy lights are located in the center of the

vehicle’s sport bar, and consist of one large center light

and four smaller reading lights. Each reading light can be

turned on by pushing the lens. Pushing the lens a second

time will turn the light off.

Dome Lights

When a door is open and the interior lights are on, rotating

the dimmer control to the extreme bottom position will

cause all the interior lights to turn off. This allows the

doors to stay open for extended periods of time without

discharging the vehicle’s battery.

GETTING TO KNOW YOUR VEHICLE

53

D

IMMER

 C

ONTROL

The dimmer control is part of the headlight switch and is

located on the left side of the instrument panel.

Dimmer Control

Dimmer Control (Vehicles Sold In Canada)

With the parking lights or headlights on, rotating the

dimmer control upward will increase the brightness of the

instrument panel lights. Rotating the dimmer control will

also adjust the interior and ambient light levels (e.g.

courtesy lights in the footwell, illuminated cupholders, and

front door handles).

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer control lever is located on

the right side of the steering column. The front wipers are

operated by rotating a switch, located at the end of the

lever.

W

INDSHIELD

 W

IPER

 O

PERATION



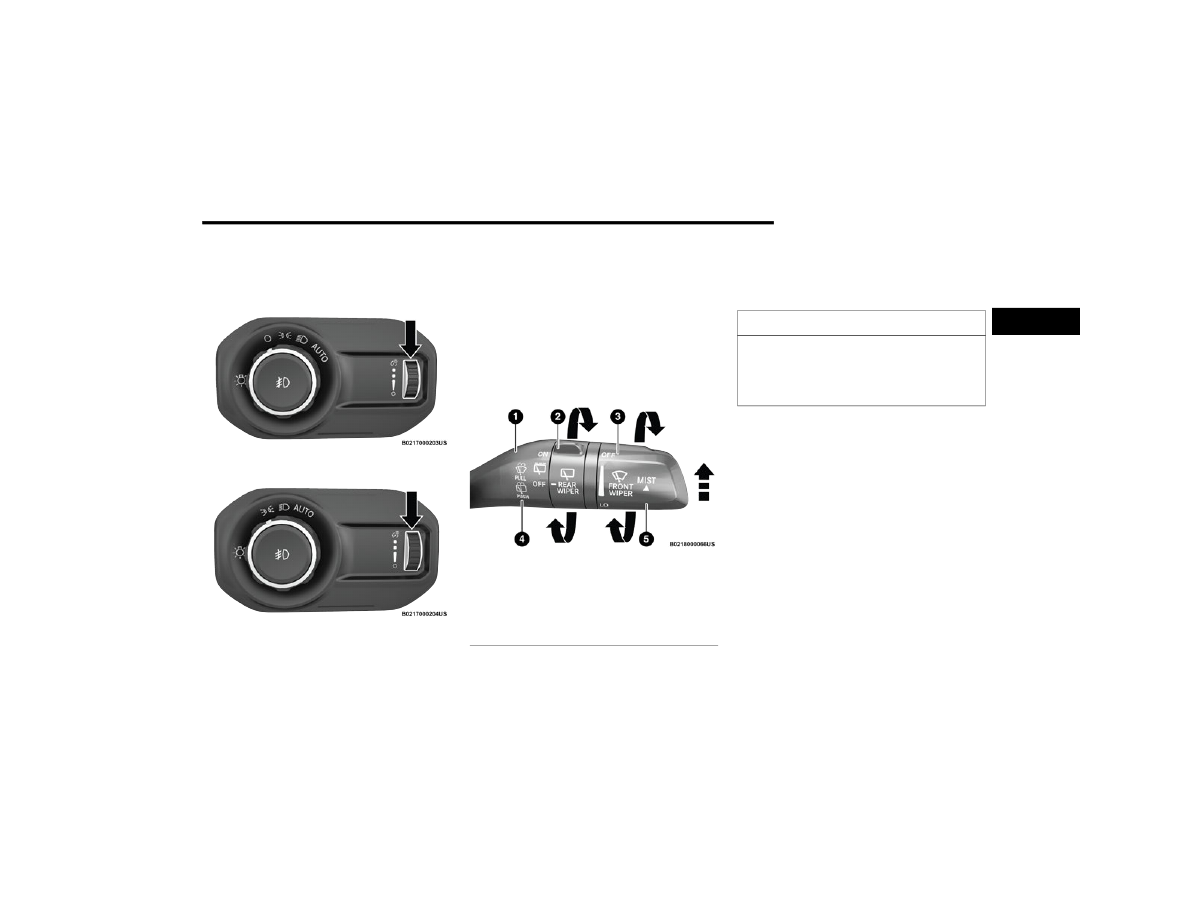

Windshield Wiper/Washer Operation

Rotate the end of the lever upward to the first detent past

the intermittent settings for low-speed wiper operation.

Rotate the end of the lever upward to the second detent

past the intermittent settings for high-speed wiper

operation.

Intermittent Wipers
Use the intermittent wiper when weather conditions make

a single wiping cycle, with a variable pause between

cycles, desirable. Rotate the end of the lever to the first

detent position for one of four intermittent settings. The

delay cycle can be set anywhere between 1 to 18 seconds.

NOTE:

The wiper delay times depend on vehicle speed. If the

vehicle is moving less than 10 mph (16 km/h), delay

times will be doubled.
Windshield Washers
To use the washer, pull the lever toward you and hold

while spray is desired. If the lever is pulled while in the

delay range, the wiper will start and continue to operate

for two or three wipe cycles after the lever is released.

Then, the intermittent interval previously selected will

resume.

1 — Pull For Front Washer
2 — Rotate For Rear Wiper Operation
3 — Rotate For Front Wiper Operation
4 — Push Forward For Rear Washer
5 — Push Up For Mist

CAUTION!

In cold weather, always turn off the wiper switch and

allow the wipers to return to the park position before

turning off the engine. If the wiper switch is left on and

the wipers freeze to the windshield, damage to the

wiper motor may occur when the vehicle is restarted.

2

54

GETTING TO KNOW YOUR VEHICLE



If the lever is pulled while in the off position, the wipers will

operate for two or three wipe cycles. Then, the wipers will

turn off.

NOTE:

As a protective measure, the washer will stop if the switch

is held for more than 20 seconds. Once the switch is

released the washer will resume normal operation.

Mist
Push upward on the wiper lever to activate a single wipe to

clear off-road mist or spray from a passing vehicle. As long

as the lever is held up, the wipers will continue to operate.

NOTE:

The mist feature does not activate the washer pump;

therefore, no washer fluid will be sprayed on the wind

-

shield. The washer function must be used in order to spray

the windshield with washer fluid.
For information on wiper care and replacement, see

Ú

page 326.

R

EAR

 W

INDOW

 W

IPER

/W

ASHER

 —

I

F

 E

QUIPPED



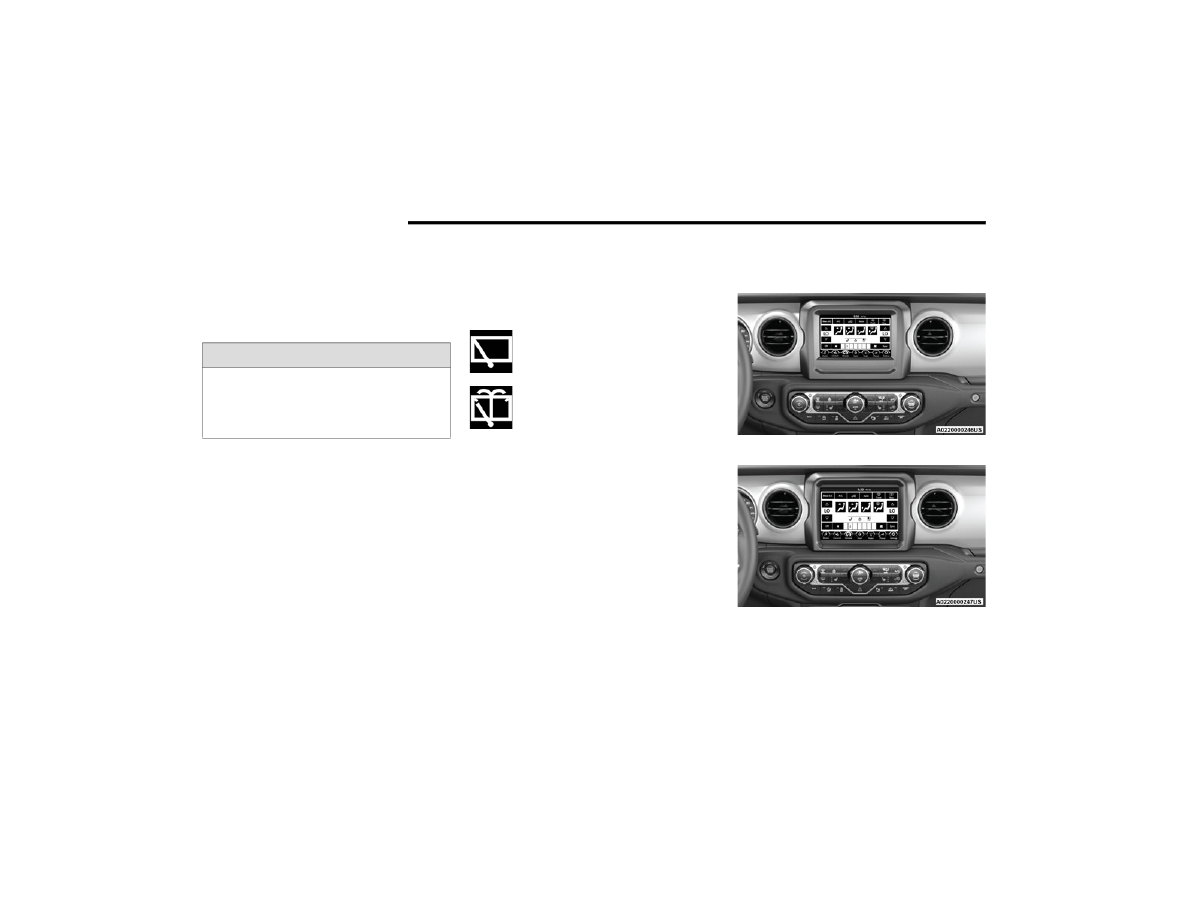

A rotary switch on the center portion of the windshield

wiper/washer lever controls the operation of the rear

wiper/washer function.

Rotate the switch upward to the first detent

position for intermittent operation and to the

second detent for continuous rear wiper

operation.
Push the wiper lever toward the instrument

panel to activate the rear washer. The washer

pump and wiper will continue to operate as

long as the lever is held.

NOTE:

As a protective measure, the washer will stop if the switch

is held for more than 20 seconds. Once the switch is

released the washer will resume normal operation.
If the rear wiper is operating when the ignition is placed in

the OFF position, the wiper will automatically return to the

parked position. When the vehicle is restarted, the wiper

will resume function at whichever position the switch is set

at.

CLIMATE CONTROLS

The Climate Control system allows you to regulate the

temperature, air flow, and direction of air circulating

throughout the vehicle. The controls are located on the

touchscreen and on the instrument panel below the radio.

A

UTOMATIC

 C

LIMATE

 C

ONTROL



D

ESCRIPTIONS

 A

ND

 F

UNCTIONS

Uconnect 4 With 7-inch Display Automatic Climate Controls

Uconnect 4C/4C NAV With 8.4-inch Display Automatic

Climate Controls

WARNING!

Sudden loss of visibility through the windshield could

lead to a collision. You might not see other vehicles or

other obstacles. To avoid sudden icing of the windshield

during freezing weather, warm the windshield with the

defroster before and during windshield washer use.

GETTING TO KNOW YOUR VEHICLE

55

MAX A/C Button

Press and release the MAX A/C button on the

touchscreen to change the current setting to

the coldest output of air. The MAX A/C indicator

illuminates when MAX A/C is on. Pressing the

button again will cause the MAX A/C operation to exit.

NOTE:

The MAX A/C button is only available on the touchscreen.
MAX A/C sets the control for maximum cooling

performance. The button illuminates when MAX A/C is on.

In MAX A/C, the blower level and mode position can be

adjusted to desired user settings. Pressing other settings

will cause the MAX A/C to turn off.

A/C Button

Press and release this button on the

touchscreen, or push the button on the

faceplate to change the current setting. The

A/C indicator illuminates when A/C is on.

The A/C button allows the operator to manually activate or

deactivate the A/C system. When the A/C system is turned

on, cool dehumidified air will flow through the outlets into

the cabin.

Recirculation Button

Press and release this button on the

touchscreen, or push the button on the

faceplate, to change the system between

recirculation mode and outside air mode. The

Recirculation indicator and the A/C indicator illuminate

when the Recirculation button is pressed. Recirculation

can be used when outside conditions, such as smoke,

odors, dust, or high humidity are present. Recirculation

can be used in all modes. Recirculation may be

unavailable (button on the touchscreen greyed out) if

conditions exist that could create fogging on the inside of

the windshield. The A/C can be deselected manually

without disturbing the mode control selection. Continuous

use of the Recirculation mode may make the inside air

stuffy and window fogging may occur. Extended use of this

mode is not recommended. Recirculation mode may

automatically adjust to optimize customer experience for

warming, cooling, dehumidification, etc.
In cold weather, use of Recirculation mode may lead to

excessive window fogging.

AUTO Button

Set your desired temperature and press and

release the AUTO button on the touchscreen, or

push the button on the faceplate. AUTO will

achieve and maintain your desired

temperature by automatically adjusting the blower speed

and air distribution. Air Conditioning (A/C) may be active

during AUTO operation to improve performance. AUTO

mode is highly recommended for efficiency. You can press

and release this button on the touchscreen, or push the

button on the faceplate, to turn AUTO on. The AUTO

indicator illuminates when AUTO is on. Toggling this

function will cause the system to switch between manual

mode and automatic mode

Ú

page 59.

Front Defrost Button

Press and release this button on the

touchscreen, or push and release the button on

the faceplate, to change the current airflow

setting to Defrost mode. The Front Defrost

indicator illuminates when Front Defrost is on. Air comes

from the windshield and side window demist outlets.

When the defrost button is selected, the blower level may

increase. Use Defrost mode with maximum temperature

settings for best windshield and side window defrosting

and defogging. When toggling the front defrost mode

button, the climate system returns to the previous setting.

Rear Defrost Button

Press and release the Rear Defrost button on

the touchscreen, or push and release the

button on the faceplate, to turn on the rear

window defroster and the heated outside

mirrors (if equipped). The Rear Defrost indicator

illuminates when the rear window defroster is on. The rear

window defroster automatically turns off after 10 minutes.

CAUTION!

Failure to follow these cautions can cause damage to

the heating elements:

Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on the

interior surface of the window. Use a soft cloth and a

mild washing solution, wiping parallel to the heating

elements. Labels can be peeled off after soaking

with warm water.

Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the

window.

Keep all objects a safe distance from the window.

2

56

GETTING TO KNOW YOUR VEHICLE



Driver And Passenger Temperature Up And

Down Buttons

Provides the driver and passenger with independent

temperature control.

Push the red button on the faceplate or

touchscreen or press and slide the

temperature bar towards the red arrow button

on the touchscreen for warmer temperature

settings.
Push the blue button on the faceplate or

touchscreen or press and slide the

temperature bar towards the blue arrow button

on the touchscreen for cooler temperature

settings.

NOTE:

The numbers within the temperature display will only

appear if your vehicle is equipped with an Automatic

Climate Control system.

SYNC Button

Press the SYNC button on the touchscreen to

toggle the SYNC feature on/off. The SYNC

indicator illuminates when SYNC is on. SYNC

synchronizes the passenger temperature

setting with the driver temperature setting. Changing the

passenger’s temperature setting while in SYNC will

automatically exit this feature.

NOTE:

The SYNC button is only available on the touchscreen.

Blower Control

Blower Control regulates the amount of air

forced through the Climate Control system.

Adjusting the blower will cause automatic

mode to switch to manual operation. There are

seven blower speeds available. The speeds can be

selected using either the blower control knob on the

faceplate or the buttons on the touchscreen.

Faceplate: The blower speed increases as you turn the

blower control knob clockwise from the lowest blower

setting. The blower speed decreases as you turn the

blower control knob counterclockwise.

Touchscreen: Use the small blower icon to reduce the

blower setting and the large blower icon to increase the

blower setting. The blower can also be selected by

pressing the blower bar area between the icons.

Mode Control

Select one of the Mode buttons on the

touchscreen or press the Mode button on the

faceplate to adjust the airflow distribution. The

airflow distribution can be adjusted so air

comes from the instrument panel outlets, floor outlets,

defrost outlets, and demist outlets.

Panel Mode

Air comes from the outlets in the instrument

panel. Each of these outlets can be individually

adjusted to direct the flow of air. The air vanes

of the center outlets and outboard outlets can

be moved up and down or side to side to regulate airflow

direction. There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow from

these outlets.

Bi-Level Mode

Air comes from the instrument panel outlets

and floor outlets. A slight amount of air is

directed through the defrost and side window

demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to

provide cooler air out of the panel outlets and warmer air

from the floor outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the defrost

and side window demister outlets.

Mix Mode

Air is directed through the floor, defrost, and

side window demister outlets. This setting

works best in cold or snowy conditions that

require extra heat to the windshield. This

setting is good for maintaining comfort while reducing

moisture on the windshield.

Climate Control OFF Button

Press and release the OFF button on the

touchscreen, or push the OFF button on the

faceplate to turn the Climate Control ON/OFF.

















Content      ..     1      2      3      4      ..
