STARTING AND OPERATING

REFUELING THE VEHICLE

The Capless Fuel system uses a flapper placed at

the filler pipe of the fuel tank; it opens and closes

automatically upon insertion/extraction of the fuel

nozzle.
The Capless Fuel system is designed so that it

prevents the filling of an incorrect type of fuel.
Opening The Door
For filling, proceed as follows:

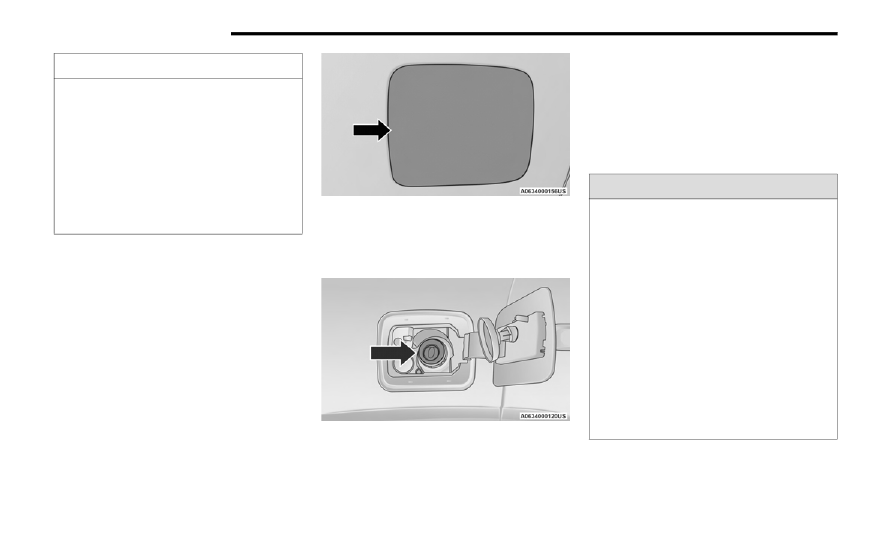

1. Open the door, by pushing and releasing on

the indentation point indicated by the arrow.

Fuel Filler Door

2. Insert the fuel nozzle fully into the filler pipe,

the nozzle opens and holds both flapper doors

while refueling.

Filler Pipe

3. Fill the vehicle with fuel, and when the fuel

nozzle “clicks” or shuts off, the fuel tank is full.

4. Before removing the nozzle, wait at least 10

seconds to allow the fuel to flow inside of the

tank.

5. Pull the nozzle from the filler pipe and then

close the door.

CAUTION!



To avoid vehicle damage, Rear Back Up

Camera should only be used as a parking aid.

The Rear Back Up Camera is unable to view

every obstacle or object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using the Rear Back Up

Camera to be able to stop in time when an

obstacle is seen. It is recommended that the

driver look frequently over his/her shoulder

when using the Rear Back Up Camera.

WARNING!



Do not to affix objects/plugs to the end of the

filler neck other than what is provided on the

car.



The use of objects/plugs that are not compat

ible with the vehicle may cause pressure

increases inside the tank, creating dangerous

conditions.



Do not approach the neck of the tank with

open flames or lit cigarettes; it is an extreme

fire hazard. Also, avoid close contact with the

filler pipe with your face; do not inhale harmful

vapors.



Do not use your mobile phone in the vicinity of

the pump fuel nozzle; it can be a possible risk

of fire.

STARTING AND OPERATING

123

VEHICLE LOADING

ERTIFICATION

ABEL

As required by National Highway Traffic Safety

Administration regulations, your vehicle has a

certification label affixed to the driver's side door or

pillar

page

322.

This label contains the month and year of

manufacture, Gross Vehicle Weight Rating

(GVWR), Gross Axle Weight Rating (GAWR) front

and rear, and Vehicle Identification Number (VIN).

A Month-Day-Hour (MDH) number is included on

this label and indicates the Month, Day and Hour of

manufacture. The bar code that appears on the

bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total permissible weight of your

vehicle including driver, passengers, vehicle,

options and cargo. The label also specifies

maximum capacities of front and rear axle systems

(GAWR). Total load must be limited so GVWR and

front and rear GAWR are not exceeded.

Payload

The payload of a vehicle is defined as the allowable

load weight a truck can carry, including the weight

of the driver, all passengers, options and cargo.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum permissible load on the

front and rear axles. The load must be distributed

in the cargo area so that the GAWR of each axle is

not exceeded.
Each axle GAWR is determined by the components

in the system with the lowest load carrying capacity

(axle, springs, tires or wheels). Heavier axles or

suspension components sometimes specified by

purchasers for increased durability does not

necessarily increase the vehicle's GVWR.

Tire Size

The tire size on the Vehicle Certification Label

represents the actual tire size on your vehicle.

Replacement tires must be equal to the load

capacity of this tire size.

Rim Size

This is the rim size that is appropriate for the tire

size listed.

Inflation Pressure

This is the cold tire inflation pressure for your

vehicle for all loading conditions up to full GAWR.

Curb Weight

The curb weight of a vehicle is defined as the total

weight of the vehicle with all fluids, including

vehicle fuel, at full capacity conditions, and with no

occupants or cargo loaded into the vehicle. The

front and rear curb weight values are determined

by weighing your vehicle on a commercial scale

before any occupants or cargo are added.

The actual total weight and the weight of the front

and rear of your vehicle at the ground can best be

determined by weighing it when it is loaded and

ready for operation.
The entire vehicle should first be weighed on a

commercial scale to ensure that the GVWR has not

been exceeded. The weight on the front and rear of

the vehicle should then be determined separately

to be sure that the load is properly distributed over

the front and rear axle. Weighing the vehicle may

show that the GAWR of either the front or rear axles

has been exceeded but the total load is within the

specified GVWR. If so, weight must be shifted from

front to rear or rear to front as appropriate until the

specified weight limitations are met. Store the

heavier items down low and be sure that the

weight is distributed equally. Stow all loose items

securely before driving.

124

STARTING AND OPERATING

Improper weight distributions can have an adverse

effect on the way your vehicle steers and handles

and the way the brakes operate.

TRAILER TOWING

In this section you will find safety tips and

information on limits to the type of towing you can

reasonably do with your vehicle. Before towing a

trailer, carefully review this information to tow your

load as efficiently and safely as possible.
To maintain the New Vehicle Limited Warranty

coverage, follow the requirements and

recommendations in this manual concerning

vehicles used for trailer towing.

OMMON

OWING

EFINITIONS

The following trailer towing related definitions will

assist you in understanding the following

information:

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total allowable weight of your

vehicle. This includes driver, passengers, cargo

and tongue weight. The total load must be limited

so that you do not exceed the GVWR

page

123.

Gross Trailer Weight (GTW)

The GTW is the weight of the trailer plus the weight

of all cargo, consumables and equipment

(permanent or temporary) loaded in or on the

trailer in its "loaded and ready for operation"

condition.
The recommended way to measure GTW is to put

your fully loaded trailer on a vehicle scale. The

entire weight of the trailer must be supported by

the scale.

Gross Combination Weight Rating (GCWR)

The GCWR is the total allowable weight of your

vehicle and trailer when weighed in combination.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum capacity of the front

and rear axles. Distribute the load over the front

and rear axles evenly. Make sure that you do not

exceed either front or rear GAWR

page

123.

Tongue Weight (TW)

The TW is the downward force exerted on the hitch

ball by the trailer. You must consider this as part of

the load on your vehicle.

Frontal Area

The frontal area is the maximum height multiplied

by the maximum width of the front of a trailer.

Trailer Sway Control (TSC)

The TSC is a telescoping link that can be installed

between the hitch receiver and the trailer tongue

that typically provides adjustable friction

associated with the telescoping motion to dampen

any unwanted trailer swaying motions while

traveling.

CAUTION!

Do not load your vehicle any heavier than the

GVWR or the maximum front and rear GAWR. If

you do, parts on your vehicle can break, or it can

change the way your vehicle handles. This could

cause you to lose control. Also overloading can

shorten the life of your vehicle.

WARNING!

It is important that you do not exceed the

maximum front or rear GAWR. A dangerous

driving condition can result if either rating is

exceeded.

STARTING AND OPERATING

125

Weight-Carrying Hitch

A weight-carrying hitch supports the trailer tongue

weight, just as if it were luggage located at a hitch

ball or some other connecting point of the vehicle.

These kinds of hitches are commonly used to tow

small and medium sized trailers.

Weight-Distributing Hitch

A weight-distributing system works by applying

leverage through spring (load) bars. They are

typically used for heavier loads to distribute trailer

tongue weight to the tow vehicle's front axle and

the trailer axle(s). When used in accordance with

vehicle manufacturer’s directions, it provides for a

more level ride, offering more consistent steering

and brake control thereby enhancing towing

safety. The addition of a friction/hydraulic sway

control also dampens sway caused by traffic and

crosswinds and contributes positively to tow

vehicle and trailer stability. Trailer sway control and

a weight-distributing (load equalizing) hitch are

recommended for heavier Tongue Weights (TW)

and may be required depending on vehicle and

trailer configuration/loading to comply with Gross

Axle Weight Rating (GAWR) requirements.

RAILER

ITCH

LASSIFICATION

The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow and should be used to assist you in selecting

the correct trailer hitch for your intended towing condition.

WARNING!



An improperly adjusted weight-distributing

hitch system may reduce handling, stability,

braking performance, and could result in a

collision.



Weight-distributing systems may not be

compatible with surge brake couplers. Consult

with your hitch and trailer manufacturer or a

reputable Recreational Vehicle dealer for

additional information.

Trailer Hitch Classification Definitions

Class

Max. Trailer Hitch Industry Standards

Class I - Light Duty

2,000 lb (907 kg)

Class II - Medium Duty

3,500 lb (1,587 kg)

Class III - Heavy Duty

6,000 lb (2,722 kg)

Class IV - Extra Heavy Duty

10,000 lb (4,535 kg)

Refer to the “Trailer Towing Weights (Maximum Trailer Weight Ratings)” chart for the Maximum Gross Trailer Weight (GTW) towable for your given drivetrain.
All trailer hitches should be professionally installed on your vehicle.

126

STARTING AND OPERATING

(Continued)

RAILER

OWING

EIGHTS

AXIMUM

RAILER

EIGHT

ATINGS

)

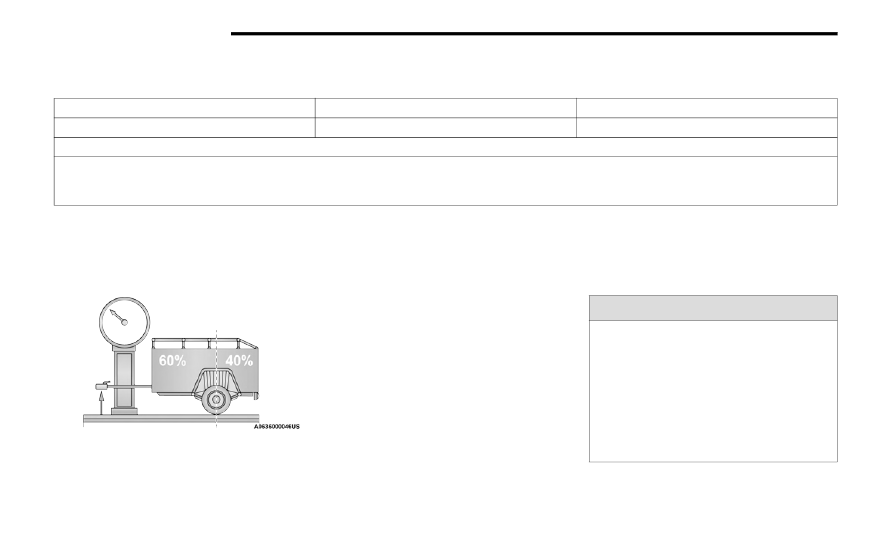

The following chart provides the maximum trailer weight ratings towable for your given drivetrain.

RAILER

ONGUE

EIGHT

Never exceed the maximum tongue weight

stamped on your bumper or trailer hitch.

Weight Distribution

Consider the following items when computing the

weight on the rear axle of the vehicle:



The tongue weight of the trailer.



The weight of any other type of cargo or equip

ment put in or on your vehicle.



The weight of the driver and all passengers.

NOTE:

Remember that everything put into or on the trailer

adds to the load on your vehicle. Also, additional

factory-installed options or dealer-installed options

must be considered as part of the total load on

your vehicle. Refer to the tire and loading infor

mation placard for the maximum combined weight

of occupants and cargo for your vehicle.

OWING

EQUIREMENTS

To promote proper break-in of your new vehicle

drivetrain components, the following guidelines

are recommended:

Engine

Maximum GTW

Maximum Trailer TW (See Note)

1.3L Turbo

2,000 lb (906 kg)

200 lb (90 kg)

Refer to local laws for maximum trailer towing speeds.
NOTE:

The trailer tongue weight must be considered as part of the combined weight of occupants and cargo and should never exceed the weight referenced on the

Tire and Loading Information placard

page

322.

WARNING!

Improper towing can lead to a collision. Follow

these guidelines to make your trailer towing as

safe as possible:



Make certain that the load is secured in the

trailer and that it will not shift during travel.

When trailering cargo that is not fully secured,

dynamic load shifts can occur that may be

difficult for the driver to control. You could lose

control of your vehicle and have a collision.

STARTING AND OPERATING

127

(Continued)

Towing Requirements — Tires



Do not attempt to tow a trailer while using a

compact spare tire.



Proper tire inflation pressures are essential to

the safe and satisfactory operation of your

vehicle

page

329.



Check the trailer tires for proper tire inflation

pressures before trailer usage.



Check for signs of tire wear or visible tire

damage before towing a trailer

page

329.



For the proper tire replacement procedures

page

329. Replacing tires with a higher load

carrying capacity will not increase the vehicle's

GVWR and GAWR limits.

Towing Requirements — Trailer Brakes



Do not interconnect the hydraulic brake system

or vacuum system of your vehicle with that of

the trailer. This could cause inadequate braking

and possible personal injury.



An electronically actuated trailer brake

controller is required when towing a trailer with

electronically actuated brakes. When towing a

trailer equipped with a hydraulic surge actuated

brake system, an electronic brake controller is

not required.



Trailer brakes are recommended for trailers

over 1,000 lb (453 kg) and required for trailers

in excess of 2,000 lb (907 kg).



When hauling cargo, or towing a trailer, do not

overload your vehicle or trailer. Overloading

can cause a loss of control, poor performance,

or damage to brakes, axle, engine, transmis

sion, steering, suspension, chassis structure,

or tires.



Safety chains must always be used between

your vehicle and trailer. Always connect the

chains to the frame or hook retainers of the

vehicle hitch. Cross the chains under the

trailer tongue and allow enough slack for

turning corners.



Vehicles with trailers should not be parked on

a grade. When parking, apply the parking

brake on the tow vehicle. Put the tow vehicle

transmission in PARK. Always block or "chock"

the trailer wheels.



GCWR must not be exceeded.



Total weight must be distributed between the

tow vehicle and the trailer such that the

following four ratings are not exceeded:



GVWR



GTW

WARNING!



GAWR



Tongue weight rating for the trailer hitch

utilized.

CAUTION!



Do not tow a trailer at all during the first

500

miles (805

km) the new vehicle is driven.

The engine, axle or other parts could be

damaged.



Then, during the first 500

miles (805

km) that

a trailer is towed, do not drive over 50

mph

(80

km/h) and do not make starts at full

throttle. This helps the engine and other parts

of the vehicle wear in at the heavier loads.

WARNING!



Do not connect trailer brakes to your vehicle's

hydraulic brake lines. It can overload your

brake system and cause it to fail. You might

not have brakes when you need them and

could have a collision.

128

STARTING AND OPERATING

Towing Requirements — Trailer Lights And

Wiring (If Equipped)

Whenever you pull a trailer, regardless of the trailer

size, stoplights and turn signals on the trailer are

required for motoring safety.
The Trailer Tow Package may include a four-pin

and seven-pin wiring harness. Use a factory

approved trailer harness and connector.
NOTE:

Do not cut or splice wiring into the vehicle’s wiring

harness.

The electrical connections are all complete to the

vehicle but you must mate the harness to a trailer

connector. Refer to the following illustrations:
NOTE:



Disconnect trailer wiring connector from the

vehicle before launching a boat (or any other

device plugged into vehicle’s electrical connect)

into water.



Be sure to reconnect after clear from water

area.

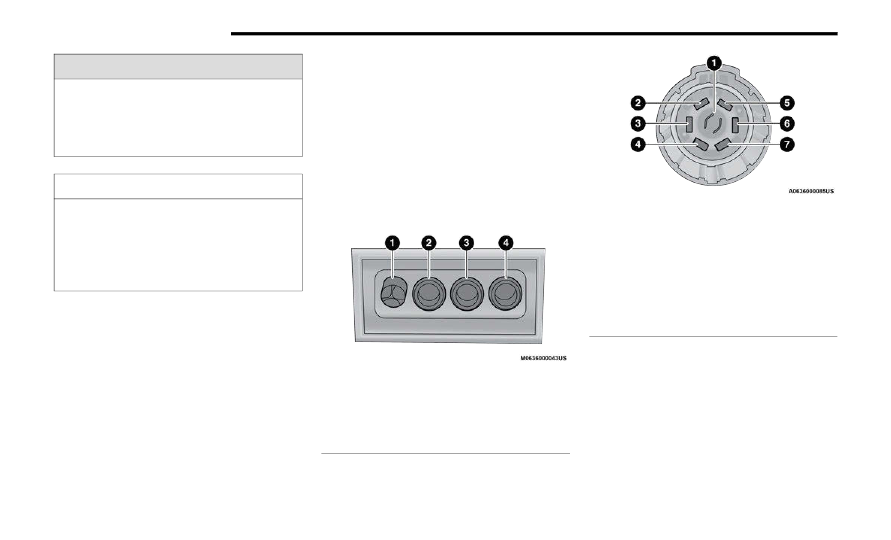

Four-Pin Connector

Seven-Pin Connector

OWING

IPS

Before towing, practice turning, stopping, and

backing the trailer in an area located away from

heavy traffic.



Towing any trailer will increase your stopping

distance. When towing you should allow for

additional space between your vehicle and the

vehicle in front of you. Failure to do so could

result in a collision.

CAUTION!

If the trailer weighs more than 1,000 lb (453 kg)

loaded, it should have its own brakes and they

should be of adequate capacity. Failure to do

this could lead to accelerated brake lining wear,

higher brake pedal effort, and longer stopping

distances.

WARNING!

1 — Ground
2 — Park
3 — Left Stop/Turn
4 — Right Stop/Turn

1 — Backup Lamps
2 — Running Lamps
3 — Left Stop/Turn
4 — Ground
5 — Battery
6 — Right Stop/Turn
7 — Electric Brakes

STARTING AND OPERATING

129

Automatic Transmission

Select the DRIVE range when towing. The

transmission controls include a drive strategy to

avoid frequent shifting when towing. However, if

frequent shifting does occur while in DRIVE, you

can use the AutoStick shift control to manually

select a lower gear.
NOTE:

Using a lower gear while operating the vehicle

under heavy loading conditions will improve perfor

mance and extend transmission life by reducing

excessive shifting and heat build up. This action

will also provide better engine braking.

AutoStick



When using the AutoStick shift control, select

the highest gear that allows for adequate perfor

mance and avoids frequent downshifts. For

example, choose “5” if the desired speed can be

maintained. Choose “4” or “3” if needed to

maintain the desired speed.



To prevent excess heat generation, avoid

continuous driving at high RPM. Reduce vehicle

speed as necessary to avoid extended driving at

high RPM. Return to a higher gear or vehicle

speed when grade and road conditions allow.

Cruise Control — If Equipped



Do not use in hilly terrain or with heavy loads.



When using the Cruise Control, if you experience

speed drops greater than 10

mph (16

km/h),

disengage until you can get back to cruising

speed.



Use Cruise Control in flat terrain and with light

loads to maximize fuel efficiency.

RECREATIONAL TOWING

OWING

HIS

EHICLE

EHIND

NOTHER

EHICLE

NOTE:



When towing your vehicle, always follow appli

cable state and provincial laws. Contact state

and provincial Highway Safety offices for addi

tional details.



You must ensure that the Auto Park Brake

feature is disabled before towing this vehicle, to

avoid inadvertent Electric Park Brake engage

ment. The Auto Park Brake feature is enabled or

disabled via the customer programmable

features in the Uconnect Settings.

ECREATIONAL

OWING

Models With Front-Wheel Drive (FWD)
Recreational towing is allowed ONLY if the front

wheels are OFF the ground. This may be

accomplished using a tow dolly (front wheels off

the ground) or vehicle trailer (all four wheels off the

ground). If using a tow dolly, follow this procedure:



Properly secure the dolly to the tow vehicle,

following the dolly manufacturer's instructions.



Drive the front wheels onto the tow dolly.



Apply the Electric Park Brake (EPB). Place the

transmission in PARK. Turn the engine off.



Properly secure the front wheels to the dolly,

following the dolly manufacturer's instructions.



Turn the ignition to the RUN position, but do not

start the engine.

Towing

Condition

Wheels

Off The

Ground

Front-

Wheel

Drive

(FWD)

Four-

Wheel

Drive

(4WD)

Flat Tow

NONE

NOT

ALLOWED

NOT

ALLOWED

Dolly Tow

REAR

NOT

ALLOWED

NOT

ALLOWED

FRONT

NOT

ALLOWED

On Trailer

ALL

BEST

METHOD

130

STARTING AND OPERATING



Press and hold the brake pedal.



Release the EPB.



Turn the ignition OFF, and release the brake

pedal.

Models With Four-Wheel Drive (4WD)
Recreational towing (with all four wheels on the

ground, or using a towing dolly) is NOT ALLOWED.

This vehicle may be towed on a flatbed or vehicle

trailer provided all four wheels are OFF the ground.

DRIVING TIPS

-R

OAD

RIVING

IPS

Utility vehicles have higher ground clearance and a

narrower track to make them capable of

performing in a wide variety of off-road

applications. Specific design characteristics give

them a higher center of gravity than conventional

passenger cars.
An advantage of the higher ground clearance is a

better view of the road, allowing you to anticipate

problems. They are not designed for cornering at

the same speeds as conventional passenger cars

any more than low-slung sports cars are designed

to perform satisfactorily in off-road conditions.

Avoid sharp turns or abrupt maneuvers. As with

other vehicles of this type, failure to operate this

vehicle correctly may result in loss of control or

vehicle rollover.

-R

OAD

RIVING

IPS

When To Use 4WD LOW

When off-road driving, shift to 4WD LOW for

additional traction and control on slippery or

difficult terrain, ascending or descending steep

hills, and to increase low-speed pulling power

page

91. This range should be limited to

extreme situations such as deep snow, mud, or

sand where additional low speed pulling power is

needed. Vehicle speeds in excess of 25

mph

(40

km/h) should be avoided when in 4WD LOW.

Driving Through Water

Although your vehicle is capable of driving through

water, there are a number of precautions that

must be considered before entering the water:

Driving through water more than a few inches/

centimeters deep will require extra caution to

ensure safety and prevent damage to your vehicle.

If you must drive through water, try to determine

CAUTION!



DO NOT flat tow this vehicle. Damage to the

drivetrain will result. If this vehicle requires

towing, make sure the drive wheels are OFF

the ground.



Ensure that the Electric Park Brake is

released, and remains released, while being

towed.



Towing this vehicle in violation of the above

requirements can cause severe transmission

damage. Damage from improper towing is not

covered under the New Vehicle Limited

Warranty.

CAUTION!

Towing this vehicle with ANY of its wheels on the

ground can cause severe transmission and/or

power transfer unit damage. Damage from

improper towing is not covered under the New

Vehicle Limited Warranty.

CAUTION!

When driving through water, do not exceed

mph (8

km/h). Always check water depth

before entering as a precaution, and check all

fluids afterward. Driving through water may

cause damage that may not be covered by the

New Vehicle Limited Warranty.

STARTING AND OPERATING

131

the depth and the bottom condition (and location

of any obstacles) prior to entering. Proceed with

caution and maintain a steady controlled speed

less than 5

mph (8

km/h) in deep water to

minimize wave effects.
Flowing Water
If the water is swift flowing and rising (as in storm

run-off) avoid crossing until the water level recedes

and/or the flow rate is reduced. If you must cross

flowing-water, avoid depths in excess of 9

inches

(22 cm). The flowing water can erode the

streambed causing your vehicle to sink into deeper

water. Determine exit point(s) that are downstream

of your entry point to allow for drifting.
Standing Water — Trailhawk Only
Avoid driving in standing water deeper than

inches (48 cm), and reduce speed

appropriately to minimize wave effects. Maximum

speed in 19

inches (48 cm) of water is less than

mph (8

km/h).

Maintenance
After driving through deep water, inspect your

vehicle fluids and lubricants (engine, transmission,

Power Transfer Unit and Rear Drive Module) to

ensure they have not been contaminated.

Contaminated fluids and lubricants (milky, foamy

in appearance) should be flushed/changed as

soon as possible to prevent component damage.

Driving In Snow, Mud And Sand

In heavy snow, when pulling a load, or for

additional control at slower speeds, shift the

transmission to a low gear and shift the 4WD

system to the appropriate terrain mode, using

4WD Low if necessary

page

91. Do not shift to a

lower gear than necessary to maintain headway.

Over-revving the engine can spin the wheels and

traction will be lost.
Avoid abrupt downshifts on icy or slippery roads

because engine braking may cause skidding and

loss of control.

Hill Climbing

NOTE:

Before attempting to climb a hill, determine the

conditions at the crest and/or on the other side.
Before climbing a steep hill, shift the transmission

to a lower gear and shift the 4WD System to 4WD

Low. Use first gear and 4WD Low for very steep

hills.
If you stall or begin to lose headway while climbing

a steep hill, allow your vehicle to come to a stop

and immediately apply the brakes. Restart the

engine and shift to REVERSE. Back slowly down the

hill allowing the compression braking of the engine

to help regulate your speed. If the brakes are

required to control vehicle speed, apply them

lightly and avoid locking or skidding the tires.

NOTE:

Remember, never drive diagonally across a hill -

drive straight up or down.
If the wheels start to slip as you approach the crest

of a hill, ease off the accelerator and maintain

headway by turning the front wheels slowly left and

right. This may provide a fresh “bite” into the

surface and will usually provide traction to

complete the climb.

Traction Downhill

Shift the transmission into a low gear and the 4WD

System to 4WD Low range or select Hill Descent

Control (if equipped)

page

222 . Let the vehicle

go slowly down the hill with all four wheels turning

against engine compression drag. This will permit

you to control the vehicle speed and direction.
When descending mountains or hills, repeated

braking can cause brake fade with loss of braking

control. Avoid repeated heavy braking by

downshifting the transmission whenever possible.

WARNING!

If the engine stalls or you lose headway or

cannot make it to the top of a steep hill or grade,

never attempt to turn around. To do so may

result in tipping and rolling the vehicle. Always

back straight down a hill in REVERSE gear

carefully. Never back down a hill in NEUTRAL

using only the brake.

132

STARTING AND OPERATING

After Driving Off-Road

Off-road operation puts more stress on your

vehicle than does most on-road driving. After going

off-road, it is always a good idea to check for

damage. That way you can get any problems taken

care of right away and have your vehicle ready

when you need it.



Completely inspect the underbody of your

vehicle. Check tires, body structure, steering,

suspension, and exhaust system for damage.



Inspect the radiator for mud and debris and

clean as required.



Check threaded fasteners for looseness, partic

ularly on the chassis, drivetrain components,

steering, and suspension. Retighten them, if

required, and torque to the values specified in

the Service Manual.



Check for accumulations of plants or brush.

These things could be a fire hazard. They might

hide damage to fuel lines, brake hoses, axle

pinion seals, and propeller shafts.



After extended operation in mud, sand, water, or

similar dirty conditions, have the radiator, fan,

brake rotors, wheels, brake linings, and axle

yokes inspected and cleaned as soon as

possible.



If you experience unusual vibration after driving

in mud, slush or similar conditions, check the

wheels for impacted material. Impacted mate

rial can cause a wheel imbalance and freeing

the wheels of it will correct the situation.

WARNING!

Abrasive material in any part of the brakes may

cause excessive wear or unpredictable braking.

You might not have full braking power when you

need it to prevent a collision. If you have been

operating your vehicle in dirty conditions, get

your brakes checked and cleaned as necessary.

133

MULTIMEDIA

UCONNECT SYSTEMS

Uconnect screen images are for illustration

purposes only and may not reflect exact software

for your vehicle.

CYBERSECURITY

Your vehicle may be a connected vehicle and may

be equipped with both wired and wireless

networks. These networks allow your vehicle to

send and receive information. This information

allows systems and features in your vehicle to

function properly.
Your vehicle may be equipped with certain security

features to reduce the risk of unauthorized and

unlawful access to vehicle systems and wireless

communications. Vehicle software technology

continues to evolve over time and FCA US LLC,

working with its suppliers, evaluates and takes

appropriate steps as needed. Similar to a

computer or other devices, your vehicle may

require software updates to improve the usability

and performance of your systems or to reduce the

potential risk of unauthorized and unlawful access

to your vehicle systems.
The risk of unauthorized and unlawful access to

your vehicle systems may still exist, even if the

most recent version of vehicle software (such as

Uconnect software) is installed.

NOTE:



FCA US LLC or your dealer may contact you

directly regarding software updates.



To help further improve vehicle security and

minimize the potential risk of a security breach,

vehicle owners should:



Routinely check www.driveuconnect.com

(US Residents) or www.driveuconnect.ca

(Canadian Residents) to learn about avail

able Uconnect software updates.



Only connect and use trusted media

devices (e.g. personal mobile phones,

USBs, CDs).

UCONNECT SETTINGS

The Uconnect system uses a combination of

buttons on the touchscreen and buttons on the

faceplate located on the center of the instrument

panel. These buttons allow you to access and

change the Customer Programmable Features.

Many features can vary by vehicle.

WARNING!



ONLY insert trusted devices/components into

your vehicle. Media of unknown origin could

possibly contain malicious software, and if

installed in your vehicle, it may increase the

possibility for vehicle systems to be breached.



As always, if you experience unusual vehicle

behavior, take your vehicle to your nearest

authorized dealer immediately.

134

MULTIMEDIA

Buttons on the faceplate are located below and/or

beside the Uconnect system in the center of the

instrument panel. In addition, there is a SCROLL/

ENTER control knob located on the right side. Turn

the control knob to scroll through menus and

change settings. Push the center of the control

knob one or more times to select or change a

setting.
Your Uconnect system may also have SCREEN OFF

and MUTE buttons on the faceplate.
Push the SCREEN OFF button on the faceplate to

turn off the Uconnect screen. Push the button

again or tap the screen to turn the screen on.
Press the Back Arrow button to exit out of a Menu

or certain option on the Uconnect system.

USTOMER

ROGRAMMABLE

EATURES

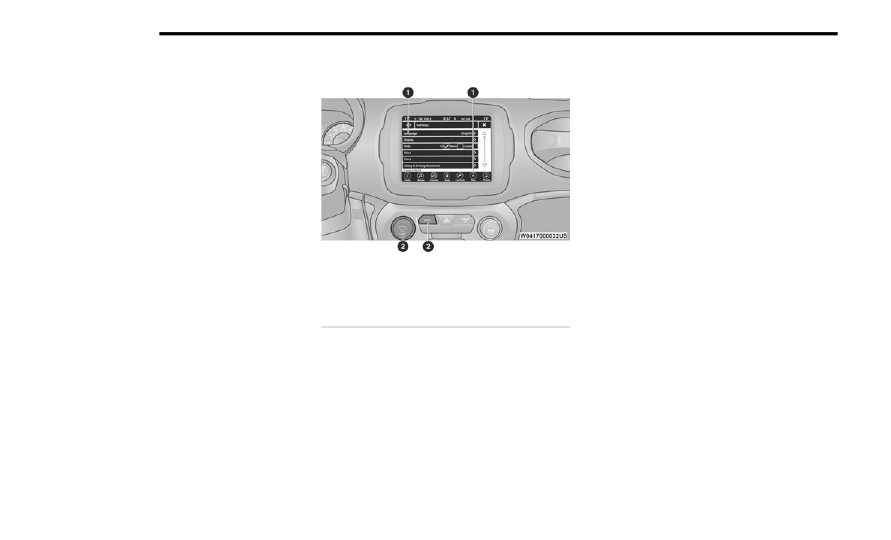

Uconnect 4/4C/4C NAV With 8.4-inch Display Buttons On

Faceplate And Buttons On Touchscreen

Press the Apps button, then press the Settings

button on the touchscreen to display the menu

setting screen. In this mode, the Uconnect system

allows you to access programmable features.
NOTE:



Depending on the vehicle’s options, feature

settings may vary.



All settings should be changed with the ignition

in the ON/RUN position.

When making a selection, only press one button at

a time to enter the desired menu. Once in the

desired menu, press and release the preferred

setting option until a check mark appears next to

the setting, showing that setting has been

selected. Once the setting is complete, press the X

button on the touchscreen to close out of the

settings screen. Pressing the Up or Down Arrow

button on the right side of the screen will allow you

to toggle up or down through the available settings.

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

MULTIMEDIA

135

Language

Display

When the Language button is pressed on the touchscreen, the system displays the different language options. Once an option is selected, the system will

display in the chosen language. The available setting is:
NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Language

This setting will change the language of the Uconnect system and the

Instrument Cluster Display. The available languages are English, Français, and

Español.

When the Display button is pressed on the touchscreen, the system will display the options related to the theme (if equipped), brightness, and color of the

touchscreen. The available settings are:
NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Display Mode

This setting will allow you to set the brightness manually or have the system

set it automatically. The “Auto” setting has the system automatically adjust

the display brightness. The “Manual” setting will allow the user to adjust the

brightness of the display.

Display Brightness With Headlights ON

This setting will allow you to set the brightness when the headlights are on. To

access this setting, Display Mode must be set to Manual. The “+” setting will

increase the brightness; the “-” will decrease the brightness.

136

MULTIMEDIA

Units

Display Brightness With Headlights OFF

This setting will allow you to set the brightness when the headlights are off. To

access this setting, Display Mode must be set to Manual. The “+” setting will

increase the brightness; the “-” will decrease the brightness.

Touchscreen Beep

This setting will allow you to turn the touchscreen beep on or off.

Control Screen Timeout

This setting will allow you to set the Control Screen to turn off automatically

after five seconds or stay open until manually closed.

Navigation Next Turn Pop-ups Displayed in Cluster

This setting will display navigation prompts in the Instrument Cluster Display.

Setting Name

Description

When the Units button is pressed on the touchscreen, the system displays the different measurement options. The selected unit of measurement will display in

the instrument cluster display and Navigation system (if equipped). The available settings are:
NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

This setting will change the unit of measurement on the display to US.

Metric

This setting will change the unit of measurement on the display to Metric.

Custom

This setting will change the “Speed” (MPH or km/h), “Distance” (mi or km),

“Fuel Consumption” (MPG [US], MPG [UK], L/100

km, or km/L), “Pressure”

(psi, kPa, or bar), and “Temperature” (°C or °F) units of measurement

independently.

MULTIMEDIA

137

Voice

Clock & Date

When the Voice button is pressed on the touchscreen, the system displays the options related to the vehicle’s Voice Recognition feature.
NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Voice Response Length

This setting will change the response length for the Voice Recognition system.

The “Brief” setting provides a shortened audio description from the system.

The “Detailed” setting provides the full audio description from the system.

Show Command List

This setting will allow you to turn the Command List on or off. The “Always”

setting will always show the Command List. The “With Help” setting will show

the Command List and provide a brief description of what the command does.

The “Never” setting will turn the Command List off.

When the Clock & Date button is pressed on the touchscreen, the system displays the different options related to the vehicle’s internal clock.
NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Sync Time With GPS

This setting will sync the time to the GPS receiver in the system. The system

will control the time via the GPS location.

Time Format

This setting will allow you to set the time format (AM/PM). Sync Time With GPS

must be off for this setting to be available. The “12 hrs” setting will set the

time to a 12-hour format. The “24 hrs” setting will set the time to a 24-hour

format.

Jeep Renegade (2022 year). Manual in english - page 8
