GETTING TO KNOW YOUR VEHICLE

EYLESS

NTER

‘

™ — P

ASSIVE

NTRY

QUIPPED

)

The Passive Entry system is a feature that allows

you to lock and unlock the vehicle’s door(s) and

tailgate without having to push the key fob lock or

unlock buttons.

NOTE:



Passive Entry may be programmed on/off

through Uconnect Settings

page 228.



The key fob may not be detected by the vehicle

Passive Entry system if it is located next to a

mobile phone, laptop, or other electronic device;

these devices may interfere with the key fob’s

wireless signal and prevent the Passive Entry

system from locking/unlocking the vehicle.



Passive Entry Unlock initiates Headlight Illumi

nation On Approach (low beams, license plate

lamp, parking lights) for whichever time dura

tion is set within the Uconnect Settings between

0, 30, 60 or 90 seconds. Passive Entry Unlock

also initiates two flashes of the turn signal

lamps.



If wearing gloves, or if it has been raining/

snowing on the Passive Entry door handle, the

unlock sensitivity can be affected, resulting in a

slower response time.



If the vehicle is unlocked by Passive Entry and

no door is opened within 60 seconds, the

vehicle will relock and, if equipped, will arm the

Vehicle Security system.

To Unlock From The Driver Or Passenger Side
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the door handle, grab the handle to

unlock the vehicle. Grabbing the driver’s door

handle will unlock the driver door automatically.

Grabbing the passenger door handle will unlock all

doors and the tailgate automatically.

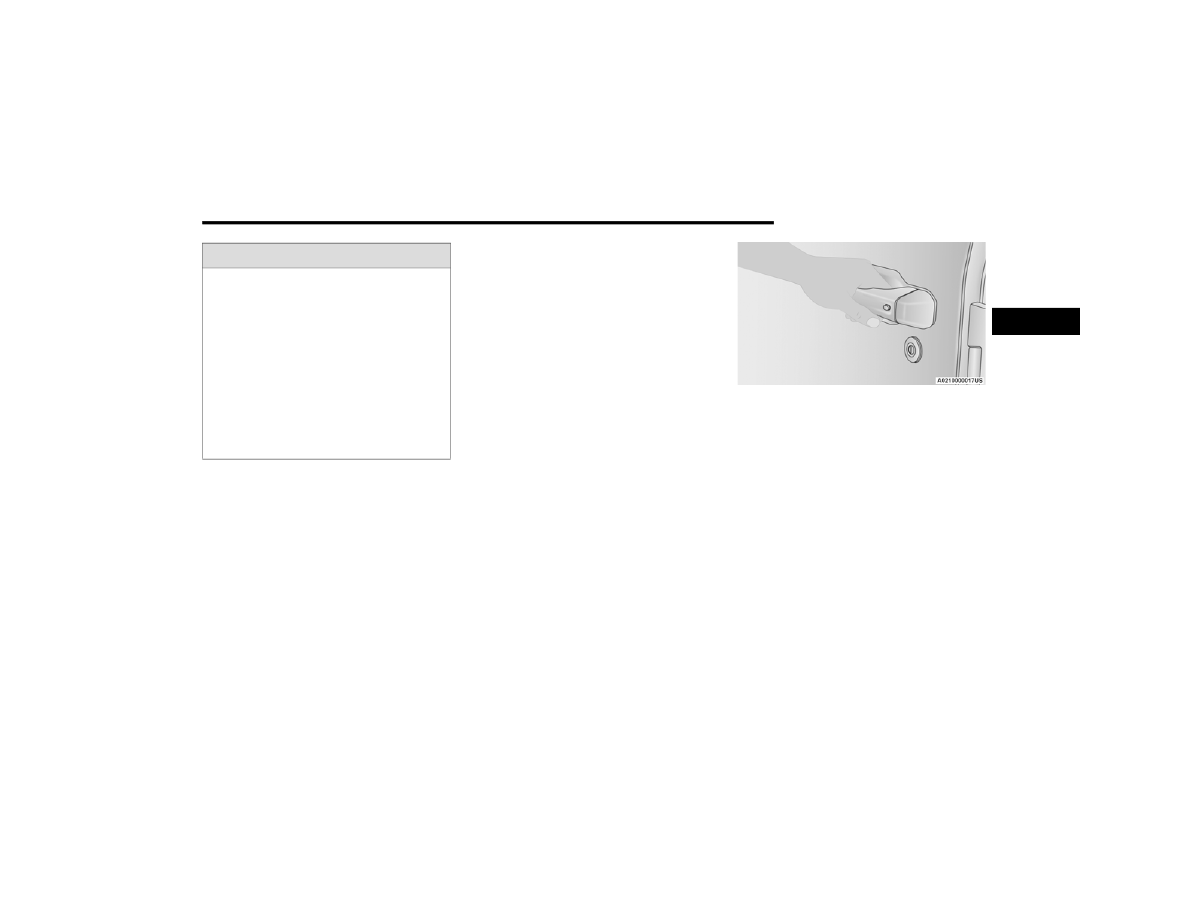

Grab The Door Handle To Unlock

NOTE:



Either the driver door only or all doors will unlock

when you grab hold of the front driver’s door

handle, depending on the selected setting in the

Uconnect system

page 228.



All doors will unlock when the front passenger

door handle is grabbed regardless of the

driver’s door unlock preference setting.

Frequency Operated Button Integrated Key

(FOBIK-Safe)
To minimize the possibility of unintentionally

locking a Passive Entry key fob inside your vehicle,

the Passive Entry system is equipped with an

automatic door unlock feature which will function

only if the ignition switch is in the OFF position.



Never leave children alone in a vehicle, or with

access to an unlocked vehicle.



Allowing children to be in a vehicle unattended

is dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.



Do not leave the key fob in or near the vehicle

or in a location accessible to children. A child

could operate power windows, other controls,

or move the vehicle.

WARNING!

GETTING TO KNOW YOUR VEHICLE

FOBIK-Safe only executes in vehicles with Passive

Entry. There are three situations that trigger a

FOBIK-Safe search in any Passive Entry vehicle:



A lock request is made by a valid Passive Entry

key fob while a door is open.



A lock request is made by the Passive Entry door

handle while a door is open.



A lock request is made by the door panel switch

while the door is open.

When any of these situations occur, after all open

doors are closed, the FOBIK-Safe search will be

executed. If it detects a Passive Entry key fob

inside the vehicle, the vehicle will unlock and alert

the customer. If Passive Entry is disabled using the

Uconnect system, the key protection described in

this section remains active/functional.

NOTE:

The vehicle will only unlock the doors during a

FOBIK-Safe operation when a valid Passive Entry

key fob is detected inside the vehicle. The vehicle

will not unlock the doors when any of the following

conditions are true:



A second valid Passive Entry key fob is detected

outside of the vehicle (within 5 ft (1.5 m) of a

Passive Entry door handle).



The doors are manually locked using the door

lock knobs.



Three attempts are made to lock the doors

using the door panel switch, and then the doors

are closed.

To Lock The Vehicle’s Doors
With one of the vehicle’s Passive Entry key fobs

within 5 ft (1.5 m) of the driver or passenger front

door handles, pushing the Passive Entry lock

button will lock the vehicle doors.

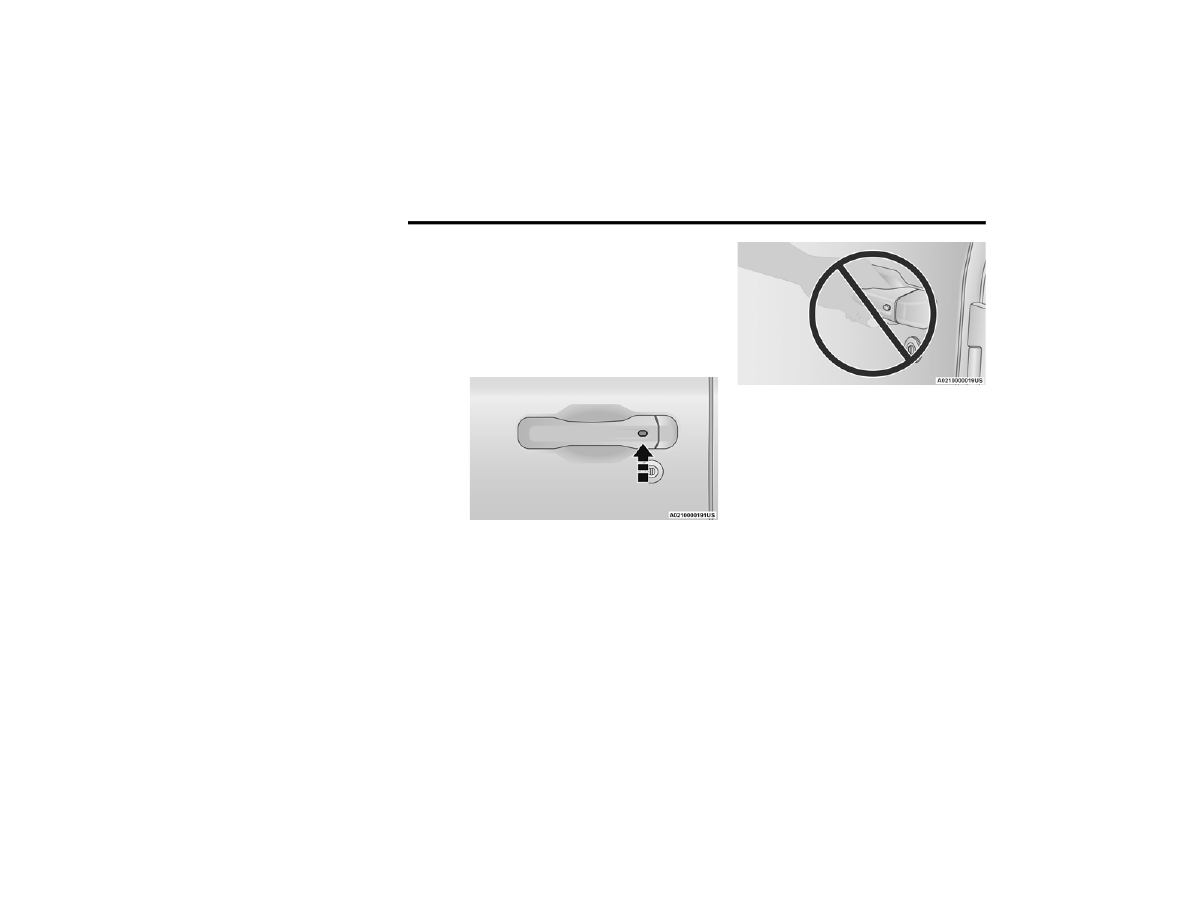

Push The Door Handle Button To Lock

NOTE:

When pushing the door handle lock button, DO

NOT grab the door handle. This could unlock the

door(s).

DO NOT Grab The Door Handle When Locking

NOTE:



After pushing the door handle button, the driver

must wait three seconds before locking or

unlocking the doors, using any Passive Entry

door handle. This is done to allow the driver to

check if the vehicle is locked by pulling the door

handle without the vehicle unlocking.



If Passive Entry is disabled using the Uconnect

system, the key protection described in

“Preventing Inadvertent Locking Of Passive

Entry Key Fob In Vehicle” remains active/

functional.



The Passive Entry system will not operate if the

key fob battery is depleted

page 465.

GETTING TO KNOW YOUR VEHICLE

UTOMATIC

OOR

OCKS

—

QUIPPED

The Automatic Door Lock feature default condition

is enabled. When enabled, the door locks will lock

automatically when the vehicle's speed exceeds

15 mph (24 km/h). The Automatic Door Lock

feature can be enabled or disabled by an

authorized dealer per written request of the

customer. Please see an authorized dealer for

service.

HILD

-P

ROTECTION

OOR

OCK

YSTEM

— R

EAR

OORS

To provide a safer environment for small children

riding in the rear seats, the rear doors are

equipped with a Child-Protection Door Lock

system.
To use the system, open each rear door,

temporarily remove the sealing plug for access,

and use a flat blade screwdriver (or mechanical

key) to rotate the dial to the lock or unlock position.

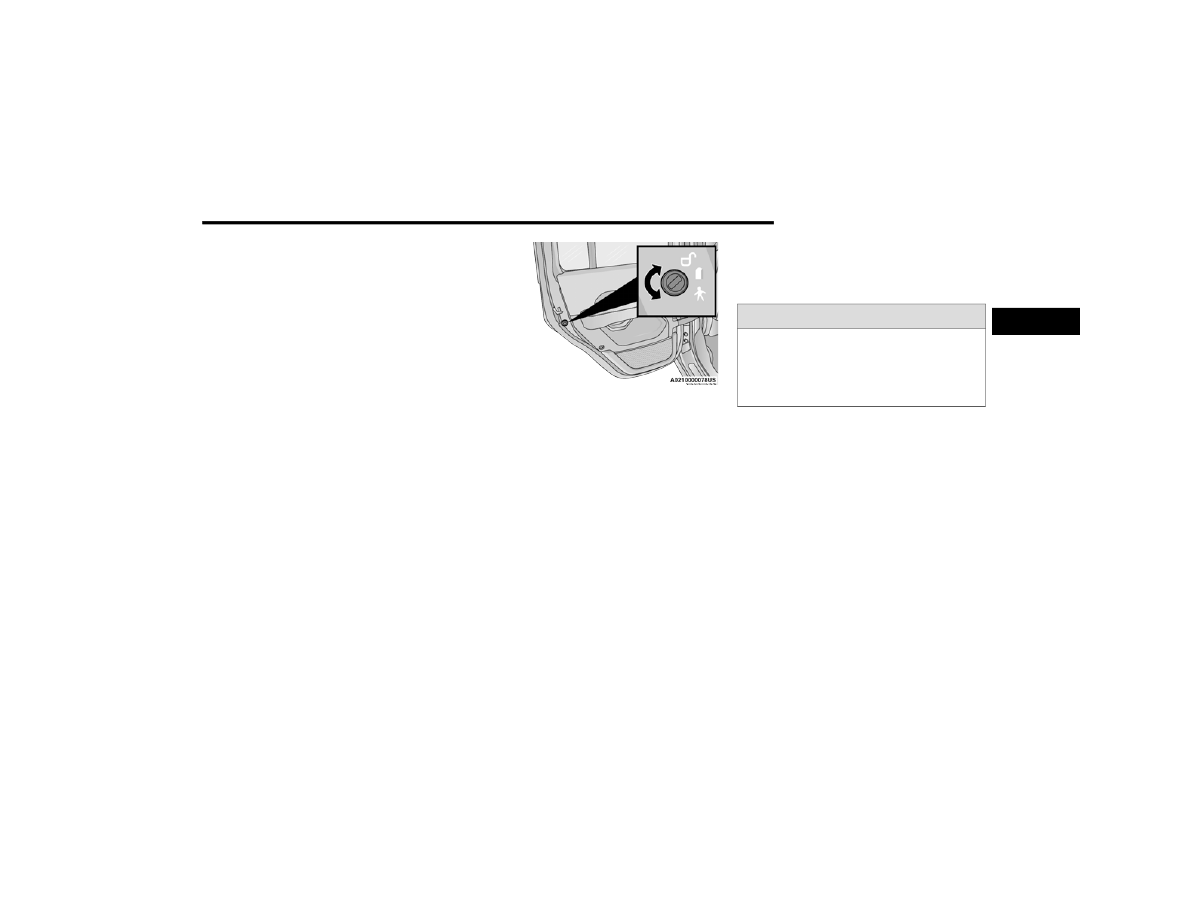

Child-Protection Door Lock Location

NOTE:



When the Child-Protection Door Lock system is

engaged, the door can be opened only by using

the outside door handle, even though the inside

door lock is in the unlocked position.



After disengaging the Child-Protection Door

Lock system, always test the door from the

inside to make certain it is in the unlocked posi

tion.



After engaging the Child-Protection Door Lock

system, always test the door from the inside to

make certain it is in the locked position.



For emergency exit with the system engaged,

move the lock lever rearward (located on the

door trim panel), roll down the window and open

the door with the outside door handle.

NOTE:

Always use this device when carrying children.

After engaging the child lock on both rear doors,

check for effective engagement by trying to open a

door with the internal handle. Once the

Child-Protection Door Lock system is engaged, it is

impossible to open the doors from inside the

vehicle. Before getting out of the vehicle, be sure to

check that there is no one left inside.

WARNING!

Avoid trapping anyone in a vehicle in a collision.

Remember that the rear doors can only be

opened from the outside when the

Child-Protection Door Lock system is engaged

(locked).

GETTING TO KNOW YOUR VEHICLE

(Continued)

RONT

OOR

EMOVAL

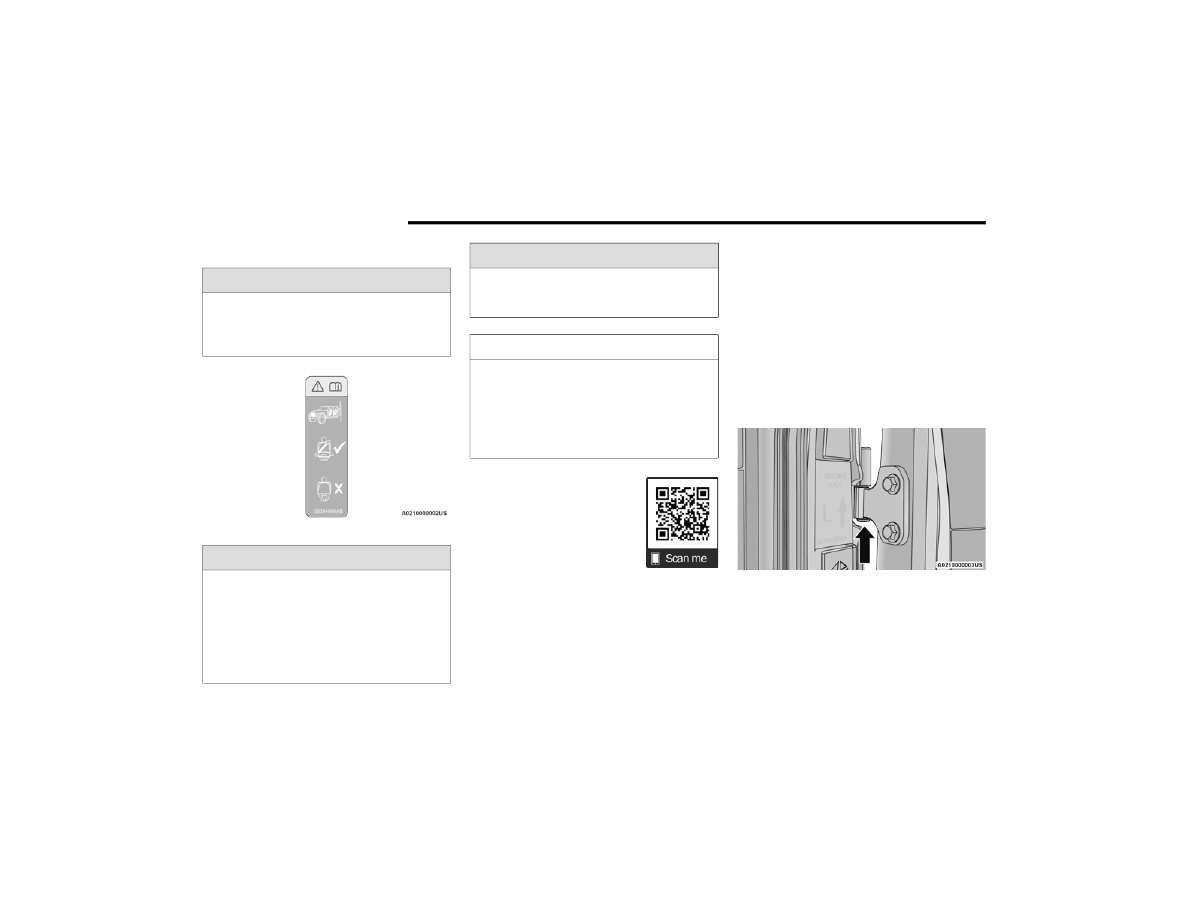

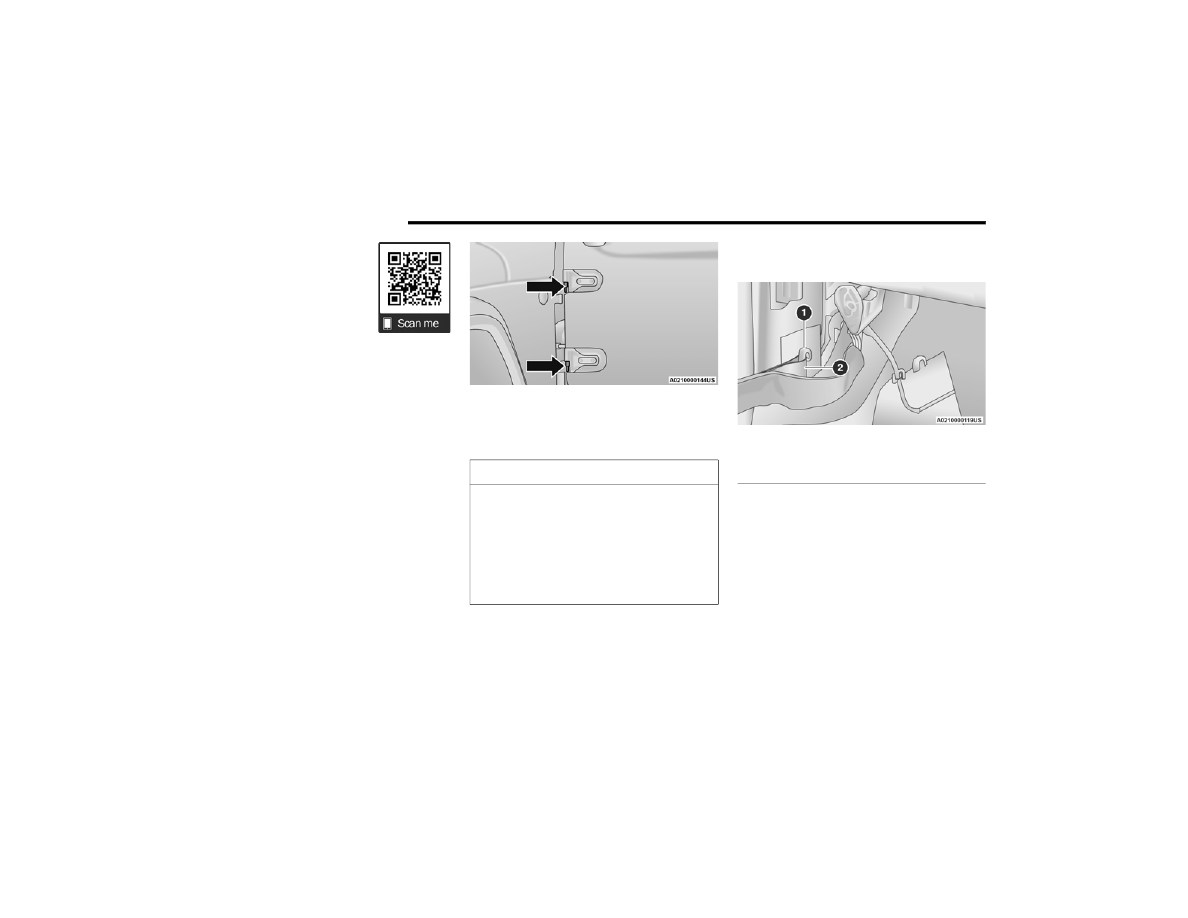

Door Removal Warning Label

Use this QR code to access your

digital experience.
Outside rearview mirrors are

mounted on the doors. If you

choose to remove the doors, see

an authorized dealer for a

replacement cowl-mounted

outside mirror. Federal law requires outside

mirrors on vehicles for on-road use.

NOTE:

When front doors are removed, the message

“Blind Spot Alert Temporarily Unavailable” will

display in the instrument cluster display.

Power Mirrors and Power Door Locks will also be

unavailable.
To remove the front doors, proceed as follows:
1. Roll down the glass window to prevent any

damage.

2. Remove the hinge pin nut from the upper and

lower outside hinges (using a #T50 Torx head

driver).

NOTE:

The hinge pin nuts can be stowed in the Fastener

Bin located under the rear seat.

Hinge Pin Nut

WARNING!

Do not drive your vehicle on public roads with

the doors removed as you will lose the

protection they can provide. This procedure is

furnished for use during off-road operation only.

WARNING!



All occupants must wear seat belts during

off-road operation with doors removed. For

information on off-road driving tips, see

page 220.



Do not store detached doors inside of the

vehicle, as they may cause personal injury in

the event of an accident.



Assistance to remove doors may by required

due to the weight of the door to avoid personal

injury.

CAUTION!



Hinge pins can break if overtightened during

door reinstall (Max Torque: 5.88 ft·lb / 8 N·m).

For information on off-road driving tips, see

page 220.



Do not overtighten Torx fasteners. Damage to

the vehicle’s parts will occur.

WARNING!

GETTING TO KNOW YOUR VEHICLE

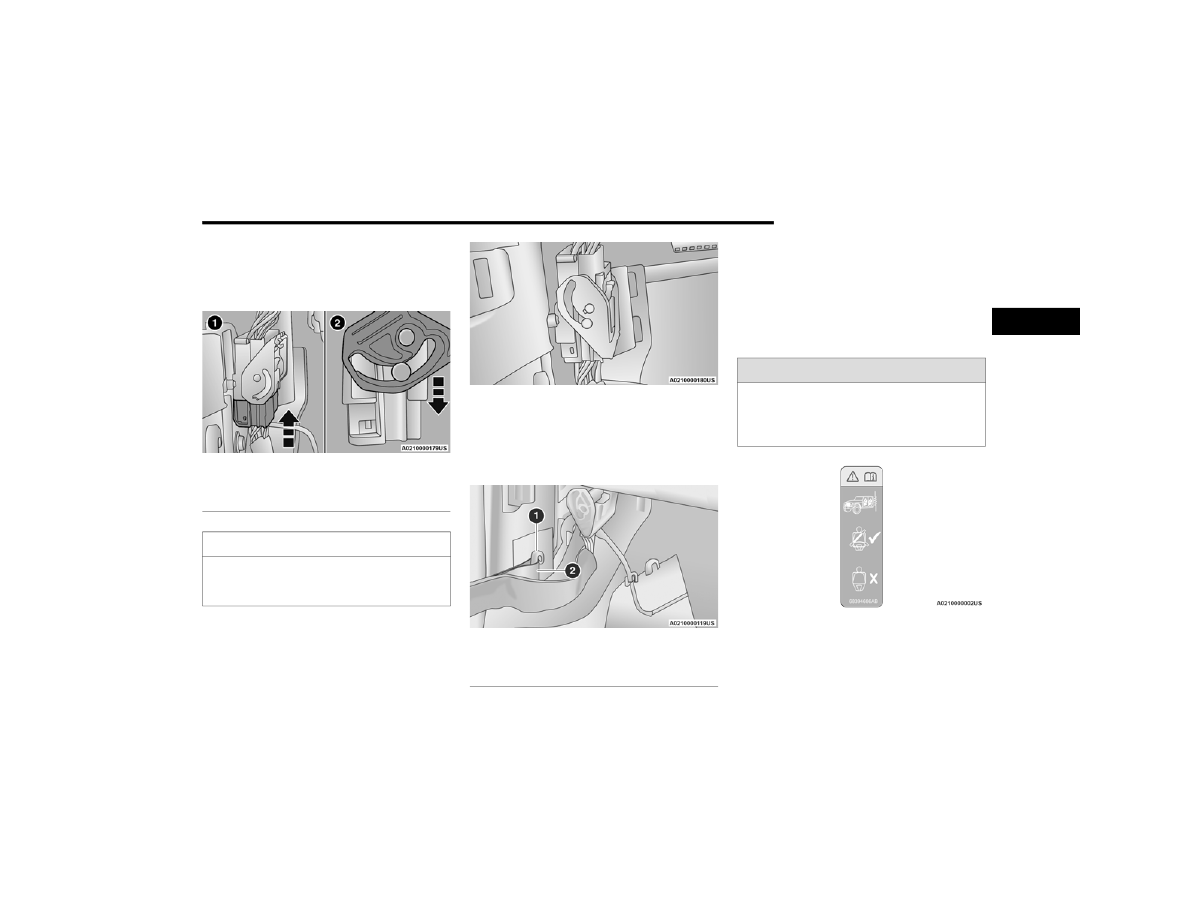

3. Remove the plastic wiring access door under

the instrument panel by sliding the plastic

panel along the door frame toward the seats

until the tabs are detached.

Wiring Access Door

NOTE:

Do not force open; this will break the plastic cover.

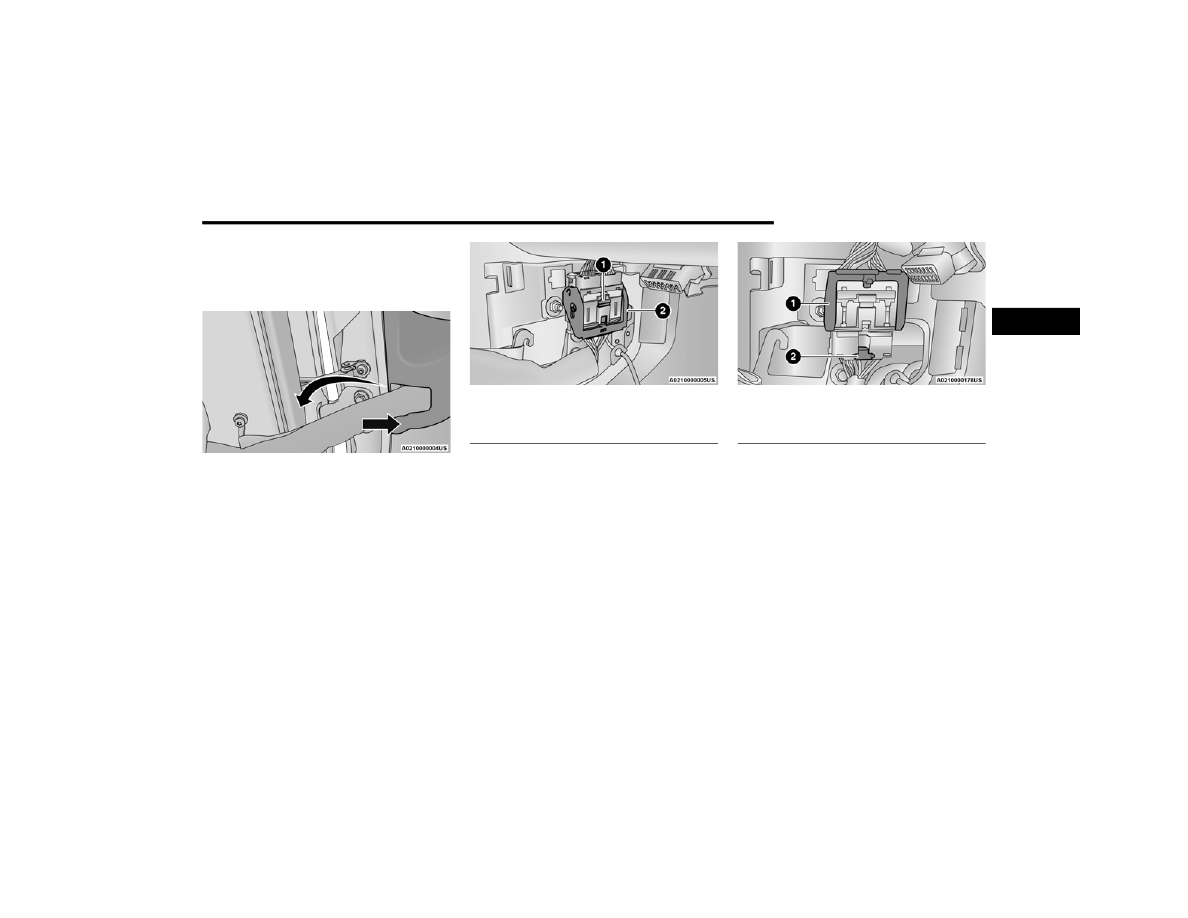

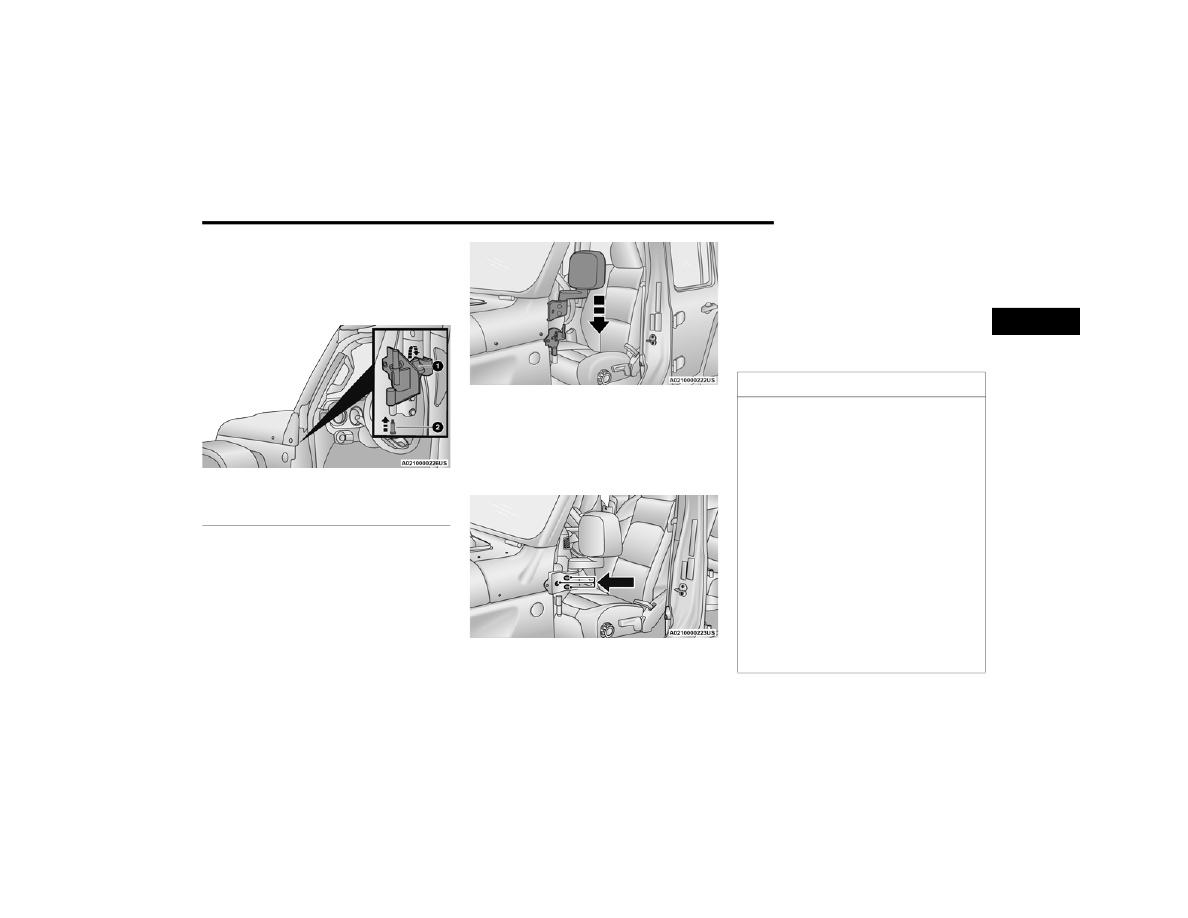

4. Pull up on the red locking tab to unlock the

wiring harness.

Closed Wiring Harness

5. Push and hold down the black security tab

under the wiring harness, and lift the harness

lever into the open position.

Open Wiring Harness

6. With the wiring harness open, pull straight

downward on the wiring connector to unplug.

Store the wiring connector in the lower door

basket.

1 — Red Locking Tab
2 — Wiring Harness Lever

1 — Wiring Harness Lever (Open Position)
2 — Black Security Tab

GETTING TO KNOW YOUR VEHICLE

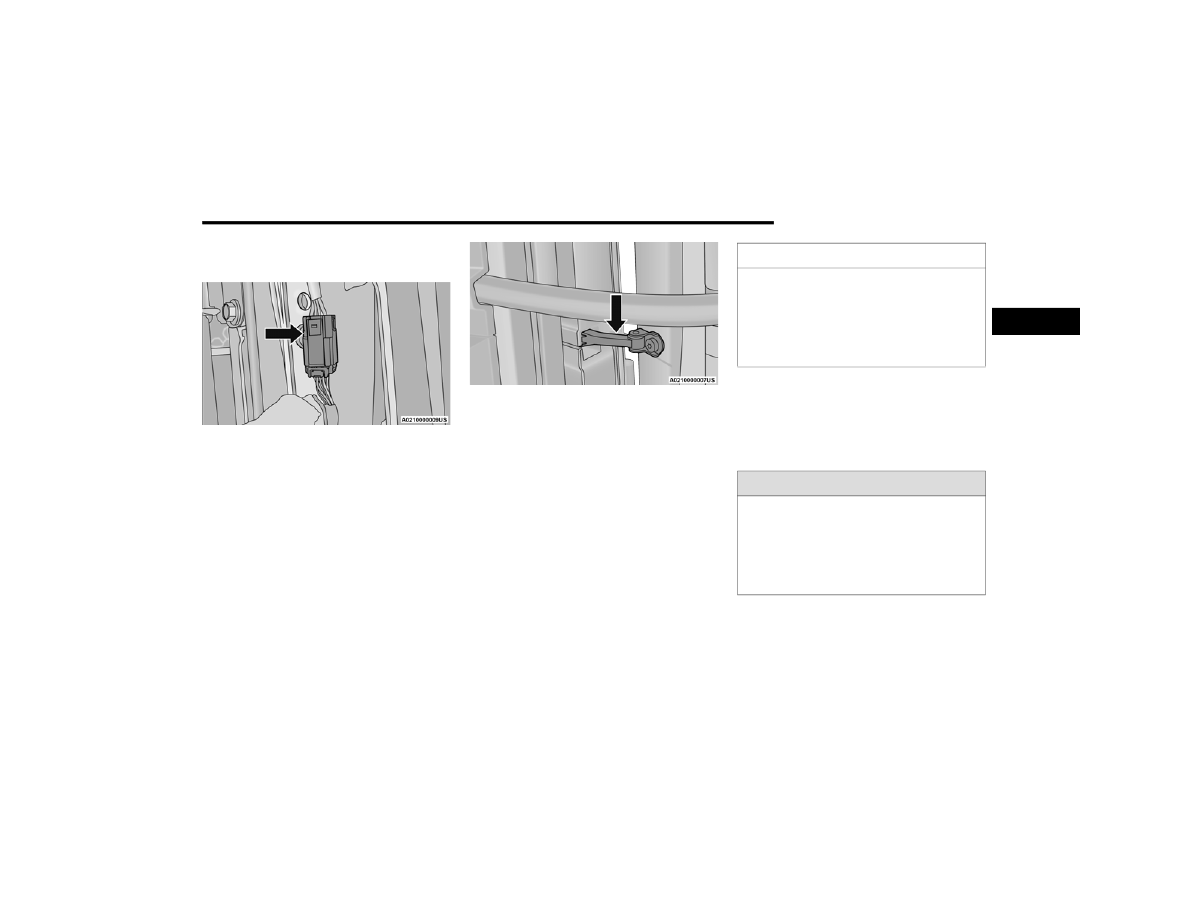

7. With the door in the open position, remove the

check bolt from the door check attachment on

the body side (using a #T40 Torx head driver).

NOTE:

Keep the check arm in the extended position for

easier reinstallation.

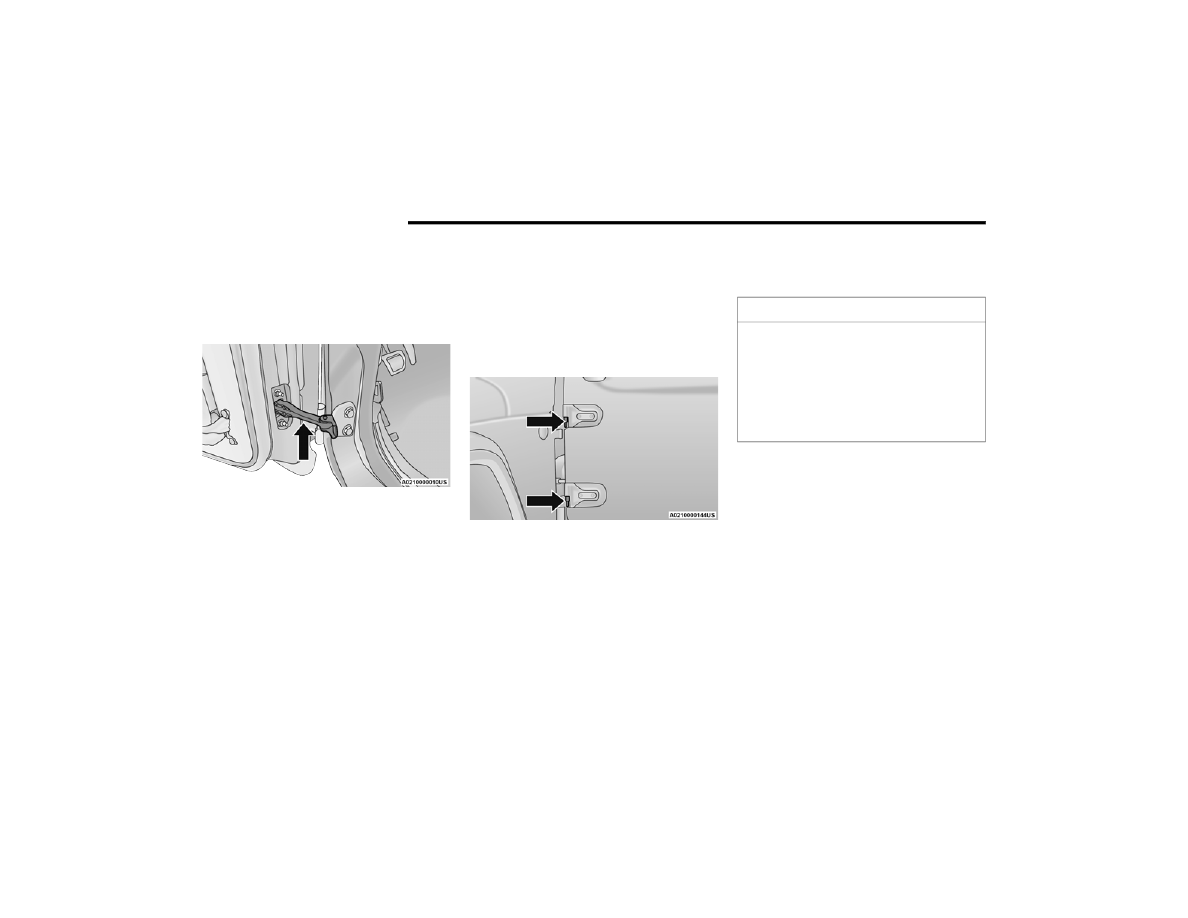

Door Check

8. With the door open, lift the door with the help

of another person, to clear the hinge pins from

their hinges and remove the door.

To Install The Front Doors

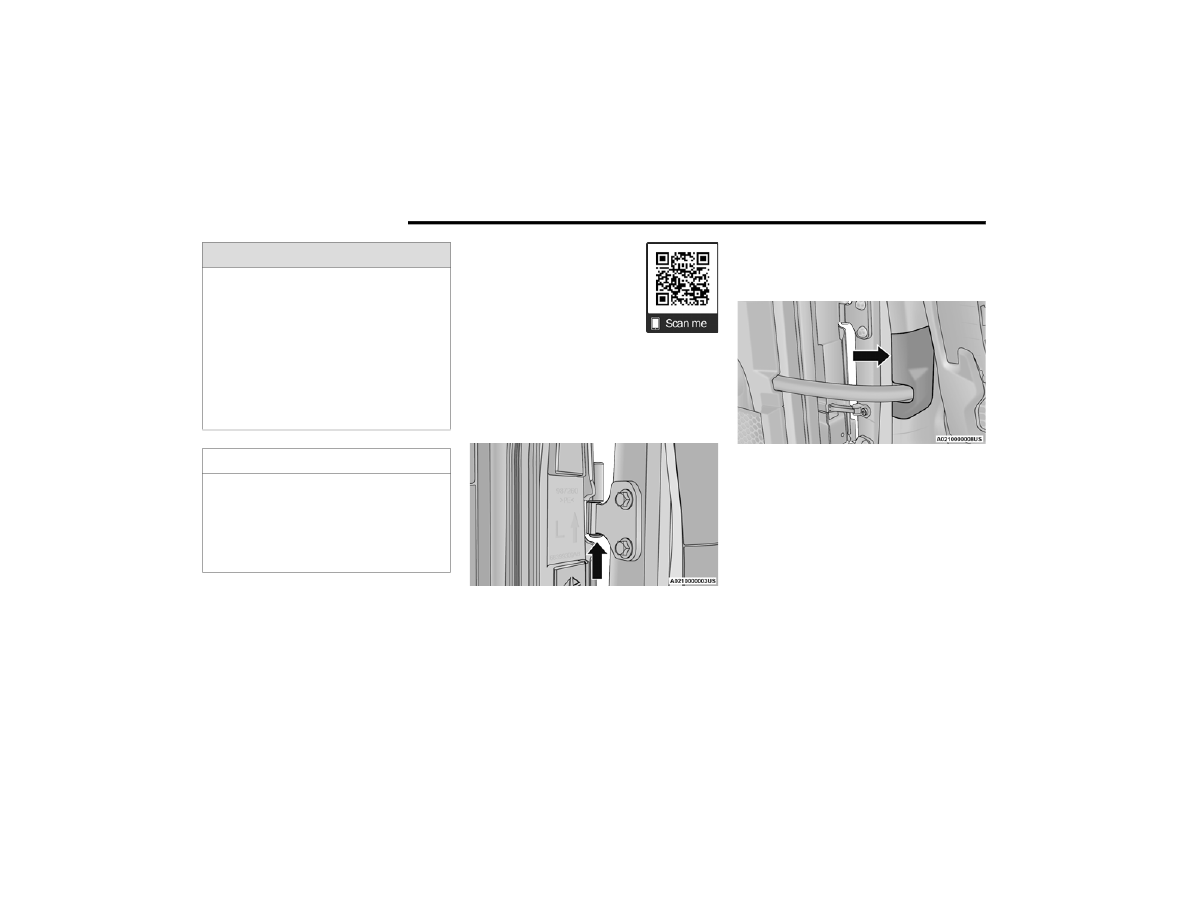

1. Locate the upper and lower hinge pins on the

door, and lower them into the body hinges on

the vehicle.

NOTE:

The upper hinge pin is longer, which can be used to

assist in guiding the door into place during instal

lation.

Hinge Pin Locations

2. With the door in the open position, align the

door check bracket with the hole on the body.

Insert the check screw and tighten using a

#40 Torx head driver to 19.9 ft· lb (27.0 N·m).

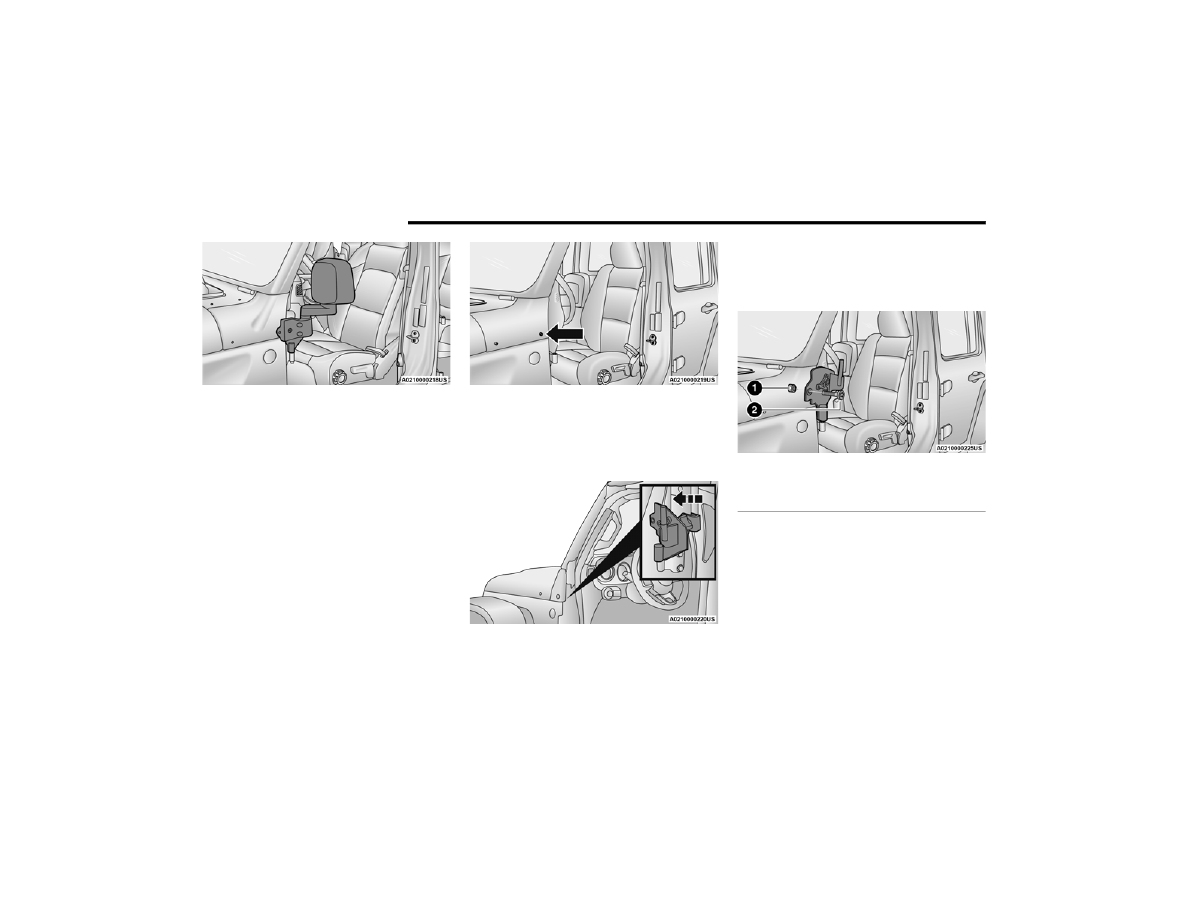

3. Insert the upper and lower hinge pin screws

into the body hinges. Tighten the screws using

a #T50 Torx head driver to 3.8 ft· lb / 5.2 N·m.

Replacing The Wiring Connector Into The Wiring

Harness
To reinstall the wiring connector on the vehicle’s

door into the harness just inside the vehicle,

proceed as follows:

NOTE:

Make sure there is plenty of slack on the wiring

connector during installation. Close the door

slightly to provide more slack if needed.

CAUTION!



Do not close the door before reattaching the

door check to the body. Damage may occur to

the door check.



Do not overtighten Torx fasteners, damage to

the vehicle’s parts will occur.



Hinge pins can break if overtightened during

door install (Max Torque: 6.0 ft· lb/8.1 N·m).

GETTING TO KNOW YOUR VEHICLE

1. With light finger pressure, seat the wiring

connector straight into the wiring harness

until the wiring harness lever starts to lower

with the latching pin.

Connecting The Wiring Harness

2. After the harness lever has started to move

with the pressure of seating the wiring

connector, continue by lowering the wiring

harness lever to the fully closed position.

Fully Closed Position

3. Push the red locking tab downward to lock into

place.

4. Attach the cloth strap of the door onto the

metal hook just inside the vehicle.

Cloth Strap Attachment

5. Replace wiring access doors.

NOTE:

When reinstalling the door check arm attachment

bolt, bolt torque should be between 11.76 ft·lb /

16 N·m and 27.9 ft·lb / 38 N·m.

EAR

OOR

EMOVAL

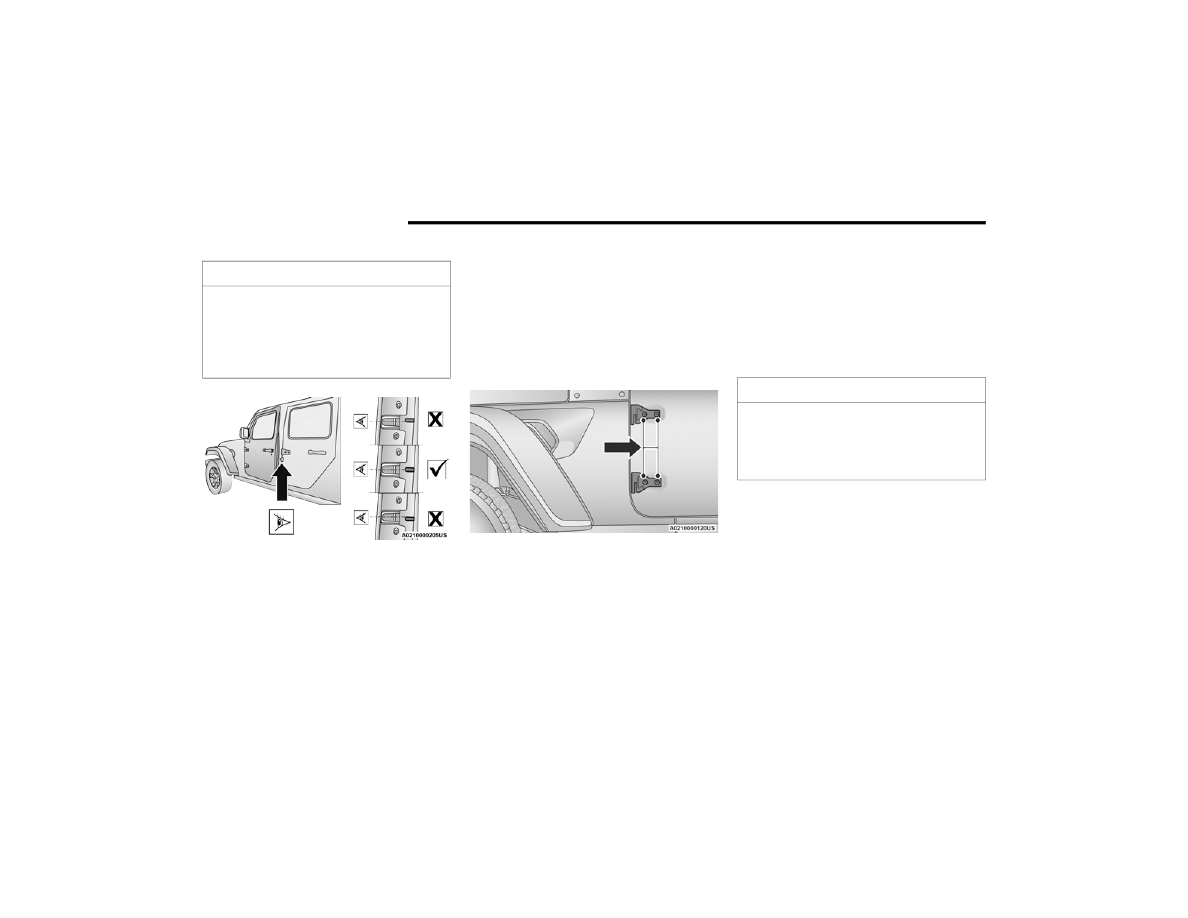

Door Removal Warning Label

1 — Seat Connector Straight Into Harness
2 — Wiring Harness Lever Starts To Lower

CAUTION!

Failure to correctly reconnect the wiring

connector into the harness will result in damage

that is not covered by the New Vehicle Warranty.

1 — Metal Hook
2 — Cloth Strap

WARNING!

Do not drive your vehicle on public roads with

the doors removed as you will lose the

protection they can provide. This procedure is

furnished for use during off-road operation only.

GETTING TO KNOW YOUR VEHICLE

Use this QR code to access your

digital experience.

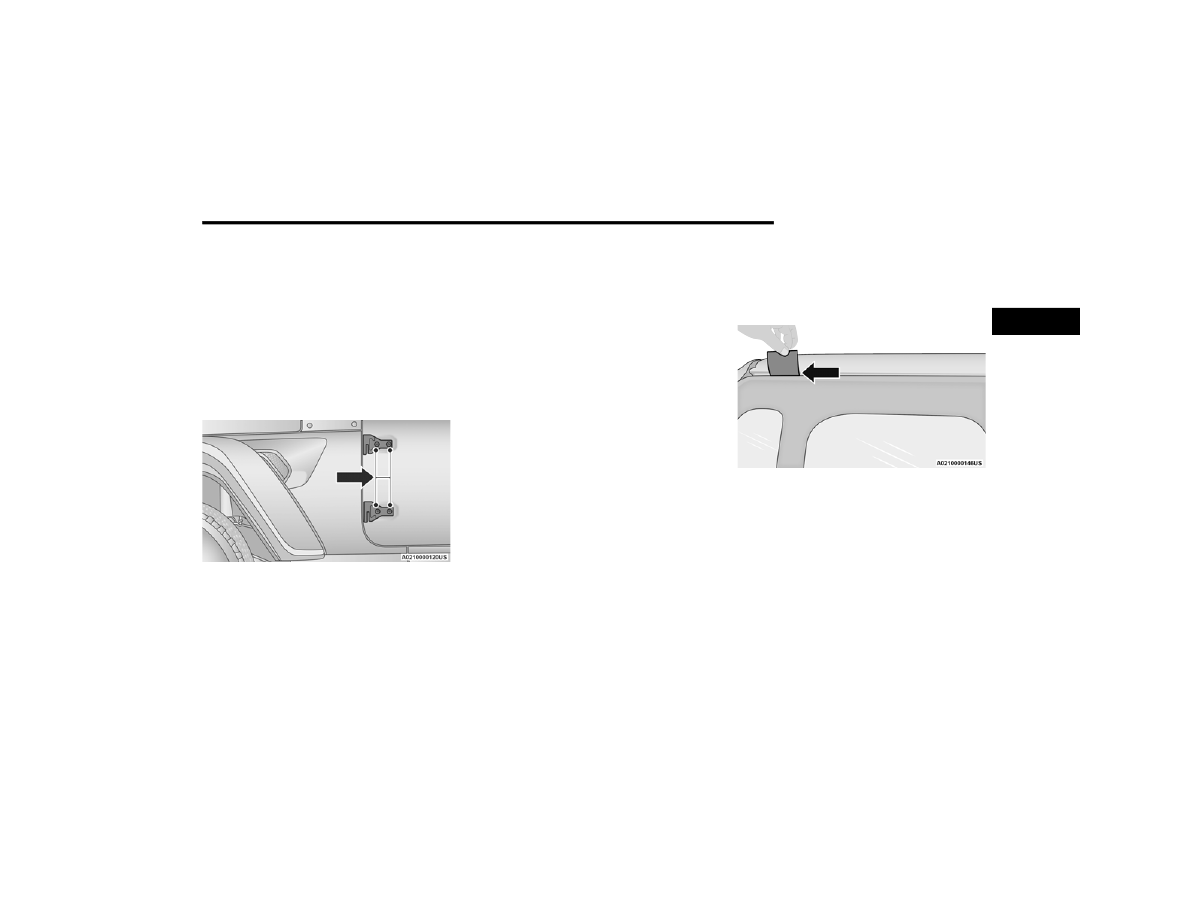

To remove the rear doors,

proceed as follows:
1. Roll down the glass window

to prevent any damage.

2. Remove the hinge pin nuts from the upper and

lower outside hinges (using a #T50 Torx head

driver).

NOTE:

The hinge pin nuts can be stowed in the Fastener

Bin under the rear seat.

Hinge Pin Nut

3. Slide the front seat(s) fully forward.
4. Pry open and remove the plastic wiring access

door from the bottom of the B-pillar.

Wiring Access Door

5. Unplug the wiring connector.

NOTE:

Squeeze the tab on the base of the wiring harness.

This will unlock the connector tab, allowing the

wiring connector to be unplugged. Unhook the wire

harness strap from the hook on the body side.

WARNING!



All occupants must wear seat belts during

off-road operation with doors removed. For

information on off-road driving tips, see

page 220.



Do not store detached doors inside of the

vehicle, as they may cause personal injury in

the event of an accident.



Assistance to remove doors may by required

due to the weight of the door to avoid personal

injury.

CAUTION!



Hinge pins can break if overtightened during

door reinstall (Max Torque: 5.88 ft·lb / 8 N·m).

For information on off-road driving tips, see

page 220.



Do not overtighten Torx fasteners. Damage to

the vehicle’s parts will occur.

GETTING TO KNOW YOUR VEHICLE

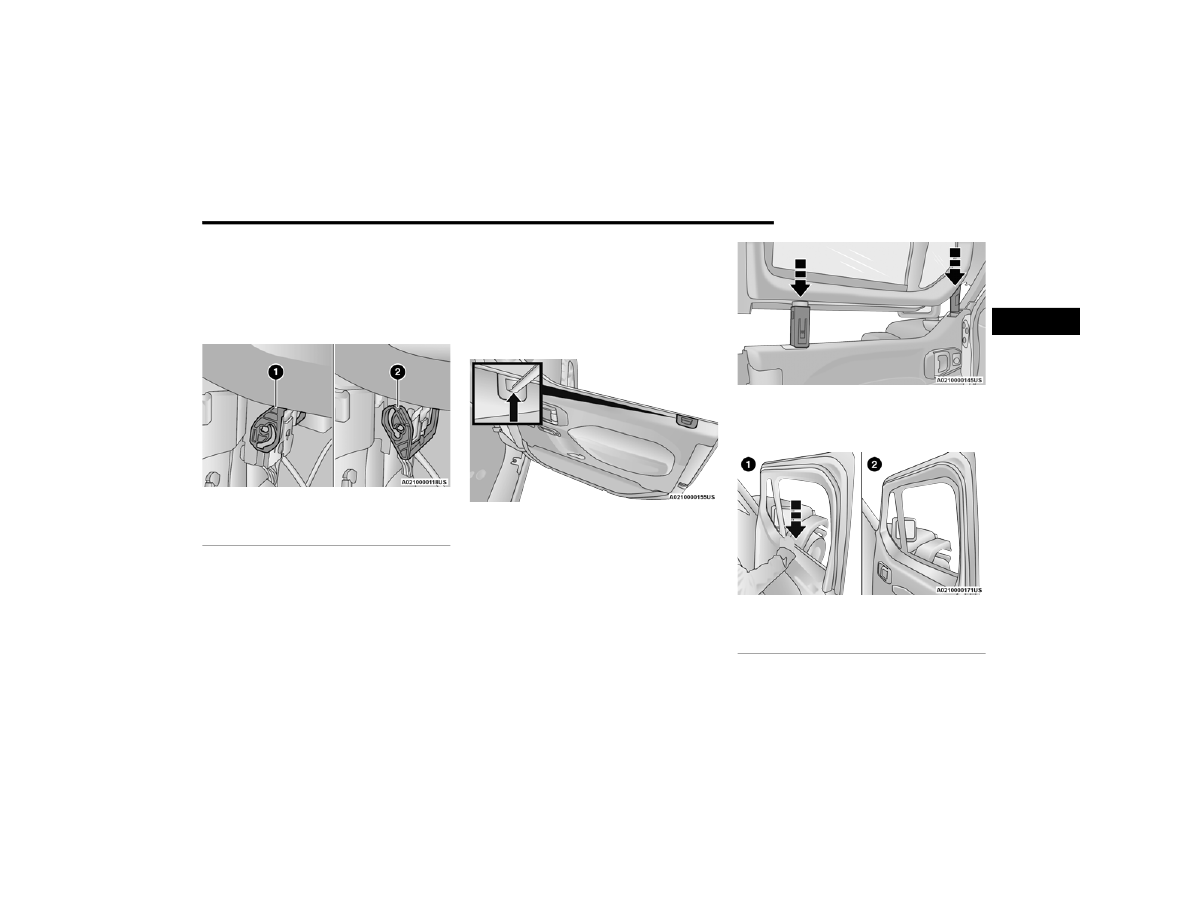

Store the wire connector in the lower basket of the

door.

Wiring Connector

6. With the door in the open position, remove the

check bolt from the door check attachment on

the body (using a #T40 Torx head driver).

NOTE:

Keep the check arm in the extended position for

easier reinstallation.

Door Check

7. With the door open, lift the door with the help

of another person, to clear the hinge pins from

their hinges and remove the door.

To reinstall the door(s), perform the previous steps

in the reverse order.

NOTE:

The upper hinge has a longer pin, which can be

used to assist in guiding the door into place when

reinstalling. When reinstalling the check arm

attachment bolt, bolt torque should be between

11.76 ft·lb / 16 N·m and 27.9 ft·lb / 38 N·m.

OOR

IRROR

— I

QUIPPED

If equipped with the Door Off Mirror Kit, exterior

rearview mirrors can be installed on to the upper

body door hinges after the front doors have been

removed.

CAUTION!



Hinge pins can break if overtightened during

door reinstall (Max Torque: 5.88 ft·lb / 8 N·m).

For information on off-road driving tips, see

page 220.



Do not overtighten Torx fasteners. Damage to

the vehicle’s parts will occur.

WARNING!



All occupants must wear seat belts during

off-road operation with doors removed. For

off-road driving tips, see

page 220.



Do not store detached doors inside of the

vehicle, as they may cause personal injury in

the event of an accident.

GETTING TO KNOW YOUR VEHICLE

Door Off Mirror

To install the Door Off Mirrors, proceed as follows:
1. Remove both front doors

page 30.

2. Remove the cowl bolt closest to the door

opening using a #40 Torx head driver, and

store in a safe location.

Cowl Bolt Location

3. Push the mirror bracket forward onto the

A-pillar, making sure to align the bottom of the

bracket with the upper door hinge, and the

hole from the removed cowl bolt.

Push Bracket Onto A-pillar

4. Place the bracket bushing behind the mirror

bracket (over the cowl bolt hole), then insert

the bracket bolt into the mirror bracket,

through the bracket bushing.

Attaching Mirror Bracket To The Vehicle

1 — Bracket Bushing
2 — Bracket Bolt

GETTING TO KNOW YOUR VEHICLE

5. Insert the hinge shoulder bolt through the

bottom of the upper door hinge up into the

mirror bracket, then rotate the bracket knob

toward the rear of the vehicle to secure the

mirror bracket to the A-pillar.

Attaching Mirror Bracket To The Vehicle

6. Tighten both the bracket bolt and the hinge

shoulder bolt with a #40 Torx head driver.

Recommended torque specification for the

bracket bolt is 6 ft-lb (8 N·m), and 7.5 ft-lb

(10 N·m) for the hinge shoulder bolt.

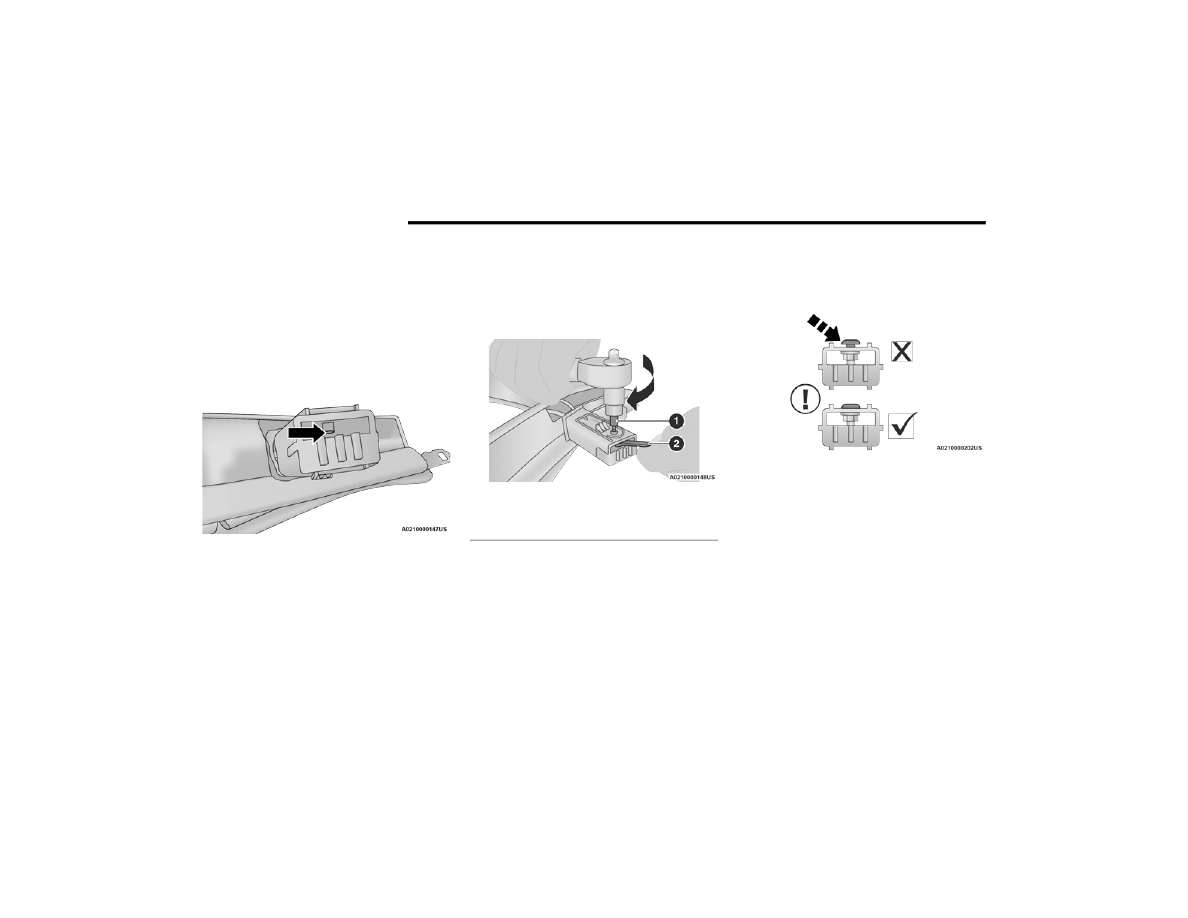

7. Lower the mirror assembly onto the mirror

bracket.

Lower Mirror Assembly Onto Bracket

8. Insert the three mirror screws into the mirror

assembly, and tighten into the mirror bracket

using a #30 Torx head driver. Recommended

torque specification for the mirror screws is

4 ft-lb (5.5 N·m).

Mirror Screw Locations

9. Repeat the steps on the other side of the

vehicle.

NOTE:

If this kit is being installed with the optional lamp

bracket, the bracket bushing from step 4 is not

needed. Use the spacer from the lamp bracket.

ALF

-D

OORS

— I

QUIPPED

1 — Bracket Knob
2 — Hinge Shoulder Bolt

CAUTION!



Do not run half-doors through an automatic

car wash. This may result in scratches and

wax buildup on the windows.



Careless handling and storage of the

half-doors may damage the seals resulting in

water leaks into the interior of the vehicle.



The upper half-doors must be positioned prop

erly to ensure sealing. Improper installation

can cause water leaks into the interior of the

vehicle.



Store the zipper pulls of the upper half-door

windows at the upper B-pillar area for both

front and rear doors to avoid damage to the

windows when not in use.



Do not attempt to operate the half-door zipper

in temperatures of 41°F (5°C) or below.

Damage to the window may occur.

GETTING TO KNOW YOUR VEHICLE

Use this QR code to access your

digital experience.
This vehicle may be equipped with

half-doors. To install the

half-doors in the vehicle, follow

the instruction sheet packaged in

the box the doors were received

in. Replacement parts may be purchased through

Mopar® Service.

Half-Door Installation

To install the front or rear half-doors, proceed as

follows:
1. Remove the full doors from the vehicle. For

front door removal, see

page 30. For rear

door removal, see

page 33.

2. Locate the upper and lower hinge pins on the

lower half-door, and lower them into the body

hinges on the vehicle.

NOTE:

The upper hinge pin is longer, which can be used to

assist in guiding the door into place during instal

lation.

Lower Half-Door Hinge Pins

3. Insert the upper and lower hinge pin screws

into the body hinges. Tighten the screws using

a #T50 Torx head driver to 3.8 ft· lb / 5.2 N·m.

4. Attach the cloth strap of the lower half-door to

the metal hook just inside the vehicle.

Cloth Strap Attachment

CAUTION!



Do not close the door before reattaching the

door check to the body. Damage may occur to

the door check.



Do not overtighten Torx fasteners, damage to

the vehicle’s parts will occur.



Hinge pins can break if overtightened during

door install (Max Torque: 6.0 ft· lb/8.1 N·m).

1 — Metal Hook
2 — Cloth Strap

GETTING TO KNOW YOUR VEHICLE

5. Connect the wiring harness on the lower

half-door to the connection just inside the

vehicle.

NOTE:

For front doors, make sure the wiring harness is

closed completely.

Front Door Wiring Harness

6. Replace wiring access doors.
7. When the half-doors are shipped with the

vehicle, the lower half-doors will have plugs in

the post holes that must be removed prior to

upper half-door installation.

To remove these plugs, proceed as follows:
a. Locate the service hole in the center of each

plug of the lower half-door (two on each

front and rear door).

b. Place a tool (hook tool or trim stick is recom

mended) in the service hole.

Place Tool Into Service Hole Of Plug To Remove

c. Using the tool, slowly pull upwards from the

center of the plug to remove.

8. Making sure the window on the upper

half-door is completely zipped closed, insert

the upper half-door into the lower half-door by

placing the posts into the post holes.

Lower The Upper Half-Door Into Post Holes

9. Push down firmly on the inside of the upper

half-door until it is fully seated in the lower half.

Push Down To Fully Seat Upper Half-Door

1 — Open Wiring Harness
2 — Closed Wiring Harness

1 — Push Down On Inside Of Upper Half-Door
2 — Fully Seated Upper Half-Door

GETTING TO KNOW YOUR VEHICLE

Door Latch Alignment

Check Door Latch And Striker Alignment

NOTE:

Only adjust the door to fit correctly against the

striker. DO NOT adjust the striker, as this could

affect the positioning of the full door.
If the door does not center align between the latch

and the striker, proceed as follows:
1. Loosen (do not remove) the four bolts on the

door hinges using the provided #T50 Torx

head driver.

Hinge Bolt Locations

2. With the bolts loose, hold the door in the

almost closing position, and check that the

latch and striker align.

3. With the latch and striker aligned, proceed

to close the door softly and tighten the

hinge bolts to 20.3 ft· lb / 27.5 N·m

(Max Torque: 27.3 ft· lb / 37 N·m).

Lower Door Adjustment

CAUTION!

Upon first installation of the half-doors, slowly

set the door almost to the closing position and

check how the door latch aligns with the body

striker. Touch condition between these

components can result in damage to both the

door and the striker.

CAUTION!

Upon first installation of the half-doors, slowly

close each door to check for body contact.

Improper setting of the door hinges can cause

extreme non-uniform conditions, and result in

damage to the body around the door.

GETTING TO KNOW YOUR VEHICLE

If the door does not latch properly after

installation, if there is interference between the

panels, or if a non-uniform gap around the door is

observed when the door is closed (example: door

position appears to be low and too far rearward),

the position of the door on its hinges may need to

be adjusted. To do this, proceed as follows:

1. Loosen (do not remove) the four bolts on the

door hinges using the provided #T50 Torx

head driver.

Hinge Bolt Locations

NOTE:

Do not adjust the body mounted hinges, or any part

of the door latch, as modifications to these parts

will affect installation of the full door.

2. With the bolts loose, the door can be moved

forward by pushing the door handle toward the

front of the vehicle, and/or upward by grabbing

the door handle and lifting towards the roof.

3. Once the gaps between the door and vehicle

body are uniform around the entire door,

tighten the door hinge bolts to 20.3 ft· lb /

27.5 N·m (Max Torque: 27.3 ft· lb / 37 N·m).

Upper Door Adjustment
After installation of the half-doors, if water leaks or

wind noise is observed, the seal of the upper

half-door to the door opening may need to be

adjusted.
To determine if the upper half-door needs to be

adjusted, proceed as follows:
1. Determine which door is affected.
2. Open the affected door and hold a dollar-size

piece of paper along the top of the door

opening against the vehicle near where the

leak/noise was observed. Make sure half of

the paper is above the area where the door

seal contacts the door opening, while the other

half is below.

3. Close the door on the paper, then pull the

paper upward. If the paper moves with little to

no effort, the upper half-door will need to be

adjusted in that area to increase seal

compression.

Performing A Paper Test

There is another optional test that can be

performed using a flashlight and the help of

another person.
One person should be inside the vehicle, and move

the flashlight around the periphery of the door

seal, shining outward. The other person should

stand outside of the vehicle and check for light

passing by the seal. If light is seen through the seal

area, the door will need to be adjusted.

GETTING TO KNOW YOUR VEHICLE

To adjust the seal compression, proceed as

follows:
1. Open the door and lift the upper half-door up

and away from the lower half. Lay the upper

half-door on a clean, dry surface.

2. Using an 8 mm open-end wrench (not

provided), loosen the nut located inside the

bottom of the upper half-door post, closest to

where the “paper test” detected a gap.

Nut Location Inside Bottom Of Post

3. Using a 3 mm Allen wrench (not provided),

rotate the screw on the side of the post

counterclockwise (while holding the wrench on

the loosened bolt) to increase the seal

compression. If needed, rotate clockwise to

reduce seal compression.

Rotate Screw For Seal Compression

4. Tighten the nut inside the bottom of the post

using the wrench and make sure the screw

head is flush to the post. Reinstall the upper

half-door.

Screw Head Flush To Post

5. Close the door and repeat the “paper test”.

Repeat the adjustment procedure if needed.

1 — 3 mm Allen Wrench
2 — 8 mm Open-End Wrench

Content .. 1 2 3 ..
