SAFETY

SAFETY FEATURES

NTI

-L

OCK

RAKE

YSTEM

(ABS)

The ABS provides increased vehicle stability and

brake performance under most braking conditions.

The system automatically prevents wheel lock and

enhances vehicle control during braking.
The ABS performs a self-check cycle to ensure that

the ABS is working properly each time the vehicle

is started and driven. During this self-check, you

may hear a slight clicking sound as well as some

related motor noises.
The ABS is activated during braking when the

system detects one or more wheels are beginning

to lock. Road conditions such as ice, snow, gravel,

bumps, railroad tracks, loose debris, or panic stops

may increase the likelihood of ABS activation(s).
You also may experience the following normal

characteristics when the ABS activates:



ABS motor noise or clicking sounds (you may

continue to hear for a short time after the stop).



Brake pedal pulsations.



A slight drop of the brake pedal at the end of the

stop.

The ABS is designed to function with the Original

Equipment Manufacturer (OEM) tires. Modification

may result in degraded ABS performance.

Anti-Lock Brake System (ABS) Warning

Light

The yellow ABS Warning Light will turn on when the

ignition is placed in the ON/RUN mode and may

stay on for as long as four seconds.
If the ABS Warning Light remains on or comes on

while driving, it indicates that the anti-lock portion

of the brake system is not functioning and that

service is required. However, the conventional

brake system will continue to operate normally if

the ABS Warning Light is on.

WARNING!



The ABS contains sophisticated electronic

equipment that may be susceptible to interfer

ence caused by improperly installed or high

output radio transmitting equipment. This

interference can cause possible loss of

anti-lock braking capability. Installation of

such equipment should be performed by qual

ified professionals.



Pumping of the Anti-Lock Brakes will diminish

their effectiveness and may lead to a collision.

Pumping makes the stopping distance longer.

Just press firmly on your brake pedal when you

need to slow down or stop.



The ABS cannot prevent the natural laws of

physics from acting on the vehicle, nor can it

increase braking or steering efficiency beyond

that afforded by the condition of the vehicle

brakes and tires or the traction afforded.



The ABS cannot prevent collisions, including

those resulting from excessive speed in turns,

following another vehicle too closely, or hydro

planing.



The capabilities of an ABS equipped vehicle

must never be exploited in a reckless or

dangerous manner that could jeopardize the

user’s safety or the safety of others.

WARNING!

170

SAFETY

If the ABS Warning Light is on, the brake system

should be serviced as soon as possible to restore

the benefits of Anti-Lock Brakes. If the ABS

Warning Light does not come on when the ignition

is placed in the ON/RUN mode, have the light

repaired as soon as possible.

LECTRONIC

RAKE

ONTROL

(EBC)

YSTEM

Your vehicle is equipped with an advanced EBC

system. This system includes Anti-Lock Brake

System (ABS), Brake Assist System (BAS),

Electronic Brake Force Distribution (EBD),

Electronic Roll Mitigation (ERM), Electronic

Stability Control (ESC), Hill Start Assist (HSA), and

Traction Control System (TCS). These systems work

together to enhance both vehicle stability and

control in various driving conditions.
Your vehicle may also be equipped with Dynamic

Steering Torque (DST), Hill Descent Control (HDC),

Rain Brake Support (RBS), Ready Alert Braking

(RAB), Selec-Speed Control (SSC), and Trailer Sway

Control (TSC).

Brake Assist System (BAS)

The BAS is designed to optimize the vehicle’s

braking capability during emergency braking

maneuvers. The system detects an emergency

braking situation by sensing the rate and amount

of brake application and then applies optimum

pressure to the brakes. This can help reduce

braking distances. The BAS complements the

Anti-Lock Brake System (ABS). Applying the brakes

very quickly results in the best BAS assistance. To

receive the benefit of the system, you must apply

continuous braking pressure during the stopping

sequence (do not “pump” the brakes). Do not

reduce brake pedal pressure unless braking is no

longer desired. Once the brake pedal is released,

the BAS is deactivated.

Brake System Warning Light

The red Brake System Warning Light will turn on

when the ignition is placed in the ON/RUN mode

and may stay on for as long as four seconds.

If the Brake System Warning Light remains on or

comes on while driving, it indicates that the brake

system is not functioning properly and that

immediate service is required. If the Brake System

Warning Light does not come on when the ignition

is placed in the ON/RUN mode, have the light

repaired as soon as possible.

Dynamic Steering Torque (DST)

DST is a feature of the Electronic Stability Control

(ESC) and the Electric Power Steering (EPS)

modules, that provides torque at the steering

wheel for certain driving conditions, in which the

ESC module is detecting vehicle instability. The

torque that the steering wheel receives is only

meant to help the driver realize optimal steering

behavior in order to reach/maintain vehicle

stability. The only notification the driver receives

that the feature is active is the torque applied to

the steering wheel.

NOTE:

The DST feature is only meant to help the driver

realize the correct course of action through small

torques on the steering wheel, which means the

effectiveness of the DST feature is highly

dependent on the driver’s sensitivity and overall

reaction to the applied torque. It is very important

to realize that this feature will not steer the vehicle,

meaning the driver is still responsible for steering

the vehicle.

WARNING!

The Brake Assist System (BAS) cannot prevent

the natural laws of physics from acting on the

vehicle, nor can it increase the traction afforded

by prevailing road conditions. BAS cannot

prevent collisions, including those resulting from

excessive speed in turns, driving on very slippery

surfaces, or hydroplaning. The capabilities of a

BAS-equipped vehicle must never be exploited in

a reckless or dangerous manner, which could

jeopardize the user's safety or the safety of

others.

SAFETY

171

Electronic Brake Force Distribution (EBD)

EBD function manages the distribution of the

braking torque between the front and rear axles by

limiting braking pressure to the rear axle. This is

done to prevent overslip of the rear wheels to avoid

vehicle instability, and to prevent the rear axle from

entering ABS before the front axle.

Electronic Roll Mitigation (ERM)

ERM anticipates the potential for wheel lift by

monitoring the driver’s steering wheel input and

the speed of the vehicle. When ERM determines

that the rate of change of the steering wheel angle

and vehicle’s speed are sufficient to potentially

cause wheel lift, it then applies the appropriate

brake and may also reduce engine power to lessen

the chance that wheel lift will occur. ERM can only

reduce the chance of wheel lift occurring during

severe or evasive driving maneuvers; it cannot

prevent wheel lift due to other factors, such as

road conditions, leaving the roadway, or striking

objects or other vehicles.

NOTE:

ERM is disabled any time the ESC is in “Full Off”

mode (if equipped)

page 171.

Electronic Stability Control (ESC)

ESC enhances directional control and stability of

the vehicle under various driving conditions. ESC

corrects for oversteering or understeering of the

vehicle by applying the brake of the appropriate

wheel(s) to counteract the above conditions.

Engine power may also be reduced to help the

vehicle maintain the desired path.



Oversteer — when the vehicle is turning more

than appropriate for the steering wheel position.



Understeer — when the vehicle is turning less

than appropriate for the steering wheel position.

ESC uses sensors in the vehicle to determine the

vehicle path intended by the driver and compares

it to the actual path of the vehicle. When the actual

path does not match the intended path, ESC

applies the brake of the appropriate wheel to

assist in counteracting the oversteer or understeer

condition.
The ESC Activation/Malfunction Indicator Light

located in the instrument cluster will start to flash

as soon as the ESC system becomes active. The

ESC Activation/Malfunction Indicator Light also

flashes when the TCS is active. If the ESC

Activation/Malfunction Indicator Light begins to

flash during acceleration, ease up on the

accelerator and apply as little throttle as possible.

Be sure to adapt your speed and driving to the

prevailing road conditions.

WARNING!

Many factors, such as vehicle loading, road

conditions and driving conditions, influence the

chance that wheel lift or rollover may occur. ERM

cannot prevent all wheel lift or rollovers,

especially those that involve leaving the roadway

or striking objects or other vehicles. The

capabilities of an ERM-equipped vehicle must

never be exploited in a reckless or dangerous

manner which could jeopardize the user's safety

or the safety of others.

172

SAFETY

(Continued)

ESC Operating Modes

Depending upon model and mode of operation, the

ESC system may have multiple operating modes.
ESC On
This is the normal operating mode for ESC.

Whenever the vehicle is started, the ESC system

will be in this mode. This mode should be used for

most driving conditions. Alternate ESC modes

should only be used for specific reasons as noted

in the following paragraphs.

Partial Off
This mode may be useful if the vehicle becomes

stuck. This mode may modify TCS and ESC

thresholds for activation, which allows for more

wheel spin than normally allowed.
To enter the “Partial Off” mode, momentarily push

the ESC OFF button and the ESC OFF Indicator

Light will illuminate. To turn the ESC on again,

momentarily push the ESC OFF button and the ESC

OFF Indicator Light will turn off.

NOTE:

For vehicles with multiple partial ESC modes, the

push and release of the button will toggle the ESC

modes. Multiple attempts may be required to

return to “ESC On”.

WARNING!



Electronic Stability Control (ESC) cannot

prevent the natural laws of physics from

acting on the vehicle, nor can it increase the

traction afforded by prevailing road condi

tions. ESC cannot prevent accidents, including

those resulting from excessive speed in turns,

driving on very slippery surfaces, or hydro

planing. ESC also cannot prevent accidents

resulting from loss of vehicle control due to

inappropriate driver input for the conditions.

Only a safe, attentive, and skillful driver can

prevent accidents. The capabilities of an ESC

equipped vehicle must never be exploited in a

reckless or dangerous manner which could

jeopardize the user’s safety or the safety of

others.



Vehicle modifications, or failure to properly

maintain your vehicle, may change the

handling characteristics of your vehicle, and

may negatively affect the performance of the

ESC system. Changes to the steering system,

suspension, braking system, tire type and size

or wheel size may adversely affect ESC perfor

mance. Improperly inflated and unevenly worn

tires may also degrade ESC performance. Any

vehicle modification or poor vehicle mainte

nance that reduces the effectiveness of the

ESC system can increase the risk of loss of

vehicle control, vehicle rollover, personal

injury and death.

WARNING!



When in “Partial Off” mode, the TCS function

ality of ESC (except for the limited slip feature

described in the TCS section) has been

disabled and the ESC OFF Indicator Light will

be illuminated. When in “Partial Off” mode,

the engine power reduction feature of TCS is

disabled, and the enhanced vehicle stability

offered by the ESC system is reduced.



Trailer Sway Control (TSC) is disabled when

the ESC system is in the “Partial Off” mode.

SAFETY

173

(Continued)

Full Off — If Equipped
This mode is intended for off-highway or off-road

use only and should not be used on any public

roadways. In this mode, TCS and ESC features are

turned off. To enter the “Full Off” mode, push and

hold the ESC OFF button for five seconds while the

vehicle is stopped with the engine running. After five

seconds, a chime will sound, the ESC OFF Indicator

Light will illuminate, and the ESC OFF message will

display in the instrument cluster. To turn ESC on

again, momentarily push the ESC OFF button.

NOTE:

System may switch from ESC “Full Off” to “Partial

Off” mode when vehicle exceeds a predetermined

speed. When the vehicle speed slows below the

predetermined speed the system will return to ESC

“Full Off”.
ESC modes may also be affected by drive modes (if

equipped).

ESC Activation/Malfunction Indicator Light

And ESC OFF Indicator Light

The ESC Activation/Malfunction Indicator

Light in the instrument cluster will come

on when the ignition is placed in the ON/

RUN mode. It should turn off with the

engine running. If the ESC Activation/Malfunction

Indicator Light comes on continuously with the

engine running, a malfunction has been detected

in the ESC system. If this light remains on after

several ignition cycles, and the vehicle has been

driven several miles (kilometers) at speeds greater

than 30 mph (48 km/h), see an authorized dealer

as soon as possible to have the problem

diagnosed and corrected.

The ESC Activation/Malfunction Indicator Light

starts to flash as soon as the tires lose traction and

the ESC system becomes active. The ESC

Activation/Malfunction Indicator Light also flashes

when TCS is active. If the ESC Activation/

Malfunction Indicator Light begins to flash during

acceleration, ease up on the accelerator and apply

as little throttle as possible. Be sure to adapt your

speed and driving to the prevailing road conditions.

The ESC OFF Indicator Light indicates

that the Electronic Stability Control (ESC)

is in a reduced mode.

NOTE:



The ESC Activation/Malfunction Indicator Light

and the ESC OFF Indicator Light come on

momentarily each time the ignition is placed in

the ON position.



Each time the ignition is placed in the ON posi

tion, the ESC system will be on even if it was

turned off previously.



The ESC system will make buzzing or clicking

sounds when it is active. This is normal; the

sounds will stop when ESC becomes inactive

following the maneuver that caused the ESC

activation.

WARNING!



In the ESC “Full Off” mode, the engine torque

reduction and stability features are disabled.

Therefore, enhanced vehicle stability offered

by the ESC system is unavailable. In an emer

gency evasive maneuver, the ESC system will

not engage to assist in maintaining stability.

ESC “Full Off” mode is intended for

off-highway or off-road use only.



The Electronic Stability Control (ESC) cannot

prevent the natural laws of physics from

acting on the vehicle, nor can it increase the

traction afforded by prevailing road condi

tions. ESC cannot prevent all accidents,

including those resulting from excessive

speed in turns, driving on very slippery

surfaces, or hydroplaning. ESC also cannot

prevent collisions.

WARNING!

174

SAFETY

Hill Descent Control (HDC) — If Equipped

HDC is intended for low speed off-road driving

while in 4WD Low. HDC maintains vehicle speed

while descending hills during various driving

situations. HDC controls vehicle speed by actively

controlling the brakes.
HDC Has Three States:
1. Off (feature is not enabled and will not

activate).

2. Enabled (feature is enabled and ready but

activation conditions are not met, or driver is

actively overriding with brake or throttle

application).

3. Active (feature is enabled and actively

controlling vehicle speed).

Enabling HDC
HDC is enabled by pushing the HDC button, but the

following conditions must also be met to enable

HDC:



The driveline is in 4WD Low



The vehicle speed is below 5 mph (8 km/h)



The parking brake is released



The driver door is closed

Activating HDC
Once HDC is enabled it will activate automatically

if driven down a grade of sufficient magnitude. The

set speed for HDC is selectable by the driver, and

can be adjusted by using the gear shift +/-. The

following summarizes the HDC set speeds:
HDC Target Set Speeds



P = No set speed. HDC may be enabled but will

not activate.



R = 0.6 mph (1 km/h)



N = 1.2 mph (2 km/h)



D = 0.6 mph (1 km/h)



1st = 0.6 mph (1 km/h)



2nd = 1.2 mph (2 km/h)



3rd = 1.8 mph (3 km/h)



4th = 2.5 mph (4 km/h)



5th = 3.1 mph (5 km/h)



6th = 3.7 mph (6 km/h)



7th = 4.3 mph (7 km/h)



8th = 5.0 mph (8 km/h)



9th = 5.6 mph (9 km/h) – If Equipped

NOTE:

During HDC the +/- shifter input is used for HDC

target speed selection, but will not affect the gear

chosen by the transmission. When actively

controlling HDC the transmission will shift appro

priately for the driver-selected set speed and corre

sponding driving conditions.
Driver Override
The driver may override HDC activation with

throttle or brake application at any time.
Deactivating HDC
HDC will be deactivated but remain available if any

of the following conditions occur:



Driver overrides HDC set speed with throttle or

brake application.



Vehicle speed exceeds 20 mph (32 km/h) but

remains below 40 mph (64 km/h).



Vehicle is on a downhill grade of insufficient

magnitude, is on level ground, or is on an uphill

grade.



Vehicle is shifted to PARK.

SAFETY

175

Disabling HDC
HDC will be deactivated and disabled if any of the

following conditions occur:



The driver pushes the HDC button.



The driveline is shifted out of 4WD Low.



The parking brake is applied.



The driver door opens.



The vehicle is driven greater than 20 mph

(32 km/h) for greater than 70 seconds.



The vehicle is driven greater than 40 mph

(64 km/h) (HDC exits immediately).



HDC detects excessive brake temperature.

Feedback To The Driver
The instrument cluster has an HDC icon and the

HDC button has an LED icon, which offers

feedback to the driver about the state HDC is in.



The cluster icon and button lamp will illuminate

and remain on solid when HDC is enabled or

activated. This is the normal operating condition

for HDC.



The cluster icon and button lamp will flash for

several seconds then extinguish when the driver

pushes the HDC button but enable conditions

are not met.



The cluster icon and button lamp will flash for

several seconds then extinguish when HDC

disables due to excess speed.



The cluster icon and button lamp will flash when

HDC deactivates due to overheated brakes. The

flashing will stop and HDC will activate again

once the brakes have cooled sufficiently.

Hill Start Assist (HSA)

HSA is designed to mitigate roll back from a

complete stop while on an incline. If the driver

releases the brake while stopped on an incline,

HSA will continue to hold the brake pressure for a

short period. If the driver does not apply the

throttle before this time expires, the system will

release brake pressure and the vehicle will roll

down the hill as normal.
The following conditions must be met in order for

HSA to activate:



The feature must be enabled.



The vehicle must be stopped.



The parking brake must be off.



The driver door must be closed.



The vehicle must be on a sufficient grade.



The gear selection must match vehicle uphill

direction (i.e., vehicle facing uphill is in forward

gear; vehicle backing uphill is in REVERSE gear).



HSA will work in REVERSE gear and all forward

gears. The system will not activate if the trans

mission is in PARK or NEUTRAL.

WARNING!

HDC is only intended to assist the driver in

controlling vehicle speed when descending hills.

The driver must remain attentive to the driving

conditions and is responsible for maintaining a

safe vehicle speed.

WARNING!

There may be situations where the Hill Start

Assist (HSA) will not activate and slight rolling

may occur, such as on minor hills or with a

loaded vehicle, or while pulling a trailer. HSA is

not a substitute for active driving involvement. It

is always the driver’s responsibility to be

attentive to distance to other vehicles, people,

and objects, and most importantly brake

operation to ensure safe operation of the vehicle

under all road conditions. Your complete

attention is always required while driving to

maintain safe control of your vehicle. Failure to

follow these warnings can result in a collision or

serious personal injury.

176

SAFETY

Disabling And Enabling HSA

This feature can be turned on or turned off. To

change the current setting, proceed as follows:



If disabling HSA using your instrument cluster

display

page 74



If disabling HSA using Uconnect Settings

page 150

Towing With HSA

HSA will also provide assistance to mitigate roll

back while towing a trailer.

Rain Brake Support (RBS)

RBS may improve braking performance in wet

conditions. It will periodically apply a small amount

of brake pressure to remove any water buildup on

the front brake rotors. It functions when the

windshield wipers are in LO or HI speed. When RBS

is active, there is no notification to the driver and

no driver interaction is required.

Ready Alert Braking (RAB)

RAB may reduce the time required to reach full

braking during emergency braking situations. It

anticipates when an emergency braking situation

may occur by monitoring how fast the throttle is

released by the driver. The Electronic Brake

Controller (EBC) will prepare the brake system for

a panic stop.

Selec-Speed Control (SSC) — If Equipped

SSC is intended for off-road driving in 4WD Low

only. SSC maintains vehicle speed by actively

controlling engine torque and brakes.
SSC has three states:
1. Off (feature is not enabled and will not activate).
2. Enabled (feature is enabled and ready but

activation conditions are not met, or driver is

actively overriding with brake or throttle

application).

3. Active (feature is enabled and actively

controlling vehicle speed).

Enabling SSC
SSC is enabled by pushing the SSC button, but the

following conditions must also be met to enable

SSC:



The driveline is in 4WD Low



The vehicle speed is below 5 mph (8 km/h)



The parking brake is released



The driver door is closed



The driver is not applying throttle

Activating SSC
Once SSC is enabled it will activate automatically

once the following conditions are met:



Driver releases throttle



Driver releases brake



Transmission is in any selection other than

PARK (P)



Vehicle speed is below 20 mph (32 km/h)

The set speed for SSC is selectable by the driver,

and can be adjusted by using the gear shift +/-.

Additionally, the SSC set speed may be reduced

when climbing a grade and the level of set speed

reduction depends on the magnitude of grade. The

following summarizes the SSC set speeds:
SSC Target Set Speeds



1st = .6 mph (1 km/h)



2nd = 1.2 mph (2 km/h)

WARNING!



If you use a trailer brake controller with your

trailer, the trailer brakes may be activated and

deactivated with the brake switch. If so, there

may not be enough brake pressure to hold

both the vehicle and the trailer on a hill when

the brake pedal is released. In order to avoid

rolling down an incline while resuming accel

eration, manually activate the trailer brake or

apply more vehicle brake pressure prior to

releasing the brake pedal.



HSA is not a parking brake. Always apply the

parking brake fully when exiting your vehicle.

Also, be certain to place the transmission in

PARK (P).



Failure to follow these warnings can result in a

collision or serious personal injury.

SAFETY

177



3rd = 1.8 mph (3 km/h)



4th = 2.5 mph (4 km/h)



5th = 3.1 mph (5 km/h)



6th = 3.7 mph (6 km/h)



7th = 4.3 mph (7 km/h)



8th = 5 mph (8 km/h)



9th = 5.6 mph (9 km/h) – If Equipped



REVERSE = .6 mph (1 km/h)



NEUTRAL = 1.2 mph (2 km/h)



PARK = SSC remains enabled but not active

NOTE:



During SSC the +/- shifter input is used for SSC

target speed selection but will not affect the

gear chosen by the transmission. While actively

controlling SSC the transmission will shift appro

priately for the driver-selected set speed and

corresponding driving conditions.



SSC performance is influenced by the

Selec-Terrain mode. This difference may be

notable to the driver and may be perceived as a

varying level of aggressiveness.

Driver Override:
The driver may override SSC activation with throttle

or brake application at any time.

Deactivating SSC
SSC will be deactivated but remain available if any

of the following conditions occur:



Driver overrides SSC set speed with throttle or

brake application.



Vehicle speed exceeds 20 mph (32 km/h) but

remains below 40 mph (64 km/h).



Vehicle is shifted to PARK.

Disabling SSC
SSC will deactivate and be disabled if any of the

following conditions occur:



The driver pushes the SSC button.



The driveline is shifted out of 4WD Low.



The parking brake is applied.



The driver door opens.



The vehicle is driven greater than 20 mph

(32 km/h) for greater than 70 seconds.



The vehicle is driven greater than 40 mph

(64 km/h) (SSC exits immediately).

Feedback To The Driver:
The instrument cluster has an SSC icon and the

SSC button has an LED which offers feedback to

the driver about the state SSC is in.



The cluster icon and button lamp will illuminate

and remain on solid when SSC is enabled or

activated. This is the normal operating condition

for SSC.



The cluster icon and button lamp will flash for

several seconds then extinguish when the driver

pushes the SSC button but enable conditions

are not met.



The cluster icon and button lamp will flash for

several seconds then extinguish when SSC

disables due to excess speed.



The cluster icon and button lamp will flash then

extinguish when SSC deactivates due to over

heated brakes.

WARNING!

SSC is only intended to assist the driver in con

trolling vehicle speed when driving in off road

conditions. The driver must remain attentive to

the driving conditions and is responsible for

maintaining a safe vehicle speed.

178

SAFETY

Traction Control System (TCS)

The TCS monitors the amount of wheel spin of

each of the driven wheels. If wheel spin is

detected, the TCS may apply brake pressure to the

spinning wheel(s) and/or reduce engine power to

provide enhanced acceleration and stability. A

feature of the TCS, Brake Limited Differential (BLD)

functions similarly to a limited slip differential and

controls the wheel spin across a driven axle. If one

wheel on a driven axle is spinning faster than the

other, the system will apply the brake of the

spinning wheel. This will allow more engine torque

to be applied to the wheel that is not spinning. BLD

may remain enabled even if TCS and Electronic

Stability Control (ESC) are in reduced modes.

Trailer Sway Control (TSC)

TSC uses sensors in the vehicle to recognize an

excessively swaying trailer and will take the

appropriate actions to attempt to stop the sway.

NOTE:

TSC cannot stop all trailers from swaying. Always

use caution when towing a trailer and follow the

trailer tongue weight recommendations

page 136.

When TSC is functioning, the ESC Activation/

Malfunction Indicator Light will flash, the engine

power may be reduced and you may feel the

brakes being applied to individual wheels to

attempt to stop the trailer from swaying. TSC is

disabled when the ESC system is in the “Partial

Off” or “Full Off” modes.

AUXILIARY DRIVING SYSTEMS

LIND

POT

ONITORING

(BSM) —

QUIPPED

BSM uses two radar sensors, located inside the

rear fascia/bumper, to detect highway licensable

vehicles (automobiles, trucks, motorcycles, etc.)

that enter the blind spot zones from the rear/front/

side of the vehicle.

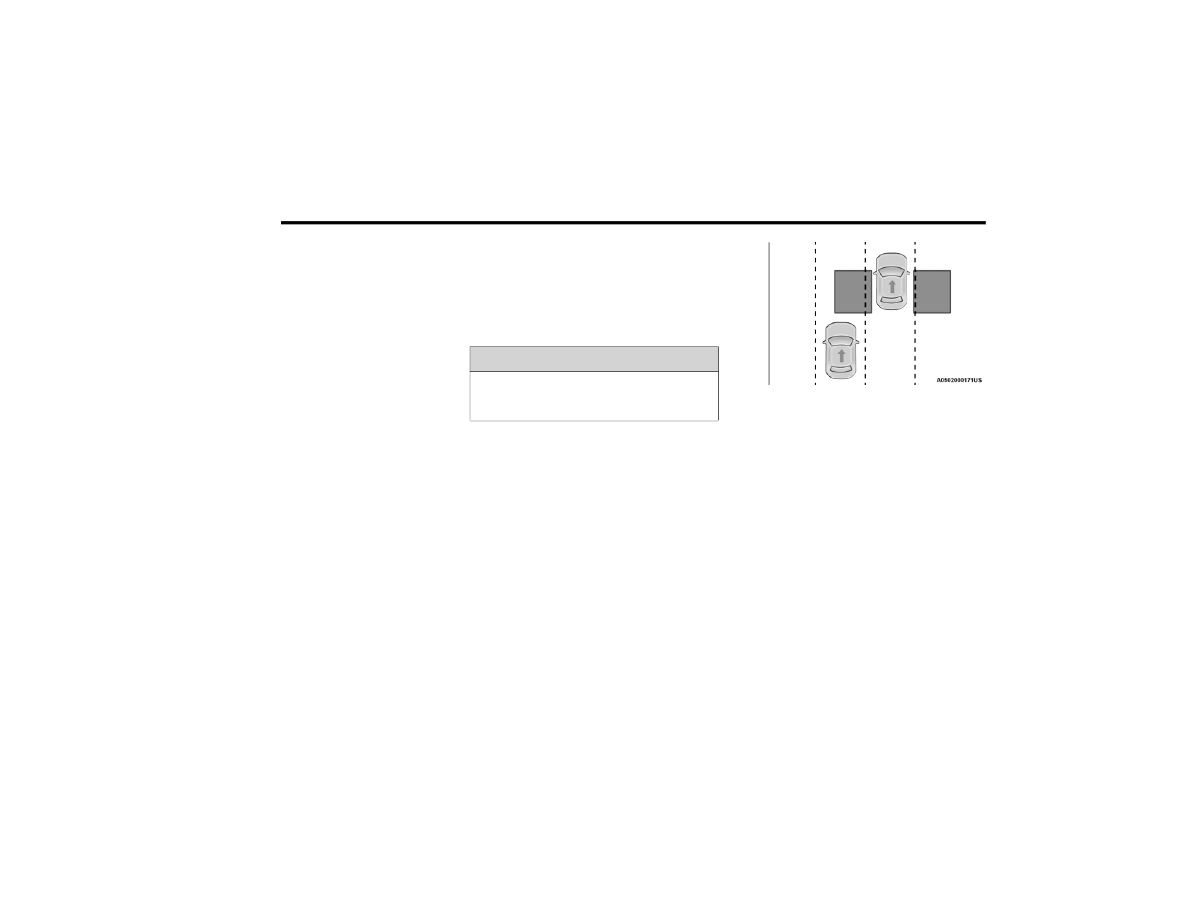

Rear Detection Zones

When the vehicle is started, the BSM Warning Light

will momentarily illuminate in both outside

rearview mirrors to let the driver know that the

system is operational. The BSM system sensors

operate when the vehicle is in any forward gear

and enters standby mode when the vehicle is in

PARK (P).
The BSM detection zone covers approximately one

lane width on both sides of the vehicle 12 ft

(3.7 m). The zone length starts at the outside

mirror and extends approximately 10 ft (3 m)

beyond the rear fascia/bumper of the vehicle. The

BSM system monitors the detection zones on both

sides of the vehicle when the vehicle speed

reaches approximately 6 mph (10 km/h) or higher

and will alert the driver of vehicles in these areas.

WARNING!

If TSC activates while driving, slow the vehicle

down, stop at the nearest safe location, and

adjust the trailer load to eliminate trailer sway.

SAFETY

179

NOTE:



The BSM system DOES NOT alert the driver

about rapidly approaching vehicles that are

outside the detection zones.



The BSM system detection zone DOES NOT

change if your vehicle is towing a trailer. There

fore, visually verify the adjacent lane is clear for

both your vehicle and trailer before making a

lane change. If the trailer or other object (i.e.,

bicycle, sports equipment) extends beyond the

side of your vehicle, this may result in the BSM

Warning Light remaining illuminated the entire

time the vehicle is in a forward gear

page 150.



The Blind Spot Monitoring (BSM) system may

experience dropouts (blinking on and off) of the

side mirror warning indicator lamps when a

motorcycle or any small object remains at the

side of the vehicle for extended periods of time

(more than a couple of seconds).

The area on the rear fascia/bumper where the

radar sensors are located must remain free of

snow, ice, and dirt/road contamination so that the

BSM system can function properly. Do not block

the area of the rear fascia/bumper where the

radar sensors are located with foreign objects

(bumper stickers, bicycle racks, etc.).

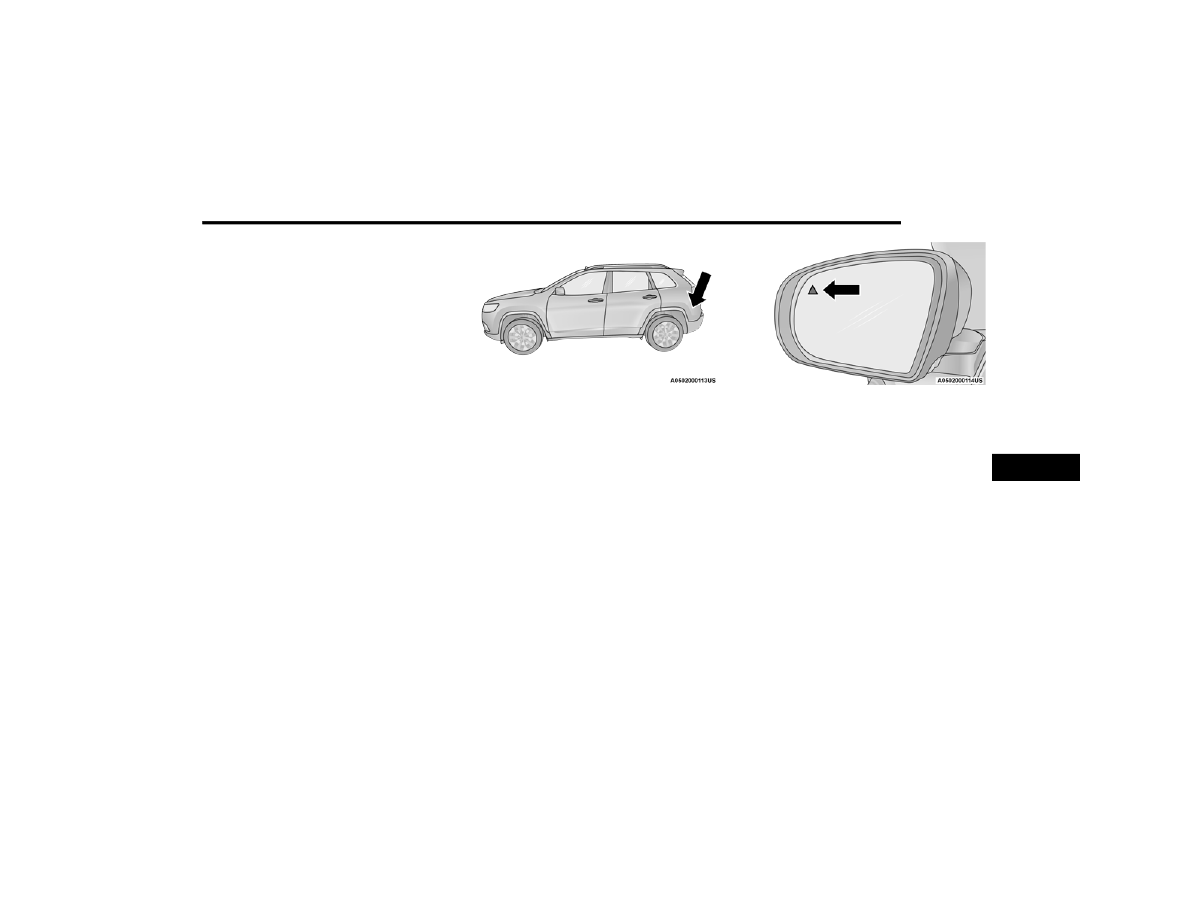

Sensor Location

The BSM system will provide a visual alert in the

appropriate side view mirror based on a detected

object. If the turn signal is then activated, and it

corresponds to an alert present on that side of the

vehicle, an audible chime will also be sounded.

Whenever a turn signal and detected object are

present on the same side at the same time, both

the visual and audio alerts will be issued. In

addition to the audible alert the radio (if on) will

also be muted.

Warning Light Location

The BSM system monitors the detection zone from

three different entry points (side, rear, front) while

driving to see if an alert is necessary. The BSM

system will issue an alert during these types of

zone entries.

180

SAFETY

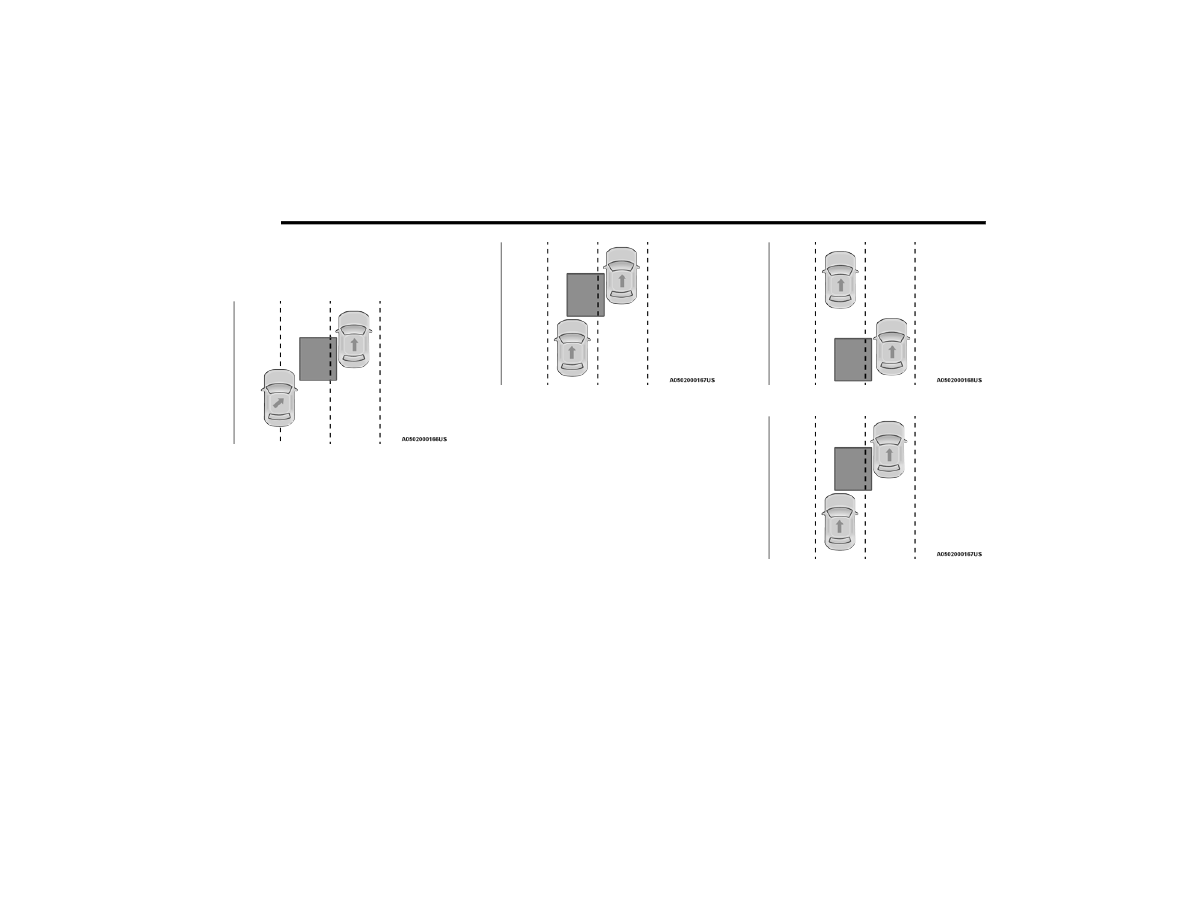

Entering From The Side
Vehicles that move into your adjacent lanes from

either side of the vehicle.

Side Monitoring

Entering From The Rear
Vehicles that come up from behind your vehicle on

either side and enter the rear detection zone with

a relative speed of less than 30 mph (48 km/h).

Rear Monitoring

Overtaking Traffic
If you pass another vehicle slowly with a relative

speed less than 15 mph (24 km/h) and the vehicle

remains in the blind spot for approximately 1.5

seconds, the warning light will be illuminated. If the

difference in speed between the two vehicles is

greater than 15 mph (24 km/h), the warning light

will not illuminate.

Overtaking/Approaching

Overtaking/Passing

The BSM system is designed not to issue an alert

on stationary objects such as guardrails, posts,

walls, foliage, berms, etc. However, occasionally

the system may alert on such objects. This is

normal operation and your vehicle does not require

service.

SAFETY

181

The BSM system will not alert you of objects that

are traveling in the opposite direction of the vehicle

in adjacent lanes

page 308.

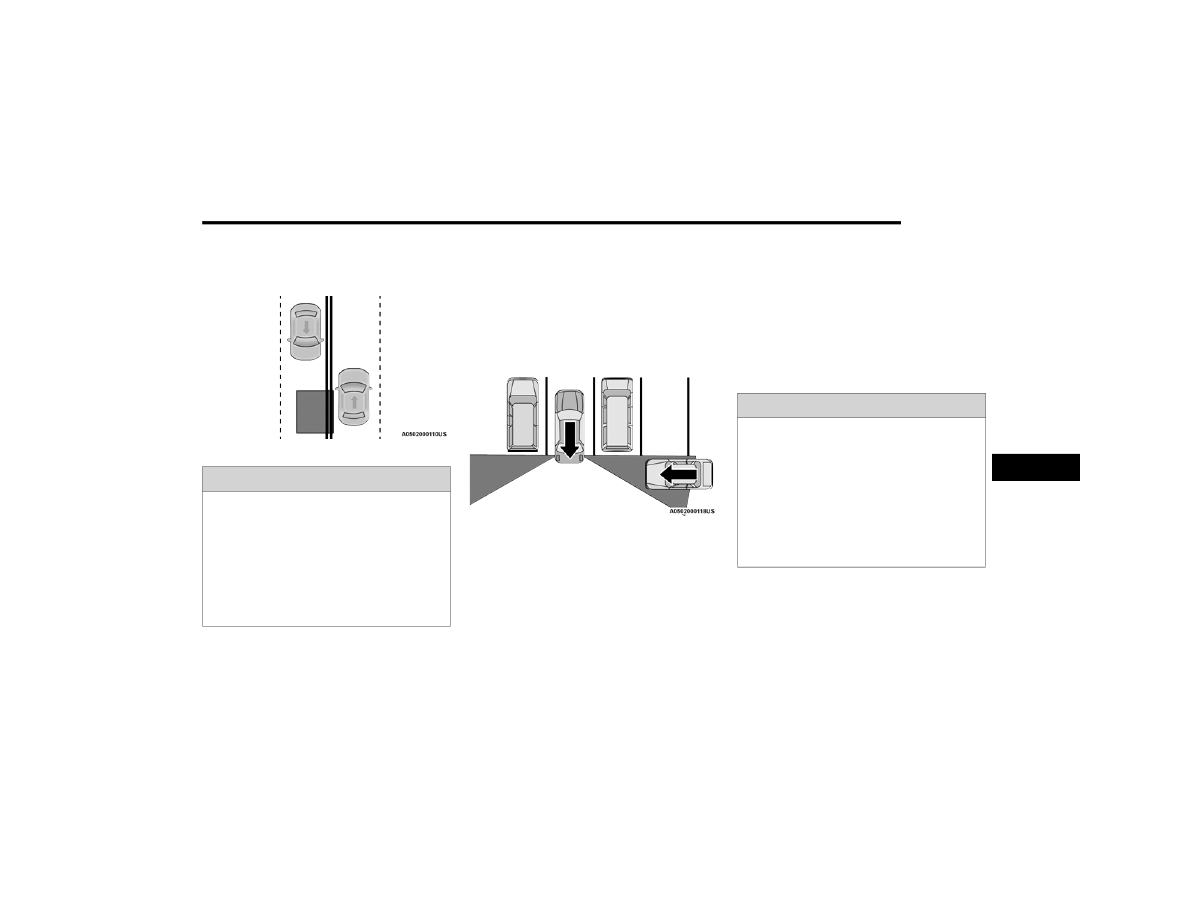

Opposing Traffic

Rear Cross Path (RCP)

RCP is intended to aid the driver when backing out

of parking spaces where their vision of oncoming

vehicles may be blocked. Proceed slowly and

cautiously out of the parking space until the rear

end of the vehicle is exposed. The RCP system will

then have a clear view of the cross traffic and if an

oncoming vehicle is detected, alert the driver.

RCP Detection Zones

RCP monitors the rear detection zones on both

sides of the vehicle, for objects that are moving

toward the side of the vehicle with a minimum

speed of approximately 3 mph (5 km/h), to objects

moving a maximum of approximately 20 mph

(32 km/h), such as in parking lot situations.

When RCP is on and the vehicle is in REVERSE (R),

the driver is alerted using both the visual and

audible alarms, including reducing the radio

volume.

NOTE:

In a parking lot situation, oncoming vehicles can be

blocked by vehicles parked on either side. If the

sensors are blocked by other structures or

vehicles, the system will not be able to alert the

driver.

WARNING!

The Blind Spot Monitoring system is only an aid

to help detect objects in the blind spot zones.

The BSM system is not designed to detect

pedestrians, bicyclists, or animals. Even if your

vehicle is equipped with the BSM system, always

check your vehicle’s mirrors, glance over your

shoulder, and use your turn signal before

changing lanes. Failure to do so can result in

serious injury or death.

WARNING!

Rear Cross Path Detection (RCP) is not a backup

aid system. It is intended to be used to help a

driver detect an oncoming vehicle in a parking

lot situation. Drivers must be careful when

backing up, even when using RCP. Always check

carefully behind your vehicle, look behind you,

and be sure to check for pedestrians, animals,

other vehicles, obstructions, and blind spots

before backing up. Failure to do so can result in

serious injury or death.

182

SAFETY

Blind Spot Modes

Blind Spot has three selectable modes of

operation that are available in the Uconnect

system

page 150.

Blind Spot Alert Lights Only
When operating in Blind Spot Alert mode, the BSM

system will provide a visual alert in the appropriate

side view mirror based on a detected object.

However, when the system is operating in Rear

Cross Path (RCP) mode, the system will respond

with both visual and audible alerts when a

detected object is present. Whenever an audible

alert is requested, the radio is muted.
Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/Chime

mode, the BSM system will provide a visual alert in

the appropriate side view mirror based on a

detected object. If the turn signal is then activated,

and it corresponds to an alert present on that side

of the vehicle, an audible chime will also be

sounded. Whenever a turn signal and detected

object are present on the same side at the same

time, both the visual and audible alerts will be

issued. In addition to the audible alert the radio (if

on) will also be muted.

NOTE:

Whenever an audible alert is requested by the

BSM system, the radio is also muted.
When the system is in RCP, the system shall

respond with both visual and audible alerts when a

detected object is present. Whenever an audible

alert is requested, the radio is also muted. Turn/

hazard signal status is ignored; the RCP state

always requests the chime.
Blind Spot Alert Off
When the BSM system is turned off there will be no

visual or audible alerts from either the BSM or RCP

systems.

NOTE:

The BSM system will store the current operating

mode when the vehicle is shut off. Each time the

vehicle is started the previously stored mode will

be recalled and used.

ORWARD

OLLISION

ARNING

(FCW)

ITH

ITIGATION

— I

QUIPPED

FCW with Mitigation provides the driver with

audible warnings, visual warnings (within the

instrument cluster display), and may apply a haptic

warning to warn the driver when it detects a

potential frontal collision. The warnings are

intended to provide the driver with enough time to

react, avoid or mitigate the potential collision.

NOTE:

FCW monitors the information from the forward

looking sensors as well as the Electronic Brake

Controller (EBC), to calculate the probability of a

forward collision. When the system determines

that a forward collision is probable, the driver will

be provided with audible and visual warnings and

may provide a haptic warning in the form of a brake

jerk.
If the driver does not take action based upon these

progressive warnings, then the system will provide

a limited level of active braking to help slow the

vehicle and mitigate the potential forward collision.

If the driver reacts to the warnings by braking and

the system determines that the driver intends to

avoid the collision by braking but has not applied

sufficient brake force, the system will compensate

and provide additional brake force as required.
If a Forward Collision Warning with Mitigation event

begins at a speed below 32 mph (52 km/h), the

system may provide the maximum braking

possible to mitigate the potential forward collision.

If the Forward Collision Warning with Mitigation

event stops the vehicle completely, the system will

hold the vehicle at standstill for two seconds and

then release the brakes.

SAFETY

183

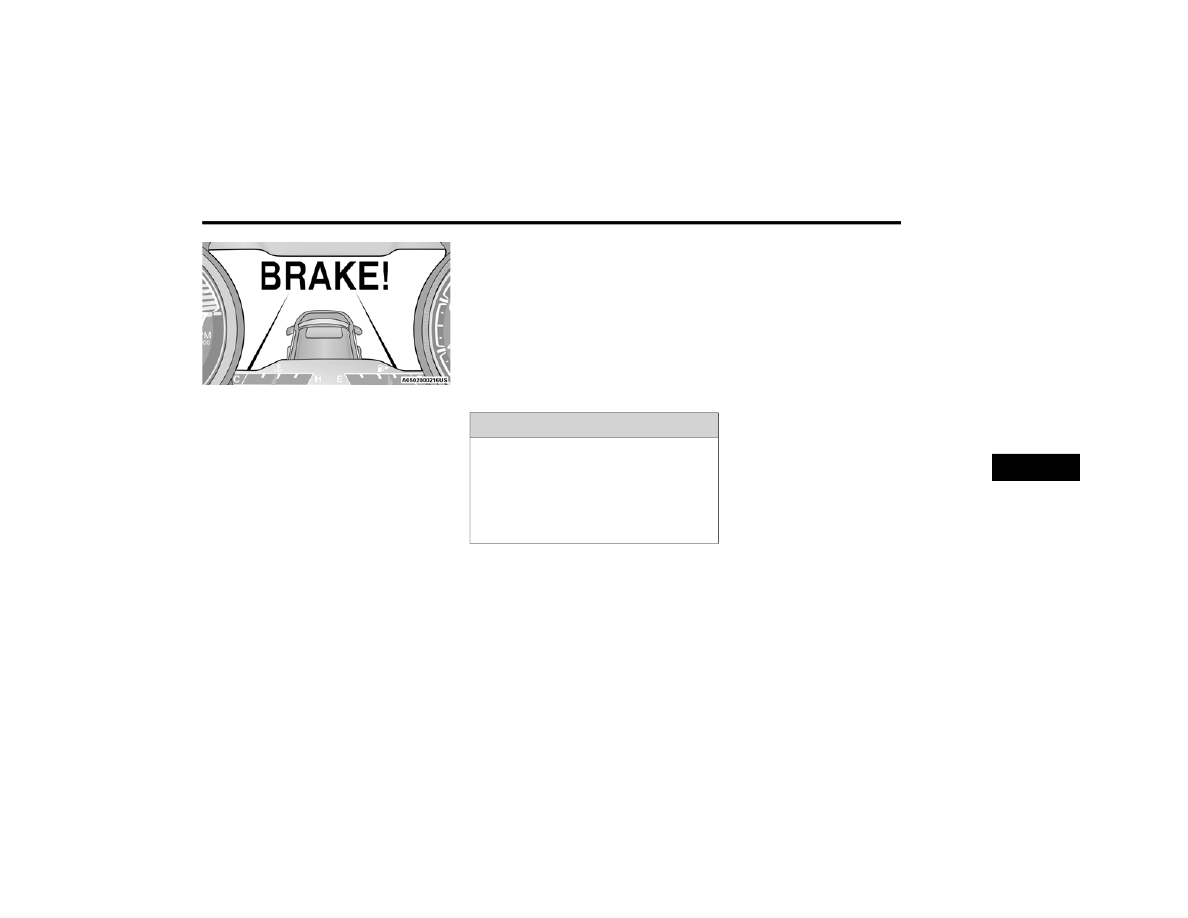

FCW Message

When the system determines a collision with the

vehicle in front of you is no longer probable, the

warning message will be deactivated

page 308.

NOTE:



The minimum speed for FCW activation is

1 mph (2 km/h).



The FCW alerts may be triggered on objects

other than vehicles such as guard rails or sign

posts based on the course prediction. This is

expected and is a part of normal FCW activation

and functionality.



It is unsafe to test the FCW system. To prevent

such misuse of the system, after four Active

Braking events within a key cycle, the Active

Braking portion of FCW will be deactivated until

the next key cycle.



The FCW system is intended for on-road use

only. If the vehicle is taken off-road, the FCW

system should be deactivated to prevent unnec

essary warnings to the surroundings.



FCW may not react to irrelevant objects such as

overhead objects, ground reflections, objects

not in the path of the vehicle, stationary objects

that are far away, oncoming traffic, or leading

vehicles with the same or higher rate of speed.



FCW will be disabled like ACC, with the unavail

able screens.

Turning FCW On Or Off

The FCW button is located in the Uconnect display

in the control settings

page 150.



To turn the FCW system on, press the forward

collision button once.



To turn the FCW system off, press the forward

collision button once.

NOTE:



When the FCW is “on”, this allows the system to

warn the driver of a possible collision with the

vehicle in front.



When the FCW is “off”, this prevents the system

from warning the driver of a possible collision

with the vehicle in front. If the FCW is set to “off”,

“FCW OFF" will be displayed in the instrument

cluster display.



When FCW status is set to “Only Warning”, this

prevents the system from providing limited

active braking, or additional brake support if the

driver is not braking adequately in the event of

a potential frontal collision.



When FCW status is set to “Warning and

Braking”, this allows the system to warn the

driver of a possible collision with the vehicle in

front using audible/visual warnings and it

applies autonomous braking.



The system will retain the last setting selected

by the driver after ignition shutdown.

WARNING!

Forward Collision Warning (FCW) is not intended

to avoid a collision on its own, nor can FCW

detect every type of potential collision. The driver

has the responsibility to avoid a collision by

controlling the vehicle via braking and steering.

Failure to follow this warning could lead to

serious injury or death.

184

SAFETY

FCW Braking Status And Sensitivity

The FCW Sensitivity and Active Braking status are

programmable through the Uconnect system

page 150.



Far



When the sensitivity of FCW is set to the

“Far” setting and the system status is “Only

Warning”, this allows the system to warn the

driver of a possible more distant collision

with the vehicle in front using audible/

visual warnings.



More cautious drivers that do not mind

frequent warnings may prefer this setting.



Medium



When the sensitivity of FCW is set to the

“Medium” setting and the system status is

“Only Warning”, this allows the system to

warn the driver of a possible collision with

the vehicle in front using audible/visual

warnings.



Near



When the sensitivity of FCW is set to the

“Near” setting and the system status is

“Only Warning”, this allows the system to

warn the driver of a possible closer collision

with the vehicle in front using audible/

visual warnings.



This setting provides less reaction time than

the “Far” and “Medium” settings, which

allows for a more dynamic driving experi

ence.



More dynamic or aggressive drivers that

want to avoid frequent warnings may prefer

this setting.

FCW Limited Warning

If the instrument cluster display reads “ACC/FCW

Limited Functionality” or “ACC/FCW Limited

Functionality Clean Front Windshield”

momentarily, there may be a condition that limits

FCW functionality. Although the vehicle is still

drivable under normal conditions, the active

braking may not be fully available. Once the

condition that limited the system performance is

no longer present, the system will return to its full

performance state. If the problem persists, see an

authorized dealer.

Service FCW Warning

If the system turns off, and the instrument cluster

display reads:



ACC/FCW Unavailable Service Required



Cruise/FCW Unavailable Service Required

This indicates there is an internal system fault.

Although the vehicle is still driveable under normal

conditions, have the system checked by an

authorized dealer.

IRE

RESSURE

ONITORING

YSTEM

(TPMS)

The TPMS will warn the driver of a low tire pressure

based on the vehicle recommended cold placard

pressure.
The tire pressure will vary with temperature by

approximately 1 psi (7 kPa) for every 12°F (6.5°C).

This means that when the outside temperature

decreases, the tire pressure will decrease. Tire

pressure should always be set based on cold

inflation tire pressure. This is defined as the tire

pressure after the vehicle has not been driven for

at least three hours, or driven less than 1 mile

(1.6 km) after a three hour period. The cold tire

inflation pressure must not exceed the maximum

inflation pressure molded into the tire sidewall.

The tire pressure will also increase as the vehicle

is driven. This is normal and there should be no

adjustment for this increased pressure.
See

page 279 on how to properly inflate the

vehicle’s tires.
The TPMS will warn the driver of a low tire pressure

if the tire pressure falls below the low-pressure

warning limit for any reason, including low

temperature effects and natural pressure loss

through the tire.

Jeep Cherokee (2022 year). Manual in english - page 11
