4. Unhook the door strap from the body hook. Be careful
not to allow the door to swing fully open as the mirror
may damage the paint.

5. With the door open, lift the door to clear the hinge pins
from their hinges and remove the door.

NOTE:

Doors are heavy; use caution when removing

them.

To reinstall the door(s), perform the previous steps in the
opposite order.

Rear Door Removal (Four-Door Models)

WARNING!

Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.

1. Roll down the glass window to prevent any damage.

2. Remove the hinge pin screws from the upper and
lower outside hinges (using a #T50 Torx

威 head driver).

NOTE:

The hinge pin screws and nuts can be stowed in

the rear cargo tray located under the rear loadfloor.

Hinge Pin Screw

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Slide the front seat(s) fully forward.

4. Remove the trim access door from the bottom of the
B-pillar.

5. Unplug the wiring harness connector.

NOTE:

If the red latch on the connector is locked, push

the red latch to the right until you can only see the latch
on one end (right) of the connector. This will unlock the
connector tab, allowing the tab to be pressed down and
enabling the harness to be disconnected.

6. Unhook the door strap from the body hook.

Trim Access Door

Red Connector Latch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

7. With the door open, lift the door to clear the hinge pins
from their hinges and remove the door.

NOTE:

Doors are heavy; use caution when removing

them.

To reinstall the door(s), perform the previous steps in the
opposite order.

DOOR LOCKS

Manual Door Locks
All doors are equipped with an interior rocker-type door
lock lever. To lock a door when leaving your vehicle,
press the rocker lever forward to the LOCK position and
close the door. To UNLOCK the door press the rocker
lever rearward.

Manual Door Lock (Full Frame Doors)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The ignition key that is used to start the vehicle

is used to lock or unlock the doors, swing gate, glove
compartment, and console storage.

WARNING!

• For personal security reasons and safety in an

accident, lock the vehicle doors when you drive, as
well as when you p ark and leave the vehicle.

• When leaving the vehicle, always remove the key

fob from the ignition and lock your vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.

• Do not leave the key in or near the vehicle. A child

could operate power windows, other controls, or
move the vehicle.

Manual Door Lock (Half Doors)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Power Door Locks — If Equipped
The power door lock switch is located on each front door
panel. Press the switch forward to lock the doors, and
rearward to unlock the doors.

WARNING!

• For personal security reasons and safety in an

accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.

• When leaving the vehicle, always remove the key

fob from the ignition and lock your vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.

• Do not leave the key in or near the vehicle. A child

could operate power windows, other controls, or
move the vehicle.

Power Door Lock Switch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Automatic Door Locks — If Equipped
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 15 mph (24 km/h). The
auto door lock feature can be enabled or disabled by your
authorized dealer per written request of the customer.
Please see your authorized dealer for service.

Automatic Unlock Doors On Exit
The doors will unlock automatically on vehicles with
power door locks if:

1. The “Automatic Unlock Doors On Exit” feature is
enabled.

2. The vehicle speed returned to 0 mph (0 km/h) and the
transmission shift lever is in NEUTRAL or PARK.

3. The driver door is opened.

4. The doors were not previously unlocked.

Automatic Unlock Doors On Exit Programming
The “Automatic Unlock Doors On Exit” feature can be
enabled or disabled as follows:

1. Close all doors and place the key in the ignition.

2. Cycle the ignition switch between LOCK and ON/
RUN and then back to LOCK four times ending up in the
LOCK position.

3. Press the power door unlock switch to unlock the
doors.

4. A single chime will indicate the completion of the
programming.

5. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Use the “Automatic Unlock Doors On Exit”

feature in accordance with local laws.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Child-Protection Door Lock System — Rear
Doors
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.

To Engage Or Disengage The Child-Protection
Door Lock System

1. Open the rear door.

2. Insert the tip of the ignition key into the lock and
rotate to the LOCK or UNLOCK position.

3. Repeat steps 1 and 2 for the opposite rear door.

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged.

Child-Protection Door Lock Function

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

For emergency exit with the system engaged,

move the rocker lever rearward (unlocked position), roll
down the window and open the door with the outside
door handle.

WINDOWS

Power Windows — If Equipped
The power window switches are located on the instru-
ment panel below the radio. Press the switch downward
to open the window and upward to close the window.

The top left switch controls the left front window and the
top right switch controls the right front window.

NOTE:

The switches will continue to function for up to

10 minutes after the ignition key has been turned to the
LOCK position, or until a front door is opened.

Power Window Switches

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Four-Door Models
The lower left switch controls the left rear passenger
window, and the lower right switch controls the right
rear passenger window.

Auto-Down
Both the driver and front passenger window switches
have an “Auto-Down” feature. Press the window switch
past the first detent, release, and the window will go
down automatically. To cancel the Auto-Down move-
ment, operate the switch in either the up or down
direction and release the switch.

To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.

To partially open the window, press halfway to the first
detent and release it when you want the window to stop.

Window Lockout Switch — Four-Door Models
The window lockout switch (located between the front
window switches) allows you to disable the rear window
switches that are located on the back of the center floor
console. To disable the window controls, press the win-
dow lockout button downward. To enable the window
controls, press the window lockout button upward.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Rear Power Windows — Four-Door Models
The rear passenger window switches are located on the
back of the center floor console. Press the switch down-
ward to open the window and upward to close the
window.

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down in certain open or partially open posi-
tions. This is a normal occurrence and can be minimized
by adjusting the window opening.

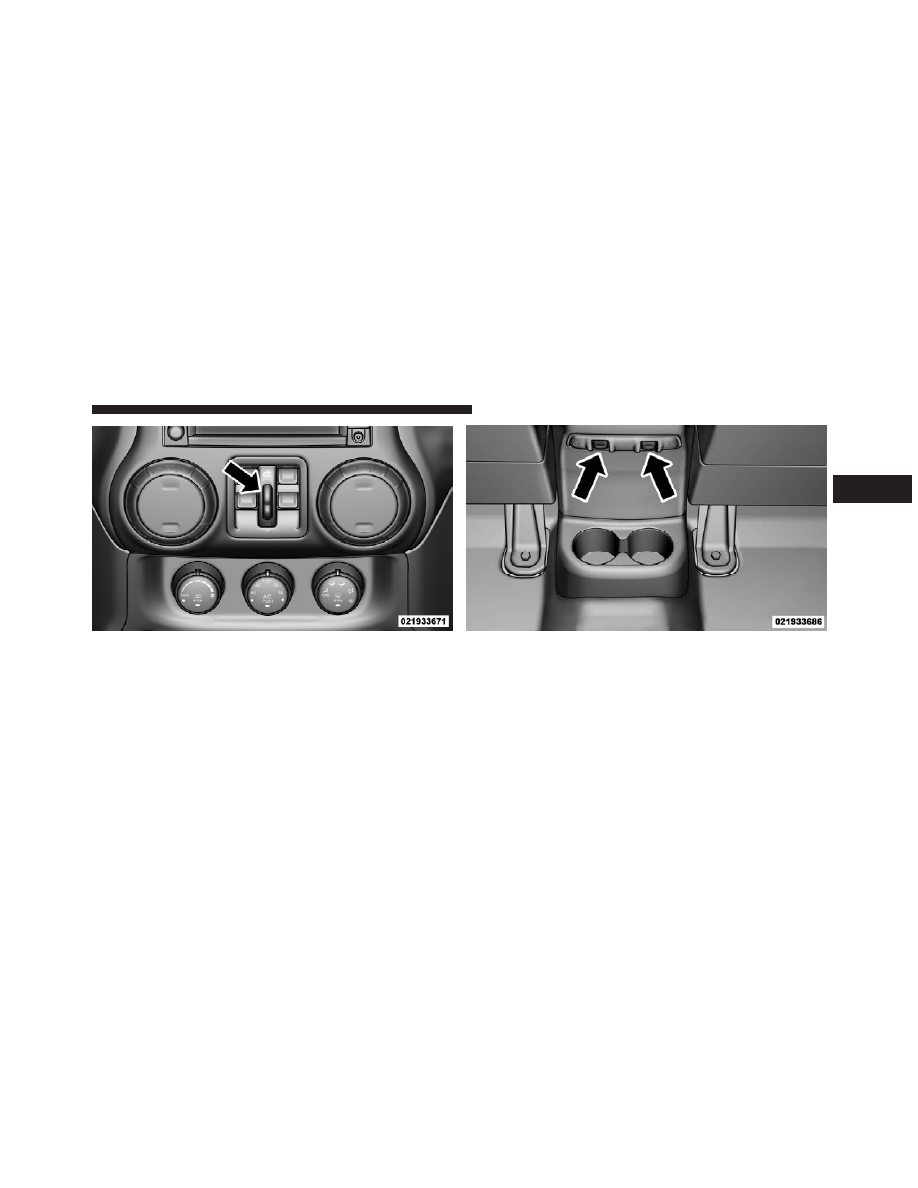

Window Lockout Switch

Rear Power Window Switches (Four-Door Models)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REAR SWING GATE
The rear swing gate can be unlocked by using the key,
Remote Keyless Entry (RKE) transmitter, or by activating
the power door lock switches located on the front doors.

To open the swing gate, press the button on the gate
handle.

NOTE:

Close the rear flip-up window before attempting

to close the swing gate (hard top models only).

CAUTION!

Do not press on rear wiper blade when closing the
rear flip-up window, as damage to the blade will
result.

WARNING!

Driving with the flip-up window open can allow
poisonous exhaust gases into your vehicle. You and
your passengers could be injured by these fumes.
Keep the flip-up window closed when you are oper-
ating the vehicle.

Gate Handle

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:

• Three-point lap and shoulder belts for the driver and

all passengers

• Advanced Front Air Bags for driver and front passen-

ger

• Supplemental Seat-Mounted Side Air Bags (SAB) — if

equipped

• An energy-absorbing steering column and steering

wheel

• Knee bolsters/blockers for front seat occupants
• Front seat belts incorporate pretensioners that may

enhance occupant protection by managing occupant
energy during an impact event

• All seat belt systems (except the driver’s) include

Automatic Locking Retractors (ALRs), which lock the
seat belt webbing into position by extending the belt
all the way out and then adjusting the belt to the
desired length to restrain a child seat or secure a large
item in a seat — if equipped

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.

If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems. For more information
on LATCH, refer to Lower Anchors and Tether for
CHildren (LATCH).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The Advanced Front Air Bags have a multistage

inflator design. This allows the air bag to have different
rates of inflation based on several factors, including the
severity and type of collision.

Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:

1. Children 12 years old and under should always ride
buckled up in a rear seat.

WARNING!

Infants in rear facing child restraints should never
ride in the front seat of a vehicle with a passenger
Advanced Front Air Bag. An air bag deployment can
cause severe injury or death to infants in that posi-
tion.

Children that are not big enough to wear the vehicle seat
belt properly (see section on Child Restraints) should be

secured in the rear seat in child restraints or belt-
positioning booster seats. Older children who do not use
child restraints or belt-positioning booster seats should
ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
their arm.

If a child from 1 to 12 years old (not in a rear facing child
seat) must ride in the front passenger seat, move the seat
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”)

You should read the instructions provided with your
child restraint to make sure that you are using it properly.

2. All occupants should always wear their lap and
shoulder belts properly.

3. The driver and front passenger seats should be
moved back as far as practical to allow the Advanced
Front Air Bags room to inflate.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Do not lean against the door or window. If your
vehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between you and the door.

5. If the air bag system in this vehicle needs to be
modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under

ⴖIf You Need Assistanceⴖ.

WARNING!

• Relying on the air bags alone could lead to more

severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In
some collisions, the air bags won’t deploy at all.
Always wear your seat belts even though you have
air bags.

(Continued)

WARNING! (Continued)

• Being too close to the steering wheel or instrument

panel during Advanced Front Air Bag deployment
could cause serious injury, including death. Air
Bags need room to inflate. Sit back, comfortably
extending your arms to reach the steering wheel or
instrument panel.

• Seat-Mounted Side Air Bags (SAB) also need room

to inflate. Do not lean against the door or window.
Sit upright in the center of the seat.

• In a collision, you and your passengers can suffer

much greater injuries if you are not properly
buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.

Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.

Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts. The belt webbing retractor is de-
signed to lock during very sudden stops or collisions.
This feature allows the shoulder part of the belt to move
freely with you under normal conditions. However, in a
collision the belt will lock and reduce the risk of you
striking the inside of the vehicle or being thrown out.

WARNING!

• It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts.

(Continued)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

• Wearing a seat belt incorrectly is dangerous. Seat

belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.
Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas-
sengers safe, too.

(Continued)

WARNING! (Continued)

• Two people should never be belted into a single

seat belt. People belted together can crash into one
another in a collision, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep Wrangler Unlimited (2012 year). Instruction - part 3
