Jeep Wrangler Unlimited (2012 year). Instruction

SENTRY KEY

姞

The Sentry Key

威 Immobilizer System prevents unauthor-

ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.

NOTE:

A key that has not been programmed is also

considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.

During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three

seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.

CAUTION!

The Sentry Key

威 Immobilizer system is not compat-

ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.

Replacement Keys

NOTE:

Only keys that are programmed to the vehicle

electronics can be used to start and operate the vehicle.
Once a Sentry Key

威 is programmed to a vehicle, it cannot

be programmed to any other vehicle.

CAUTION!

Always remove the Sentry Keys

威 from the vehicle

and lock all doors when leaving the vehicle unat-
tended.

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized

dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.

NOTE:

When having the Sentry Key

威 Immobilizer

System serviced, bring all vehicle keys with you to an
authorized dealer.

Customer Key Programming
If you have two valid Sentry Keys

威, you can program

new Sentry Keys

威 to the system by performing the

following procedure:

1. Cut the additional Sentry Key

威 Transponder blank(s)

to match the ignition switch lock cylinder key code.

2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.

4. Insert a blank Sentry Key

威 into the ignition switch.

Turn the ignition switch to the ON/RUN position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.

The new Sentry Key

威 is programmed. The Remote

Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key

威, contact your

authorized dealer for details.

NOTE:

If a programmed key is lost, see your authorized

dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.

General Information
The Sentry Key

威 system complies with FCC rules Part 15

and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be

received, including interference that may cause unde-
sired operation.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors,
swing gate, and ignition for unauthorized operation.
While the Vehicle Security Alarm is armed, interior
switches for door locks are disabled. The Vehicle Security
Alarm provides both audible and visible signals when
alarming. The horn will sound, the headlights will turn
on, the park lamps and/or turn signals will flash repeat-
edly for three minutes. If the disturbance is still present
(driver’s door, passenger door, other doors, ignition) after
three minutes, the headlights, park lamps and/or turn
signals will flash for an additional 15 minutes.

NOTE:

The Panic Alarm and the Vehicle Security Alarm

are quite different. Please take a moment to activate the
Panic Alarm and the Vehicle Security Alarm to hear the
differences in the horn. In case one should go off in the
future, you will need to know which mode has been
activated in order to deactivate it.

Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.

To Arm The System
The Vehicle Security Alarm will set when you use the
Remote Keyless Entry (RKE) transmitter to lock the doors
and swing gate, or when you use the power door lock
switch while the door is open. After all the doors are
locked and closed, the Vehicle Security Light (located on
the instrument cluster) will flash rapidly for about 16 sec-
onds to signal that the Vehicle Security Alarm is arming.
During this 16-second arming period, opening any door
or the swing gate will cancel the arming. If the Vehicle
Security Alarm is successfully set, the Vehicle Security
Light will flash at a slower rate to indicate the Vehicle
Security Alarm is armed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Disarm The System
To disarm the Vehicle Security Alarm, you will need to
press the UNLOCK button on the RKE transmitter, or
turn the ignition switch to the ON/RUN position. If
something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, once the Vehicle Security Alarm is armed
(after 16 seconds), when you pull the door handle to exit,
the alarm will sound. If this occurs, press the UNLOCK
button on the RKE transmitter to disarm the Vehicle
Security Alarm. You may also accidentally disarm the
Vehicle Security Alarm by unlocking the driver’s door

with the key and then locking it. The door will be locked
but the Vehicle Security Alarm will not arm.

NOTE:

• Unlocking the doors with the manual door lock plung-

ers or the driver’s door lock cylinder will not disarm
the Vehicle Security Alarm.

• When the Vehicle Security Alarm is armed, the interior

power door lock switches will not unlock the doors.

ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.

The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• The front courtesy overhead console and door cour-

tesy lights will turn on if the dimmer control is in the

⬙Dome ON⬙ position (extreme top position).

• The Illuminated Entry system will not operate if the

dimmer control is in the “Dome defeat” position
(extreme bottom position).

REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors,
swing gate, and activate the Panic Alarm from a maxi-
mum distance of 66 ft (20 m) using a Remote Keyless
Entry (RKE) transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.

NOTE:

The line of transmission must not be blocked

with metal objects.

To Unlock The Doors And Swing Gate
Press and release the RKE transmitter UNLOCK button
once to unlock the driver’s door only, or twice to unlock
all the doors and swing gate. When the RKE transmitter

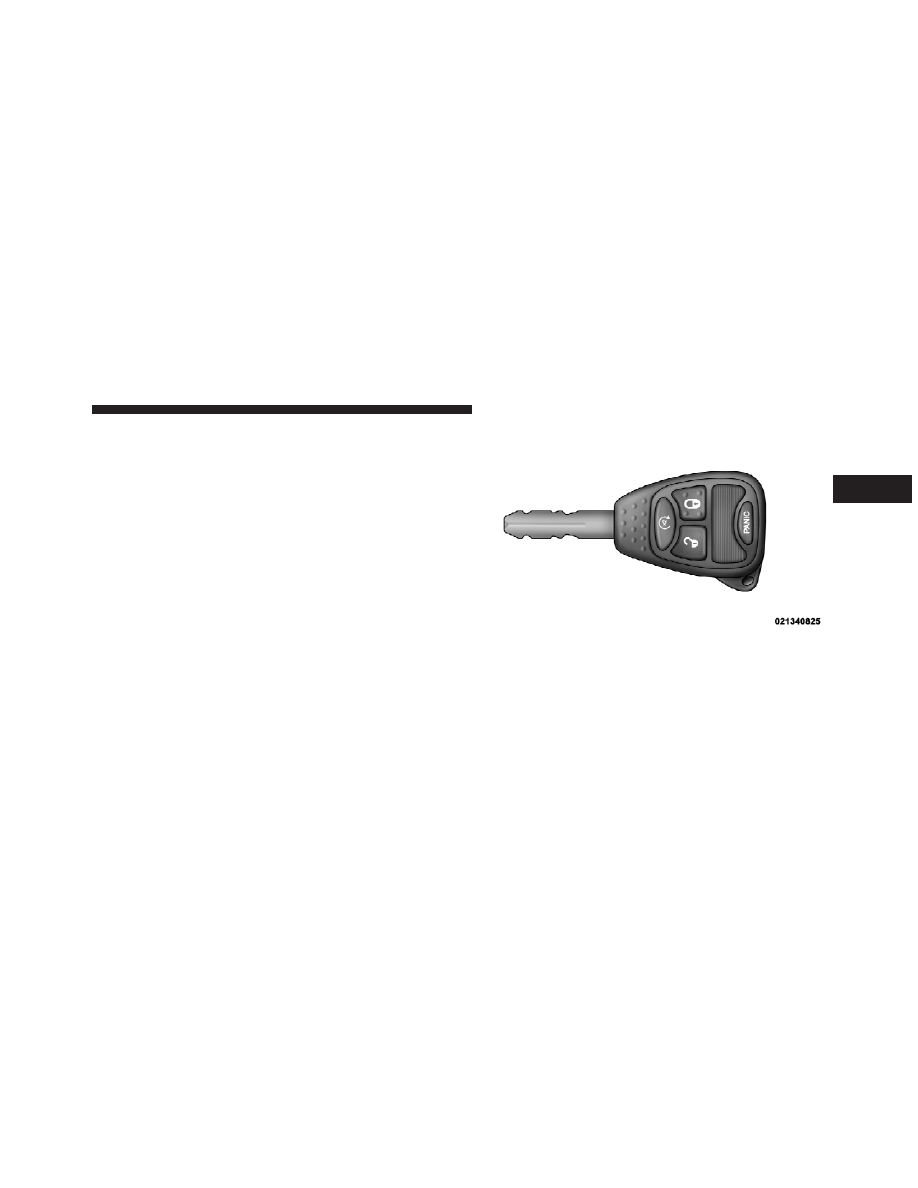

Three Button RKE Transmitter

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNLOCK button is pressed, the Illuminated Entry will
initiate and the parking lights will flash twice.

Remote Key Unlock On First Press
This feature lets you program the system to unlock either
the driver’s side, or all doors and swing gate on the first
press of the UNLOCK button on the RKE transmitter.

• For vehicles equipped with an Electronic Vehicle In-

formation Center (EVIC), refer to “Electronic Vehicle
Information

Center

(EVIC)/Personal

Settings

(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.

• For vehicles not equipped with the EVIC, the Remote

Unlock feature can be enabled or disabled by perform-
ing the following steps:

1. Press and hold the LOCK button on a programmed
RKE transmitter.

2. Continue to hold the RKE transmitter LOCK button
for at least four seconds, but not longer than 10 seconds,
then press and hold the RKE transmitter UNLOCK
button.

3. Release both buttons at the same time.

4. Test this feature while outside of the vehicle by
pressing the LOCK/UNLOCK button on the RKE trans-
mitter.

NOTE:

Pressing the RKE transmitter LOCK button

while you are inside of the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the RKE transmitter UNLOCK button to deactivate
the Vehicle Security Alarm.

5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

Pressing the LOCK button on the RKE transmit-

ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.

To Lock The Doors And Swing Gate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signals will flash and the
horn will chirp once to acknowledge the lock signal.

Sound Horn On Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:

• For vehicles equipped with the EVIC, refer to “Elec-

tronic Vehicle Information Center (EVIC)/Personal

Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.

• For vehicles not equipped with the EVIC, perform the

following steps:

1. Press the RKE transmitter LOCK button for 4 to
10 seconds.

2. While the LOCK button is pressed (after four seconds),
press the RKE transmitter PANIC button. Release both
buttons.

The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.

Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is activated,

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

the headlights will turn on, the park lights will flash, the
horn will pulse on and off and the interior lights will turn
on.

The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time, or if the vehicle speed is 5 mph (8 km/h) or greater.

NOTE:

When you turn off the Panic Alarm by pressing

the PANIC button a second time, you may have to move
closer to the vehicle due to the radio frequency noises of
the system.

To Turn Off Flash Lights With Lock

This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:

• For vehicles equipped with the EVIC, refer to “Elec-

tronic Vehicle Information Center (EVIC)/Personal

Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.

• For vehicles not equipped with the EVIC, perform the

following steps:

1. Press the RKE transmitter UNLOCK button for 4 to
10 seconds.

2. While the UNLOCK button is pressed, (after four
seconds) press the RKE transmitter LOCK button. Re-
lease both buttons.

3. Test the “Flash Lights With Lock” feature outside of
the vehicle by pressing the RKE transmitter LOCK button
with the ignition in the LOCK position and the key
removed.

NOTE:

Pressing the RKE transmitter LOCK button

while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Alarm activated will cause the alarm to sound. Press the
RKE transmitter UNLOCK button to deactivate the Ve-
hicle Security Alarm.

The “Flash Lights With Lock” feature can be reactivated
by repeating this procedure.

Programming Additional Transmitters
Refer to Sentry Key

威 “Customer Key Programming.”

If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.

General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be
received including interference that may cause undesired
operation.

NOTE:

Changes or modifications not expressly ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:

1. Weak battery in the RKE transmitter. The expected life
of a battery is five years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.

Transmitter Battery Replacement
The recommended replacement battery is CR2032.

NOTE:

Perchlorate Material – special handling may

apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

1. With the RKE transmitter buttons facing down, use a
flat blade screwdriver to pry the two halves of the RKE
transmitter apart. Use extreme care not to damage the
seal or internal components.

2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.

3. To reassemble the RKE transmitter case, snap the two
halves together.

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of

approximately 300 ft (91 m).

NOTE:

• The vehicle must be equipped with an automatic

transmission to be equipped with Remote Start.

• Obstructions between the vehicle and RKE transmitter

may reduce this range.

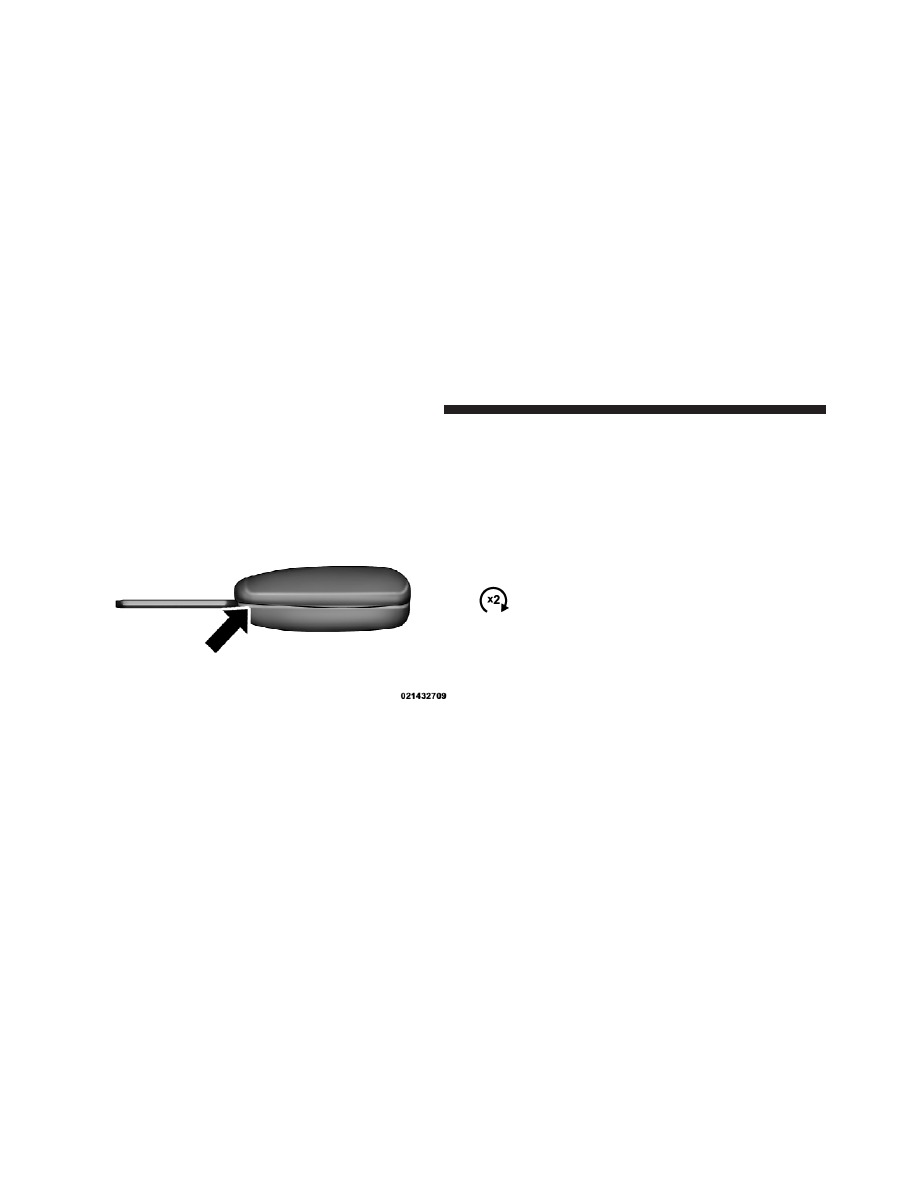

Separating RKE Transmitter Halves

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:

• Shift lever in PARK
• Doors closed
• Hood closed
• Hazard switch off
• Brake switch inactive (brake pedal not pressed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• RKE PANIC button not pressed
• System not disabled from previous remote start event
• Vehicle theft alarm not active

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.

• Keep Remote Keyless Entry (RKE) transmitters

away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.

Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:

• Remote Start Aborted — Door Ajar

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Ajar
• Remote Start Aborted — System Fault

The EVIC message stays active until the ignition is turned
to the ON/RUN position.

To Enter Remote Start

Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the

engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.

NOTE:

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window operation is disabled

when the vehicle is in the Remote Start mode.

• The engine can be started two consecutive times (two

15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.

Remote start will also cancel if any of the following occur:

• The engine stalls or RPM exceeds 2500
• Any engine warning lamps come on
• The hood is opened
• The hazard switch is pressed
• The transmission is moved out of PARK
• The brake pedal is pressed

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.

NOTE:

To avoid unintentional shut downs, the system

will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if

equipped). Then, insert the key into the ignition switch
and turn the switch to the ON/RUN position.

NOTE:

The ignition switch must be in the ON/RUN

position in order to drive the vehicle.

DOORS

CAUTION!

Careless handling and storage of the removable door
panels may damage the seals, causing water to leak
into the vehicle’s interior.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Upper Half Door Window Removal — If Equipped
Grasp the half door window and pull upward.

Upper Half Door Window Installation — If
Equipped

1. Grasp the half door window and line up the pins with
the pockets in the lower door.

2. Push down to ensure the half door window is fully
seated.

Front Door Removal

WARNING!

Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.

1. Roll down the glass window to prevent any damage.

2. Remove the hinge pin screws from the upper and
lower outside hinges (using a #T50 Torx

威 head driver).

NOTE:

The hinge pin screws and nuts can be stowed in

the rear cargo tray located under the rear loadfloor.

Upper Half Door Window

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Unplug the wiring harness connector under the instru-
ment panel by pressing the tab at the top of the connector
and pulling to disconnect.

NOTE:

If the red latch on the connector is locked, push

the red latch down until you can only see the latch on one

end (top) of the connector. This will unlock the connector
tab, allowing the tab to be pressed down and enabling the
harness to be disconnected.

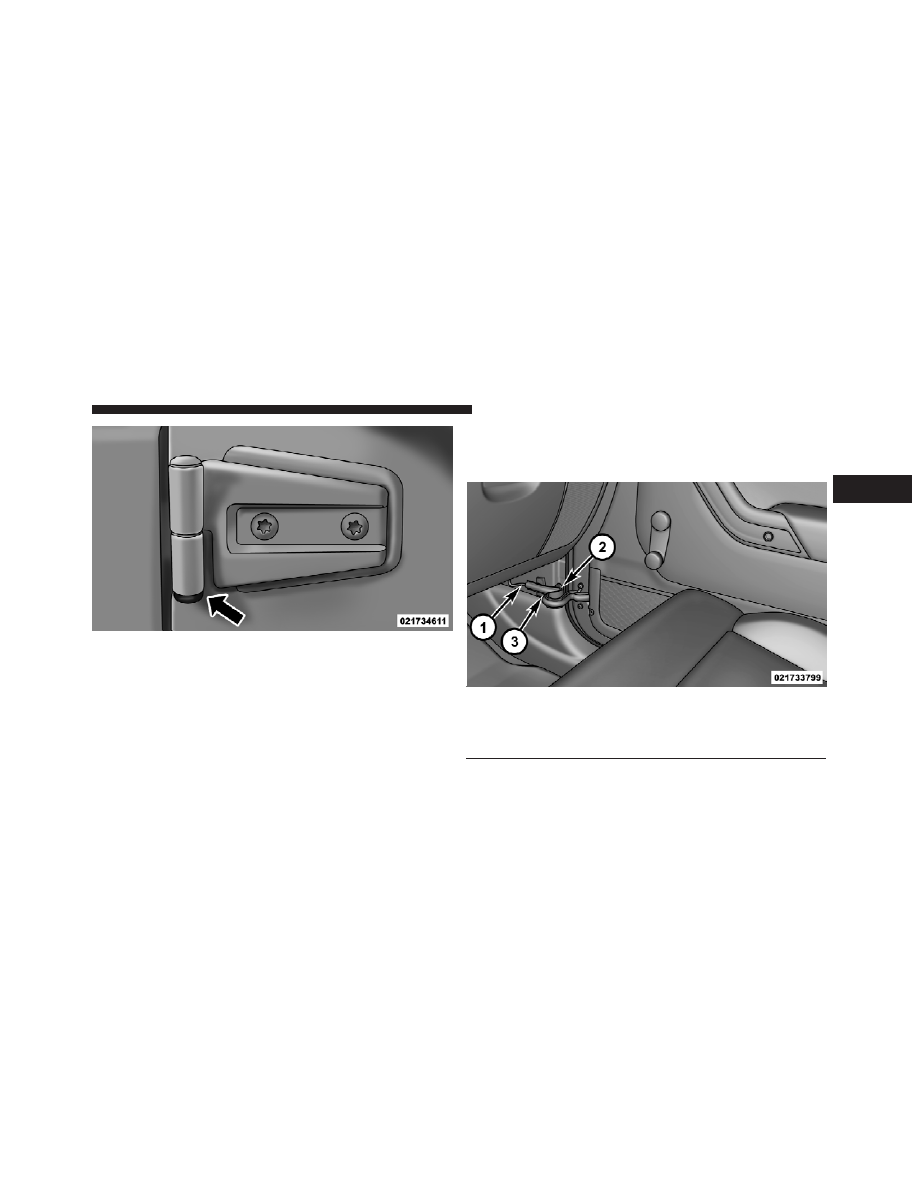

Hinge Pin Screw

Door Strap/Harness Location

1 — Harness Connector
2 — Body Hook
3 — Door/Harness Strap

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep Wrangler Unlimited (2012 year). Instruction - part 2
