Jeep Wrangler JK (2018 year). Instruction - part 6

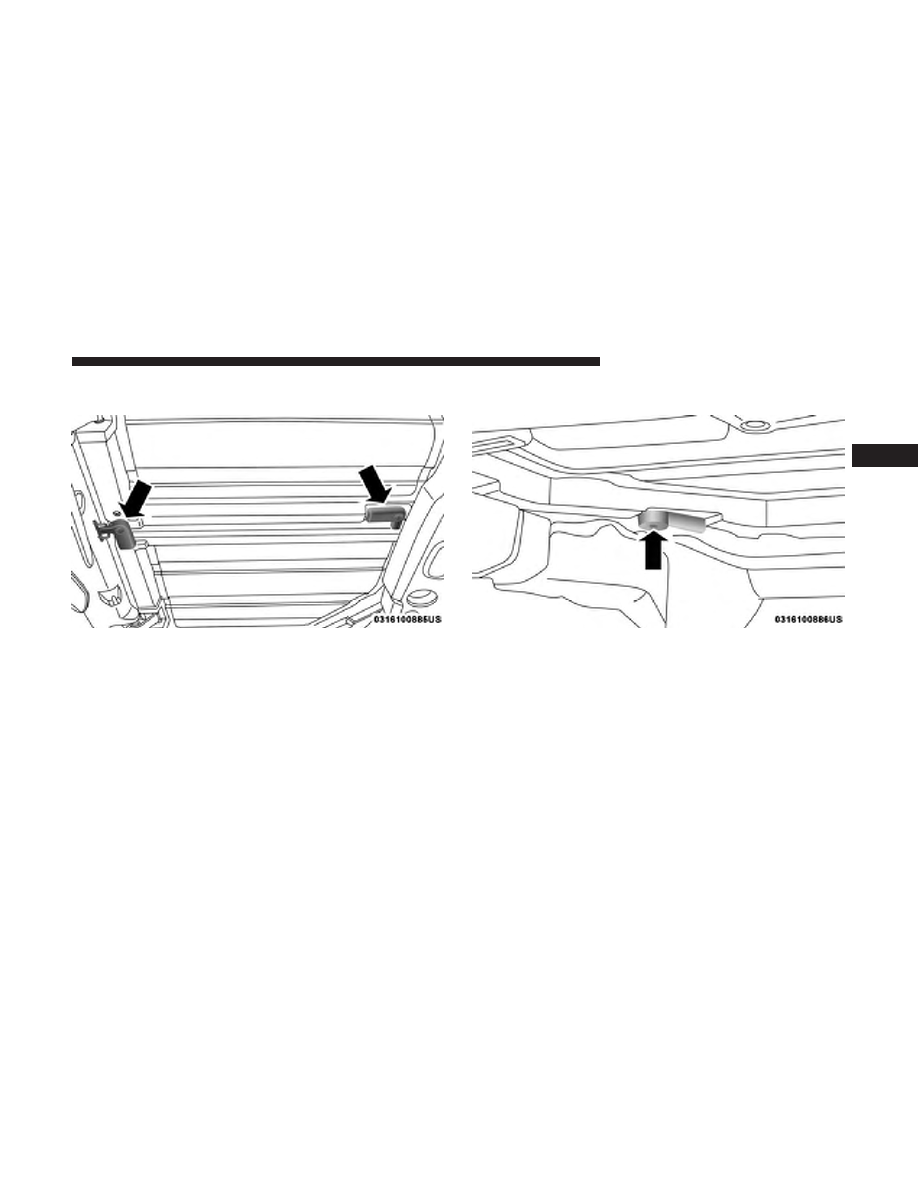

3. Turn the center L-shaped locks (two) from the center of

the roof panel.

4. Turn the rear L-shaped lock (located above the shoulder

belt anchorage).

Step Three

Step Four

GETTING TO KNOW YOUR VEHICLE

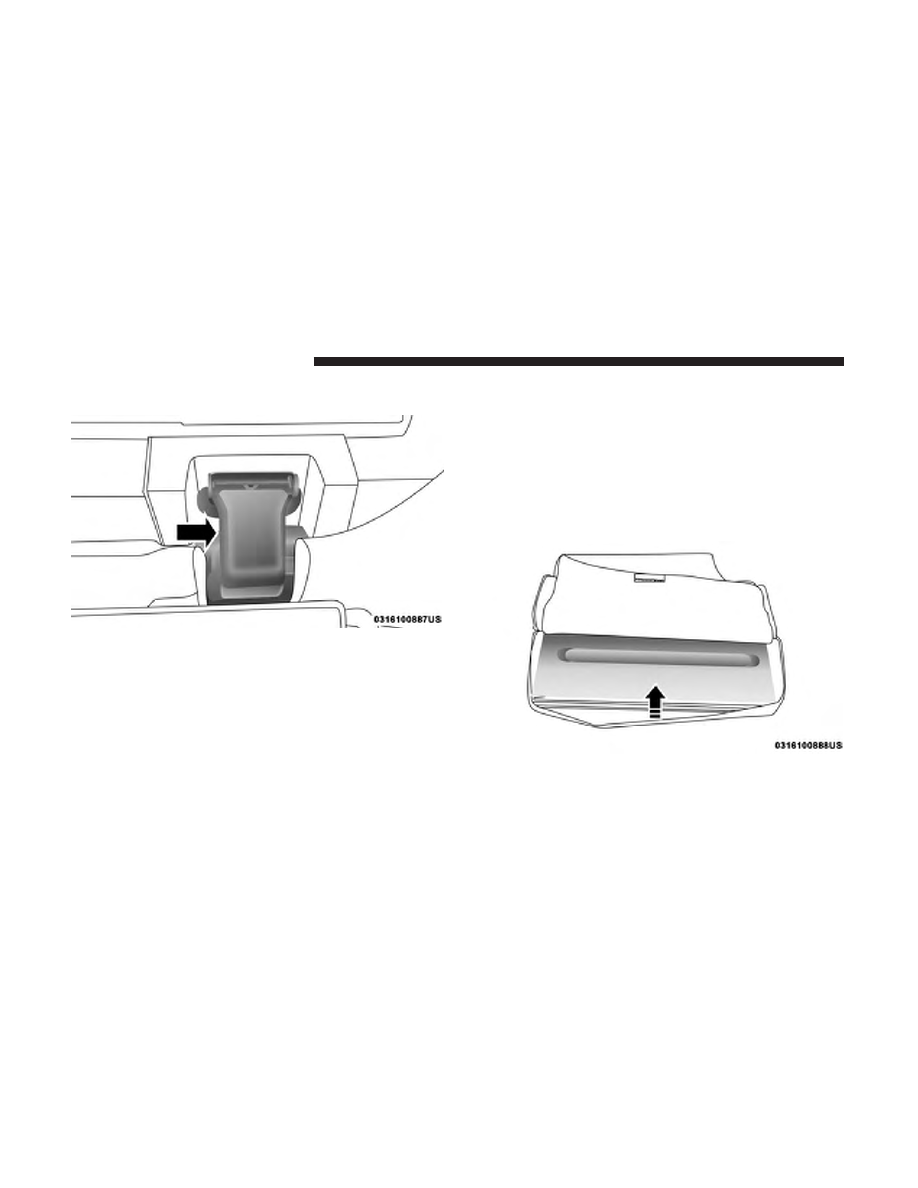

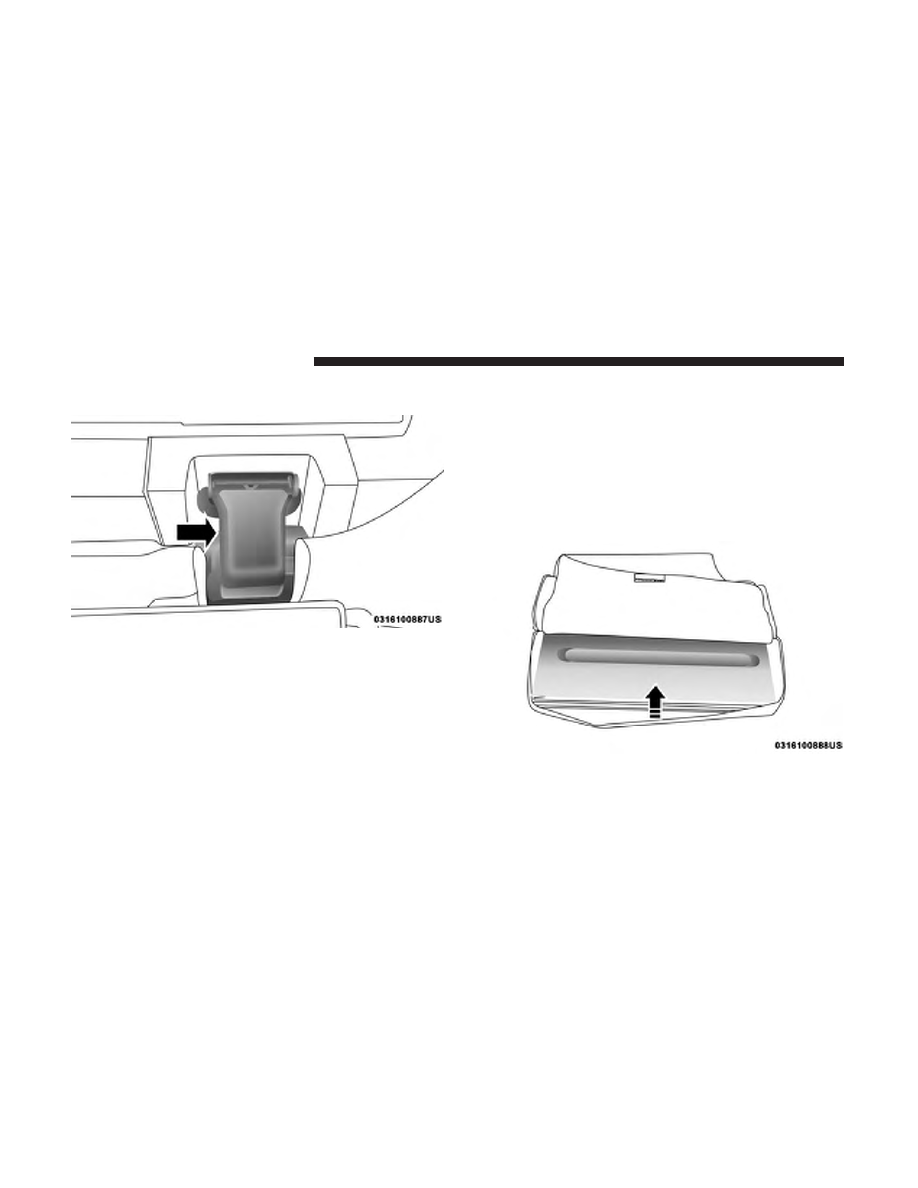

5. Unlatch the header panel latch located at the top of the

windshield.

6. Remove the left-hand panel.

To remove the right panel, follow the steps above except
for Step 3.

Freedom Top Storage Bag

Vehicles equipped with a Freedom Top Modular Hard Top,
come with a Freedom Top storage bag that allows you to
store your Freedom Top panels. The storage bag contains
two compartments and fits behind the rear seat.

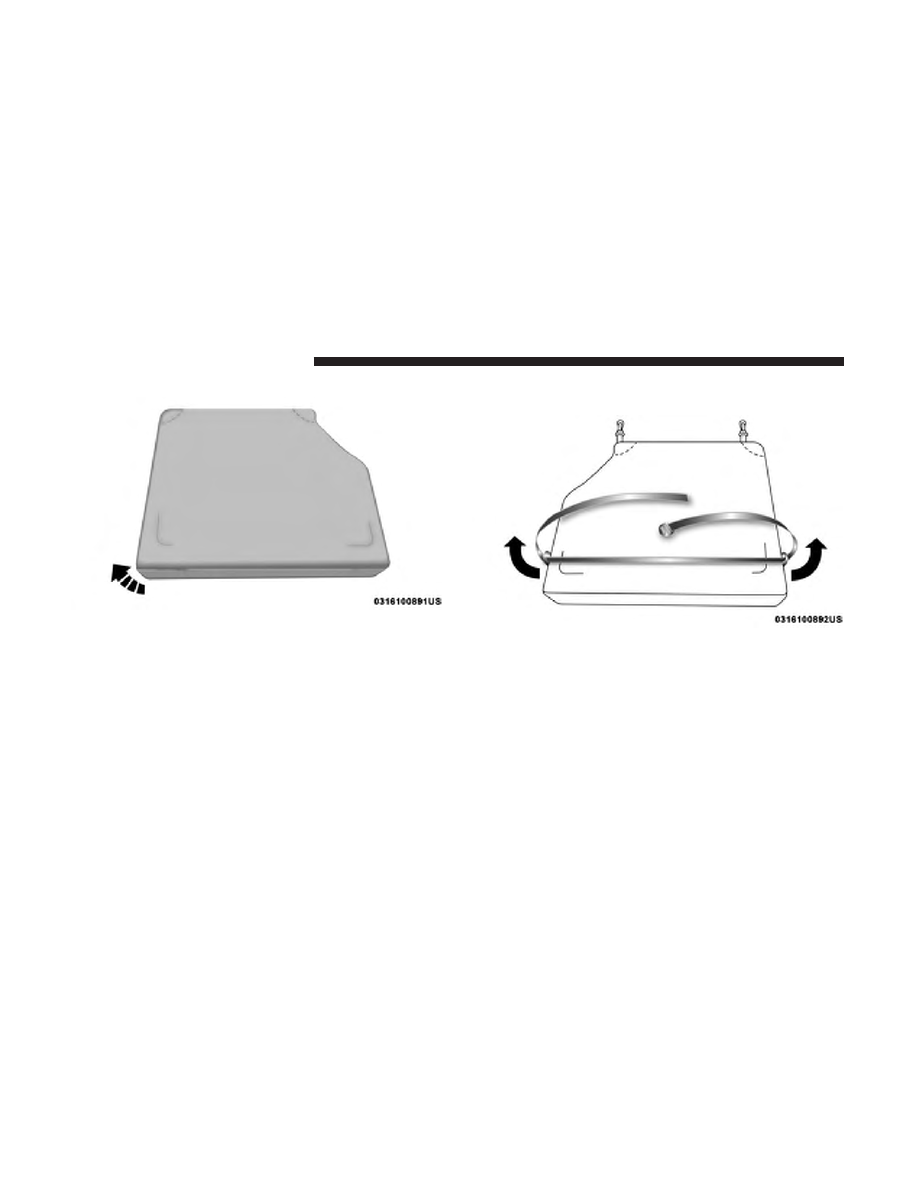

Lay the Freedom bag down so the loops and hooks are
facing downward. Unzip the bag and fold back the outer
flap. Release the Velcro on the black panel divider and fold
it back.

NOTE:

Ensure the front Freedom Top panel latch is closed

prior to inserting the panel into the Freedom bag.

1. Insert the right side Freedom panel into the bag with the

latches facing downward.

Step Five

Step One

GETTING TO KNOW YOUR VEHICLE

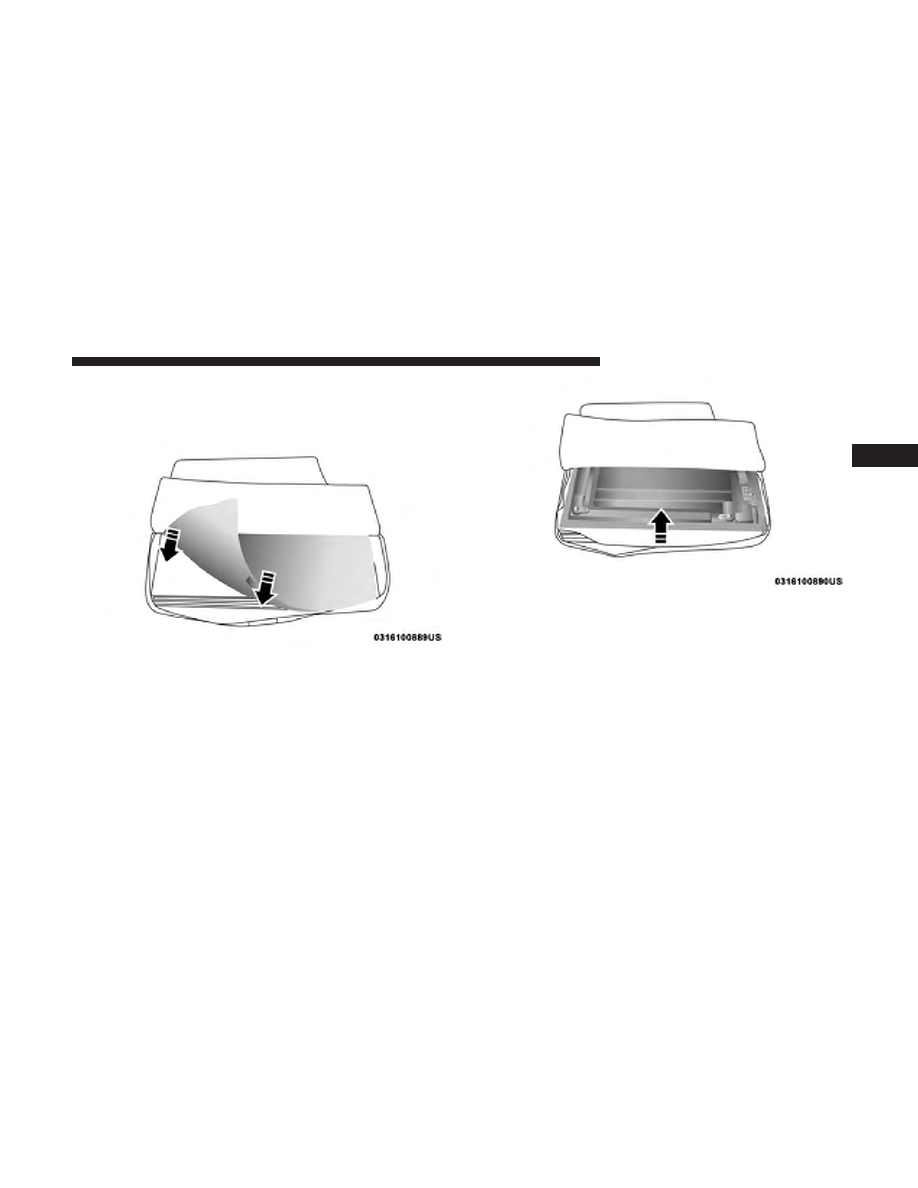

2. Unfold the black panel divider (ensure the divider is

laying flat). Secure the Velcro, located at the center of the
divider.

3. Insert the left-side Freedom panel into the bag with the

latches facing upward.

NOTE:

Ensure the front Freedom panel latch is closed

prior to inserting the panel into the bag.

Step Two

Step Three

GETTING TO KNOW YOUR VEHICLE

4. Unfold the outer flap and zip the Freedom bag closed.

5. Install the seat attachment strap (at the top of the bag)

through the loops.

Step Four

Step Five

GETTING TO KNOW YOUR VEHICLE

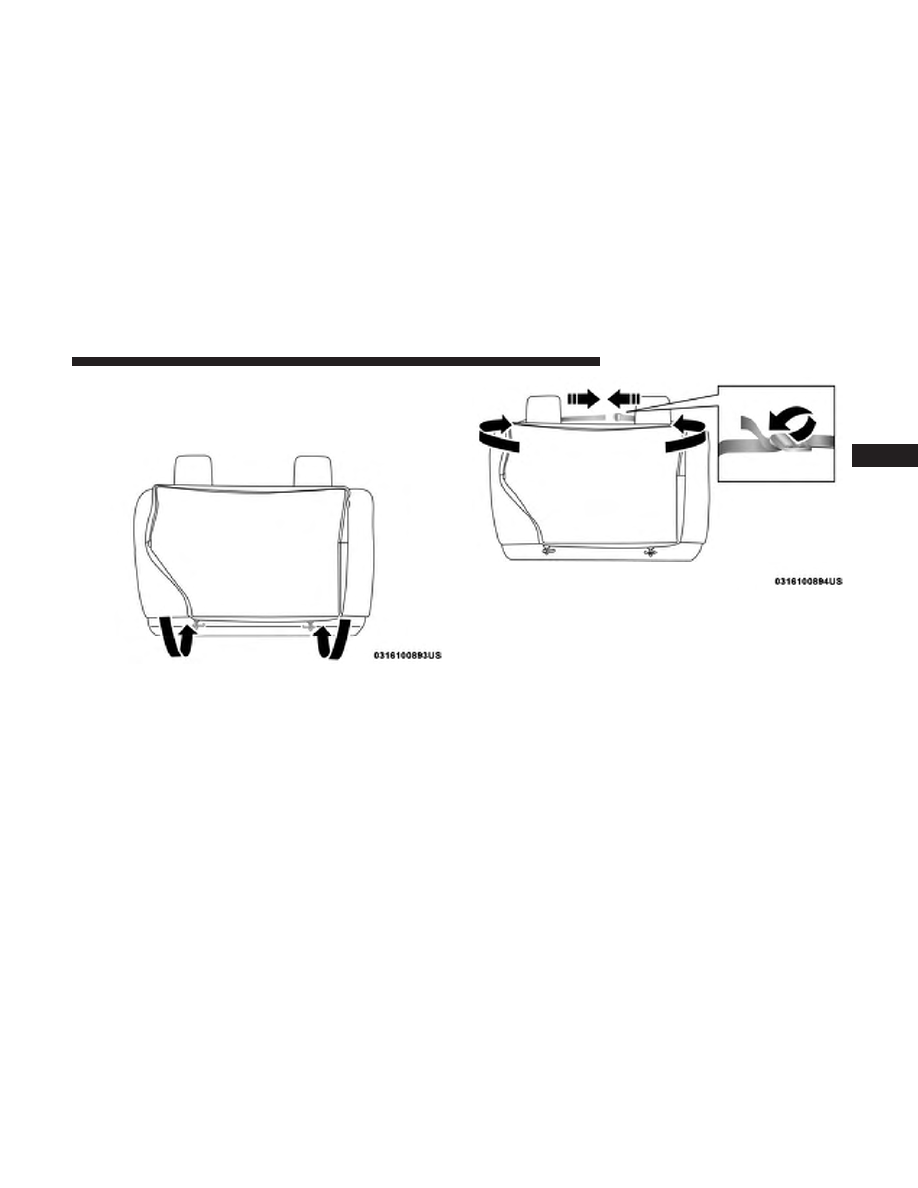

6. Lift the Freedom bag into the vehicle with the hooks and

straps facing the back of the rear seat. Attach the clips at
the bottom of the bag to the child restraint anchorages,
located at the base of the rear seat.

7. Wrap the upper strap around the rear head restraints

and loop the strap through the buckle. Pull on the strap
to tighten the Freedom bag securely against the rear
seat.

Front Panel(s) Installation

NOTE:

Set the panels on the windshield frame so that

there is no overhang. Also, make sure that the panels are
sitting flush with the body.

1. Install the right panel first, then the left panel.

2. Reinstall the panel(s) using the same steps for removal

in reverse order.

Step Six

Step Seven

GETTING TO KNOW YOUR VEHICLE

Front Panel(s) Installation With Rear Hard Top
Removed

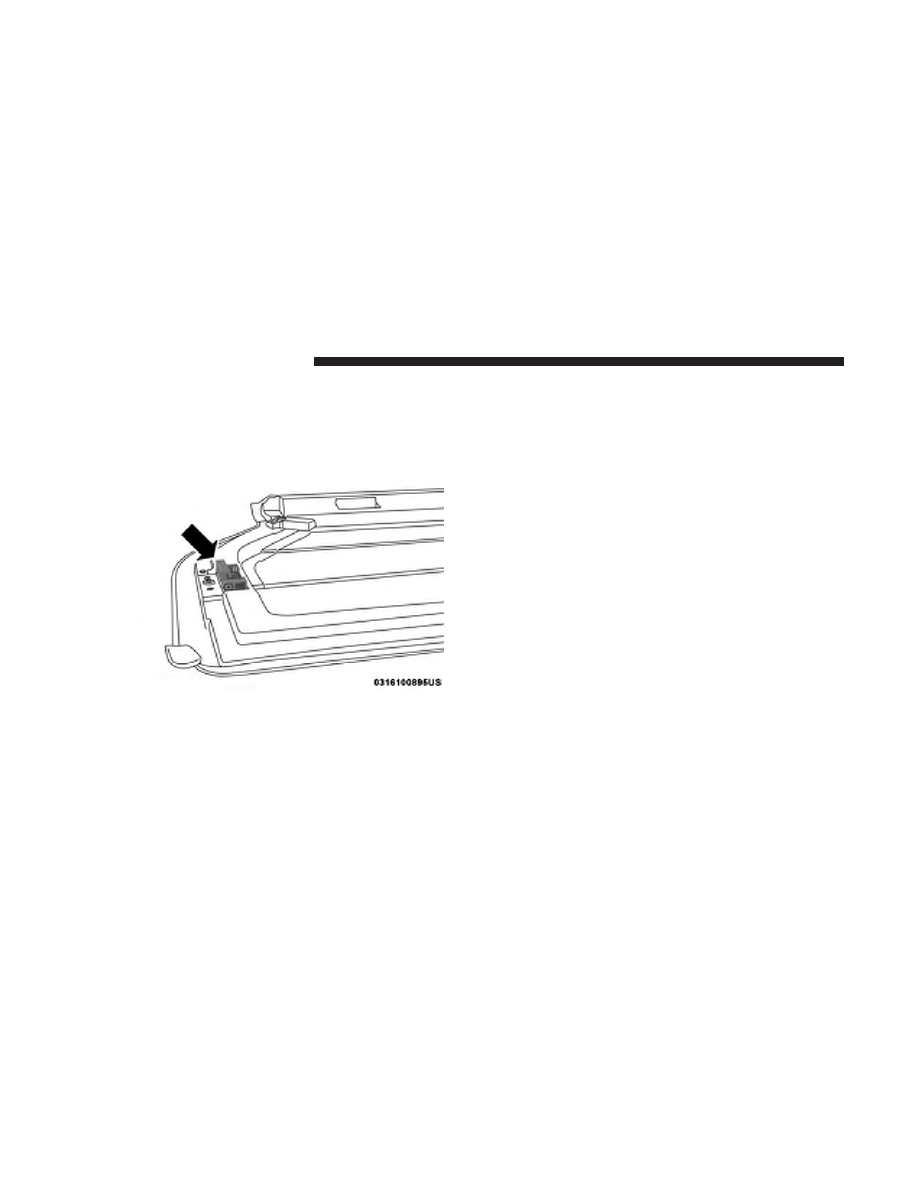

1. Turn the left and right panels over and move the spacer

block (located on the rear of the panel) upward 90
degrees.

NOTE:

The front panel(s) must be positioned properly to

ensure sealing. Set the panels on the windshield frame so
that there is no overhang. Also, make sure that the panels
are sitting flush with the body.

2. Install the right panel first, then the left panel.

3. Reinstall the panel(s) using the same steps for removal

in reverse order.

Rear Hard Top Removal

1. Remove both front panels. Refer to “Front Panel(s)

Removal” in this section.

2. Open both doors.

3. Remove the two Torx head screws that secure the hard

top at the B-pillar (near the top of the door) using a #40
Torx head driver (Four–Door Only).

4. Remove the six Torx head screws that secure the hard

top to the vehicle (along the interior bodyside) using a
#40 Torx head driver.

Step One

GETTING TO KNOW YOUR VEHICLE

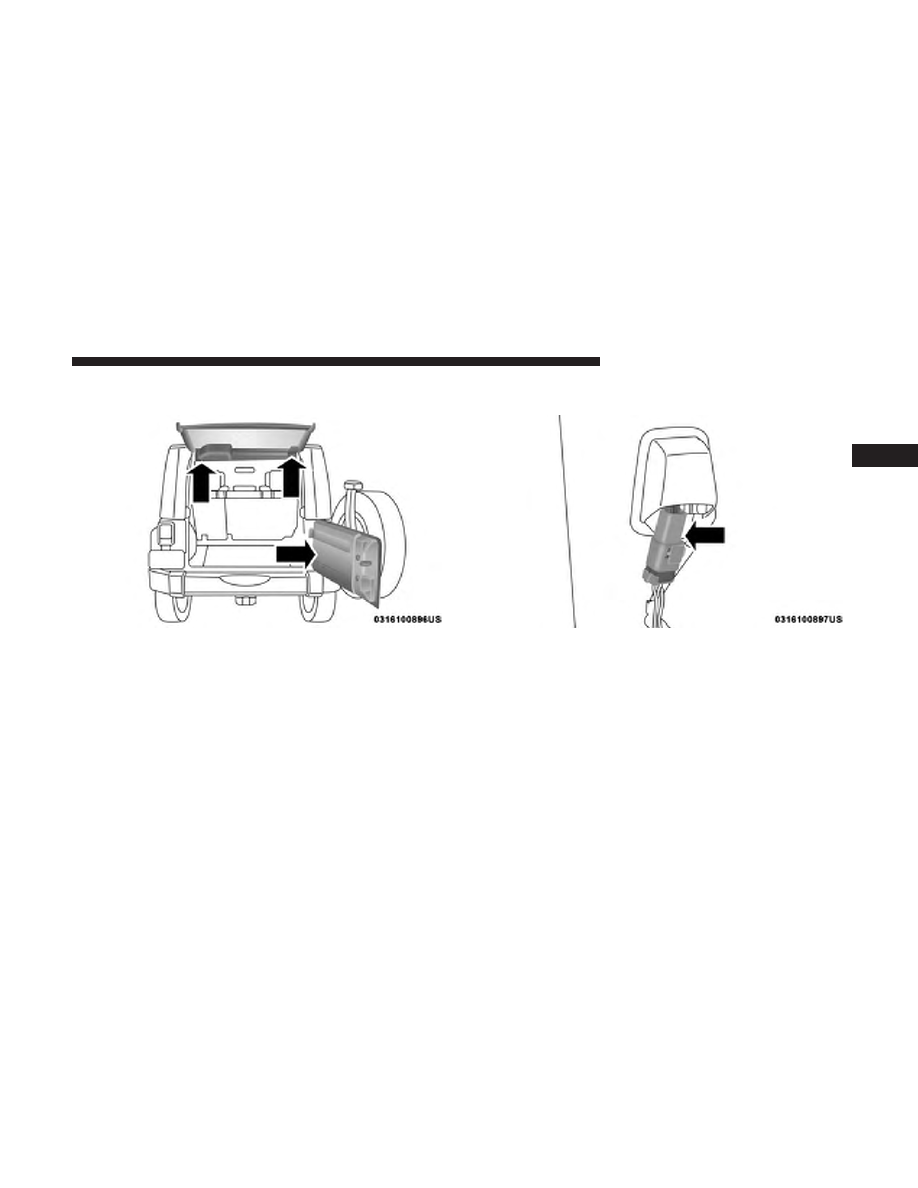

5. Open the swing gate all the way to ensure clearance of

the rear window glass. Lift the rear window glass.

6. Locate the wire harness on the left rear inside corner of

the vehicle.

Step Five

Wire Harness Connector

GETTING TO KNOW YOUR VEHICLE

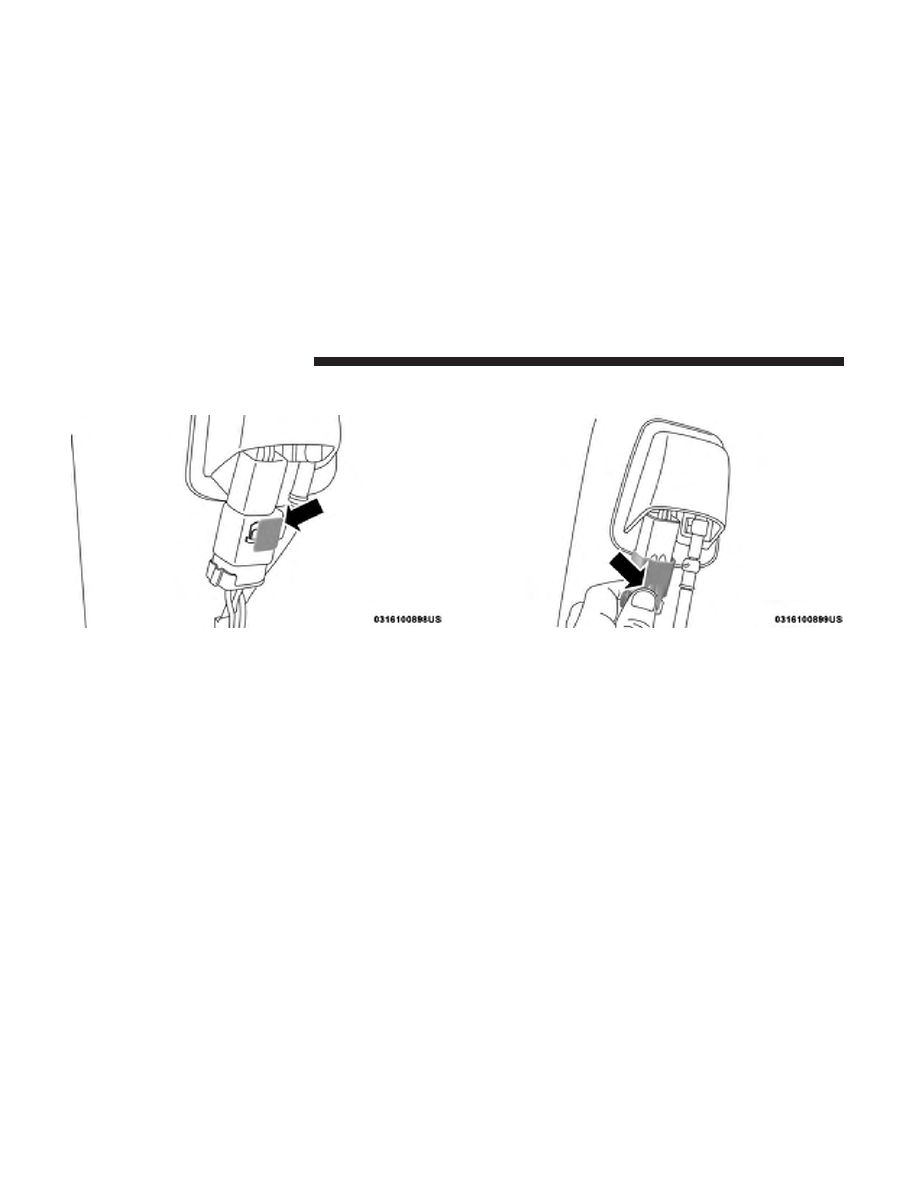

7. Release the red locking tab by pulling outward to the

right.

8. To remove the wiring harness push the tab and pull

downward to disconnect.

Red Locking Tab

Push Tab To Disconnect

GETTING TO KNOW YOUR VEHICLE

9. To remove the washer hose, pinch the grips on hose

connector and pull downward.

10. Close the swing gate.

11. Remove the hard top from the vehicle. Place the hard

top on a soft surface to prevent damage.

CAUTION!

The removal of the Freedom Top requires four adults
located on each corner. Failure to follow this caution
could damage the Freedom Top.

Rear Hard Top Installation

NOTE:

If the door frames are installed from soft top usage,

they must be removed prior to installation of the hard top.

1. Inspect the hard top seals for damage and replace if

necessary.

2. Install the hard top using the same steps for removal in

reverse order.

Make sure that the hard top is sitting flush with the body
at the sides and check to ensure that there is a uniform gap
between the lift glass and hard top.

NOTE:

• The Torx fasteners that attach the hard top to the body

should be torqued to 88 in lb +/- 22 in lb (10 N·m +/-
2.5 N·m).

• It is not necessary to pinch connection when reinstall-

ing washer hose. Push on until click is heard.

Pinch Grip On Hose

GETTING TO KNOW YOUR VEHICLE

DOOR FRAME

WARNING!

• Do not drive your vehicle on public roads with the

door frame(s) removed as you will lose the protection
that they can provide. This procedure is furnished
for use during off-road operation only.

• Do not drive your vehicle on public roads with the

doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.

CAUTION!

Failure to follow these cautions may cause interior
water damage, stains or mildew:

• Opening a door or lowering a window while the top is

wet may allow water to drip into the vehicle’s interior.

• Careless handling and storage of the removable door

frame(s) may damage the seals, causing water to leak
into the vehicle’s interior.

• The door frame(s) must be positioned properly to

ensure sealing. Improper installation can cause water
to leak into the vehicle’s interior.

Door Frame Removal

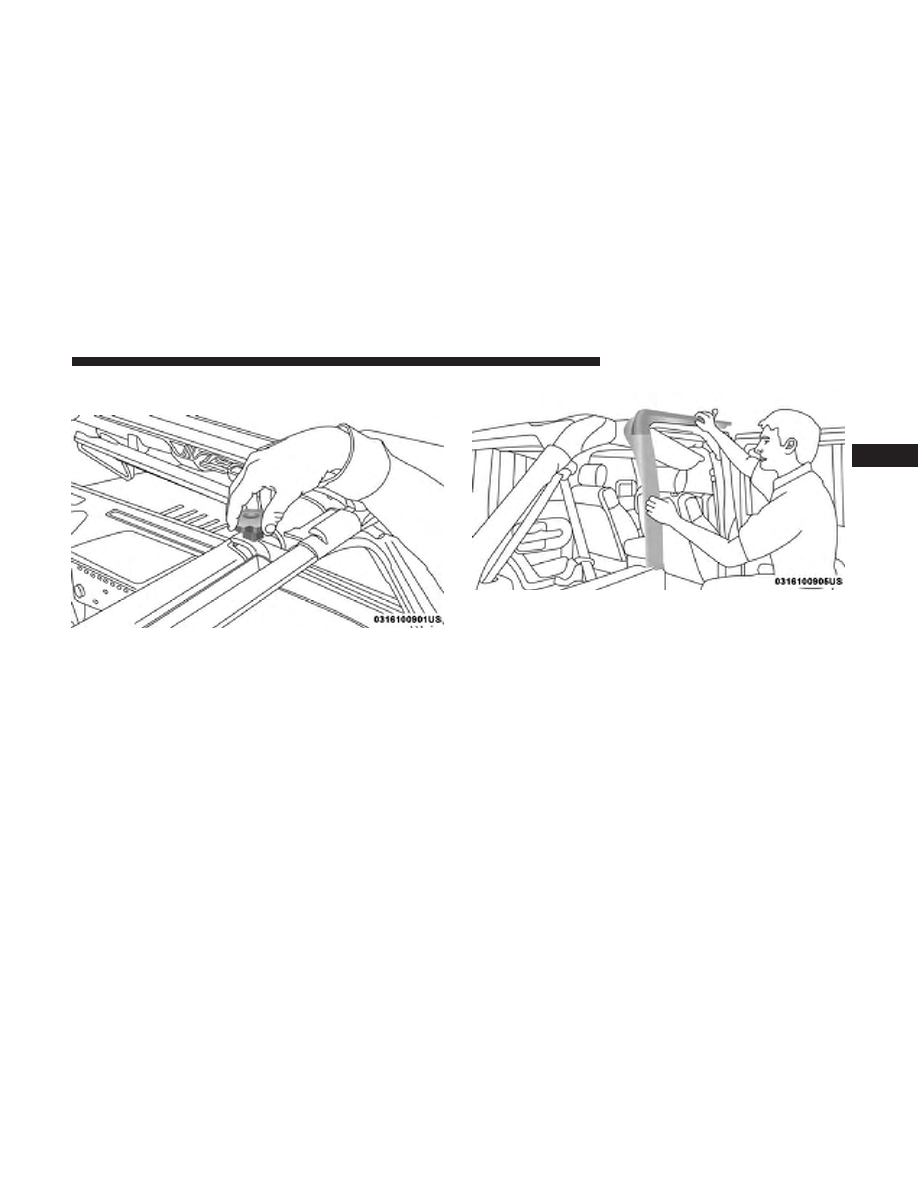

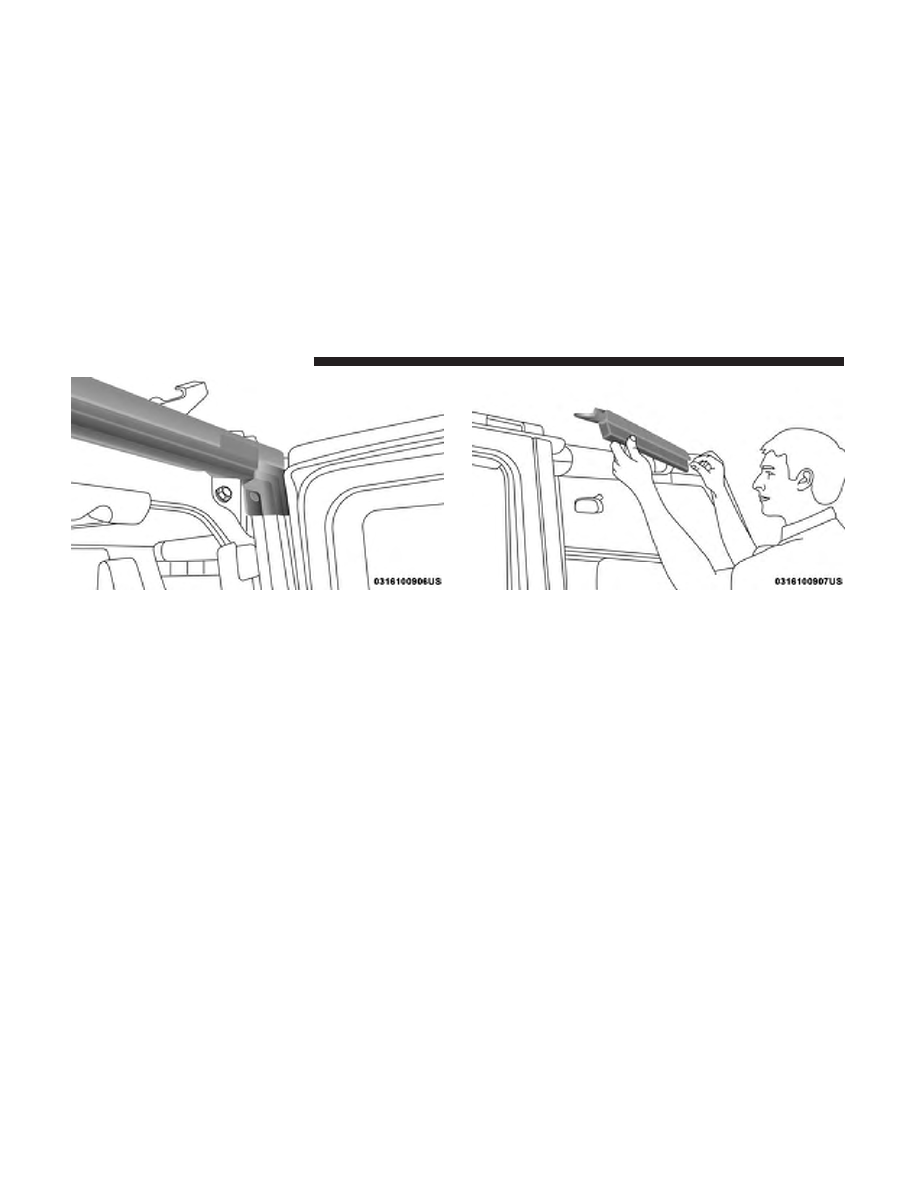

1. Unscrew and remove the door frame attachment knobs

(two per door).

WARNING!

Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.

Step One

GETTING TO KNOW YOUR VEHICLE

2. Place one hand on the upper rear and one hand on the

front of the door frame.

3. Pull the frame toward you with your rearward hand to

remove the frame from the vehicle.

4. Screw the knobs back into the door frame and fold for

storage. Store in a secure location.

WARNING!

• Do not drive your vehicle on public roads with the

door frame(s) removed as you will lose the protection
that they can provide. This procedure is furnished
for use during off-road operation only.

• Do not drive your vehicle on public roads with the

doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.

Step Three

Step Four

GETTING TO KNOW YOUR VEHICLE

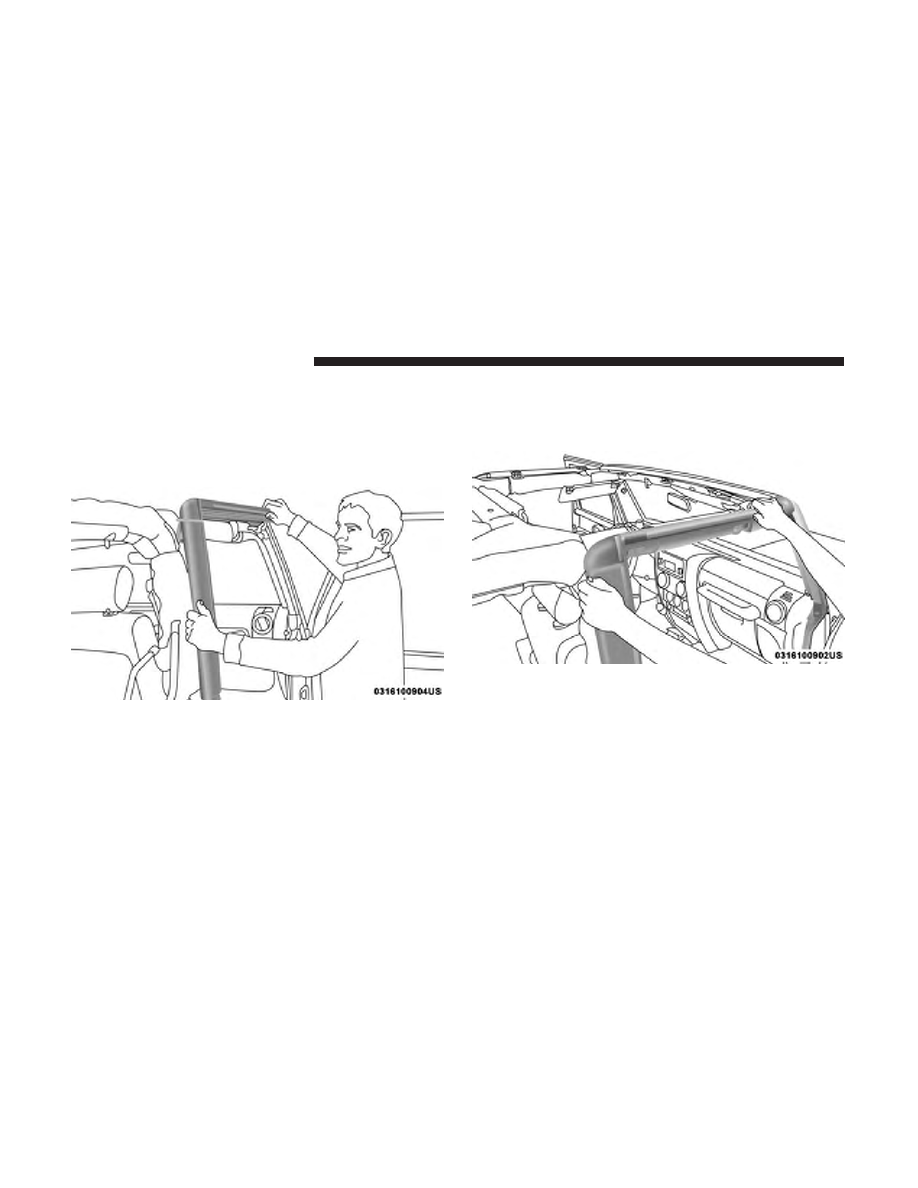

Door Frame Installation — Two-Door Models — If
Equipped

1. Unfold door frame and unscrew thumbscrews.

2. Set the door frame pin into the hole on top of the body

side, behind the door opening.

3. After the door frame pin has been set into the body side

hole, carefully set the front of the door frame into the
rubber seal at the top of the windshield.

4. Starting with the front of the door frame, clip it over the

metal side bar and then clip the rear, making sure that
the material for the side bar covers is not pinched by the
door frame.

Step Two

Step Four

GETTING TO KNOW YOUR VEHICLE

5. Starting with the front knob, screw in and tighten both

knobs. Repeat on the other side.

Door Frame Installation — Four-Door Models — If
Equipped

1. Install the rear door frame first.

2. Set the door frame pin into the hole on top of the body

side, just behind the rear door opening.

3. Position the top of the door frame against the metal

sport bar and push onto the side bar, making sure not to
pinch the material of the sports bar covers and to ensure
it is properly positioned on the seal above the front of
the rear door.

Step Five

Step Two

GETTING TO KNOW YOUR VEHICLE

4. Loosely install the rear knob (long knob) to hold the

door rail in position.

5. Carefully set the front of the front door frame in the

rubber seal at the top of the windshield.

6. Clip the front of the door rail over the side bar making

sure that the material for the side bar cover is not
pinched by the door frame.

Step Three

Step Five

GETTING TO KNOW YOUR VEHICLE

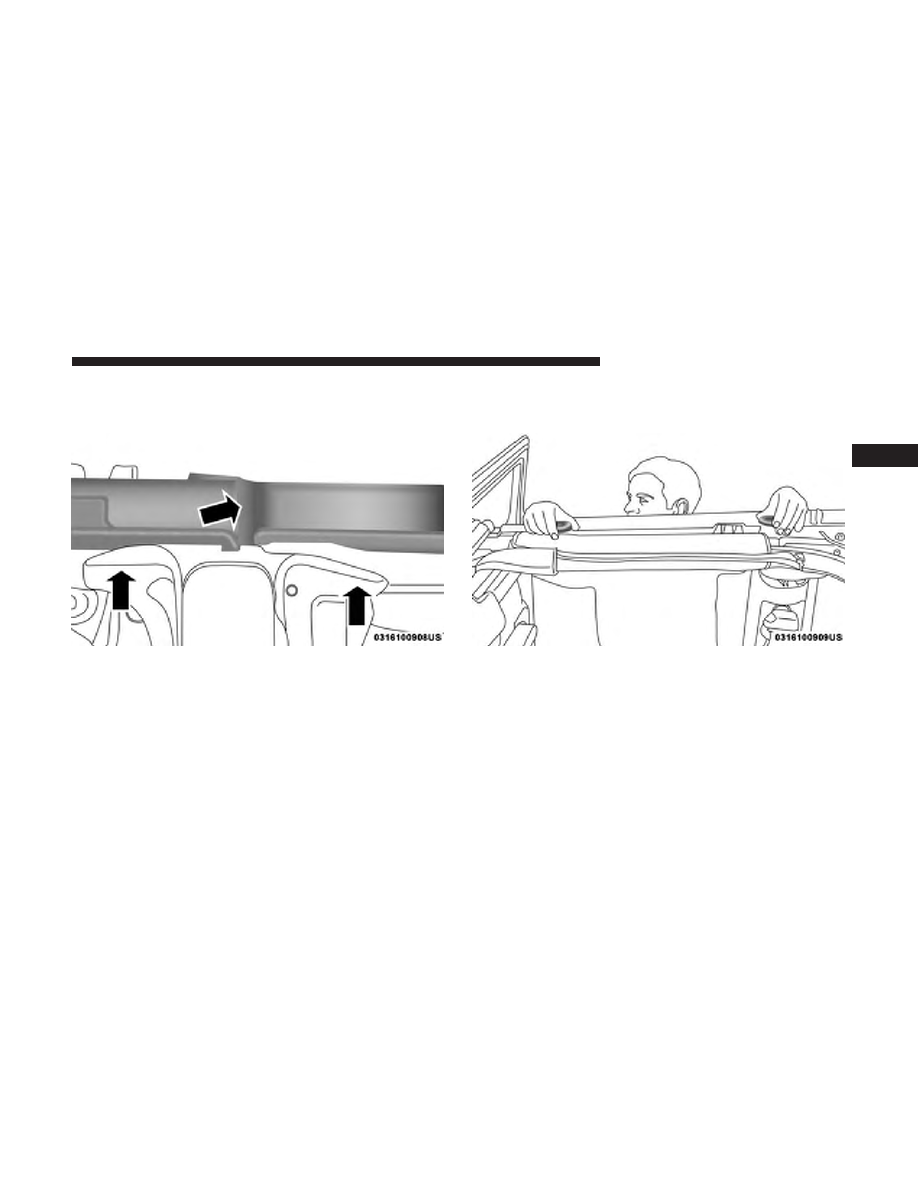

7. Position the rear of the front door frame to lay on top of

the front of the rear door frame. Ensure the seals are
installed correctly to avoid water leaks.

8. Loosely install both knobs beginning with the front

knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and screw
into the top of the B-pillar.

9. Tighten the front knob, then the rear most knob, and

then the middle knob. Repeat this procedure for the
other side.

Step Seven

Step Nine

GETTING TO KNOW YOUR VEHICLE

SOFT TOP — TWO-DOOR MODELS

Please visit http://www.jeep.com/en/wrangler-rooftop-
instructions/ for instructional videos.

WARNING!

• Do not drive the vehicle with the rear window

curtain up unless the side curtains are also removed.
Dangerous exhaust gases could enter the vehicle
causing harm to the driver and passengers.

• The fabric upper doors and fabric top are designed

only for protection against the elements. Do not rely
on them to contain occupants within the vehicle or to
protect against injury during an accident. Remember,
always wear seat belts.

• Make sure hands and fingers are clear of all pinch

points when installing and removing the soft tops.
The zippers and side bows may cause serious injury
if fingers or hands get caught in between.

CAUTION!

The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunting,
or camping supplies, and/or luggage, etc. Also, it was
not designed as a structural member of the vehicle and,
thus, cannot properly carry any additional loads other
than environmental (rain, snow, etc.).

If the temperature is below 72°F (24°C) and/or the top has
been folded down for a period of time, the top will appear
to have shrunk when you raise it, making it difficult to put
up. This is caused by a natural contraction of the vinyl
coating on the fabric top.

Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and the
top can then be installed. If the temperature is 41°F (5°C)
or below, do not attempt to put the top down or roll the
rear or side curtains.

GETTING TO KNOW YOUR VEHICLE
