Jeep TJ (2006 year). Instruction

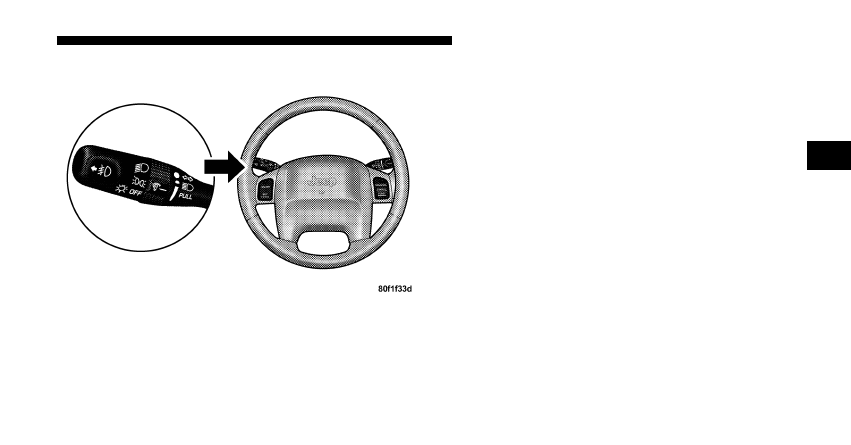

To change the brightness of the instrument panel lights,
rotate the center portion of the muti-function control
lever up or down.

NOTE:

If the driver’s door is left open, and the head-

lights or parking lights are left on, the “High Beam
Indicator Light” will flash and a chime will sound.

Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned off, a chime will sound when the driver’s door
is opened.

Headlight Dimmer Switch
Pull the multi-function control lever towards you to
switch the headlights to HIGH beam. Pull the muti-
function control lever a second time to switch the head-
lights to LOW beam.

Passing Light
You can signal another vehicle with your headlights by
lightly pulling the multi-function control lever toward
the steering wheel. This will cause the headlights to turn
on at high beam and remain on until the lever is released.

Multi-Function Control Lever

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Fog Lights — If Equipped

The front fog light switch is in the multi-function
control lever. To activate the front fog lights, turn
on the parking or low beam headlights and pull

out the end of the lever.

NOTE:

The fog lights will only operate with the parking

lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.

Turn Signals
Move the multi-function control lever up or down and
the arrows on each side of the instrument cluster flash to
show proper operation of the front and rear turn signal
lights. You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.

If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the fuse or indicator bulb is
defective.

NOTE:

A tone will chime if the turn signals are left on

for more than 1 mile (2 km).

Daytime Running Lights — Canada Only
The headlights come on at a low intensity level after the
vehicle has been driven approximately 3 feet (1 meter).
They will turn off when the vehicle is turned off or when
the headlights are switched on.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WINDSHIELD WIPERS AND WASHERS

CAUTION!

In cold weather, always turn off the wiper switch
and allow the wipers to return to the park position
before turning off the engine. If the wiper switch is
left on and the wipers freeze to the windshield,
damage to the wiper motor may occur when the
vehicle is restarted.

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Move the lever to the DELAY
position, then select the delay interval by turning the end
of the lever. The delay can be regulated from a maximum
of approximately 18 seconds between cycles, to a cycle
every second.

Windshield Wiper Operation
Move the lever upward to the second detent for LO speed
wiper operation, or to the third detent for HI speed
operation

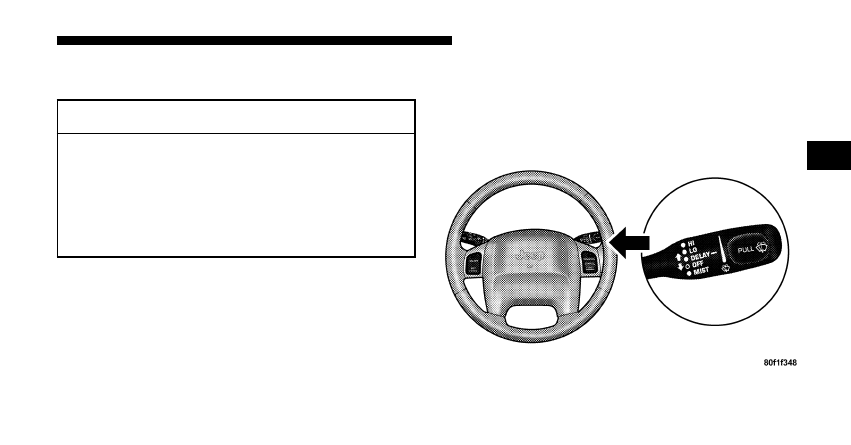

Windshield Wiper/Washer Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will operate for two wipe cycles
after the lever is released, and then resume the intermit-
tent interval previously selected.

If the lever is pulled while in the OFF position, the wipers
will operate for as long as the lever is held plus two wipe
cycles, then turn OFF.

Mist Feature
Push down on the wiper lever to activate a single wipe to
clear off road mist or spray from a passing vehicle. As
long as the lever is held down, the wipers will continue
to operate.

TILT STEERING COLUMN

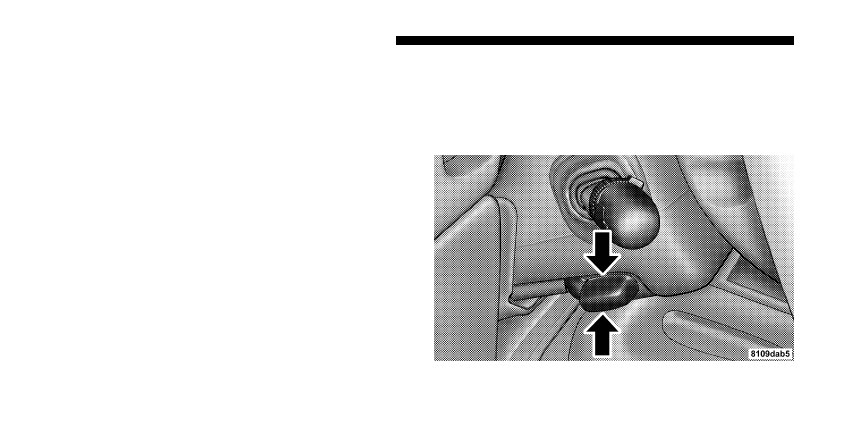

To tilt the column, push down on the lever below the turn
signal control and move the wheel up or down, as
desired. Pull the lever back upwards to lock the column
firmly in place.

Tilt Steering Column

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.

ELECTRONIC SPEED CONTROL
When engaged, this device takes over accelerator opera-
tions at speeds greater than 35 mph (56 km/h). The

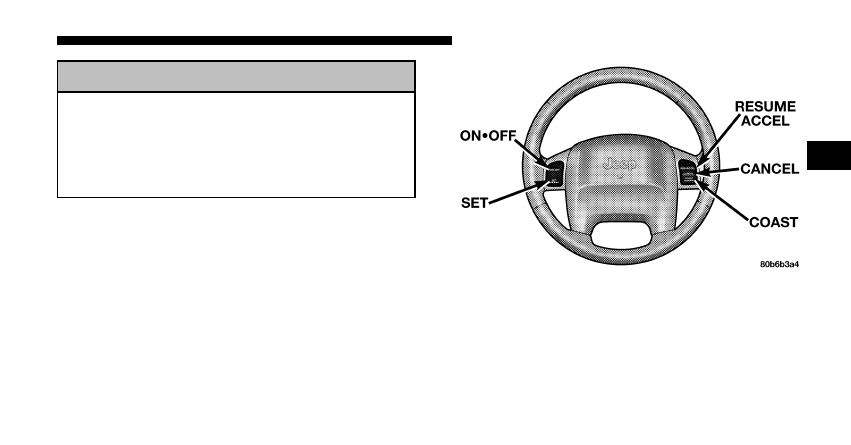

controls are mounted on the steering wheel and consist of
ON·OFF, SET, RESUME/ACCEL, CANCEL, and COAST
controls.

To Activate
Press and release the ON·OFF button to turn the system
on. To turn the system off, press the ON·OFF button
again. The system should be turned off when not in use.
The CRUISE indicator light in the instrument cluster
illuminates when the system is on.

Speed Control Switches

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Set At A Desired Speed
When the vehicle has reached the desired speed, press
and release the SET button. Release the accelerator and
the vehicle will operate at the selected speed.

To Deactivate

A soft tap on the brake pedal, normal braking, or pressing
the CANCEL button will deactivate the Speed Control
without erasing the memory. Pressing the ON·OFF but-
ton or turning off the ignition erases the memory.

To Resume Speed
To resume a previously set speed, press and release the
RESUME/ACCEL button. Resume can be used at any
speed above 35 mph (56 km/h).

To Vary The Speed Setting
When the Speed Control is on and set, speed can be
increased by pressing and holding the RESUME/ACCEL
button. When the button is released, a new set speed will
be established.

Tapping the RESUME/ACCEL button once will result in
a 2 mph (3 km/h) speed increase. Each time the button is
tapped, speed increases, so tapping the button three
times will increase speed by 6 mph (9 km/h), etc.

To decrease speed while speed control is on and set, press
and hold the COAST button. Release the button when the
desired speed is reached, and the new speed will be set.

To Accelerate for Passing
Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

When driving uphill, at elevations above 2,000

ft. (610 meters), or when the vehicle is heavily loaded
(especially when towing) the vehicle may slow below the
SET speed. (If the vehicle speed drops below 35 mph (56
km/h), the Speed Control will automatically disengage).
If this happens, you can push down on the accelerator
pedal to maintain the desired speed.

WARNING!

Leaving the Speed Control on when not in use is
dangerous. You could accidentally set the system or
cause it to go faster than you want. You could lose
control and have an accident. Always turn the system
off when you are not using it.

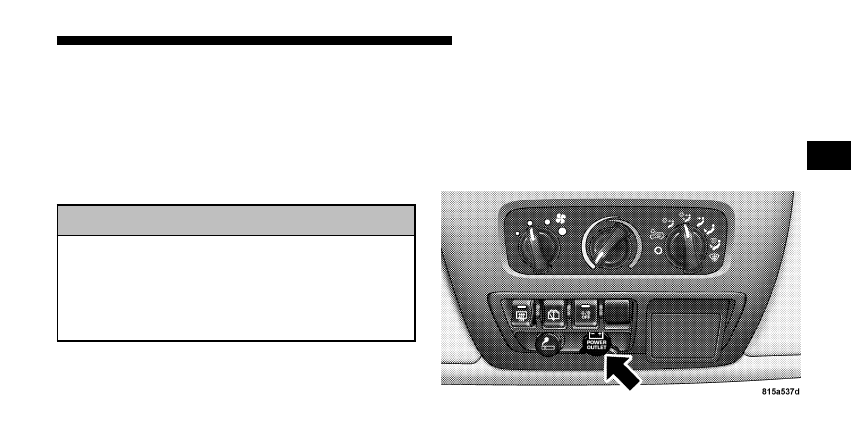

ELECTRICAL POWER OUTLET
To the right of the cigar lighter (if equipped) is the 12 volt
power outlet. The outlet is connected directly to the
battery, items plugged into this outlet may discharge the
battery and/or prevent engine starting. The outlet in-
cludes a tethered cap labeled with a battery symbol
indicating the power source.

Power Outlet

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Electrical Outlet Use With Engine Off

WARNING!

•

Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge sufficiently
to degrade battery life and/or prevent engine starting.

•

Accessories that draw higher power (i.e. coolers,
vacuum cleaners, lights, etc.), will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

•

After the use of high power draw accessories, or long
periods of the vehicle not being started (with accesso-
ries still plugged in), the vehicle must be driven a
sufficient length of time to allow the alternator to
recharge the vehicle’s battery.

•

Power outlets are designed for accessory plugs only.
Do not hang any type of accessory or accessory bracket
from the plug.

CUP HOLDERS
In the center console there are two cup holders for the
front seat passengers.

NOTE:

The cup holder insert is removable from the

console, for cleaning.

Front Cup Holders

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

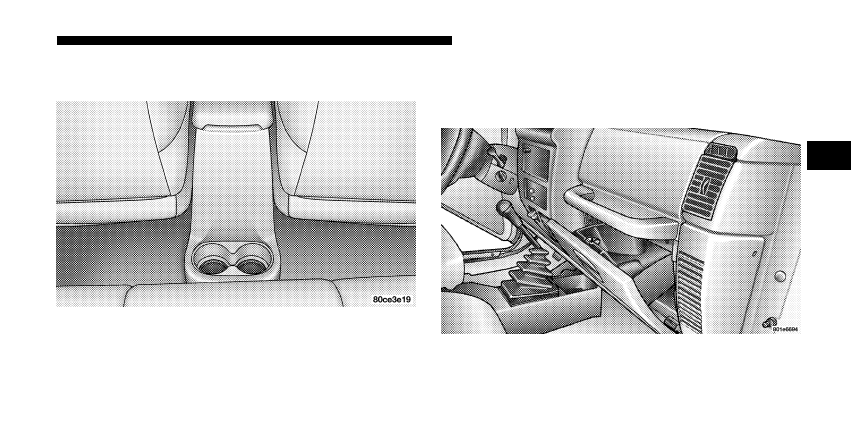

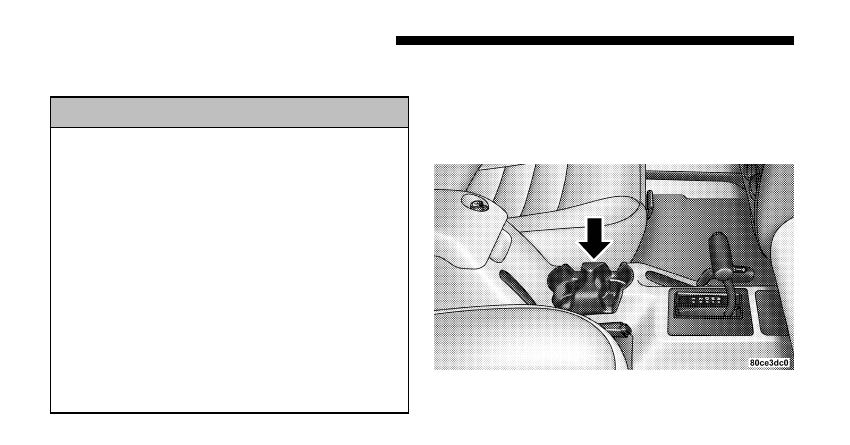

The rear passengers have cup holders at the rear of the
center console.

STORAGE

Glove Compartment
To open the glove compartment, pull the latch up.

Rear Cup Holders

Glove Compartment

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

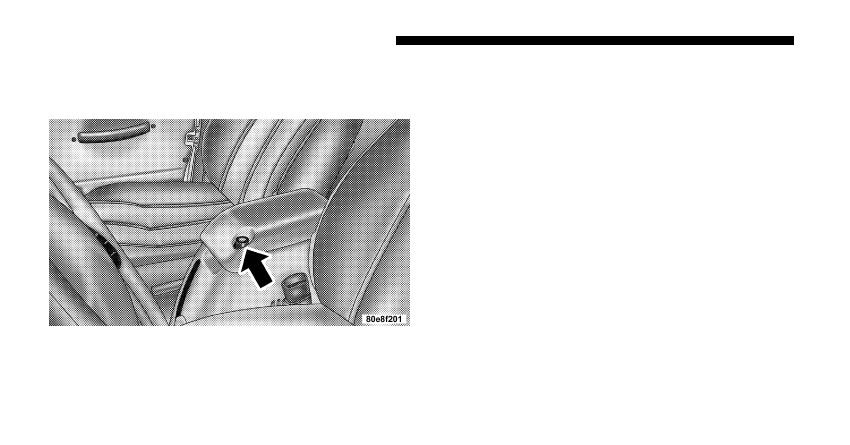

Console Storage Compartment — If Equipped
To unlock, insert key and turn. To open, press the latch
button.

Add-A-Trunk™ — If Equipped
The factory-installed Add-A-Trunk™ option provides a
secured compartment for parcels or equipment when the
tailgate is closed and locked. To gain access to this
compartment, simply open the tailgate and release the
spring loaded latch pins. The cover of the Add-A-
Trunk™ can then be raised.

When the Add-A-Trunk™ is not desired, it can be easily
removed from the rear compartment. Remove the four
knobs that secure the “trunk” to the body. Lift the
Add-A-Trunk™ out and place the knobs in the molded-in
storage area. Storage space is also provided for the wheel
lock, and lock key tool.

Do not leave the Add-A-Trunk™ loose in your vehicle.
Remove it and store it in a safe place.

Center Console

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

DUAL TOP — IF EQUIPPED
If your vehicle is equipped with a Dual Top, you must
remove one of the tops from the vehicle.

The soft top

was installed at the factory for shipping purposes only.
The soft top and the hard top are to be used indepen-
dently.

Removal is mandatory to prevent any possible

wear and tear on the soft top, should both tops remain on
the vehicle at the same time.

Removing The Soft Top

1. Locate and remove the 2 boxes that contain the
following items:

• right and left door frames
• door frame attachment knobs (4)
• right and left quarter windows
• rear tailgate window

2. Remove the hard top. Refer to “Hard Top Removal” in
this section.

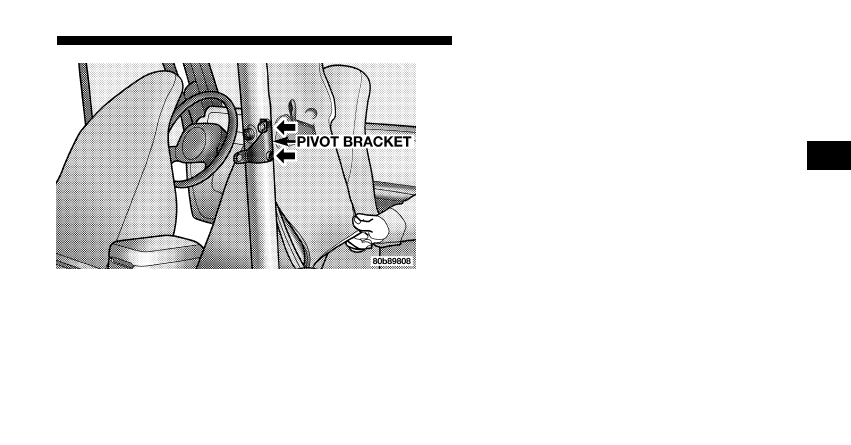

3. Remove the soft top bow assembly pivot bracket
screws (2 per side for Wrangler, 1 per side for Unlimited
models) using a #30 Torx

威 head driver.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

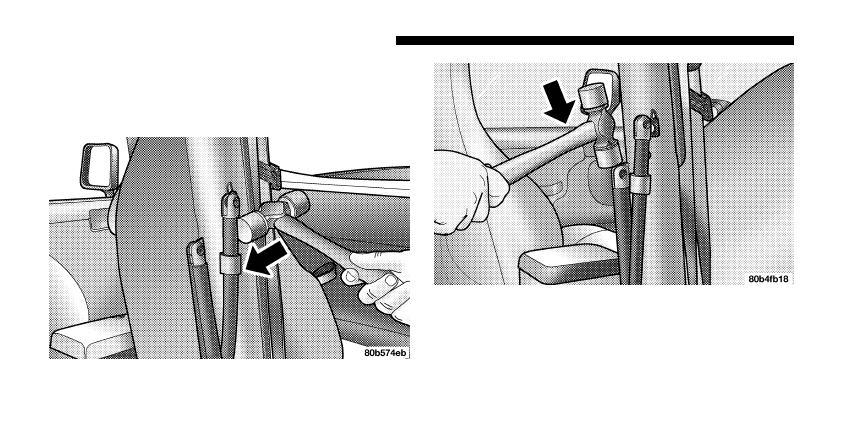

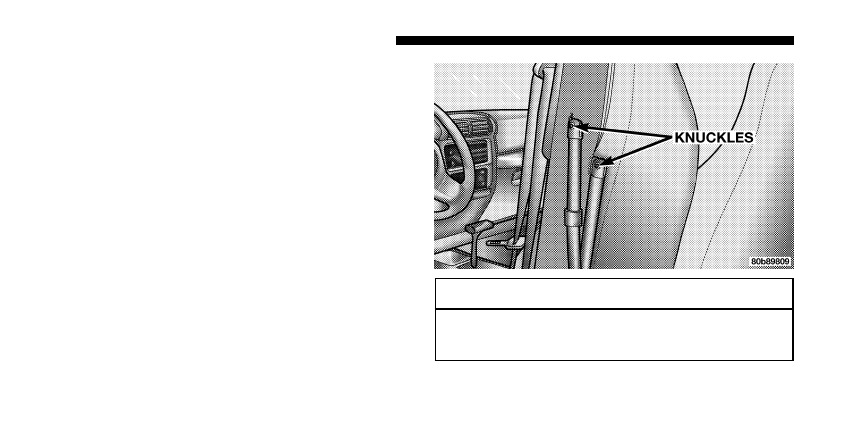

4. Using a rubber mallet, carefully tap the knuckles from
the outside edge. This will disconnect the bow assembly
from the pivot bracket. Remove the soft top from the
vehicle and store in a clean, dry location.

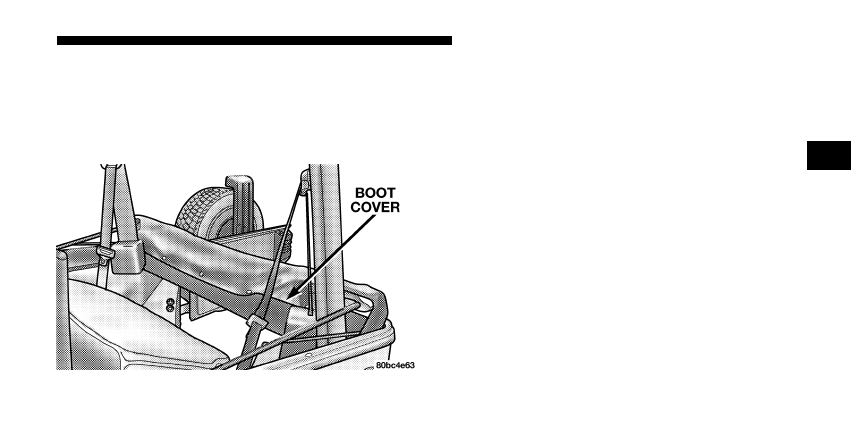

5. Unzip the zipper on the sport bar cover to expose the
pivot bracket. Remove the brackets using a #T40 Torx

威

head driver. Recover and re-zip the sports bar cover.
Store pivot brackets and screws in a safe place.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

6. Reinstall the hard top. Refer to “Hard Top Installation”
in this section.

Installing the Soft Top

NOTE:

The following procedures are for first time set

up only. For future soft top procedures, refer to “Soft
Top” in this section.

1. Locate and remove the following items prior to hard
top removal:

• right and left door frames
• door frame attachment knobs (4)
• right and left quarter windows
• rear tailgate window.

2. Remove the hard top. Refer to “Hard Top Removal” in
this section.

3. Install the door frames. Refer to “Door Frame” in this
section.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. If the soft top has been removed, follow these steps to
reinstall the soft top. If the soft top is on the vehicle,
proceed to step #5.

a. If the pivot brackets have been removed, unzip the
sport bar cover and attach the pivot brackets and
screws with a #T40 Torx

威 head driver. Re-cover and

re-zip sport bar cover.

b. If the door frames have been removed, re-install
them (refer to “Door Frame” in this section).

c. Lay the soft top back into the vehicle with the
curved portion of the bows facing upward.

d. Tap the knuckles on the side with a rubber mallet to
reattach them to the pivot bracket.

e. Screw the pivot screws back into place. Secure them
until they are snug being careful not to cross-thread the
screws.

CAUTION!

Do not overtighten the screws. You can strip the
screws if they are overtightened.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.

NOTE:

A visual instruction sheet is enclosed in the dual

top wrap.

6. Open the tailgate.

7. Remove the tailgate bar (black bar with end caps) that
is located in the soft top and set aside.

NOTE:

Be sure the wire harness is not attached to the

soft top bows before you lift the top.

8. Lift the soft top fabric up and away from the plastic
header with latches.

9. Pull all of the soft top fabric toward the rear of the
vehicle and wrap around the plastic header.

For Unlimited Models

— Pull all of the soft top fabric

toward the rear of the vehicle. Remove the three screws
from the header. Pull fabric over header until holes line
up. Reinstall screws through fabric holes and into header.
Repeat for the other side. (Refer to the Instruction Sheet
in the soft top for additional information and photos).

10. Pull the soft top fabric around the ends of the plastic
header so that the fabric has a tight, smooth appearance.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

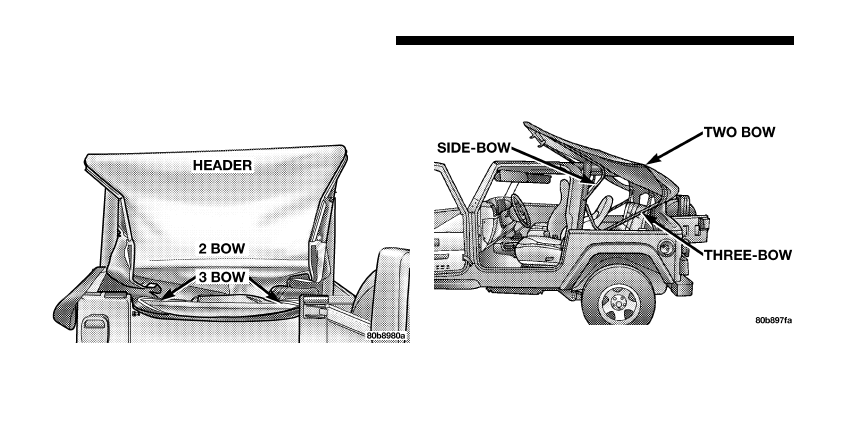

11. Working from the rear of the vehicle with the tailgate
open, lift the plastic header (with latches) up and over the
sport bar. As the header reaches the top, locate the 2 bow
and push it up and over the sport bar.

12. Move to the side of the vehicle and pull the side bow
forward and down. You will see the 3 bow rise from the
rear of the vehicle.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Jeep TJ (2006 year). Instruction - part 5
