Jeep TJ (2006 year). Instruction

WARNING!

Deployed airbags cannot protect you in another
collision. Have the airbags replaced by an autho-
rized dealer as soon as possible.

Maintaining Your Airbag System

WARNING!

• Modifications to any part of the airbag system

could cause it to fail when you need it. You could be
injured because the airbags are not there to protect
you. Do not modify the components or wiring,
including adding any kind of badges or stickers to
the steering wheel hub trim cover or the upper right
side of the instrument panel. Do not modify the
front bumper, vehicle body structure, or frame.

• You need proper knee impact protection in a

collision. Do not mount or locate any aftermarket
equipment on or behind the knee bolster.

• It is dangerous to try to repair any part of the

airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Airbag Warning Light
You will want to have the airbags ready to inflate for your
protection in an collision. While the airbag system is
designed to be maintenance free, if any of the following
occurs, have an authorized dealer service the system
immediately.

• The “Airbag Warning Light” does not come on or

flickers during the 6 to 8 seconds when the ignition
switch is first turned on.

• The “Airbag Warning Light” remains on or flickers

after the 6 to 8 second interval.

• The “Airbag Warning Light” flickers or comes on and

remains on while driving.

Child Restraint
Everyone in your vehicle needs to be buckled up all the
time-babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.

Children 12 years and under should ride properly buck-
led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

In a collision, an unrestrained child, even a tiny
baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.

Infants and Small Children
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat owner’s manual to ensure that you have the right
seat for your child. Use the restraint that is correct for
your child.

• The rearward-facing infant carrier is for babies weigh-

ing up to about 20 lbs (9 kg), and one year old or more.
The infant restraint must NEVER be used in the front
seat of a vehicle with a front passenger airbag unless
the airbag is turned off. An airbag deployment could
cause severe injury or death to infants in this position.
The infant carrier is held in the vehicle by the lap belt,
lap/shoulder belt, or the LATCH child restraint an-
chorage system.

• Children under one year of age should continue to ride

in a rear-facing infant seat, even if they weigh more
than 20 lbs (9 kg). A “convertible” child seat, one that
is designed to be used either rearward-facing or
forward-facing, should be used for children who are
too heavy for the infant carrier, but who are too young
to face forward in the vehicle.

• The forward-facing child seat is for children from

about 20–40 lbs (9–18 kg), and more than one year old.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The child seat is held in the vehicle by the lap belt,
lap/shoulder belt, or the LATCH child restraint an-
chorage system.

• The belt-positioning booster seat is for children weigh-

ing more than 40 lbs (18 kg), but who are still too small
to fit in the vehicle’s seat belts properly. If the child
cannot sit with knees bent over the seat cushion while
the child’s back is against the seat back, they should
use a belt-positioning booster seat. The child and
booster seat are held in the vehicle by lap/shoulder
belt. (Some booster seats are equipped with a front
shield and are held in the vehicle by the lap portion or
lap belt.)

• For additional information refer to www.seatcheck.org

or call 1-866-SEATCHECK.

WARNING!

• Improper installation can lead to failure of an

infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.

• A rearward facing infant restraint should only be

used in a rear seat unless the passenger frontal
airbag is turned off. If the airbag is left on, a
rearward facing infant restraint in the front seat
may be struck by a deploying passenger airbag
which may cause severe or fatal injury to the
infant.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Here are some tips on getting the most out of your child
restraint:

• Before buying any restraint system, make sure that it

has a label certifying that it meets all applicable Safety
Standards. The manufacturer also recommends that
you make sure that you can install the child restraint in
the vehicle where you will use it before you buy it.

• The restraint must be appropriate for your child’s

weight and height. Check the label on the restraint for
weight and height limits.

• Carefully follow the instructions that come with the

restraint. If you install the restraint improperly, it may
not work when you need it.

• The passenger seat belts are equipped with cinching

latch plates designed to keep the lap portion or lap belt
tight around the child restraint so that it is not
necessary to use a locking clip. Pull up on the shoulder

portion of the lap/shoulder belt, or on the free end of
the lap belt to tighten the belt. The cinching latch plate
will keep the belt tight, however, any seat belt system
will loosen with time, so check the belt occasionally
and pull it tight if necessary.

• In the rear seat, you may have trouble tightening the

lap belt or lap/shoulder belt on the child restraint
because the buckle or latch plate is too close to the belt
path opening on the restraint. Disconnect the latch
plate from the buckle and twist the short buckle-end
belt several times to shorten it. Insert the latch plate
into the buckle with the release button facing out.

• If the belt still cannot be tightened, or if pulling and

pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the buckle
around, and insert the latch plate into the buckle
again. If you still cannot make the child restraint
secure, try a different seating position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Buckle the child into the seat according to the child

restraint manufacturer’s instructions.

• When your child restraint is not in use, secure it with

the seat belt or remove it from the vehicle. Do not leave
it loose in the vehicle. In a sudden stop or collision, it
could strike the occupants or seat backs and cause
serious personal injury.

LATCH — Child Seat Anchorage System (Lower
Anchors and Tether for CH ildren)
Your vehicle’s two rear outboard (if equipped) seating
positions are equipped with the child restraint anchorage
system called LATCH. The LATCH system provides for
the installation of the child restraint without using the
vehicle’s seat belts, instead securing the child restraint
using lower anchorages and upper tether straps from the
child restraint to the vehicle structure.

LATCH-compatible child restraint systems are now avail-
able. However, because the lower anchorages are to be
introduced over a period of years, child restraint systems
having attachments for those anchorages will continue to
also have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
connection to the top tether anchorages have been avail-
able for some time. For some older child restraints, many
child restraint manufacturers offer add-on tether strap
kits or retro-fit kits. You are urged to take advantage of all
the available attachments provided with your child re-
straint in any vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

When using the LATCH attaching system to

install a child restraint, please ensure that all seat belts
not being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through the
child restraint belt path and then buckle it. This should
stow the seat belt out of the reach of an inquisitive child.
Remind all children in the vehicle that the seat belts are
not toys and should not be played with, and never leave
your child unattended in the vehicle.

The two rear outboard seating positions have lower
anchorages that are capable of accommodating LATCH-
compatible child seats having flexible, webbing-mounted
lower attachments. Child seats with fixed lower attach-
ments must be installed in the outboard positions only.
Regardless of the specific type of lower attachment,
NEVER

install LATCH-compatible child seats such that

two seats share a common lower anchorage. If installing
child seats in adjacent rear-seating positions or if your
child restraints are not LATCH-compatible, install the
restraints using the vehicle’s seat belts.

Installing the LATCH-Compatible Child Restraint
System
We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Not all
child restraint systems will be installed as described here.
Again, carefully follow the installation instructions that
were provided with the child restraint system.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The rear seat lower anchorages are round bars, located at
the rear of the seat cushion where it meets the seat back,
and are just visible when you lean into the rear seat to
install the child restraint. You will easily feel them if you
run your finger along the intersection of the seatback and
seat cushion surfaces.

In addition, there are tether strap anchorages behind the
rear seat (on the floor behind each rear outboard seating
position).

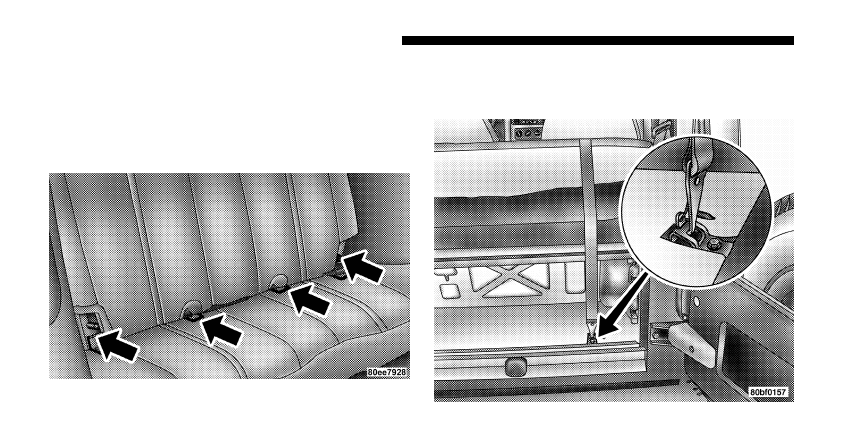

Rear Seat Latch Anchors

Rear Seat Tether Anchor

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Many, but not all restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector for attachment to the lower anchorage and a
means of adjusting the tension in the strap. Forward-
facing toddler restraints and some rear-facing infant
restraints will also be equipped with a tether strap, a
hook for attachment to the tether strap anchorage and a
means of adjusting the tension of the strap.

You will first loosen the adjusters on the lower straps and
on the tether strap so that you can more easily attach the
hooks or connectors to the vehicle anchorages. Next
attach the lower hooks or connectors over the top of the
anchorage bars, pushing aside the seat cover material.
Then, attach the tether strap to the rear tether anchorage,
being careful to route the tether strap to provide the most
direct path between the anchor and the child restraint. If
the Add-A-Trunk™ option is present in the vehicle, the
lid should be opened and positioned against the back of
the rear seat prior to attaching and adjusting the strap.

Finally, tighten all three straps as you push the child
restraint rearward and downward into the seat, remov-
ing slack in the straps according to the child restraint
manufacturer’s instructions.

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Installing Child Restraints Using the Vehicle Seat
Belt
The passenger seat belts are equipped with cinching latch
plates, which are designed to keep the lap portion tight
around the child restraint so that it is not necessary to use
a locking clip. Pull up on the shoulder portion of the
lap/shoulder belt to tighten the belt. The cinching latch
plate will keep the belt tight, however, any seat belt
system will loosen with time, so check the belt occasion-
ally and pull it tight if necessary.

In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path opening
on the restraint. Disconnect the latch plate from the
buckle and twist the short buckle-end belt several times
to shorten it. Insert the latch plate into the buckle with the
release button facing out.

If the belt still cannot be tightened, or if by pulling and
pushing on the restraint loosens the belt, you may need
to do something more. Disconnect the latch plate from
the buckle, turn the buckle around, and insert the latch
plate into the buckle again. If you still can’t make the
child restraint secure, try a different seating position.

To attach a child restraint tether strap:

For the rear outboard seating positions, route the tether
over the rear seat and attach to the rear floor tether
anchors. If the Add-A-Trunk™ option is present in the
vehicle, the lid should be opened and positioned against
the back of the rear seat prior to attaching and adjusting
the strap.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.

Children Too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back should use the lap/shoulder belt in a rear seat.

• Make sure that the child is seated upright in the seat.
• The lap belt portion should be low on the hips and as

snug as possible.

Rear Seat Tether Anchor

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Check belt fit periodically. A child’s squirming or

slouching can move the belt out of position.

• If the shoulder belt contacts the child’s face or neck,

move the child closer to the center of the vehicle.
Never allow a child to put the shoulder belt under an
arm or behind their back.

Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.

Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.

ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your new vehicle.

Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or 55
mph (80 or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.
Wide open throttle acceleration in low gear can be
detrimental and should be avoided.

The engine oil installed in the engine at the factory is a
high quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
The recommended viscosity and quality grades are
shown in Section 7 of this manual. NON-DETERGENT
OR STRAIGHT MINERAL OILS MUST NEVER BE
USED.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty.

SAFETY TIPS

Exhaust Gas

WARNING!

Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow the safety tips below.

• Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas which can kill.
Never run the engine in a closed area, such as a

garage, and never sit in a parked vehicle with the
engine running for a extended period. If the vehicle is
stopped in an open area with engine running for more
than a short period, adjust the ventilation system to
force fresh, outside air into the vehicle.

• Guard against carbon monoxide with proper mainte-

nance. Have the exhaust system inspected every time
the vehicle is raised. Have any abnormal conditions
repaired promptly. Until repaired, drive with all side
windows fully open.

• Always run the climate control in panel or floor mode

when driving with any windows open, even if only
slightly, to help keep fresh air circulating inside ve-
hicle. Otherwise poisonous gases could be drawn into
the vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• On hardtop models, keep the tailgate window closed

when driving your vehicle. On fabric top models, do
not drive with the rear window curtain up unless the
side curtains are also open. This will prevent carbon
monoxide and other poisonous exhaust gases from
entering the vehicle.

Safety Checks You Should Make Inside The
Vehicle

Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing,
etc.). If there is any question regarding belt or retractor
condition, replace the belt.

Airbag Warning Light
The light should come on and remain on for 6 to 8
seconds as a indicator check when the ignition switch is
first turned on. If the indicator is not lit during starting,
have it serviced. If the light stays on or comes on while
driving, have the system checked by an authorized
dealer.

Defrosters
Check operation by selecting the defrost mode and place
the blower control on high speed. You should feel the air
directed against the windshield.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Safety Checks You Should Make Outside The
Vehicle

Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness and tires (includ-
ing spare) for proper pressure.

Lights
Have someone observe the operation of all exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.

Fluid Leaks
Check area under vehicle after overnight parking for fuel,
coolant, oil, or other fluid leaks. Also, if gasoline fumes
are detected, the cause should be located and corrected
immediately.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep TJ (2006 year). Instruction - part 3
