Jeep Liberty (2012 year). Instruction

Cavity Cartridge

Fuse

Mini-

Fuse

Description

M18

—

15 Amp

Blue

Exterior Lighting –
Right Front Park and
Side Marker, Right
Tail and Running
Lights

M19

—

25 Amp

Natural

Automatic Shutdown
#1 and #2

M20

—

15 Amp

Blue

Interior Lighting/
Steering Wheel
Switches – If
Equipped/Switch
Bank/Steering Col-
umn Module – If
Equipped

M21

—

20 Amp

Yellow

Automatic Shutdown
#3

Cavity Cartridge

Fuse

Mini-

Fuse

Description

M22

—

10 Amp

Red

Right Horn (Hi/Low)

M23

—

10 Amp

Red

Left Horn (Hi/Low)

M24

—

25 Amp

Natural

Rear Wiper – If
Equipped

M25

—

20 Amp

Yellow

Fuel Pump, Diesel
Lift Pump – If
Equipped

M26

—

10 Amp

Red

Power Mirror Switch/
Driver Window
Switch

M27

—

10 Amp

Red

Ignition Switch/
Wireless Control
Module/Steering Col-
umn Lock – If
Equipped

496

MAINTAINING YOUR VEHICLE

Cavity Cartridge

Fuse

Mini-

Fuse

Description

M28

—

10 Amp

Red

Powertrain Control
Module

M29

—

10 Amp

Red

Occupant Classifica-
tion Module

M30

—

15 Amp

Blue

Rear Wiper Module –
If Equipped/Power
Folding Mirror – If
Equipped/Diagnostic
Link

M31

—

20 Amp

Yellow

Back-Up Lights

M32

—

10 Amp

Red

Airbag Module

M33

—

10 Amp

Red

Powertrain Control
Module

Cavity Cartridge

Fuse

Mini-

Fuse

Description

M34

—

10 Amp

Red

Park Assist Module –
If Equipped/Climate
Control System Mod-
ule – If Equipped/
Compass Module – If
Equipped/Cabin
Heater – If
Equipped/Diesel Rad
Fan – If Equipped

M35

—

15 Amp

Blue

Heated Mirrors – If
Equipped

M36

—

MAINTAINING YOUR VEHICLE

497

Cavity Cartridge

Fuse

Mini-

Fuse

Description

M37

—

10 Amp

Red

Antilock Brakes/
Stability Control Sys-
tem Module/Stop
Light Switch/Fuel
Pump Relay

M38

—

25 Amp

Natural

Door and Liftgate
Lock/Unlock Motors

CAUTION!

• When installing the Integrated Power Module

cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.

(Continued)

CAUTION! (Continued)

• When replacing a blown fuse, it is important to

use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.

REPLACEMENT BULBS

LIGHT BULBS – Interior

Bulb No.

Cargo Lamp. . . . . . . . . . . . . . . . . . . . . . . . . TL212–2
Overhead Console Lamp . . . . . . . . . . . . . PLW214–2A
Reading Lamp . . . . . . . . . . . . . . . . . . . . . . WL212–2

498

MAINTAINING YOUR VEHICLE

LIGHT BULBS – Exterior

Bulb No.

Headlamp . . . . . . . . . . . . . . . . . . . . . . . . . 9008 H13
Front Park/Turn Signal Lamp. . . . . . . . . . . . . 3757AK
Front Side Marker Lamp . . . . . . . . . . . . . . . . . . . 168
Back-Up Lamp . . . . . . . . . . . . . . . . . . . . . . . . 3157K
Center High Mounted Stop Lamp (CHMSL) . . . . . LED

(serviced at an authorized dealer)

Fog Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . H10 9145
License Plate Lamp . . . . . . . . . . . . . . . . . . . . . . . 168
Rear Tail/Stop. . . . . . . . . . . . . . . . . . . . . . . . . 3157K
Rear Turn Signal Lamp . . . . . . . . . . . . . . . . . 3757AK

BULB REPLACEMENT

Headlamp

1. Open the hood.

2. Reach behind the headlamp housing to access the
headlamp bulb lock ring.

3. Firmly grasp the lock ring and rotate it counterclock-
wise to unlock it.

4. Remove the bulb and connector assembly from the
headlamp housing.

5. Disconnect the bulb from the electrical connector and
then connect the replacement bulb.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

6. Install the bulb and connector assembly into the
headlamp housing and rotate the lock ring clockwise to
lock it in place.

7. Close the hood.

MAINTAINING YOUR VEHICLE

499

Front Turn Signal And Front Side Marker Lamp

1. Turn the steering wheel all the way to the right to
access the left front turn signal or side marker. Turn the
steering wheel all the way to the left to access the right
front turn signal or side marker.

2. Remove three push-pins from the wheel-well liner.

3. Gently flex the wheel-well liner forward to access the
bulb.

4. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the housing.

5. Pull the bulb out of the socket and insert the replace-
ment bulb.

6. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.

7. Reposition the wheel-well liner and install the
push-pins.

Front Fog Lamp

1. Open the hood.

2. Reach behind the headlamp housing to access the
bulb.

3. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the fog lamp housing.

4. Pull the bulb out of the socket and insert the replace-
ment bulb.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

500

MAINTAINING YOUR VEHICLE

5. Install the bulb and socket assembly into the into the
fog lamp housing, and rotate the connector clockwise to
lock it in place.

6. Close the hood.

Rear Tail/Stop, Turn Signal, And Back-Up Lamp

1. Open the liftgate.

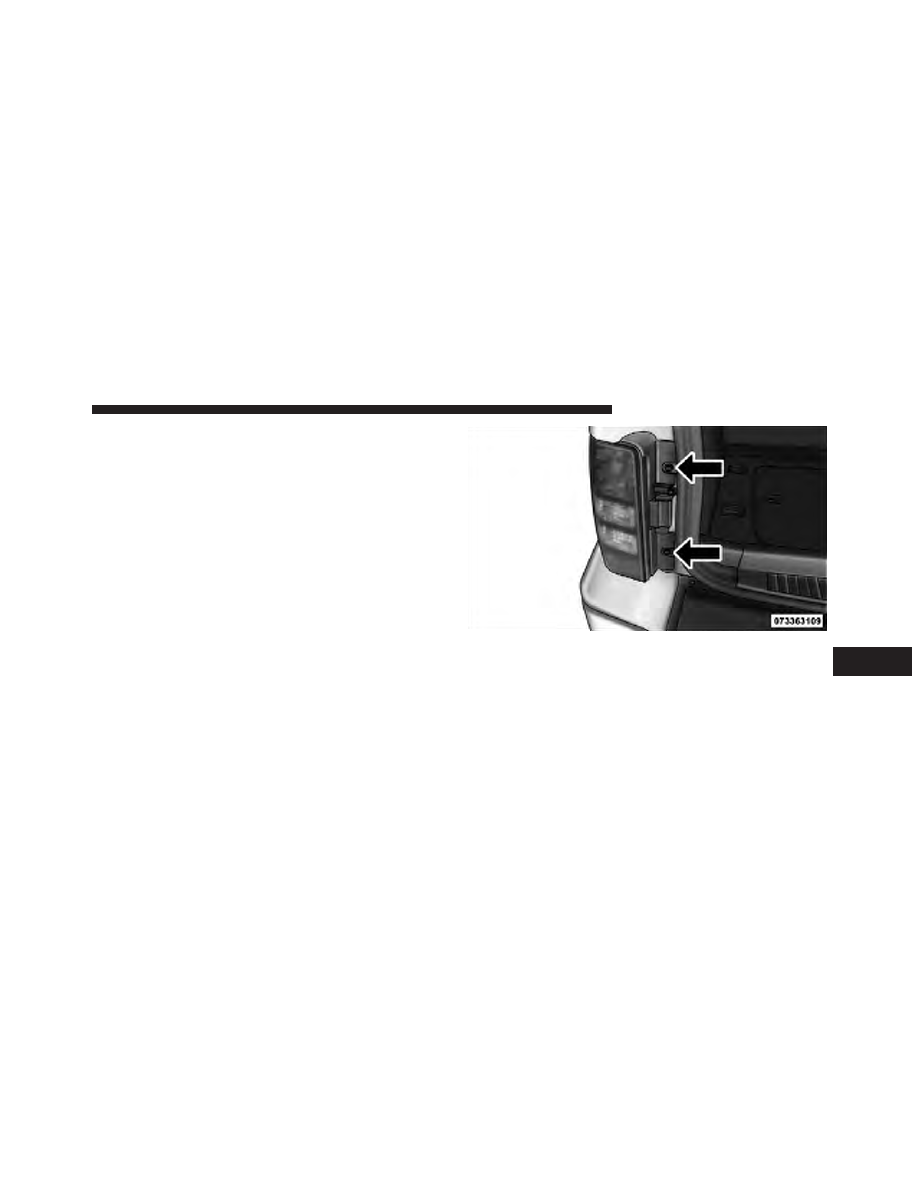

2. Remove the screws that fasten the taillamp housing to
the vehicle.

3. Pull the taillamp housing straight back to separate it
from the vehicle.

4. Disconnect the electrical connector.

5. Remove the two screws that fasten the back plate to
the taillamp housing.

6. Separate the back plate from the taillamp housing.

MAINTAINING YOUR VEHICLE

501

7. Pull the appropriate bulb(s) out of the back plate and
insert the replacement bulb(s).

8. Install the back plate and screws into the taillamp
housing.

9. Connect the electrical connector.

10. Install the taillamp housing and screws.

11. Close the liftgate.

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)

19.5 Gallons

73.8 Liters

Engine Oil with Filter
3.7 Liter Engine (SAE 5W-20, API Certified)

5 Quarts

4.7 Liters

Cooling System *
3.7 Liter Engine (MOPAR

威 Antifreeze/Engine Coolant 5

Year/100,000 Mile Formula or equivalent)

14 Quarts

13.3 Liters

* Includes heater and coolant recovery bottle filled to MAX level.

502

MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

MOPAR

威 Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-

brid Organic Additive Technology) or equivalent.

Engine Oil

Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.

Engine Oil Filter

MOPAR

威 Engine Oil Filter or equivalent.

Spark Plugs

ZFR6F-11G (Gap 0.043 in [1.1 mm])

Fuel Selection

87 Octane

MAINTAINING YOUR VEHICLE

503

Chassis

Component

Fluid, Lubricant, or Genuine Part

Automatic Transmission

MOPAR

威 ATF+4威 Automatic Transmission Fluid or equivalent licensed

ATF+4

威 product.

Transfer Case

MOPAR

威 ATF+4威 Automatic Transmission Fluid or equivalent licensed

ATF+4

威 product.

Front Axle

SAE 80W-90 Multi-Purpose Type, GL-5 Gear Lubricant or equivalent.

Rear Axle

SAE 75W-90 Gear Lubricant or equivalent.

Brake Master Cylinder

MOPAR

威 DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE

J1703 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids.

Power Steering Reservoir

MOPAR

威 Power Steering Fluid +4, MOPAR威 ATF+4威 Automatic Trans-

mission Fluid or equivalent licensed ATF+4

威 product.

504

MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES

CONTENTS

䡵 Maintenance Schedule . . . . . . . . . . . . . . . . . . 506

▫ Required Maintenance Intervals . . . . . . . . . . 508

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULE

The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.

Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.

On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.

On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.

Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Depending on operating conditions, the message may
appear as early as 3,500 miles (5 630 km) since last reset.
Have your vehicle serviced as soon as possible, within
the next 500 miles (805 km).

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

506

MAINTENANCE SCHEDULES

NOTE:

• The oil change indicator message will not monitor the

time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.

• Change your engine oil more often if you drive your

vehicle off-road for an extended period of time.

• Under no circumstances should oil change intervals

exceed 8,000 miles (13 000 km) or six months, which-
ever comes first.

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by

referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.

At Each Stop For Fuel

• Check the engine oil level about five minutes after a

fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.

• Check the windshield washer solvent and add if

required.

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

507

Once A Month

• Check tire pressure and look for unusual wear or

damage.

• Inspect the battery and clean and tighten the terminals

as required.

• Check the fluid levels of the coolant reservoir and the

brake master cylinder, add as needed.

• Check all lights and other electrical items for correct

operation.

At Each Oil Change

• Change the engine oil filter.
• Inspect the brake hoses and lines.

CAUTION!

• Failure to perform the required maintenance items

may result in damage to the vehicle.

• Proper operation of four-wheel drive vehicles de-

pends on tires of equal size, type and circumfer-
ence on each wheel. Any difference in tire size can
cause damage to the transfer case. Tire rotation
schedule should be followed to balance tire wear.

Required Maintenance Intervals

Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

508

MAINTENANCE SCHEDULES

8,000 Miles (13,000 km) or
6 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
8,000 miles (13 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

16,000 Miles (26,000 km) or 12 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

16,000 miles (26 000 km).

❏ Replace the air conditioning filter.

❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the

engine air cleaner filter; replace if necessary.

❏ Inspect the brake linings, replace if necessary.

❏ Inspect exhaust system. Perform the first inspection at 16,000 miles (26 000 km) or

12 months.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

509

24,000 Miles (39,000 km) or
18 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
24,000 miles (39 000 km).

❏ Inspect the CV joints.

❏ Inspect exhaust system.

❏ Inspect the front and rear axle fluid,

change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

32,000 Miles (52,000 km) or 24 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

32,000 miles (52 000 km).

❏ Replace the air conditioning filter.

❏ Replace the engine air cleaner filter.

❏ Replace the spark plugs (3.7L Engine).

❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.

❏ Inspect the transfer case fluid.

❏ Inspect the brake linings, replace if necessary.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

510

MAINTENANCE SCHEDULES

40,000 Miles (65,000 km) or
30 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
40,000 miles (65 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

48,000 Miles (78,000 km) or 36 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

48,000 miles (78 000 km).

❏ Replace the air conditioning filter.

❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the

engine air cleaner filter; replace if necessary.

❏ Inspect the brake linings, replace if necessary.

❏ Inspect the CV joints.

❏ Inspect exhaust system.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,

off-road or frequent trailer towing.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

511

Jeep Liberty (2012 year). Instruction - part 32
