Jeep Liberty (2012 year). Instruction

WARNING! (Continued)

• A belt that is worn under your arm is dangerous.

Your body could strike the inside surfaces of the
vehicle in a collision, increasing head and neck
injury. A belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the belt over your shoulder so that
your strongest bones will take the force in a
collision.

• A shoulder belt placed behind you will not protect

you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
a bit on the shoulder belt. To loosen the lap belt if it is too

tight, tilt the latch plate and pull on the lap belt. A snug
belt reduces the risk of sliding under the belt in a
collision.

WARNING!

• A lap belt worn too high can increase the risk of

injury in a collision. The belt forces won’t be at the
strong hip and pelvic bones, but across your ab-
domen. Always wear the lap part of your seat belt
as low as possible and keep it snug.

• A twisted belt may not protect you properly. In a

collision, it could even cut into you. Be sure the
belt is straight. If you can’t straighten a belt in
your vehicle, take it to your authorized dealer
immediately and have it fixed.

5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (bent retractor, torn webbing,
etc.).

Adjustable Upper Shoulder Belt Anchorage
In the front seating positions, the shoulder belt can be
adjusted upward or downward to position the belt away
from your neck. Press the release button to release the
anchorage, and then move it up or down to the position
that fits you best.

NOTE:

The adjustable upper shoulder belt anchorage is

equipped with an Easy Up feature. This feature allows

Removing Slack From Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

the shoulder belt anchorage to be adjusted in the upward
position without pressing the release button. To verify
the shoulder belt anchorage is latched, pull downward
on the shoulder belt anchorage until it is locked into
position.

As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you will prefer a higher position.

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted lap/
shoulder belt.

1. Position the latch plate as close as possible to the
anchor point.

2. At about 6 to 12 in (15 to 30 cm) above the latch plate,
grasp and twist the belt webbing 180 degrees to create a
fold that begins immediately above the latch plate.

3. Slide the latch plate upward over the folded webbing.
The folded webbing must enter the slot at the top of the
latch plate.

4. Continue to slide the latch plate up until it clears the
folded webbing.

Adjusting Upper Shoulder Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Seat Belt Lock Out

The center rear seat belt system has a lock out feature that
will not allow you to extract the center webbing unless
the rear seat upper latch is engaged.

Seat Belts In Passenger Seating Positions

The seat belts in the passenger seating positions are
equipped with Automatic Locking Retractors (ALR)
which are used to secure a child restraint system. For
additional information, refer to “Installing Child Re-
straints Using The Vehicle Seat Belt” under the “Child
Restraints” section. The chart below defines the type of
feature for each seating position.

Driver

Center

Passenger

First Row

N/A

ALR

Second Row

ALR

Cinching

Latch Plate

ALR

Third Row

N/A

• N/A — Not Applicable

• ALR — Automatic Locking Retractor

If the passenger seating position is equipped with an
ALR and is being used for normal usage:

Only pull the belt webbing out far enough to comfortably
wrap around the occupant’s mid-section so as to not
activate the ALR. If the ALR is activated, you will hear a
ratcheting sound as the belt retracts. Allow the webbing
to retract completely in this case and then carefully pull
out only the amount of webbing necessary to comfort-
ably wrap around the occupant’s mid-section. Slide the
latch plate into the buckle until you hear a

⬙click.⬙

Automatic Locking Retractor Mode (ALR) — If
Equipped

In this mode, the shoulder belt is automatically pre-
locked. The belt will still retract to remove any slack in
the shoulder belt. The Automatic Locking Mode is avail-
able on all passenger-seating positions with a combina-
tion lap/shoulder belt. Use the Automatic Locking Mode

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

anytime a child safety seat is installed in a seating
position that has a belt with this feature. Children
12 years old and under should always be properly
restrained in the rear seat.

How To Engage The Automatic Locking Mode

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.

3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the Automatic Locking Mode.

How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and allow it
to retract completely to disengage the Automatic Locking
Mode and activate the vehicle sensitive (emergency)
locking mode.

WARNING!

• The belt and retractor assembly must be replaced

if the seat belt assembly Automatic Locking Re-
tractor (ALR) feature or any other seat belt func-
tion is not working properly when checked ac-
cording to the procedures in the Service Manual.

• Failure to replace the belt and retractor assembly

could increase the risk of injury in collisions.

Energy Management Feature

This vehicle has a safety belt system with an energy
management feature in the front seating positions to help
further reduce the risk of injury in the event of a head-on
collision.

This safety belt system has a retractor assembly that is
designed to release webbing in a controlled manner. This
feature is designed to help reduce the belt force acting on
the occupant’s chest.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• The belt and retractor assembly must be replaced

if the seat belt assembly “Automatic Locking Re-
tractor (ALR)” feature or any other seat belt func-
tion is not working properly when checked ac-
cording to the procedures in the Service Manual.

• Failure to replace the belt and retractor assembly

could increase the risk of injury in accidents.

Seat Belt Pretensioner

The belt for driver seating position is equipped with a
retractor pretensioning device, the belt for passenger
seating position is equipped with both retractor and
buckle pretensioning devices. These devices are designed
to remove any slack from the seat belt systems in the
event of a collision. These devices may improve the
performance of the seat belt by assuring that the belt is

tight around the occupant early in a collision. Pretension-
ers work for all size occupants, including those in child
restraints.

NOTE:

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt must still be
worn snugly and positioned properly.

The pretensioners are triggered by the Occupant Re-
straint Controller (ORC). Like the air bags, the preten-
sioners are single use items. A deployed pretensioner or
a deployed air bag must be replaced immediately.

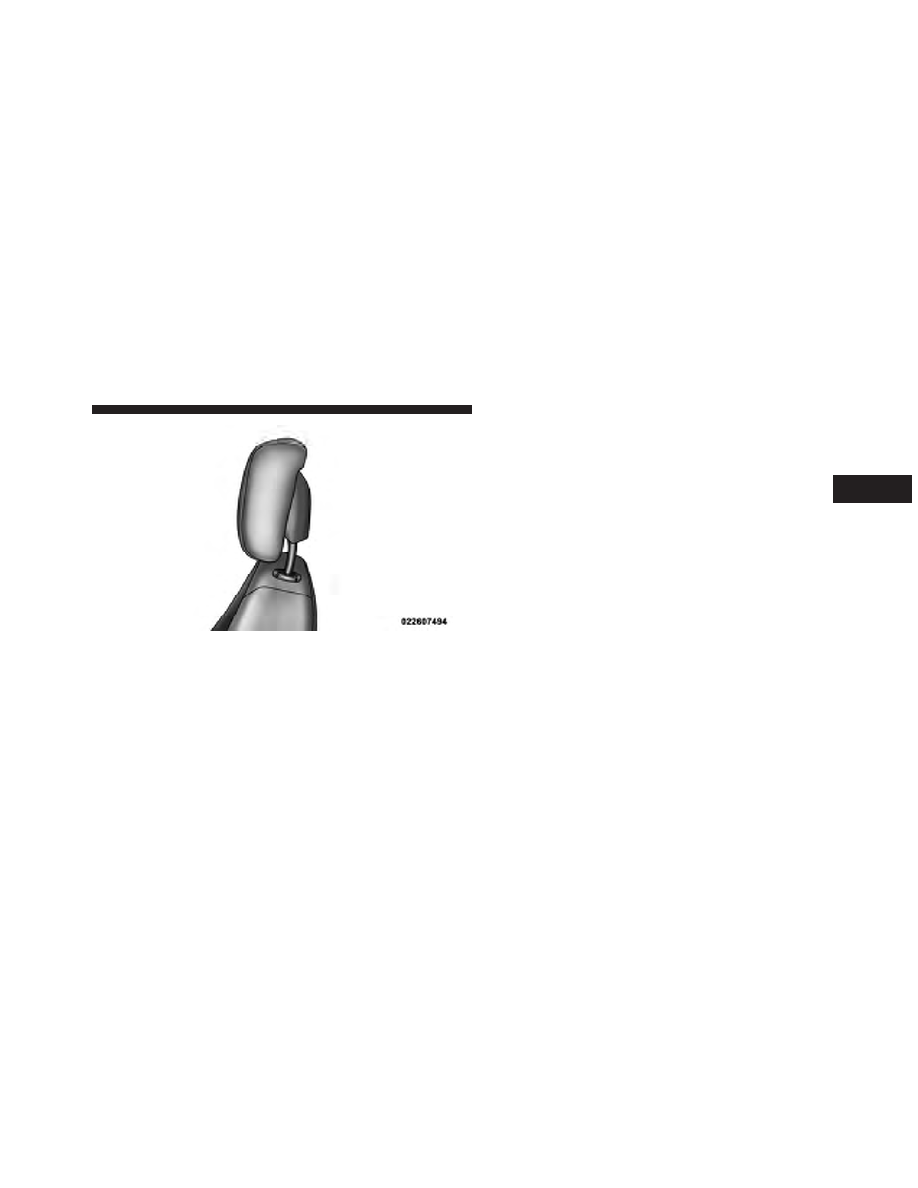

Supplemental Active Head Restraints (AHR)

These head restraints are passive, deployable compo-
nents, and vehicles with this equipment cannot be readily
identified by any markings, only through visual inspec-
tion of the head restraint. The head restraint will be split
in two halves, with the front half being soft foam and
trim, the back half being decorative plastic.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

How The Active Head Restraints (AHR) Work
The Occupant Restraint Controller (ORC) determines
whether the severity, or type of rear impact will require
the Active Head Restraints (AHR) to deploy. If a rear
impact requires deployment, both the driver and front
passenger seat AHRs will be deployed.

When AHRs deploy during a rear impact, the front half
of the head restraint extends forward to minimize the gap
between the back of the occupant’s head and the AHR.
This system is designed to help prevent or reduce the
extent of injuries to the driver and front passenger in
certain types of rear impacts.

NOTE:

The Active Head Restraints (AHR) may or may

not deploy in the event of a front or side impact.
However if during a front impact, a secondary rear
impact occurs, the AHR may deploy based on the sever-
ity and type of the impact.

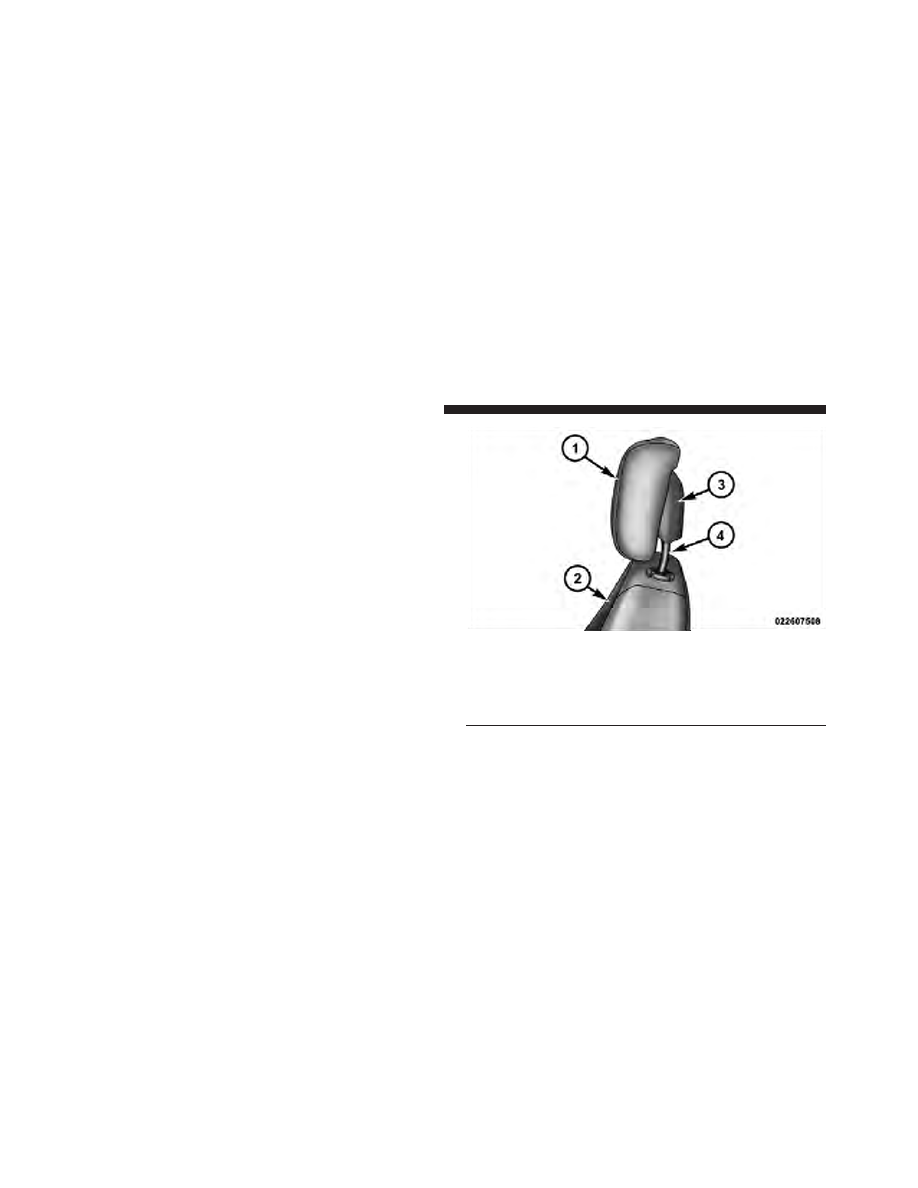

Active Head Restraint (AHR) Components

1 — Head Restraint Front Half

(Soft Foam and Trim)

3 — Head Restraint Back Half

(Decorative Plastic Rear

Cover)

2 — Seatback

4 — Head Restraint Guide

Tubes

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CAUTION!

All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in order
to minimize the risk of neck injury in the event of a
collision.

NOTE:

For more information on properly adjusting and

positioning the head restraint, refer to “Adjusting Active
Head Restraints” in “Understanding The Features Of
Your Vehicle”.

Resetting Active Head Restraints (AHR)
If the Active Head Restraints are triggered in a collision,
you must reset the head restraint on the driver’s and
front passenger seat. You can recognize when the Active
Head Restraint has been triggered by the fact that they
have moved forward (as shown in step three of the
resetting procedure).

1. Grasp the deployed AHR from the rear seat.

2. Position the hands on the top of the deployed AHR at
a comfortable position.

Hand Positioning Points On AHR

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

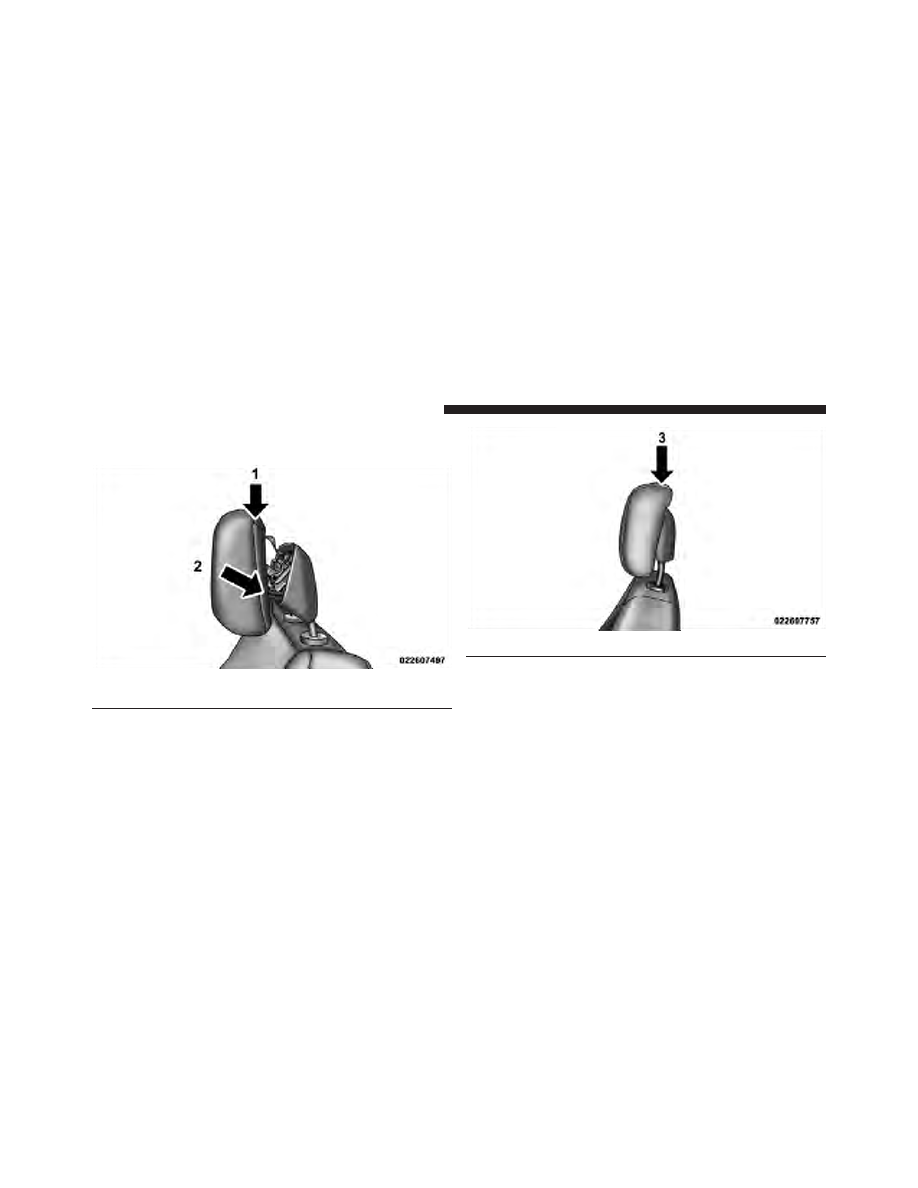

3. Pull down then rearward towards the rear of the
vehicle then down to engage the locking mechanism.

4. The AHR front soft foam and trim half should lock
into the back decorative plastic half.

1 — Downward Movement
2 — Rearward Movement

3 — Final Downward Movement To Engage Locking Mechanism

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• If you have difficulties or problems resetting the

Active Head Restraints, see an authorized dealer.

• For safety reasons, have the Active Head Restraints

checked by a qualified specialist at an authorized
dealer.

Enhanced Seat Belt Use Reminder System
(BeltAlert

姞

)

BeltAlert

威 is a feature intended to remind the driver and

front passenger (if equipped with front passenger
BeltAlert

威) to fasten their seat belts. The feature is active

whenever the ignition is on. If the driver or front seat
passenger is unbelted, the Seat Belt Reminder Light will
turn on and remain on until both front seat belts are
fastened.

The BeltAlert

威 warning sequence begins after the vehicle

speed is over 5 mph (8 km/h), by blinking the Seat Belt
Reminder Light and sounding an intermittent chime.
Once the sequence starts, it will continue for the entire
duration or until the respective seatbelts are fastened.
After the sequence completes, the Seat Belt Reminder
Light remains illuminated until the respective seat belts
are fastened. The driver should instruct all other occu-
pants to fasten their seat belts. If a front seat belt is

AHR In Reset Position

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

unbuckled while traveling at speeds greater than 5 mph
(8 km/h), BeltAlert

威 will provide both audio and visual

notification.

The front passenger seat BeltAlert

威 is not active when the

front passenger seat is unoccupied. BeltAlert

威 may be

triggered when an animal or heavy object is on the front
passenger seat or when the seat is folded flat (if
equipped). It is recommended that pets be restrained in
the rear seat in pet harnesses or pet carriers that are
secured by seat belts, and cargo is properly stowed.

BeltAlert

威 can be enabled or disabled by your authorized

dealer. Chrysler Group LLC does not recommend deac-
tivating BeltAlert

威.

NOTE:

Although BeltAlert

威 has been deactivated, the

Seat Belt Reminder Light will continue to illuminate
while the driver’s or front passenger (if equipped with
BeltAlert

威) seat belt remains unfastened.

Seat Belts And Pregnant Women

We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.

Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.

Seat Belt Extender

If a seat belt is too short, even when fully extended, and
when the adjustable upper shoulder belt anchorage (if so
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex-
tender, and store it.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use
when the lap belt is not long enough when it is worn
low and snug, and in the recommended seating
positions. Remove and store the extender when not
needed.

Supplemental Restraint System (SRS) — Air Bags

This vehicle has Advanced Front Air Bags for both the
driver and front passenger as a supplement to the seat
belt restraint systems. The driver’s Advanced Front Air
Bag is mounted in the steering wheel. The passenger’s
Advanced Front Air Bag is mounted in the instrument
panel, above the glove compartment. The words SRS/
AIRBAG are embossed on the air bag covers.

NOTE:

These air bags are certified to the new Federal

regulations for Advanced Air Bags.

The Advanced Front Air Bags have a multistage inflator
design. This allows the air bag to have different rates of
inflation that are based on the severity and type of
collision.

Advanced Front Air Bag And Knee Bolster Locations

1 — Driver And Passenger Advanced Front Air Bags
2 — Knee Bolster

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation rate of the Advanced Front Air Bags based upon
seat position.

This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.

This vehicle is equipped with Supplemental Side Air Bag
Inflatable Curtains (SABIC) that run the entire length of
the headliner to protect the driver and passengers in the
first and second row sitting next to a window.

NOTE:

• Air Bag covers may not be obvious in the interior trim,

but they will open during air bag deployment.

• After any accident, the vehicle should be taken to an

authorized dealer immediately.

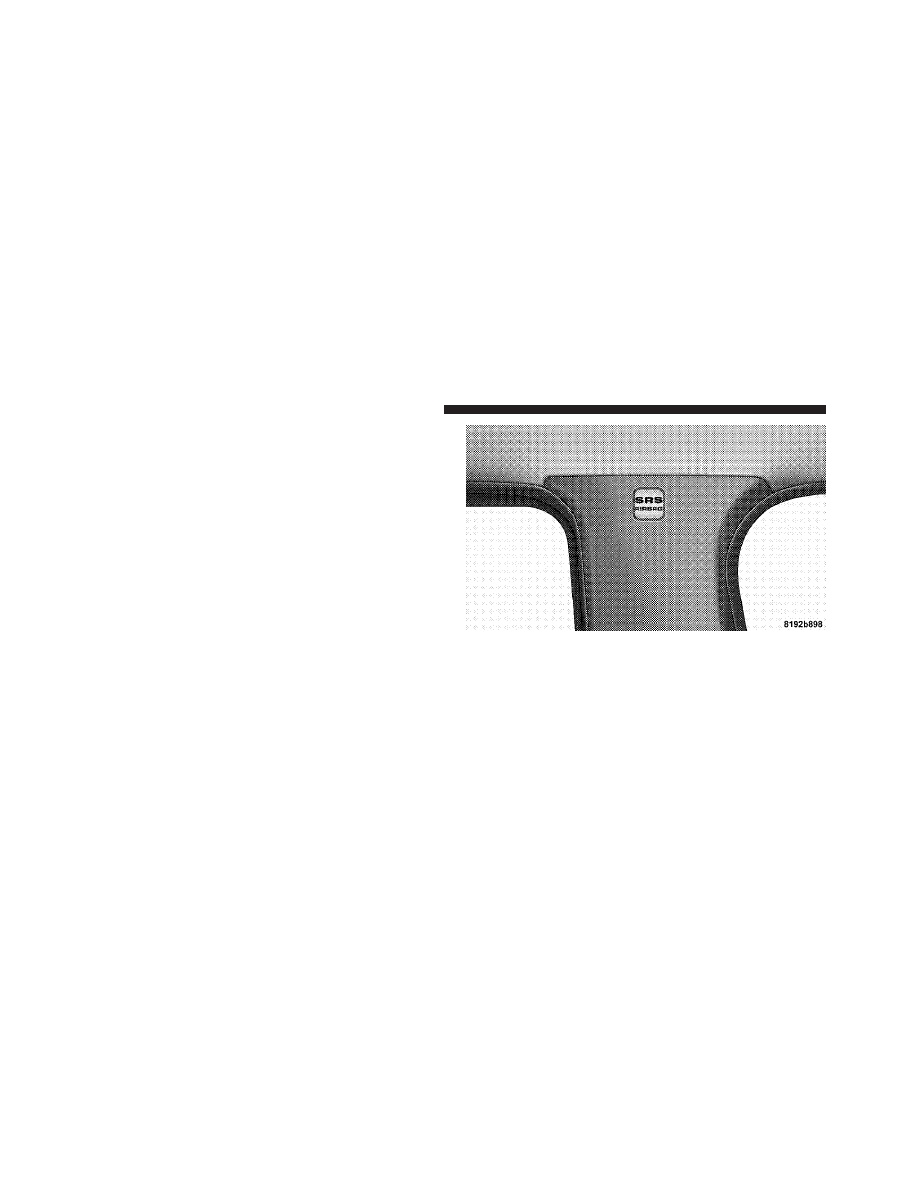

Supplemental Side Air Bag Inflatable

Curtains (SABIC) Label Location

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Air Bag System Components
Your vehicle may be equipped with the following air bag
system components:

• Occupant Restraint Controller (ORC)
• Air Bag Warning Light
• Steering Wheel and Column
• Instrument Panel
• Knee Impact Bolster
• Driver Advanced Front Air Bag
• Passenger Advanced Front Air Bag
• Supplemental Side Air Bag Inflatable Curtains

(SABIC)

• Front and Side Impact Sensors
• Front Seat Belt Pretensioners, Seat Belt Buckle Switch,

and Seat Track Position Sensors

• Supplemental Active Head Restraint for Driver and

Front Passenger

• Occupant Classification System (OCS)

• Occupant Classification Module (OCM)
• Passenger Air Bag Disable (PAD) Indicator Light
• Weight Sensors

Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage driver
and front passenger air bags. This system provides output
appropriate to the severity and type of collision as deter-
mined by the Occupant Restraint Controller (ORC), which
may receive information from the front impact sensors.

The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The passenger Advanced Front Air Bag may not

deploy, even when the driver Advanced Front Air Bag
has, if the Occupant Classification System (refer to

⬙Oc-

cupant Classification System

⬙) has determined the pas-

senger seat is empty or is occupied by someone that is
classified in the

⬙child⬙ size category. This could be a

child, teenager, or even an adult.

WARNING!

• No objects should be placed over or near the air

bag on the instrument panel, because any such
objects could cause harm if the vehicle is in a
collision severe enough to cause the air bag to
inflate.

(Continued)

WARNING! (Continued)

• Do not put anything on or around the air bag

covers or attempt to manually open them. You may
damage the air bags and you could be injured
because the air bags may no longer be functional.
These protective covers for the air bag cushions
are designed to open only when the air bags are
inflating.

• Do not use accessory seat covers or place objects

between you and the side air bags; the perfor-
mance could be adversely affected and/or objects
could be pushed into you, causing serious injury.

• Do not drill, cut or tamper with the knee bolster in

any way.

• Do not mount any accessories to the knee bolster

such as alarm lights, stereos, citizen band radios,
etc.

(Continued)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Do not have any accessory items installed which

will alter the roof, including adding a sunroof to
your vehicle. Do not add roof racks that require
permanent attachments (bolts or screws) for instal-
lation on the vehicle roof. Do not drill into the roof
of the vehicle for any reason.

Supplemental Side Air Bag Inflatable Curtain
(SABIC)
SABIC air bags may offer side-impact and vehicle roll-
over protection to front and rear seat outboard occupants
in addition to that provided by the body structure. Each
air bag features inflated chambers placed adjacent to the
head of each outboard occupant that reduce the potential
for side-impact head injuries. The SABIC air bags deploy
downward, covering both windows on the impact side.

NOTE:

• Should a vehicle rollover occur, the pretensioners

and/or SABIC air bags on both sides of the vehicle
may deploy.

• Air Bag covers may not be obvious in the interior trim,

but they will open during air bag deployment.

• Being too close to the side air bags during deployment

could cause you to be severely injured or killed.

The system includes side impact sensors that are cali-
brated to deploy the side air bags during impacts that
require side air bag occupant protection.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep Liberty (2012 year). Instruction - part 4
