Jeep Liberty (2012 year). Instruction

Replacement Keys

NOTE:

Only keys that are programmed to the vehicle

electronics can be used to start and operate the vehicle.
Once a Sentry Key

威 is programmed to a vehicle, it cannot

be programmed to any other vehicle.

CAUTION!

Always remove the Sentry Keys

威 from the vehicle

and lock all doors when leaving the vehicle unat-
tended.

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming

procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.

NOTE:

When having the Sentry Key

威 Immobilizer

System serviced, bring all vehicle keys with you to an
authorized dealer.

Customer Key Programming

If you have two valid Sentry Keys

威, you can program

new Sentry Keys

威 to the system by performing the

following procedure:

1. Cut the additional Sentry Key

威 Transponder blank(s)

to match the ignition switch lock cylinder key code.

2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.

4. Insert a blank Sentry Key

威 into the ignition switch.

Turn the ignition switch to the ON/RUN position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.

The new Sentry Key

威 is programmed. The Remote

Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key

威, contact your

authorized dealer for details.

NOTE:

If a programmed key is lost, see your authorized

dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to an authorized
dealer at the time of service to be reprogrammed.

General Information

The Sentry Key

威 system complies with FCC rules Part 15

and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference that may be

received, including interference that may cause unde-
sired operation.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

VEHICLE SECURITY ALARM — IF EQUIPPED

The Vehicle Security Alarm monitors the vehicle doors,
liftgate, and liftgate flipper glass for unauthorized entry
and ignition for unauthorized operation. While the Ve-
hicle Security Alarm is armed, interior switches for door
locks and flipper glass are disabled.

If something triggers the alarm, the Vehicle Security
Alarm will sound the horn intermittently, the headlights,
park lamps and/or turn signals and the Vehicle Security
Light in the instrument cluster will flash for three min-
utes. If the disturbance is still present (driver’s door,
passenger door, other doors, ignition) after three minutes,
the headlights, park lamps and/or turn signals will flash
for an additional 15 minutes.

NOTE:

The Panic and Security alarms are quite differ-

ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case

one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.

Rearming Of The System

If something triggers the Vehicle Security Alarm, and no
action is taken to disarm it, the Vehicle Security Alarm
will turn off the horn after three minutes, turn off all of
the visual signals after 15 minutes, and then the Vehicle
Security Alarm will rearm itself.

To Arm The System

1. Remove the key from the ignition switch and exit the
vehicle.

2. Lock the doors and liftgate by pressing the power door
LOCK switch or the LOCK button on the Remote Keyless
Entry (RKE) transmitter.

NOTE:

The Vehicle Security Alarm will not arm if you

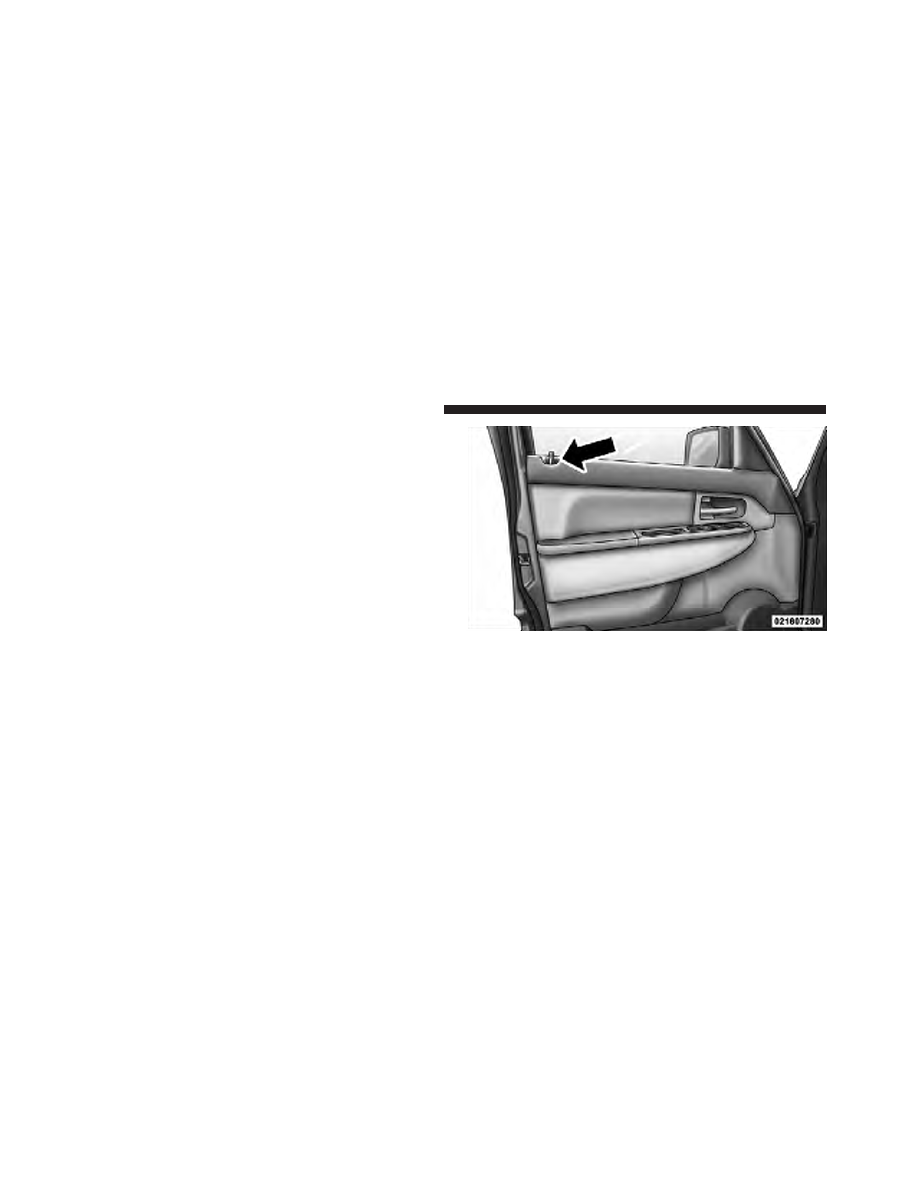

lock the doors with the manual door lock plungers or the
driver’s door lock cylinder.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Close all doors. The Vehicle Security Light in the
instrument cluster will flash rapidly for about 16 seconds
to signal that the Vehicle Security Alarm is arming.
During this period, opening any door or the liftgate will
cancel the arming process. If the Vehicle Security Alarm is
set successfully, the Vehicle Security Light will flash at a
slower rate to indicate the alarm is armed.

NOTE:

For added security, whenever the Security

Alarm is armed, the HomeLink

威/Garage Door Opener

(if equipped) is disabled as well.

To Disarm The System

Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Key

威 into the ignition lock

cylinder and turn the key to the ON/RUN position.

NOTE:

• Unlocking the doors with the manual door lock plung-

ers or the driver’s door lock cylinder will not disarm
the Vehicle Security Alarm.

• When the Vehicle Security Alarm is armed, the interior

power door lock switches will not unlock the doors.

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If the
previously described arming sequence has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are inside or outside the vehicle. If you remain inside
the vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.

Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ILLUMINATED ENTRY

The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.

This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.

The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.

NOTE:

• The front courtesy overhead console and door cour-

tesy lights will turn on if the dimmer control is in the

⬙Dome ON⬙ position (extreme top position).

• The Illuminated Entry system will not operate if the

dimmer control is in the “Dome defeat” position
(extreme bottom position).

REMOTE KEYLESS ENTRY (RKE)

This system allows you to lock or unlock the doors and
liftgate, open the liftgate flip-up window, or activate the
PANIC alarm from distances up to approximately 66 ft
(20 m) using a hand-held Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
pointed at the vehicle to activate the system. However,
the line of transmission must not be blocked with metal
objects when using the RKE transmitter.

NOTE:

Inserting the key into the ignition switch dis-

ables all buttons on the RKE transmitter.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock The Doors And Liftgate

Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock all doors and the liftgate. The turn signal lights
will flash to acknowledge the unlock signal. The illumi-
nated entry system will also turn on.

Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors and the liftgate on the first
press of the UNLOCK button on the RKE transmitter. To
change the current setting, proceed as follows:

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), refer to “Electronic Vehicle
Information

Center

(EVIC)/Personal

Settings

(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.

For vehicles not equipped with the EVIC, perform the
following steps:

1. Press and hold the LOCK button on a programmed
(i.e., functional) RKE transmitter for at least 4 seconds,
but no longer than 10 seconds. Then, press and hold the
UNLOCK button while still holding the LOCK button.

2. Release both buttons at the same time.

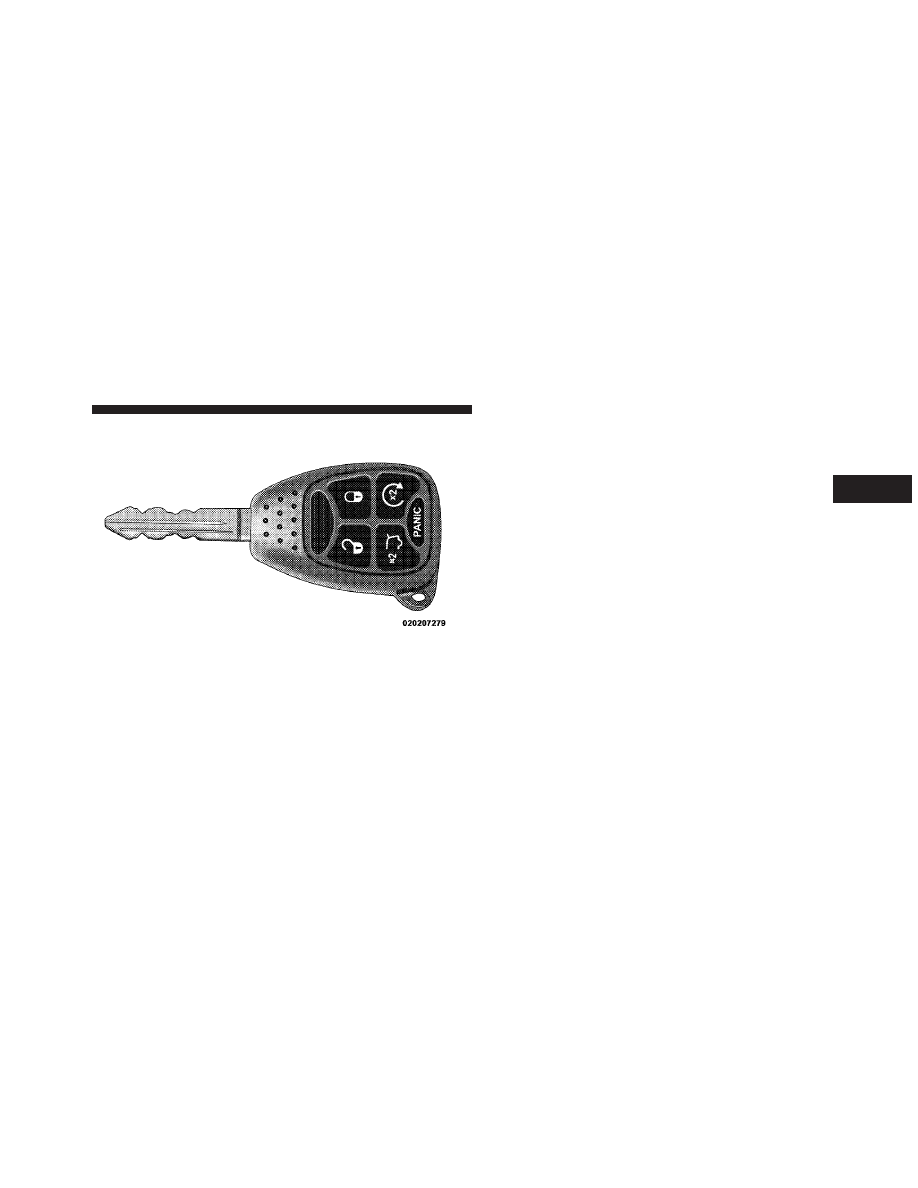

Vehicle Key

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.

4. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Pressing the LOCK button on the RKE transmit-

ter while you are inside the vehicle will activate the
Security Alarm. Opening a door with the Security Alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the Security Alarm.

Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Programmable Fea-
tures)” in “Understanding Your Instrument Panel” for
further information.

To Lock The Doors And Liftgate

Press and release the LOCK button on the RKE transmit-
ter to lock all doors and the liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the lock
signal.

Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), refer to “Electronic Vehicle
Information

Center

(EVIC)/Personal

Settings

(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• For vehicles not equipped with the EVIC, perform the

following steps:

1. Press the LOCK button on a programmed (i.e., func-
tional) RKE transmitter for at least 4 seconds, but no
longer than 10 seconds. Then, press the PANIC button
while still holding the LOCK button.

2. Release both buttons at the same time.

3. Test the feature from outside the vehicle by pressing
the LOCK button on the RKE transmitter.

4. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Pressing the LOCK button on the RKE transmit-

Flash Lights With Lock
The feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), refer to “Electronic Vehicle
Information

Center

(EVIC)/Personal

Settings

(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.

• For vehicles not equipped with the EVIC, perform the

following steps:

1. Press and hold the UNLOCK button on a programmed
(i.e., functional) RKE transmitter for at least 4 seconds,
but no longer than 10 seconds. Then, press and hold the
LOCK button while still holding the UNLOCK button.

2. Release both buttons at the same time.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.

4. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Pressing the LOCK button on the RKE transmit-

To Unlatch The Liftgate Flipper Glass

Press the FLIPPER GLASS button twice to unlatch the
liftgate flipper glass.

WARNING!

To avoid injury stand back when opening. Glass will
automatically rise.

Using The Panic Alarm

NOTE:

The PANIC and Security Alarms are quite

different. Please take a moment to activate the PANIC
and the Security modes to hear the differences in the
horn. In case one should go off in the future, you will
need to know which mode has been activated in order to
deactivate it.

To turn the PANIC Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the PANIC Alarm is
on, the headlights and turn signal lights will flash, the
horn will pulse on and off, and the illuminated entry
system will turn on.

The PANIC Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

During the PANIC Mode, the door locks and Remote
Keyless Entry (RKE) system will function normally.
PANIC mode will not disarm the Security System on
vehicles so equipped.

NOTE:

You may need to be close to the vehicle when

using the RKE transmitter to turn off the PANIC Alarm
due to the radio frequency noises emitted by the system.

Programming Additional Transmitters

Refer to Sentry Key

威 “Customer Key Programming.”

If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.

Battery Replacement

The recommended replacement battery is CR2032.

NOTE:

• Perchlorate Material — special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

• Do not touch the battery terminals that are on the back

housing or the printed circuit board.

1. Remove the screw from the RKE transmitter case (if
equipped).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. With the RKE transmitter buttons facing down, use a
flat blade tool to pry the two halves of the RKE transmit-
ter case apart. Make sure not to damage the seal during
removal.

3. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.

4. To reassemble the RKE transmitter case, snap the two
halves together.

5. Reinstall and tighten the screw until snug (if
equipped).

General Information

This device complies with Part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be
received including interference that may cause undesired
operation.

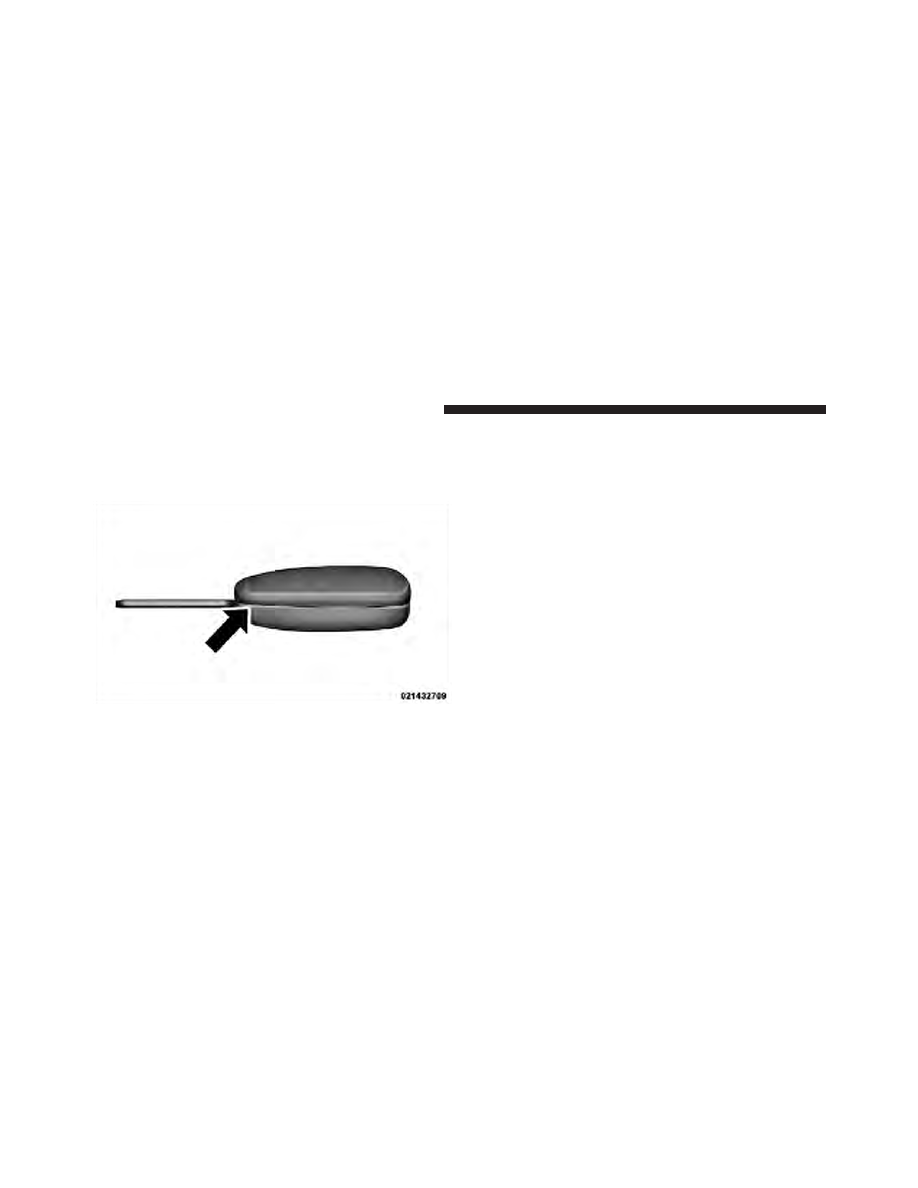

Separating Case Halves

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

Changes or modifications not expressly ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:

1. Weak battery in RKE transmitter. The expected life of
the battery is from one to two years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of

approximately 300 ft (91 m).

NOTE:

• The vehicle must be equipped with an automatic

transmission to be equipped with Remote Start.

• Obstructions between the vehicle and RKE transmitter

may reduce this range.

How To Use Remote Start

All of the following conditions must be met before the
engine will remote start:

• Shift lever in PARK.
• Doors closed.
• Hood closed.
• Liftgate closed.
• Hazard switch off.
• Brake switch inactive (brake pedal not pressed).
• Ignition key removed from ignition switch.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Battery at an acceptable charge level.
• RKE PANIC button not pressed.
• System not disabled from previous remote start event
• Vehicle theft alarm not active

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.

• Keep Remote Keyless Entry (RKE) transmitters

away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.

Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:

• Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — L/Gate Ajar
• Remote Start Aborted — System Fault
• Remote Start Aborted — Fuel Low

The EVIC message stays active until the ignition is turned
to the ON/RUN position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Enter Remote Start Mode

Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the

engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.

NOTE:

• If your power door locks were unlocked, Remote Start

will automatically lock the doors.

• If an engine fault is present or fuel level is low, the

vehicle will start and then shut down in 10 seconds.

• For security, power window operation and sunroof or

Sky Slider

威 operation (if equipped) is disabled when

the vehicle is in the Remote Start mode.

• The engine can be started two consecutive times (two

15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.

To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.

NOTE:

To avoid unintentional shut downs, the system

will disable the one-time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, insert the key into the ignition switch
and turn the switch to the ON/RUN position.

NOTE:

The ignition switch must be in the ON/RUN

position in order to drive the vehicle.

DOOR LOCKS

Manual Door Locks

To lock each door, push the door lock knob on each door
trim panel downward. To unlock each door, pull the door
lock knob on each door trim panel upward.

If the door lock knob is down when you shut the door,
the door will lock. Make sure the keys are not inside the
vehicle before closing the door.

NOTE:

The manual door locks will not lock or unlock

the liftgate.

Manual Lock Knob

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• For personal security and safety in the event of an

accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.

• When leaving the vehicle, always remove the key

fob from the ignition and lock your vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.

• Do not leave the key fob in or near the vehicle, and

do not leave the ignition in the ACC or ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.

Power Door Locks

A power door lock switch is located on each of the front
door trim panels. Use this switch to lock or unlock the
doors and liftgate.

Power Door Lock Switch Location

1 - Unlock

2 - Lock

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep Liberty (2012 year). Instruction - part 2
