NOTE:
• If shift conditions/interlocks are not met, or a transfer

case motor temperature protection condition exists, a
“For 4x4 High Slow Below 3 mph (5 km/h) Put Trans in
N push 4 Low” message will flash from the instrument
cluster display. Refer to “Instrument Cluster Display” in
“Getting To Know Your Instrument Panel” for further
information.

• Shifting into or out of 4WD LOW is possible with the

vehicle completely stopped; however, difficulty may
occur due to the mating clutch teeth not being properly
aligned. Several attempts may be required for clutch
teeth alignment and shift completion to occur. The
preferred method is with the vehicle rolling 0 to 3 mph
(0 to 5 km/h). If the vehicle is moving faster than 3 mph
(5 km/h), the transfer case will not allow the shift.

Shifting Into NEUTRAL (N)

WARNING!

You or others could be injured or killed if you leave the
vehicle unattended with the transfer case in the NEU-
TRAL (N) position without first fully engaging the
parking brake. The NEUTRAL (N) position disengages
both the front and rear drive shafts from the pow-
ertrain and will allow the vehicle to roll, even if the
transmission is in PARK. The parking brake should
always be applied when the driver is not in the vehicle.

1. Bring the vehicle to a complete stop, with the engine

running.

2. Press and hold the brake pedal.

3. Shift the transmission into NEUTRAL.

4. If vehicle is equipped with Quadra-Lift air suspension,

ensure the vehicle is set to Normal Ride Height.

276

STARTING AND OPERATING

5. Using a ballpoint pen or similar object, push and hold

the recessed transfer case NEUTRAL (N) button (located
by the selector switch) for four seconds. The light
behind the NEUTRAL (N) symbol will blink, indicating
shift in progress. The light will stop blinking (stay on
solid) when the shift to NEUTRAL (N) is complete. A
“NEUTRAL” message will appear in the instrument
cluster display. Refer to “Instrument Cluster Display” in
“Getting To Know Your Instrument Panel” for further
information.

6. After the shift is completed and the NEUTRAL (N) light

stays on, release the NEUTRAL (N) button.

7. Shift the transmission into REVERSE.

8. Release the brake pedal for five seconds and ensure that

there is no vehicle movement.

9. Press and hold the brake pedal. Shift the transmission

back into NEUTRAL.

10. Firmly apply the parking brake.

11. With the transmission and transfer case in NEUTRAL,

push and hold the ENGINE START/STOP button until
the engine turns off.

12. Place the transmission gear selector in PARK. Release

the brake pedal.

13. Push the ENGINE STOP/START button twice (without

pressing the brake pedal), to turn the ignition to the
OFF mode.

14. Release the parking brake only when the vehicle is

securely attached to a tow vehicle.

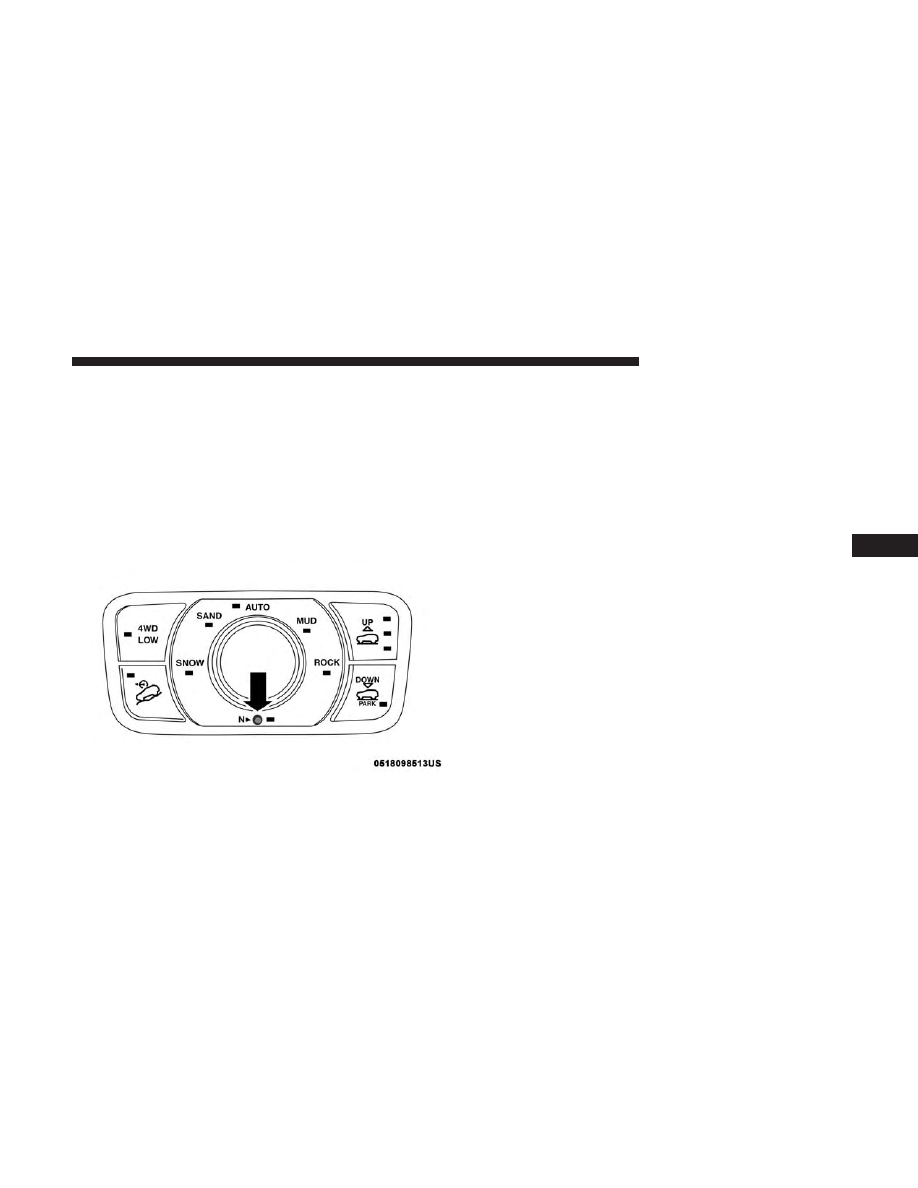

NEUTRAL (N) Switch

STARTING AND OPERATING

277

NOTE:

If shift conditions/interlocks are not met, a “To

Tow Vehicle Safely, Read Neutral Shift Procedure in Own-
er’s Manual” message will flash from the instrument
cluster display. Refer to “Instrument Cluster Display” in
“Getting To Know Your Instrument Panel” for further
information.

Shifting Out Of NEUTRAL (N)

Use the following procedure to prepare your vehicle for
normal usage.

1. Bring the vehicle to a complete stop.

2. Firmly apply the parking brake.

3. Start the engine.

4. Press and hold the brake pedal.

5. Shift the transmission into NEUTRAL.

6. Using a ballpoint pen or similar object, push and hold

the recessed transfer case NEUTRAL (N) button (located
by the selector switch) for one second.

7. When the NEUTRAL (N) indicator light turns off,

release the NEUTRAL (N) button.

8. After the NEUTRAL (N) button has been released, the

transfer case will shift to the position indicated by the
selector switch.

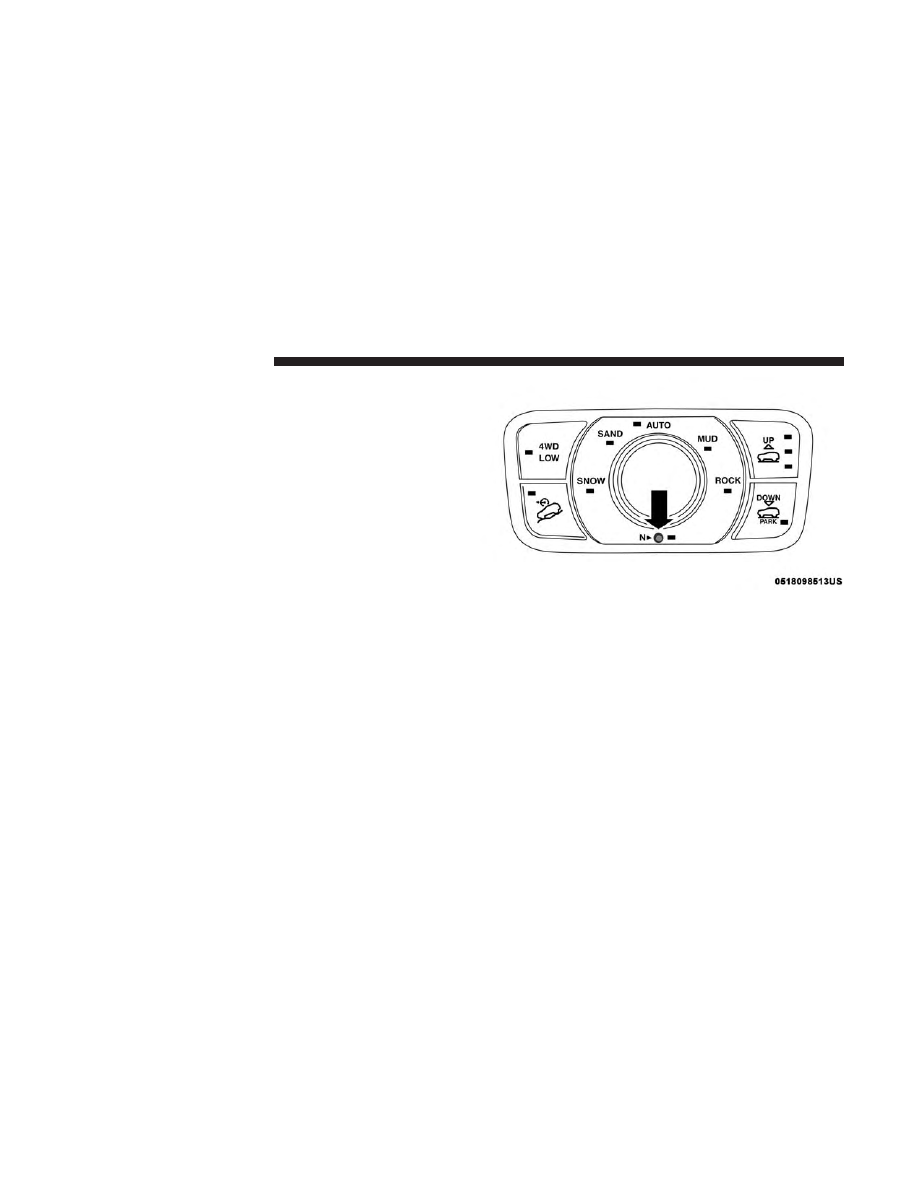

NEUTRAL (N) Switch

278

STARTING AND OPERATING

Quadra-Drive II System — If Equipped

The optional Quadra-Drive II System features two torque
transfer couplings. The couplings include an Electronic
Limited-Slip Differential (ELSD) rear axle and the Quadra-
Trac II transfer case. The optional ELSD axle is fully
automatic and requires no driver input to operate. Under
normal driving conditions, the unit functions as a standard
axle, balancing torque evenly between left and right
wheels. With a traction difference between left and right
wheels, the coupling will sense a speed difference. As one
wheel begins to spin faster than the other, torque will
automatically transfer from the wheel that has less traction,
to the wheel that has traction. While the transfer case and
axle coupling differ in design, their operation is similar.
Follow the Quadra-Trac II transfer case shifting informa-
tion, preceding this section, for shifting this system.

QUADRA-LIFT — IF EQUIPPED

Description

The Quadra-Lift air suspension system provides full time
load leveling capability along with the benefit of vehicle
height adjustment by the push of a button. The vehicle will
automatically raise and lower the ride height to adapt to
the appropriate driving conditions. At higher speeds, the

vehicle will lower to an aerodynamic ride height and when
operating in off-road modes, the vehicle will raise the ride
height accordingly. The buttons near the terrain switch in
the center console area can be used to set preferred ride
height to match the appropriate conditions.

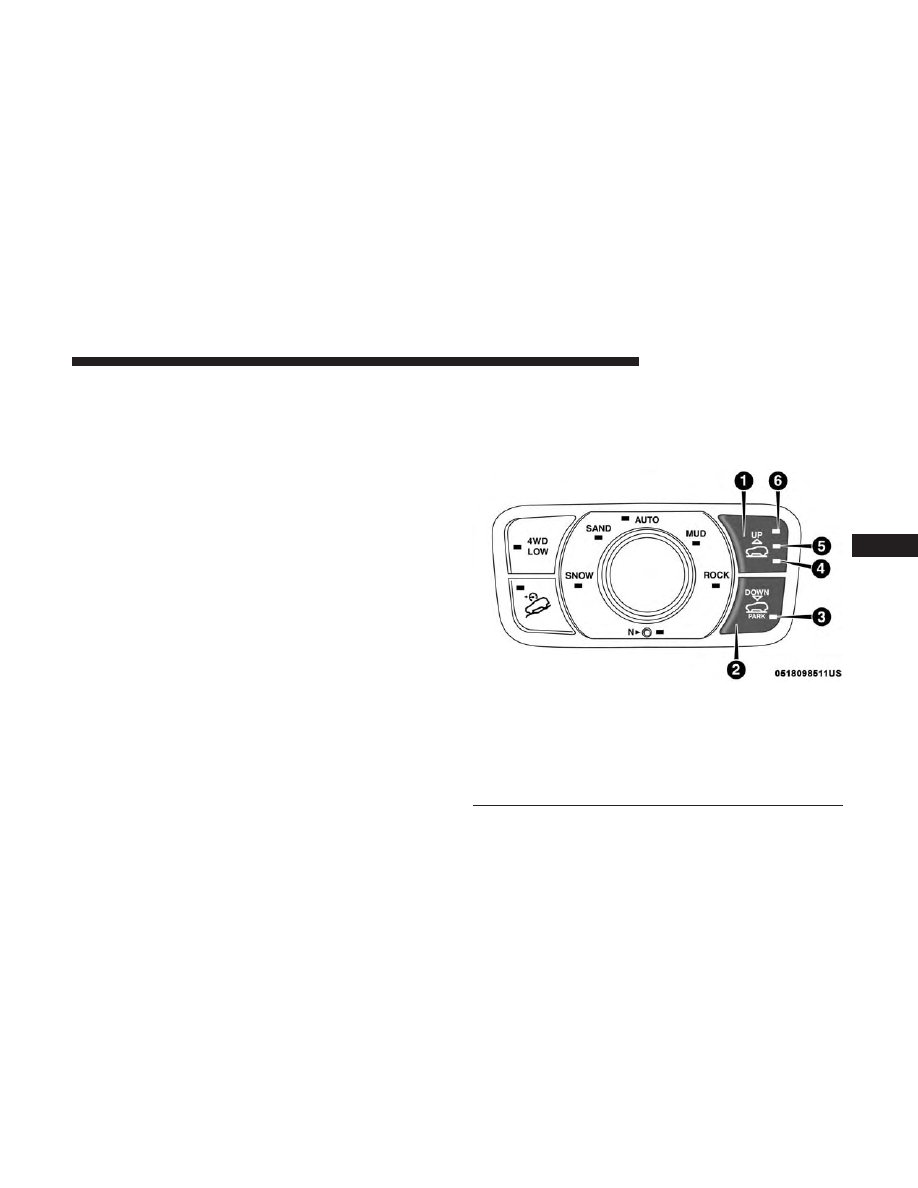

Selec-Terrain Switch

1 — UP Button
2 — DOWN Button
3 — Entry/Exit Mode Indicator Lamp (Customer Selectable)
4 — Normal Ride Height Indicator Lamp (Customer Selectable)
5 — Off-Road 1 Indicator Lamp (Customer Selectable)
6 — Off-Road 2 Indicator Lamp (Customer Selectable)

STARTING AND OPERATING

279

• Normal Ride Height (NRH) – This is the standard

position of the suspension and is meant for normal
driving.

• Off-Road 1 (OR1) (Raises the vehicle approximately

1.1 inches (28 mm))

– This is the primary position for all

off-road driving until OR2 is needed. A smoother and
more comfortable ride will result. Push the “UP” button
once from the NRH position while the vehicle speed is
below 38 mph (61 km/h). When in the OR1 position, if
the vehicle speed remains between 40 mph (64 km/h)
and 50 mph (80 km/h) for greater than 20 seconds or if
the vehicle speed exceeds 50 mph (80 km/h), the vehicle
will be automatically lowered to NRH. Refer to “Driving
Tips” in “Starting And Operating” for further informa-
tion.

• Off-Road 2 (OR2) (Raises the vehicle approximately

2.2 inches (55 mm))

– This position is intended for

off-roading use only where maximum ground clearance
is required. To enter OR2, push the “UP” button twice
from the NRH position or once from the OR1 position
while vehicle speed is below 20 mph (32 km/h). While
in OR2, if the vehicle speed exceeds 25 mph (40 km/h)
the vehicle height will be automatically lowered to OR1.
Refer to “Driving Tips” in “Starting And Operating” for
further information.

• Aero Mode (Lowers the vehicle approximately

0.6 inches (15 mm))

– This position provides improved

aerodynamics by lowering the vehicle. The vehicle will
automatically enter Aero Mode when the vehicle speed
remains between 52 mph (83 km/h) and 56 mph
(90 km/h) for greater than 20 seconds or if the vehicle
speed exceeds 56 mph (90 km/h). The vehicle will return
to NRH from Aero Mode if the vehicle speed remains
between 20 mph (32 km/h) and 25 mph (40 km/h) for
greater than 20 seconds or if the vehicle speed falls
below 20 mph (32 km/h). The vehicle will enter Aero
Mode, regardless of vehicle speed if the vehicle is in
“SPORT” mode.

• Entry/Exit Mode (Lowers the vehicle approximately

1.6 inches (40 mm)

– This position lowers the vehicle for

easier passenger entry and exit as well as lowering the
rear of the vehicle for easier loading and unloading of
cargo. To enter Entry/Exit Mode, push the “DOWN”
button once from (NRH) while the vehicle speed is
below 25 mph (40 km/h). Once the vehicle speed goes
below 15 mph (24 km/h) the vehicle height will begin to
lower. If the vehicle speed remains between 15 mph
(24 km/h) and 25 mph (40 km/h) for greater than 60
seconds, or the vehicle speed exceeds 25 mph (40 km/h)
the Entry/Exit Mode change will be cancelled. To exit

280

STARTING AND OPERATING

Entry/Exit Mode, press the “Up” button once while in
Entry/Exit Mode or drive the vehicle over 15 mph
(24 km/h).

NOTE:

Automatic lowering of the vehicle into Entry/Exit

Mode can be enabled through the Uconnect Touch-Screen
Radio. If this feature is enabled, the vehicle will only lower
if the gear selector is in

⬙PARK⬙, the terrain switch is in

⬙AUTO⬙, the transfer-case is in ⬙AUTO” and the vehicle
level should be either in Normal or Aero Mode. The Vehicle
will not automatically lower if the air suspension level is in
Off Rd 2 or Off Rd 1. If the vehicle is equipped with
Intrusion Theft Module (ITM), the lowering will be sup-
pressed when the ignition is switched OFF and the door is
open to prevent setting the alarm off.

The Selec-Terrain switch will automatically change the
vehicle to the proper height based on the position of the
Selec-Terrain switch. The height can be changed from the
default Selec-Terrain setting by normal use of the air
suspension buttons. Refer to “Selec-Terrain” in “Starting
And Operating” for further information.

The system requires that the engine be running for all
changes. When lowering the vehicle all of the doors,
including the liftgate, must be closed. If a door is opened at

any time while the vehicle is lowering the change will not
be completed until the open door(s) is/are closed.

The Quadra-Lift air suspension system uses a lifting and
lowering pattern which keeps the headlights from incor-
rectly shining into oncoming traffic. When raising the
vehicle, the rear of the vehicle will move up first and then
the front. When lowering the vehicle, the front will move
down first and then the rear.

After the engine is turned off, it may be noticed that the air
suspension system operates briefly, this is normal. The
system is correcting the position of the vehicle to ensure a
proper appearance.

To assist with changing a spare tire, the Quadra-Lift air
suspension system has a feature which allows the auto-
matic leveling to be disabled. Refer to “Uconnect Settings”
in “Multimedia” for further information.

For further information refer to “Driving Tips” in “Starting
And Operating” section.

NOTE:

If equipped with a touch screen radio all enabling/

disabling of air suspension features must be done through
the radio. Refer to “Uconnect Settings” in “Multimedia” for
further information.

STARTING AND OPERATING

281

WARNING!

The air suspension system uses a high pressure vol-
ume of air to operate the system. To avoid personal
injury or damage to the system, see your authorized
dealer for service.

Air Suspension Modes

The Air Suspension system has multiple modes to protect
the system in unique situations:

Tire/Jack Mode

To assist with changing a spare tire, the air suspension
system has a feature which allows the automatic leveling to
be disabled. Refer to “Uconnect Settings” in “Multimedia”
for further information.

NOTE:

This mode is intended to be enabled with engine

running.

Auto Entry/Exit Mode

To assist in entering and exiting the vehicle, the air
suspension system has a feature which automatically low-
ers the vehicle to entry/exit ride height. Refer to “Uconnect
Settings” in “Multimedia” for further information.

NOTE:

This mode is intended to be enabled with engine

running.

Transport Mode

To assist with flat bed towing, the air suspension system
has a feature which will put the vehicle into Entry/Exit
height and disable the automatic load leveling system.
Refer to “Uconnect Settings” in “Multimedia” for further
information.

NOTE:

This mode is intended to be enabled with engine

running.

Suspension Display Messages Mode

The “Suspension Display Messages” setting allows you to
only display suspension warnings. Refer to “Uconnect
Settings” in “Multimedia” for further information.

NOTE:

This mode is intended to be enabled with engine

running.

Wheel Alignment Mode

Before performing a wheel alignment this mode must be
enabled. Refer to “Uconnect Settings” in “Multimedia” for
further information.

282

STARTING AND OPERATING

NOTE:

This mode is intended to be enabled with engine

running.

If equipped with a touch screen radio all enabling/
disabling of air suspension features must be done through
the radio. Refer to “Uconnect Settings” in “Multimedia” for
further information.

Instrument Cluster Display Messages

When the appropriate conditions exist, a message will
appear in the instrument cluster. Refer to “Instrument
Cluster Display” in “Getting To Know Your Instrument
Panel” for further information.

Operation

The indicator lamps 3 through 6 will illuminate to show the
current position of the vehicle. Flashing indicator lamps
will show a position which the system is working to
achieve. When raising, if multiple indicator lamps are
flashing on the “UP” button, the highest flashing indicator
lamp is the position the system is working to achieve.
When lowering, if multiple indicators are flashing on the

⬙DOWN⬙ button the lowest solid indicator lamp is the
position the system is working to achieve.

Pushing the “UP” button once will move the suspension
one position higher from the current position, assuming all
conditions are met (i.e. engine running, speed below
threshold, etc). The “UP” button can be pushed multiple
times, each push will raise the requested level by one
position up to a maximum position of OR2 or the highest
position allowed based on current conditions (i.e. vehicle
speed, etc).

Pushing the “DOWN” button once will move the suspen-
sion one position lower from the current level, assuming all
conditions are met (i.e. engine running, doors closed, speed
below threshold, etc). The “DOWN” button can be pressed
multiple times. Each push will lower the requested level by
one position down to a minimum of Park Mode or the
lowest position allowed based on current conditions (i.e.
vehicle speed, etc.)

STARTING AND OPERATING

283

Automatic height changes will occur based on vehicle
speed and the current vehicle height. The indicator lamps
and instrument cluster display messages will operate the
same for automatic changes and user requested changes.
• Off-Road 2 (OR2) – Indicator lamps 4, 5, and 6 will be

illuminated when the vehicle is in OR2.

• Off-Road 1 (OR1) – Indicator lamps 4 and 5 will be

illuminated when the vehicle is in OR1.

• Normal Ride Height (NRH) – Indicator lamp 4 will be

illuminated when the vehicle is in this position.

• Entry/Exit Mode – Indicator lamp 3 will be illuminated

when the vehicle is in Entry/Exit Mode. If Entry/Exit
Mode is requested while vehicle speed is between 15
mph (24 km/h) and 25 mph (40 km/h), indicator lamp 4
will remain on solid and indicator lamp 3 will flash as
the system waits for the vehicle to reduce speed. If
vehicle speed is reduced to, and kept below, 15 mph
(24 km/h) indicator lamp 4 will turn off and indicator

lamp 3 will flash until Entry/Exit Mode is achieved at
which point indicator lamp 3 will go solid. If during the
height change to Entry/Exit Mode, the vehicle speed
exceeds 15 mph (24 km/h), the height change will be
paused until the vehicle speed either goes below 15 mph
(24 km/h) and the height change continues to Entry/
Exit Mode, or exceeds 25 mph (40 km/h) and the vehicle
height will return to NRH. Entry/Exit Mode may be
selected while the vehicle is not moving provided that
the engine is still running and all doors remain closed.

• Transport Mode - No indicator lamps will be illumi-

nated. Customer driving will disable Transport Mode.

• Tire/Jack Mode - Indicator lamps 3 and 6 will be

illuminated. Customer driving will disable Tire/Jack
Mode.

• Wheel Alignment Mode - Indicator lamps 3 and 4 will be

illuminated. Customer driving will disable Wheel Align-
ment Mode.

284

STARTING AND OPERATING

SELEC-TERRAIN — IF EQUIPPED

Selec-Terrain Mode Selection

Selec-Terrain combines the capabilities of the vehicle con-
trol systems, along with driver input, to provide the best
performance for all terrains.

Selec-Terrain consists of the following positions:
• Snow – Tuning set for additional stability in inclement

weather. Use on and off road on loose traction surfaces
such as snow. When in Snow mode (depending on
certain operating conditions), the transmission may use
second gear (rather than first gear) during launches, to

minimize wheel slippage. If equipped with air suspen-
sion, the default ride height for Snow is Normal Ride
Height (NRH).

• Auto – Fully automatic full time four-wheel drive op-

eration can be used on and off road. Balances traction
with seamless steering feel to provide improved han-
dling and acceleration over two-wheel drive vehicles. If
equipped with air suspension, the level will change to
Normal Ride Height (NRH).

• Sand – Off road calibration for use on low traction

surfaces such as sand or wet grass. Driveline is maxi-
mized for traction. Some binding may be felt on less
forgiving surfaces. The electronic brake controls are set
to limit traction control management of throttle and
wheel spin. If equipped with air suspension, the default
ride height for Sand is Normal Ride Height (NRH).

• Mud – Off road calibration for use on low traction

surfaces such as mud. Driveline is maximized for trac-
tion. Some binding may be felt on less forgiving sur-
faces. The electronic brake controls are set to limit
traction control management of throttle and wheel spin.
If equipped with air suspension, the level will change to
Off Road 1.

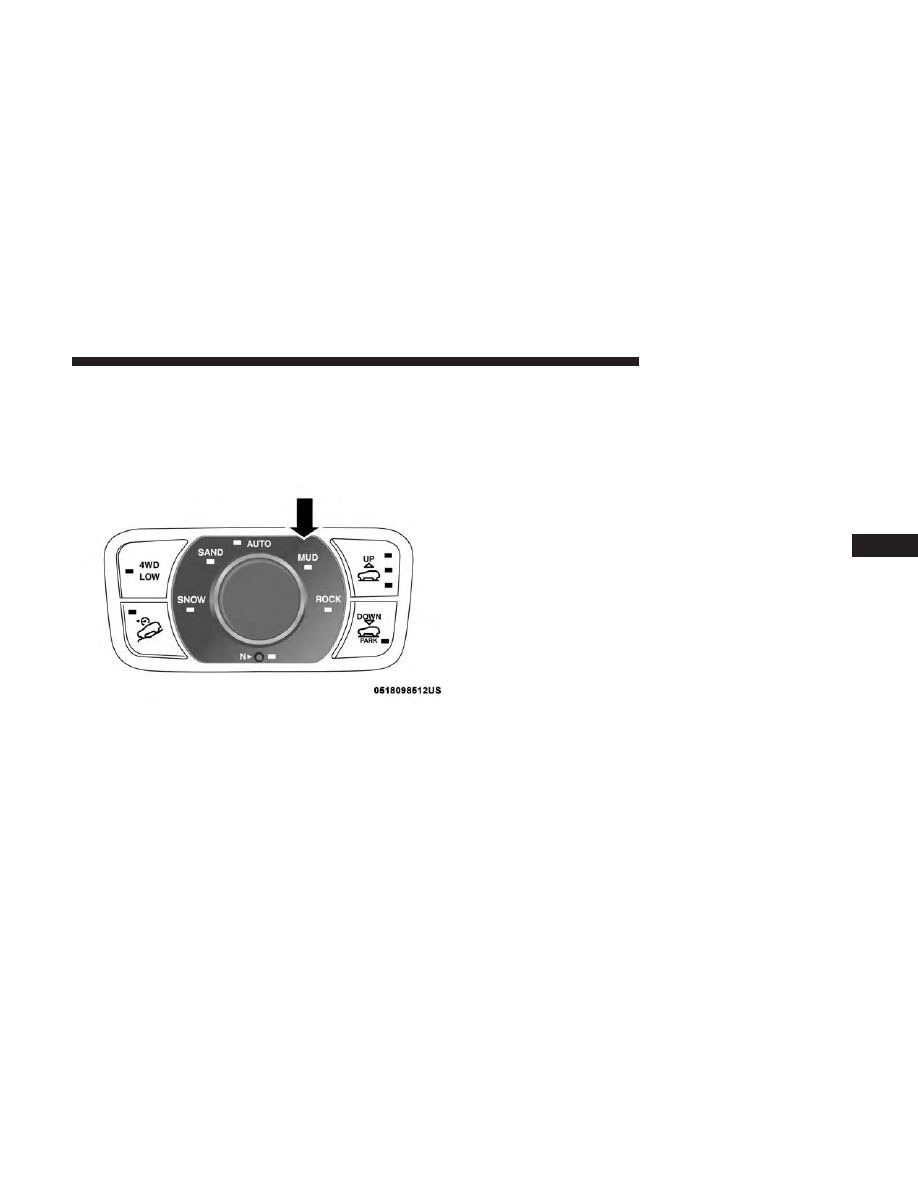

Selec-Terrain Switch

STARTING AND OPERATING

285

• Rock – Off road calibration only available in 4WD Low

range. The vehicle is raised (if equipped with Air
Suspension) for improved ground clearance. Traction
based tuning with improved steer-ability for use on high
traction off-road surfaces. Use for low speed obstacles
such as large rocks, deep ruts, etc. If equipped with air
suspension, the vehicle level will change to Off-Road 2.
If the Selec-Terrain switch is in ROCK mode, and the
transfer case is switched from 4WD Low to 4WD High,
the Selec-Terrain system will return to AUTO.

NOTE:

Activate the Hill Descent Control or Selec Speed

Control for steep downhill control. See “Electronic Brake
Control System” in this section for further information.

Instrument Cluster Display Messages

FUEL SAVER TECHNOLOGY 5.7L ONLY — IF
EQUIPPED

This feature offers improved fuel economy by shutting off
four of the engine’s eight cylinders during light load and
cruise conditions. The system is automatic with no driver
inputs or additional driving skills required.

NOTE:

This system may take some time to return to full

functionality after a battery disconnect.

POWER STEERING

The electric power steering system will give you good
vehicle response and increased ease of maneuverability in
tight spaces. The system will vary its assist to provide light
efforts while parking and good feel while driving. If the
electric steering system experiences a fault that prevents it
from providing assist, you will still have the ability to steer
the vehicle manually.

WARNING!

Continued operation with reduced assist could pose a
safety risk to yourself and others. Service should be
obtained as soon as possible.

286

STARTING AND OPERATING

Alternate electric power steering efforts can be selected
through the Uconnect System. Refer to ”Customer Pro-
grammable Features” within “Uconnect Settings” in “Mul-
timedia” for further information.

If the Electric Power Steering warning icon is
displayed and the “SERVICE POWER STEER-
ING” or the “POWER STEERING ASSIST OFF –
SERVICE SYSTEM” message is displayed within

the instrument cluster display, this indicates the vehicle
needs to be taken to the dealer for service. Refer to
“Warning Lights And Messages” in “Getting To Know
Your Instrument Panel” for further information.

NOTE:
• Even if the power steering assistance is no longer

operational, it is still possible to steer the vehicle. Under
these conditions there will be a substantial increase in
steering effort, especially at low speeds and during
parking maneuvers.

• If the condition persists, see your authorized dealer for

service.

If the Steering icon is displayed and the “POWER STEER-
ING SYSTEM OVER TEMP” message is displayed on the

instrument cluster screen, they indicate that extreme steer-
ing maneuvers may have occurred which caused an over
temperature condition in the power steering system. Once
driving conditions are safe, pull over and let the vehicle
idle for a few moments until the icon and message turn off.

STOP/START SYSTEM — IF EQUIPPED

The Stop/Start function is developed to reduce fuel con-
sumption. The system will stop the engine automatically
during a vehicle stop if the required conditions are met.
Releasing the brake pedal or pressing the accelerator pedal
will automatically re-start the engine.

This vehicle has been upgraded with a heavy duty starter,
enhanced battery, and other upgraded engine parts, to
handle the additional engine starts.

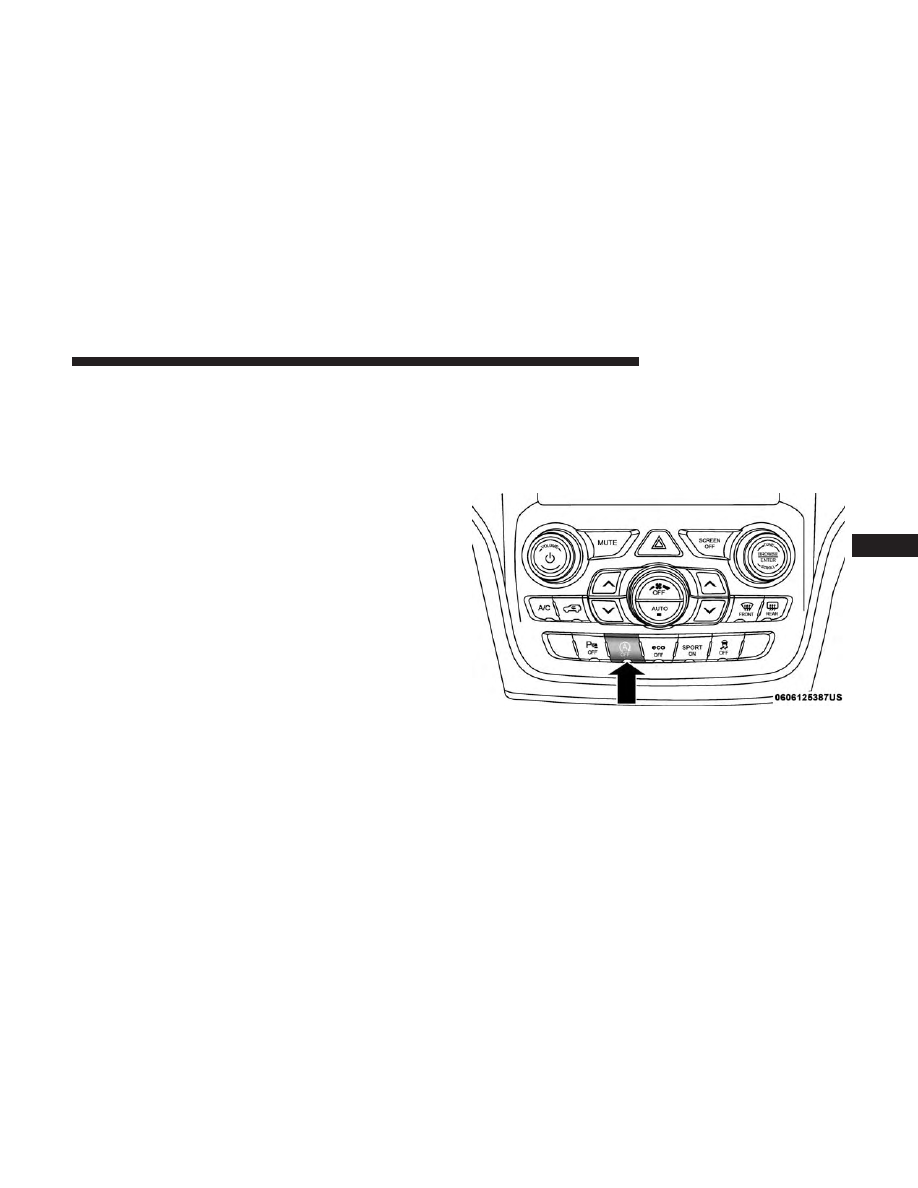

Automatic Mode

The Stop/Start feature is enabled after every
normal customer engine start. At that time, the
system will go into STOP/START READY and if
all other conditions are met, can go into a STOP/

START AUTOSTOP ACTIVE “Autostop” mode.

STARTING AND OPERATING

287

To Activate The Autostop Mode, The Following Must
Occur:
• The system must be in STOP/START READY state. A

STOP/START READY message will be displayed in the
instrument cluster display within the Stop/Start section.
Refer to “Instrument Cluster” in “Getting To Know Your
Instrument Panel” for further information.

• The vehicle must be completely stopped.
• The shifter must be in a forward gear and the brake

pedal depressed.

The engine will shut down, the tachometer will move to
the zero position and the Stop/Start telltale will illuminate
indicating you are in Autostop. Customer settings will be
maintained upon return to an engine running condition.

Refer to the “Stop/Start System” in the “Starting And
Operating” section for further information.

Possible Reasons The Engine Does Not Autostop

Prior to engine shut down, the system will check many
safety and comfort conditions to see if they are fulfilled.
Detailed information about the operation of the Stop/Start
system may be viewed in the instrument cluster display
Stop/Start Screen. In the following situations, the engine
will not stop:

• Driver’s seat belt is not buckled.
• Driver’s door is not closed.
• Battery temperature is too warm or cold.
• Battery charge is low.
• The vehicle is on a steep grade.
• Cabin heating or cooling is in process and an acceptable

cabin temperature has not been achieved.

• HVAC is set to full defrost mode at a high blower speed.
• HVAC set to MAX A/C.
• Engine has not reached normal operating temperature.
• The transmission is not in a forward gear.
• Hood is open.
• Vehicle is in 4LO transfer case mode.
• Brake pedal is not pressed with sufficient pressure.
Other Factors Which Can Inhibit Autostop Include:
• Accelerator pedal input.
• Engine temp too high.
• 5 mph (8 km/h) threshold not achieved from previous

AUTOSTOP.

288

STARTING AND OPERATING

• Steering angle beyond threshold.
• ACC is on and speed is set.
It may be possible for the vehicle to be driven several times
without the STOP/START system going into a STOP/
START READY state under more extreme conditions of the
items listed above.

To Start The Engine While In Autostop Mode

While in a forward gear, the engine will start when the
brake pedal is released or the throttle pedal is depressed.
The transmission will automatically re-engage upon en-
gine restart.

Conditions That Will Cause The Engine To Start Auto-
matically While In Autostop Mode:
• The transmission selector is moved out of DRIVE.
• To maintain cabin temperature comfort.
• HVAC is set to full defrost mode.
• HVAC system temperature or fan speed is manually

adjusted.

• Battery voltage drops too low.
• Low brake vacuum (e.g. after several brake pedal appli-

cations).

• STOP/START OFF switch is pushed.
• A STOP/START system error occurs.
• 4WD system is put into 4LO mode.

To Manually Turn Off The Stop/Start System

1. Push the STOP/START OFF switch (located on the

switch bank). The light on the switch will illuminate.

STOP/START Off Switch

STARTING AND OPERATING

289

2. The “STOP/START OFF” message will appear in instru-

ment cluster display within the Stop/Start section. Refer
to “Instrument Cluster” in “Getting To Know Your
Instrument Panel” for further information.

3. At the next vehicle stop (after turning off the STOP/

START system), the engine will not be stopped.

4. The STOP/START system will reset itself back to an ON

condition every time the ignition is turned off and back
on.

To Manually Turn On The Stop/Start System

Push the STOP/START OFF switch (located on the switch
bank). The light on the switch will turn off.

System Malfunction

If there is a malfunction in the STOP/START system, the
system will not shut down the engine. A “SERVICE STOP/
START SYSTEM” message will appear in the instrument
cluster display. Refer to “Instrument Cluster Display“ in
“Getting to Know Your Instrument Panel” for further
information.

If the “SERVICE STOP/START SYSTEM” message appears
in the instrument cluster display, have the system checked
by an authorized dealer.

SPEED CONTROL — IF EQUIPPED

When engaged, the Speed Control takes over accelerator
operations at speeds greater than 20 mph (32 km/h).

The Speed Control buttons are located on the right side of
the steering wheel.

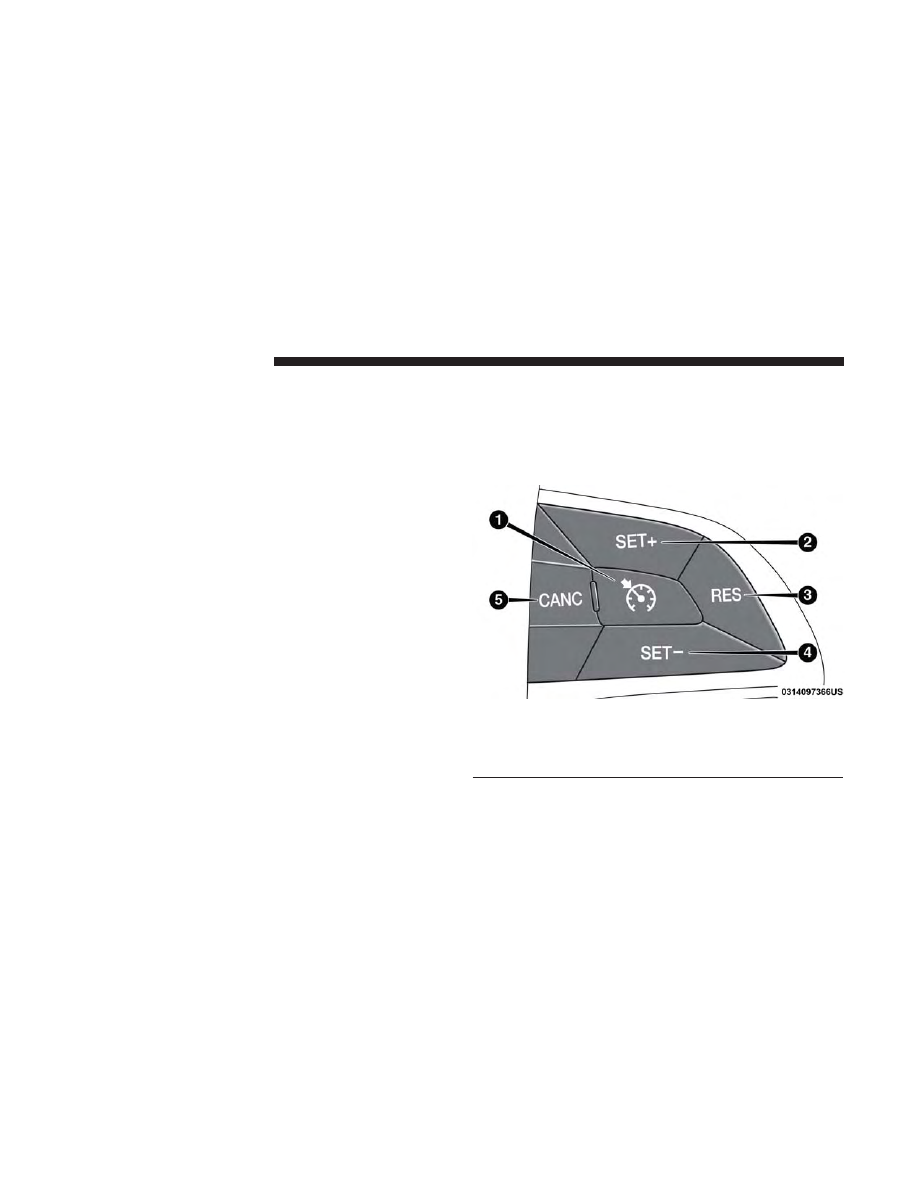

Speed Control Buttons

1 — On/Off

4 — SET (-)/Decel

2 — SET (+)/Accel

5 — CANC/Cancel

3 — RES/Resume

290

STARTING AND OPERATING

NOTE:

In order to ensure proper operation, the Speed

Control System has been designed to shut down if multiple
Speed Control functions are operated at the same time. If
this occurs, the Speed Control System can be reactivated by
pushing the Speed Control on/off button and resetting the
desired vehicle set speed.

WARNING!

Speed Control can be dangerous where the system
cannot maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control and have an accident. Do not use Speed Control
in heavy traffic or on roads that are winding, icy,
snow-covered or slippery.

To Activate

Push the on/off button to activate the Speed Control.
“CRUISE CONTROL READY” will appear in the instru-
ment cluster display to indicate the Speed Control is on. To
turn the system off, push the on/off button a second time.
“CRUISE CONTROL OFF” will appear in the instrument
cluster display to indicate the Speed Control is off. The
system should be turned off when not in use.

WARNING!

Leaving the Speed Control system on when not in use
is dangerous. You could accidentally set the system or
cause it to go faster than you want. You could lose
control and have an accident. Always leave the system
OFF when you are not using it.

To Set A Desired Speed

Turn the Speed Control on. When the vehicle has reached
the desired speed, push the SET (+) or SET (-) button and
release. Release the accelerator and the vehicle will operate
at the selected speed. Once a speed has been set, a message
“CRUISE CONTROL SET TO MPH (km/h)” will appear
indicating what speed was set. A cruise indicator lamp,
along with set speed will also appear and stay on in the
instrument cluster when the speed is set.

To Vary The Speed Setting

To Increase Speed

When the Speed Control is set, you can increase speed by
pushing the SET (+) button.

STARTING AND OPERATING

291

Jeep Grand Cherokee (2019 year). Instruction - part 18
