Jeep Grand Cherokee (2019 year). Instruction

Manual

To open the sunroof, push and hold the switch rearward to
full open. Any release of the switch will stop the move-
ment. The sunroof and sunshade will remain in a partially
opened condition until the sunroof switch is pushed again.

Closing Sunroof

Express

Push the switch forward and release it within one-half
second and the sunroof will close automatically from any
position. The sunroof will close fully and stop automati-
cally. This is called “Express Close”. During Express Close
operation, any other actuation of the switch will stop the
sunroof.

Manual

To close the sunroof, push and hold the switch in the
forward position. Any release of the switch will stop the
movement and the sunroof will remain in a partially closed
condition until the sunroof switch is pushed again.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

NOTE:

The sunshade cannot be closed if the sunroof is

open.

100

GETTING TO KNOW YOUR VEHICLE

Pinch Protect Feature

This feature will detect an obstruction in the closing of the
sunroof during the Express Close operation. If an obstruc-
tion in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs.

NOTE:

If three consecutive sunroof close attempts result in

Pinch Protect reversals, Pinch Protect will disable and the
sunroof must be closed in Manual Mode.

Venting Sunroof — Express

Push and release the Vent button within one half second
and the sunroof will open to the vent position. This is
called “Express Vent” and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.

Relearn Procedure

For vehicles equipped with a single-pane sunroof, there is
a relearn procedure that allows you to reset the sunroof
when the “Express Open” feature stops working. To reset
the sunroof, follow these steps:

1. Set the ignition to the ACC or ON/RUN position.

2. Make sure that the sunroof is fully closed.

3. Push sunroof switch forward and hold. The sunroof will

close fully then move to the Vent position after 10
seconds.

4. Release the sunroof switch, then push forward and hold

the switch again within 5 seconds to begin the relearn
process. The sunroof will complete one full cycle and
return to the Fully Closed position.

NOTE:

If the sunroof switch is released anytime during the

relearn cycle, the procedure will need to be repeated
starting from the first step.

5. Once the sunroof has stopped in the Fully Closed

position, release the sunroof switch. The sunroof is now
reset and ready to use.

GETTING TO KNOW YOUR VEHICLE

101

COMMANDVIEW SUNROOF WITH POWER SHADE
— IF EQUIPPED

The CommandView sunroof switch is located to the left
between the sun visors on the overhead console.

The power shade switch is located to the right between the
sun visors on the overhead console.

WARNING!

• Never leave children unattended in a vehicle, or with

access to an unlocked vehicle. Never leave the key
fob in or near the vehicle, or in a location accessible
to children. Do not leave the ignition of a vehicle
equipped with Keyless Enter-N-Go in the ACC or
ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the power sun-
roof while operating the power sunroof switch. Such
entrapment may result in serious injury or death.

• In a collision, there is a greater risk of being thrown

from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
also properly secured.

• Do not allow small children to operate the sunroof.

Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. In-
jury may result.

CommandView Sunroof And Power Shade Switches

102

GETTING TO KNOW YOUR VEHICLE

Opening Sunroof

The sunroof has two programmed automatic stops for the
sunroof open position; a comfort stop position and a full
open position. The comfort stop position has been opti-
mized to minimize wind buffeting.

Express

Push the switch rearward and release it within one-half
second. The sunroof will open automatically to the comfort
stop position. Push the switch rearward and release it
again, the sunroof will open to the full open position and
automatically stop. This is called “Express Open”. During
Express Open operation, any movement of the sunroof
switch will stop the sunroof.

Manual Mode

To open the sunroof, push and hold the switch rearward.
The sunroof will stop automatically at the comfort stop
position. Push and hold the switch rearward again, the
sunroof will open to the full open position and automati-
cally stop. Any release of the switch will stop the move-
ment. The sunroof and sunshade will remain in a partially
opened condition until the switch is pushed and held
rearward again.

NOTE:

If the sunshade is in the closed position when

Express or Manual Open operation is initiated the sun-
shade will automatically open to the half open position
prior to the sunroof opening.

Closing Sunroof

Express Close

Push the switch forward and release it within one-half
second and the sunroof will close automatically from any
position. During Express Close operation, any other actua-
tion of the sunroof switches will stop the sunroof in a
partially open position.

Manual Close

Push and hold the switch forward and the sunroof will
close from any position and stop at full closed position.
Releasing the switch while the sunroof is in motion will
stop the sunroof in a partially open position.

GETTING TO KNOW YOUR VEHICLE

103

Wind Buffeting

Opening Power Shade

The sunshade has two programmed positions: half open
and full open positions. When operating the sunshade
from the closed position, the sunshade will always stop at
the half open position regardless of express or manual
open operation. The switch must be actuated again to
continue on to full open position.

Express Open

Push the sunshade switch rearward and release it within
one-half second, the sunshade will open to the half open
position and stop automatically. Push and release the
switch again from the half open position and the sunshade
will open to the full open position and stop automatically.
During Express Open operation, any other actuation of the
sunroof switches will stop the sunshade in a partially open
position.

Manual Open

Push and hold the sunshade switch rearward, the sun-
shade will open to the half open position and stop auto-
matically. Push and hold the sunshade switch again and
the sunshade will open to the full open position. Releasing
the switch while the sunshade is in motion will stop the
sunshade in a partially open position.

Closing Power Shade

If the sunroof is open or vented, the sunshade cannot be
closed beyond the half open position. Pushing the sun-
shade close switch when the sunroof is open/vented and
the sunshade is at half open position will first automati-
cally close the sunroof prior to the sunshade closing.

104

GETTING TO KNOW YOUR VEHICLE

Express Close

Push the sunshade switch forward and release it within
one-half second and the sunshade will close automatically.
During Express Close operation, any other actuation of the
sunroof switches will stop the sunshade in a partially open
position.

Manual Close

Push and hold the switch forward and the sunshade will
close and stop at full closed position. Releasing the switch
while the sunshade is in motion will stop the sunshade in
a partially open position.

Pinch Protect Feature

This feature will detect an obstruction in the opening of the
sunroof during Express Close operation. If an obstruction
in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs.

NOTE:

If three consecutive sunroof close attempts result in

Pinch Protect reversals, Pinch Protect will disable and the
sunroof must be closed in Manual Mode.

Venting Sunroof — Express

Push and release the

⬙Vent⬙ button within one-half second

and the sunroof will open to the vent position. This is
called “Express Vent”, and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.

NOTE:

If the sunshade is in the closed position when the

vent switch is pushed, the sunshade will automatically
cycle to the halfway open position prior to the sunroof
opening to the Vent position.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.

GETTING TO KNOW YOUR VEHICLE

105

HOOD

To Open The Hood

To open the hood, two latches must be released.

1. Pull the release lever located below the instrument panel

and in front of the driver’s door.

2. Reach under the hood, move safety latch to the left and

lift the hood.

To Close The Hood

1. Hold up the hood with one hand and with the other

hand remove the support rod from its seat and reinsert
it into the locking tab.

2. Lower the hood to approximately 12 inches (30 cm) from

the engine compartment and drop it. Make sure that the
hood is completely closed.

Hood Release

Safety Latch Location

106

GETTING TO KNOW YOUR VEHICLE

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.

LIFTGATE

Opening

The liftgate can be opened from inside the vehicle using the
power liftgate button on the overhead console, using the
key fob outside of the vehicle or the electronic liftgate
release.

To Unlock/Enter The Liftgate

The liftgate may be released in several ways:
• Key fob
• Outside handle
• Button on overhead console
The liftgate passive entry unlock feature is built into the
electronic liftgate release. With a valid Passive Entry key
fob within 5 ft (1.5 m) of the liftgate, push the electronic
liftgate release to open with one fluid motion. Push the
button on the key fob twice within five seconds to release
the liftgate.

GETTING TO KNOW YOUR VEHICLE

107

NOTE:

If “Unlock All Doors 1st Press” is programmed in

the instrument cluster display, all doors will unlock when
you push the electronic release on the liftgate. If

⬙Unlock

Driver Door 1st Press

⬙ is programmed in Uconnect, only

the liftgate will unlock when you push the electronic
release on the liftgate. Refer to “Uconnect Settings” in
“Multimedia” for further information.

NOTE:

Use the power door lock switch on either front

door trim panel or the key fob to lock and unlock the
liftgate. The manual door locks on the doors and the
driver’s door lock cylinder will not lock and unlock the
liftgate.

WARNING!

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your passen-
gers could be injured by these fumes. Keep the liftgate
closed when you are operating the vehicle.

Closing

To manually close the liftgate, grasp the liftgate closing
handle and initiate the lowering of the liftgate. Release the
handle when the liftgate is partially closed and the mo-
mentum will fully close the liftgate.

To Lock The Liftgate

With a valid Passive Entry key fob within 5 ft (1.5 m) of the
liftgate, pushing the Keyless Enter-N-Go — Passive Entry
lock button located to the left of the outside handle release
will lock the vehicle.

Passive Entry/Lock Button Location

1 — Electronic Liftgate Release

2 — Lock Button Location

108

GETTING TO KNOW YOUR VEHICLE

The power liftgate may be closed by pushing the button,
located in the upper left trim in the liftgate opening.
Pushing button will only close the liftgate. This button
cannot be used to open the liftgate.

NOTE:

The liftgate unlock feature is built into the elec-

tronic liftgate release.

Power Liftgate — If Equipped

The power liftgate may be opened by pushing
the electronic liftgate release (refer to “Keyless
Enter-N-Go — Passive Entry” located in “Get-
ting To Know Your Vehicle” for further informa-

tion), or by pushing the liftgate button on the key fob. Push
the liftgate button on the key fob twice within five seconds
to open the power liftgate. Once the liftgate is open,
pushing the button twice within five seconds a second time
will close the liftgate.

The power liftgate may also be opened or closed by
pushing the liftgate button located on the front overhead
console. If the liftgate is fully open, the liftgate can be
closed by pushing the liftgate button located on the left rear
trim panel, near the liftgate opening. If the liftgate is in
motion, pushing the liftgate button located on the left rear
trim panel will reverse the liftgate.

When the liftgate button on the key fob is pushed two
times, the turn signals will flash to signal that the liftgate is
opening or closing (if Flash Lamps with Lock is enabled in
the Uconnect settings), and the liftgate chime will be
audible. Refer to

⬙Uconnect Settings⬙ in ⬙Multimedia” for

further information.

NOTE:
• In the event of a power malfunction to the liftgate, an

emergency liftgate latch release can be used to open the
liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the liftgate
trim panel.

• If liftgate is left open for an extended period of time, the

liftgate may need to be closed manually to reset power
liftgate functionality.

WARNING!

During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.

GETTING TO KNOW YOUR VEHICLE

109

NOTE:
• The power liftgate will not operate in temperatures

below −22°F (−30°C) or temperatures above 150° F
(65° C). Be sure to remove any buildup of snow or ice
from the liftgate before pushing any of the power liftgate
switches.

• If anything obstructs the power liftgate while it is

closing or opening, the liftgate will automatically re-
verse to the closed or open position, provided it meets
sufficient resistance.

• There are also pinch sensors attached to the side of the

liftgate. Light pressure anywhere along these strips will
cause the liftgate to return to the open position.

• If the liftgate is not fully open, push the liftgate button

on the key fob twice to operate the liftgate.

• If the electronic liftgate release is pushed while the

power liftgate is closing, the liftgate will reverse to the
full open position.

• If the electronic liftgate release is pushed while the

power liftgate is opening, the liftgate motor will disen-
gage to allow manual operation.

• If the power liftgate encounters multiple obstructions

within the same cycle, the system will automatically
stop and the liftgate must be opened or closed manually.

WARNING!

• Driving with the liftgate open can allow poisonous

exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.

• If you are required to drive with the liftgate open,

make sure that all windows are closed, and the
climate control blower switch is set at high speed. Do
not use the recirculation mode.

110

GETTING TO KNOW YOUR VEHICLE

Cargo Area Features

Cargo Storage Bins

There are up to four removable storage bins located in the
rear cargo area. There are two storage bins located on either
side of the cargo area.

NOTE:

If your vehicle is equipped with a rear subwoofer,

the storage bin on that side will not be available.

Two additional storage bins are located under the load
floor. To access the lower storage bins, raise the load floor
and attach the tether strap (attached to the bottom of the
load floor) to the liftgate opening.

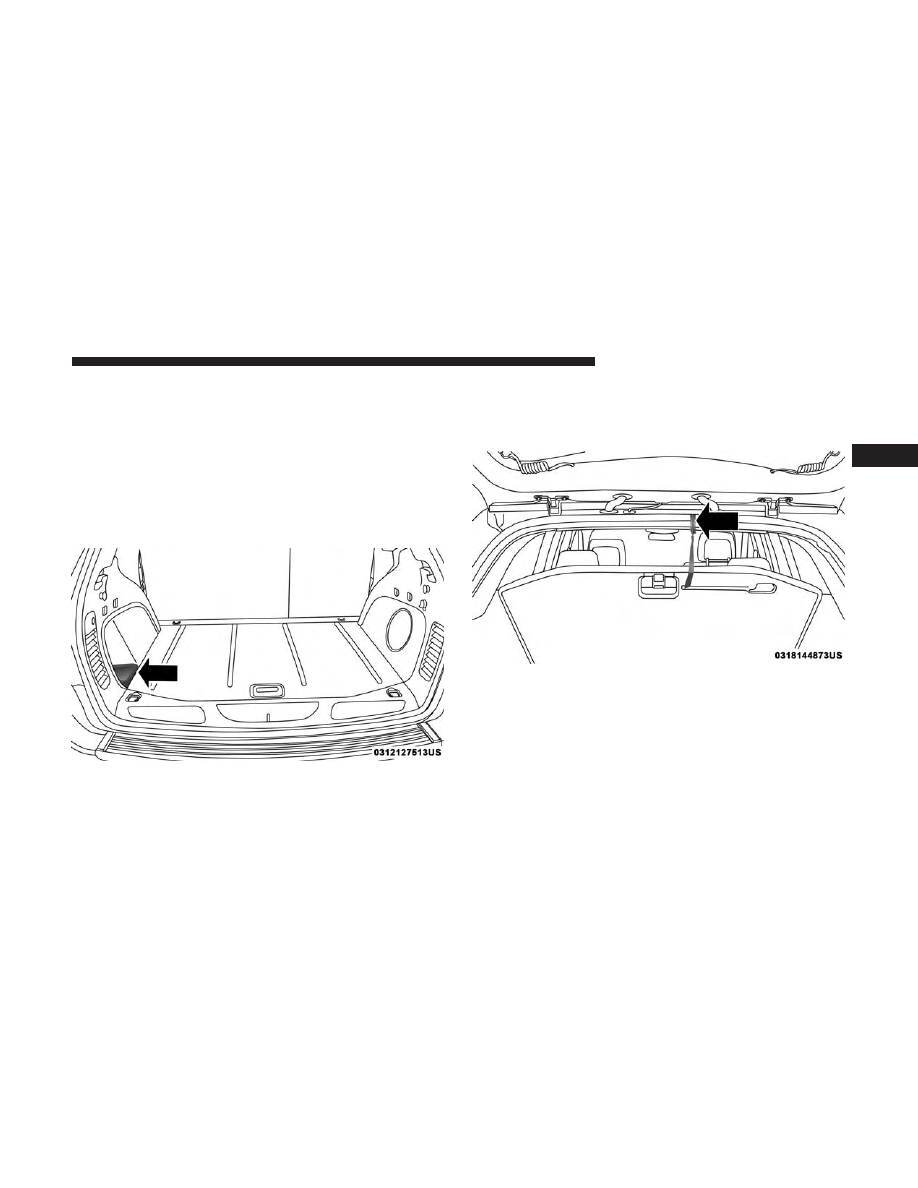

Rear Storage Bin

Tether Strap

GETTING TO KNOW YOUR VEHICLE

111

Retractable Cargo Area Cover — If Equipped

NOTE:

The purpose of this cover is for privacy, not to

secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.

To cover the cargo area:

1. Grasp the cover at the center handle. Pull it over the

cargo area.

2. Insert the pins on the ends of the cover into the slots in

the pillar trim cover.

3. The liftgate may be opened with the cargo cover in

place.

WARNING!

In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.

Rear Lower Storage Bins

Rear Cargo Cover

112

GETTING TO KNOW YOUR VEHICLE

Rear Cargo Tie-Downs

The rear cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle is
moving.

WARNING!

• To help protect against personal injury, passengers

should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.

• Cargo tie-down hooks are not safe anchors for a child

seat tether strap. In a sudden stop or accident, a hook
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your ve-
hicle:
• Do not carry loads which exceed the load limits

described on the label attached to the left door or left
door center pillar.

• Always place cargo evenly on the cargo floor. Put

heavier objects as low and as far forward as possible.

(Continued)

Rear Cargo Tie-Downs

GETTING TO KNOW YOUR VEHICLE

113

WARNING! (Continued)

• Place as much cargo as possible in front of the rear

axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.

• Do not pile luggage or cargo higher than the top of

the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or accident.

GARAGE DOOR OPENER — IF EQUIPPED

HomeLink replaces up to three hand-held transmitters that
operate devices such as garage door openers, motorized
gates, lighting or home security systems. The HomeLink
unit is powered by your vehicle’s 12 Volt battery.

The HomeLink buttons, located on the overhead console,
designate the three different HomeLink channels. The
HomeLink indicator is located above the center button.

NOTE:

HomeLink is disabled when the Vehicle Security

Alarm is active.

Before You Begin Programming HomeLink

Be sure that your vehicle is parked outside of the garage
before you begin programming.

For more efficient programming and accurate transmission
of the radio-frequency signal it is recommended that a new
battery be placed in the hand-held transmitter of the device
that is being programmed to the HomeLink system.

HomeLink Buttons/Overhead Console

114

GETTING TO KNOW YOUR VEHICLE

To erase the channels, place the ignition in the ON/RUN
position, and push and hold the two outside HomeLink
buttons (I and III) for up to 20 seconds or until the orange
indicator flashes.

NOTE:
• Erasing all channels should only be performed when

programming HomeLink for the first time. Do not erase
channels when programming additional buttons.

• If you have any problems, or require assistance, please

call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.

Programming A Rolling Code

For programming garage door openers that were manufac-
tured after 1995. These garage door openers can be identi-
fied by the “LEARN” or “TRAIN” button located where
the hanging antenna is attached to the garage door opener.

NOTE:

It is NOT the button that is normally used to open

and close the door. The name and color of the button may
vary by manufacturer.

1. Place the ignition in the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Push and hold the HomeLink button you want to

program while you push and hold the hand-held trans-
mitter button.

Training The Garage Door Opener

1 — Door Opener
2 — Training Button

GETTING TO KNOW YOUR VEHICLE

115

Jeep Grand Cherokee (2019 year). Instruction - part 7
