Jeep Grand Cherokee (2019 year). Instruction - part 5

Outside Automatic Dimming Mirrors — If Equipped

The outside mirrors will automatically adjust for glare
from vehicles behind you. This feature is controlled by the
inside automatic dimming mirror. The mirrors will auto-
matically adjust for headlight glare when the inside mirror
adjusts.

Power Mirrors

The power mirror switch is located on the driver’s side
door trim panel.

The power mirror controls consist of mirror select buttons
and a four-way mirror control switch. To adjust a mirror,
push the mirror select button for the mirror that you want
to adjust. Using the mirror control switch, push on any of
the four arrows for the direction that you want the mirror
to move.

Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in “Getting To Know Your Vehicle” for
further information.

Power Folding Outside Mirrors — If Equipped

If equipped with power folding mirrors, they can be
electrically folded rearward and unfolded into the drive
position.

Power Mirror Switch

1 — Mirror Direction Control
2 — Mirror Selection

GETTING TO KNOW YOUR VEHICLE

The switch for the power folding mirrors is located be-
tween the power mirror switches L (left) and R (right).
Push the switch once and the mirrors will fold in, push the
switch a second time and the mirrors will return to the
normal driving position.

If the mirror is manually folded after electrically cycled, a
potential extra button push is required to get the mirrors
back to the home position. If the mirror does not electri-
cally fold, check for ice or dirt build up at the pivot area
which can cause excessive drag.

Automatic Power Folding Mirrors

When the Automatic Fold Mirrors feature is enabled, the
exterior mirrors will fold in when exiting the vehicle (the
ignition is OFF, all doors are closed, and the doors are
locked).
• If the exterior mirrors were auto-folded, they will unfold

when the ignition is turned ON.

• If the exterior mirrors were manually folded, they will

not automatically unfold.

NOTE:

The Automatic Fold/Unfold Mirrors feature is not

turned on when delivered from the factory. The Automatic
Fold/Unfold Mirrors feature can be turned on and off
using the Uconnect System. Refer to “Uconnect Settings” in
“Multimedia” for further information.

Resetting The Power Folding Outside Mirrors

You may need to reset the power folding mirrors if the
following occurs:
• The mirrors are accidentally blocked while folding.
• The mirrors are accidentally manually folded/unfolded.
• The mirrors come out of the unfolded position.
• The mirrors shake and vibrate at normal driving speeds.

Power Folding Mirror Switch

GETTING TO KNOW YOUR VEHICLE

To reset the power folding mirrors: Fold and unfold them
by pushing the button (this may require multiple button
pushes). This resets them to their normal position.

Heated Mirrors — If Equipped

These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the

rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.

Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped

Tilt Side Mirrors In Reverse provides automatic outside
mirror positioning which will aid the driver’s view of the
ground rearward of the front doors. Outside mirrors will
move slightly downward from the present position when
the vehicle is shifted into REVERSE. Outside mirrors will
then return to the original position when the vehicle is
shifted out of REVERSE position. Each stored memory seat
setting will have an associated Tilt Side Mirrors In Reverse
position.

NOTE:

The Tilt Side Mirrors In Reverse feature is not

turned on when delivered from the factory. The Tilt Side
Mirrors In Reverse feature can be turned on and off using
the Uconnect System. Refer to “Uconnect Settings” in
“Multimedia” for further information.

Illuminated Vanity Mirrors

To access an illuminated vanity mirror, flip down one of the
visors.

Lift the cover to reveal the mirror. The light will turn on
automatically.

Illuminated Vanity Mirror

GETTING TO KNOW YOUR VEHICLE

Sun Visor “Slide-On-Rod” Feature — If Equipped

The sun visor “Slide-On-Rod” feature allows for additional
flexibility in positioning the sun visor to block out the sun.

1. Fold down the sun visor.

2. Unclip the visor from the center clip.

3. Pivot the sun visor toward the side window.

4. Extend the sun visor blade for additional sun blockage.

NOTE:

The sun visor blade can also be extended while the

sun visor is against the windshield for additional sun
blockage through the front of the vehicle.

EXTERIOR LIGHTS

Headlight Switch

The headlight switch is located on the left side of the
instrument panel, next to the steering wheel. The headlight
switch controls the operation of the headlights, parking
lights, instrument panel lights, cargo lights, and fog lights
(if equipped).

To turn on the headlights, rotate the headlight switch
clockwise. When the headlight switch is on, the parking
lights, taillights, license plate light and instrument panel
lights are also turned on. To turn off the headlights, rotate
the headlight switch back to the O (off) position.

Headlight Switch

GETTING TO KNOW YOUR VEHICLE

NOTE:
• Your vehicle is equipped with plastic headlight and fog

light (if equipped) lenses that are lighter and less sus-
ceptible to stone breakage than glass lights. Plastic is not
as scratch resistant as glass and therefore different lens
cleaning procedures must be followed.

• To minimize the possibility of scratching the lenses and

reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution
followed by rinsing.

CAUTION!

Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.

Multifunction Lever

The multifunction lever is located on the left side of the
steering column.

Daytime Running Lights — If Equipped

The Daytime Running Lights (low intensity) come on
whenever the engine is running, and the transmission is
not in the PARK position. The lights will remain on until
the ignition is switched to the OFF or ACC position or the
parking brake is engaged.

NOTE:
• If a turn signal is activated, the DRL lamp on the same

side of the vehicle will turn off for the duration of the
turn signal activation. Once the turn signal is no longer
active, the DRL lamp will illuminate.

Multifunction Lever

GETTING TO KNOW YOUR VEHICLE

• The DRL function may be disabled through the

Uconnect system. Refer to “Uconnect Settings” in “Mul-
timedia” for further information.

The headlight switch must be used for normal nighttime
driving.

High/Low Beam Switch

Push the multifunction lever toward the instrument panel
to switch the headlights to high beams. Pulling the multi-
function back toward the steering wheel will turn the low
beams back on, or shut the high beams off.

Automatic High Beam — If Equipped

The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera de-
tects vehicle specific light and automatically switches from
high beams to low beams until the approaching vehicle is
out of view.

NOTE:
• The Automatic High Beam Headlamp Control can be

turned on or off by selecting “ON” under “Auto High
Beam” within your Uconnect settings, as well as turning
the headlight switch to the AUTO position. Refer to
“Uconnect Settings” in “Multimedia” for further infor-
mation.

• Broken, muddy, or obstructed headlights and taillights

of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera lens
will cause the system to function improperly.

If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed to
ensure proper performance. See a local authorized dealer.

Flash-To-Pass

You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the high beam headlights to turn on, and remain
on, until the lever is released.

GETTING TO KNOW YOUR VEHICLE

Automatic Headlights — If Equipped

This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch to the A (auto) position.

When the system is on, the Headlight Delay feature is also
on. This means the headlights will stay on for up to 90
seconds after you turn the ignition switch to the OFF
position. To turn the automatic headlights off, turn the
headlight switch out of the A (auto) position.

NOTE:

The engine must be running before the headlights

will turn on in the Automatic Mode.

Parking Lights And Panel Lights

To turn on the parking lights and instrument panel lights,
rotate the headlight switch clockwise. To turn off the
parking lights, rotate the headlight switch back to the O
(off) position.

Headlights On Automatically With Wipers

If your vehicle is equipped with Automatic Headlights, it
also has this customer-programmable feature. When your
headlights are in the automatic mode and the engine is
running, they will automatically turn on when the wiper

system is on. This feature is programmable through the
Uconnect system screen. Refer to “Uconnect Settings” in
“Multimedia” for further information.

If your vehicle is equipped with a “Rain Sensitive Wiper
System” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn off
approximately four minutes after the wipers completely
stop.

Refer to “Windshield Wipers And Washers” in “Getting To
Know Your Vehicle” for further information.

NOTE:

When your headlights come on during the day-

time, the instrument panel lights will automatically dim to
the lower nighttime intensity.

Headlight Delay

To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for
approximately up to 90 seconds. This delay is initiated
when the ignition is turned OFF while the headlight switch
is on, and then the headlight switch is cycled off. Headlight
delay can be cancelled by either turning the headlight
switch on then off, or by turning the ignition ON.

GETTING TO KNOW YOUR VEHICLE

NOTE:
• This feature can be programmed through the Uconnect

system. Refer to “Uconnect Settings” in “Multimedia”
for further information.

• The headlight delay feature is automatically activated if

the headlight switch is left in the A (auto) position when
the ignition is placed in the OFF position.

Lights-On Reminder

If the headlights, parking lights, or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver’s door is opened.

Fog Lights — If Equipped

The fog lights are turned on by rotating the headlight
switch to the parking light or headlight position and
pushing in the headlight rotary control.

The fog lights will operate only when the parking lights are
on or when the vehicle headlights are on low beam. An
indicator light located in the instrument cluster will illu-
minate when the fog lights are on. The fog lights will turn
off when the switch is pushed a second time, when the
headlight switch is rotated to the off position, or the high
beam is selected.

Fog Light Operation

GETTING TO KNOW YOUR VEHICLE

Turn Signals

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show proper
operation of the front and rear turn signal lights.

NOTE:

If either light remains on and does not flash, or

there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is defec-
tive.

Lane Change Assist — If Equipped

Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn off.

Battery Saver

To protect the life of your vehicle’s battery, load shedding
is provided for both the interior and exterior lights.

If the ignition is OFF and any door is left ajar for 10 minutes
or the dimmer control is rotated all the way up to the dome
on position for 10 minutes, the interior lights will automati-
cally turn off.

NOTE:

Battery saver mode is canceled if the ignition is

ON.

If the headlights remain on while the ignition is cycled OFF,
the exterior lights will automatically turn off after eight
minutes. If the headlights are turned on and left on for
eight minutes while the ignition is OFF, the exterior lights
will automatically turn off.

INTERIOR LIGHTS

Courtesy and dome lights are turned on when the front
doors are opened or when the dimmer control (rotating
wheel on the right side of the headlight switch) is rotated
to its farthest upward position. If your vehicle is equipped
with remote keyless entry and the unlock button is pushed
on the key fob, the courtesy and dome lights will turn on.
When a door is open and the interior lights are on, rotating
the dimmer control all the way down, to the last (off)
detent, will cause all the interior lights to go out. This is
also known as the “Party” mode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.

GETTING TO KNOW YOUR VEHICLE

Courtesy Lights

The courtesy lights can be turned on by pushing the top
corner of the lens. To turn the lights off, push the lens a
second time.

Front Map/Reading Lights — If Equipped

The front map/reading lights are mounted in the overhead
console.

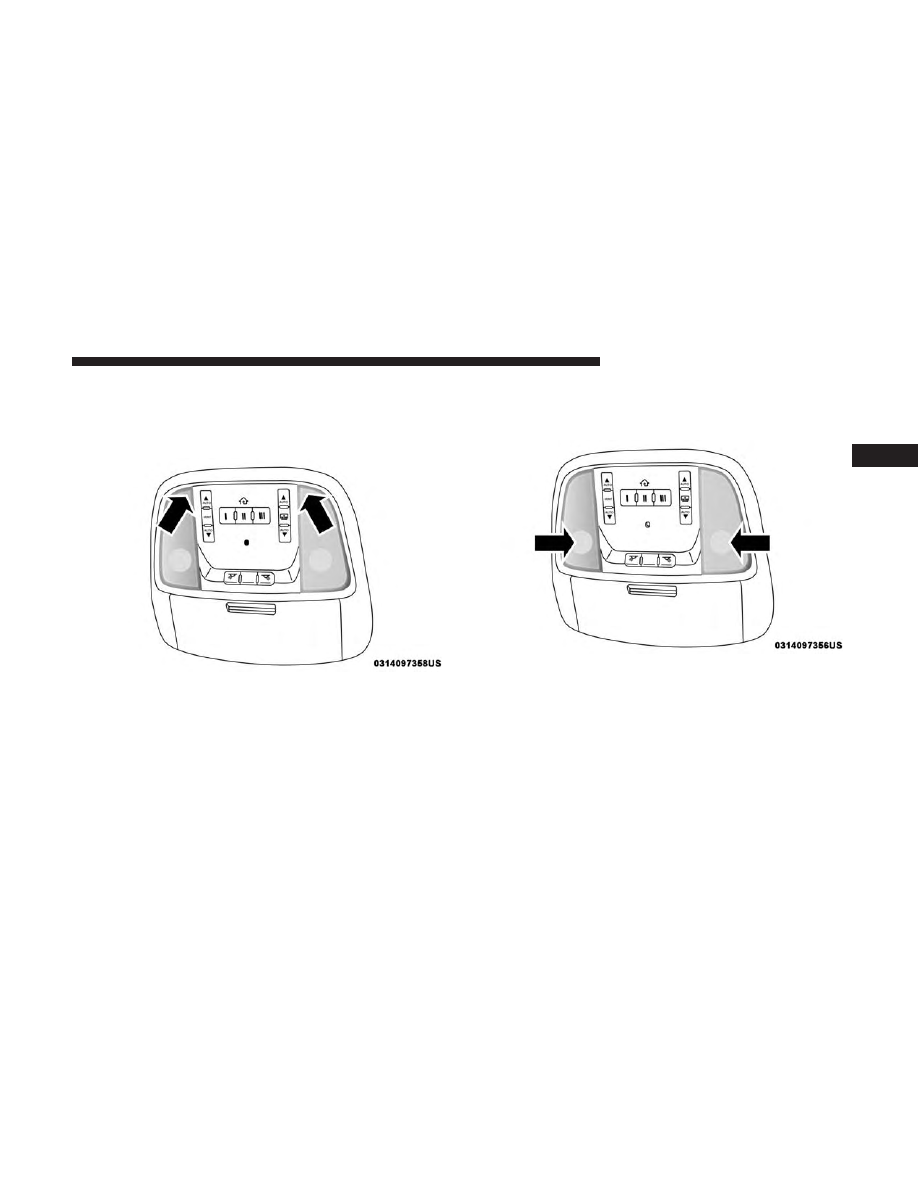

Courtesy Lights

Front Map/Reading Lights

GETTING TO KNOW YOUR VEHICLE

Each light can be turned on by pushing a switch on either
side of the console. These buttons are backlit for night time
visibility. To turn the lights off, push the switch a second
time. The lights will also turn on when the unlock button
on the remote keyless entry key fob is pushed.

Ambient Light — If Equipped

The overhead console is equipped with an ambient light
feature. This light casts illumination for improved visibility
of the floor and center console area.

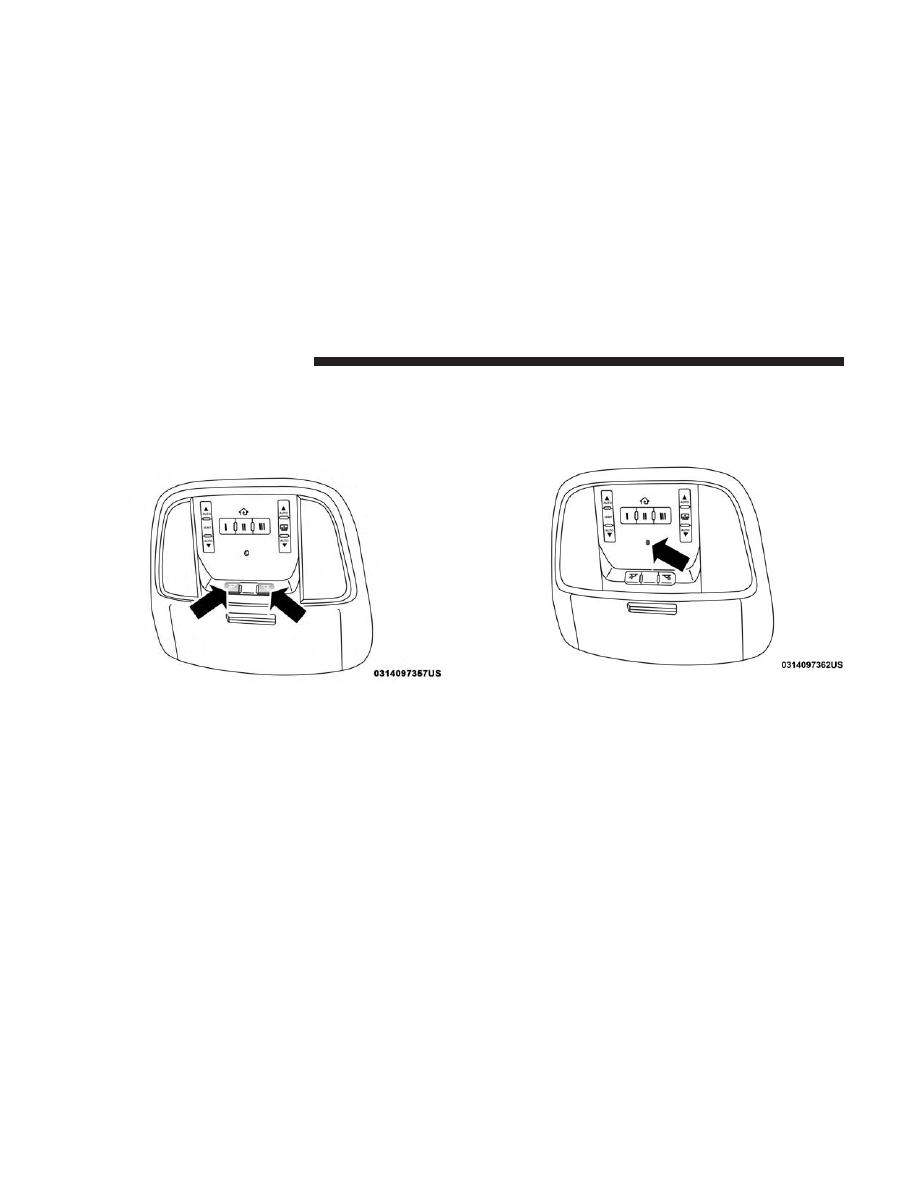

Front Map/Reading Light Switches

Ambient Light

GETTING TO KNOW YOUR VEHICLE

Dimmer Controls

The brightness of the instrument panel lighting can be
regulated by rotating the dimmer control up (brighter) or
down (dimmer). When the headlights are on you can
supplement the brightness of the instrument cluster dis-
play, radio and overhead console by rotating the control to
its farthest position up until you hear a click. This feature
is termed the “Parade” mode and is useful when head-
lights are required during the day.

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer controls are located on the
multifunction lever on the left side of the steering column.
The front wipers are operated by rotating a switch, located
on the end of the lever. For information on the rear
wiper/washer, refer to “Rear Window Wiper/Washer” in
this section.

Dimmer Control

Multifunction Lever

GETTING TO KNOW YOUR VEHICLE

Windshield Wiper Operation

Rotate the end of the lever to one of the first four detent
positions for intermittent settings, the fifth detent for low
wiper operation and the sixth detent for high wiper
operation.

CAUTION!

Always remove any buildup of snow that prevents the
windshield wiper blades from returning to the “park”
position. If the windshield wiper switch is turned off,
and the blades cannot return to the “park” position,
damage to the wiper motor may occur.

Intermittent Wiper System

Use one of the four intermittent wiper settings when
weather conditions make a single wiping cycle, with a
variable delay between cycles, desirable. At driving speeds
above 10 mph (16 km/h), the delay can be regulated from
a maximum of approximately 18 seconds between cycles
(first detent), to a cycle every one second (fourth detent).

Windshield Wiper Operation

GETTING TO KNOW YOUR VEHICLE

NOTE:

If the vehicle is moving less than 10 mph

(16 km/h), delay times will be doubled.

Windshield Washer Operation

To use the washer, push on the end of the lever (toward the
steering wheel) and hold while spray is desired. If the lever
is pushed while in the intermittent setting, the wipers will
turn on and operate for several wipe cycles after the end of
the lever is released, and then resume the intermittent
interval previously selected.

If the end of the lever is pushed while the wipers are in the
off position, the wipers will operate for several wipe cycles,
then turn off.

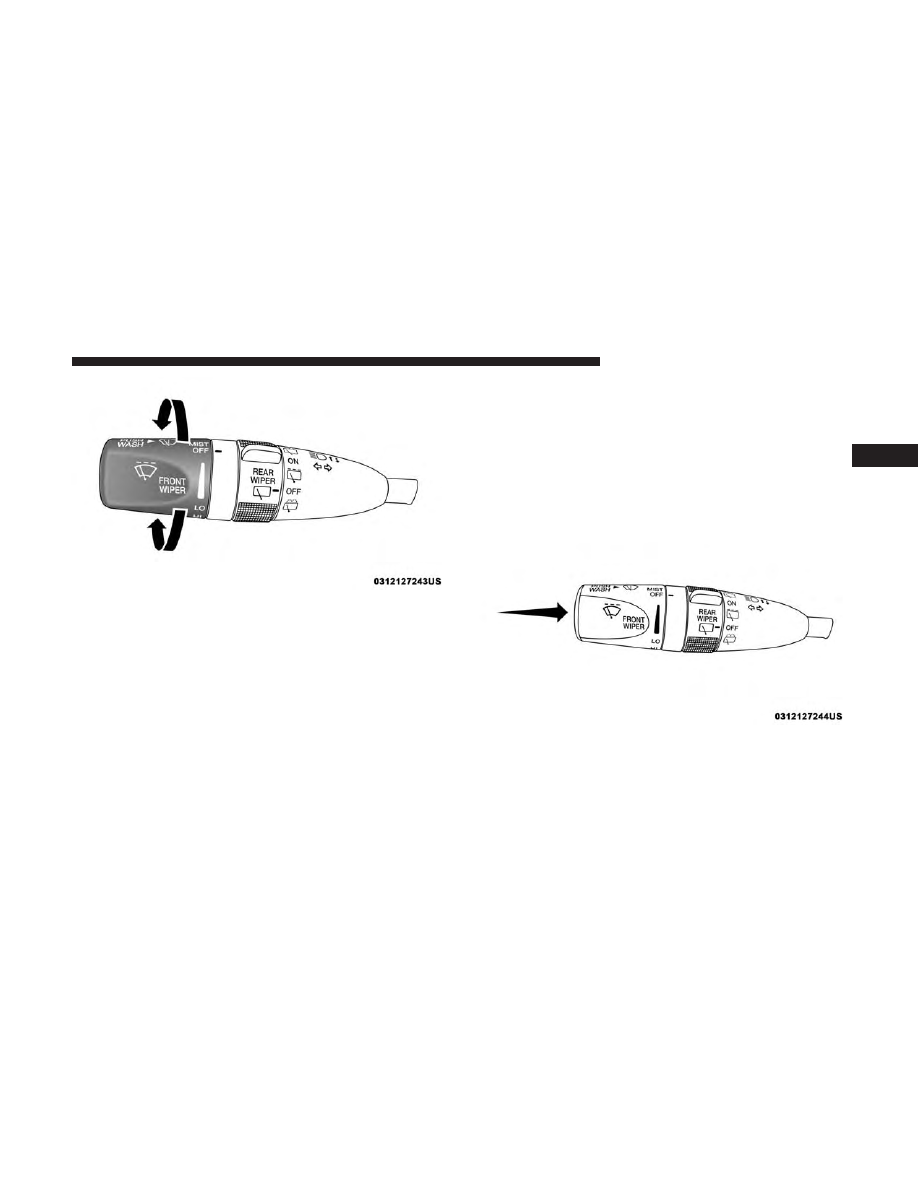

Intermittent Wiper Operation

Windshield Washer Operation

GETTING TO KNOW YOUR VEHICLE

NOTE:

As a protective measure, the pump will stop if the

switch is held for more than 20 seconds. Once the switch is
released the pump will resume normal operation.

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Mist

Use the Mist feature when weather conditions make occa-
sional usage of the wipers necessary. Rotate the end of the
lever downward to the MIST position and release for a
single wiping cycle.

NOTE:

The Mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.

Rain Sensing Wipers — If Equipped

This feature senses rain or snowfall on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of four settings to
activate this feature.

The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position one is the least
sensitive, and wiper delay position four is the most sensi-
tive.

NOTE:

Wiper delay position three should be used for

normal rain conditions.

Settings one and two can be used if the driver desires less
wiper sensitivity. Setting four can be used if the driver
desires more sensitivity. Place the wiper switch in the OFF
position when not using the system.

NOTE:
• The Rain Sensing feature will not operate when the

wiper switch is in the low or high-speed position.

GETTING TO KNOW YOUR VEHICLE

• The Rain Sensing feature may not function properly

when ice, or dried salt water is present on the wind-
shield.

• Use of Rain-X or products containing wax or silicone

may reduce Rain Sensing performance.

• The Rain Sensing feature can be turned on and off using

the Uconnect System, refer to “Uconnect Settings” in
“Multimedia” for further information.

The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
• Low Ambient Temperature — When the ignition is first

turned ON, the Rain Sensing system will not operate
until the wiper switch is moved, vehicle speed is greater
than 3 mph (5 km/h), or the outside temperature is
greater than 32°F (0°C).

• Transmission In NEUTRAL Position — When the igni-

tion is ON, and the automatic transmission is in the
NEUTRAL position, the Rain Sensing system will not
operate until the wiper switch is moved, vehicle speed is
greater than 3 mph (5 km/h), or the gear selector is
moved out of the NEUTRAL position.

Remote Start Mode Inhibit

— On vehicles equipped with

Remote Starting system, Rain Sensing wipers are not
operational when the vehicle is in the remote start mode.
Once the operator is in the vehicle and has placed the
ignition switch in the RUN position, rain sensing wiper
operation can resume, if it has been selected, and no other
inhibit conditions (mentioned previously) exist.

GETTING TO KNOW YOUR VEHICLE

Content .. 3 4 5 6 ..
