Jeep Cherokee (2019 year). Instruction - part 8

3. Press and hold the HomeLink button you want to

program while you press and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. Press and hold the programmed HomeLink button and

observe the indicator light.

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pressed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Reprogramming A Single HomeLink Button (Non-
Rolling Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Press and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Program-

ming A Non-Rolling Code” step 2 and follow all remain-
ing steps.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.

Canadian radio frequency laws require transmitter signals
to time-out (or quit) after several seconds of transmission –
which may not be long enough for HomeLink to pick up
the signal during programming. Similar to this Canadian
law, some U.S. gate operators are designed to time-out in
the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage door
or gate motor.

1. Cycle the ignition to the ON/RUN position.

116

GETTING TO KNOW YOUR VEHICLE

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Continue to press and hold the HomeLink button, while

you press and release (“cycle”) your hand-held trans-
mitter every two seconds until HomeLink has success-
fully accepted the frequency signal. The indicator light
will flash slowly and then rapidly when fully trained.

4. Watch for the HomeLink indicator to change flash rates.

When it changes, it is programmed. It may take up to 30
seconds or longer in rare cases. The garage door may
open and close while you are programming.

5. Press and hold the programmed HomeLink button and

observe the indicator light.

NOTE:

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pressed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink Button (Canadian/
Gate Operator)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Press and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Canadian/

Gate Operator Programming” step 2 and follow all
remaining steps.

Using HomeLink

To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e. garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.). The
hand-held transmitter of the device may also be used at
any time.

GETTING TO KNOW YOUR VEHICLE

117

Security

It is advised to erase all channels before you sell or turn in
your vehicle.

To do this, push and hold the two outside buttons for 20
seconds until the orange indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.

The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-

held transmitter.

• Push the LEARN button on the Garage Door Opener to

complete the training for a Rolling Code.

• Did you unplug the device for programming and re-

member to plug it back in?

If you have any problems, or require assistance, please call
toll-free

1-800-355-3515

or,

the

Internet

HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a danger-

ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com for safety information or assis-
tance.

118

GETTING TO KNOW YOUR VEHICLE

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

INTERNAL EQUIPMENT

Storage

Glove Compartment

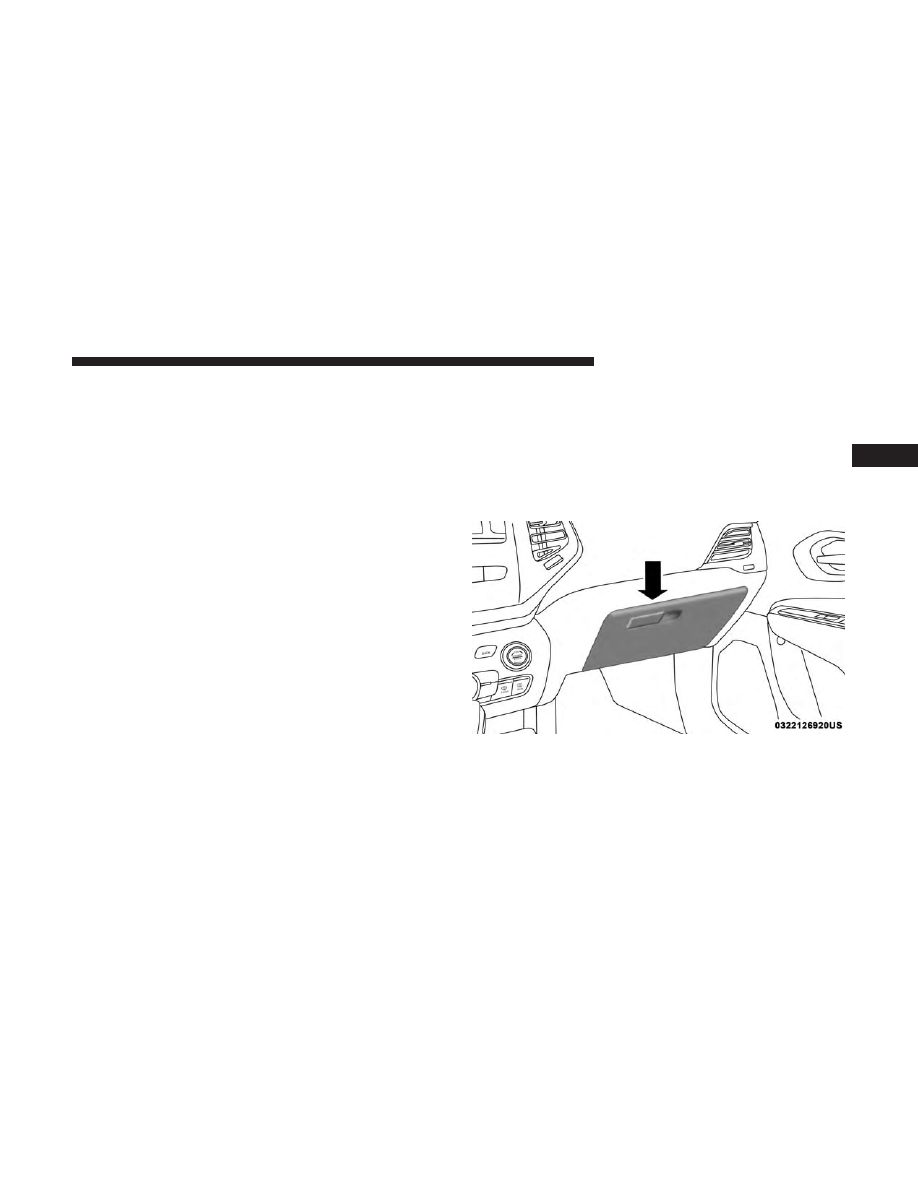

The glove compartment is located on the passenger side of
the instrument panel.

To open the glove compartment, pull the release handle.

There is also an additional storage bin located above the
instrument panel in the center of the dash.

Glove Compartment

GETTING TO KNOW YOUR VEHICLE

119

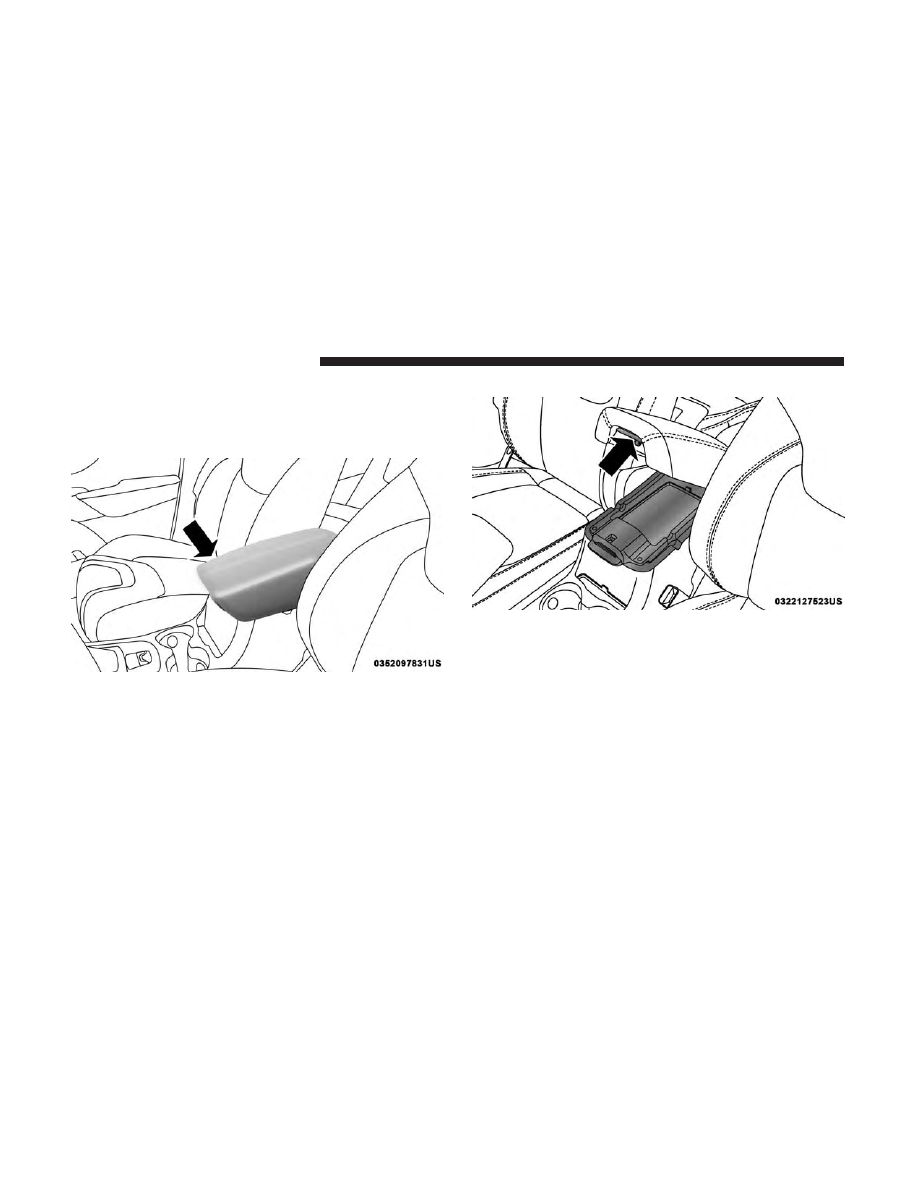

Console Storage Compartment

The center console has both an upper and lower storage
area which can hold cell phones, PDAs, and other small
items.

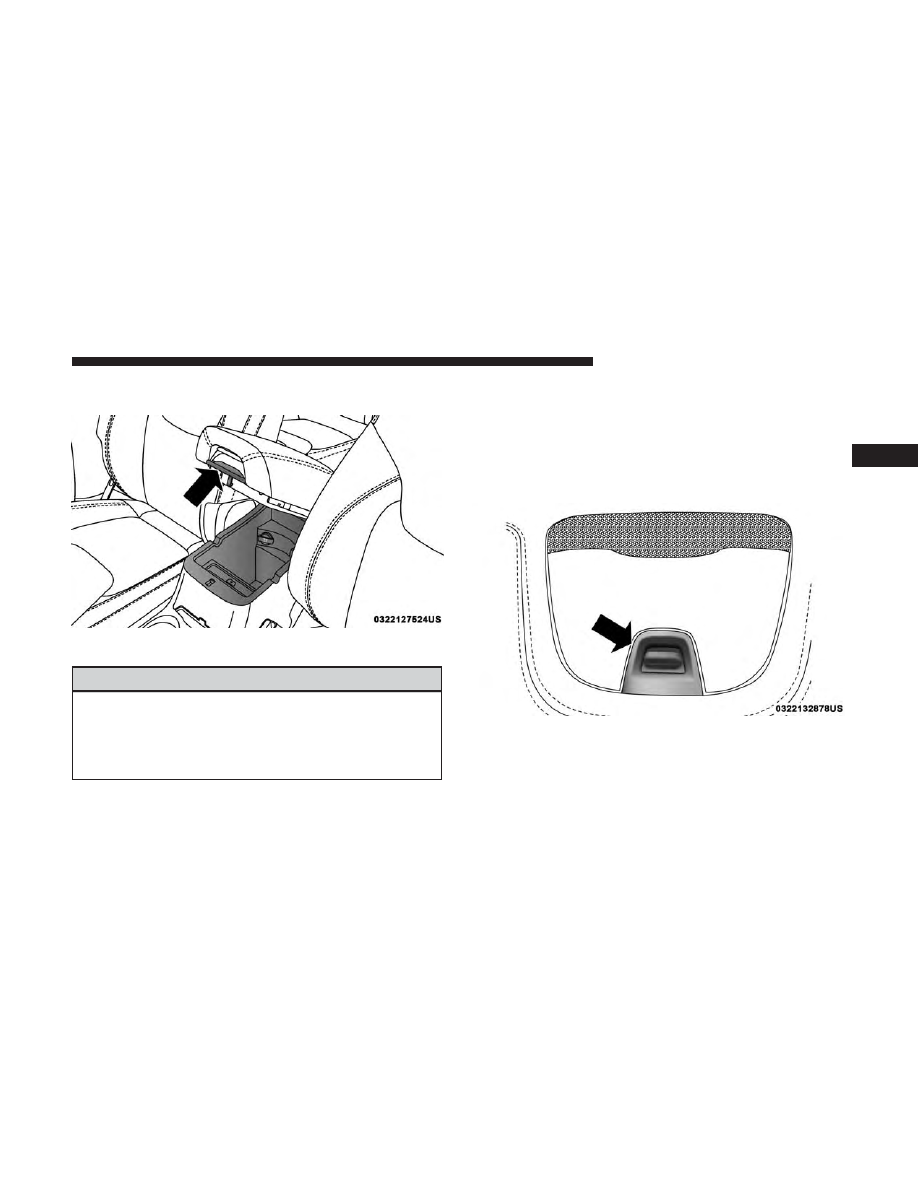

To access the upper storage compartment, lift the top latch.

Center Console

Upper Storage Compartment Latch

120

GETTING TO KNOW YOUR VEHICLE

To access the lower storage compartment, lift the bottom
latch.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a colli-
sion.

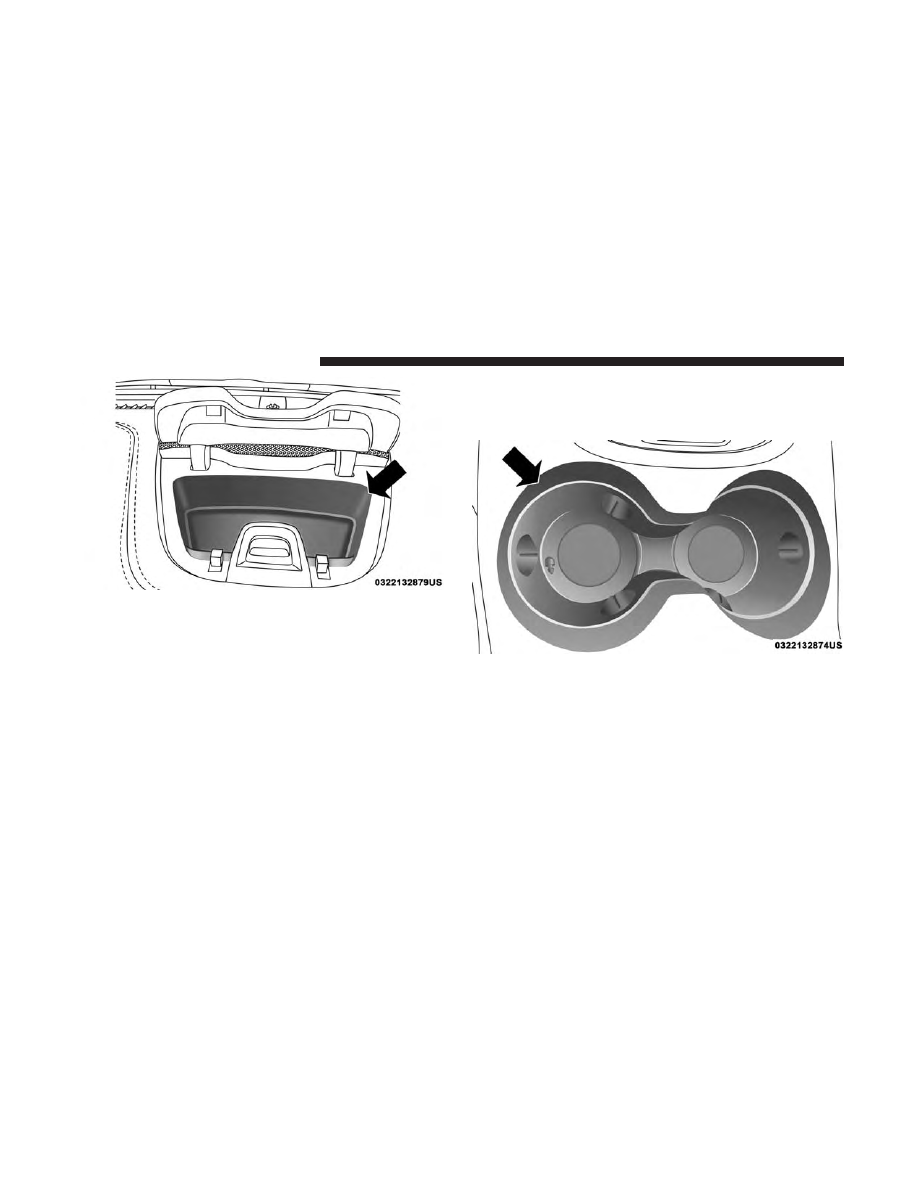

Instrument Panel Cubby

Your vehicle may be equipped with an instrument panel
cubby. The cubby is located on the top of the instrument
panel, above the radio.

To open the instrument panel cubby, pull the latch toward
you and the cubby door will pop open.

Lower Storage Compartment Latch

Instrument Panel Cubby Latch

GETTING TO KNOW YOUR VEHICLE

121

To close the instrument panel cubby, push down on the
door until it latches.

Cupholders

There are two cupholders for the front seat passengers,
located in the center console.

Instrument Panel Cubby Opened

Front Cupholders

122

GETTING TO KNOW YOUR VEHICLE

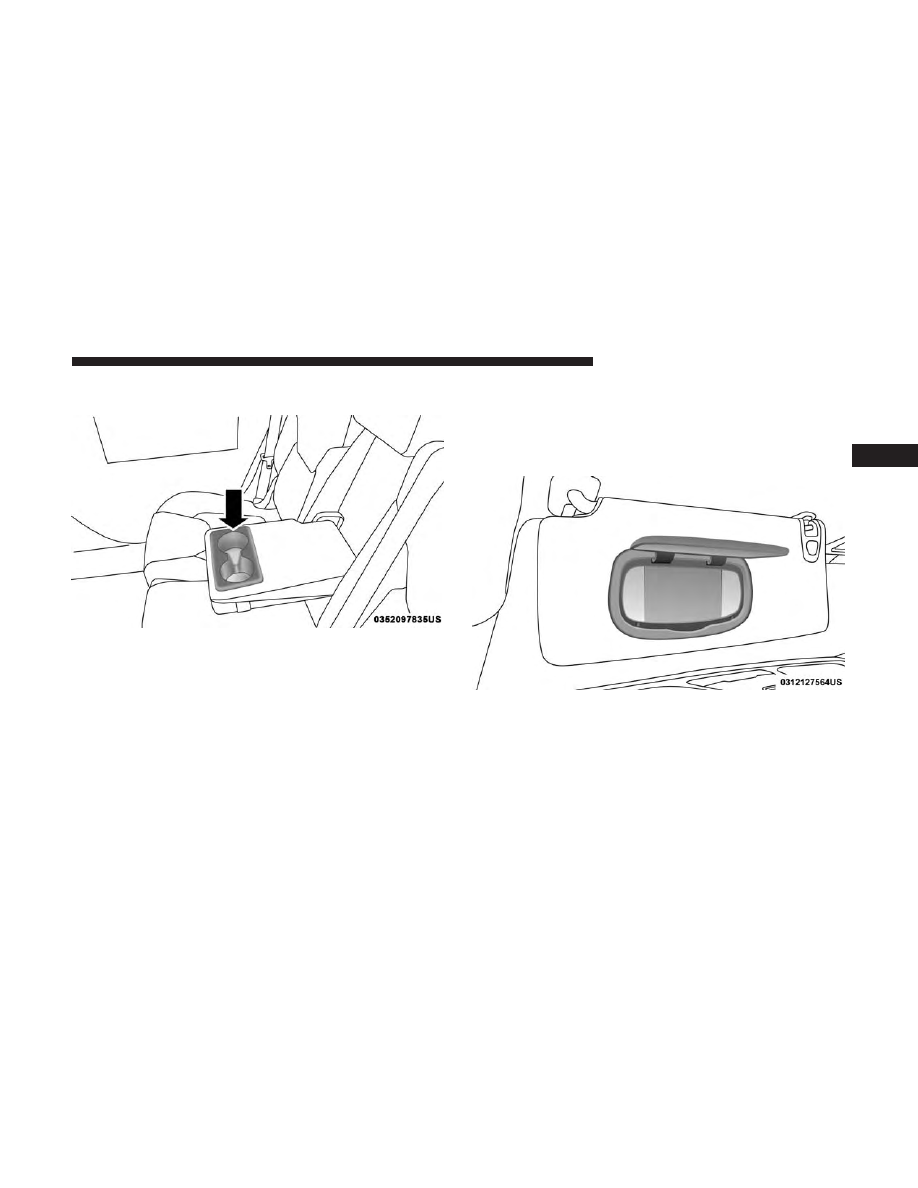

There are two cupholders for the rear seat passengers,
located in the center armrest.

Sun Visors

An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the mirror
cover upward. The lights will turn on automatically. Clos-
ing the mirror cover will turn off the light.

Rear Cupholders

Illuminated Vanity Mirror

GETTING TO KNOW YOUR VEHICLE

123

Power Outlets

Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” are powered when the
ignition switch is in the ON or ACC position, while the
outlets labeled with a “battery” are connected directly to
the battery and powered at all times.

NOTE:
• All accessories connected to the “battery” powered

outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.

CAUTION!

Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse. Im-
proper use of the power outlet can cause damage not
covered by your New Vehicle Limited Warranty.

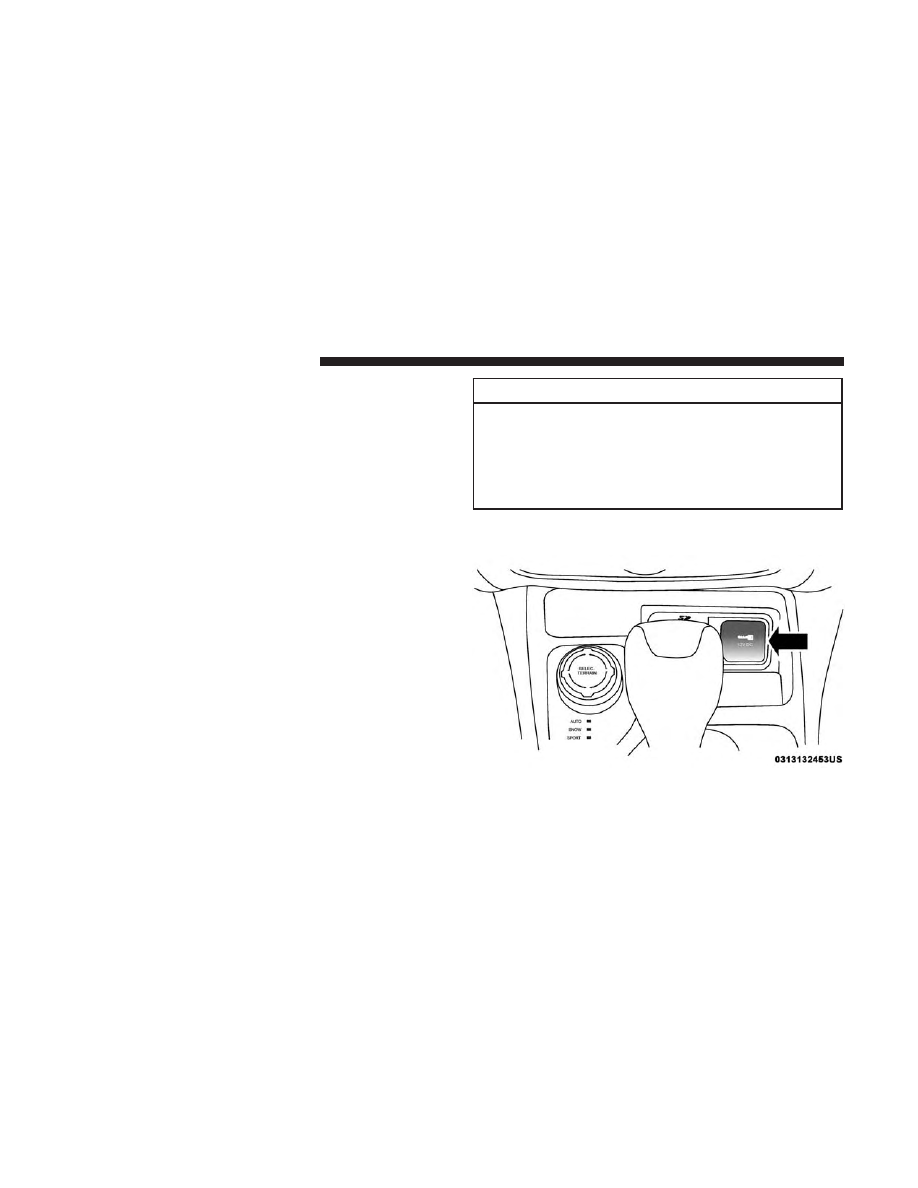

The front power outlet is located inside the storage area in
front of the shifter.

Front Power Outlet

124

GETTING TO KNOW YOUR VEHICLE

In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.

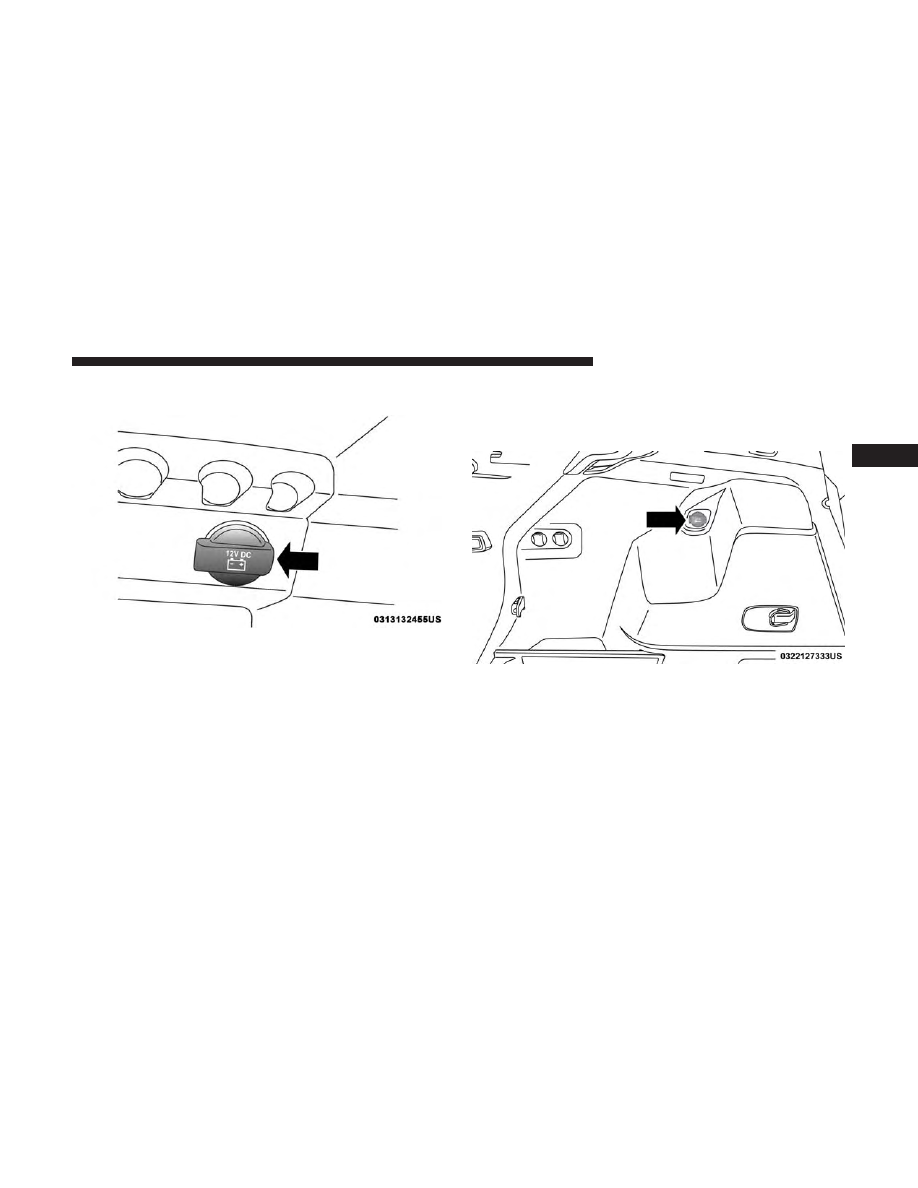

A third fused 12 Volt power outlet is located on the left
quarter trim panel in the cargo area. This power outlet has
power available when the ignition switch is in the ON or
ACC position.

Center Console Power Outlet

Rear Power Outlet

GETTING TO KNOW YOUR VEHICLE

125

NOTE:

The rear cargo power outlet can be changed to

“battery” powered all the time by switching the power
outlet Power Distribution Center panel fuse from fuse
location F91 to F81.

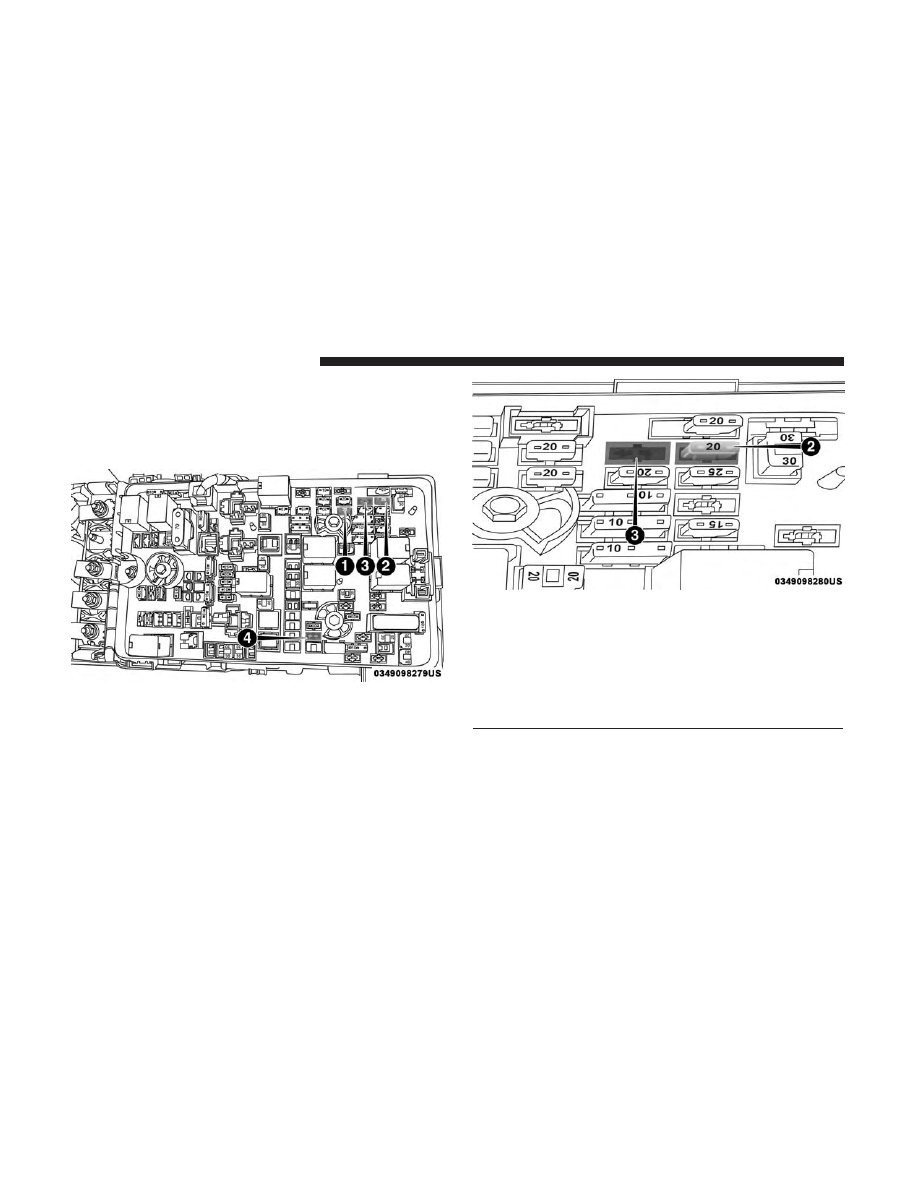

Power Outlet Fuse Locations

Rear Cargo Power Outlet Fuse Locations

1 — F75 Fuse 20A Yellow Front Power Outlet/Cigar Lighter Con-
sole Bin
2 — F91 Fuse 20A Yellow Rear Power Outlet (powered when the
ignition switch is in the ON or ACC position)
3 — F81 Fuse 20A Yellow Rear Power Outlet (battery powered at all
times)
4 — F60 Fuse 20A Yellow Power Outlet Center Console

126

GETTING TO KNOW YOUR VEHICLE

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

(Continued)

CAUTION! (Continued)

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

Power Inverter — If Equipped

There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC

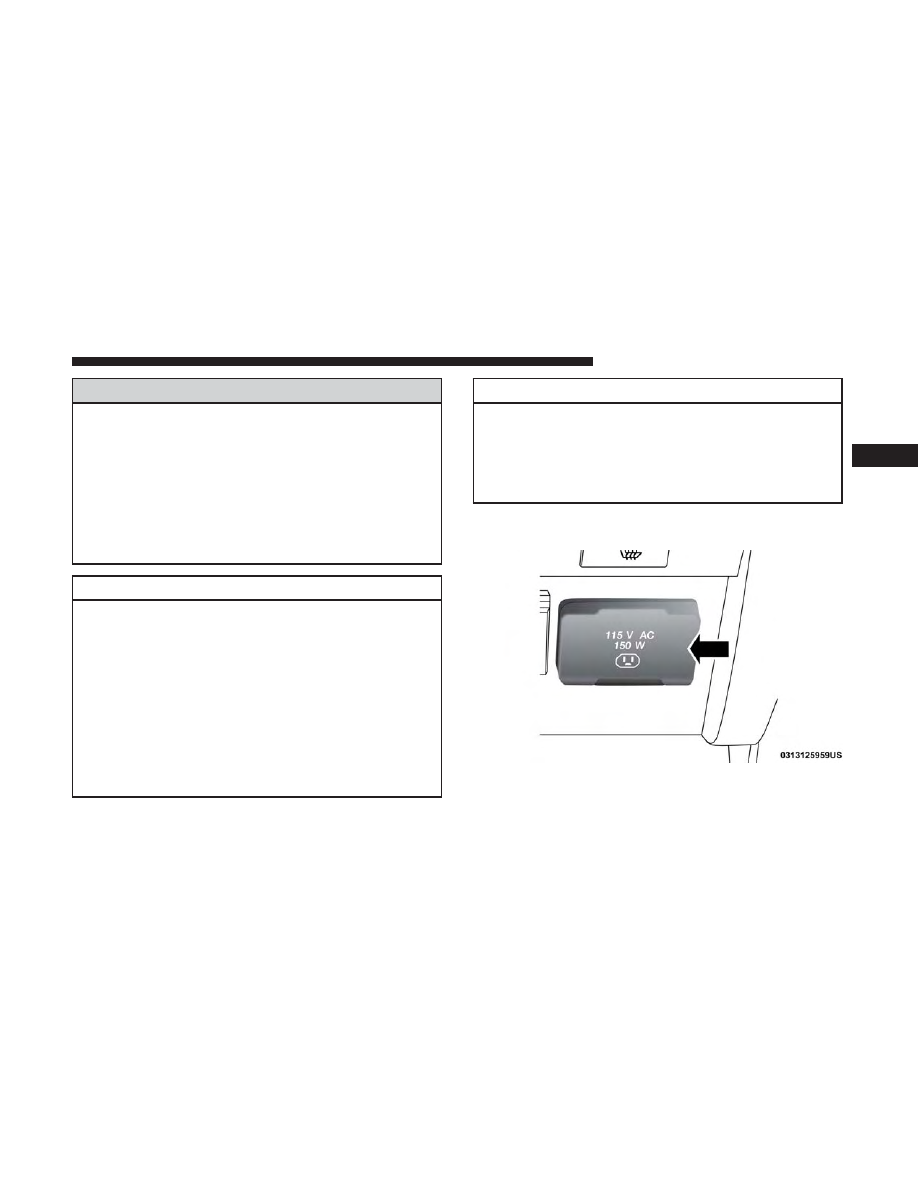

Rear Center Console Power Inverter

GETTING TO KNOW YOUR VEHICLE

127

current. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end game consoles exceed this power
limit, as will most power tools.

To turn on the power inverter outlet, simply plug in the
device. The outlet automatically turns off when the device
is unplugged.

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
power inverter automatically shuts down. Once the elec-
trical device has been removed from the outlet the inverter
should automatically reset. To avoid overloading the cir-
cuit, check the power ratings on electrical devices prior to
using the inverter.

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

ROOF LUGGAGE RACK — IF EQUIPPED

The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it should
be uniformly distributed over the cargo area.

Crossbars should always be used whenever cargo is placed
on the roof rack. Check the straps frequently to be sure that
the load remains securely attached.

NOTE:

Crossbars can be purchased at your authorized

dealer through Mopar parts.

External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant and
luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the maximum vehicle load
capacity.

128

GETTING TO KNOW YOUR VEHICLE

WARNING!

Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.

CAUTION!

• To avoid damage to the roof rack and vehicle, do not

exceed the maximum roof rack load capacity. Always
distribute heavy loads as evenly as possible and
secure the load appropriately.

• Long loads, which extend over the windshield, such

as wood panels or surfboards, should be secured to
both the front and rear of the vehicle.

• Place a blanket or other protection between the

surface of the roof and the load.

(Continued)

CAUTION! (Continued)

• Travel at reduced speeds and turn corners carefully

when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward loads. This is espe-
cially true on large flat loads and may result in
damage to the cargo or your vehicle.

• Load should always be secured to cross bars first,

with tie down loops used as additional securing
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps
frequently to be sure that the load remains securely
attached.

GETTING TO KNOW YOUR VEHICLE

129

GETTING TO KNOW YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . .132

▫ Instrument Cluster Descriptions. . . . . . . . . . . . .133

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . . .134

▫ Instrument Cluster Display Location And

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

▫ Oil Change Reset — If Equipped . . . . . . . . . . .137
▫ Instrument Cluster Display Menu Items . . . . . .138
▫ Battery Saver On/Battery Saver Mode Message —

Electrical Load Reduction Actions —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . .143

䡵 WARNING LIGHTS AND MESSAGES . . . . . . . . .145
